Sure heat manufacturing Rp 18-n User manual

Installation and Operating Instructions for

NATURAL & L.P. GAS

A.G.A. SINGLE & DUAL BURNER

VENTED UNITS

WARNING: It is very important to read the instructions in this manual before starting installation.

- Do not attempt to modify or alter the construction of the fireplace or its components. Any modification

or alteration of construction may void the warranty of these units.

WARNING: Solid fuel shall not be burned in a fireplace where a decorative gas appliance is installed.

WARNING: Improper installation, adjustment, service or maintenance can cause

injury or property damage. Refer to this manual. For assistance or additional

information, consult a certified installer,service agency or the gas supplier.

FOR YOUR SAFETY

-Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any

other appliance

-WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Donot touch any electrical switch.

•Do not use any telephone in your building.

•Immediately call your gas supplier from a neighbor’s telephone.

•Follow the gas suppliers instructions.

•If you cannot reach your gas supplier, call the fire department.

SureHeat Manufacturing

3130 Moon Station Road

Kennesaw, GA 30144

Tel: (770) 422-8008

Fax: (770) 424-3842

M

Mo

od

de

el

l:

:

R

RP

P

G

GO

O

G

GL

LO

O

W

WO

O

C

CO

O

S

SO

O

T

TO

O

S

SM

MP

P

(18,24,30)-N

M

Mo

od

de

el

l:

:

C

CL

L

P

PO

OS

S

P

PO

O

C

CC

C

G

GB

B

S

SQ

Q

C

CF

F

(18,24,30)-N

FFoorruusseewwiitthhNNaattuurraallGGaassOOnnllyy

M

Mo

od

de

el

l:

:

R

RP

P

G

GO

O

G

GL

LO

O

W

WO

O

C

CO

O

S

SO

O

T

TO

O

S

SM

MP

P

(18,24,30)-P

M

Mo

od

de

el

l:

:

C

CL

L

P

PO

OS

S

P

PO

O

C

CC

C

G

GB

B

S

SQ

Q

C

CF

F

(18,24,30)-P

FFoorruusseewwiitthhPPrrooppaanneeGGaassOOnnllyy

SURE HEAT MANUFACTURING

- Due to high temperatures, the appliance should be located out of traffic and away from furniture and

draperies.

- Do not place clothing or other flammable material on or near the appliance.

-Children and adults should be alerted to the hazards of high surface temperature and should stay away to

avoid burns or clothing ignition.

- Young children should be carefully supervised when they are in the same room with the appliance.

- Please retain this manual for future reference.

The installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas

Code ANSI Z223.1, latest edition.

This appliance must be installed only in a solid fuel fireplace with a working flue and constructed of noncom-

bustible material.

Installation and repair should be done by a qualified service person.

The appliance should be inspected before use and at least annually by a qualified service person. More fre-

quent cleaning may be necessary due to excessive dust or carpet lint. It is important that the circulating air

passageways be kept clean.

Keep appliance clear and free from combustible materials, gasoline and other flammable vapors and liquids.

IMPORTANT INFORMATION

Fireplace Sizing Guide:

Set Size

18”

24”

30”

Opening

Height

16 1/2”

18”

20”

Front

Width

28”

32”

36”

Fireplace

Depth

15”

Chimney

Opening

50 sq. in.

The minimum opening that must be provided by the fireplace chimney to vent the unit properly is shown above

in the sizing chart.

It is necessary to provide adequate combustion and ventilation air. Air for combustion and ventilation must not

be obstructed. Provide adequate clearance around air opening in the combustion chamber and adequate

accessibility clearance for servicing and proper operation.

NEVER obstruct the front opening of the fireplace.

WARNING: Any safety guard removed for servicing an appliance must be replaced before operating the appliance

INSTALLATION

Unpacking

Unpack the appliance carefully and inspect for missing parts or damages that may have occurred during

shipping. If any part of the appliance is missing or damaged, please notify Sure Heat Manufacturing at

(770) 422-8008.

Fireplace Preparation

The fireplace needs to be properly prepared before installing this fireplace unit.

1. Turn off gas supply to the fireplace.

2. Clean chimney and fireplace floor of any combustible material to limit the smell from the system.

Gas Piping and Gas Pressure Requirements

PREPARATION

Check the type of gas that is supplied to your fireplace. Only install the unit that is equipped to operate on the gas

that is supplied to your fireplace. All gas piping must be installed to comply with local and national fuel gas codes.

Compounds used on threaded joints of gas piping must be resistant to the action of L.P. gas. Before installing the

Page 2

Rear

Width

21”

24”

28”

Page 3

Page 4

Page 5

Installation to Existing Gas Line in Fireplace

A manual on/off valve should be present within easy reach of the gas log set. If a manual valve is not present, one must

be installed prior to the gas log installation.

Installation in a Masonry Fireplace

A1/2” gas supply line must be provided to the fireplace. Most installations require drilling and access hole through the

masonry wall. The supply line should be secured and sealed by mortar within the access hole. The supply line should

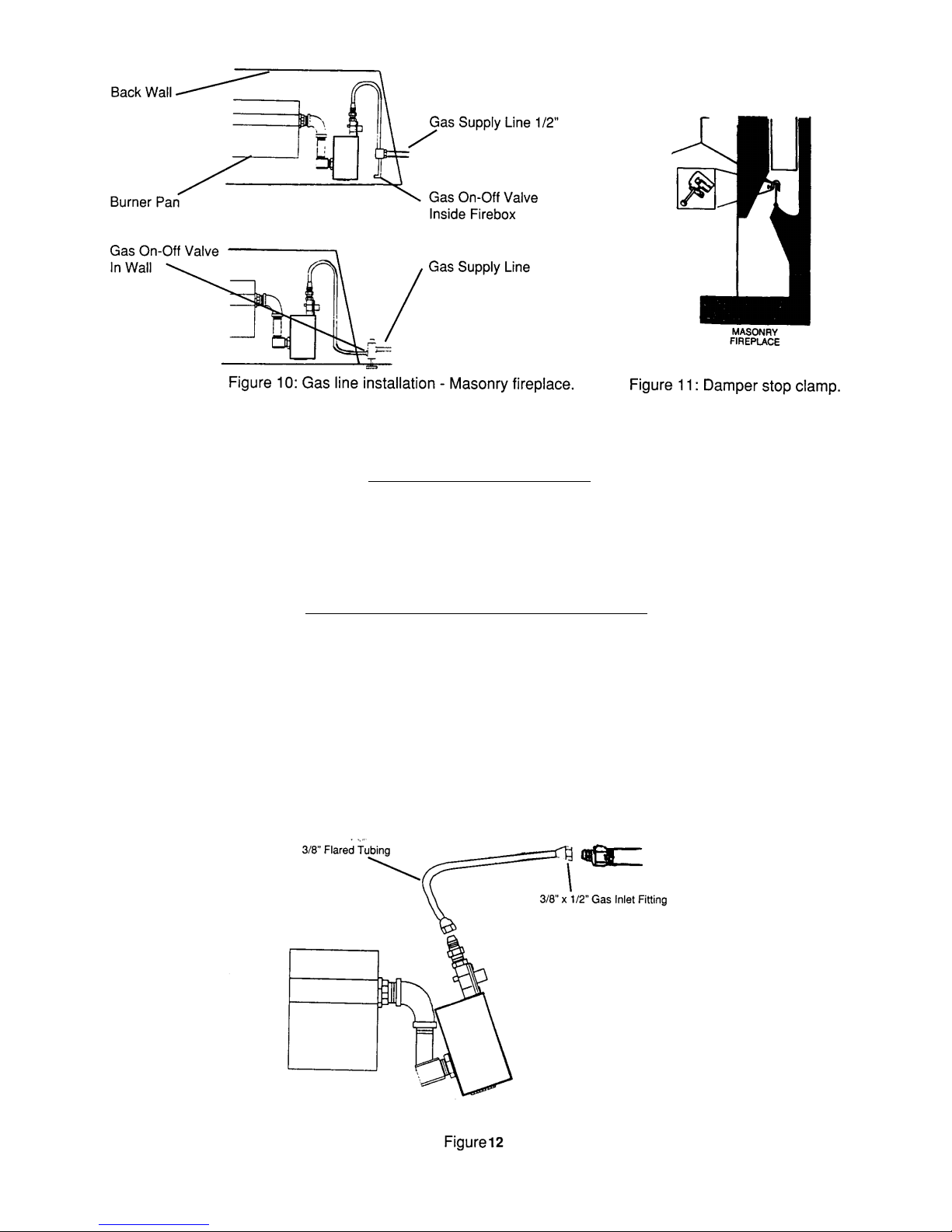

also have an on/off valve in the wall or inside the fireplace. (See Figure 10.)

Damper Clamp Installation

This appliance is only to be installed and burned in a fully vented fireplace with a fully functional damper and chimney

that is free of any obstructions. Adamper clamp is provided to allow any pilot combustion products to vent. The unit must

be operated with the damper in the fully opened position. (See Figure 11.)

Set

18”

24”

30”

Natural Gas

48,000

70,000

L.P. Gas

48,000

70,000

BTU Information

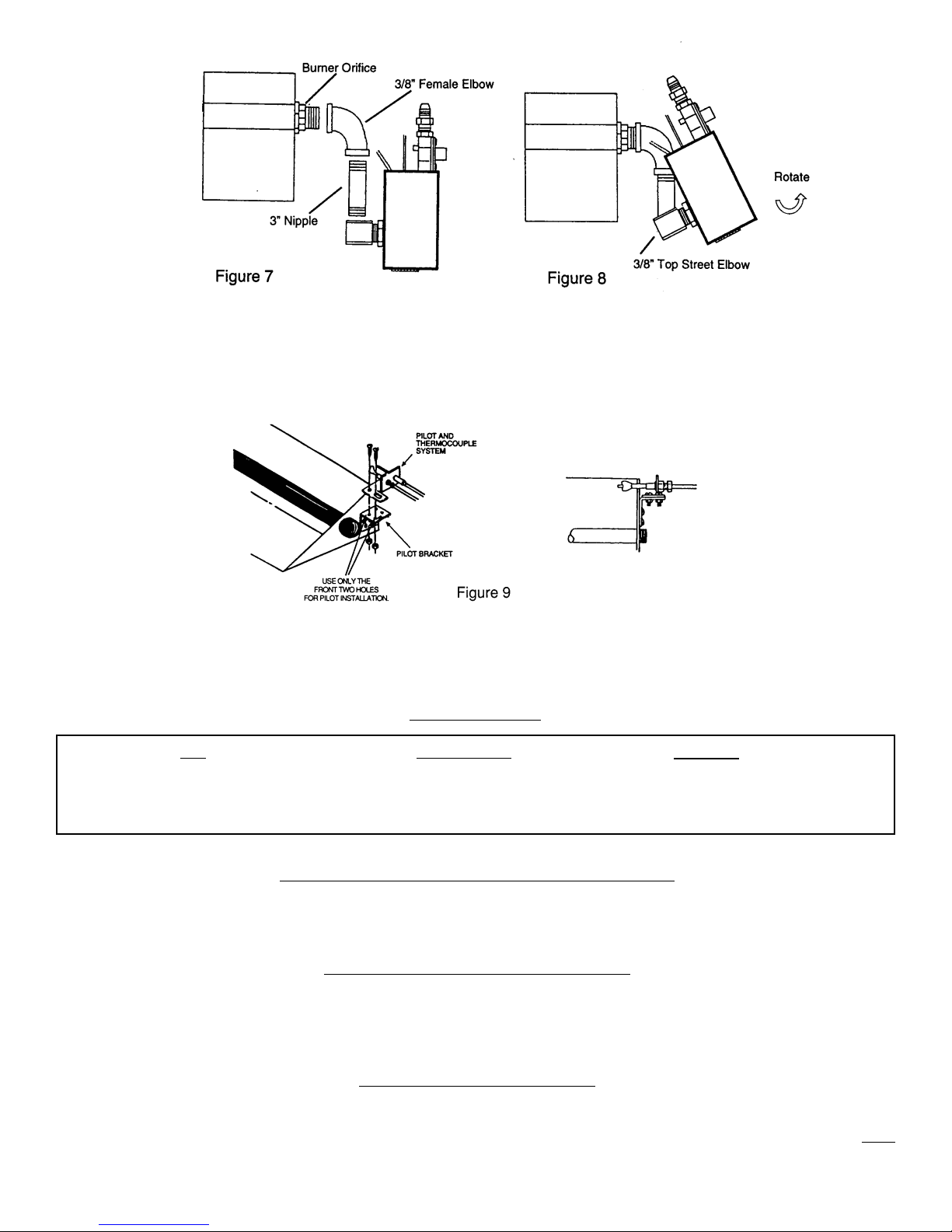

11. Connect pilot and thermocouple to pilot bracket using the screws and nuts provided. Be sure that the pilot and the

thermocouple is just hanging over the burner pan. (See Figure 9.)

NOTE: Carefully bend the pilot tubing when attaching the pilot burner to the burner pan. Care should be

taken not to kink the tubing which would restrict the gas flow to the pilot burner.

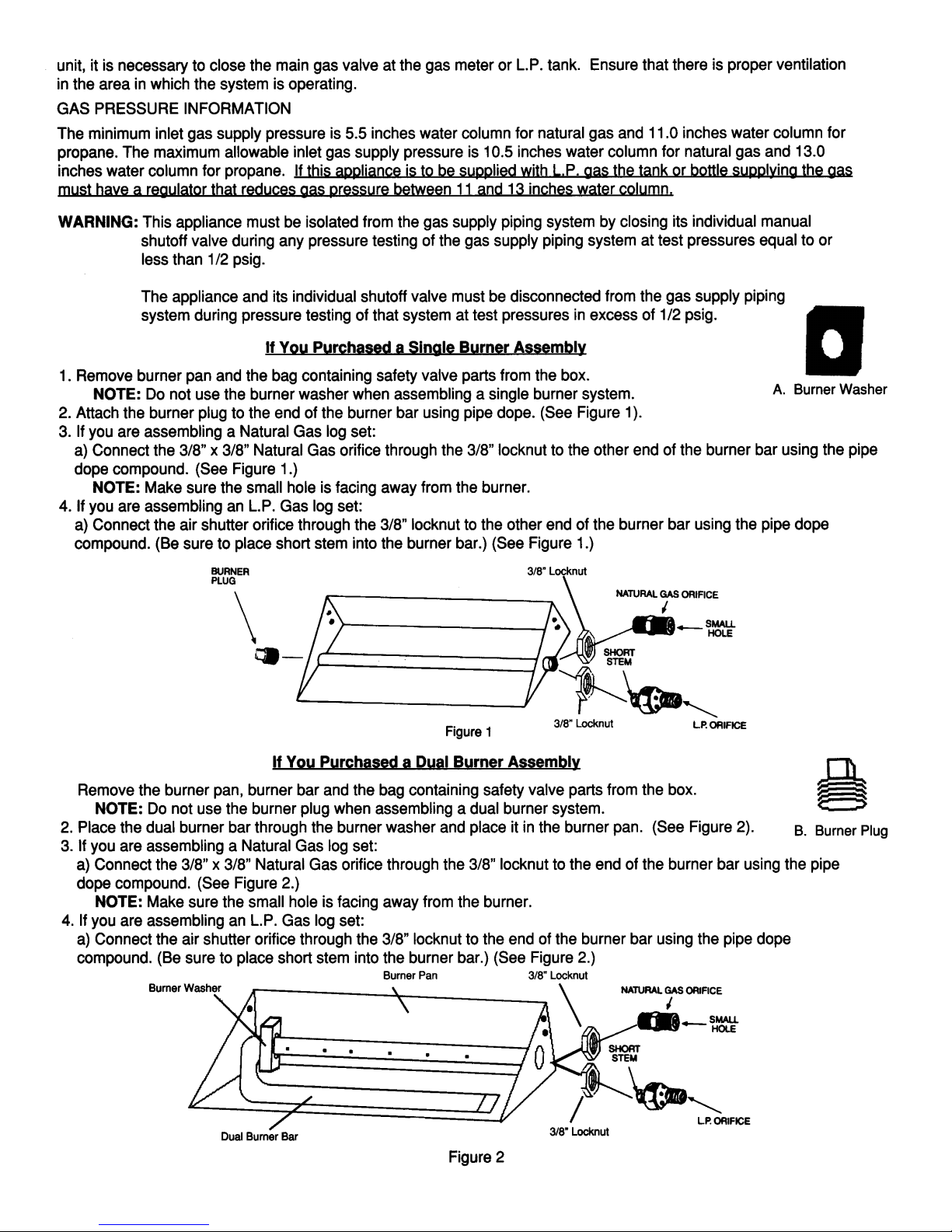

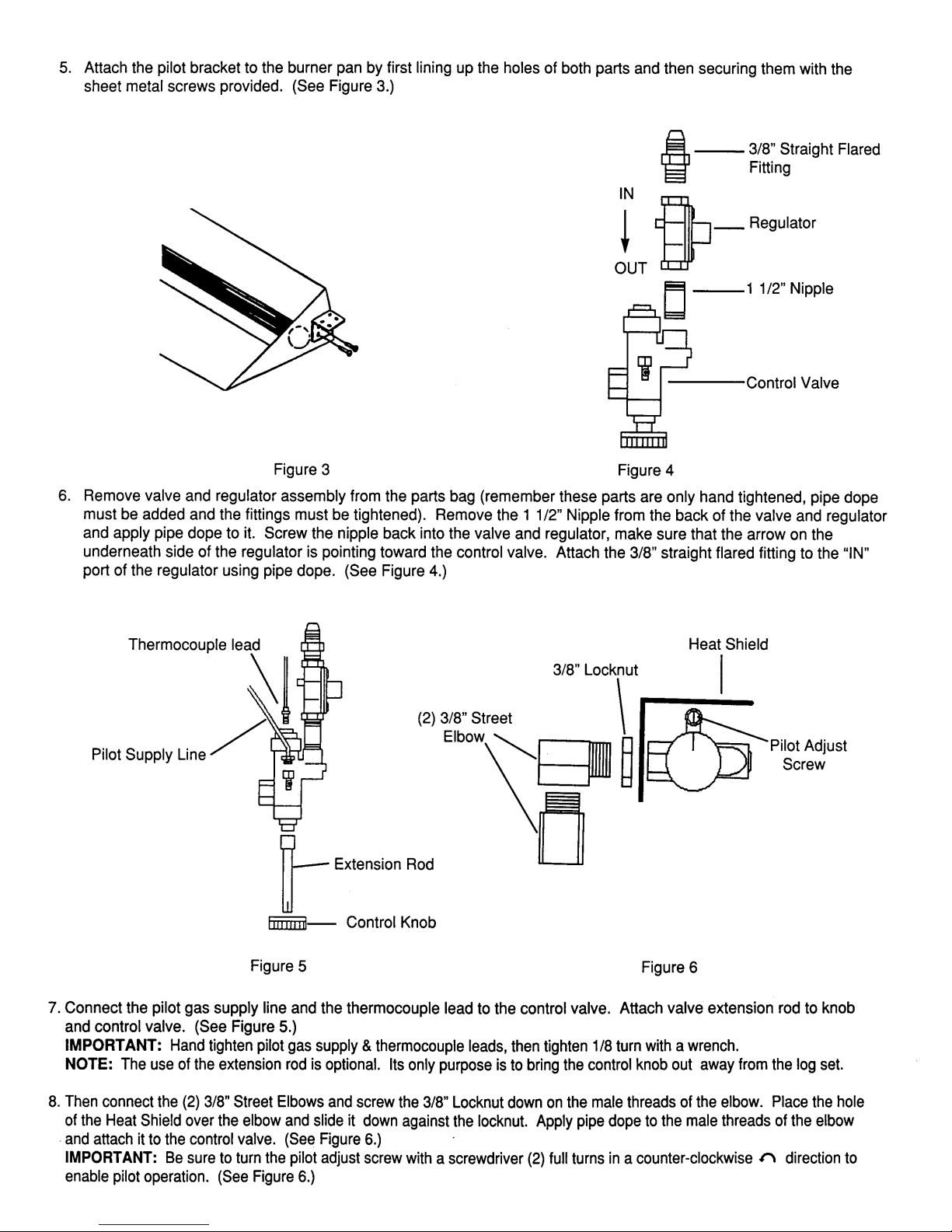

9. Using pipe dope connect the 3” Nipple to the Street Elbow attached to the valve assembly and to the 3/8” Female

Elbow. Then connect the 3/8” Female Elbow, which is connected to the entire valve assembly, to the Burner Orifice

using pipe dope. (See Figure 7.)

10. The valve assembly could be rotated to better conceal the controls. Simply rotate the entire valve assembly by

turning the top 3/8” Street Elbow with a wrench (See Figure 8.)

Connecting Gas Supply to Burner Pan

1. Place burner system in proper location.

2. Attach brass 3/8” to 1/2” gas inlet fitting to the 1/2” gas supply stub.

3. Carefully bend the flared tubing as needed to make the connection between the burner assembly and the

gas inlet fitting. Next attach the flared tubing to the burner assembly first, then to the gas inlet fitting.

Avoid kinking the flared tubing while bending. If tubing must be cut, use a tube cutter. Flare the cut end of

the tube with a flaring tube.

Page 6

Burner System Location

1. The Burner system should be located towards the back and centered in the combustion chamber of the

vented fireplace. The burner system should be centered from left to right, with about an inch of space on

either side.

4. Be certain all connections are tight and use compound on all male threads to seal joints.

The pipe compound must be resistant to the action of L.P. gas. Test all connections with a soapy water

solution with gas supply turned on. If bubbles appear on any connection, retighten and reset. Once it is

determined there are no leaks whatsoever, turn off gas supply and move to next assembly step.

Granule, Ember, and Log Grate Placement

1A. Natural Gas Installation: Spread granules or sand over each installed burner pan. Granules should be

sloped to the same angle as the burner pan filling the entire pan (See Figure 13.)

1B. L.P. Gas Installation: Spread vermiculite (white) over each installed burner pan. Vermiculite should be

sloped to the same angle as the burner pan filling the entire pan (See Figure 13.)

2. Spread glowing embers over the top of the granules or vermiculite covering the entire surface area,

concentrating on the front and sides of each burner pan for the most realistic burning effect.

3. Place log grate over the burner pan. (See Figure 14.)

4. Place the (2) back log supports on the back of the grate. (See Figure 14.)

Log Placement

1. Place the longest log in the front section of each grate as far foward as possible.

2. Place the next longest log on the back log support brackets as far back as possible, or on RW1000 log

sets on the grate as far back as possible.

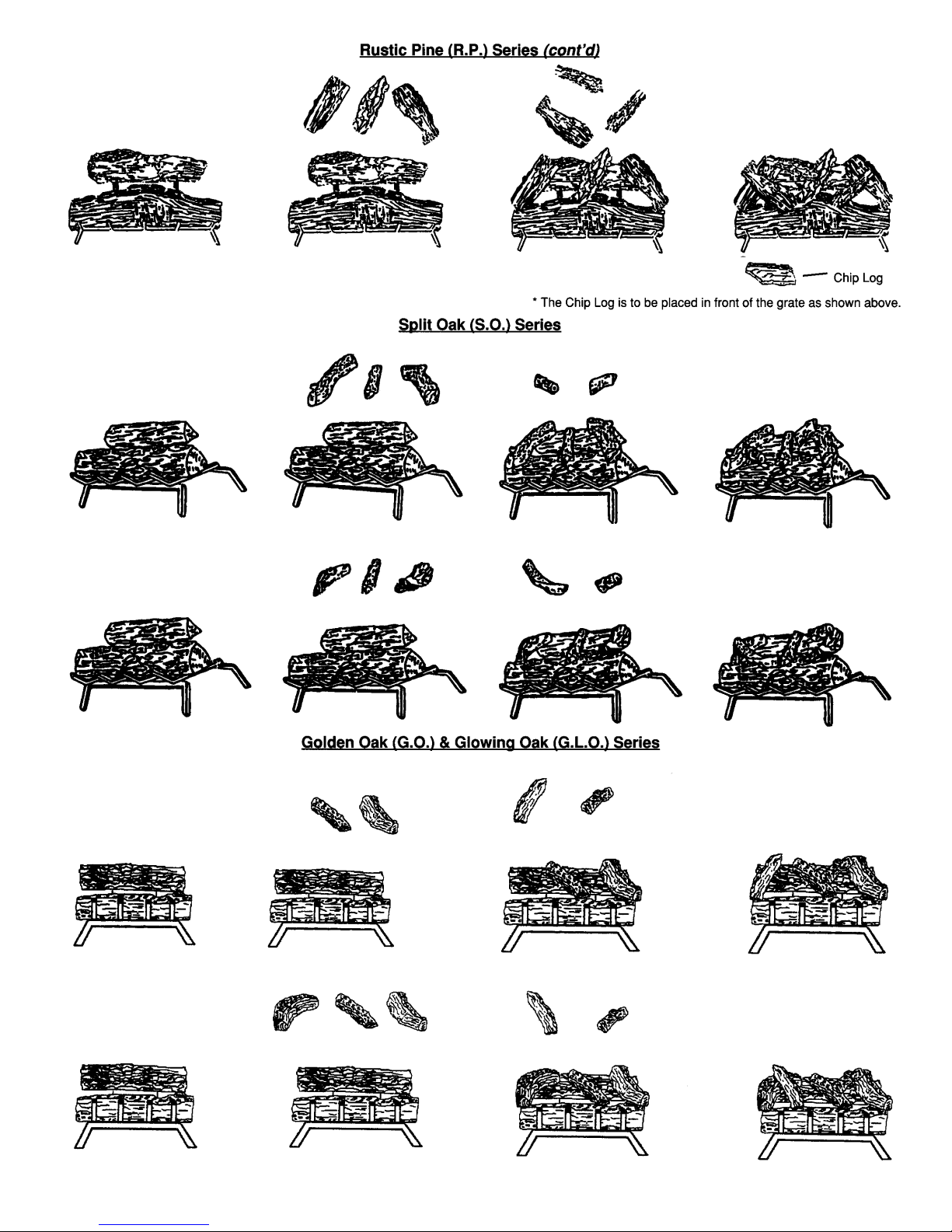

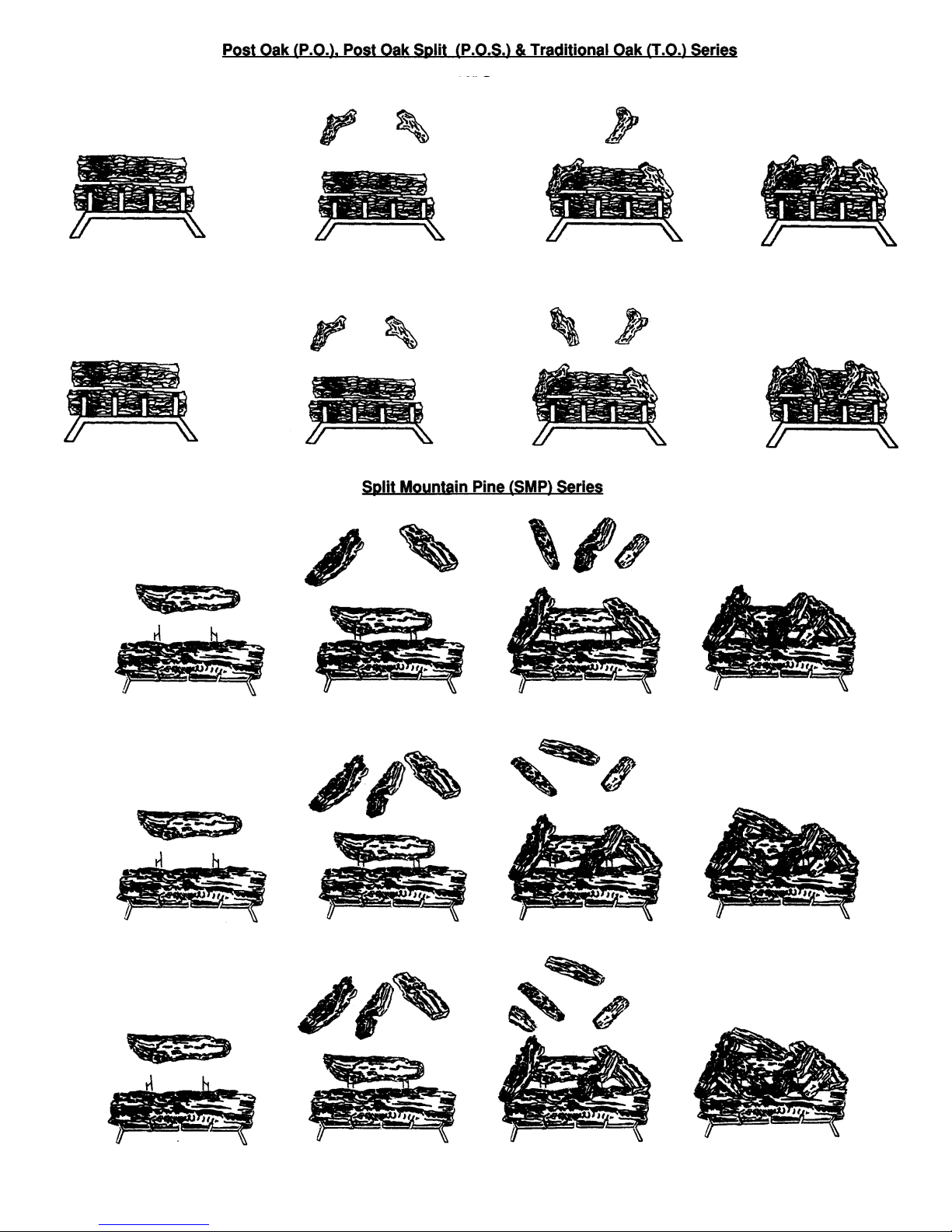

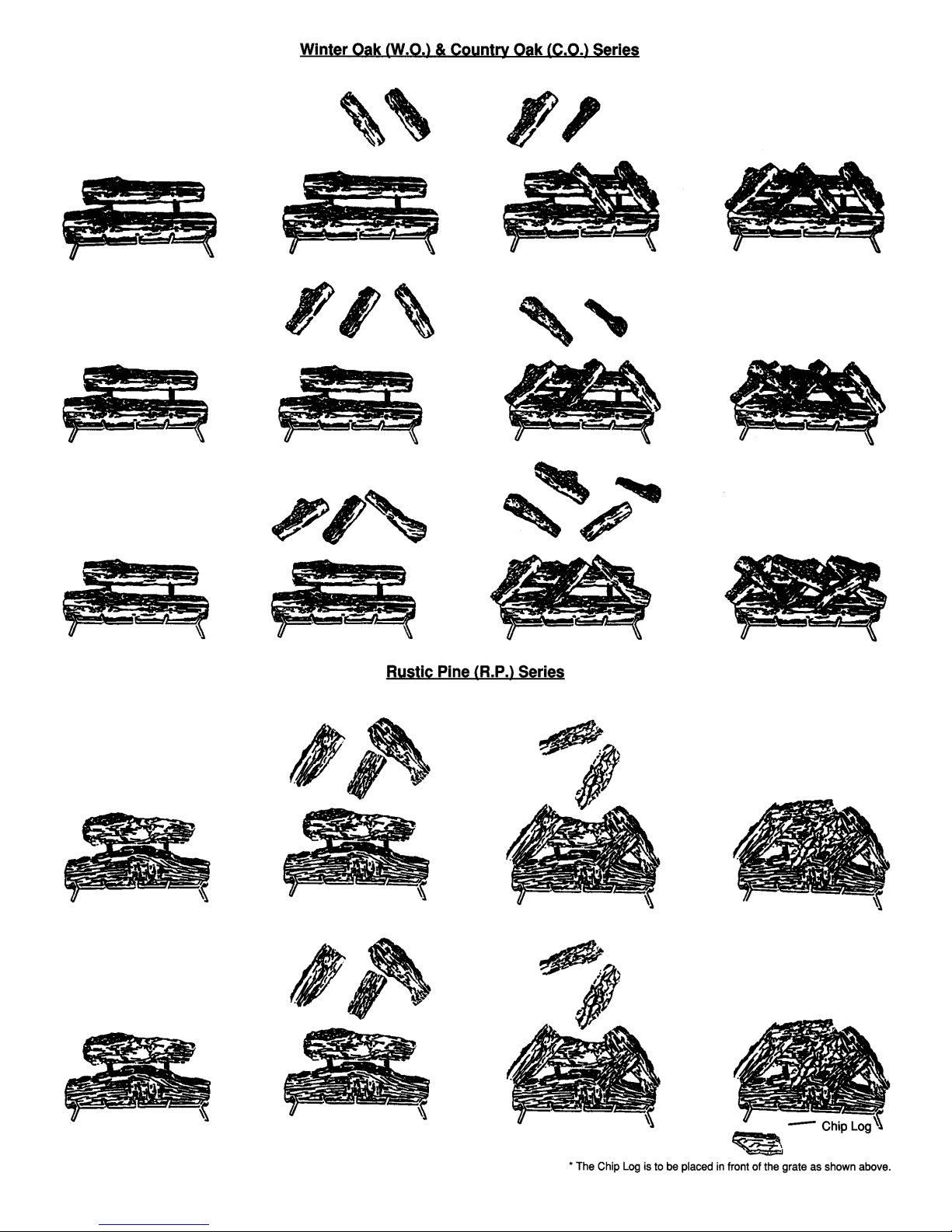

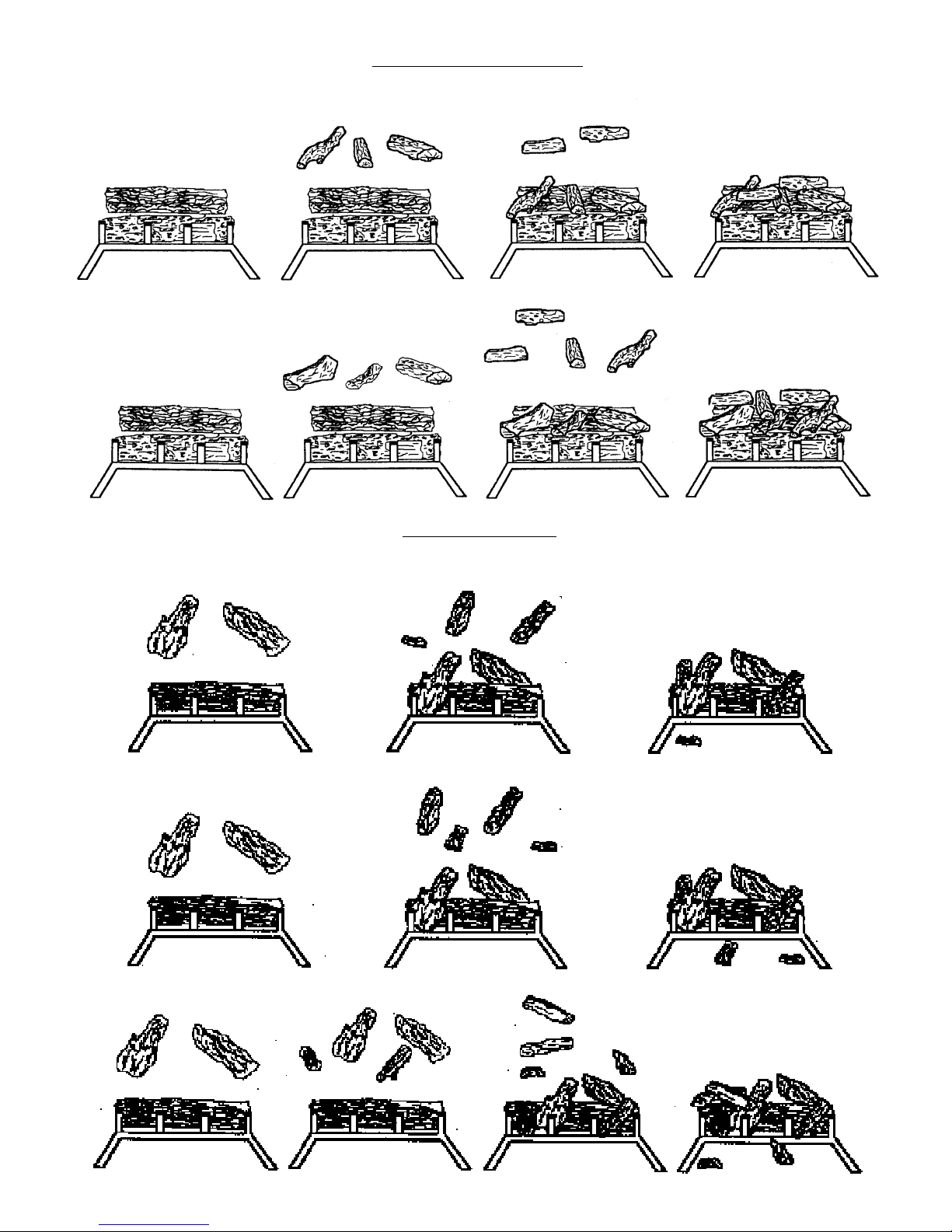

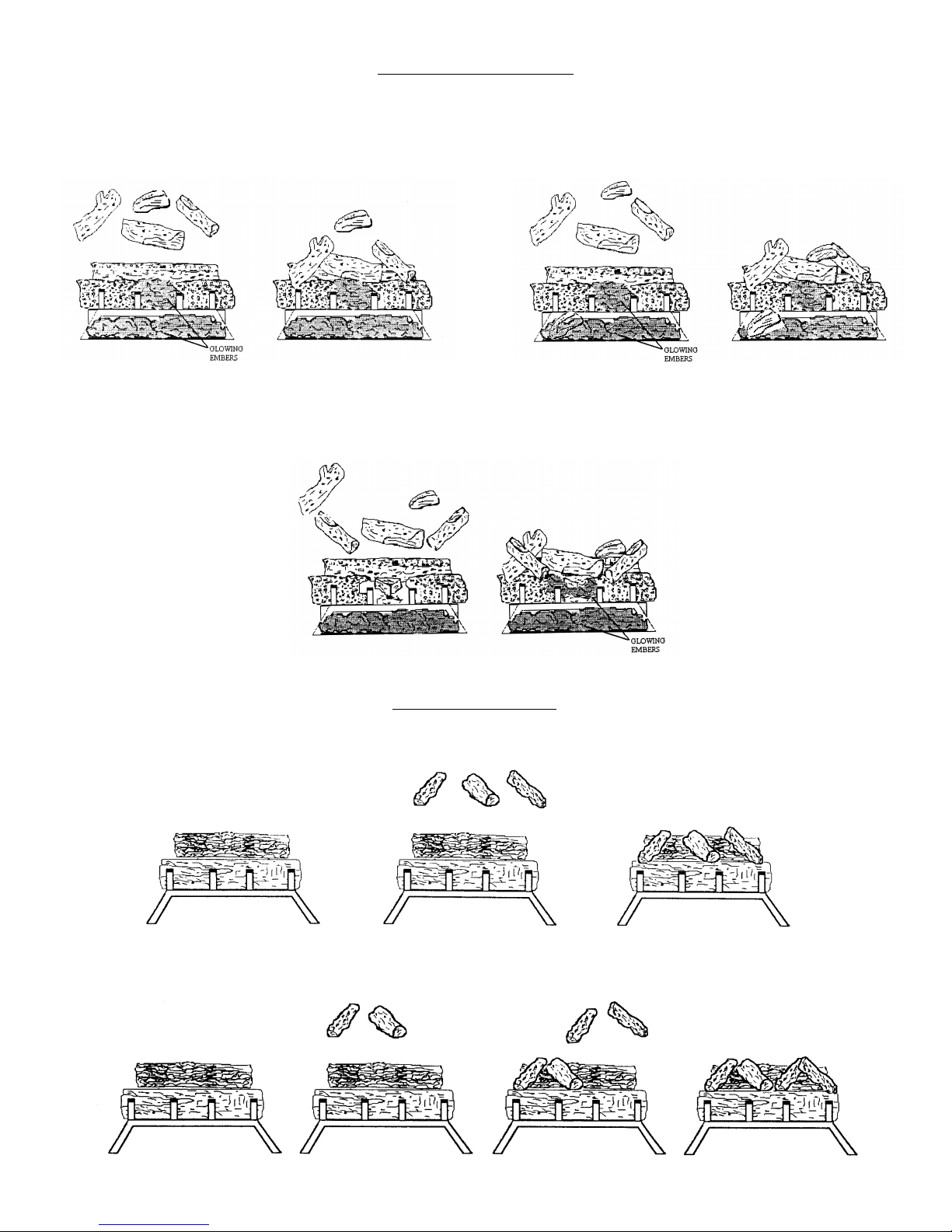

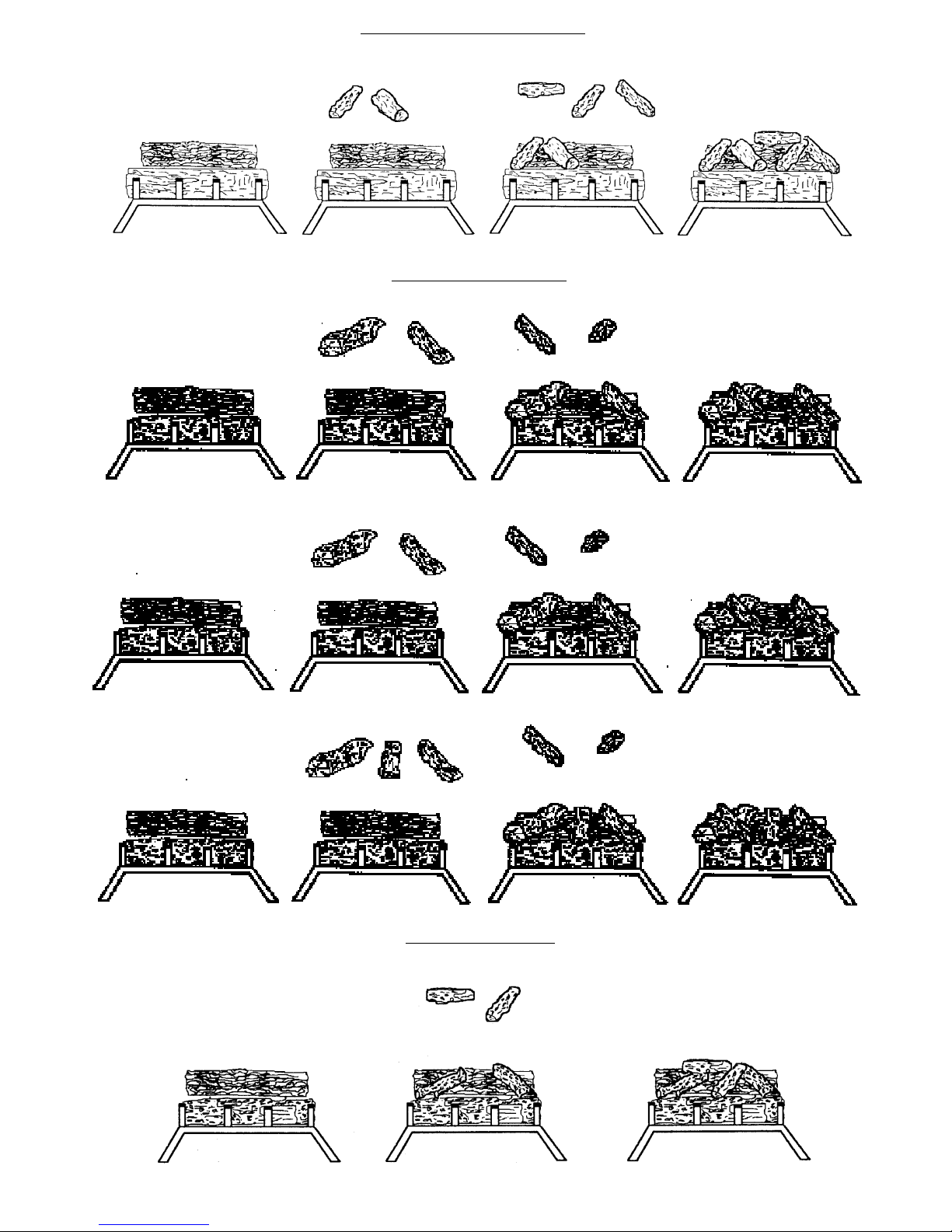

3. Arrange top logs according to the illustration for your specific set size.

Page 7

It may be necessary to squeeze the

back log support with pliers after

attaching the grate.

Page 8

30” Set

18” Set

24” Set

18” Set

24” Set

Page 9

30” Set

18” Set

24” Set & 30” Set

18” Set

24” Set & 30” Set

Page 10

18” Set

24” Set & 30” Set

18” Set

24” Set

30” Set

Page 11

18” Set

Cross Cut (CC) Series

24” Set

Colonial Bark (CL) Series

30” Set

18” Set 24” Set

Page 12

30” Set

Cross Cut (CC) Series

(cont’d)

18” Set

Grand Bark (GB) Series

24” Set

30” Set

18” Set

Sequoia (SQ) Series

Page 13

24” Set

Sequoia (SQ) Series

(cont’d)

30” Set

18” Set

Campfire (CF) Series

24” Set

30” Set

Page 14

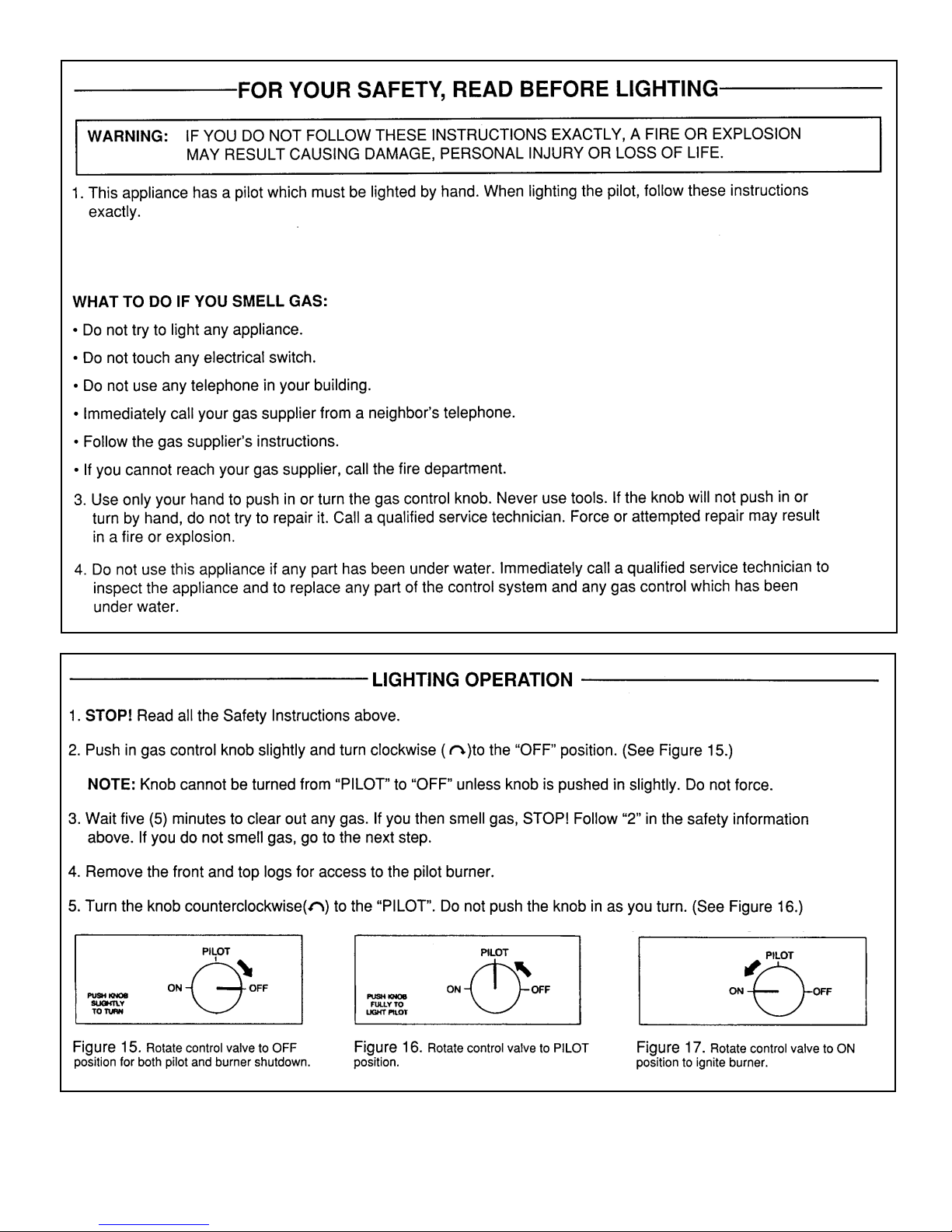

2. Before lighting smell all around the appliance area for gas. Be sure to smell next to the floor because some gas

is heavier than air and will settle on floor.

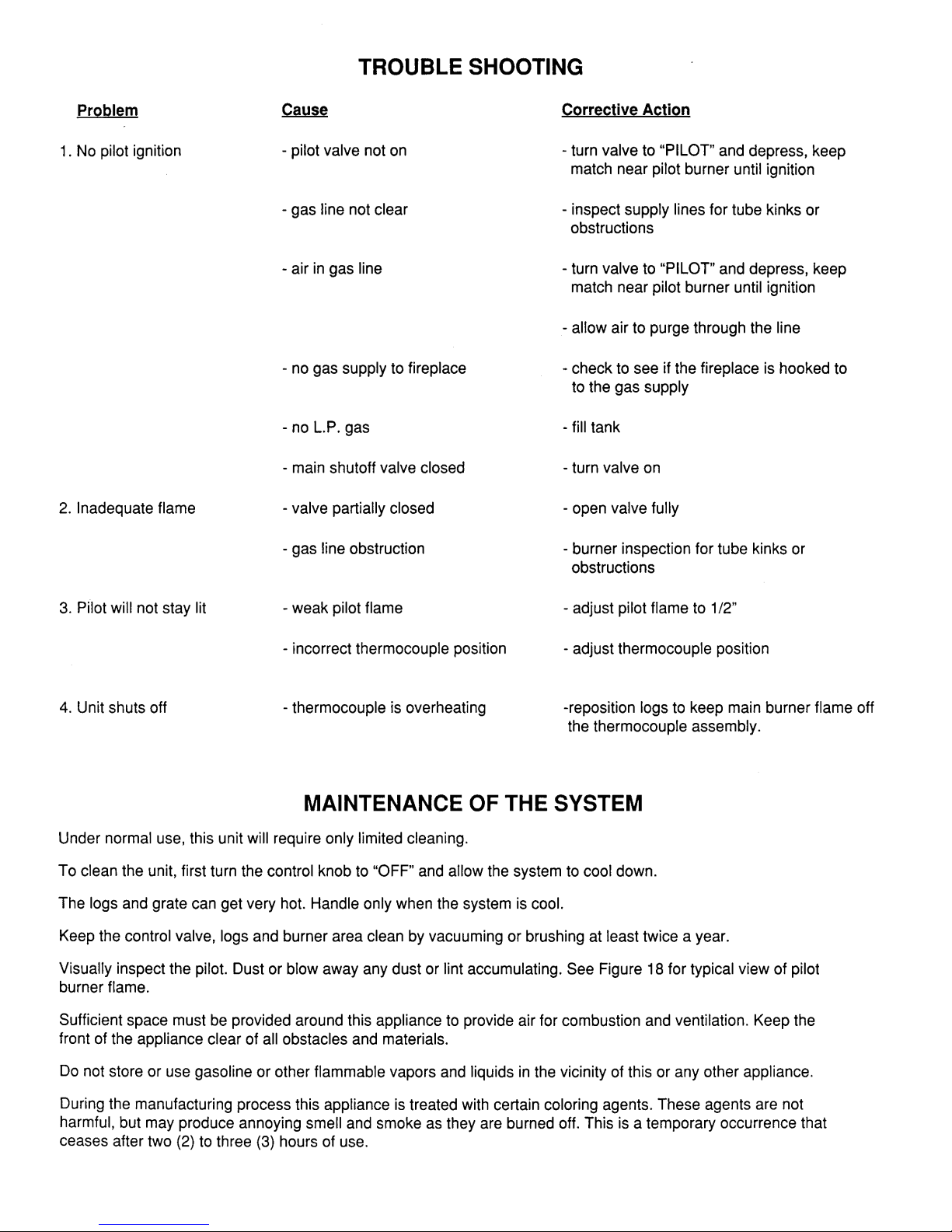

PILOT FLAME ADJUSTMENT

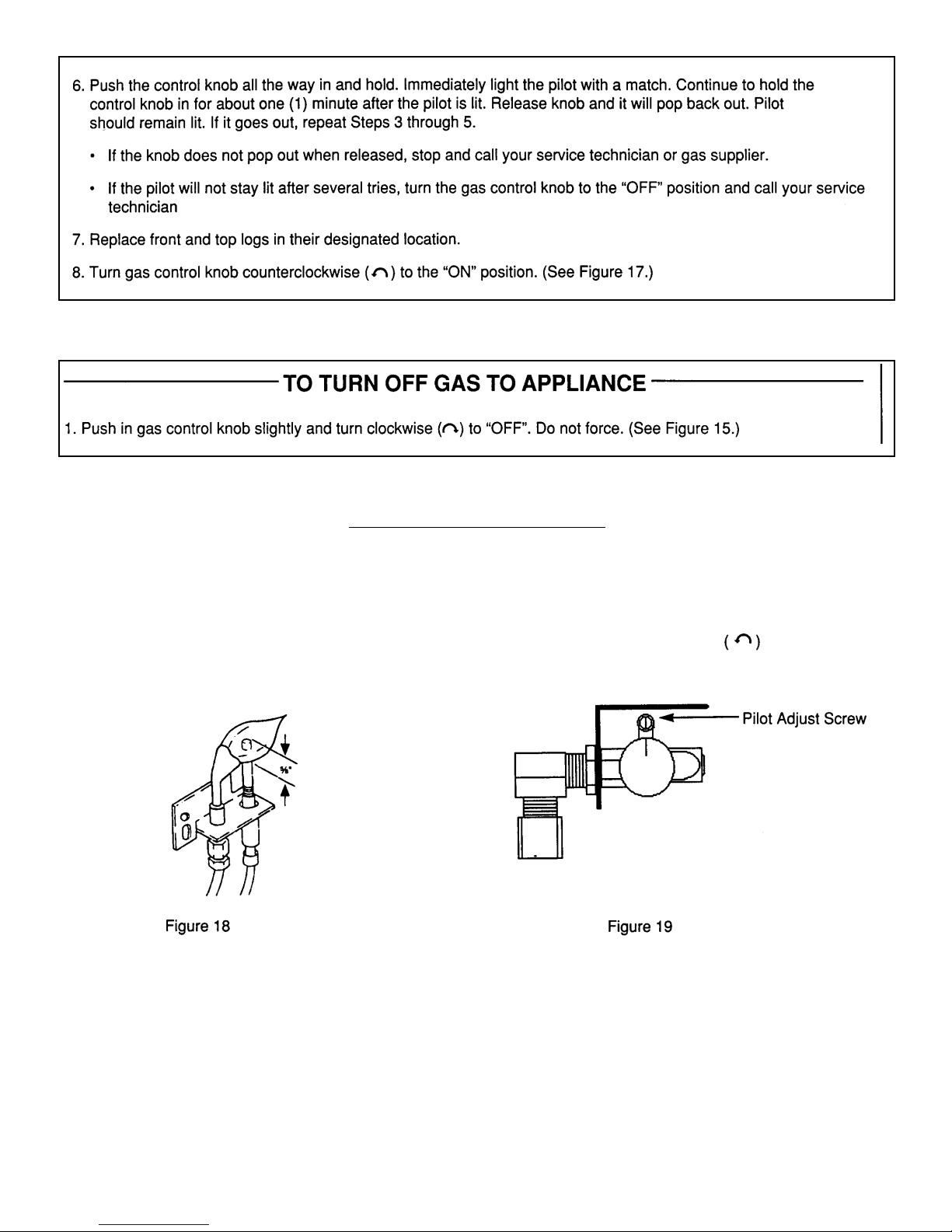

The Pilot Thermocouple should be engulfed by the Pilot Flame by approximately 1/2”. (See Figure 18.)

Should Pilot Flame become inadequate to heat the thermocouple properly, you will need to adjust the pilot

(See Figure 19.) Adjust the height of the Pilot Burner Flame by rotating the Pilot Adjust Screw to the desired

1/2” flame height.

Remember: Be sure to turn the pilot adjust screw (2) full turns in a counter-clockwise direction to

enable pilot operation.

Page 15

Page 16

Page 17

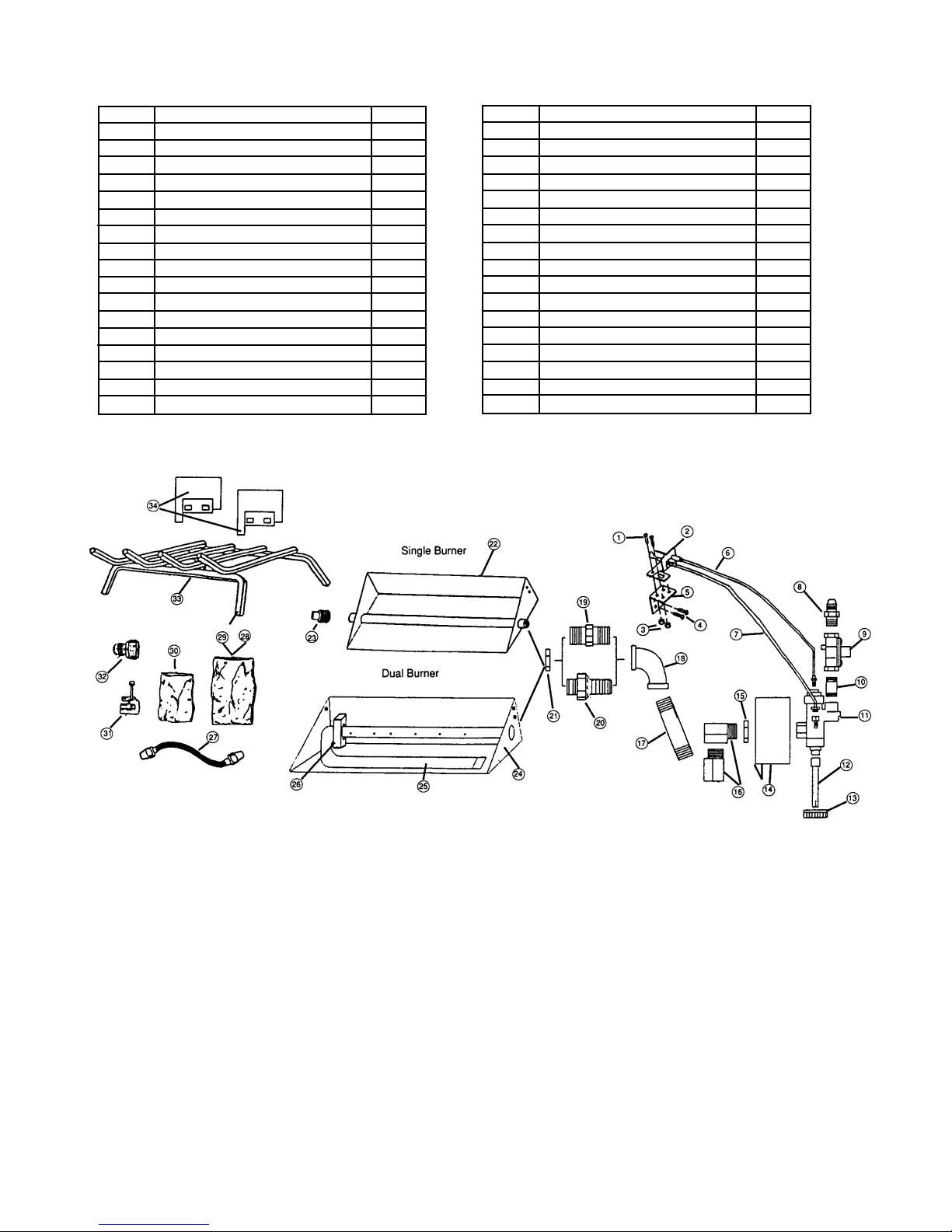

REF. #

Part Name QTY.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

Machine Screws

Pilot Burner Assembly

Nuts

Sheet Metal Screws

Pilot Bracket

Thermocouple Lead

Pilot Gas Supply Line

3/8” Straight Flared Fitting

Regulator

1 1/2” Pipe Nipple

Control Valve

Extension Rod

Knob

Heat Shield

Locknut

3/8” Street Elbow

3’ Pipe Nipple

2

1

2

1

2

1

REF. #

Part Name QTY.

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

3/8” Female Elbow

Burner Orifice - Nat. Gas Sets Only

Burner Orifice - L.P. Gas Sets Only

Locknut

Single Burner - Single Burner Sets Only

Burner Plug

Dual Burner Pan - Dual Burner Sets Only

Dual Burner Bar

Burner Washer

3/8” Flared Tubing

Granules - Nat. Gas Sets Only (Sand)

Vermiculite - L.P. Gas Sets Only

Glowing Embers

Damper Stop Clamp

1/2” x 3/8” Flared Inlet Fitting

Grate Assembly

Back Log Standoffs

1

2

_______________________________________

NOTES

Page 18

_______________________________________

NOTES

Page 19

R84015 Rev. 01/06

RMH-130-00587

Please photocopy and return registration along with proof of purchase

within 14 days of purchase to:

Sure Heat Mfg.

3130 Moon Station Road

Kennesaw, GA 30144

Attention: Warranty Registration

If you have other questions, please contact our Customer Service Hotline

(800) 229-5647

LIMITED LIFETIME WARRANTY

Limited Lifetime Warranty shall apply to the original purchaser at the original installation point only

All logs are guaranteed for the lifetime of the original purchaser against destruction by fire or heat.

The burner assembly system is guaranteed for a period of three (3) years from the date of purchase and will be

repaired or replaced for freight costs only.

General Warranty: This warranty does not apply in the case of improper installation, neglect, accident, misuse or

as a result of modifications of the original product.

All costs for removal and reinstallation are the expressed responsibility of the purchaser.

For repair or replacement of a defective part or parts, contact our customer service department at 1-800-229-5647.

You will be asked to provide valid warranty registration, proof of purchase and model number.

It is agreed that any repair or replacement is the exclusive remedy from Sure Heat Manufacturing. In no case shall

Sure Heat be liable for any consequential damage for breach of this or any other warranty expressed or implied

whatsoever. This limitation as to consequential damages shall not apply in states where prohibited.

Purchased From: ______________________________________________Date: __________________________

Size: o18” o24” o30” Model:

Name ______________________________________Date: ____________Phone ( ) __________________

Address ____________________________________________________________________________________

City ________________________________________State ____________Zip __________________________

E-mail ______________________________________________________________________________________

Sure Heat Manufacturing RP 18-N User manual

Popular Indoor Fireplace manuals by other brands
