Suremount SMF600 User manual

Above Fireplace Pull-Down
Full-Motion TV Wall Mount
User’s Manual

The maximum temperature at the front of the fireplace mantle should never be more
than 110°F (43°C).
The fireplace mantle should not extend more than 24”(609mm) from the mounting
surface.
This mount can support displays weighing between 11~62 lbs(5~28kg).
The mounting surface should be a wood stud frame wall with studs spaced no more
than 24”(609mm) apart ; The wall must notexceed 5/8”(16mm) thick.
Ensure that the mounting surface is capable of supporting the combined weight of
the mount and any mounted display.
This mount should only be installed by persons with a basic knowledge of building
construction and installations.
This bracket should only be installed by two people. Do not attempt to install it by
yourself.
If mounting to a wall of wood stud construction, ensure that mounting bolts are
anchored in the center of the studs. When installing the TV mount on a concrete
wall, the wall must be at least 8.0" (203mm) thick with a minimum compressive
strength from 2500 to 3000 psi (17.2 to 20.7 Mpa) and must meet the ASTM C39
specification. When installing the TV mount on a cinder block wall, the cinder blocks
must meet the ASTM C216 specifications and have a minimum nominal width of 8.0"
(203mm). Be sure to mount it in a solid part of the block, generally 1" (25mm)
minimum from the side of the block. Do not drill into mortar joints! If plaster/dry
wall is thicker than 5/8" (16mm), custom fasteners must be supplied by the installer.
Note that hardware and instructions are provided for installation to wood stud
walls only.
User’s Manual2

PACKAGE CONTENTS

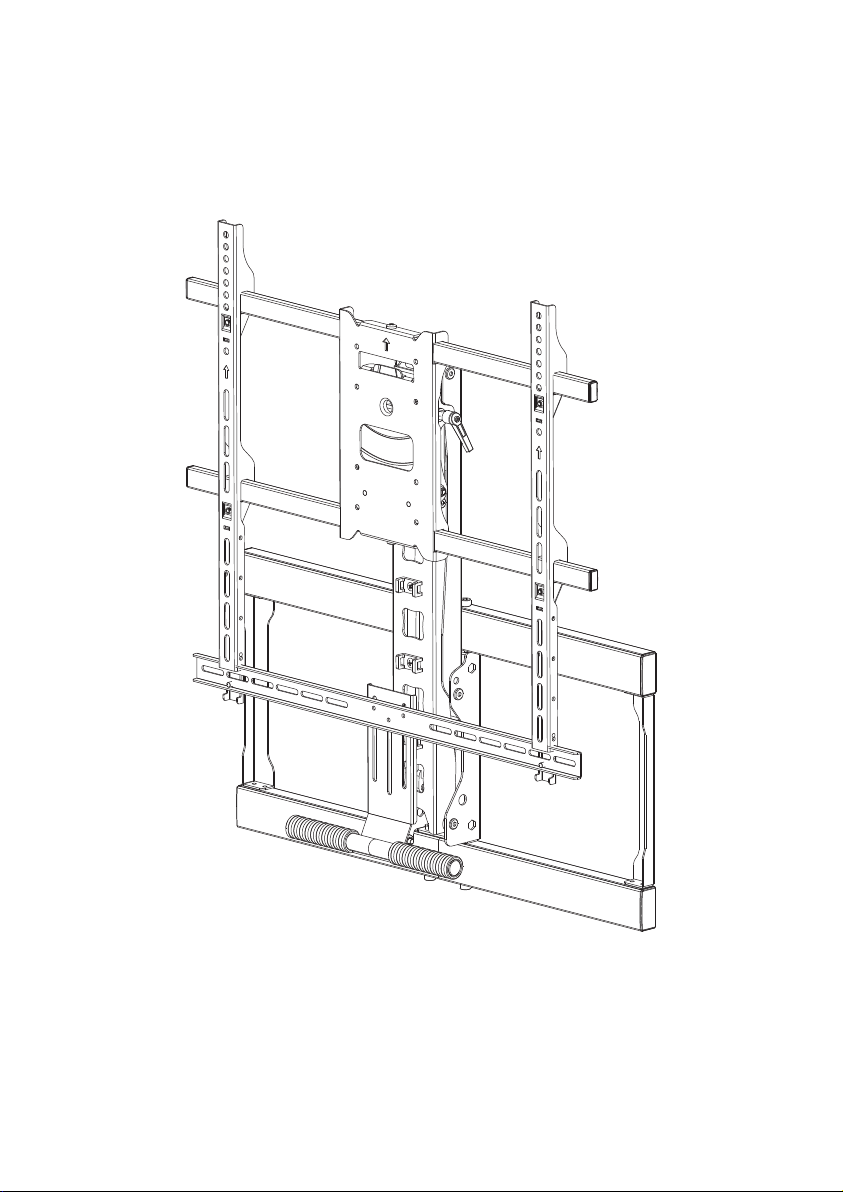

Mount your television conveniently above your fireplace using this Above Fireplace Mount.
INTRODUCTION
FEATURES
It is capable of supporting televisions with VESA patterns from 100x100 and 600x500
and weighing between 11~62 lbs
(5~28 kg). The mount allows you to keep the
TV safely up and out of the way when not in use, then you can pull it down to eye level
for comfortable viewing.
Designed for flat screen televisions from 42" ~65"
Supports televisions weighing between 11~62 lbs(5~28kg)
Supports VESA mounting patterns between 100x100 and 600x500
Designed to mount to wood stud frame wall above the fireplace mantle
Television can be pulled down to eye level for comfortable viewing
Full motion mount allows for ±30° swivel, ±5° rotation, and +10°/-5°tilt
AA.
X 4
X 1
X 1
X 1
X 1
X 2
X 1
X 2
X 1
X4
CC.
EE. GG.
HH. II.
FF.
BB.
DD.
User’s Manual 3

User’s Manual4
Required Tools
#2
Portable
D
Phillips Sc
r
D
rill
r
ewdrive
r
El
e
e
ctronic St
u
u
d Finde
r
Pencil
1/4" Drill
1/2" Soc
k
Bit
k
e
t
Pr
o
C
a
S
o
tective Ey
e
a
rpenter's L
S
ocket Wre
n
e
wea
r
evel
n
ch
You will need the following tools for installation.
F: M8 x 35 mm
x4
E: M8 x 20 mm
x4
D: M6 x 30 mm
x4
B: M5 x 30 mm
x4
C: M6 x 15 mm
x4
A: M5 x 15 mm
x4
H: M5 / M6
x9
I: 5 mm
x8
J: 13 mm
x4
G: M8 x 50 mm
x4
L: M8
x6
K: M8 x 70mm
x6
M: Concrete Anchor
x6
N: M8 x 60 mm
x4
O: M6 x 15 mm
x2 x2
P: M6
x5
Q: M6 S: M4 x 25 mm
x2
R: M6 x 8 mm
x8
T: M5 x 8 mm
x4
X: 5 mm
W: M6 Y: 8 mm Z: 8 mm
x5
U: Cable Ties V: Arm Lock Pin

User’s Manual 5
INSTALLATION CONSIDERATIONS
Warning Ensure that the mounting surface can safely support the combined weight of
of the assembled mount and installed.
1. The temperature at the front of the fireplace mantle must never exceed 110°F (43°C).
2. The wall to which this mount will be attached must be a wood stud type, with studs
spaced no more than 24"(609.6mm) apart. These studs should be symmetrically
positioned or the installation will not be symmetrical to the fireplace mantle. The
wall must be no more than 5/8" (16mm) thick.
3. The fireplace mantle must extend no more than 24" (60.9 cm) from the surface of
the wall.
Form 42”~65”
Weight:
11~62 lbs
(5~28kg)
24

User’s Manual6
INSTALLATION
Mantle size
Less than 8” Wallboard height +5”
8”~11” Wallboard height +9”
11”~13” Wallboard height +11”
13”~16” Wallboard height +14”
Space height
4. This mount is intended for flat screen televisions (LCD, LED, Plasma) only. The
mounted television should be between 42 ~ 65" and weigh between 11~62 lbs.
5. The vertical space above the mantle must be greater
than the height of the wallboard .The required vertical
space depends on how far the mantle extends out
from the wall.
Use a tape measure to determine the center point of the mantle. Mark the
centerline with a pencil or tape.

User’s Manual 7
1.1
WOOD
1.2
1.
Reference the step 5
at the page 6

User’s Manual8
2.
BRICK OR CONCRETE
2.1
2.2
10mm
8
Reference the step 5
at the page 6

User’s Manual 9
N5mm
3.
4.

User’s Manual10
M
KL
BRICK OR CONCRETE6-1
1/2”SocketSocket Wrench
5.
6.
Q
H

User’s Manual 11
WOOD6-2
K
L
1/2”SocketSocket Wrench
7.

User’s Manual12

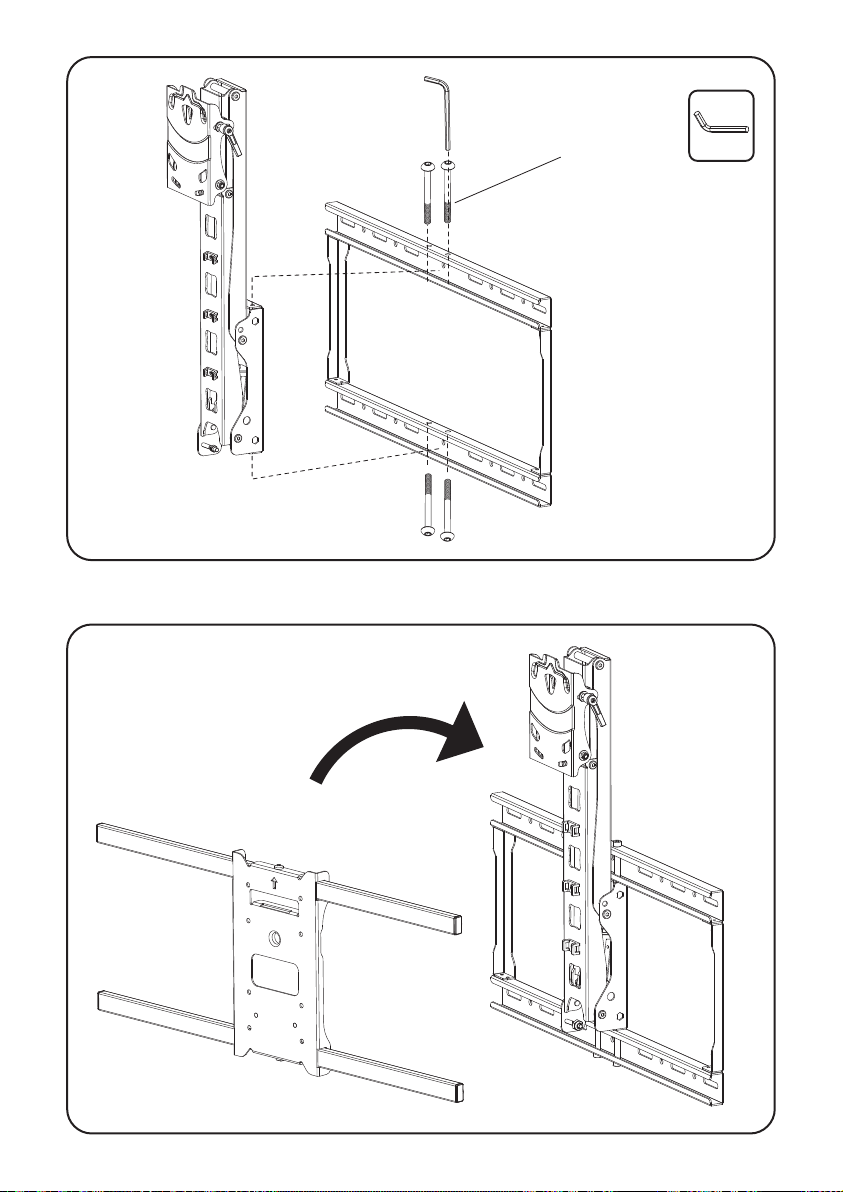

Lock the arm
V
A - G
H
I - J
or

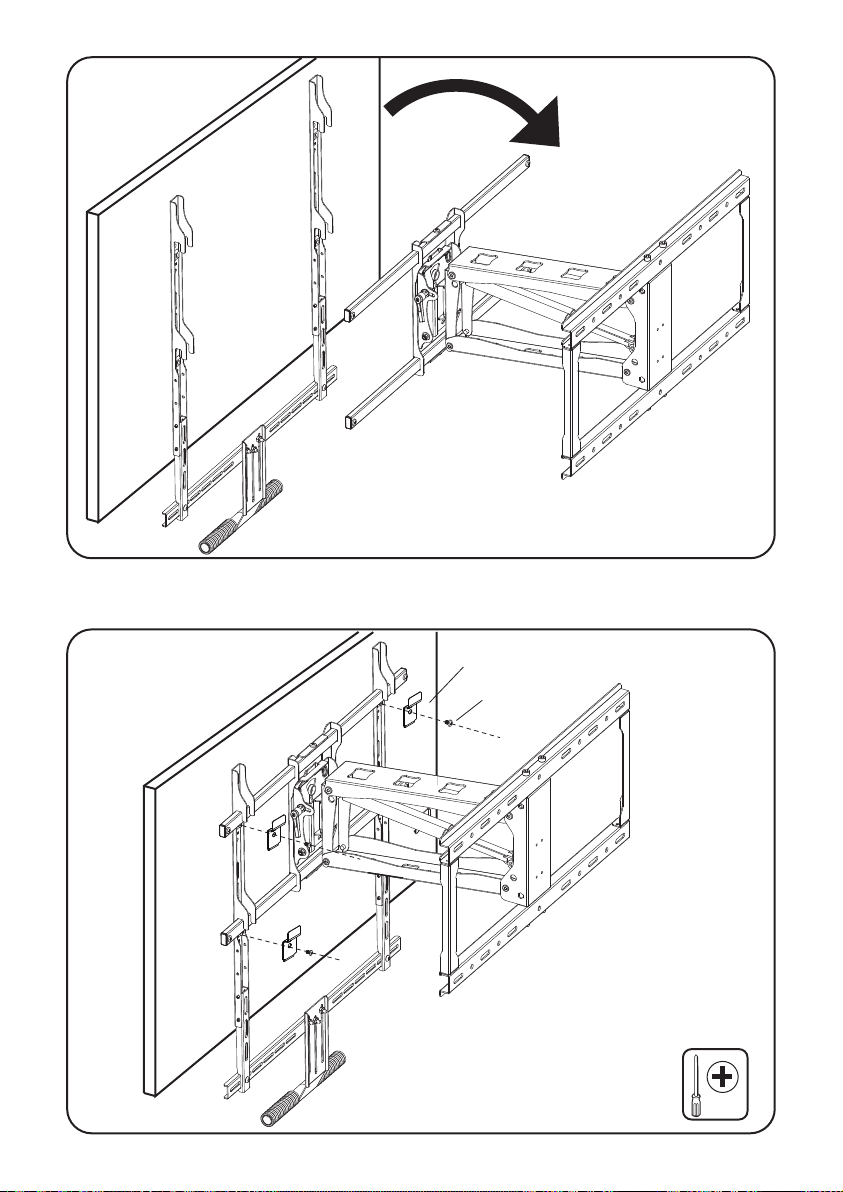

9.
8.

User’s Manual 13

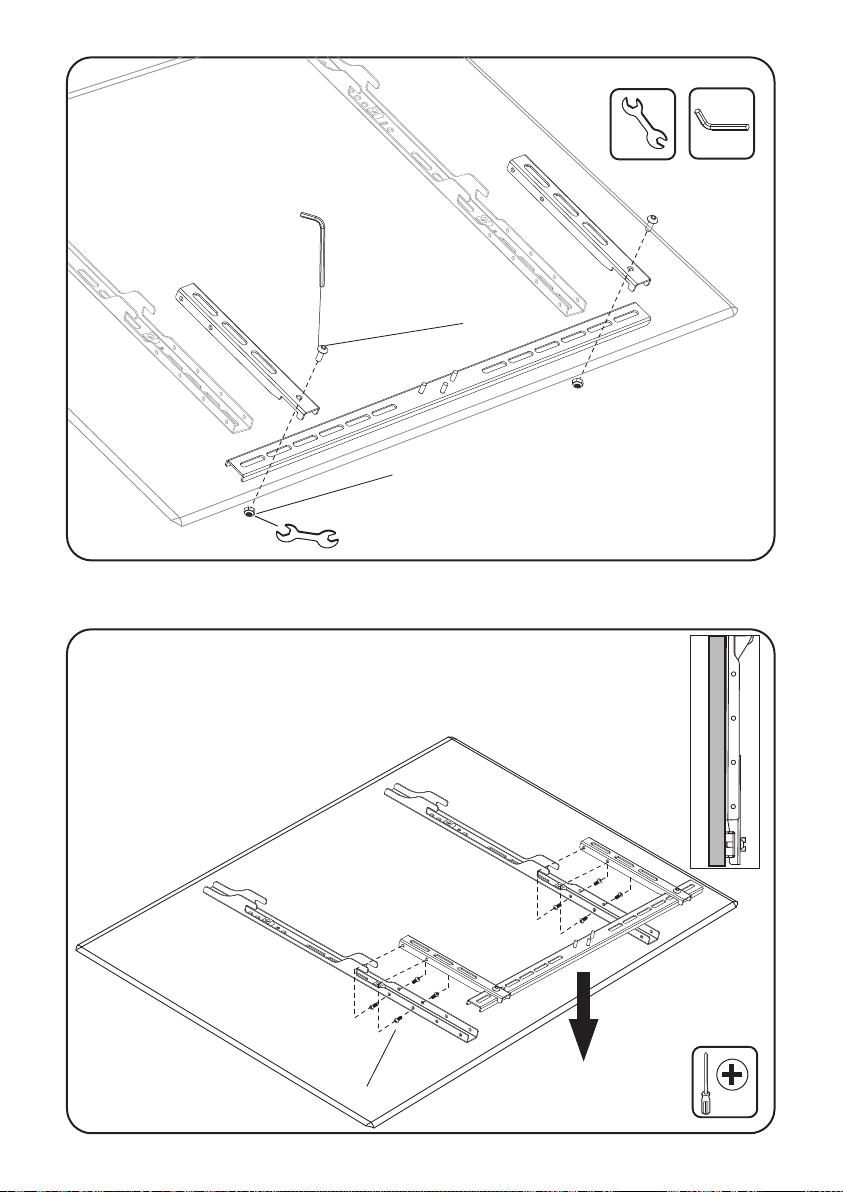

a.
W/O Sound
O
P
R
5mm

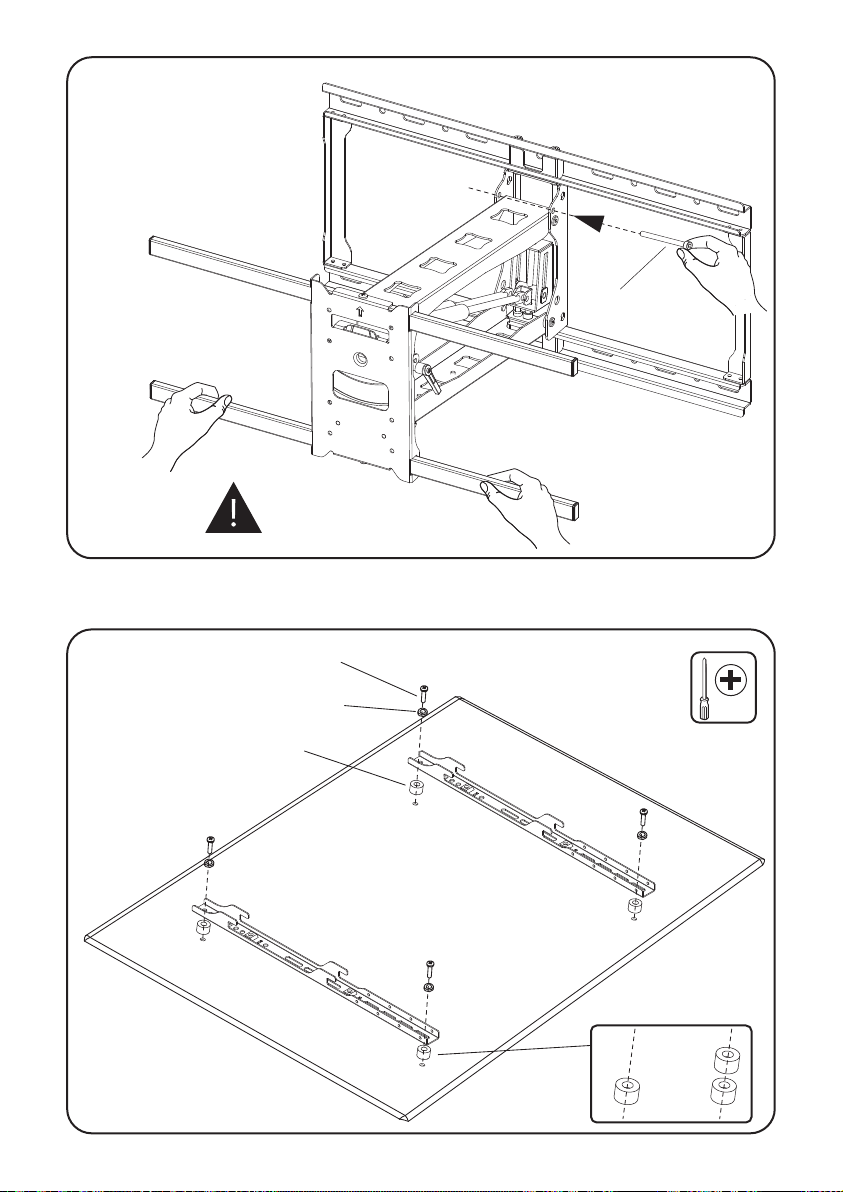

11.
10.

User’s Manual14
R

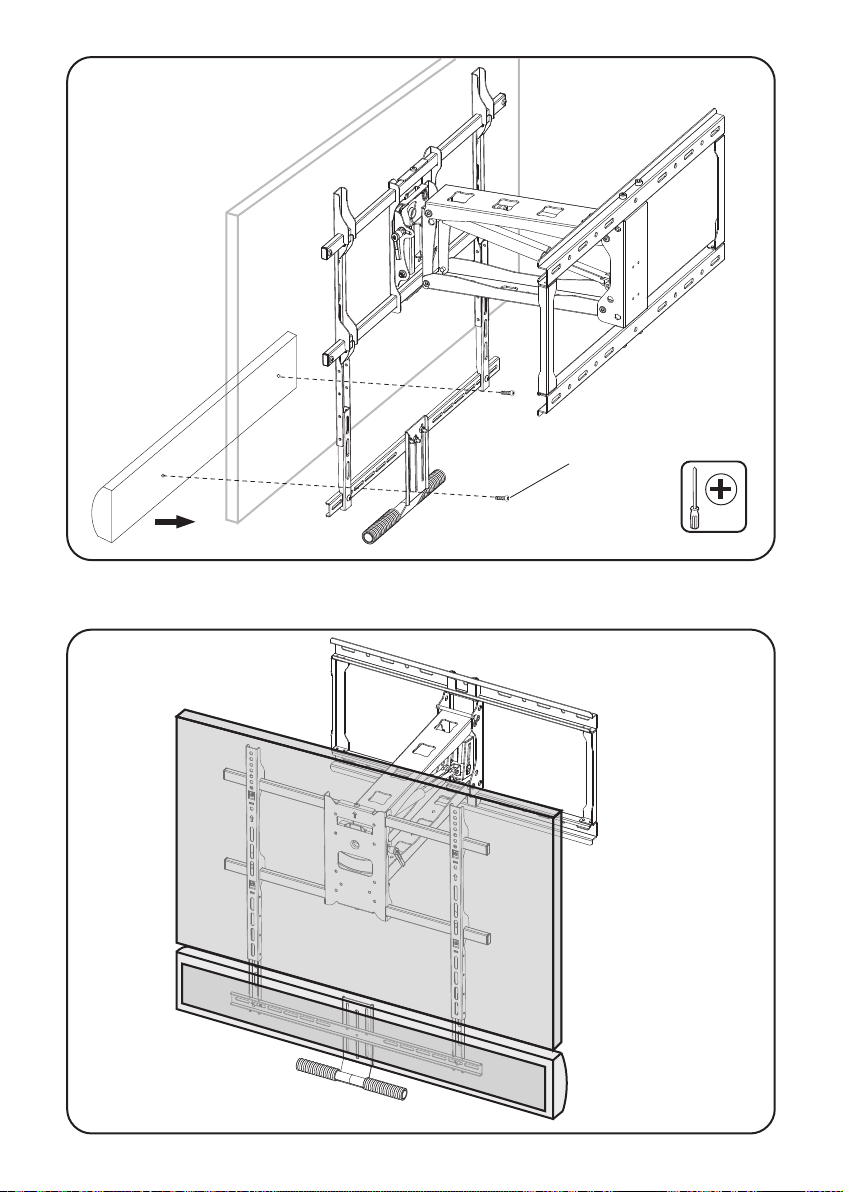

12.
b.
With Sound

User’s Manual 15

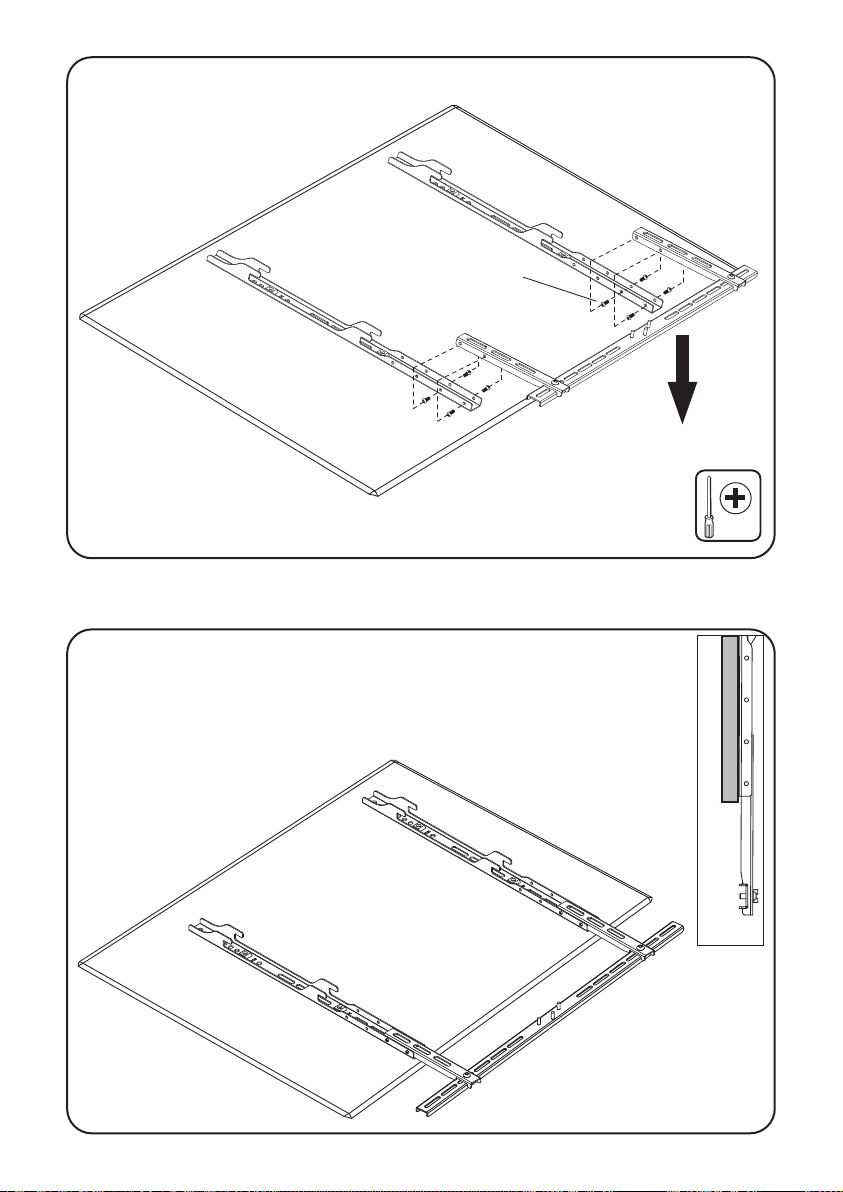

13.
14.
Please adjust the Handle distance
to the height of the sound
Q
H

User’s Manual16
15.
16.
T
HH

User’s Manual 17
17.
18.
S

User’s Manual18
19.
Keep the TV’s height
in this angle.

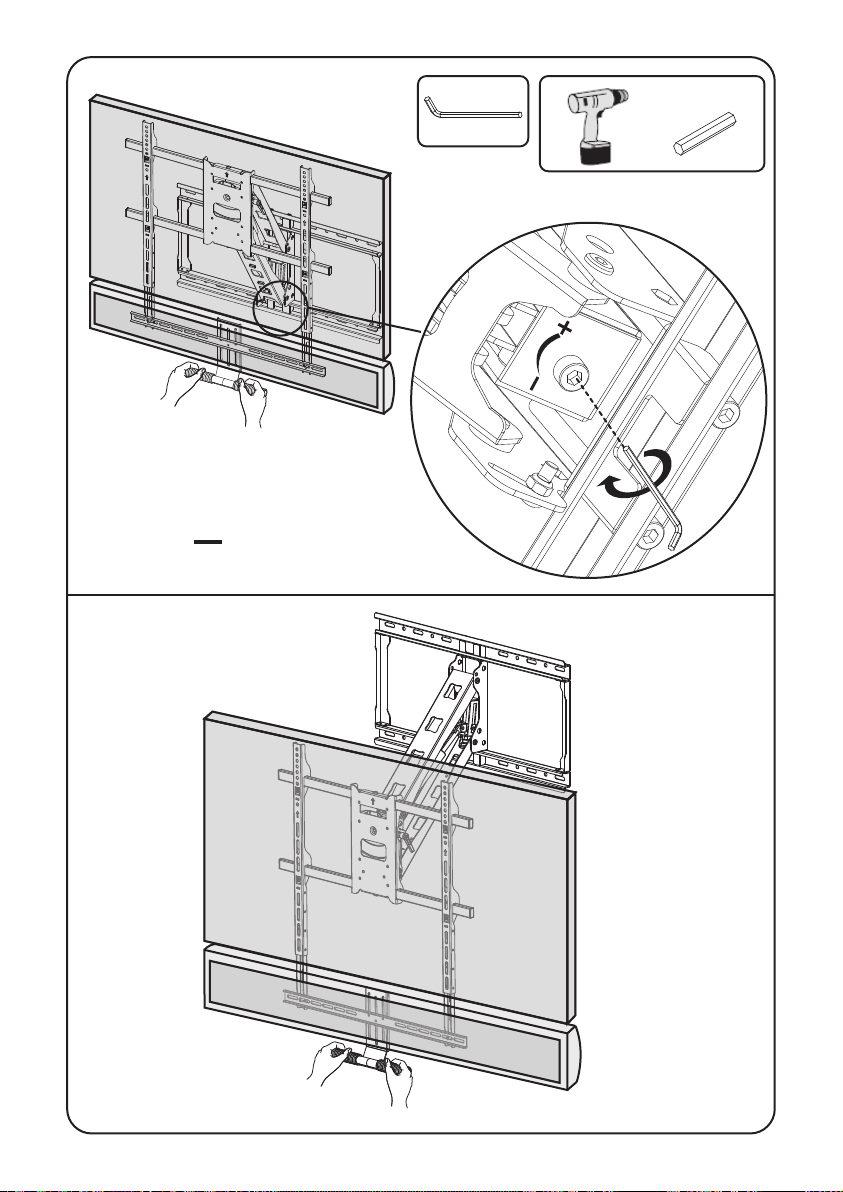

Adjusting the force value
in this state is the easiest.
Release
Adjustable the bracket’s constant force
Attention: The weight of the TV set in the weighing range
“ +” :Increase the constant force
A: The TV sets can be hovering at any height, don not need to adjust.
B: The TV sets up, turn to “ - ” until free hovering.
C: The TV sets down, turn to “ + ” until free hovering.
, “ -” :Reduce the constant force
90°

User’s Manual 19
B: The TV sets up
Adjust until free hovering
Turn to “ ”
8mm
C: The TV sets down
19-2
19-3
Z
+

User’s Manual20
Adjust until free hovering
Turn to “ ”
19-4
a. b.
Height adjustment 230mm
230mm
20.
8mm
Z
+
