QUICK GUIDE
1
55TH0-74E
59RN00020
QUICK GUIDE
Illustrated Table of Contents .............................................. 1-1
Warning Lights and Indicators .......................................... 1-9
Warning Buzzer ................................................................... 1-17

1-1
QUICK GUIDE
55TH0-74E
Illustrated Table of Contents
Exterior
(1) Door (P.3-1)
(2) Door Locks (P.3-2)
(3) Outside Rearview Mirror (P.2-10)
(4) Windshield Wiper (P.3-27, 9-35)
(5) Fuel Filler Cap (P.7-1)
(6) Radio Antenna (P.7-27)
(7) High Mount Stop Light (P.9-32)
(8) Tailgate (P.3-4)
(9) Rear Window Wiper (if equipped)
(P.3-28, 9-36)
(10) Rear Camera (if equipped)
(P.5-66, 5-97)
(11) Side turn signal light on outside rear-
view mirrors (if equipped) (P.9-31)
(12) Side Camera (if equipped) (P.5-66)
(13) Side turn signal light on fender
(if equipped) (P.9-30)
(14) Daytime running light (D.R.L.)
(P.3-23),Position light (P.9-31),Front
Turn Signal Light (P.3-24, 9-31)
(if equipped)
(15) Position light (P.9-31) (if equipped)
(16) Headlight (P.3-20, 9-30)
(17) Engine Hood (P.7-4)
(18) Front Camera (if equipped) (P.5-66)
(19) Towing Eye Cover (P.10-2)
(20) Brake Light &Tail Light (P.9-32)
(21) Reversing Light (P.9-32)
(22) Rear Turn Signal Light (P.3-24, 9-32)
(23) Tail Light (P.9-32)
(24) Parking sensor (P.5-92)
(25) License Plate Light (P.9-32)
(26) Front Turn Signal Light (P.3-24, 9-31)
(if equipped) 55TB1009
(24)
(12)(11)
(5)
(14)
(22)
(24)
(6) (7) (8) (9) (10)
(17)
(26)
(19)(18)
(25)
(20) (21)
(16) (23)
(4)(1) (2) (3) (13)
(15)
Halogen LED
LED
Halogen

1-2
QUICK GUIDE
55TH0-74E
Interior, Side
(1) Inside Rearview Mirror (P.2-8)
(2) Front Interior Light (P.7-7, 9-32)
(3) Sun Visor (P.7-6)
(4) Warning Label for Front Passenger's
Front Airbag (P.2-40) *1, *2
(5) Hands-free microphone (if equipped)
(P.7-29)
(6) Center Interior Light (P.7-7, 9-32)
(7) Seat Belt (P.2-19)
(8) Side Curtain Airbag (if equipped)
(P.2-41)
(9) Front Seat (P.2-5)
(10) Side Airbag (if equipped) (P.2-41)
(11) Front Seat Back Pocket (if equipped)
(P.7-17)
*1: Be sure to read the detailed information
in the target page before using a child
restraint system.
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur.
74TB01001
55TB102
(10)
(7)
(9) (10)
(6)
(11)
(8)
(5)
(1) (2) (3)
(4)

1-3
QUICK GUIDE
55TH0-74E
Interior, Rear
(1) Assist Grip (P.7-14)
(2) Seat Belt (P.2-19)
(3) Rear Seat (P.2-13)
(4) Accessory Socket (if equipped)
(P.7-10)
(5) USB Charging Socket (if equipped)
(P.7-16)
55TB1011
(1) (2) (3)
(4) (5)
(2)
(2)
(2)
Type A Type B

1-4
QUICK GUIDE
55TH0-74E
Interior, Front
(1) Glove Box (P.7-13)
(2) Front passenger’s front airbag
(P.2-40)
(3) Accessory socket (P.7-10)
(4) Heating and Air Conditioning System
(P.7-18)
(5) USB socket (if equipped) (P.7-16)
(6) Driver’s Front Airbag (P.2-40)
(7) Engine Hood Release Handle
(P.7-4)
(8) Fuel Lid Opener Lever (P.7-1)
(9) Parking brake Lever (P.5-16)
(10) Gearshift Lever (P.5-20, 5-21)
(11) Window Lock Switch (P.3-18)
(12) Electric Window Control (P.3-17)
(13) Electric Mirror Control (P.2-10)
(14) Door Lock Switch (P.3-2)
55TB104
(1) (2) (3) (4) (6) (7) (8)(5)
(9) (13)
(11) (12)
(14)
(10)

1-5
QUICK GUIDE
55TH0-74E
Instrument Panel 1
(1) Hazard Warning Switch (P.3-25)
(2) Hands-free switch (if equipped)
(P.7-28)
Voice recognition switch (if equipped)
(P.7-29)
(3) Windshield Wiper and Washer Lever
(P.3-26)/
Rear Window Wiper/Washer Switch
(if equipped) (P.3-28)
(4) Remote Audio Controls (if equipped)
(P.7-28)
(5) Instrument Cluster (P.4-1, 4-14)
(6) Head-up Display (if equipped)
(P.5-58)
(7) Cruise Control Switches (if equipped)
(P.5-56)
(8) Lighting Control Lever (P.3-21)/
Turn Signal Control Lever (P.3-24)
(9) Heated Rear Window Switch (P.3-29)
(10) Drink Holder (P.7-11)
(11) Tilt / Telescoping (if equipped)
Steering Lock Lever (P.2-7)
(12) Ignition Switch (vehicle without key-
less push start system) (if equipped)
(P.5-3)
(13) Engine Switch (vehicle with keyless
push start system) (if equipped)
(P.5-5)
(14) Instrument Panel Under Tray
(Driver’s Side) (P.7-12)
(15). Fuses (P.9-24)
55TB105
(6) (7)
(13)
(11)
(15)(14)
(10)
(1) (2) (3) (8)
(9)
(5)(4)
(12)

1-6
QUICK GUIDE
55TH0-74E
Instrument Panel 2
(1) Down Switch* (if equipped) (P.5-58)
(2) Up Switch* (if equipped) (P.5-58)
(3) Brightness Control Switch*
(if equipped) (P.5-58)
(4) Head-up Display Switch*
(if equipped) (P.5-58)
(5) ESP® OFF Switch (P.5-101)
(6) Camera Switch (if equipped) (P.5-66)
(7) Headlight leveling switch (P.3-20)
(8) ENG A-STOP OFF switch
(if equipped) (P.5-52)
(9) For Non Keyless Entry (P.3-5, 5-3)
(10) For Keyless Entry (P.3-5, 5-5)
*: For Head-up display
55TB106
(5) (6)
(8)
(7)
(5)
(8)
(7)
(10)(9)
HUD
(1) (2) (3) (4)

1-7
QUICK GUIDE
55TH0-74E
Luggage Compartment
(1) Luggage compartment cover
(if equipped) (P.7-17)
(2) Spare tyre (P.9-20)
(3) Luggage compartment light
(if equipped) (P.7-8, 9-33, 12-7)
(4) Luggage Compartment Hook (P.7-17)
(5) Luggage Compartment Board
(6) Towing Eye (P.10-2)
(7) Jack Handle (P.10-4)
(8) Jack (P.10-6)
(9) Wheel Wrench (P.10-4)
(10) Tool bag (P.10-4)
74TB01002
(5)
(1) (2)
(3) (4)
(7)
(6)
(9)
(10)
(8)

1-8
QUICK GUIDE
55TH0-74E
Key
(1) Keyless Push Start System Remote
Controller (P.3-9)
Keyless Push Start System (P.5-9)
Starting Engine (P.5-12)
(2) Key (P.3-1)
Door Locks (P.3-2)
(3) Keyless Entry System Transmitter
(P.3-6)
Starting Engine (P.5-12)
Key (P.3-1)
Door Locks (P.3-2)
55T010010
(1) (2)
(3)

1-9
QUICK GUIDE
55TH0-74E
Warning Lights and Indicators
Warning Lights
Instrument cluster (Type A)
55TB01011
(2)(12)(14) (3)
(4)(5)(6)(7)(10) (9) (13)
(1)
(8)
(11)
C
H
D

1-10
QUICK GUIDE
55TH0-74E
Instrument cluster (Type B)
55TB1010
(1) (8) (11) (15)
(2)(3) (14)(4)(5)
(12)
(7)(10) (9)

1-11
QUICK GUIDE
55TH0-74E
• If a warning light continues to be lit or is blinking, there may be a problem with the vehicle or the system. Carefully read the following
reference information and consult with a Maruti Suzuki authorized workshop.
• It is considered normal that warning lights and indicators marked with an asterisk (*) are lit when turn the ignition switch to ON position
or pressing the engine switch to change the ignition mode to ON (i.e., high engine coolant temperature warning light initially lights up in
red). If such lights do not light up, consult with a Maruti Suzuki authorized workshop.
• For the ENG A-STOP system, there is the particular condition that a warning light or an indicator is lit.

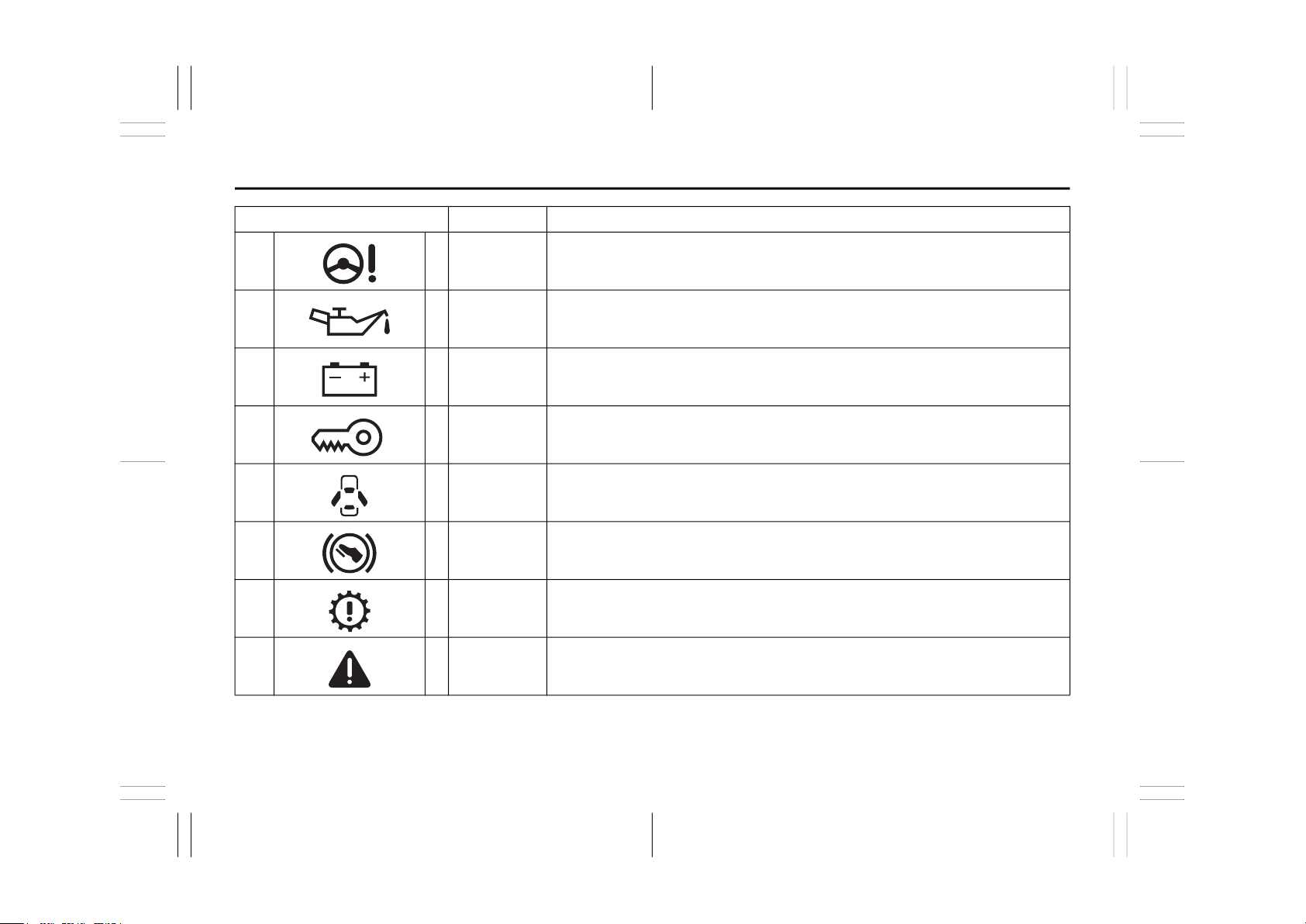

Warning light Color Name
(1) * Red Brake System Warning Light
(2) Red
Driver’s Seat Belt Reminder Light / Front Passenger’s Seat Belt Reminder Light
Rear Passenger’s Seat Belt Reminder Light
(3) * Red Airbag Warning Light
(4) Orange Low Fuel Warning Light
(5) * Orange Anti-lock Brake System (ABS) Warning Light
(6) * Red High Engine Coolant Temperature Warning Light
(7) * Orange Malfunction Indicator Light

1-12
QUICK GUIDE
55TH0-74E
(8) * Orange Electric Power Steering Light
(9) * Red Engine Oil Pressure Warning Light
(10) * Red Charge Warning Light
(11) * Orange Immobilizer/Keyless Push Start System Warning Light
(12) Red Open Door Warning Light
(13) Orange Brake Request Indicator (for AGS models)
(14) Orange Transmission Warning Light (for AGS / AT models)
(15) * Orange Master Warning Indicator Light (if equipped)
Warning light Color Name

1-13
QUICK GUIDE
55TH0-74E
Indicators
Instrument cluster (Type A)
55TB01013
(19)(16) (16)(23) (24)
(21)(20)(17)(22) (18) (25)
C
H
D

1-14
QUICK GUIDE
55TH0-74E
Instrument cluster (Type B)
55TB01012
(16) (16)
(23) (24)
(19)
(21)(20)(17) (18) (25)

1-15
QUICK GUIDE
55TH0-74E
Indicator Color Name
(16) Green Turn Signal Indicators
(17) Blue Main Beam (High Beam) Indicator Light
(18) Green Illumination Indicator Light
(19) White Deceleration Energy Regenerating Indicator Light (if equipped)
(20) * Orange ESP® OFF Indicator Light
(21) * Orange ESP® Warning Light
(22) Blue Low Engine Coolant Temperature Light
(23) * Green ENG A-STOP Indicator Light

1-16
QUICK GUIDE
55TH0-74E
(24) * Orange ENG A-STOP OFF Indicator Light
(25) Red Security System Indicator
Indicator Color Name

1-17
QUICK GUIDE
55TH0-74E
Warning Buzzer
• *1: The master warning in the instrument cluster blinks. At the same time, the message will be shown on the information display to
inform the driver of the vehicle condition and the remedy.
• *2: The message will be shown on the information display to inform the driver of the vehicle condition and the remedy.
For All model
When Warning buzzer Instrument cluster Cause and remedy
When one of the
doors is opened
Interior buzzer
Blinks every 2 sec-
onds
The security system warning is being activated. You can stop
the warning by either of the following operations:
• Unlock the doors using the keyless push start system
remote controller or the request switch.
• Press the engine switch to change the ignition mode to ON.
• Beeping at short inter-
vals for approx. 10 sec-
onds
When the engine
switch is pressed to
change the ignition
mode to ON
Interior buzzer
Blinks rapidly for
approx. 8 seconds
Indicates that a security system has been activated while the
vehicle has been parked; check the vehicle to make sure that
it is not broken into or nothing is stolen.
• Beeping 4 times
Interior buzzer
*1
The steering wheel lock has not been released. With load not
applied, turn the steering wheel to the left or right so as to
press the engine switch again.
• Chime (once)
When stopping or
backing up the vehi-
cle
Interior buzzer
–
Rear parking sensors detect an obstacle on the rear side of
the vehicle. Check the surrounding area directly with your
eyes and the mirrors, and back up the vehicle slowly.
• Short beeps at long
intervals, short beeps
at short intervals, short
beeps at very short
intervals, or continuous
beep

1-18
QUICK GUIDE
55TH0-74E
When the engine
switch is in ON
mode
Interior buzzer
Lights up
The brake fluid is insufficient or the brake system may be
faulty. Consult with a Maruti Suzuki authorized workshop.
• Chime (once)
Interior buzzer
Lights up
The fuel level is low. Refuel soon.
• Chime (once)
When driving Interior buzzer
• Beeping at short inter-
vals for approx. 95 sec-
onds Blinks
*1
The driver does not wear his/her seat belt. Stop the vehicle in
a safe place and wear your seat belt.
The front passenger does not wear his/her seat belt. Wear the
seat belt.
The rear passenger does not wear his/her seat belt. Wear the
seat belt (if equipped).
Interior buzzer
Lights up
*1
The parking brake has not been released. Stop the vehicle in
a safe place and release the parking brake.
• 3 beeps repeating at
short intervals
When driving Interior buzzer
Lights up
*1
One of the doors is not completely closed. Stop the vehicle in
a safe place and close all doors completely.
• Chime (once)
When Warning buzzer Instrument cluster Cause and remedy
