SVC RB060/20X User manual
Modular UPS 25KVA~900KVA User Manual I
Preface
Preface
Usage
The manual contains information on installing, using, operation and maintenance of
the modular UPS. Please carefully read this manual prior to installation.
Users
Technical Support Engineer
Maintenance Engineer
Note
Our company is providing a full range of technical support and services. Customer
can contact our local office or customer service center for help.
The manual will update irregularly, due to the product upgrading or other reasons.
Unless otherwise agreed，the manual is only used as guide for users and any
statements or information contained in this manual make no warranty expressed or
implied.
II Modular UPS 25KVA~900KVA User Manual
Contents
Contents
1. Safety Precautions.........................................................................................................................1
Safety Message Definition ........................................................................................................1
Warning Label...........................................................................................................................1
Safety Instruction ......................................................................................................................1
Move & Install ..........................................................................................................................1
Debug & Operate ......................................................................................................................2
Maintenance & Replacement ....................................................................................................2
Battery Safety............................................................................................................................3
Disposal.....................................................................................................................................4
2. Product Introduction .....................................................................................................................5
2.1 System Configuration .........................................................................................................5
2.2 Power Module .....................................................................................................................5
2.3 Operation Mode ..................................................................................................................6
2.3.1 Normal Mode ...........................................................................................................6
2.3.2 Battery Mode............................................................................................................6
2.3.3 Bypass Mode............................................................................................................7
2.3.4 Maintenance Mode (Manual Bypass) ......................................................................7
2.3.5 ECO Mode ...............................................................................................................8
2.3.6 Auto-restart Mode ....................................................................................................9
2.3.7 Frequency Converter Mode......................................................................................9
2.4 UPS Structure......................................................................................................................9
2.4.1 UPS Configuration...................................................................................................9
2.4.2 UPS Outlook ............................................................................................................9
3. Installation Instruction ................................................................................................................13
3.1 Location ............................................................................................................................13
3.1.1 Installation Environment........................................................................................13
3.1.2 Site Selection..........................................................................................................13
3.1.3 Size and Weight .....................................................................................................13
3.2 Unloading and Unpacking.................................................................................................15
3.2.1 Moving and Unpacking of the Cabinet ..................................................................15
3.2.2 Unpacking Power Module......................................................................................16
3.3 Positioning ........................................................................................................................17
3.3.1 Positioning Cabinet ................................................................................................17
3.3.2 Installing Power Module ........................................................................................19
3.4 Battery...............................................................................................................................20
3.5 Cable Entry .......................................................................................................................21
3.6 Power Cables.....................................................................................................................25
3.6.1 Specifications .........................................................................................................25
3.6.2 Specifications for Power Cables Terminal.............................................................25
3.6.3 Circuit Breaker.......................................................................................................26
Modular UPS 25KVA~900KVA User Manual III
Contents
3.6.4 Connecting Power Cables ......................................................................................26
3.7 Control and Communication Cables .................................................................................28
3.7.1 Dry Contact Interface.............................................................................................29
3.7.2 Communication Interface.......................................................................................34
4. UPS and Module Control Panel ..................................................................................................35
4.1 Introduction.......................................................................................................................35
4.2 LCD panel for Power Module...........................................................................................35
4.2.1 LED Indicator ........................................................................................................35
4.2.2 Control and Operation Keys...................................................................................36
4.2.3 LCD Display ..........................................................................................................36
4.3 UPS operator panel ...........................................................................................................39
4.3.1 LED Indicator ........................................................................................................39
4.3.2 Control and Operation Keys...................................................................................40
4.3.3 LCD touch Screen..................................................................................................41
4.4 Main Menu........................................................................................................................42
4.4.1 Cabinet ...................................................................................................................42
4.4.2 Module ...................................................................................................................44
4.4.3 Setting ....................................................................................................................46
4.4.4 Log .........................................................................................................................48
4.4.5 Operate...................................................................................................................52
4.4.6 Scope......................................................................................................................54
5. Operations...................................................................................................................................56
5.1 UPS Start-up .....................................................................................................................56
5.1.1 Start in Normal Mode.............................................................................................56
5.1.2 Start from Battery...................................................................................................57
5.2 Procedure for Switching between Operation Modes.........................................................57
5.2.1 Switching the UPS from Normal Mode into Battery Mode...................................57
5.2.2 Switching the UPS from Normal Mode into Bypass Mode ...................................58
5.2.3 Switching the UPS into Normal Mode from Bypass Mode ...................................58
5.2.4 Switching the UPS from Normal Mode into Maintenance Bypass Mode..............58
5.2.5 Switching the UPS into Normal Mode from Maintenance Bypass Mode..............59
5.3 Battery Maintenance .........................................................................................................59
5.4 EPO ...................................................................................................................................61
5.5 Installation of Parallel Operation System..........................................................................61
6. Maintenance................................................................................................................................64
6.1 Precautions........................................................................................................................64
6.2 Instruction for Maintaining Power Module.......................................................................64
6.3 Instruction for Maintaining ...............................................................................................64
6.3.1 Maintaining Bypass Module for 6-slot and 10-slot Cabinet ..................................64
6.3.2 Maintaining Static Bypass Unit for 20-slot Cabinet...............................................65
6.3.3 Maintenance for the Air-drawing fans ...................................................................65
6.3.4 Battery Maintenance ..............................................................................................65
IV Modular UPS 25KVA~900KVA User Manual
Contents
6.3.5 Disconnect the Inner Control Neutral cable...........................................................66
6.4 Battery Setting...................................................................................................................66
6.4.1 Setting of Battery Type ..........................................................................................67
6.4.2 Setting of Battery Number .....................................................................................67
6.4.3 Battery Capacity Setting ........................................................................................68
6.4.4 Float and Boost Charge Setting..............................................................................68
6.4.5 EOD Voltage Setting..............................................................................................68
6.4.6 Charging Current Percent Limit.............................................................................68
6.4.7 Battery Temperature Compensate ..........................................................................68
6.4.8 Boost Charge Time Limit.......................................................................................69
6.4.9 Auto Boost Period ..................................................................................................69
6.4.10 Auto maintenance Discharge Period ....................................................................69
6.4.11 Warnings for Battery and Environment Temperature Overheat ...........................69
6.5 Replacing Dust Filter (optional)........................................................................................69
7. Product Specification ..................................................................................................................71
7.1 Applicable Standards ........................................................................................................71
7.2 Environmental Characteristics ..........................................................................................71
7.3 Mechanical Characteristic.................................................................................................71
7.4 Electrical Characteristics...................................................................................................72
7.4.1 Electrical Characteristics (Input Rectifier).............................................................72
7.4.2 Electrical Characteristics (Intermediate DC Link).................................................73
7.4.3 Electrical Characteristics (Inverter Output) ...........................................................73
7.4.4 Electrical Characteristics (Bypass Mains Input) ....................................................74
7.5 Efficiency ..........................................................................................................................74
7.6 Display and Interface ........................................................................................................74
Modular UPS 25KVA~900KVA User Manual 1
Safety Precautions
1. Safety Precautions
This manual contains information concerning the installation and operation of
Modular UPS. Please carefully read this manual prior to installation.
The Modular UPS cannot be put into operation until it is commissioned by engineers
approved by the manufacturer (or its agent). Not doing so could result in personnel
safety risk, equipment malfunction and invalidation of warranty.
Safety Message Definition
Danger: Serious human injury or even death may be caused, if this requirement is
ignored.
Warning: Human injury or equipment damage may be caused, if this requirement is
ignored.
Attention: Equipment damage, loss of data or poor performance may be caused, if this
requirement is ignored.
Commissioning Engineer: The engineer who installs or operates the equipment should
be well trained in electricity and safety and familiar with the operation, debug, and
maintenance of the equipment.
Warning Label
The warning label indicates the possibility of human injury or equipment damage, and
advises the proper step to avoid the danger. In this manual, there are three types of
warning labels as below.
Labels Description
Danger
Serious human injury or even death may be caused, if this
requirement is ignored.
Warning Human injury or equipment damage may be caused, if this
requirement is ignored.
Attention
Equipment damage, loss of data or poor performance may be
caused, if this requirement is ignored.
Safety Instruction
Danger
Performed only by commissioning engineers.
This UPS is designed for commercial and industrial
applications only, and is not intended for any use in life-support
devices or system.
Warning
Read all the warning labels carefully before operation, and
follow the instructions.
When the system is running, do not touch the surface with this
label, to avoid any hurt of scald.
ESD sensitive components inside the UPS, anti-ESD measure
should be taken before handling.
Move & Install
Danger
Keep the equipment away from heat source or air outlets.
In case of fire, use dry powder extinguisher only, any liquid
Safety Precautions
2 Modular UPS 25KVA~900KVA User Manual
extinguisher can result in electric shock.
Warning
Do not start the system if any damage or abnormal parts
founded.
Contacting the UPS with wet material or hands may be subject
to electric shock.
Attention
Use proper facilities to handle and install the UPS. Shielding
shoes, protective clothes and other protective facilities are
necessary to avoid injury.
During positioning, keep the UPS way from shock or vibration.
Install the UPS in proper environment, more detail in section
3.3.
Debug & Operate
Danger
Make sure the grounding cable is well connected before
connecting the power cables, the grounding cable and neutral
cable must be in accordance with the local and national codes
practice.
Before moving or re-connecting the cables, make sure to cut
off all the input power sources, and wait for at least 10 minutes
for internal discharge. Use a multi-meter to measure the voltage
on terminals and ensure the voltage is lower than 36V before
operation.
Attention
The earth leakage current of load will be carried by RCCB or
RCD.
Initial check and inspection should be performed after long
time storing of UPS.
Maintenance & Replacement
Danger
All the equipment maintenance and servicing procedures
involving internal access need special tools and should be
carried out only by trained personnel. The components that can
only be accessed by opening the protective cover with tools
cannot be maintained by user.
This UPS full complies with “IEC62040-1-1-General and
safety requirements for use in operator access area UPS”.
Dangerous voltages are present within the battery box.
However, the risk of contact with these high voltages is
minimized for non-service personnel. Since the component
with dangerous voltage can only be touched by opening the
protective cover with a tool, the possibility of touching high
voltage component is minimized. No risk exists to any
personnel when operating the equipment in the normal manner,
following the recommended operating procedures in this
manual.
Modular UPS 25KVA~900KVA User Manual 3
Safety Precautions
Battery Safety
Danger
All the battery maintenance and servicing procedures involving
internal access need special tools or keys and should be carried
out only by trained personnel.
WHEN CONNECTED TOGETHER, THE BATTERY
TERMINAL VOLTAGE WILL EXCEED 400Vdc AND IS
POTENTIALLY LEATHAL.
Battery manufacturers supply details of the necessary
precautions to be observed when working on, or in the vicinity
of, a large bank of battery cells. These precautions should be
followed implicitly at all times. Particular attention should be
paid to the recommendations concerning local environmental
conditions and the provision of protective clothing, first aid and
fire-fighting facilities.
Ambient temperature is a major factor in determining the battery
capacity and life. The nominal operating temperature of battery
is 20°C. Operating above this temperature will reduce the
battery life. Periodically change the battery according to the
battery user manuals to ensure the back-up time of UPS.
Replace the batteries only with the same type and the same
number, or it may cause explosion or poor performance.
When connecting the battery, follow the precautions for
high-voltage operation before accepting and using the battery,
check the appearance the battery. If the package is damaged, or
the battery terminal is dirty, corroded or rusted or the shell is
broken, deformed or has leakage, replace it with new product.
Otherwise, battery capacity reduction, electric leakage or fire
may be caused.
zBefore operating the battery, remove the finger ring, watch,
necklace, bracelet and any other metal jewelry
zWear rubber gloves.
zEye protection should be worn to prevent injury from
accidental electrical arcs.
zOnly use tools (e.g. wrench) with insulated handles.
zThe batteries are very heavy. Please handle and lift the
battery with proper method to prevent any human injury or
damage to the battery terminal.
zDo not decompose, modify or damage the battery.
Otherwise, battery short circuit, leakage or even human
injury may be caused.
zThe battery contains sulfuric acid. In normal operation, all
the sulfuric acid is attached to the separation board and
plate in the battery. However, when the battery case is
broken, the acid will leak from the battery. Therefore, be
sure to wear a pair of protective glasses, rubber gloves and
skirt when operating the battery. Otherwise, you may
become blind if acid enters your eyes and your skin may be
damaged by the acid.
zAt the end of battery life, the battery may have internal
short circuit, drain of electrolytic and erosion of
positive/negative plates. If this condition continues, the
Safety Precautions
4 Modular UPS 25KVA~900KVA User Manual
battery may have temperature out of control, swell or leak.
Be sure to replace the battery before these phenomena
happen.
zIf a battery leaks electrolyte, or is otherwise physically
damaged, it must be replaced, stored in a container resistant
to sulfuric acid and disposed of in accordance with local
regulations.
zIf electrolyte comes into contact with the skin, the affected
area should be washed immediately with water.
Disposal
Warning Dispose of used battery according to the local instructions
Modular UPS 25KVA~900KVA User Manual 5
Product Introduction
2. Product Introduction
2.1 System Configuration
The Modular UPS is configured by the following part: Power modules, Bypass &
Monitoring module, and cabinet with manual Bypass switch. One or several battery
strings should be installed to provide backup energy once the utility fails. The UPS
structure is shown in Fig. 2-1.
Fig. 2-1 6-slot and 10-slot UPS Configuration
Fig.2-2 20-slot UPS Configuration
2.2 Power Module
The power module structure is shown as Fig.2-3. The power module contains a
rectifier, an inverter, and a DC/DC converter for charge and discharge of the external
Product Introduction
6 Modular UPS 25KVA~900KVA User Manual
batteries.
Rectifier
AC/DC
Inverter
DC/AC
DC/DC
Input
Battery
Output
Fig 2-3 Power module structure
2.3 Operation Mode
The Modular UPS is an on-line, double-conversion UPS that permits operation in the
following modes:
zNormal mode
zBattery mode
zBypass mode
zMaintenance mode (manual bypass)
zECO mode
zAuto-restart mode
zFrequency Converter mode
2.3.1 Normal Mode
The inverter of power modules continuously supply the critical AC load. The
rectifier/charger derives power from the AC mains input source and supplies DC
power to the inverter while simultaneously FLOAT or BOOST charging its associated
backup battery.
Rectifier
AC/DC
Main
StaticBypass
ManualBypass
Inverter
DC/AC
Charger
DC/DC
Output
Battery
Bypass
Fig 2-4 Normal mode operation diagram
2.3.2 Battery Mode
Upon failure of the AC mains input power, the inverter of power modules, which
obtain power from the battery, supply the critical AC load. There is no interruption in
power to the critical load upon failure. After restoration of the AC mains input power,
the “Normal mode” operation will continue automatically without the necessity of
user intervention.
Modular UPS 25KVA~900KVA User Manual 7
Product Introduction
Rectifier
AC/DC
Main
StaticBypass
ManualBypass
Inverter
DC/AC
Discharge
DC/DC
Output
Battery
Bypass
Fig 2-5 Battery mode operation diagram
Note
With the function of Battery cold start, the UPS may start without utility. See more detail in
section 5.1.2.
2.3.3 Bypass Mode
If the inverter overload capacity is exceeded under Normal mode, or if the inverter
becomes unavailable for any reason, the static transfer switch will perform a transfer
of the load from the inverter to the bypass source, with no interruption in power to the
critical AC load. Should the inverter be asynchronous with the bypass, the static
switch will perform a transfer of the load from the inverter to the bypass with power
interruption to the load. This is to avoid large cross currents due to the paralleling of
unsynchronized AC sources. This interruption is programmable but typically set to be
less than 3/4 of an electrical cycle, e.g., less than 15ms (50Hz) or less than 12.5ms
(60Hz). The action of transfer/re-transfer can also be done by the command through
monitor.
Fig. 2-6 Bypass mode operation diagram
2.3.4 Maintenance Mode (Manual Bypass)
A manual bypass switch is available to ensure continuity of supply to the critical load
when the UPS becomes unavailable e.g. during a maintenance procedure. (See
Fig.2-7).
Product Introduction
8 Modular UPS 25KVA~900KVA User Manual

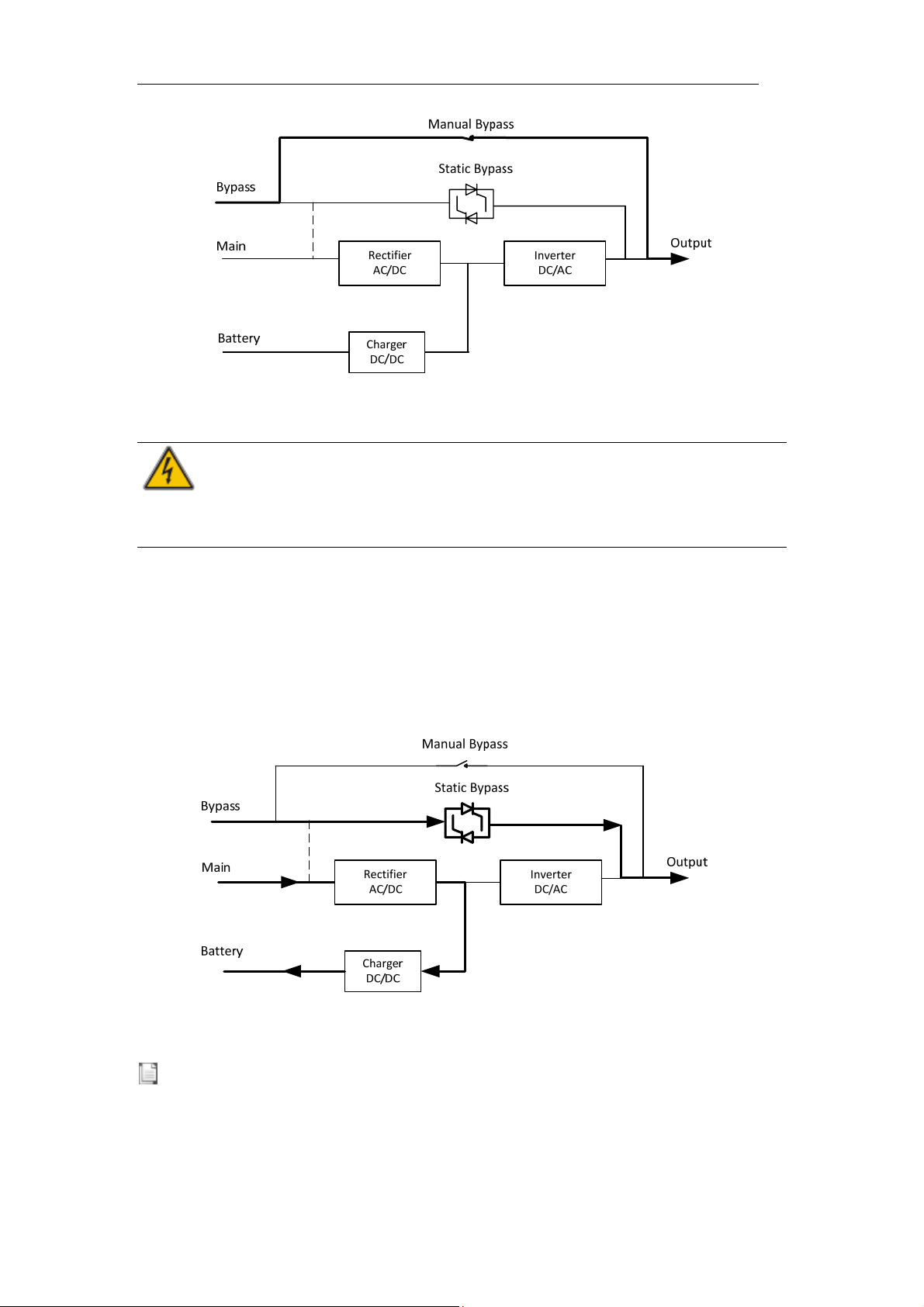

Fig .2-7 Maintenance mode operation diagram
Danger
During Maintenance mode, dangerous voltages are present on the terminal of input, output and
neutral, even with all the modules and the LCD turned off.
2.3.5 ECO Mode
To improve system efficiency, UPS rack system works in Bypass mode at normal
time, and inverter is standby. When the utility fails, the UPS transfers to Battery Mode
and the inverter powers the loads.
Fig.2-8 ECO Mode operation diagram
Note
There is a short interruption time (less than 10ms) when transfer from ECO mode to battery mode,
it must be sure that the interruption has no effect on loads.
Modular UPS 25KVA~900KVA User Manual 9
Product Introduction
2.3.6 Auto-restart Mode
The battery may become exhausted following an extended AC mains failure. The
inverter shuts down when the battery reaches the End of Discharge Voltage (EOD).
The UPS may be programmed to “System Auto Start Mode after EOD”. The system
starts after a delay time when the AC mains recovers. The mode and the delay time
are programmed by the commissioning engineer.
2.3.7 Frequency Converter Mode
By setting the UPS to Frequency Converter mode, the UPS could present a stable
output of fixed frequency (50 or 60Hz), and the bypass static switch is not available.
2.4 UPS Structure
2.4.1 UPS Configuration
The UPS configuration is provided in Table 2.1
Table2.1 UPS Configuration
Item Components Quantity/
pcs Remark
6-slot Cabinet
Manual Bypass 1 Requisite, factory installed
Bypass & Monitoring
module 1 Requisite, factory installed
Dust filter 1 Optional.
10-slot Cabinet
Manual Bypass Requisite, factory installed
Bypass & Monitoring
module 1 Requisite, factory installed
Dust filter 1 Optional.
20-slot Cabinet
Power distribution cabinet
(CB of Input, Bypass Input,
Output and Manual Bypass)
1 Requisite, factory installed
Monitoring unit 1 Requisite, factory installed
Bypass unit 1 Requisite, factory installed
Dust filter 1 Optional
30 KVA
Power module Power module 1-20 Requisite, installed on site.
25 KVA
Power module Power module 1-20 Requisite, installed on site.
2.4.2 UPS Outlook
The UPS outlook is shown as Fig.2-9 to Fig. 2-11.
Product Introduction
10 Modular UPS 25KVA~900KVA User Manual

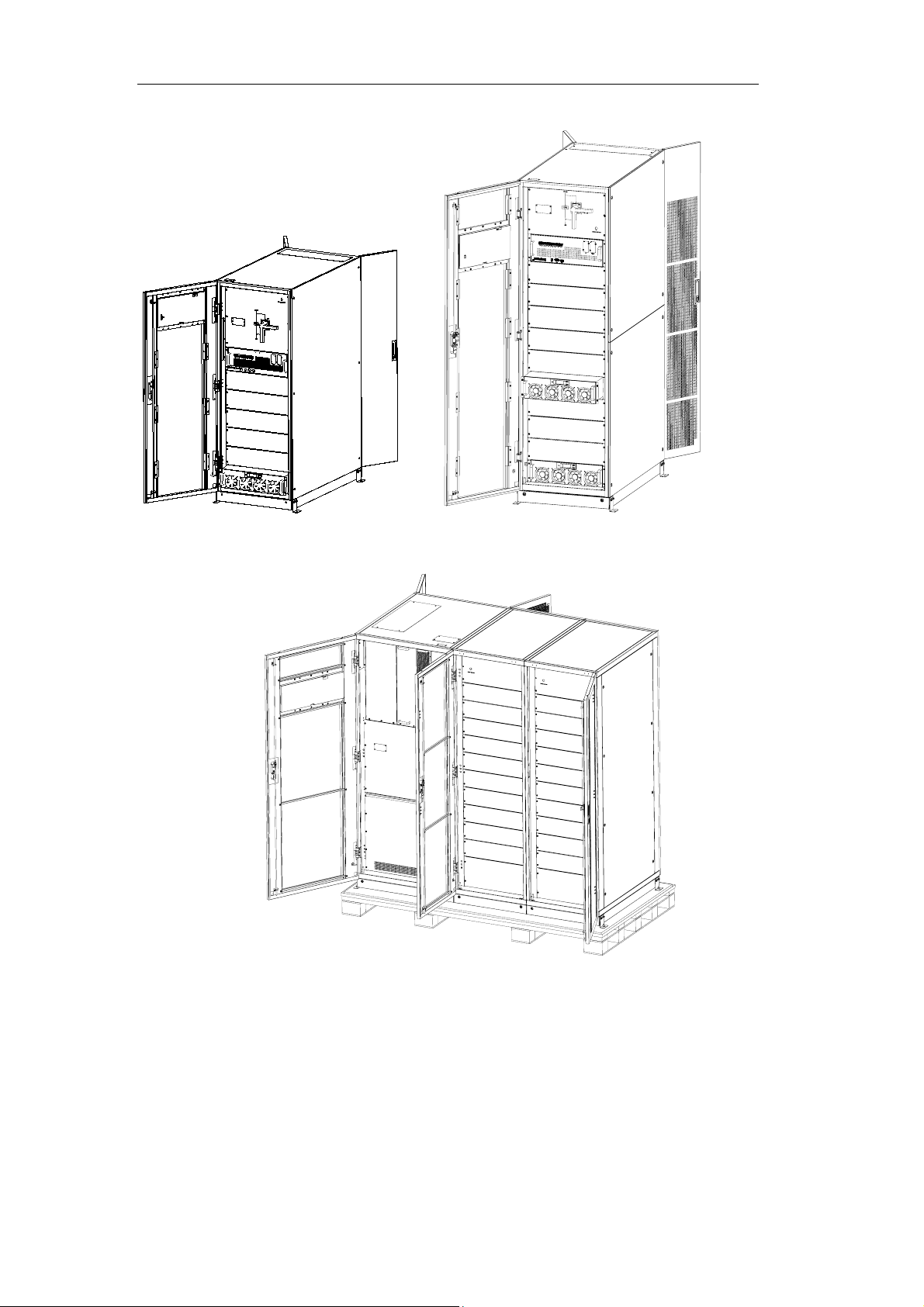

Fig.2-9 Outlook of 6-slot UPS Fig.2-10 Outlook of 10-slot UPS
Fig.2-11 Outlook of 20-slot UPS
The UPS front view are shown in Fig.2-12 to Fig. 2-14
Modular UPS 25KVA~900KVA User Manual 11
Product Introduction
BatteryC oldstart
①
②
③
④
⑤
Fig. 2-12 Front view of 6-slot UPS Fig. 2-13 Front view of 10-slot UPS
UPS Output UPS Input
?
?
??
?
?
??
Q
3
Q
1
Fig. 2-14 Front view of 20-slot UPS
①LCD control panel; ②SPD; ③Manual Bypass switch ④Battery cold start;
⑤Monitoring &static bypass module; ⑥Monitoring unit; ⑦Static Bypass unit;
⑧Output switch of 20-slot cabinet Q3; ⑨Input switch of 20-slot cabinet Q1
Product Introduction
12 Modular UPS 25KVA~900KVA User Manual
The UPS back view are shown in Fig.2-15 to Fig.2-17.
Fig. 2-15 Back view of 6-slot UPS Fig. 2-16 Back view of 10-slot UPS
Bypass Input MaintenanceB ypass
?
??
Q4 Q2
Fig. 2-17 Back view of 20-slot UPS
①PDU; ②Bypass Input switch of 20-slot cabinet Q3; ③Manual bypass switch of 20-slot cabinet Q3
Modular UPS 25KVA~900KVA User Manual 13
Installation Instruction
3. Installation Instruction
3.1 Location
As each site has its requirements, the installation instructions in this section are to act
as a guide for the general procedures and practices that should be observed by the
installing engineer.
3.1.1 Installation Environment
The UPS is intended for indoor installation and uses forced convection cooling by
internal fans. Please make sure there is enough space for the UPS ventilation and
cooling.
Keep the UPS far away from water，heat and inflammable and explosive, corrosive
material. Avoid installing the UPS in the environment with direct sunlight, dust,
volatile gases, corrosive material and high salinity.
Avoid installing the UPS in the environment with conductive dirt.
The operating environment temperature for battery is 20℃-25℃. Operating above
25℃will reduce the battery life, and operation below 20℃will reduce the battery
capacity.
The battery will generate a little amount of hydrogen and oxygen at the end of
charging; ensure the fresh air volume of the battery installation environment must
meet EN50272-2001 requirements.
When external batteries are to be used, the battery circuit breakers (or fuses) must be
mounted as close as possible to the batteries, and the connecting cables should be as
short as possible.
3.1.2 Site Selection
Ensure the ground or installation platform can bear the weight of the UPS
cabinet ,batteries and battery rack．
No vibration and less than 5 degree inclination horizontally.
The equipment should be stored in a room so as to protect it against excessive
humidity and heat sources.
The battery needs to be stored in dry and cool place with good ventilation. The most
suitable storage temperature is 20 ºC to 25ºC.
3.1.3 Size and Weight
Ensure there is enough space for the placement of the UPS. The room reserved for the
UPS cabinet is shown in Fig.3-1.
Attention
Ensure the following space margin: at least 0.8m before the front of the 6-slot or the 10-slot
cabinet, at least 1 m for the 20-slot cabinet, so as to easily maintain the power module with
the front door fully open; at least 0.5m at behind of 6-slot or the 10-slot cabinet, at least 0.6
m for 20-slot cabinet for ventilation and cooling. The space reserved for the cabinet is shown
in Fig.3-2.
Installation Instruction
14 Modular UPS 25KVA~900KVA User Manual
6-slot cabinet 10-slot cabinet
20-slot cabinet
Fig.3-1 Space reserved for the cabinet（Unit：mm）
The dimension and weight for the UPS cabinet is shown in Table 3.1
Table 3.1 Weight for the cabinet
Configuration Dimension(W×D×H)(mm) Weight(Kg)
6-slot Cabinet
(with bypass module) 600×1100×1600 170
10-slot Cabinet
(with bypass module) 600×1100×2000 220
20-slot Cabinet
(with bypass module) 2000×1100×2000 620
25KVA power module 460×790×133 32
30KVA power module 460×790×133 34
Modular UPS 25KVA~900KVA User Manual 15
Installation Instruction
3.2 Unloading and Unpacking
3.2.1 Moving and Unpacking of the Cabinet
The steps to move and unpack the cabinet are as follows：
1. Check if any damages to the packing. (If any, contact to the carrier)
2. Transport the equipment to the designated site by forklift, as shown in Fig.3-2.
Fig.3-2 Transport to the designated site
3. Open the top plate of the steel-edged wooden case with slotted awl and pier,
followed by side boards (see Fig.3-3).
Fig.3-3 Disassemble the case
4. Remove the protective foam around the cabinet.
Installation Instruction
16 Modular UPS 25KVA~900KVA User Manual

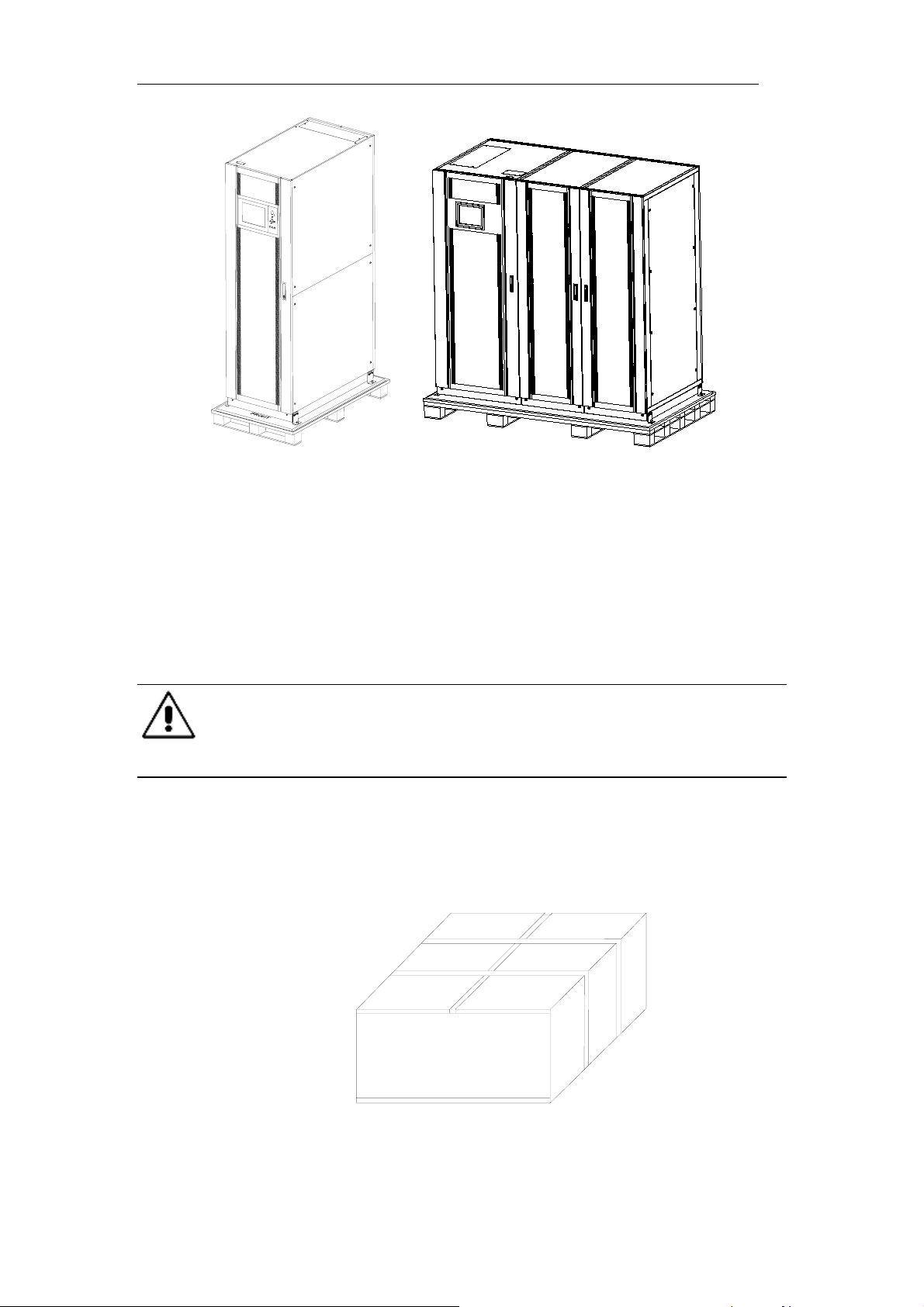

Fig.3-4 Remove the protective foam
5. Check the UPS.
(a) Visually examine if there are any damages to UPS during transportation. If
any, contact to the carrier.
(b) Check the UPS with the list of the goods. If any items are not included in the
list, contact to our company or the local office.
6. Dismantle the bolt that connects the cabinet and wooden pallet after disassembly.
7. Move the cabinet to the installation position.
Attention
Be careful while removing to avoid scratching the equipment.
3.2.2 Unpacking Power Module
1. The steps to move and unpack the power module are as follows：
2. The packing case must be placed on the platform smoothly, as is shown in
Fig.3-5.
Fig.3-5 Place on platform smoothly
3. Cut the plastic packing belt and scotch tape to open the carton.
see Fig.3-6）.
Table of contents
