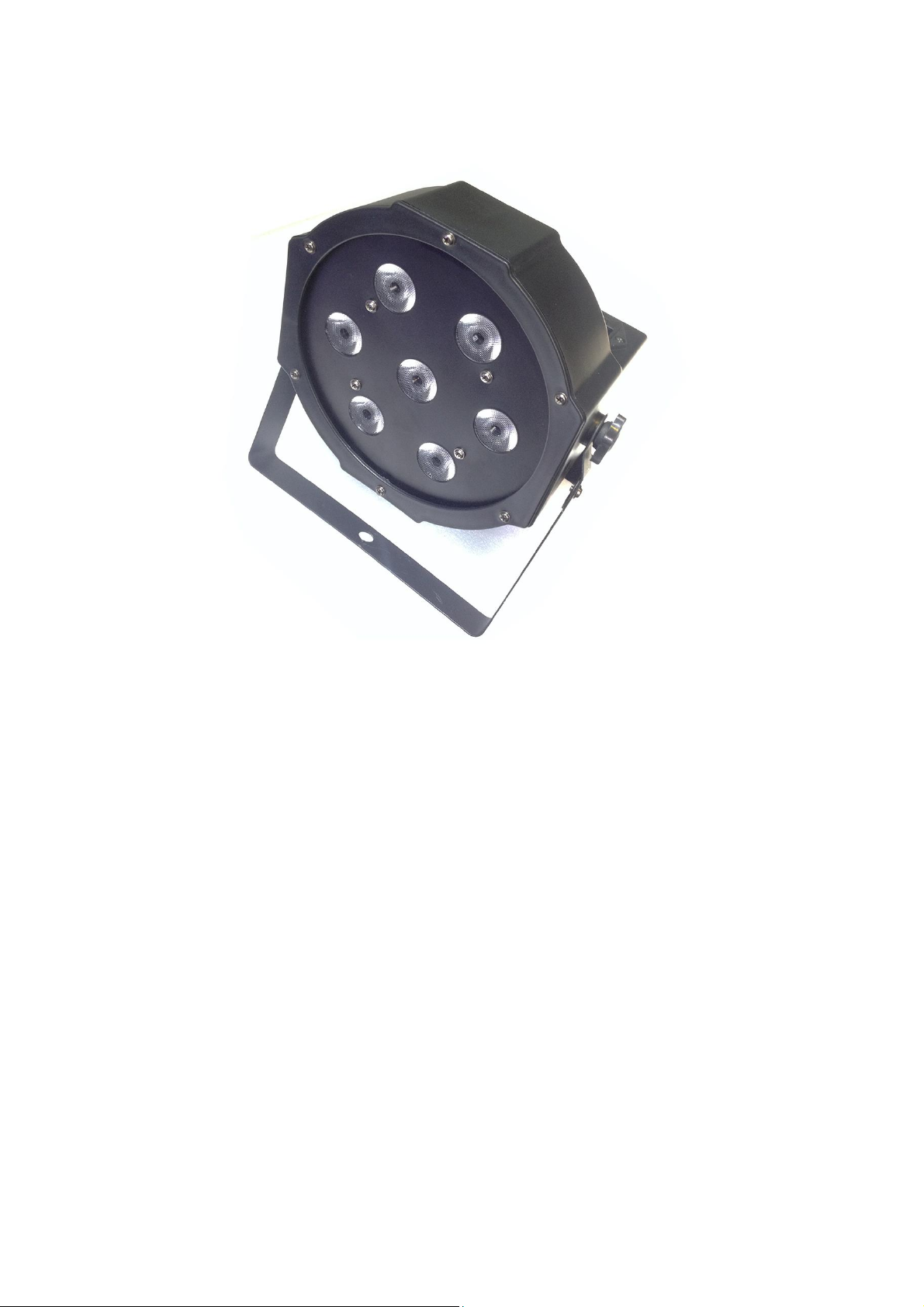

swamp LT-LP-F07 User manual

User Manual
Please read over this manual before operating the light
Caution!
There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself; doing so will void your manufactures warranty. In the unlikely event your
unit may require service please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton when ever possible.
General Instructions
To optimize the performance of this product, please read these operating
instructions carefully to familiarize you with the basic operations of this unit. These
instructions contain important safety information regarding the use and
maintenance of this unit. Please keep this manual with the unit, for future
reference.
Features
⚫Multi-Colors
⚫Color Strobe
⚫Electronic Dimming 0-100%
⚫Built in Microphone
⚫DMX-512 protocol
⚫Master/Slave synchronization
⚫Daisy Chain Units Together in
DMX Mode
Safety Precautions

2
⚫To reduce the risk of electrical shock or fire, do not expose this unit to rain or
moisture.
⚫Do not spill water or other liquids into or on to your unit.
⚫Be sure that the local power outlet match that of the required voltage for your
unit.
⚫Do not attempt to operate this unit if the power cord has been frayed or broken.
Do not attempt to remove or break off the ground prong from the electrical
cord. This prong is used to reduce the risk of electrical shock and fire in case of
an internal short.
⚫Disconnect from main power before making any type of connection.
⚫Do not remove the cover under any conditions. There are no user serviceable
parts inside.
⚫Never operate this unit when it’s cover is removed.
⚫Never plug this unit in to a dimmer pack.
⚫Always be sure to mount this unit in an area that will allow proper ventilation.
Allow about 6” (15cm) between this device and a wall.
⚫Do not attempt to operate this unit, if it becomes damaged.
⚫This unit is intended for indoor use only, use of this product outdoors voids all
warranties.
⚫During long periods of non-use, disconnect the unit’s main power.
⚫Always mount this unit in safe and stable matter.
⚫Power-supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention to
the point they exit from the unit.
⚫Cleaning -The fixture should be cleaned only as recommended by the
manufacturer. See “Cleaning” for details.
⚫Heat -The appliance should be situated away from heat sources such as
radiators, heat registers, stoves, or other appliances (including amplifiers) that
produce heat.
⚫The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked
change in performance.
Button
MENU
To go forward in the selected functions or go back the last layer menu
UP
To go forward in the selected functions or increase parameters
DOWN
To go backward in the selected functions or reduce parameters
ENTER
Enter submenu
Notes

3
1)In ten seconds, if no button was pressed,the LED display to turn off. Press any
button to turn on the LED display again.
(2)Whenever had any button be pressed, program will save all parameter after 2
seconds.
(3)No matter what the program in which mode,once to detect the DMX or SLAVE
signal, the program will jump into DMX or SLAVE mode automatically. Then,if DMX
or SLAVE signal was disconnect, the program will return to the original mode.
LED displayer Function
u255
White dimming,000-255 to change white color brightness
FH99
Strobe effect,01-99 to change strobe speed
CL01
Certain color effect,01-08 to choose certain color
CC99
Color Jump effect,01-99 to choose effect speed
DE99
Color gradually change effect,01-99 to choose speed
CP99
Color pulsing effect,01-99 to choose speed
Su01
Sound mode,01-09 to choose sensitivity
4 Channel instruction
CH4
0-255
W dimming.
8 Channel instruction
NO
Value
Function
CH1
0-255
Master dimming.
CH2
0-255
Red color dimming.
CH3
0-255
Green color dimming.
CH4
0-255
Blue color dimming.
CH5
0-255
White color dimming.
CH6
0-255
Strobe.
display
Function
A001
8CH mode,（001—512）to select address
d001
4CH mode,（001—512）to select address
r255
Red dimming,000-255 to change red color brightness
G255
Green dimming,000-255 to change green color brightness
B255
Blue dimming,000-255 to change blue color brightness
No
Value
Function
CH1
0-255
R dimming.
CH2
0-255
G dimming.
CH3
0-255
B dimming.

4
CH7
0-255
Function choice.
000-050:CH1-CH7 control.
051-100:color to choose.
101-150:color jump effect.
151-200:color gradually change effect.
201-250:color pulsing effect.
251-255:sound active effect.
CH8
0-255
Function speed
Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses
must be carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e.
smoke, fog residue, dust, dew).
Trouble Shooting
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is
“hot”; on some other DMX devices pin 2 may be ‘hot’). Also, check that all cables
are connected to the right connectors; it does matter which way the inputs and
outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit. If problems are not resolved,
contact your dealer for service.
Specifications
Working Position: Any safe working position,
Voltage: 90-240V,50H\60Hz
Colors: RGBW Color Mixing
LED: 7PCS 8W RGBW 4in1
Len’s angle:25 degree
Channel:4\8ch selectable
Gross Weight: 2.0 Kgs
Dimensions: 240(H) x 200(W) x 190(L) mm
Warranty: 1 Years
Note: All information is subject to change without prior notice.
