EMEVB8500
EMPB85xx
Configuration cable
USB cable
Solar cell

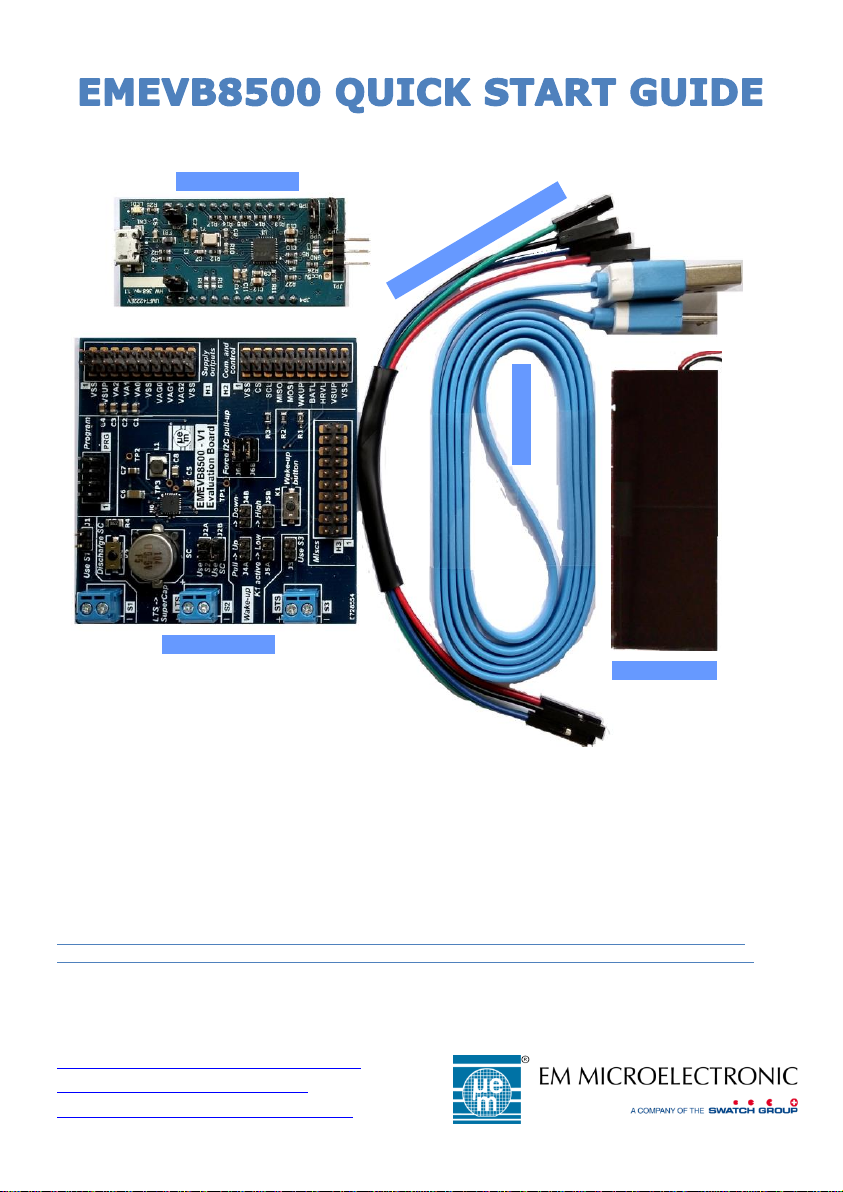

Your EMEVB8500 Evaluation Kit contains:
EMEVB8500 evaluation board
EMPB85xx Configuration tool
USB Cable - Configuration cable
Solar cell
Full documentation for EMEVB8500 and EMPB85xx is available on EM’s website
http://www.emmicroelectronic.com/emdownloads/EM8500/doc/empb8500_user_guide.pdf
http://www.emmicroelectronic.com/emdownloads/EM8500/doc/emevb8500_user_guide.pdf
To start evaluating EM8500 and developing your application this quick start
document guides you through the set-up of your evaluation hardware kit and
software.

EMEVB8500 QUICK START GUIDE
Page | 2
[e-mail]
http://www.emdeveloper.com
http://www.emmicroelectronic.com
Software download
Download the EMPB85xx Configuration software tool from EM website
http://www.emmicroelectronic.com/emdownloads/EM8500/SetupEMPB85xx.exe
Install the downloaded EMPB85xx Configuration tool software
For additional questions please refer to the EMPB85xx User Guide
Configure the EMPB85xx
Place the jumpers as shown below
Place jumper on JP9
JP9
Place jumper on JP8
JP8
Place jumper on JP2
[1-2] and JP3 [1-2]
JP2 –JP3
123
For additional questions please refer to the EMPB85xx User Guide

EMEVB8500 QUICK START GUIDE
Page | 3
[e-mail]
http://www.emdeveloper.com
http://www.emmicroelectronic.com
Configure the EMEVB85xx
Place the jumper as shown below
I2C - J6A –J6B
Place jumpers on
J6A and J6B

EMEVB8500 QUICK START GUIDE
Page | 4
[e-mail]
http://www.emdeveloper.com
http://www.emmicroelectronic.com
Connect the configuration cable from the EMPB85xx to the EMEVB85xx
Connect cable from JP4.3 to PRG.1 (VSS)
Connect cable from JP5.3 to PRG.2 (VSS-CS)
Connect cable from JP5.1 to PRG.3 (VSUP)
Connect cable from JP4.4 to PRG.4 (SCL)
Connect cable from JP5.2 to PRG.5 (STS)
Connect cable from JP4.5 to PRG.8 (SDA)
JP4.3
JP4.4
JP4.5
JP5.2
PRG.5
PRG.4 PRG.8
PRG.1
VSS SDA
SCL
+3.3V -STS
JP5.1
JP5.3
+3.3V -VSUP
VSS -CS
PRG.2
PRG.3
Complete step first then !

EMEVB8500 QUICK START GUIDE
Page | 5
[e-mail]
http://www.emdeveloper.com
http://www.emmicroelectronic.com
USB cable connection
Connect USB cable from the PC to the EMPB85xx.
Verify EMPB85xx USB detection (FT4222) in Device Manager / Universal
Serial Bus controllers
FT4222H Mode 3 Device.
Check the communication
Click on the shortcut “EM Microelectronic” “EMPB85xx Command
Line and console”.
Type the following command empb85xx –test
The message below indicates that communication to the programmer and to the
EM8500 device is established.
