SweepEx SWB-320 User manual

Rotary Broom
SWB-320
Owner's Manual
Original Instructions
March 1, 2019
Lit. No. 72356, Rev. 00
CAUTION
Read this document before operating or
servicing the rotary broom.
This document supersedes all editions with an earlier date.
This document is for SweepEx®SWB-320 rotary brooms with
serial numbers beginning with 170301 and higher.

Lit. No. 72356, Rev. 00 March 1, 2019

Lit. No. 72356, Rev. 00 3 March 1, 2019
TABLE OF CONTENTS
PREFACE..................................................................................................................................................................5
Owner's Information............................................................................................................................................ 5
SAFETY .................................................................................................................................................................... 6
OPERATING INSTRUCTIONS.................................................................................................................................9
General Safety....................................................................................................................................................9
Operating in Winter.............................................................................................................................................9
Component Vocabulary ....................................................................................................................................10

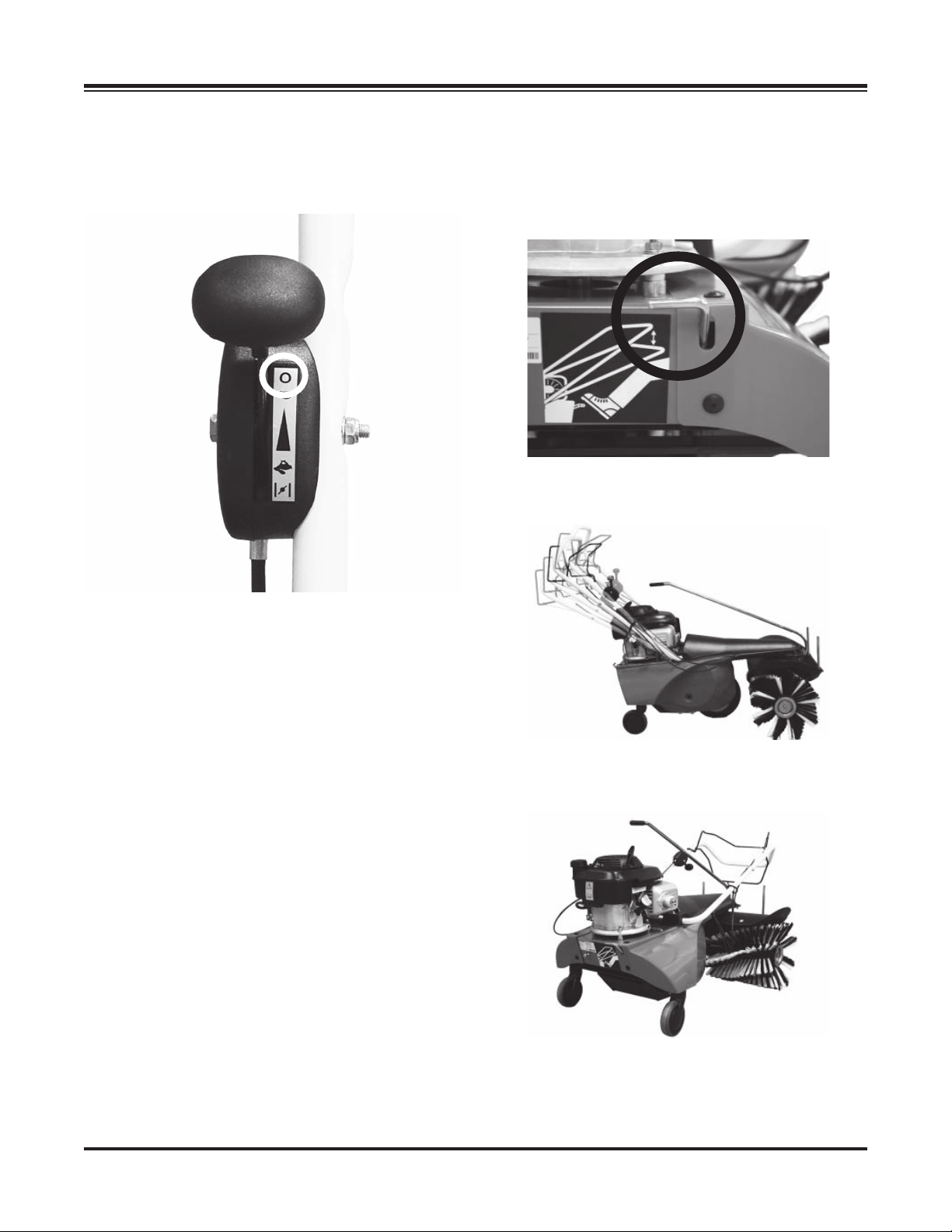

Operator Controls .............................................................................................................................................11
Starting/Stopping Motor....................................................................................................................................12

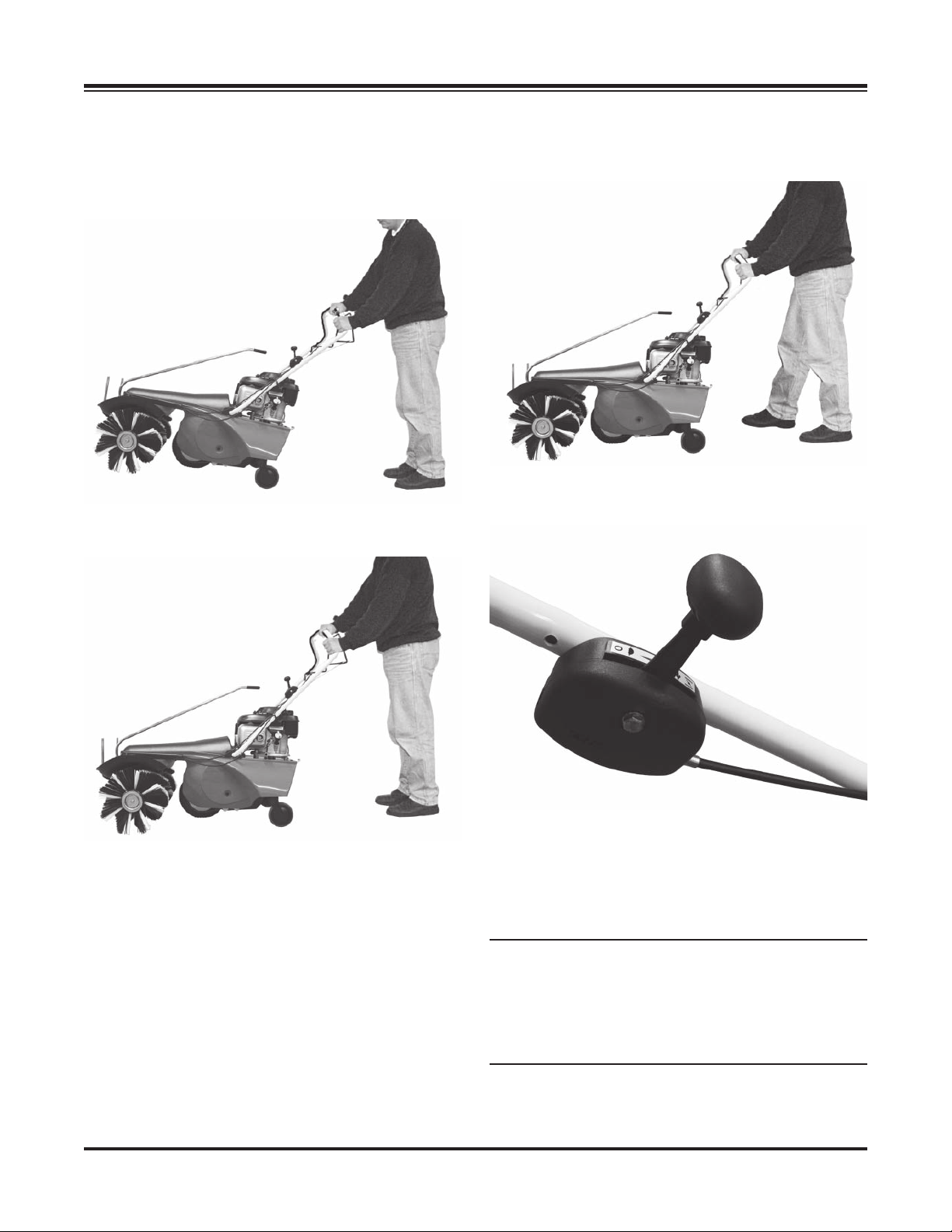

Adjusting Handlebar Height ..............................................................................................................................13

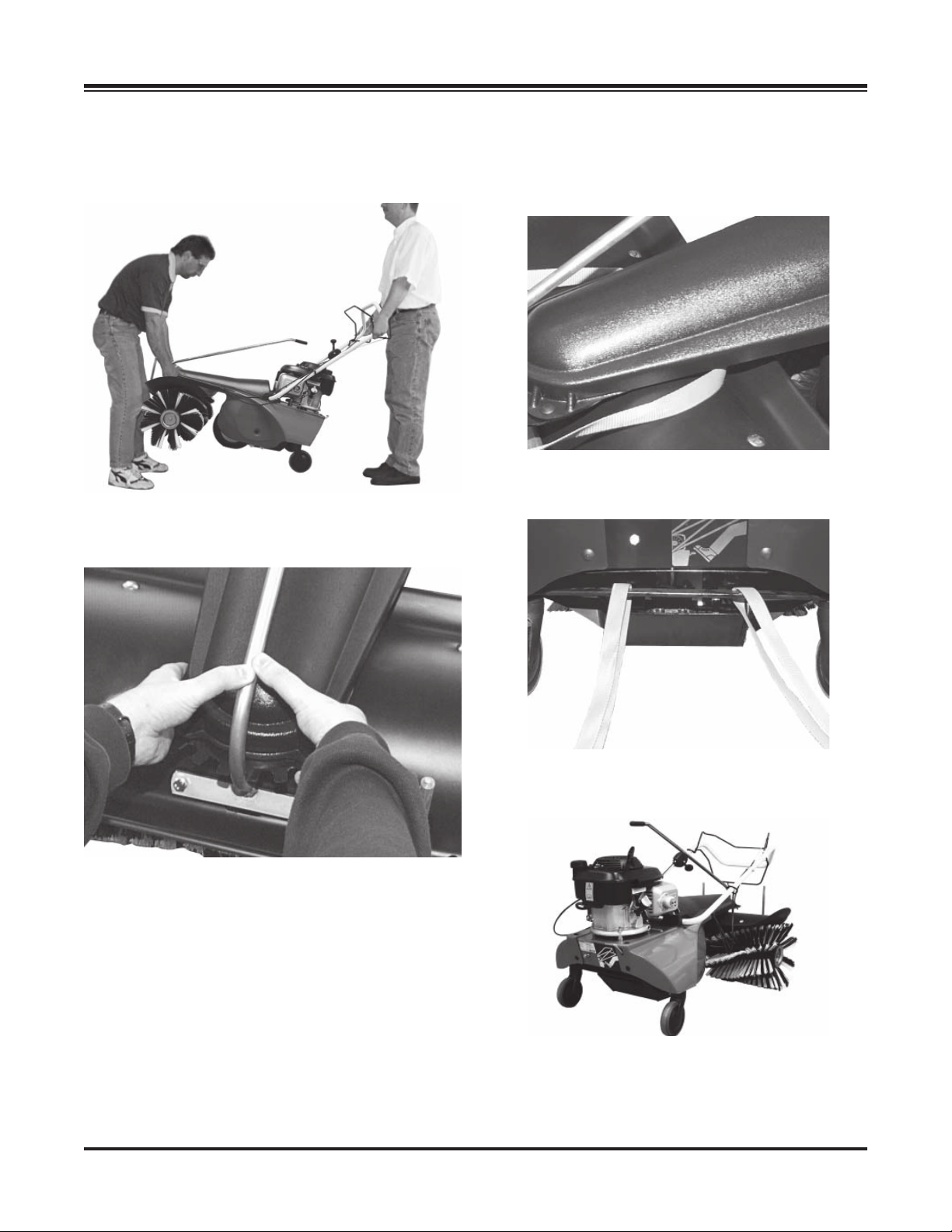

Transporting......................................................................................................................................................14
Adjusting Discharge Direction...........................................................................................................................15
Sweeping ..........................................................................................................................................................16

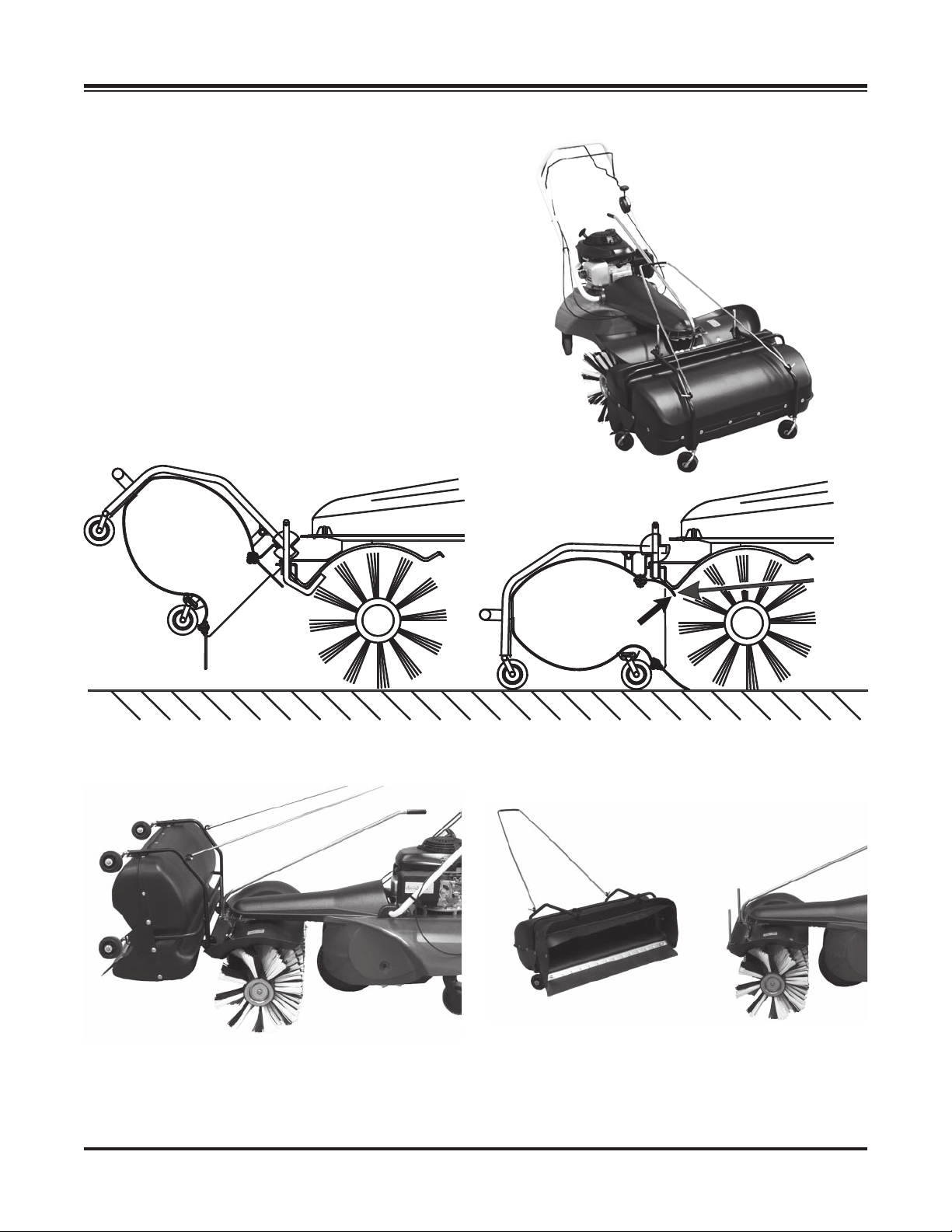

Debris Collector Box (Optional Accessory) ......................................................................................................17

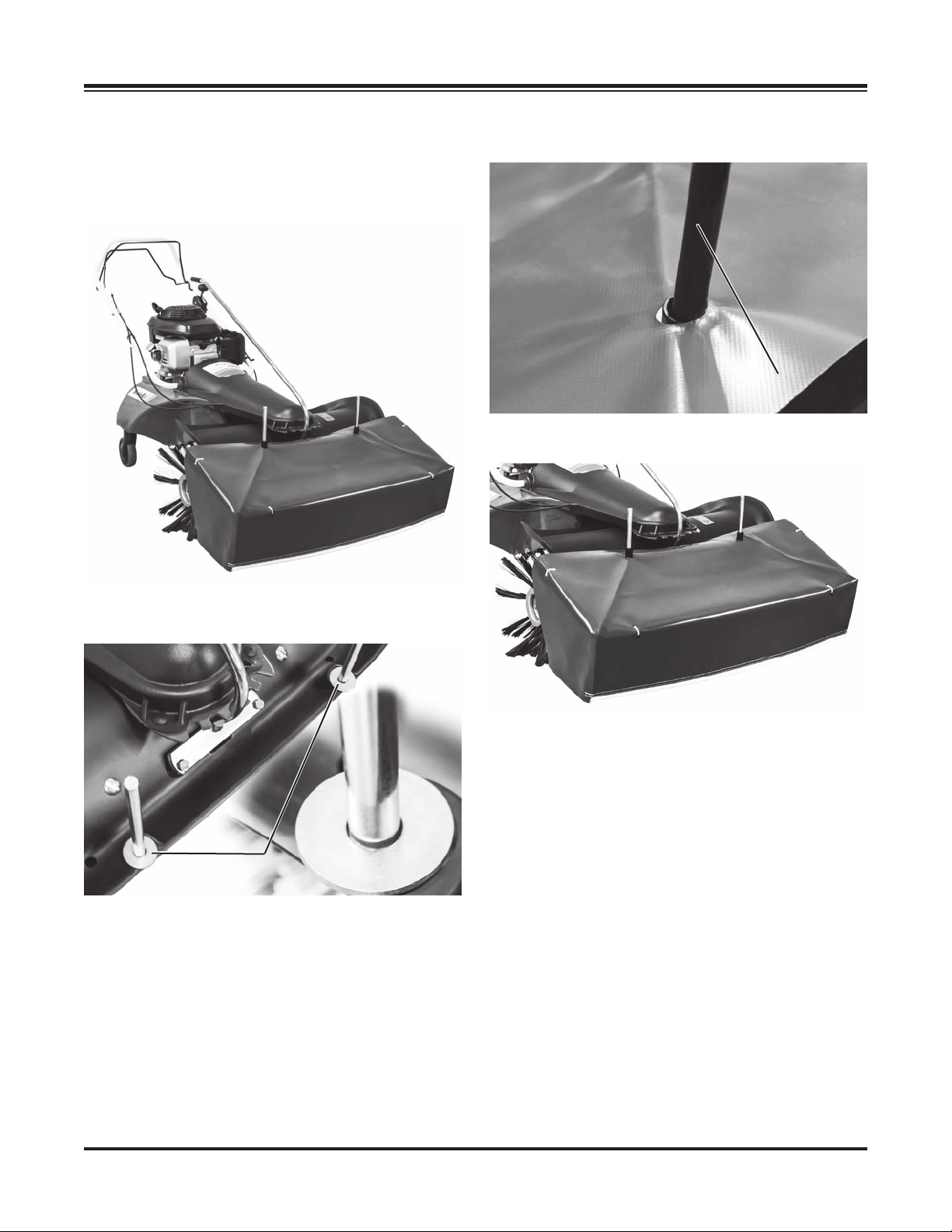

Debris Shield (Optional Accessory)..................................................................................................................18
MAINTENANCE...................................................................................................................................................... 19
Oil and Gas ....................................................................................................................................................... 19

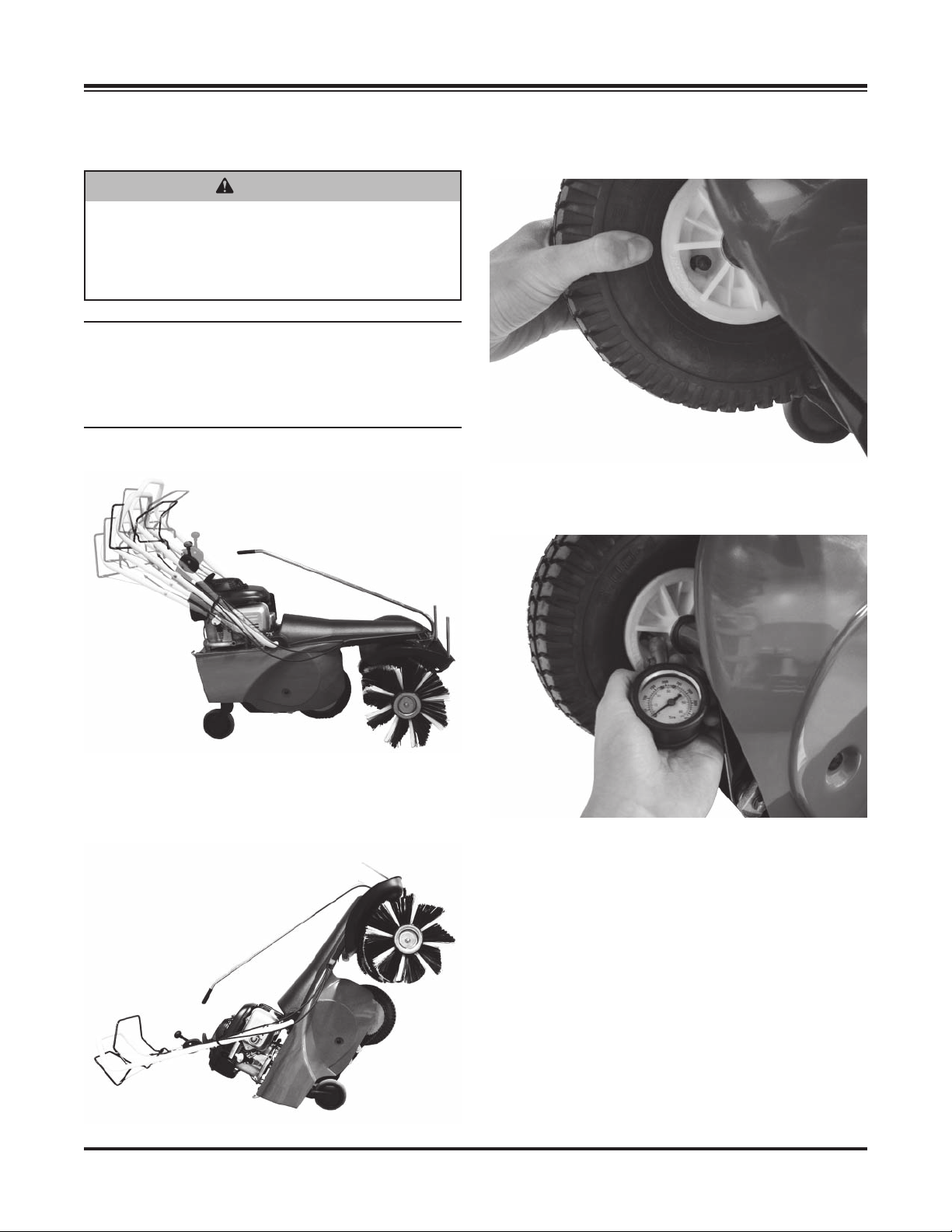

Tire Pressure .................................................................................................................................................... 20
Adjusting Control Cables .................................................................................................................................. 21
Replacing/Changing Brushes ...........................................................................................................................22
Maintenance Plan ............................................................................................................................................. 25
Cleaning............................................................................................................................................................ 26
TROUBLESHOOTING............................................................................................................................................ 27

Lit. No. 72356, Rev. 00 March 1, 2019

Lit. No. 72356, Rev. 00 5 March 1, 2019
PREFACE
This manual has been prepared to acquaint you with
the safety information, operation, and maintenance
of your new rotary broom. Please read this manual
carefully and follow all recommendations. This will
help ensure pro¿table and trouble-free operation of
your rotary broom. Keep this manual accessible. It is a
handy reference in case minor service is required.
When service is necessary, bring your rotary broom
to your distributor. They know your rotary broom best
and are interested in your complete satisfaction.
Register your rotary broom online at www.sweepexproducts.com
OWNER'S INFORMATION
Owner's Name: _______________________________________________________________________
Date Purchased: ______________________________________________________________________
Outlet Name: ______________________________________________ Phone: ___________________
Outlet Address: _______________________________________________________________________
Engine Model: _______________________________________ Weight: ____________________ lb/kg
Rotary Broom Serial #: ________________________________ Engine Serial #: _________________

Lit. No. 72356, Rev. 00 6 March 1, 2019
SAFETY
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your rotary broom or other property.
Other useful information can also be described.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
LABELS
Please become familiar with the labels on the rotary
broom.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
Code De¿nition
YY 2-Digit Year
MM 2-Digit Month
DD 2-Digit Day
LL 2-Digit Location Code
#### 4-Digit Sequential Number
SWB320 Part Number
2017
170301041234SWB320
Serial Number Label
3.3
130 lb
SWB-320
B&S 550E
D
A
N
G
E
R
Z
O
N
E
DANGER ZONE
Keep all bystanders away from the rotary broom at
least 30 feet (10 meters), as depicted in the diagram
below.
WARNING
Flying objects; Keep safe distance from the
rotary broom when engine is running.

Lit. No. 72356, Rev. 00 7 March 1, 2019
PERSONAL SAFETY
• Wear only snug-¿tting clothing while working on
your rotary broom.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from dirt,
dust, and Àying debris.
• Be aware of and avoid pinch points when
assembling and operating. Pinch points can exist
around levers and when putting two parts together
(during assembly).
SAFETY
SAFETY PRECAUTIONS
Improper assembly and operation could cause
personal injury and/or equipment and property
damage. Read and understand labels and this
Owner's Manual before assembling, operating, or
making adjustments.
The rotary broom is intended exclusively for use for
brushing operations in property maintenance and
snow clearance. Examples of intended use are: snow
clearing; sidewalk, driveway, and parking lot cleaning
(with multi-purpose brushes); spring debris clean-up;
dethatching; clearing debris from arti¿cial turf; and leaf
clean-up (with multi-purpose brushes).
NOTE: Lubricate grease ¿ttings after each use.
Use a good quality multipurpose grease.
WARNING
• Always make sure personnel are clear of
areas of danger when using equipment.
• Before working with the rotary broom,
secure all loose-¿tting clothing and
unrestrained hair.
• Do not climb onto or ride on rotary broom.
CAUTION
• Do not operate a rotary broom in need of
maintenance.
• Before operating the rotary broom,
reassemble any parts or hardware removed
for cleaning or adjusting.
• Before operating the rotary broom, remove
materials such as cleaning rags, brushes,
and hand tools from the rotary broom.
• Tighten all fasteners according to the
Torque Chart. Refer to Torque Chart for the
recommended torque values.

Lit. No. 72356, Rev. 00 8 March 1, 2019
1/4-20 109 154
1/4-28 121 171
5/16-18 150 212
5/16-24 170 240
3/8-16 269 376
3/8-24 297 420
7/16-14 429 606
7/16-20
9/16-12
9/16-18
5/8-11
5/8-18
3/4-10
3/4-16
7/8-9
7/8-14 474 669
644 9091-8
1-12 704 995
1/2-13
1/2-20
11.9
13.7
24.6
27.3
43.6
26.9
53.3
93
148
49.4
69.8
77.9
106.4
120.0
8.4
9.7
17.4
19.2
30.8
35.0
49.4
55.2
75.3
85.0
M6 x 1.00
M12 x 1.75
M8 x 1.25
M14 x 2.00
M10 x 1.50
M27 x 3.00
M22 x 2.50
M30 x 3.50
M24 x 3.00
M20 x 2.5011.1
19.5
38.5
67
107
7.7
613
778
1139
1545
450
428
562
796
1117
M33 x 3.50
M36 x 4.00
2101
2701
1468
1952
325
M16 x 2.00 231 167
M18 x 2.50 318222
Recommended Fastener Torque Chart
Size Size
Torque (f t- lb)
Grade
5
Grade
8
Metric Fasteners Class 8.8 and 10.9
These torque values apply to fasteners
except those noted in the instructions.
Torque (f t- lb)
Grade
5
Grade
8
Size Size
Torque (f t- lb)
Class
8.8
Class
10.9
Torque (f t- lb)
Class
8.8
Class
10.9
Inch Fasteners Grade 5 and Grade 8
FIRE AND EXPLOSION
VENTILATION
NOISE
Noise emission values comply with EC guideline
98/37/EWG or 2006/42/EG.
The measurement was carried out with the rotary
broom at standstill with driven brushes on an
asphalted road.
• The sound pressure level at the ear: Lp user = 87 dB.
• The sound power level: LW= 102 dB.
• Measuring devices used comply with DIN 45634.
VIBRATION
Hand-arm vibration values comply with VDI 2057,
Sheet 2.
The measurement was carried out on asphalted road.
• Vibrations were measured in three axes on the
handlebars: X, Y, and Z axes, see DIN 45675,
Part 8. The value for 60 seconds duration was
determined.
• Measurement results: 60s effective value = 9.9 m/s2
• Measuring device used complies with DIN 45675.
• Rotary broom in operating condition:
ƕWarmed up, retracted rotary broom under full
load.
ƕBrush height adjustment: standard
ƕFuel tank: approx. 50% full
ƕBrush axle: middle position
SAFETY
WARNING
Gasoline is highly Àammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open Àames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
WARNING
Engine exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate an engine in an enclosed area without
venting exhaust to the outside.
TORQUE CHART
CAUTION
Read instructions before assembling.
Fasteners should be ¿nger tight until
instructed to tighten according to the torque
chart. Use standard methods and practices
when assembling the rotary broom, including
proper personal protective safety equipment.

Lit. No. 72356, Rev. 00 9 March 1, 2019
OPERATING IN WINTER
Check regularly that the air ¿lter is dry. If the air
¿lter has become wet, let it dry overnight. There is a
possibility of the engine not starting due to a clogged
air ¿lter.
Spray the throttle cable with silicone spray at both
ends and the throttle linkage before operating to
prevent the cable or throttle mechanism from freezing
up.
Silicone spray attracts dust and binds it to the rotary
broom. It is only a suitable lubricant in wintry and
snowy conditions.
Do not spray silicone spray on hot engine. It could
cause a ¿re. Follow the instructions on the spray can.
Before putting the rotary broom away, sweep it clear of
snow.
Avoid freezing the rotary broom. Store the rotary
broom in a frost-free room.
Remove foam pre-¿lter.
Use SAE 5W-30 motor oil.
GENERAL SAFETY
Do not operate the rotary broom in an unsafe
manner. Make yourself familiar with the surroundings
before starting work in a new location. The working
surroundings include any obstacles in the work area or
on roads, the ground load-bearing capacity, and any
necessary workplace safety precautions in live traf¿c.
Take precautions to ensure that the rotary broom is
only operated in a safe and functional condition. Only
operate the rotary broom if all protective and safety
devices are present and working.
Check the rotary broom for externally visible damage
and faults before operation. If malfunctions occur stop
the rotary broom and secure it immediately. Repair
malfunctions immediately. Only start the rotary broom
from the operator's position. Ensure that no one can
be endangered by starting the rotary broom before
switching it on or operating it.
Check that braking, steering, and brushing are fully
functional before operation.
Before operating the rotary broom, always check that
accessories are ¿tted correctly.
Always observe applicable traf¿c regulations before
operating on public roads, paths, or parks, and ensure
that the rotary broom is in a condition suitable for use
in traf¿c.
Always ensure that suitable lighting is available before
working in poor light or darkness. Always keep a
suf¿cient distance between the rotary broom and
drop-offs, holes, or slopes.
Do not permit any method of working which will affect
the stability of the rotary broom.
Never traverse across slopes; always travel up and
down, not across.
Adjust the speed to suit the conditions on inclines.
Change gear before the incline, not on it. Always
secure the rotary broom against rolling away and
unauthorized operation before leaving it unattended.
GENERAL SAFETY/OPERATING IN WINTER

Lit. No. 72356, Rev. 00 10 March 1, 2019
Receiver
Bar
Brush Angle
Adjustment
Engine
Drive Wheel
Caster
Wheels
Brushes
Handlebar
Throttle Control
Brush Lever
Movement
Lever
COMPONENT VOCABULARY
OPERATING INSTRUCTIONS

Lit. No. 72356, Rev. 00 11 March 1, 2019
OPERATOR CONTROLS
OPERATING INSTRUCTIONS
WARNING
The handlebar can get stuck inside long
sleeves. This could prevent the drive from
disengaging and result in injury. Set the bar
lower if wearing long sleeves or tightly button
the sleeves.
WARNING
Avoid injury and damage; Make completely
sure that there are no persons or objects
within the danger zone.
CAUTION
If the brushes are switched ON and the rotary
broom is not in gear, the rotary broom can roll
backwards. The handlebar must be securely
engaged at the required height.
Drive
Brushes
Throttle
1. Press the drive lever to move the rotary broom
forward.
2. Engage both levers to operate the drive and the
brushes.

Lit. No. 72356, Rev. 00 12 March 1, 2019
OPERATING INSTRUCTIONS
STARTING/STOPPING MOTOR
NOTE: Before starting the motor, ensure there is
suf¿cient oil. The motor is not ¿lled with oil when
the rotary broom is delivered.
Starting the Motor
Move the throttle control to the "Choke" position.
WARNING
Engine exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate an engine in an enclosed area without
venting exhaust to the outside.
Pull the starter coil. Stand behind the handlebars. Do
not press any levers.

Lit. No. 72356, Rev. 00 13 March 1, 2019
OPERATING INSTRUCTIONS
Shutting Down the Motor
Move the throttle to the "OFF" position.
ADJUSTING HANDLEBAR HEIGHT
There are four settings for adjusting the handlebar height.
1. Push the adjustment lever with your foot.
2. Adjust handlebars to the desired height. Release
the lever.
3. Fold the handlebars forward to save space when
storing.

Lit. No. 72356, Rev. 00 14 March 1, 2019
OPERATING INSTRUCTIONS
TRANSPORTING
Carrying
Position hands to hold the front of the broom as shown
below.
Securing for Transport
1. Position the strap at the front of the broom as
shown.
2. Position the straps at the rear of the broom as
shown.
3. To save space when transporting, fold the
handlebars forward.

Lit. No. 72356, Rev. 00 15 March 1, 2019
ADJUSTING DISCHARGE DIRECTION
There are four settings available for the discharge
direction: three primary positions and a sideways
position when using the optional accessories.
Forward Discharge Direction:
The swept material will heap up in front of the brushes.
You should give preference to angled brush settings.
To adjust brush angle: Lift the lever. Turn the brush
in the desired direction. Release the lever, and ensure
that the lever is latched in place.
Right Discharge Direction:
With an angled setting, the material will be swept to
one side.
Left Discharge Direction:
Sideways Discharge Direction
(available with optional accessories):
A sideways setting is recommended if using the
optional debris collector box and optional debris
shield. This will allow sweeping against a wall or curb.
OPERATING INSTRUCTIONS
Debris Collector
Box
Debris Shield

Lit. No. 72356, Rev. 00 16 March 1, 2019
OPERATING INSTRUCTIONS
SWEEPING
1. Lift up the brushes by pushing down on the
handlebars. Engage the brushes.
2. Carefully lower the brushes to the ground.
3. Engage the movement drive. Just follow behind
the rotary broom.
4. Set the speed by using the throttle lever. Do not
try to hold the rotary broom back or push it.
5. When sweeping dust, use a low brush speed (low
throttle).
6. When using the debris collector box, or the debris
shield, use a medium speed (half-throttle).
IMPORTANT: The brush pressure adjusts
automatically to the ground pro¿le. However, you
can inÀuence the brush pressure by either pulling
back or pushing on the handlebar. Pulling the
handlebar back decreases the pressure; pushing
will increase the pressure (for heavily soiled areas).
7. If the brush pressure is too heavy, the cleaning
effect is decreased because the brush ¿bers are
bent too much.

Lit. No. 72356, Rev. 00 17 March 1, 2019
OPERATING INSTRUCTIONS
DEBRIS COLLECTOR BOX
(Optional Accessory)
Rotary Broom with Debris Collector Box (DCB-320)
Mount as shown below, paying attention to the
alignment with the brush hood.
To dump the debris, simply pull the handle from the
operating position so the debris can fall out.
To dump the debris into a separate container, remove
the debris collector box from the rotary broom and use
the handle to tow it to the other container.

Lit. No. 72356, Rev. 00 18 March 1, 2019
DEBRIS SHIELD
(Optional Accessory)
Rotary Broom with Optional Debris Shield (PCA-320)
1. Slide one fender washer over each receiver bar.
OPERATING INSTRUCTIONS
2. Slide the debris shield over the receiver bars.
3. Installation is complete.
Fender Washers
Receiver Bar

Lit. No. 72356, Rev. 00 19 March 1, 2019
MAINTENANCE
OIL AND GAS
Capacities:
Oil: 0.47 qt (0.44 L)
Gasoline: 0.20 qt (0.76 L)
Use 86 octane or higher unleaded gasoline.
1. Remove oil cap; wipe dipstick clean.
2. Replace dipstick in the oil ¿ller neck; do not screw
down.
3. Remove dipstick; check oil level. The oil should be
up to the upper marking.
4. If oil level is low, ¿ll up to the upper marking on the
dipstick with the recommended oil (see
Briggs & Stratton owner's manual).
5. See marking on the dipstick for ¿ll level.
Oil
Gas
Fill Level

Lit. No. 72356, Rev. 00 20 March 1, 2019
MAINTENANCE
TIRE PRESSURE
IMPORTANT: If the tire pressure is too low,
the inner tube will rub against the wheel and
be damaged. Over-inÀation can cause the tire
to burst. Check the tire pressure for both the
support and drive wheels regularly.
1. Lock the handlebar at the front-most setting.
2. Tip the rotary broom backward to rest on the
handlebar and the rear wheels. Have a second
person hold the rotary broom in this position.
3. Turn the wheel counterclockwise to expose the
valve stem.
4. InÀate the tire to 35 psi (2.5 bar), or for sweeping
rough surfaces, 30 psi (2 bar).
WARNING
Use safety glasses and gloves when inÀating
and installing the tires. Use manual pump
only to inÀate. Refer to the tire sidewall for
manufacturer's recommended pressure. Do
not exceed the maximum inÀation pressure.
