Swegon TBXZ-1-93-05 User manual

We reserve the right to alter specifications.
GB.TBXZ93.180420
www.swegon.com 1
1. General
The smoke extraction adapter is designed for use with
GOLD/SILVER C PX, size 004-040.
The smoke extraction adapter is used when you want the
extract air to bypass the heat exchanger and filter, e.g. as
a component in a system for smoke extraction. See the
example.

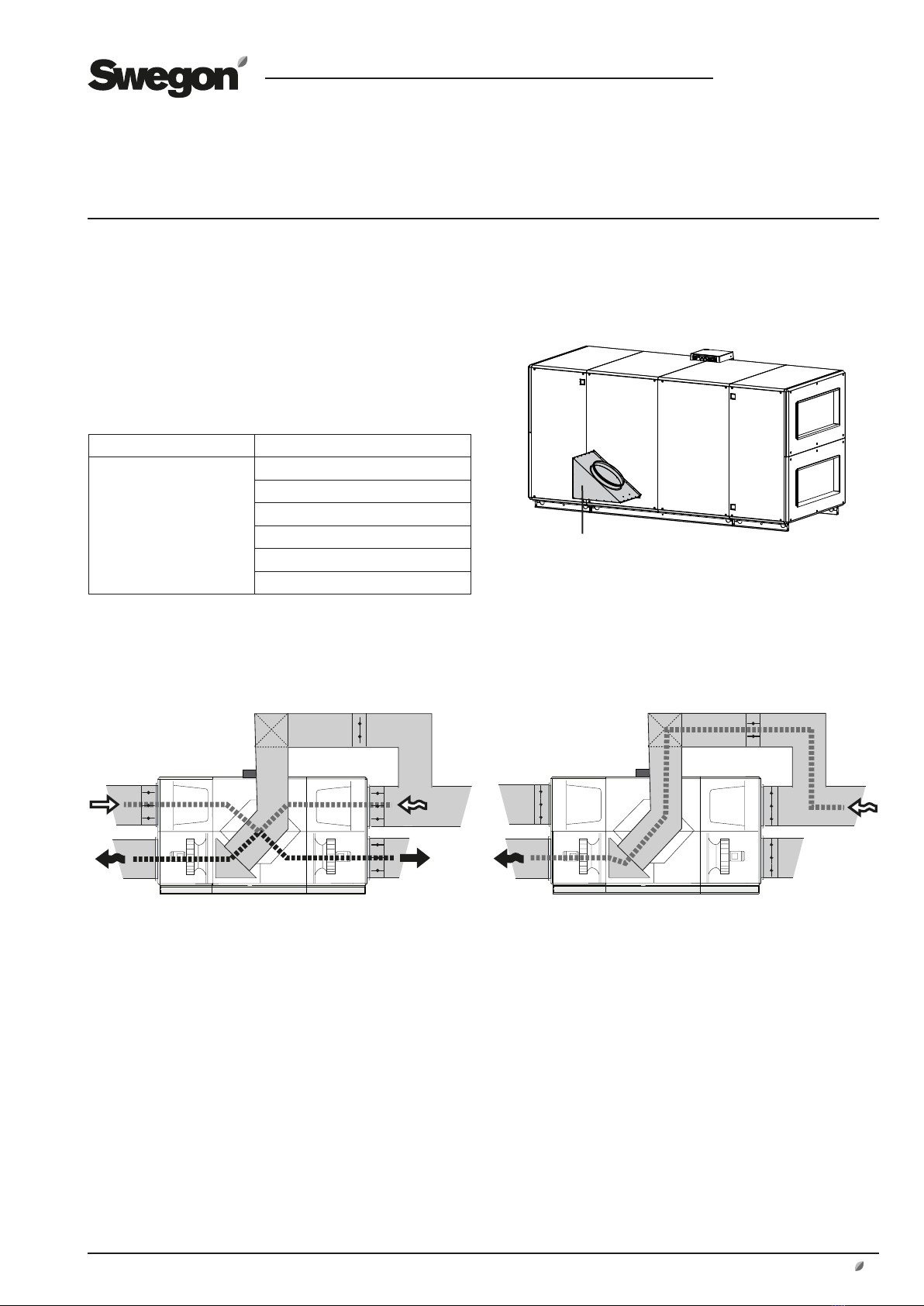

Installation of the Smoke Extraction Adapter, TBXZ-1-93
GOLD/SILVER C PX
Smoke extraction adapter.
Intake at the rear of the air handling unit.
2. Installation
1. The adapter is mounted using self-tapping screws, in
pre-drilled holes, above the intake at the rear of the air
handling unit.
2. The duct is routed from the adapter to the extract air
duct, see the example. The duct is fastened in the adapter
using self-tapping screws.
NOTE! The adapter must not bear the weight of the duct.
Normal operation. The extract air is routed to bypass the heat exchanger and filter
Size, adapter Part number
005 TBXZ-1-93-05
008 TBX Z-1-93-08
012 TBXZ-1-93-12
020 TBX Z-1-93-12
030 TBXZ-1-93-30
040 TBX Z-1-93-40
Example

GB.TBXZ93.180420
We reserve the right to alter specifications.
2 www.swegon.com
3. Dimensions
b
d
Size, adapter Length b, mm Diameter d, mm
005 355 250
008 420 315
012 505 400
020 505 400
030 605 500
040 730 630
3. Data
Calculation of flow and velocity smoke outlet, at 200 Pa
duct pressure
AHU Ø (mm) Motor Max. flow (m³/s) Velocity (m/s) Pressure drop (Pa)
PX04 250 E1 0.45 9.2 68
PX05 250 E1 0.6 12.2 121
250 E2 0.65 13.2 142
PX07 315 E1 0.7 9.0 65
315 E2 0.75 9.6 75
PX08 315 E1 0.9 11.5 108
315 E2 1 12.8 133
PX11 400 E1 1.1 8.8 62
400 E2 1.1 8.8 62
PX12 400 E1 1.3 10.3 87
400 E2 1.4 11.1 101
PX14 400 E1 1.65 13.1 140
400 E2 1.65 13.1 140
PX20 400 E1 2.1 16.7 226
400 E2 2.1 16.7 226
PX25 500 E1 2.5 12.7 131
500 E2 2.5 12.7 131
PX30 500 E1 3.1 15.8 202
500 E2 3.2 16.3 215
PX35 630 E1 3.7 11.9 114
630 E2 4 12.8 133
PX40 630 E1 4.9 15.7 200
630 E2 5.5 17.6 252
