Swift Hitch SH01 User manual

1
Copyright, 2010, satconsystem
Swift HitchTM
User’s Manual
Portable Wireless Camera System
With Infrared Night Vision
Model: SH01
Please read this manual carefully und thoroughly before any attempt to
operate this product and retain it for your future reference.
English

2
Copyright, 2010, satconsystem
TABLE OF CONTENTS
INTRODUCTION 3-4
Notice 3
Warranty 3
Restrictions 4
Maintenance 4
PRODUCT 5-6
Package Contents 5
Feature Locations 6
FIRST TIME USAGE 7-10
Charging the Camera and Receiver 7-8
Using the Camera 8-9
Night Vision 9
SPECIFICATIONS 10
TROUBLESHOOTING 11
IMPRINT 11

3
Copyright, 2010, satconsystem
INTRODUCTION
Thank you for purchasind this wireless camera kit. This product works at ISM-2.4GHz frequency
band which could be legally used worldwide without permission. We feel confident that you will
be pleased with the quality and features of this product.The camera features image sensor and
a transmitting module to capture the image and transmit them wirelessly.
The receiver features a receiving module to receive and display the camera image on a color
(LCD) - liquid crystal display.
Notice
Notice: This product may cause interference with other wireless equipment that operates at 2.4
GHz ISM band.Please turn off one of the equipments to eliminate the interference.
Product Assurance: This camera will emit electromagnetic wave, just like other wireless
products. But it’s transmitting power is less than other wireless products such as mobile phones.
The 2.4 GHz wireless camera meets wirell frequency security standards and recommended
indexes while working.These standards and indexes are certificated by academic organization
and represent the cogitative research of the scientific workers who continuously explore and
annotate the involved fields. So we believe that our products are safe for customers.
Warranty
This product has a one year limited warranty with an affective date that begins the date
of purchase. Refer to the troubleshooting guide at the end of this manual for help. Contact
the phone number provided in that section for any additional support. Please retain proof
of purchase receipt for verification. Any attempted disassembly of the product will
void the warranty. Do not return defective product to the retailer.

4
Copyright, 2010, satconsystem
Restrictions
1. DO NOT use this product to violate one's privacy. Monitoring one's activities without consent
is illegal and this product is not designed and manufactured for such purpose;
2. DO NOT put this product near any medical equipment. Radio waves might potentially cause
breakdown of electrical medical equipment. So this product should be placed at least 1 foot
away from any heart pacemaker. Radio waves might potentially influence heart pacemaker
and lead to respiratory disturbance.
3. DO NOT use this product for any illegal activities. We shall not be responsible for any
consequences of illegal acts committed by the user.
Maintenance
1. Do not shake or strike the product
2. Keep it dry and dustless and avoid exposing it to direct sunlight
3. Avoid putting the product in places where the constantly changed temperature or humidity
occurs.
4. Keep product away from heat sources such as electric heater
5. Do not use the camera near caustic chemicals
6. Do not use this camera near water, for example, near a bath tub, wash bowl, kitchen sink or
laundry tub, in a wet basement or near a swimming pool and the like
7. Do not use the camera in the places which are enclosed by metal.The surrounding metal like
lifter, cabin, may shield the electromagnetic wave, and result in failure of signal reception
8. Please obey the local government's environment protection policy
9. Please turn off the power when left unused
10.Do not disassemble or repair the camera or receiver; doing so might cause damages to the
product, and also VOID THE WARRANTY.

5
Copyright, 2010, satconsystem
PRODUCT
Package Contents
This package comes with the following items. Please check whether they are all included in
the packaging box, if one or some is missing, contact the retailer for replacement.
1) 2,4 GHz wireless camera
(1x)
2) Weatherproof cover for
camera (1x)
3) 2,4 GHz wireless receiver
(1x)
4) Lithium Battery for
receiver (1x)
5) „Y“ shaped charging cable
for camera & receiver (1x)
6) User’s manual
7) Charging cable „open end“
8) 2x2 cm velcro for receiver

6
Copyright, 2010, satconsystem

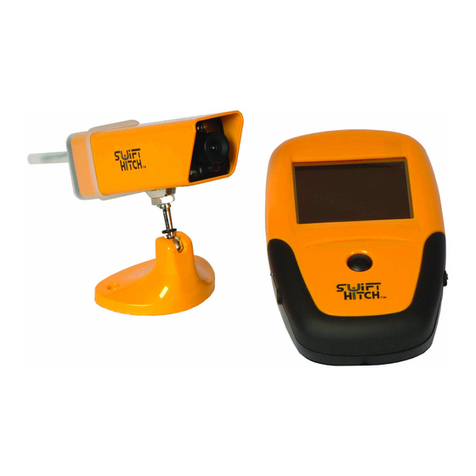

Feature Locations
1. Camera
2. Receiver

7
Copyright, 2010, satconsystem
FIRST TIME USAGE
Charging the Camera and Receiver
1. Load a Li-battery to the battery compartment with its polarities matched.
2. Connect the camera/receiver with auto cigarette lighter by the "Y" shaped charging
cable. Your camera and receiver are being charged. A full charge will take about
2.5 hours for camera and for receiver respectively.
Note: For camera, you need to remove the cover before charging.
3. Die Kamera kann während des Ladevorgangs betrieben werden. Drücken Sie den
An/Aus Knopf um die Kamera an- (bzw. aus)zuschalten. Dann können sie die
Kamera benutzen.
4. The receiver can also work during charging. Press and hold the Power ON/OFF
button for about three seconds to turn on/off the receiver. When the receiver is
powered on, LCD displays reverse the image by default.

8
Copyright, 2010, satconsystem
Pressing POWER ON/OFF button momentarily can switch between reverse and
non reverse image..
Notes for camera:
If the battery is exhausted, please recharge it with the charging cable.
Always keep weatherproof cover fitted regardless of conditions.
CAMERA LED INDICATOR
STATUS
Red on
Charging when Power off
Off
Power off (disconnect with cigarette lighter)/Finish charging
Green on
Power on
Yellow on
Charging when Power on
Notes for receiver:
A full charge will take about 2.5 hours, which can power the receiver for about
4 hours continuously.
You are recommended to have the battery fully charged before its first
installation to optimize its life.
Do not burn or disassemble the Li-battery. !
Do not short-circuit the battery as it may cause fire or electric shock. !
RECEIVER LED INDICATOR
STATUS
Red on
Charging when Power off
Off
Power off (disconnect with cigarette lighter)/Finish Charging
Green on
Power on, working at reverse image
Yellow on
Charging when Power on, working at reverse image
Green flash
Power on working at non reverse image
Yellow flash
Charging and working at non reverse image
Using the Camera
1. Before using make sure the camera is fully charged. Press the camera Power
ON/OFF button to power on your camera.

9
Copyright, 2010, satconsystem
2. Mount hte Magnetic Camera on your tailgate, and then adjust it to a suitable
angle
3. Watching the back view of the car via the LCD display. Hitch your ride.
Note: einem The Velcro supplied for those customers who desire to attach the display to vehicle
dashboard
Night Vision
The built-in Infra-red lights in camera provide night vision for low light conditions.
The Infra-red lights will be automatically activated at night. The picture will turn to
Black & White (monochrome) in Night Vision status.
Built-in IR lights for about
15ft Night Vision Range

10
Copyright, 2010, satconsystem
Specifications
Actual transmission range may vary according to weather, location, interference or building construction
All the specifications are subject to minor change without prior notice
ITEMS
VALUE
Camera
Imaging Sensor
1/3“ CMOS
CMOS
628 x 582 (PAL); 510 x 492 (NTSC)
View Angle
55°
Minimum Illumination
5 Lux/F1.2 & 0Lux (IR ON)
Transmission Frequency
ISM 2.400 GHz –2.483 GHz
Transmission Power
10mW/CE
Modulation Type
FM
Bandwidth
18MHz
Power Supply
+12V DC
Battery Type
Rechargeable Lithium-ion Battery- 3.7 VDC
Consumption Current
180 mA & 230 mA (IR ON)
Charging Current
330 mA
Charge Time
Up to 2 hours
Working Time
Up to 4 hours
Unobstructes Effective Range
100m (300 ft)
Night Vision Range
5m (15 ft)
Dimensions (WxDxH)(mm)
28 x 90 x 28
Weight
156 g, (5,7 oz)
Receiver
LCD
2,5“ TFT
LCD Resolution
960 x 240
Intermediate Frequency
ISM 2.400 GHz –2.483 GHz
Demodulation Type
480 MHz
Demodulation
FM
Receiving Sensitivity
-80dBm
Power Supply
+12V DC
Consumption Current
240 mA
Charge Time
ca 2 Stunden
Working Time
ca 4 Stunden
Dimensions
80 x 38 x 130
Weight
156 g, (5,5 oz)
Operating Temperature
-10° C –50° C / +14° F –+122° F
Storage Temperature
-30° C –+65° C / -22° F –+ 149° F
Operating Humidity
- 85% RH

11
Copyright, 2010, satconsystem
TROUBLESHOOTING
When you experience the operation problems, please check and try the following
yourself before claimin that it is the defective product or consulting the experienced
technician.
Copyright & Imprint
This Manual is the Property of Satconsystem. Excerpts, copies and/or changes require
written authorization from Satconsystem.
[e-mail]
www.satconsystem.de
