SYMEO LPR-1DHP-200 Series Operator's manual

SYMEO L OCAL P OSITIONING R ADAR
Product Family: LPR
®
-1DHP-200
Products:
LPR
®
-1DHP-220-R
LPR
®
-1DHP-260
LPR
®
-1DHP-281
LPR
®
-1DHP-290
Product Documentation

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Content
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 2 of 71
Content
CONTENT .............................................................................................................................. 2
1 SAFETY NOTES ........................................................................................................ 6
2 THE LPR
®
-1DHP-200 PRODUCT FAMILY ................................................................. 8
3 RADAR BASICS ........................................................................................................ 8
3.1 Radar Distance Measurement Princi le .................................................................. 8
3.2 Radar Beam and O ening Angle .............................................................................. 9
3.3 Fresnel Zone.............................................................................................................. 9
3.4 Radar Modes ........................................................................................................... 10
3 4 1 Primary Radar Mode 10
3 4 2 Secondary Radar Mode 11
3 4 3 Diversity Radar Mode 12
3.5 Bandwidth Modes ................................................................................................... 13
3.6 Accuracy .................................................................................................................. 13
3.7 Range ....................................................................................................................... 14
4 COMPONENTS ........................................................................................................ 15
4.1 Device Overview ..................................................................................................... 15
4.2 LED Dis lay ............................................................................................................. 18
4.3 Connectors .............................................................................................................. 19
4 3 1 Power Supply 19
4 3 2 Ethernet M12 20
4.4 Mounting Brackets .................................................................................................. 21
4 4 1 Mounting Bracket – MTM102513 21
4 4 2 Diversity Mounting Bracket – MTM102512 23
4.5 Corner Reflectors .................................................................................................... 23
4 5 1 Corner reflector 500mm – MTE000958 23
4 5 2 Corner reflector 250mm – MTE001011 24
4 5 3 Mount for corner reflector – MTM000169 24
5 MOUNTING .............................................................................................................. 25

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Content
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 3 of 71
5.1 General Mounting Instructions .............................................................................. 25
5.2 Mounting for Primary Radar Mode ......................................................................... 25
5.3 Mounting for Secondary Radar Mode .................................................................... 26
5.4 Mounting for Diversity Radar Mode ....................................................................... 27
6 QUICK SETUP ......................................................................................................... 27
6.1 Initial Setu ............................................................................................................. 27
6.2 Quick Setu for Primary Radar Mode .................................................................... 27
6.3 Quick Setu for Secondary Radar Mode ............................................................... 28
6.4 Quick Setu for Diversity Radar Mode .................................................................. 28
6.5 Review and Calibration of the Measurement Setu .............................................. 28
7 ESTABLISHING A TCP/IP CONNECTION ............................................................... 29
8 DEVICE SETUP VIA THE WEB USER INTERFACE................................................ 31
8.1 O en the Web User Interface ................................................................................. 31
8.2 Sign In ...................................................................................................................... 33
8.3 Initial O eration ....................................................................................................... 33
8.4 Change Settings, Review and Save Changes ....................................................... 36
8.5 Home Page .............................................................................................................. 38
8.1 Device ...................................................................................................................... 41
8 1 1 Device - Settings 41
8 1 2 Device - Upload Configuration 50
8 1 3 Device - Downloads 50
8 1 4 Device - Firmware Update 50
8 1 5 Device - Factory Reset 51
8 1 6 Device - Reboot Device 51
8.2 Diagnostics ............................................................................................................. 52
8 2 1 Diagnostics – Operating System Status 52
8 2 2 Diagnostics – Hardware Status 54
8 2 3 Diagnostics – Storage Devices 55
8 2 4 Diagnostics – Range Measurement Statistics 55
8 2 5 Diagnostics – Record Measurement Data 59
8 2 6 Diagnostics – Packet Inspector 59

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Content
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 4 of 71
8 2 7 Diagnostics – Station Scan 60
9 THE CUSTOMER PROTOCOL ................................................................................ 62
9.1 General Descri tion ................................................................................................ 62
9 1 1 Structure of a Data Type 62
9 1 2 CRC 62
9.2 Data Ty es ............................................................................................................... 63
9 2 1 Type 0x16 – Distance Data 63
9 2 2 Type 0x03 – Relays Switching Commands 65
9 2 3 LPR®-1D24 Address 67
10 TECHNICAL DATA .................................................................................................. 68
10.1 General Technical Data .......................................................................................... 68
10.2 Product Name vs. Model Number .......................................................................... 68
10.3 Mode De endent Technical Data ........................................................................... 69
10 3 1 Primary Radar Mode 69
10 3 2 Secondary Radar Mode 69
10 3 3 Diversity Radar Mode 70
11 TROUBLESHOOTING .............................................................................................. 71
12 APPLICATIONS ....................................................................................................... 71

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Content
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 5 of 71
The documentation for the LPR
®
-1DHP-200 Local Positioning Radar System is published by:
SYMEO GmbH
Prof -Messerschmitt-Str 3
D-85579 Neubiberg
www symeo com
If you have any questions or suggestions, please contact:
Email: info@symeo com
phone: [phone]
Copyright  Symeo GmbH
HISTORY
Version Date Descri tion
0001 28 05 2018 Initial Release
0002 09 08 2018 Comprehensive update
WORK
SYMBOLS USED
The following symbols are used throughout the documentation:
This symbol appears before instructions that must be followed at all times
Failure to comply with these instructions will result in personal injury
This symbol appears before instructions that must be followed at all times
Failure to comply with these instructions will result in damage to
equipment
This symbol appears before information of particular importance
All rights reserved, particularly those relating to the translation, reprinting, and reproduction
by photocopying or similar processes of all or part of the documentation and for purposes of
the award of patents or submission of utility models
Delivery options and technical changes reserved
Wherever the term LPR
®
-1DHP-200 is used during this documentation, all products included
in the LPR
®
-1DHP-200 product family are addressed
Application specific documentation can be obtained from the Partner Login under
www symeo com or from Symeo support

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Safety Notes
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 6 of 71
1 Safety Notes
General
The LPR
®
-1DHP-200 product family is a radar distance measurement sensor that may be
used to measure distances between a radar unit and a reflector or between two radar units
LPR
®
-1DHP-200 radars are purely tracking and assistance systems
They do not satisfy special requirements for personal or functional
safety or explosion protection
All personnel that commission or operate an LPR
®
-1DHP-200 radar
have to be instructed that it does not satisfy norms and requirements for
functional safety (e g IEC 61058, EN ISO 13849, EN 62061)
Read the documentation before operation of the radar and follow the
included safety notes
Take note of the safety and operating instructions of the system in
which you want to install the device
Follow national safety norms and regulations
Installation
Installation must be carried out by qualified and trained technicians
When the system is mounted on fixed tubes, the necessary measures to
prevent slippage of the system must be taken
Only screwed connections with safety against loosening may be used
for mounting the radar
Adhere to the specified tightening torques for all screws and connectors
Screwed connections must be examined at regular intervals, especially
if the radar is mounted exposed
Re airs and Modifications
Repairs or modifications may only be performed by the manufacturer
Opening of the device is prohibited
Any change or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment
The warranty shall be voided if you cause defects to the device by
installing or exchanging system extensions

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 7 of 71
Trans ort and Storage
Do not drop the device and do not expose it to strong vibrations
Power Su ly
While installing or using it in open-air, transient overvoltage cannot be
excluded Overvoltage protection is to be used for low voltage in
accordance to DIN EN 61643-21 and IEC 61643-21
Be careful that the device can be damaged by reverse polarity despite
implementation of polarity reversal protection
Setu and O eration
Protect the contacts of all of the device's sockets and plugs from static
electricity
Proper operation (in accordance with IEC60950/EN60950) of the device
is only assured if the housing and integral covers for mounting slots are
fully installed (electric shock, cooling, fire protection, noise suppression)
In case of intense, direct solar radiation or other radiant heat, it may be
necessary to provide a sun or heat shield
Be aware, that misuse, modification or damage of the sensor can lead
to erroneous distance measurements
After mounting and commissioning, compare the actual distance to the
distance measured by the radar sensor with respect to your needed
accuracy This step must be repeated after major changes to your
measurement setup
System Extensions and Accessories
For LAN cabling, the requirements in accordance with EN 50173 and
EN 50174-1/2 apply Use of either a Category 5 shielded cable for
10/100 Ethernet or Category 5e shielded cable for gigabit Ethernet is a
minimum requirement The specifications of standard ISO/IEC 11801
must be complied with
General Requirements for Com liance of Radio A aratus
The operation of this device requires compliance with regional radio
regulations
This device complies with Part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page
Ex osure Requirements
To satisfy FCC exposure requirements a separation distance of 20 cm
or more should be maintained between the antenna of this device
and persons during operation.
To ensure compliance, operations at closer distances than this are not
recommended.
To satisfy ISED exposure requirements a separation distance of 20 cm
or more should be maintained between the antenna of this device
and persons during operation.
To ensure compliance, operations at closer distances than this are not
recommended.
Pour satisfaire aux exigences d'exposition ISED, une distance de sépa
-
ration de 20 cm ou plus doit être maintenue entre l'antenne de cet
appareil et les personnes pendant le fonctionnement.
Pour assurer la conformité, les opérations à plus courte distance ne
sont pas recommandées.

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 8 of 71
2 The LPR
®
-1DHP-200 Product Family
The LPR
®
-1DHP-200 is a radar distance measurement sensor product family The product
family consists of different product types, which are based on the same hardware platform
Depending on your purchased product type, your radar provides one or more of three
different radar modes, namely a primary radar mode, a secondary radar mode and a
diversity radar mode Table 2 1 shows the different product types and their supported radar
modes
LPR
®
-1DHP- 220-R 260 281 290
Primary Radar Mode
X
X
Secondary Ra
dar Mode
X
X
Diversity Radar Mode
X
X
X
Table 2.1: Su orted radar modes for different LPR
®
-1DHP-200 roduct ty es.
Typical applications of the LPR
®
-1DHP-200 are:
 Positioning of cranes, crane trolleys, hoists and other railbound transport systems
 Process automation, monitoring and control
 Collision avoidance
While reading this document keep in mind which radar modes are
supported by your device
All LPR
®
-1DHP-200 product types can be configured with the help of a
Web User Interface (WebUI), which is described in chapter 8
3 Radar Basics
3.1 Radar Distance Measurement Princi le
The LPR
®
-1DHP-200 radar distance sensors use electromagnetic waves to measure the
distance and speed between two radars (secondary radar mode) or a single radar and a
reflector (primary radar mode)
The underlying measuring principle is based on the Round-Trip Time-Of-Flight (RTOF)
measurement between a transmitted radar signal and a received signal The radar estimates
the time τ the radar signal needs to travel the unknown distance d from one radar to the other
(or to a reflector) and back. The distance is then calculated with the formula
 = 0.5  
where c is the speed of light

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 9 of 71
3.2 Radar Beam and O ening Angle
The LPR
®
-1DHP-200 emits a high frequency electromagnetic radio signal with its integrated
antenna The EM-wave is focused by a dielectric lens and creates a radar beam with an
opening angle (half power beam width, HPBW) of +/-2,5°
Table 3.1: Radar beam 3dB diameter vs. distance
Figure 3.1: Radar beam and o ening angle.
3.3 Fresnel Zone
The area for radio transmission between two antennas is called Fresnel zone The main part
of energy is concentrated in the first Fresnel zone
The Fresnel zone has to be free of any obstacles to ensure that the
signal is not attenuated or interrupted
The maximum radius of the first Fresnel zone (in the middle between two antennas) can be
calculated as follows:
 = 0.5 ∙ √ ∙ 
 is the wave length and  the distance between the two radar devices or a radar device and
a reflective target For a frequency of 61 GHz a wave length  of approx 0 005 m is
calculated The maximum radius of the first Fresnel Zone is indicated by  The maximum
radius for different distances is given in Table 3 2
Distance d in m 1 3 10 30 50 70 100 200 300 400 600
Radar beam 3dB
diameter in m
0 1 0 3 0 9 2 6 4 4 6 1 8 7 17 5 26 2 34 9 52 4

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 10 of 71
Figure 3.2: Fresnel zone
Table 3.2: Fresnel zone radius vs. distance
3.4 Radar Modes
3.4.1 Primary Radar Mode
In primary radar mode, a single radar measures the distance and speed to a reflective object
/ target, typically a metal corner reflector The following features differentiate the primary
radar mode from the other radar modes:
 Suitable for ranges up to 50 m
 Range depends on target radar cross section (RCS)
 Very high update rate (up to 350 Hz)
 Cost effective installation with a single radar
Distance measurements to passive objects enable additional applications for primary radar
mode,:
 Presence / absence check (e g in a radar barrier)
 Profile / measurement (e g of bulk material)
 Detection of arbitrary objects (e g of personell or vehicles)
Figure 3.3 shows the typical setup of a LPR
®
-1DHP-220-R radar and a corner reflector for a
primary radar distance measurement
Distance d in m 10 20 30 40 50 70 100 200 300 400 600
Fresnel Zone
Radius r in m
0 11 0 16 0 19 0 22 0 25 0 30 0 36 0 50 0 62 0 71 0 86

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 11 of 71
Figure 3.3: Primary radar mode measurement setu
3.4.2 Secondary Radar Mode
In secondary radar mode two radars measure the distance and speed between each other
The following features differentiate the secondary radar mode from the other radar modes:
 Suitable for ranges up to 300 m
 Distance is always measured to the partner unit and not to passive objects
Figure 3.4 shows the typical setup of two LPR
®
-1DHP-260 radars for a secondary radar
range measurement

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 12 of 71

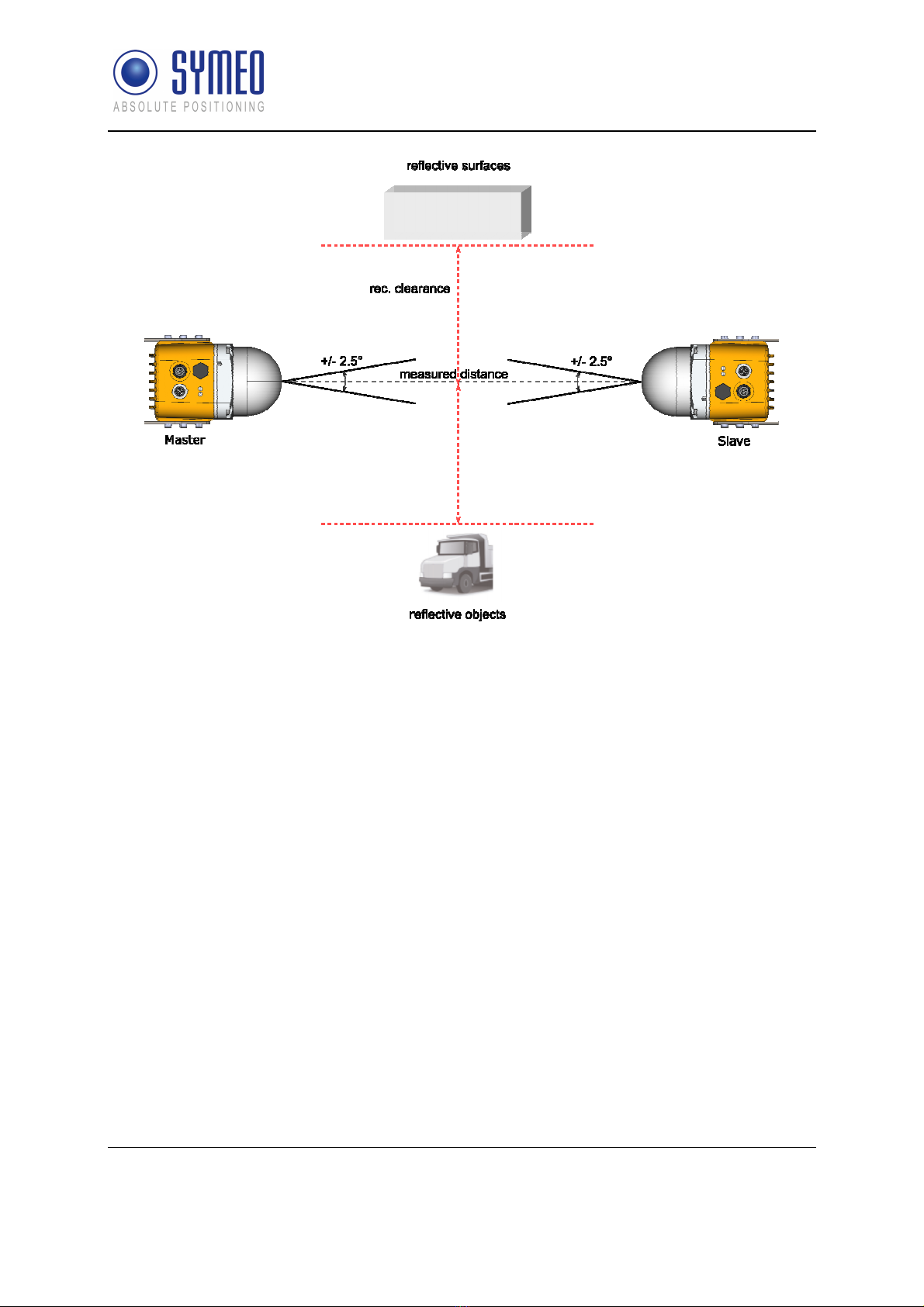

Figure 3.4: Secondary radar mode measurement setu
3.4.3 Diversity Radar Mode
In diversity radar mode four radar units are grouped into two pairs, which are mounted in a
way that two secondary range measurements are performed side by side separated by a
defined distance The following features differentiate the diversity radar mode from the other
radar modes:
 Suitable for ranges up to 500 m
 Distance is always measured to the partner unit and not to passive objects
 No clearance to reflective surfaces / objects required (see chapter 5 1; Fresnel zone still
needs to be free of obstacles)
 If one of the two measurement paths fails, the system falls back to operation in
secondary radar mode and is therefore still available (error is indicated in diversity status
byte)
Figure 3.5 shows the typical setup of four LPR
®
-1DHP-281 radars for a diversity radar range
measurement

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 13 of 71
Figure 3.5: Diversity radar mode measurement setu
3.5 Bandwidth Modes
The LPR
®
-1DHP-200 is able to operate in the 57 - 64 GHz band Depending on your used
region and regulatory authority setting, a limited number of bandwidth modes are available
for selection in the WebUI
The selected bandwidth modes have impact on the accuracy, resolution and range of the
radar The dependency of performance and bandwidth mode with respect to regional
restrictions is depicted in chapter 10 It is recommended to use the 0 5 GHz or 2 GHz
bandwidth mode for standard applications
Within a single bandwidth mode, multiple sync channels are available For each channel
block, the effective bandwidth of a sync channel reduces with increasing sync channel
number
3.6 Accuracy
To maximize the accuracy of a LPR
®
-1DHP-200 measurement setup, different error sources
which influence the accuracy need to be taken into account:
 Mounting position
o Adhere to the mounting instructions (see chapter 5) to minimize systematic errors
(e g horizontal or vertical offset and alignment)
 Reflective surfaces and objects
o Reflections of the radar signal, e g from walls, can cause distance errors in primary
and secondary radar mode which vary with the measured distance Ensure the
recommended clearance to surfaces and objects described in chapter 5 1 or use
diversity radar mode to minimize errors caused by reflections
 Measurement noise
o Measurement noise caused by the radar itself is the lower limit to the overall
accuracy The noise will decrease with increasing bandwidth For primary radar
mode, noise will increase with range and decrease with target radar cross section

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Radar Basics
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 14 of 71
(dependent on target size, shape and material) In secondary radar mode noise is
constant within the specified range and will increase for ranges above
 Temperature drift
o Changes in device and air temperature can lead to measurement offsets of approx
+/-10mm These errors vary slowly with time and can be countered by ensuring
constant environmental conditions, running a warm up phase of 30 minutes before
operation or by using a calibration reference
3.7 Range
To maximize the range of a LPR
®
-1DHP-200 measurement setup the following aspects have
to be taken into account:
 Mounting position
o Adhere to the mounting instructions (see chapter 5) Ensure minimum alignment error
and vertical / horizontal offset and equal orientation (for secondary and diversity radar
mode)
 Fresnel zone
o Ensure the Fresnel zone is free of absorbing or reflecting objects
 Reflective surfaces and objects
o Reflections of the radar signal, e g from walls, can lead to a reduction of the received
signal strength and hence maximum range Ensure the recommended clearance to
surfaces and objects described in chapter 5 1 or use diversity radar mode to counter
the effects caused by reflections
 Target RCS (only primary radar mode)
o In primary radar mode the maximum range depends on the target RCS (radar cross
section) which is a function of target size, material and shape If the maximum range
is required use targets with a high RCS (e g the corner reflector MTE000958)
 VGA value
o For maximum range set the “VGA value” to the highest possible value that is allowed
in you regulatory domain The WebUI will use your region settings to limit the “VGA
value” and hence range is reduced in certain regions (see chapter 10)
The minimum range of the sensors can be reduced to values below the specified minimum
distance by adapting the “VGA value”, the “RX attenuator” and the threshold settings (for
primary radar) This however affects the maximum range and the accuracy of the radar and
shall therefore only be applied by trained personell

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Components
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 15 of 71
4 Com onents
4.1 Device Overview
The LPR
®
-1DHP-200 consists of the following parts (see Figure 4 1 and Figure 4 2):
 Dielectric Lens (A1)
o focuses the radar beam
 Metal gland (A2)
o fixes the lens to the housing with four screws
o seals the device against water and dirt
o holds the inner parts of the device in place
 Housing (A3)
o provides LEDs (B1) and a pressure equalization membrane (B2)
o provides the M12 power supply connector (C1) and the M12 Ethernet connector (C2)
o provides 2 x 3 M6 screwing holes (B3) for mounting in the mounting bracket
o provides an adjustment guide for usage with a laser level for exact radar beam
alignment (B4)
o ensures IP65 protection class and heat dissipation
The housing must not be opened

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Components
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 16 of 71
Figure 4.1: Front view of the LPR
®
-1DHP-200
A1
A2
A3
B1
B2
B3
B3
C1
C2

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Components
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 17 of 71
Figure 4.2: Side view of the LPR
®
-1DHP-200
B3
B4

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Components
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 18 of 71
Figure 4.3: LPR
®
-1DHP-200 housing dimensions
4.2 LED Dis lay
The LEDs (Status LED on the left and Ethernet LED on the right) indicate the different states
of the device (see Table 4 1)
LED Indication Status of the Device
Status LED lights up BLUE Device is booting up
Status LED lights up RED Invalid measurement
Status LED lights up GREEN Valid measurement
Status LED flashes BLUE Firmware update in progress
Ethernet LED lights up WHITE Ethernet interface established
Ethernet LED flashes WHITE Ethernet interface transmits data
Table 4.1: LED Dis lay

SYMEO Local Positioning Radar System
Product Family LPR
®
-1DHP-200 – Product Documentation
Components
Co yright © Symeo GmbH 2018
DOC EDO 000341 WORK EN_LPR-1DHP-200_Product-Documentation docx
Page 19 of 71
4.3 Connectors
The housing of the LPR
®
-1DHP-200 provides the following M12 connectors (see Figure 4 1
and Figure 4 2):
 Power supply input (C1)
 Ethernet connector (C2) for network connection
The necessary connectors for manufacturing cables that fit your installation and cable length
are available from symeo and are described in the following chapters
4.3.1 Power Su ly
The LPR
®
-1DHP-200 is powered by a 4-pin M12-Connector
Plugs
Recommended connector:
 SACC-M12FST-4PECON-PG 9-M – 1418052 (obsolete)
SACC-M12FST-4CON-PG 9-M - 1418052
o Cable diameter: 6 - 8 mm
Tightening torque: 0 4 Nm
o Symeo order number: MTE101761
The connector is also part of the following M12 connector set:
 M12 connector set (Ethernet + Power su ly)
o Symeo order number: MTE102366
Figure 4.4: M12 ower su ly connector
