Brief Operating Instructions
Micropilot FMR53, FMR54
Level radar
These Instructions are Brief Operating Instructions; they do not replace the
Operating Instructions included in the scope of supply.
For detailed information, refer to the Operating Instructions and other
documentation on the CD-ROM provided or visit "www.endress.com/
deviceviewer".
KA01101F/00/EN/01.12
71156033

Table of contents Micropilot FMR53, FMR54
2 Endress+Hauser
Table of contents
1 Important document information ............................... 3
1.1 Document conventions ........................................... 3
2 Basic safety instructions ...................................... 6
2.1 Requirements for the personnel ....................................... 6
2.2 Designated use ............................................... 6
2.3 Workplace safety .............................................. 7
2.4 Operational safety .............................................. 7
2.5 Product safety ................................................ 7
3 Product description ......................................... 8
3.1 Product design ............................................... 8
4 Incoming acceptance and product identification .................... 11
4.1 Incoming acceptance ........................................... 11
4.2 Product identification ........................................... 13
5 Storage, Transport ........................................ 14
5.1 Storage conditions ............................................. 14
5.2 Transport product to the measuring point .................................. 14
6 Installation .............................................. 15
6.1 Installation conditions ........................................... 15
6.2 Measuring conditions ........................................... 22
6.3 Installation in vessel (free space) ...................................... 24
6.4 Installation in stilling well ......................................... 30
6.5 Installation in bypass ............................................ 31
6.6 Vessels with heat insulation ........................................ 32
6.7 Turning the transmitter housing ...................................... 32
6.8 Turning the display module ......................................... 33
6.9 Post-installation check ........................................... 33
7 Electrical connection ....................................... 34
7.1 Connection conditions ........................................... 34
7.2 Connecting the measuring device ...................................... 52
7.3 Post-connection check ........................................... 55
8 Commissioning ........................................... 56
8.1 Display and operating module ....................................... 56
8.2 Operating menu .............................................. 58
8.3 Unlock the device ............................................. 59
8.4 Setting the operating language ....................................... 59
8.5 Configuration of a level measurement .................................... 60
8.6 User-specific applications .......................................... 62

Micropilot FMR53, FMR54 Important document information
Endress+Hauser 3
1 Important document information
1.1 Document conventions

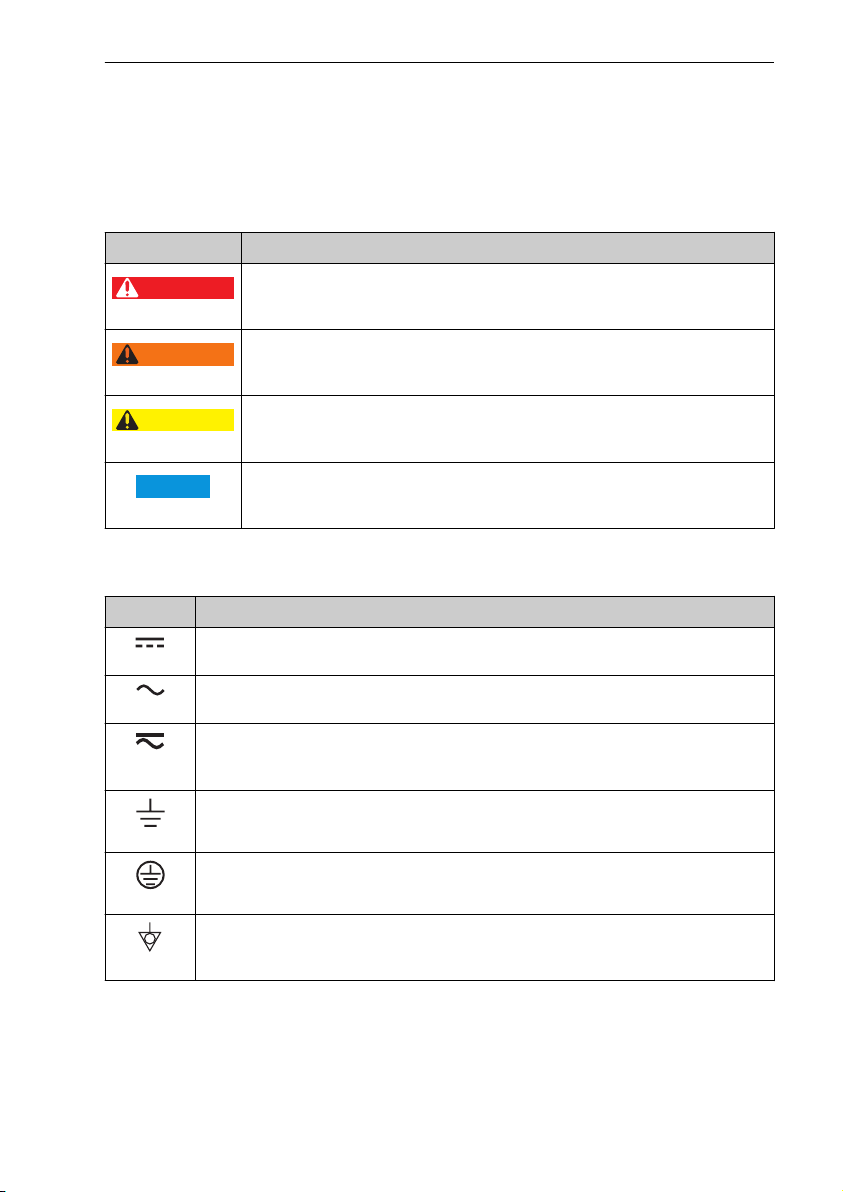

1.1.1 Safety symbols
Symbol Meaning
DANGER
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.

Important document information Micropilot FMR53, FMR54
4 Endress+Hauser

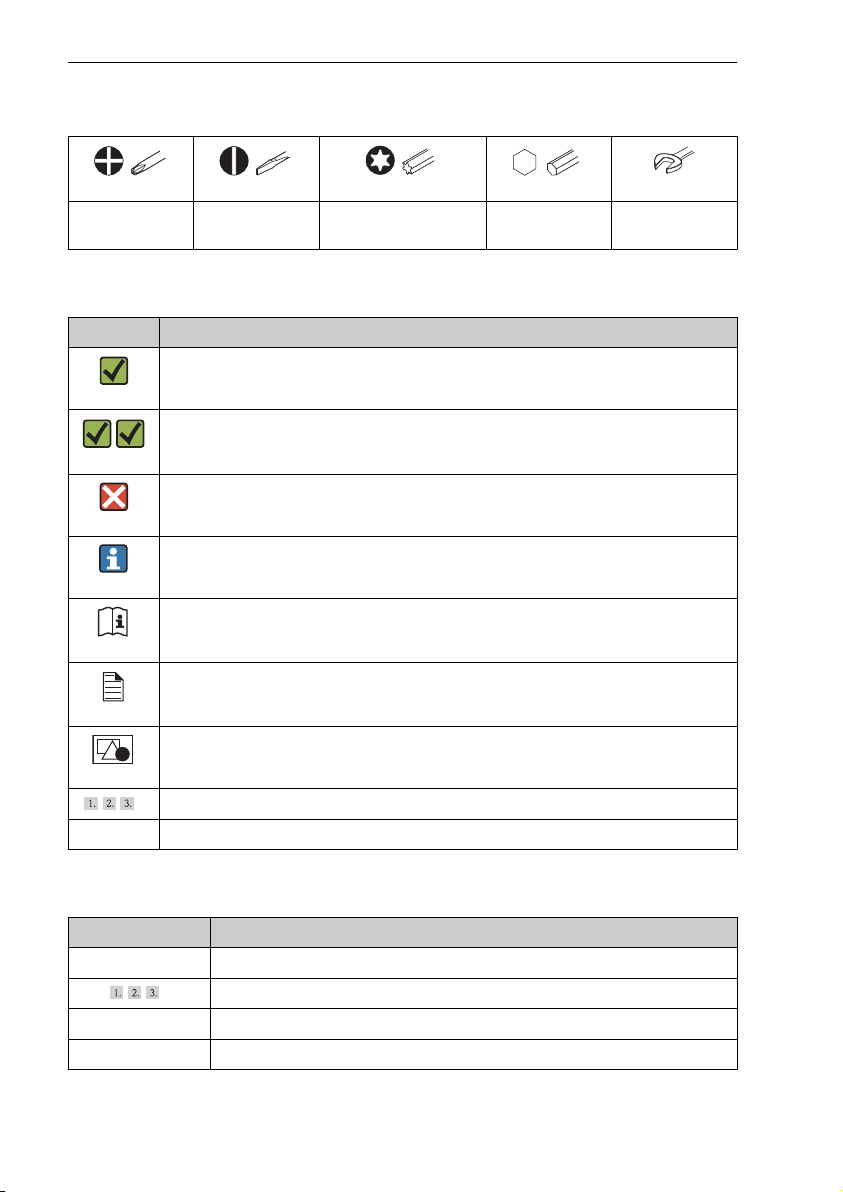

1.1.3 Tool symbols
A0011219 A0011220 A0013442 A0011221 A0011222
Phillips head
screwdriver
Flat blade
screwdriver Torx screwdriver Allen key Hexagon wrench
1.1.4 Symbols for certain types of information
Symbol Meaning
A0011182
Allowed
Indicates procedures, processes or actions that are allowed.
A0011183
Preferred
Indicates procedures, processes or actions that are preferred.
A0011184
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011193
Tip
Indicates additional information.
A0011194
Reference to documentation
Refers to the corresponding device documentation.
A0011195
Reference to page
Refers to the corresponding page number.
A0011196
Reference to graphic
Refers to the corresponding graphic number and page number.
,… ,
Series of steps
ÃResult of a sequence of actions
1.1.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections

Micropilot FMR53, FMR54 Important document information
Endress+Hauser 5
Symbol Meaning
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous location.
1.1.6 Symbols at the device
Symbol Meaning
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions.
Temperature resistance of the connection cables
Specifies the minimum value of the temperature resistance of the connection cables.

Basic safety instructions Micropilot FMR53, FMR54
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
►Trained, qualified specialists must have a relevant qualification for this specific function and
task
►Are authorized by the plant owner/operator
►Are familiar with federal/national regulations
►Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
►Following instructions and basic conditions
2.2 Designated use
Application and measured materials
The measuring device described in these Operating Instructions is intended for the
continuous, contactless level measurement of liquids, pastes and sludge. Because of its
operating frequency of about 6 GHz, a maximum radiated pulsed power of 12.03 mW and an
average power output of 0.024 mW, the operation is completely harmless to humans and
animals.
Observing the limit values specified in the "Technical data" and listed in the Operating
Instructions and supplementary documentation, the measuring device may be used for the
following measurements only:
►Measured process variables: level, distance, signal strength
►Calculated process variables: Volume or mass in arbitrarily shaped vessels; flow through
measuring weirs or flumes (calculated from the level by the linearization functionality)
To ensure that the measuring device remains in proper condition for the operation time:
►Use the measuring device only for measured materials against which the process-wetted
materials are adequately resistant.
►Observe the limit values in "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
►For special measured materials and cleaning agents, Endress+Hauser is glad to provide
assistance in verifying the corrosion resistance of wetted materials, but does not accept any
warranty or liability.
Residual risk
The electronics housing and its built-in components such as display module, main electronics
module and I/O electronics module may heat to 80 °C (176 °F) during operation through
heat transfer from the process as well as power dissipation within the electronics. During
operation the sensor may assume a temperature near the temperature of the measured
material.
Danger of burns due to heated surfaces!
►For high process temperatures: Install protection against contact in order to prevent burns.

Micropilot FMR53, FMR54 Basic safety instructions
Endress+Hauser 7
2.3 Workplace safety
For work on and with the device:
►Wear the required personal protective equipment according to federal/national regulations.
2.4 Operational safety
Risk of injury.
►Operate the device in proper technical condition and fail-safe condition only.
►The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
►If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
►Carry out repairs on the device only if they are expressly permitted.
►Observe federal/national regulations pertaining to repair of an electrical device.
►Use original spare parts and accessories from the manufacturer only.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the hazardous
area (e.g. explosion protection, pressure vessel safety):
►Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area.
►Observe the specifications in the separate supplementary documentation that is an integral
part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which
they are safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.

Product description Micropilot FMR53, FMR54
8 Endress+Hauser
3 Product description
3.1 Product design
3.1.1 Micropilot FMR53
1 1
2 5
3
4 4
3
A0016790
å 1 Design of the Micropilot FMR53 (6 GHz)
1Electronics housing
2 Flange
3 Inactive length
4 Active part of the antenna
5 Process connection (Thread)

Micropilot FMR53, FMR54 Product description
Endress+Hauser 9
3.1.2 Micropilot FMR54
1 1 1
2
2
4 2
3
3 5
A0016815

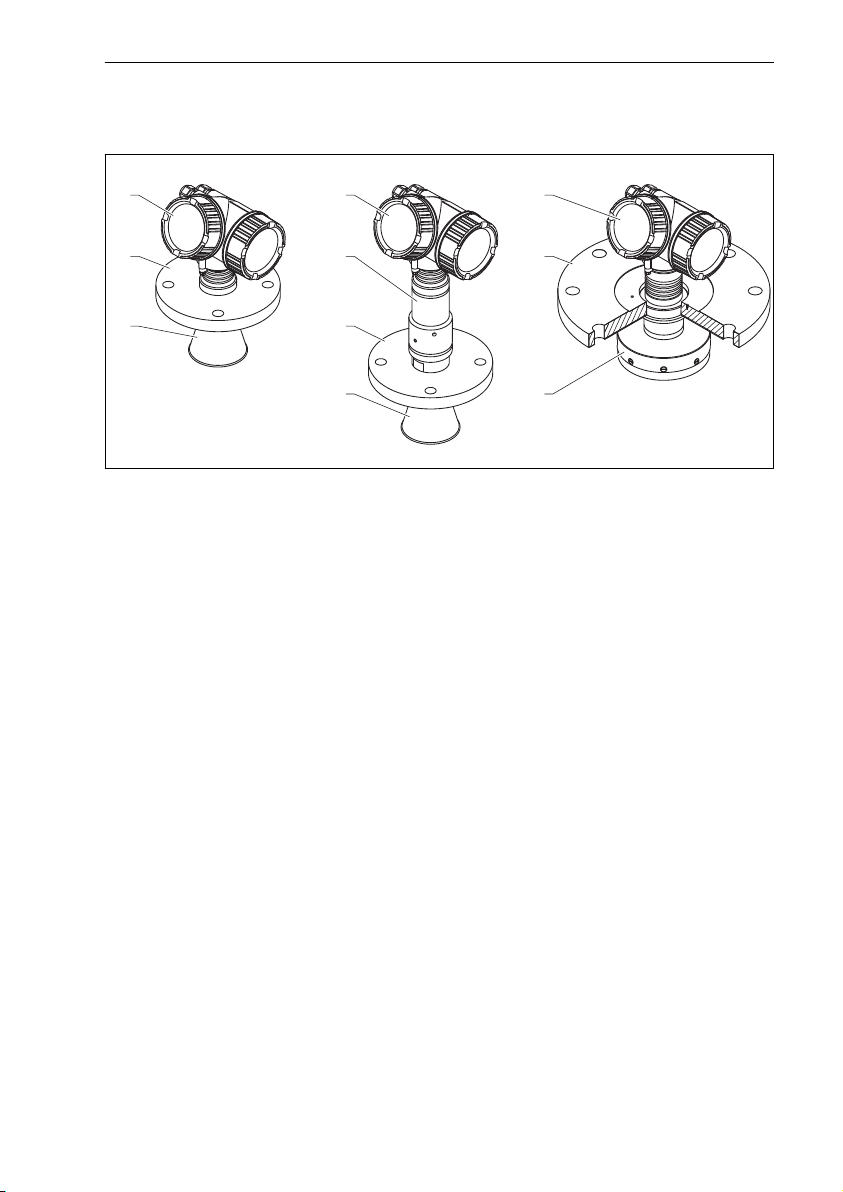

å 2 Design of the Micropilot FMR54 (6 GHz)
1Electronics housing
2 Flange
3 Horn antenna
4 High temperature antenna fitting
5 Planar antenna

Product description Micropilot FMR53, FMR54
10 Endress+Hauser
3.1.3 Electronics housing
Esc
–+E
123
4
5
6
9
7
8
A0012422

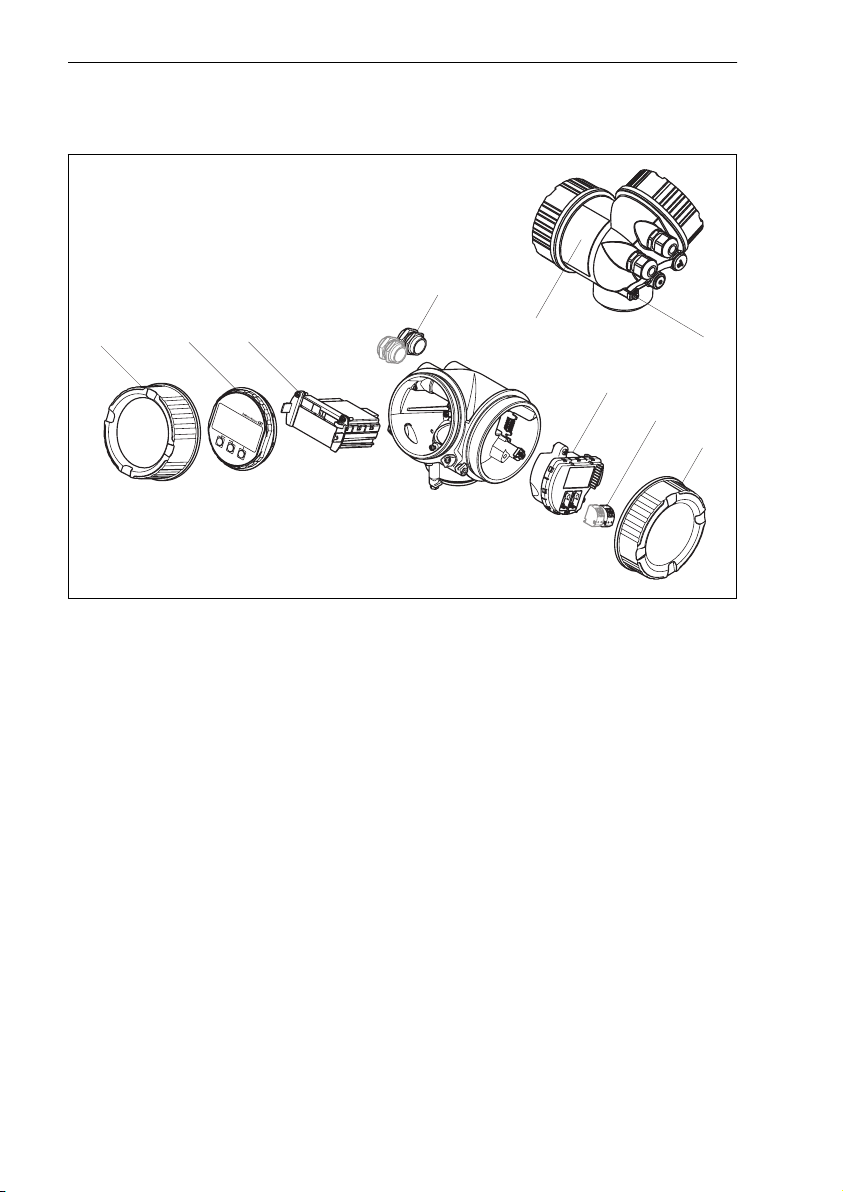

å 3 Design of the electronics housing
1Electronics compartment cover
2 Display module
3 Main electronics module
4 Cable glands (1 or 2, depending on instrument version)
5 Nameplate
6 I/O electronics module
7 Terminals (pluggable spring terminals)
8 Connection compartment cover
9 Grounding terminal

Micropilot FMR53, FMR54 Incoming acceptance and product identification
Endress+Hauser 11
4 Incoming acceptance and product identification

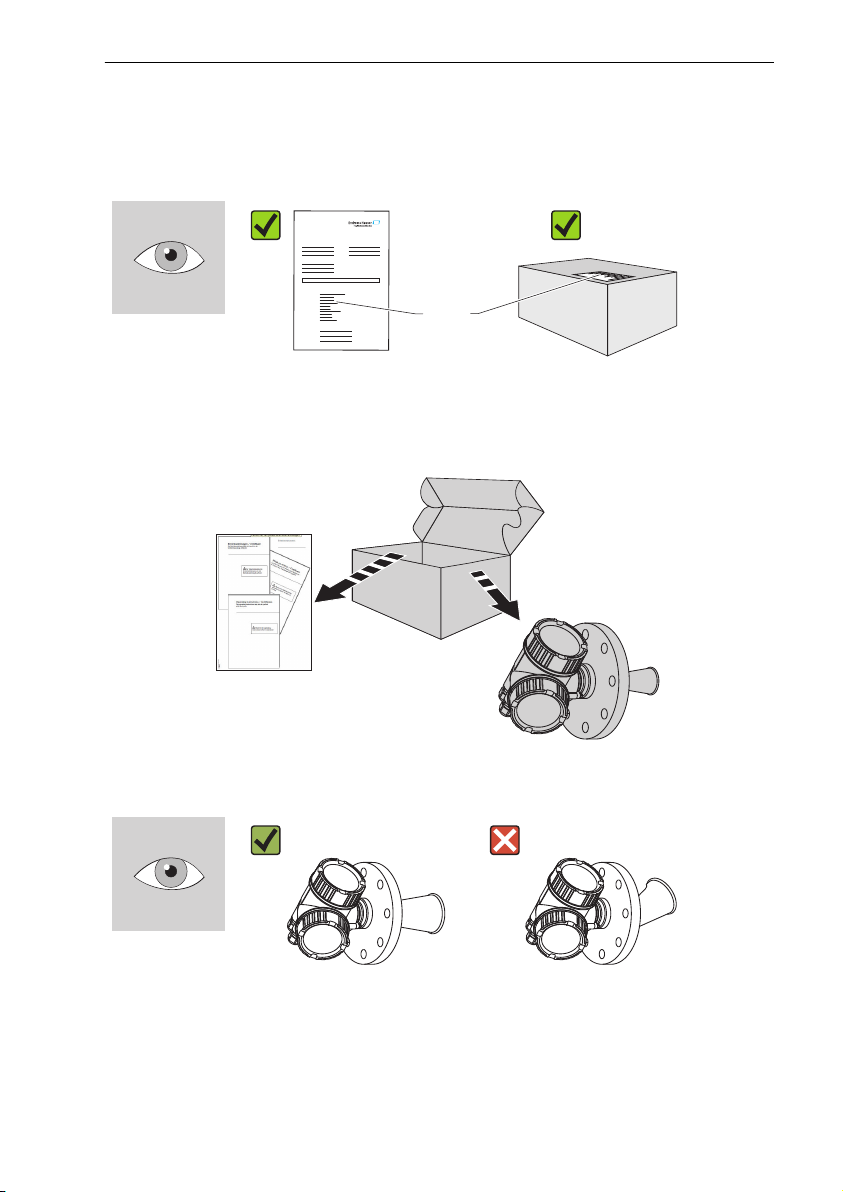

4.1 Incoming acceptance
A0013696
DELIVERY NOTE
1 = 2
A0016870
A0016871
A0013696
A0016872

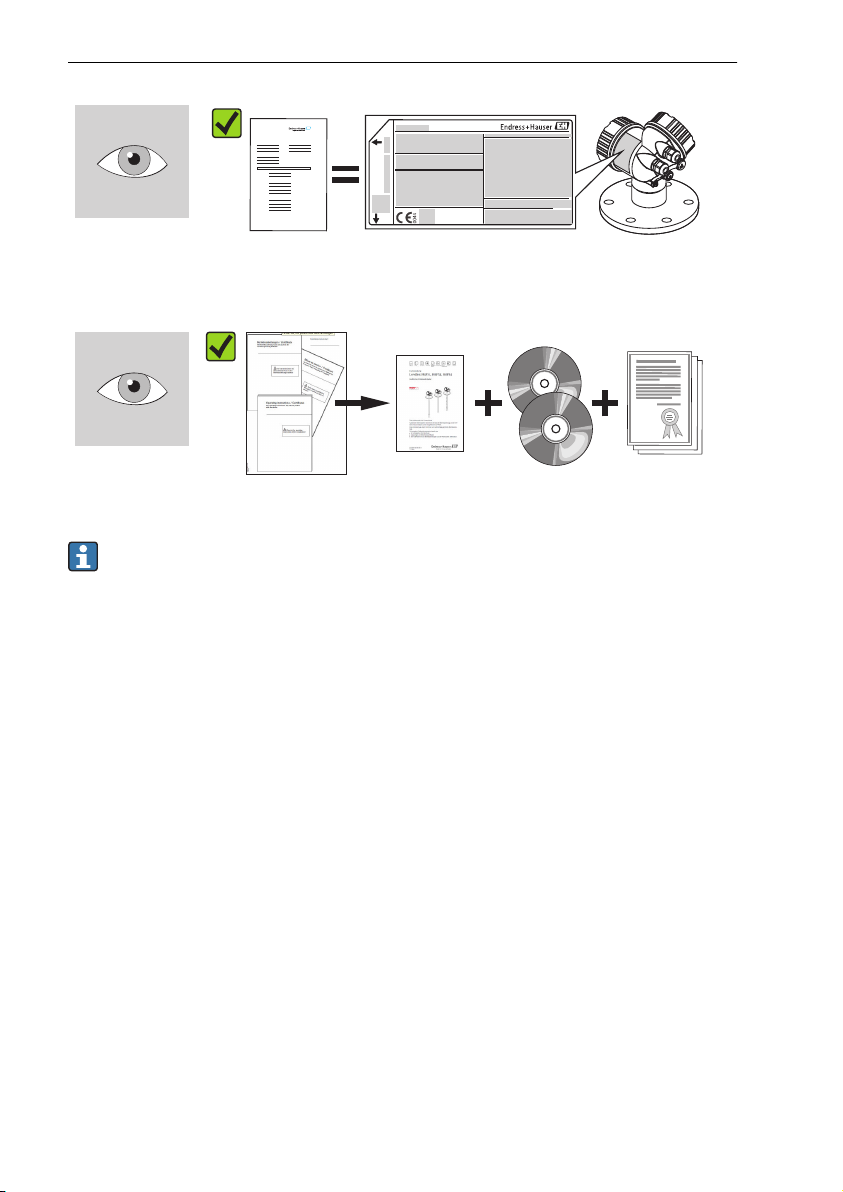

Incoming acceptance and product identification Micropilot FMR53, FMR54
12 Endress+Hauser
A0013696
DELIVERY NOTE
Made in Germany, 79689 Maulburg
A0014038
A0013696
A0014037
If one of the conditions does not comply, contact your Endress+Hauser distributor.

Micropilot FMR53, FMR54 Incoming acceptance and product identification
Endress+Hauser 13
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
•Enter serial numbers from nameplates in W@M Device Viewer
( www.endress.com/deviceviewer ): All information about the measuring device is
displayed.
For an overview of the scope of the Technical Documentation provided, refer to the following:
enter serial numbers from nameplates in W@M Device Viewer
( www.endress.com/deviceviewer )
4.2.1 Nameplate
Order code:
Ext. ord. cd.:
Ser. no.:
1
2
3
A0014103
å 4 Example of a nameplate
1Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)
For detailed information about interpreting the nameplate specifications, refer to the
Operating Instructions for the device on the CD-ROM provided.
Only 33 digits of the extended order code can be indicated on the nameplate. If the
extended order code exceeds 33 digits, the rest will not be shown. However, the
complete extended order code can be viewed in the operating menu of the device
(Diagnostics ® Device info ® Extended order code 1/2/3).

Storage, Transport Micropilot FMR53, FMR54
14 Endress+Hauser
5 Storage, Transport
5.1 Storage conditions
• Permitted storage temperature: –40 to +80 °C (–40 to +176 °F)
• Use the original packaging.
5.2 Transport product to the measuring point
NOTICE
Housing or antenna horn may be damaged or break away.
Risk of injury!
►Transport the measuring device to the measuring point in its original packaging or at the
process connection.
►Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the antenna
horn but at the process connection. Take into account the mass center of the device in
order to avoid unintended tilting.
►Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs).
A0016875

Micropilot FMR53, FMR54 Installation
Endress+Hauser 15
6 Installation
6.1 Installation conditions
6.1.1 Mounting position
A
1 2 3
A0016882
• Recommended distance A from
wall to outer edge of nozzle: ~
1/6 of tank diameter.
Nevertheless the device should
not be installed closer than
30 cm (11.8 in) to the tank wall.
• Not in the center (2), as
interference can cause signal loss.
• Not above the fill stream (3).
• It is recommended to us a
weather protection cover (1) in
order to protect the device from
direct sun or rain.

Installation Micropilot FMR53, FMR54
16 Endress+Hauser
6.1.2 Vessel installations
A0018944
Avoid any installations (limit
switches, temperature sensors,
braces, vacuum rings, heating coils,
baffles etc.) inside the signal beam.
Take into account the beam angle
(® ä 20):

Micropilot FMR53, FMR54 Installation
Endress+Hauser 17

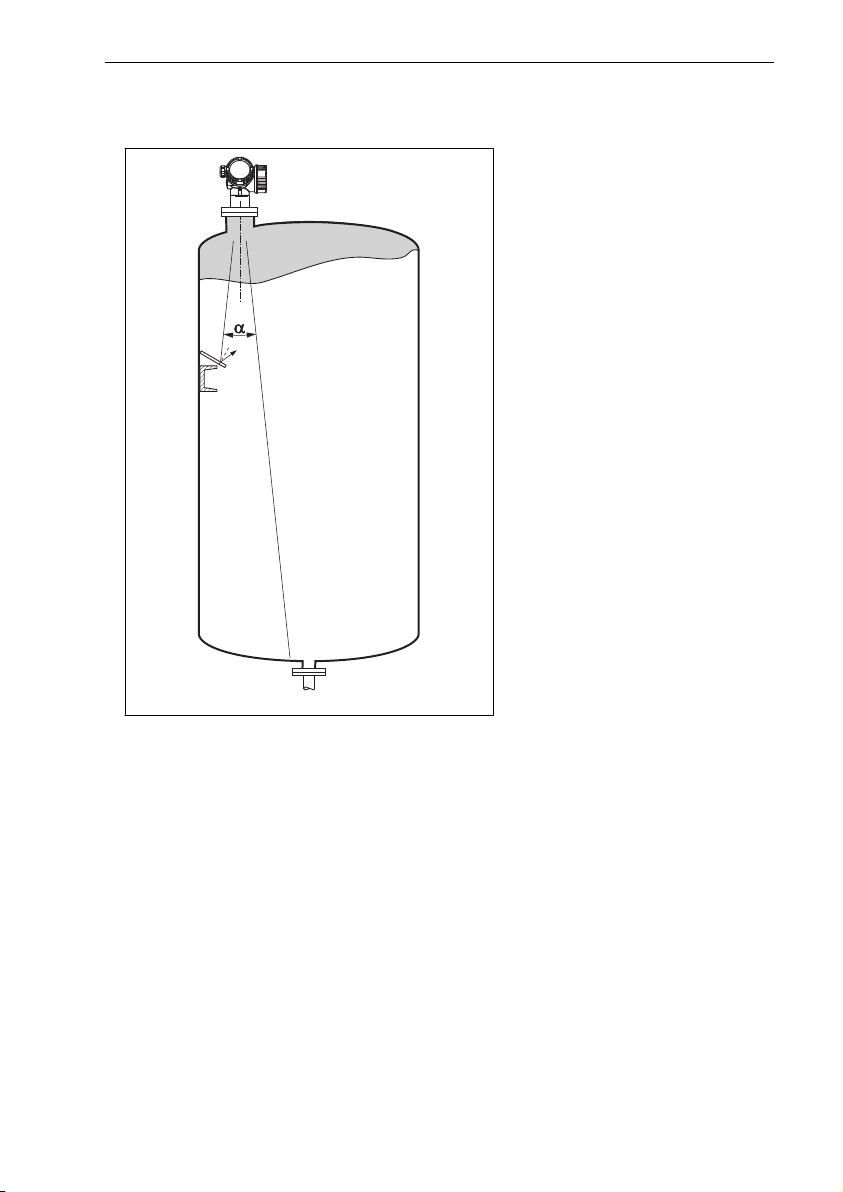

6.1.3 Reduction of interference echoes
A0016890
Metallic screens mounted at a
slope spread the radar signal
and can, therefore, reduce
interference echoes.
6.1.4 Measurement in a plastic vessel
If the outer wall of the vessel is made of a non-conductive material (e.g. GRP), microwaves
can also be reflected off interfering installations outside the signal beam (e.g. metallic pipes (1),
ladders (2), grates (3), ...). Therefore, there should be no such interfering installations in the
signal beam. Please contact Endress+Hauser for further information.

Installation Micropilot FMR53, FMR54
18 Endress+Hauser
2
3
1
A0017123

Micropilot FMR53, FMR54 Installation
Endress+Hauser 19
6.1.5 Optimization options
• Antenna size
The bigger the antenna, the smaller the beam angle a and the fewer interference echoes
(® ä 20).
• Mapping
The measurement can be optimized by means of electronic suppression of interference
echoes.
• Antenna alignment
Take into account the marker on the flange or threaded connection (® ä 24)
(® ä 27) .
• Stilling well
A stilling well can be applied to avoid interferences (® ä 30).
• Metallic screens mounted at a slope
They spread the radar signals and can, therefore, reduce interference echoes.

Installation Micropilot FMR53, FMR54
20 Endress+Hauser

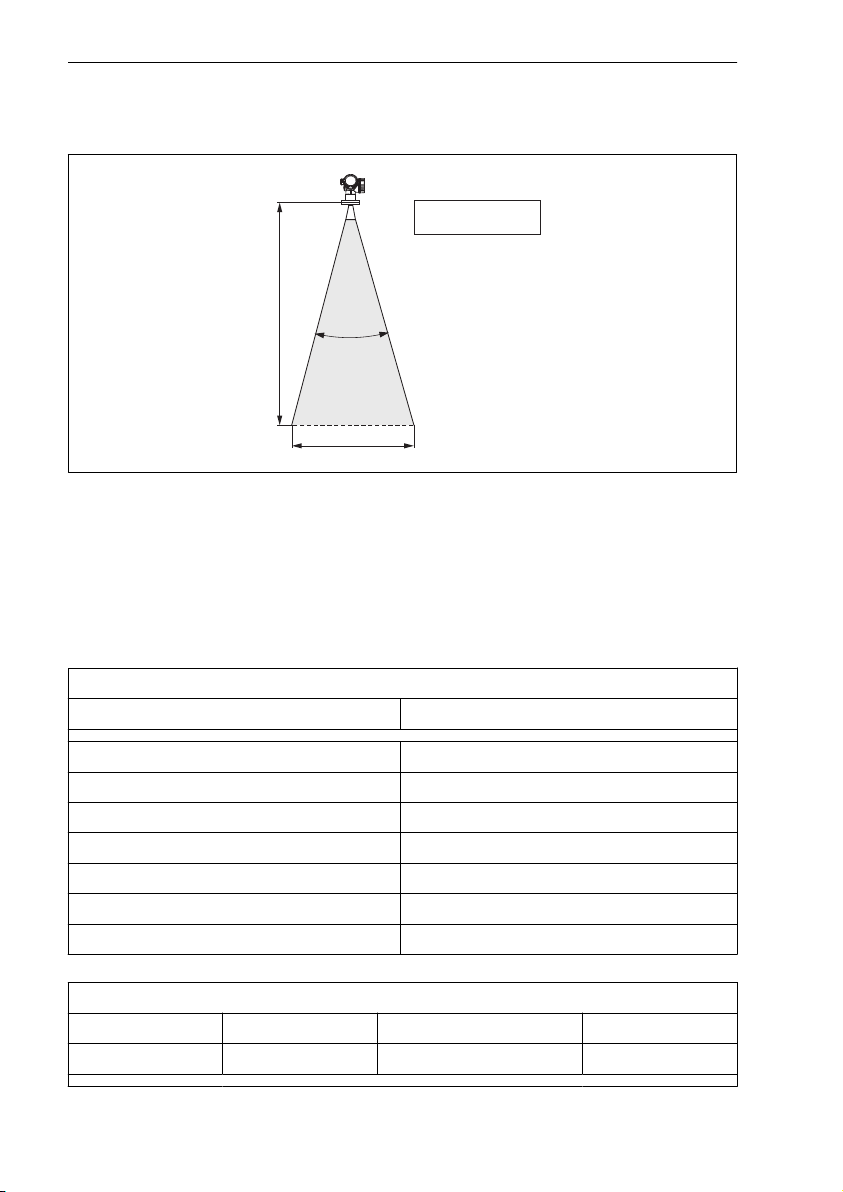

6.1.6 Beam angle
a
D
W
a
D
_
=2
2. . tan
W
A0016891
å 5 Relationship between beam angle a, distance D and beamwidth diameter W
The beam angle is defined as the angle a where the energy density of the radar waves reaches
half the value of the maximum energy density (3-dB-width). Microwaves are also emitted
outside the signal beam and can be reflected off interfering installations.
Beam diameter W as a function of beam angle a and measuring distance D:
FMR53
Beam angle a23°
Measuring distance (D) Beamwidth diameter W
3 m (9.8 ft) 1.22 m (4 ft)
6 m (20 ft) 2.44 m (8 ft)
9 m (30 ft) 3.66 m (12 ft)
12 m (39 ft) 4.88 m (16 ft)
15 m (49 ft) 6.1 m (20 ft)
20 m (66 ft) 8.14 m (27 ft)
FMR54 - Horn antenna
Antenna size 150 mm (6 in) 200 mm (8 in) 250 mm (10 in)
Beam angle a23° 19° 15°
