System Q Zip xSEE882 User manual

2MP All-In-One 5-50mm Motorised Lens
xSEE882
ZipNVR.com
© 2021 System Q Ltd

xSEE882
I
© 2021 System Q Ltd
ZipNVR.com
Table of Contents
Part 1 Introduction 1
Part 2 Tools & Handy Extras 1
Part 3 Connections, Dimensions & Key Features 2
Part 4 4-In-1 Technology 3
Part 5 OSD Menu 4
1 Key Menu Settings.......................................................................................................... 7
Part 6 Troubleshooting 8
1 Camera Rebooting / Turning Off ..................................................................................... 8
2 Poor Quality Images ....................................................................................................... 8
3 Image isBlack & White .................................................................................................. 8
4 NCD / No Image Displayed on Recorder ......................................................................... 8
Part 7 General Maintenance 9
Part 8 Specification 9
Part 9 Conditions 10
1 General Company Disclaimer ....................................................................................... 10

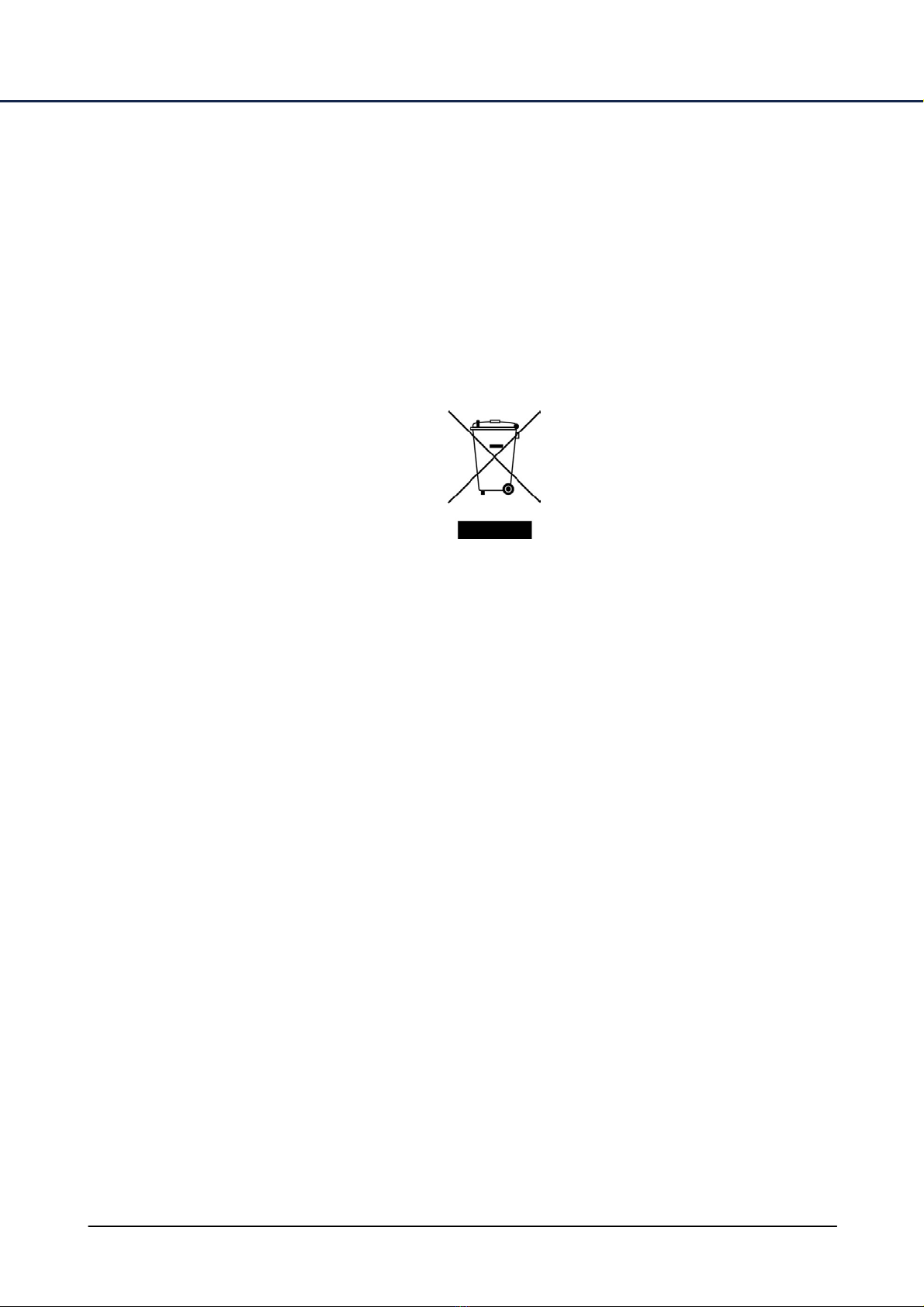

2 WEEE Declaration ......................................................................................................... 10
3 Copyright ...................................................................................................................... 10
Index 11

Introduction
1
© 2021 System Q Ltd
ZipNVR.com
1 Introduction
The SEE882 has multiformat HD modes for TVI, AHD, CVI and CVBS
In addition it comes in two colours, matt Grey & White. The SEE882 camera produces
exceptionalquality images using the 1/2.8"Progressive CMOS
With an impressive 80M Infra-Red Range to help improve light capture at night.
The SEE882 has Coaxitron Control facility for changing the Motorised Zoom & Focus and also
the OSD menu specifications via a ZipLite, ZipSupa and ZipXtreme DVRs.
2 Tools & Handy Extras
· Screwdriver
· Drill
· Hammer
· POW151 - 12V DC 500mA Plug-in PSU
· Drillbits
· BNC Crimp Tool& BNCs
· RG59 Coax Cable
· DigitalMulti-Meter
· LCD400K - CCTV Test monitor

xSEE882
2
© 2021 System Q Ltd
ZipNVR.com

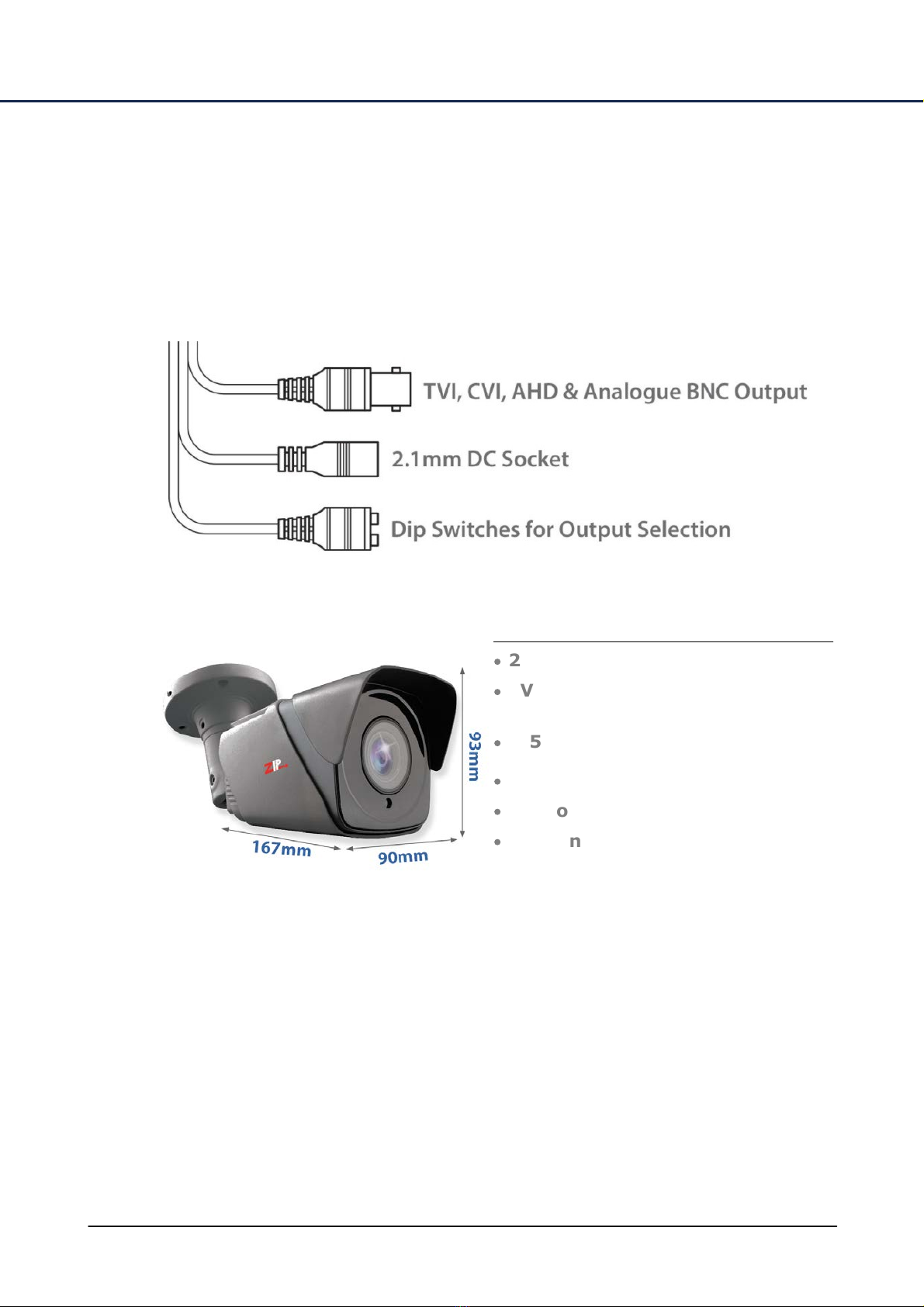

3 Connections, Dimensions & Key Features
The camera is provided with a fly lead with a 2.1mm DC socket and standard BNC connector
It is recommended to use a power supply that is rated higher than the current consumption of the
camera i.e. the current consumption is 750mA on so add approximately 50% headroom, and use a
regulated power supply rated at 1.2A or above.
The camera is polarity sensitive so connections must be correctly made.
FEATURES
· 2MP Resolution
· TVI, CVI, AHD or Analogue
Output
· 5-50mm Motorized Lens
· 80m IR Range
· Supports Wide Dynamic Range
· Mechanical (True Day-Night)

4-In-1 Technology
3
© 2021 System Q Ltd
ZipNVR.com
4 4-In-1 Technology
Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the SEE882 is
set to HD-TVI 2MP which willwork with the, ZipLite, ZipSupa and ZipXtreme DVRs, however
the output can be changed to AHD, CVI or CVBS if required.
This output canbe changed either withthe dip switches onthe fly-lead ofthe camera. Please
note the “Output Mode” in the menu ofthe DVR won’t change the format, as the dip switch
overrides the output.

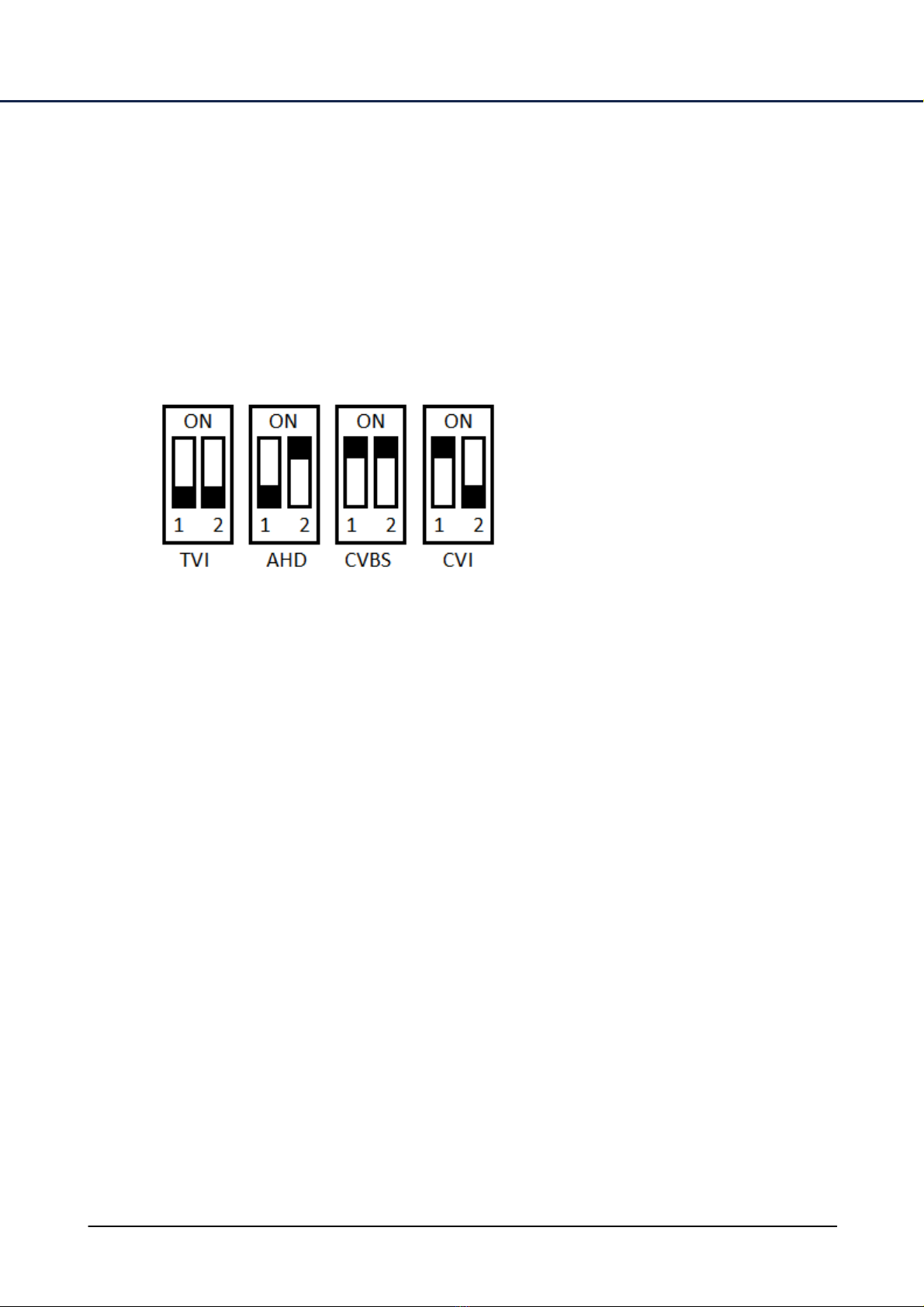

The dip switch configuration can be found below:-

xSEE882
4
© 2021 System Q Ltd
ZipNVR.com
5 OSD Menu
Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as
default.

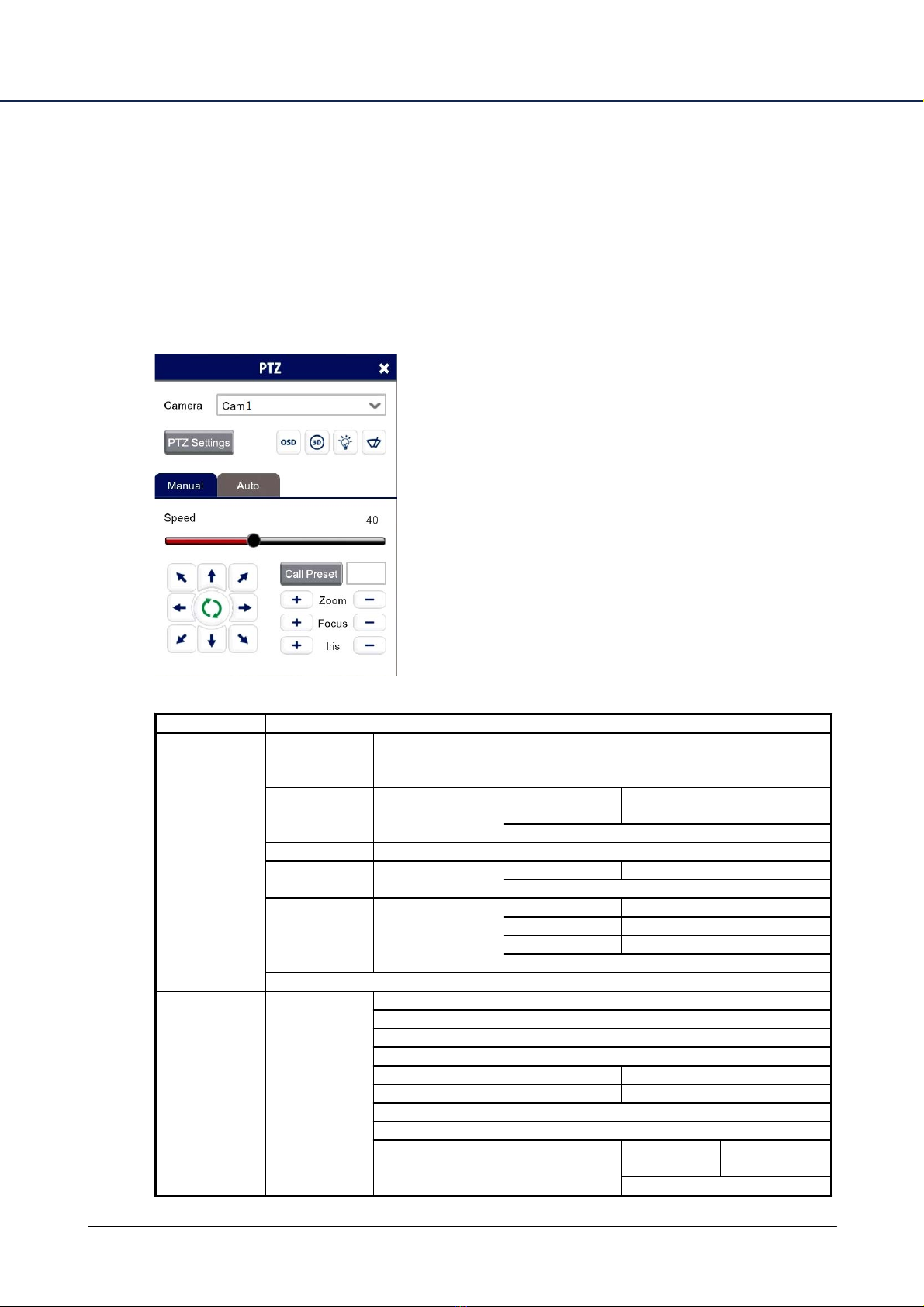

To access the Cameras Menu via coaxitron:-
1. Click on the image in Live view
2. Click on the PTZ button at the bottomofthe screen
3. Click on the IRIS + button to display the menu
Use the directionalarrows to move up and
down through the menu.
Use the directionalarrows left and right to
change the option.
Use IRIS + to select & enter that menu option.
LENS
MANUAL (No Adjustment)
EXPOSURE
SHUTTER
AUTO 1/25 1/50 FLK 1/200 1/400 1/1000 1/2000 1/5000 1/10000 1/50000 / x2
/ x4 / x6 / x8 / x10 / x15 / x20 / x25 / x30
AGC
0 ~ 15 (Default 15)
SENS-UP
OFF/ AUTO
SENS-UP
x2 / x4 / x6 / x8 / x10 / x15 / x20 /
x25 / x30
RETURN
BRIGHTNESS
0 ~ 100 (Default 40)
D-WDR
ON / AUTO /
OFF
LEVEL
0 ~ 8 (Default 2)
RETURN
DEFOG
OFF/ AUTO
POS/SIZE
POSITION & SIZE
GRADATION
0 ~ 2 (Default 0)
DEFAULT
(Defaults the above)
RETURN
RETURN
BACKLIGHT
OFF/ BLC
HSBLC
LEVEL
MIDDLE/ HIGH / LOW
AREA
POSITION & SIZE
DEFAULT
(Defaults the above)
RETURN
SELECT
AREA 1/ 2 / 3 / 4
(Selects adjustment area)
DISPLAY
ON / OFF
POSITION & SIZE
BLACK MASK
ON / OFF
LEVEL
0 ~ 100 (Default 20)
MODE
NIGHT / ALL
DAY
AGCLEVEL
0 ~ 255 (Default
48)
RETURN

OSD Menu
5
© 2021 System Q Ltd
ZipNVR.com
DEFAULT
RETURN
WHITEBAL
ATW /
AWC-SET /
(Sets Automatic White Balance Control)
INDOOR /
OUTDOOR /
MANUAL /
BLUE
0 ~ 100 (Default 50)
RED
0 ~ 100 (Default 50)
RETURN
AWB
DAY& NIGHT
EXT /
D-N (DELAY)
0 ~ 60 (Default 3)
N-D (DELAY)
0 ~ 60 (Default 3)
RETURN
COLOR /
B/W
BURST
ON / OFF
IRSMART
ON / OFF
LEVEL
0 ~ 15 (Default 0)
AREA
POSITION &
SIZE
RETURN
RETURN
NR
2DNR
MIDDLE/ HIGH / OFF / LOW
3DNR
MIDDLE/ HIGH / OFF / LOW
RETURN
SPECIAL
CAM TITLE
OFF/ ON
Use on screen keyboard
D-EFFECT
FREEZE
OFF/ ON
MIRROR
OFF/ MIRROR/ V-FLIP / ROTATE
NEG. IMAGE
OFF/ ON
RETURN
MOTION
OFF/ ON
SELECT
AREA 1/ 2 / 3 / 4
DISPLAY
ON / OFF
SENSITIVITY
0 ~ 100 (Default 64)
COLOR
GREEN / BLUE/ WHITE/ RED
TRANS
1.00 / 0.75/ 0.25 / 0.00
ALARM
VIEW TYPE
ALL / OFF /
BLOCK /
OUTLINE
OSD VIEW
ON / OFF
ALARM OUT
ON / OFF
TIME
0 ~ 15 (Default 3)
RETURN
DEFAULT
PRIVACY
OFF/ ON
SELECT
AREA 1/ 2 / 3 / 4
DISPLAY
COLOR / OFF / MOSAIC/ INV.
COLOR
WHITE/ BLACK / RED / BLUE/
YELLOW / GREEN / CYAN / USER
TRANS
1.00 / 0.25/ 0.50 / 0.75
DEFAULT
RETURN
LANGUAGE
ENG/ CHN1 / CHN2 / GER / FRA / ITA / SPA / POL/ RUS / POR / NED
/ TUR
DEFECT
LIVEDPC
OFF/ ON
AGCLEVEL
0 ~ 255 (Default
64)
LEVEL
0 ~ 100 (Default
64)
RETURN
WHITEDPC
ON / OFF
POS / SIZE
POSITION & SIZE
START
STARTS SCAN

xSEE882
6
© 2021 System Q Ltd
ZipNVR.com
DPC VIEW
OFF/ ON
LEVEL
0 ~ 100 (Default 3)
AGC
0 ~ 14 (Default 8)
SENS-UP
x6 / x8 / x10 / x15 /
x20 / x25 / x30 / x2 /
x4
RETURN
BLACK DPC
OFF/ ON
POS / SIZE
POSITION & SIZE
START
STARTS SCAN
DPC VIEW
OFF/ ON
LEVEL
0 ~ 100 (Default
100)
RETURN
RETURN
RS485
CAM ID
0 ~ 255 (Default 0)
ID DISPLAY
OFF/ ON
BAUDRATE
38400 / 2400 / 4800 / 9600 / 19200 /
RETURN
RETURN
ADJUST
SHARPNESS
AUTO /
LEVEL
0 ~ 10 (Default 6)
START AGC
0 ~ 255 (Default 120)
END AGC
0 ~ 255 (Default 255)
RETURN
OFF
MONITOR
LCD /
GAMMA
USER / 0.45 ~ 1.00
BLUEGAIN
0 ~ 100 (Default
64)
RED GAIN
0 ~ 100 (Default
64)
RETURN
CRT
BLUEGAIN
0 ~ 100 (Default 56)
RED GAIN
0 ~ 100 (Default 56)
RETURN
LSC
ON / OFF
COMET
OFF/ ON
OUTPUT MODE
NO ADJUSTMENT
RETURN
AF
AF MODE
SEMI/ AUTO / MANUAL
ONESHOT AF
Press to detect focus point
TDN AF
OFF/ ON
LENS INIT
Press to initialise lens
AD ADJUST
Press to Synchronise Auto focus points
RETURN / SAVE & END
EXIT
SAVE& END / RESET / NOT SAVE

OSD Menu
7
© 2021 System Q Ltd
ZipNVR.com
5.1 Key Menu Settings
Exposure Mode - AUTO is set as default, it automaticallysets the required shutter speed for
the current light level. The shutter speed willautomatically detect the required length oftime to
keep the digitalsensor exposed to light. FLK option sets the shutter speed to stop
synchronisation with lighting so that pulsing effect is minimised.
White Balance - Colour adjustment ofthe camera to be set up so objects appear a natural
colour. ATW (Automatic tracking white balance) continually tracks and adjusts the white
balance, making it suitable for use in cameras in which the image content and lighting are subject
to changes.
Day & Night - The camera can be set to colour or B&W mode or have it automatically switch
Externalis set as default, the switch between colour and black & white is controlled byan
externaltrigger In this a light dependent resistor. Delay can be set which willinstruct the camera
to wait for a set length oftime before switching. This accommodates for any temporary drops in
light
DNR (Noice Reduction) - Noise Reduction is the process ofremoving noise fromthe video
signalby applying a digitalfilter. 2D noise reduction reduces noise in the foreground ofthe image
where as 3D noise reduction reduces noise in both the foreground and the background ofthe
image.
D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimum levels in both
the dark and bright areas ofan image.
Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with
the camera to ensure allsettings are defaulted.

xSEE882
8
© 2021 System Q Ltd
ZipNVR.com
6 Troubleshooting
6.1 Camera Rebooting / Turning Off
A. Check the voltage ofthe camera (under load) ifbelow 10.8V thenmove the power supply
closer to the camera.
B. For 12V DC cameras only ever use regulated power supply rated at above 750mA, 1A
would be recommended. So that the camera is always receiving the correct supply.
C. Use thicker gauge copper cabling to reduce the voltage drop.
6.2 Poor Quality Images
A. Check the fly-lead is set to the correct output – see 4-In-1 Technology
B. Ifset to CVBS, thenthis is a low quality video output for legacysystems (Analogue), when
using a 2 MegaPixelDVR or above thenuse another video format, like HD-TVI.
C. Reset the camera menu via Zip Coaxitron – OSD Menu
D. Check ifyour DVR supports 2 MegaPixelcameras.
6.3 Image is Black & White
A. Check the video format your DVR supports, thenset the camera to the relevant video format
– see the 4-In-1 Technology
B. Reset the camera menuvia Zip Coaxitron OSD Menu
C. Check the recorder supports 2 MegaPixelcameras.
6.4 NCD / No Image Displayed on Recorder
A. Test that the camera has the correct voltage supplying it, this must be done with the camera
connected so that there is load on the PSU. A 12V DC camera should have at least 10.5V DC
connected to it.
B. The camera cannot function without the correct power supply. For 12V DC cameras only
ever use regulated power supplies to ensure that the camera is always receiving the correct
voltage.
C. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no
shorts or open circuits.
3
4
3
4

General Maintenance
9
© 2021 System Q Ltd
ZipNVR.com
7 General Maintenance
· Ensure that nothing is obscuring the field ofview, position the camera to ensure the Lens can
see clearly.
· Routinely cleanthe camera to prevent dust build up as this caneffect the performance ofthe
camera. We recommend a damp non-abrasive microfibre cloth.
· Check that the cameras are firmly attached.
· Check playback in the recorder to ensure the camera is recording properly.
8 Specification
Camera Model
SEE882
Image Sensor
1/2.8"Progressive CMOS
Resolution
2MP (HD)
Lens Type
5-50 mmmotorized lens
Image Output
TVI / CVI / AHD / CVBS
Min. Illumination
0 Lux (IR On)
Day/Night
Mechanical(True Day-Night)
Input Voltage
12V DC
Current Consumption
750mA
Signalto Noise Ratio
40dB
Gain Control
Automatic
Video Connection
BNC Socket
Power Connection
2.1mmDC Socket
WDR
Yes
Protocol
UTC
Finish
Matt Grey/ White
Build
Metal
Shutter
1/15 s to 1/50,000 s
White Balance
Auto / Manual
Dimensions
167 x 90 x 93mm(Without Bracket)
IR Wavelength
850nm
IR Range
80m
IP Rating
IP66

xSEE882
10
© 2021 System Q Ltd
ZipNVR.com
9 Conditions
9.1 General Company Disclaimer
All specifications are approximate. System Q Ltd reserves the right to change any product
specifications or features without notice. Whilst every effort is made to ensure that these instructions
are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no
matter how they arise, from errors or omissions in these instructions, or the performance or non-
performance of the equipment that these instructions refer to.
9.2 WEEE Declaration
This symbol on the products and/or accompanying documents means that used electronic
equipment must not be mixed with general household waste. For treatment, recovery and recycling
please return this unit to your trade supplier or local designated WEE/CG0783SS collection point as
defined by your local council.
9.3 Copyright
© Copyright 2021
Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB

Index
11
ZipNVR.com
© 2021 System Q Ltd
Index
- 4 -
4-IN-1 3
- A -
AHD 3
- B -
BNC 2
- C -
Cleaning 9
Connection 3
Connections 2
Copyright 10
CVBS 3
CVI 3
- D -
Declaration 10
Dimensions 2
Disclamer 10
- E -
Equipment 1
- F -
Fault Finding 8
Features 2
- G -
General Disclaimer 10
- K -
Key Features 2
- M -
Maintenance 9
Menu 4
- O -
OSD 4
Output 3
- S -
Setup 2
Specification 9
- T -
Technical Specification 9
Tools 1
Troubleshooting 8
TVI 3
- V -
Video 3
- W -
WDR 4
WEEE Declaration 10
