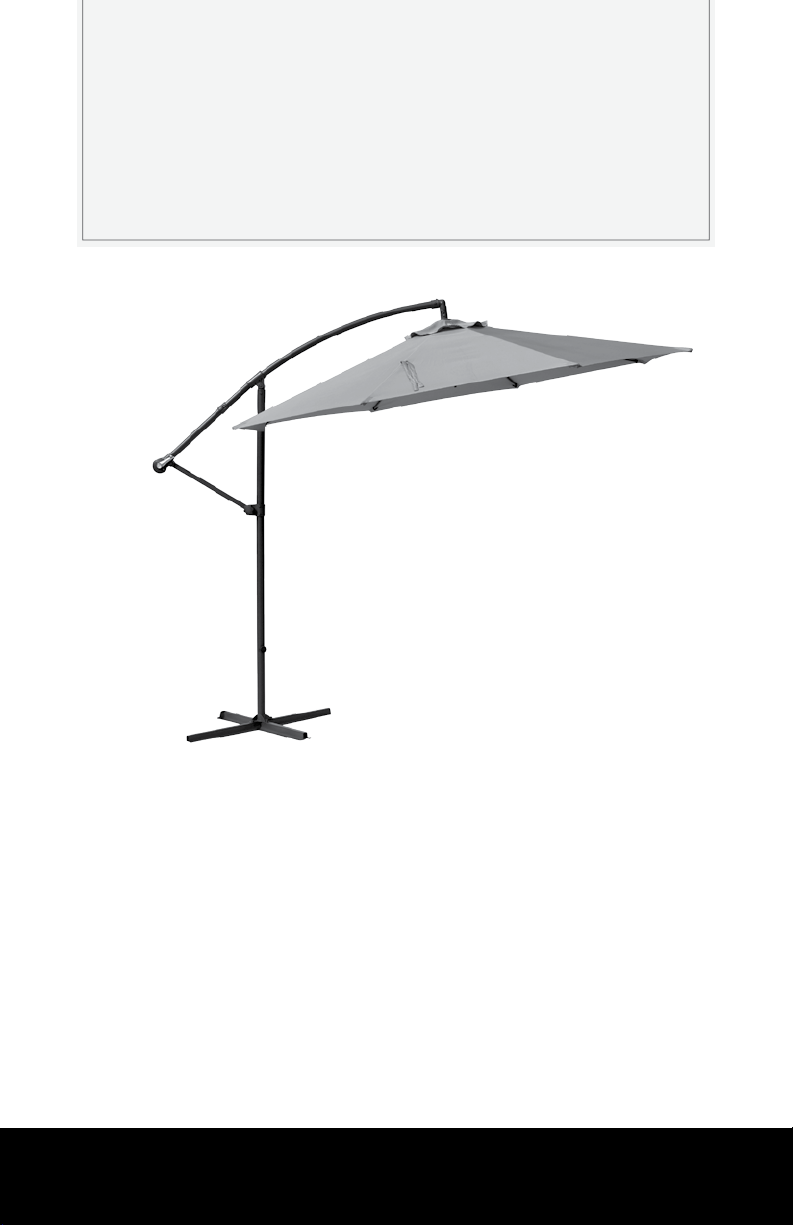

T.D.S. 21274 User manual
10 Foot Offset Umbrella
Steel Frame with Powder Coating
INSTRUCTIONS
Parts 4
Assembly 5-8
Warranty 9-10
Customer Service
1-800-599-8898
10 Foot Offset Umbrella
Item #21274, 20306, & 20307 3
Customer Service 1-800-599-8898
Identify all parts packaged in carton against the parts list. Remove
all protective materials and place parts on a non-abrasive surface
to avoid scratching. If any parts are missing or damaged, DO NOT
attempt to assemble. Please contact our customer service center
(Monday-Friday 9:00am – 5:00pm EST) at 1-800-599 -8898 or email:
Caution: Read all the instructions before assembly. Failure
to do so may result in faulty assembly and potential injury!
Assemble product on a soft, non-abrasive surface such as a
carpet or cardboard to avoid damaging the item. Seek assistance
sure all bolts and nuts are securely tightened with screw covers
pressed in place.
Getting Started
Getting Started
.
10 Foot Offset Umbrella
4 Item #21274, 20306, & 20307
10 Foot Offset Umbrella
Item #21274, 20306, & 20307 5
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
AUmbrella Frame 1
BLower Pole 1
CUmbrella Base Pole 1
DTop Cross Bar 1
EBottom Cross Bar 1
FLocking Knob 1
GBolt (M8 * 15 MM) 4
HWrench 1
Parts
Step 1:
Place the Top Leg Base (D) over the Bottom Leg Base (E) to form an
“x”. Attach the Umbrella Base Pole (C) to the Base Legs and screw
tightly with the 4 provided bolts (G).
Assembly Instructions
C
G
E
D
10 Foot Offset Umbrella
6 Item #21274, 20306, & 20307
10 Foot Offset Umbrella
Item #21274, 20306, & 20307 7
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Step 2:
Assembly Instructions
In order to put the umbrella together, close the umbrella properly by
cranking the umbrella clockwise as shown in Figure 1. As the umbrella
is being cranked, make sure the rope stays inside the poles and does
together. Screw the Lower Pole (B) to the Umbrella Frame (A) as
Figure 2
Figure 1 Figure 3
Crank
A
A
B
B
Step 3:
Place a water or sand based counter-weight (not included) onto the
base to stabilize the umbrella. Other weights such as cinderblocks
or sandbags would work as well. Insert the Lower Pole (B) into the
Umbrella Base Pole (C). Tighten with the Locking Knob (F).
Assembly Instructions
BB
F
10 Foot Offset Umbrella
8 Item #21274, 20306, & 20307
10 Foot Offset Umbrella
Item #21274, 20306, & 20307 9
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
Instructions for Use
How To Open The Umbrella
4. Loosen the adjustable angle locking knob to angle the umbrella canopy to desired position
5. Now enjoy your new offset umbrella.
How To Close The Umbrella
1. Turn the crank counterclockwise to close the umbrella
bottom.
Please close the umbrella and tie it securely in severe weather or strong winds.
Adjustable angle
locking knob
Figure 1
Figure 3
Figure 2
Locking knob
Open
Close
All furniture manufactured and sold by TDC USA, Inc. is warranted to the original
purchaser against defects in workmanship and materials. If a product manufactured by
TDC fails during the rst year from date of purchase under the terms of our limited
warranty, TDC will replace the item at no charge. After one year, it will be the original
purchasers’ responsibility to pay for freight and packing. TDC reserves the right, in the
case of discontinued or out of production models, to replace with an item of similar
quality. (Glass breakage is not warranted.)
Note: You must retain original receipt to obtain warranty!
Frames:
Frames are warranted against defects in materials and workmanship from the date of
original purchase. Damage to frames or welds due to commercial use, improper assembly,
exposure to water and sub-freezing temperatures, and/or abuse are not covered.
Fabric:
Fabric on cushions, slings, and umbrellas is warranted against separation at the seams.
Fading, mildew, and/or discoloration due to exposure to elements, chemicals, and spills
are not covered.
Powder coat and/or Paint:
The nish is warranted against blistering, peeling, or cracking. Fading resulting from
exposure to elements, chemicals, and spills are not covered. Scratches and chips due to
normal wear and use are not covered
Umbrella:
Umbrella frames are warranted against manufacturer’s defects in workmanship and
materials.
Safety Warning! Umbrellas must be closed when not in use and taken down in windy
conditions.
Limited Warranty
LIMITED WARRANTY
Please contact our service hotline by phone, email or fax before
sending the device. This allows us to provide support in the event
of possible operator errors.
10 Foot Offset Umbrella
10 Item #21274, 20306, & 20307
Customer Service 1-800-599-8898
Limited Warranty
Freight & Packing:
TDC will be responsible for shipping, handling, and packaging charges for all valid
warranty claims.
Care & Maintenance:
Be careful to never allow water build up in frames as this will cause corrosion and freeze
damage in cold climates. Wash all frames with a solution of mild soap and water. Rinse
with clean water and dry with a soft absorbent cloth towel. Frames can be treated with
a liquid wax for maximum protection against UV rays and/or salty damp air. If your
set includes cushions, slings, and/or an umbrella, they may be cleaned by hand with a
solution of soap and water with a clean water rinse.
EXCLUSION:
• Damage caused by acts of nature
• Wind damage
• Failure caused by unreasonable, unanticipated or abusive use
• Failure caused by a lack of reasonable and necessary care and maintenance
• Normal fade of fabrics, upholstery or woven materials
• Glass table tops
• Bursting or cracking of tubing due to exposure to water and freezing
temperatures
• Changes in wood color due to the natural aging of the wood
Lack of original receipt will void warranty.
Customer Service: Monday-Friday 9:00am-5:00pm EST
By Phone: 800-599-8898
.
.
Distributed By T.D.C. USA INC.
Fairfield, NJ 07004
©2016 All Rights Reserved. Made in China
?/Comments: 1-800-599-8898 9am-5pm EST
www.tdcusainc.com
