Taiden HPA-160D/02 User manual

Digital Audio Power Amplifier
Installation and Operation Manual
V1.1
Digital Audio Power Amplifier w/Dante

Contents
Important Safety Instructions......................................................................................................II
Installation & User Guide.......................................................................................................... IV
Chapter 1 Overview....................................................................................................................1
Chapter 2 Functions and indications..........................................................................................2
Chapter 3 Connection and operation..........................................................................................4
3.1 Input/Output......................................................................................................................................................4
3.2 Connection........................................................................................................................................................4
3.3 Operating instructions.......................................................................................................................................5
3.3.1 Protect speaker..........................................................................................................................................5
3.3.2 Matters need attention ...............................................................................................................................5
3.4 Web control.......................................................................................................................................................7
Chapter 4 Specifications...........................................................................................................13
Chapter 5 RS-232 control.........................................................................................................14

Remark:
All rights reserved for translation, reprint or reproduction
Contents may change without prior announcement
All technical specifications are guideline data and not guaranteed features
TAIDEN Co., Ltd. is not responsible for any damage caused by improper use of this manual
The equipment must be connected to earth!
This product conforms to the rules of the European directive 2014/30/EU
To protect your hearing, avoid high pressure level on earphones. Adjust to a lower and convenient level
If any detailed information is needed, please contact your local agent or TAIDEN service center in your region.
Any feedback, advice and suggestion about the products is appreciated
TAIDEN is the registered trademark of TAIDEN Co., Ltd.
In order to extend the life time of the whole system, we strongly recommend that the congress system be
scheduled to shut down every day in the evening when not in use
I

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
6. The MAINS plug serving as a disconnection device,
should be easy to operate.
7. The apparatus should be connected to the MAINS
socket-outlet with protective earth.
8. Clean only with dry cloth.
9. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
10. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
11. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
12. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the
manufacturer.
14. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
15. Unplug this apparatus during lightning storms or when
unused for long periods of time.
16. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
17. Do not place the equipment on any uneven or unstable
stand; original product package or appropriate package
should be used to avoid damage caused by strong
impacts during transportation.
18. Power supply cords: AC 100 V - 240 V 50/60 Hz
19. For service, please contact the nearest TAIDEN
Service Center.
20. All TAIDEN products are guaranteed for definite time
(see the WARRANTY CARD for details) excluding the
following cases:
A. All damage or malfunction caused by human
negligence;
B. Damage or malfunction caused by improper
operating by operator;
C. Parts damage or loss caused by disassembling
the product by non-authorized personnel.
21. Use ONLY specified connection cable to connect the
system equipment.
22. Upon receipt of the product, please fill out the Warranty
Card enclosed and post it to TAIDEN Service Center.

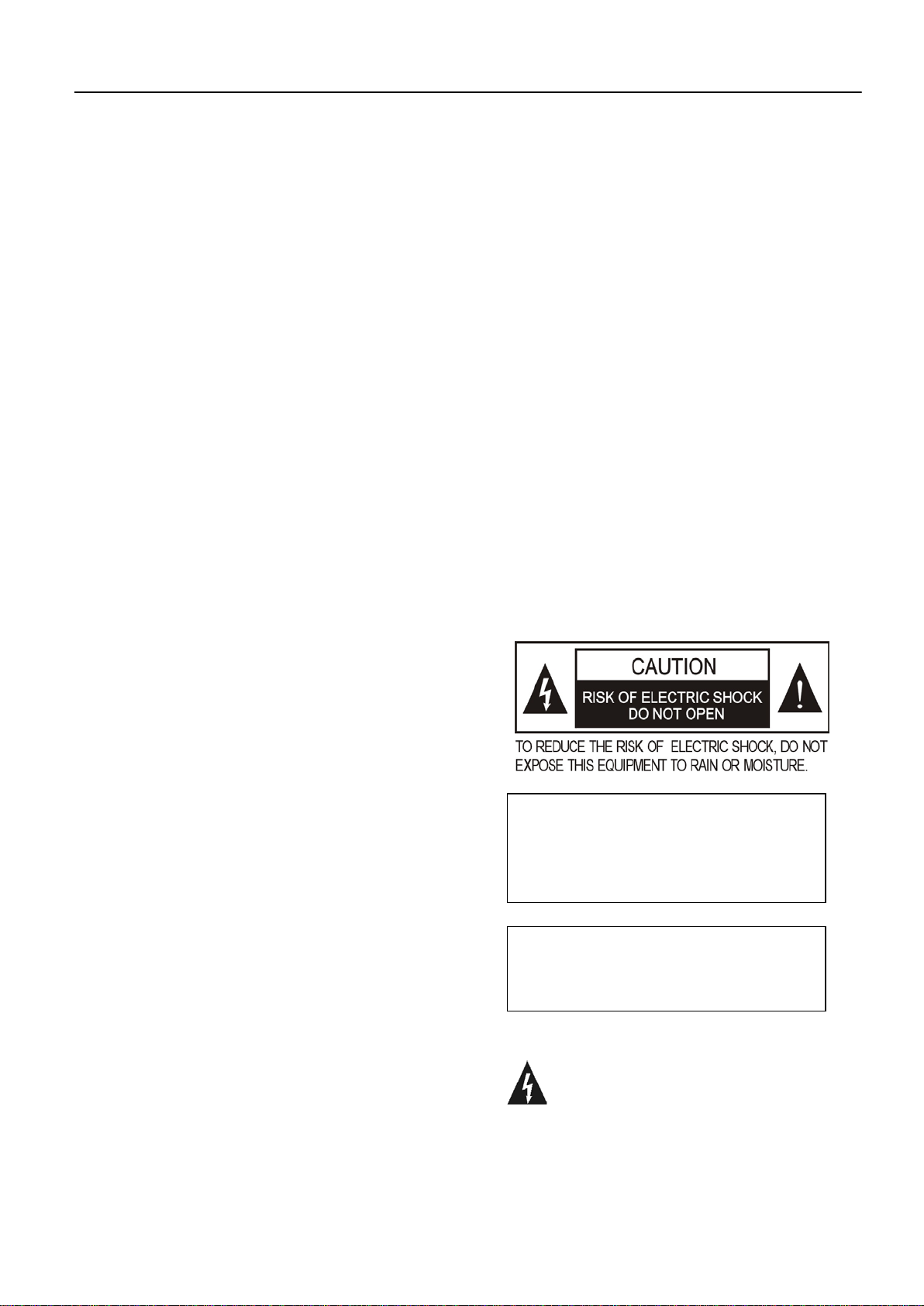

The lightning flash with an arrowhead symbol, with
an equilateral triangle, is intended to alert the user to
the presence of uninsulated ‘dangerous voltage’
within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
CAUTION: To reduce the risk of electric shock,
DO NOT open covers, no user serviceable parts
inside. Refer servicing to qualified service
personnel only.
CAUTION: DO NOT use alcohol, ammonia or
petroleum solvents or abrasive cleaners to
clean the devices.
II

Important Safety Instructions
The exclamation mark within an equilateral triangle is
intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Attention: Installation should be performed by
qualified service personnel only in accordance
with the National Electrical or applicable local
codes.
Power Disconnect: Units with or without ON – OFF
switch have power supplied to the unit whenever the
power cord is inserted into the power source;
however, the unit is operational only when the ON –
OFF switch is in the ON position. The power cord is
the main power disconnect for all units
WARNING:
The apparatus should be
connected to a mains socket outlet with a
protective earthing connection.
WARNING: To reduce the risk of fire or
electric shock, DO NOT expose units to rain
or moisture.
III

Installation & User Guide
About this manual
This manual is a comprehensive guide to the
installation and operation of the TAIDEN Digital Audio
Power Amplifier (PA). It includes the detailed
description of the functions and interfaces of the PA,
including connection, installation, and operation.
The manual is divided into the following chapters:
Chapter 1
：
Overview
An introduction to the Digital Audio Power Amplifier.
Chapter 2
：
Functions and indications
Detailed descriptions of the functions and indications of
the Digital Audio Power Amplifier.
Chapter 3
：
Connection and operation
Detailed descriptions of the connection and operation
of the Digital Audio Power Amplifier.
Chapter 4
：
Specifications
Main technical parameters of Digital Audio Power
Amplifier.
This manual is applicable to:
HPA-160D/02
Digital Audio Power Amplifier (2 channels, 2×200 W, Dante
interface)
HPA-160A/02
Digital Audio Power Amplifier (2 channels, 2×200 W)
IV

Chapter 1 Overview
Digital audio power amplifier (hereinafter referred to as
"PA") adopts the high efficiency class D power amplifier
and switching mode power supply technology; the
efficiency under conventional conditions is more than
80%.
Features:
Less heat, low working temperature, life span and
reliability will be significantly improved.
Energy saving and environmental protection,
saving operating costs.
Digital power amplifier + switching mode power
supply, high efficiency, small size, light weight.
Output power: 2×200 W (4 Ω/ 6 Ω)
2×160 W (8 Ω)
1×400 W (bridge/ constant voltage)
Frequency response:
20 Hz～20 kHz (8 Ω)
THD: ＜0.04%
Wide operating voltage range: 100-240 VAC (±
10%)
Two SPEAKON sockets for loudspeaker
2×RJ45 socket for digital audio transmission via
DanteTM networking (HPA-160D/02)
1 Line In and 1 Line Out (∅6.4 mm phone jack)

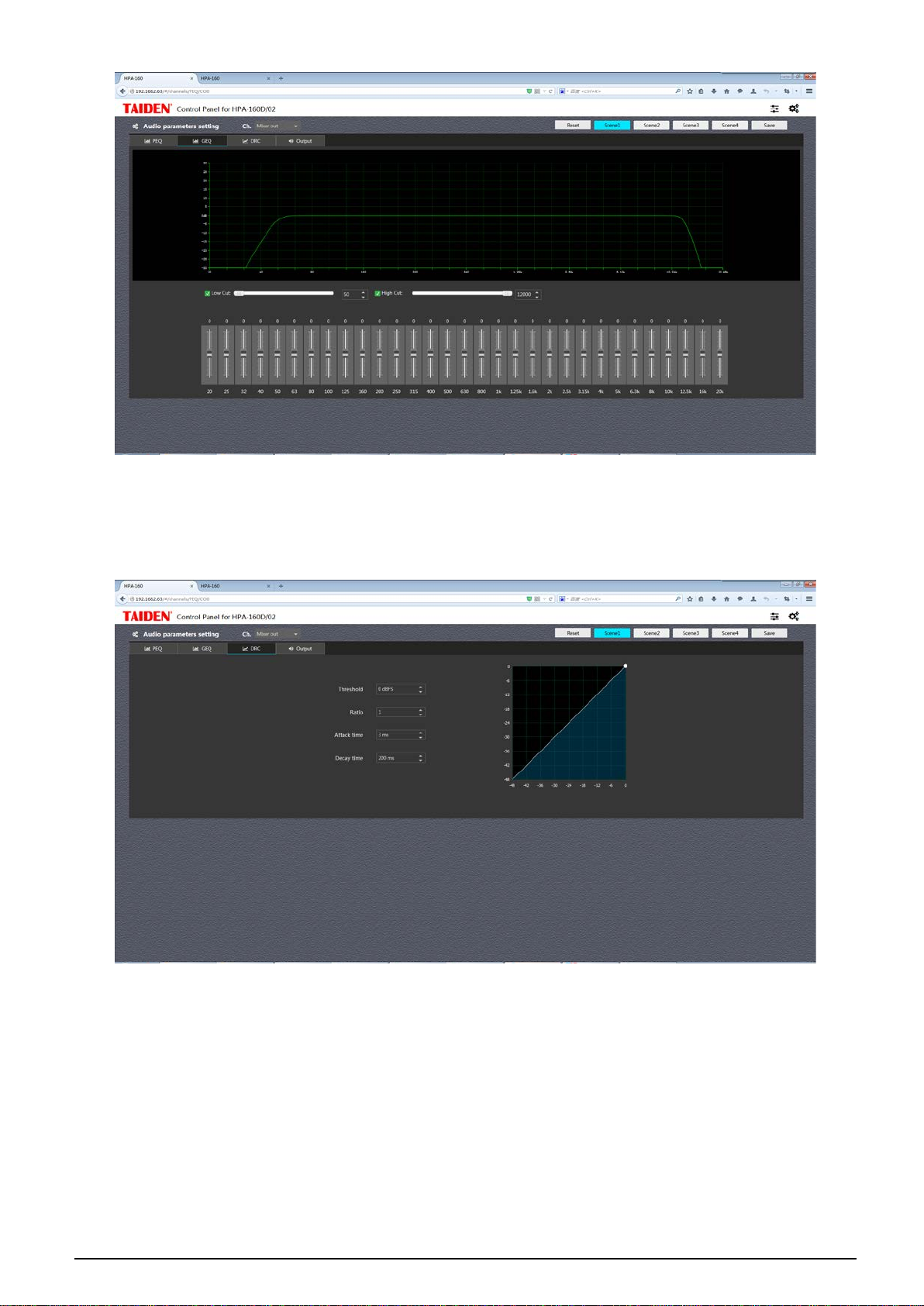

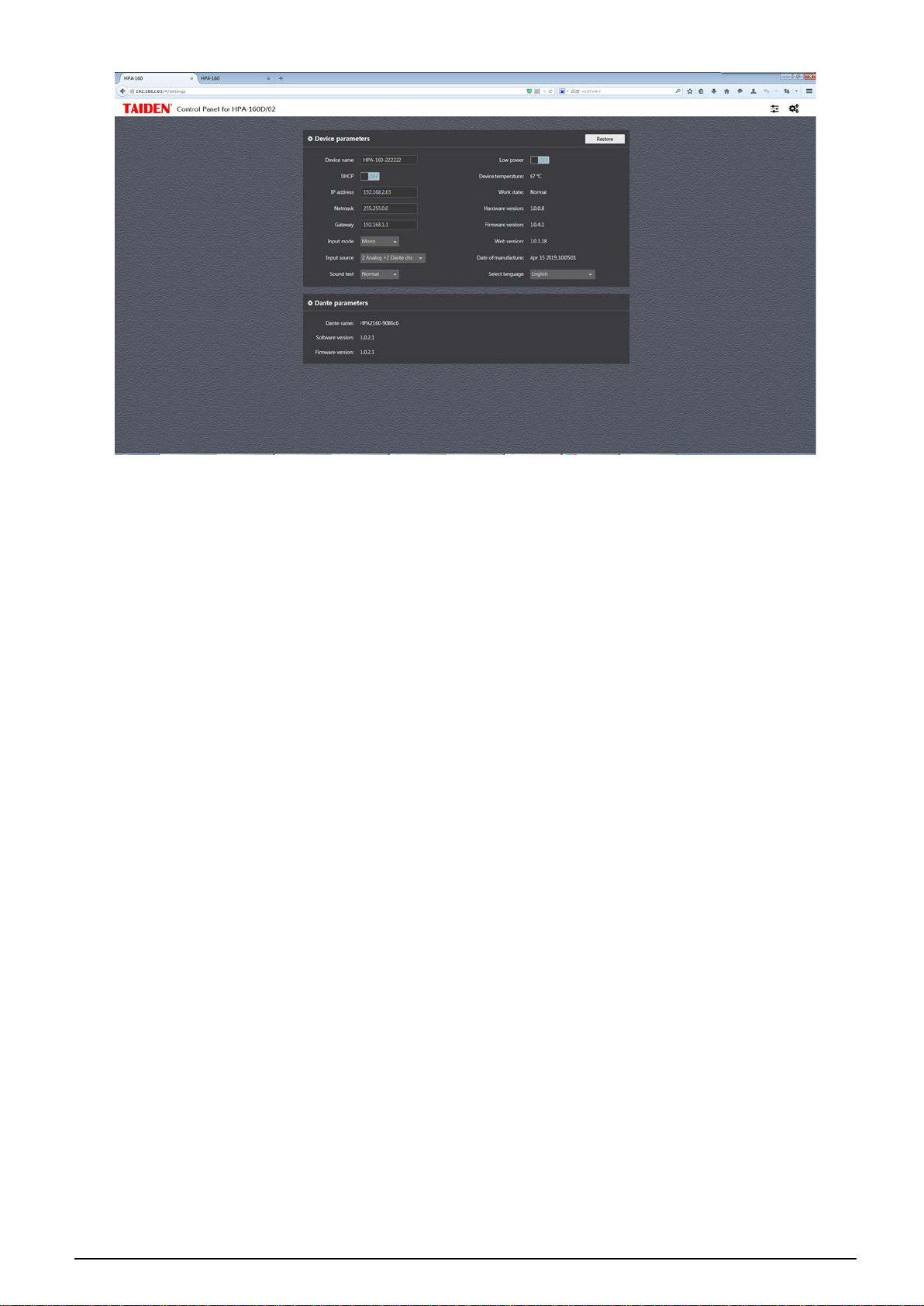

The user can access the IP address of power
amplifier from web browser to set parameters and
view device status, e.g. compressor, equalizer,
DRC, etc.
Perfect protection functions: short circuit protection,
over temperature protection, DC protection, etc.
1

Chapter 2 Functions and indications

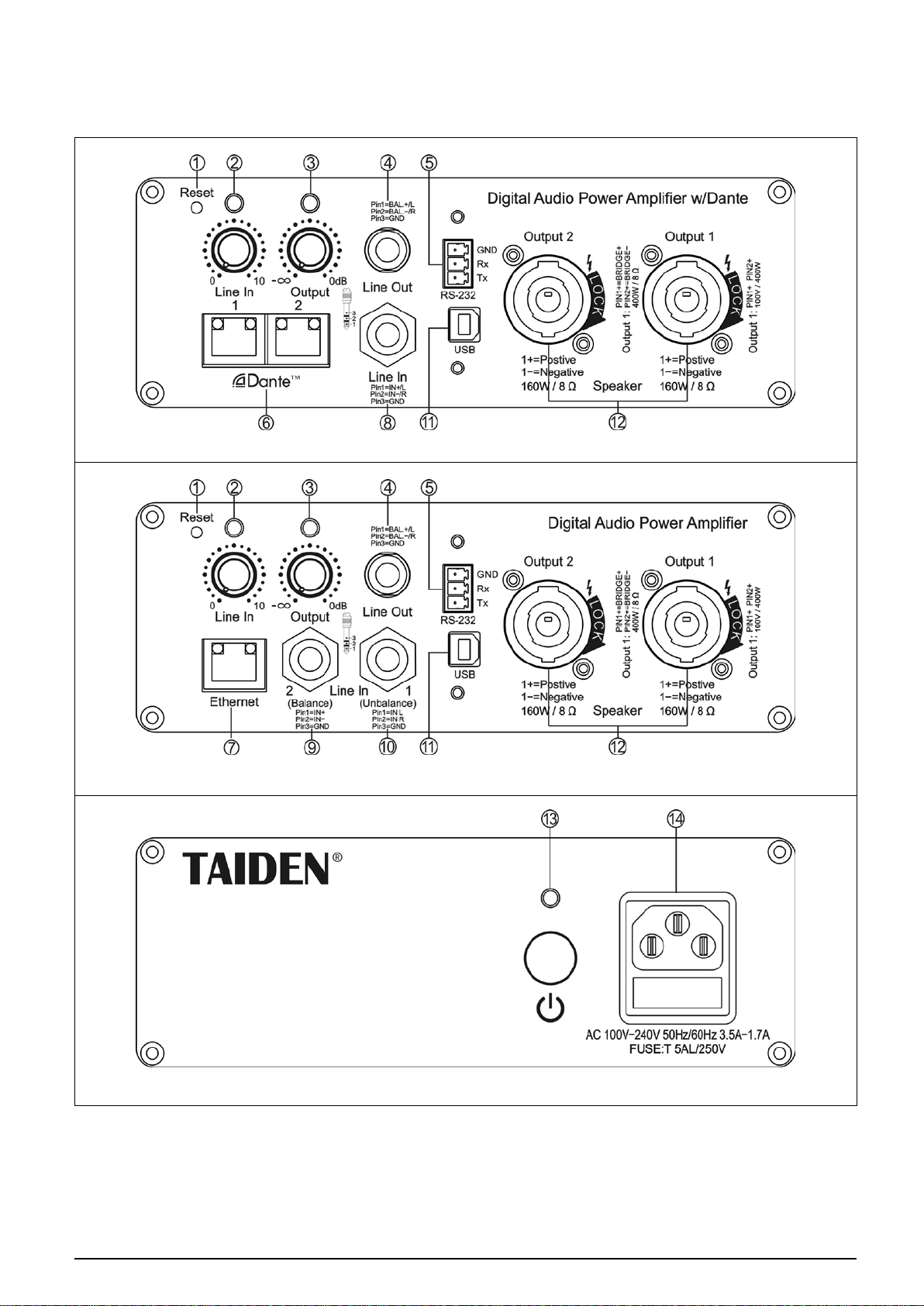

Front panel of HPA-160D/02
Front panel of HPA-160A/02
Rear panel
Figure 2.1 Digital audio power amplifier
2

1. Reset
Press 3 times continuously restore PA to factory
and rebooted.
2. Volume Gain control for Line In
3. Volume Gain control for loudspeaker
Gain is controlled by dB attenuation. With the
minimum set, the signal is completely cut off.
4. Line Out
∅6.4 mm TRS socket for signal loop output, can
be connected to the Line In interface of the next
power amplifier.
5. RS-232 control interface
Connecting to central control system;
Slave mode.
6. Dante interface
Connecting to Dante network to transmit audio
signal;
For web function;
Can be used for firmware updating.
7. Ethernet
Connecting to Ethernet for web function;
Can be used for firmware updating.
8. Line In
∅6.4 mm TRS socket for signal input;
Supports Balance/Mono/Stereo signal.
9. Line In 2
∅6.4 mm TRS socket for balance signal input.
10. Line In 2
∅6.4 mm TRS socket for mono or stereo signal
input.
Note: the signal input mode here need to be consistent
with the input mode setting for the web interface.
11. USB audio signal input interface
For external digital audio input.
12. Power output
Four pole SPEAKON speaker sockets;
Mono/Stereo mode output: Output1/Output2,
1+=Positive, 1-=Negative;
Bridge mode output: Output1,
PIN1+=BRIDGE+，PIN2+=BRIDGE-.
13. Power switch and indicator
Power on/off;
Indicator status:
Power on: green
Update/protect: orange
14. Power connector
100 V - 240 V, 50 Hz / 60 Hz.
3

Chapter 3 Connection and operation
3.1 Input/Output
Connecting knowledge:
For input, use the shielded wire with high
shielding layer density;
Balanced connection to reduce noise
interference;
For unbalanced connection, the shorter the
cable is the better. Maximum length does not
exceed 3 meters;
Keep signal cables isolated from power cable
and PA output cable to avoid noise;
Please power off all devices before changing
connection; otherwise it may cause damage
to the hearing and loudspeakers.
Connection diagram: balanced analog input/output
3.2 Connection
Figure: mono/stereo mode
To Dante network
4

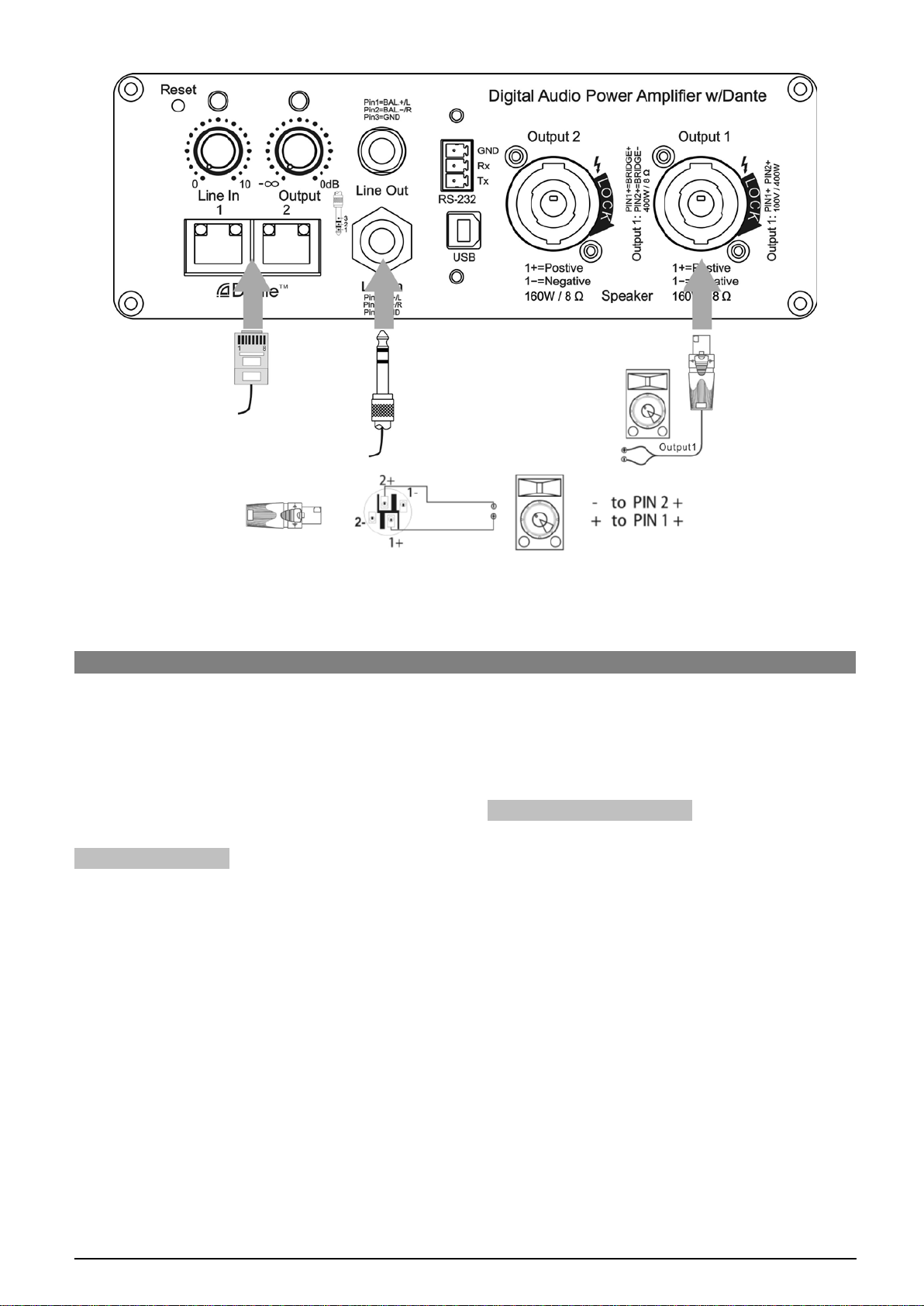

Figure: bridge mode
Note: HPA-160A/02 has no Dante function.
3.3 Operating instructions
Please confirm before installation:
The power cord not connected to the power
socket;
The power switch is off;
Volume knob turned off (counterclockwise to limit).
3.3.1 Protect speaker
Clipping not only makes the sound quality worse, but
also damages the treble unit.
The speaker drive circuit may be burned by strong
infrasound signal. The sound of breathing and the high
level and low frequency signal caused by the dropping
of the microphone are typical infrasound signals. To
prevent infrasonic signals, one of the following
methods should be used:
Install high pass filter between the mixer output
and PA input;
Open the high pass filter in the mixer. Set the filter
frequency as high as possible without affecting
the use. For example, set to 35 Hz for music
signal and 75 Hz for microphone signal. For each
mixer input channel, the filter frequency is set
below the minimum fundamental frequency of the
related channel.
3.3.2 Matters need attention
Although PA will be protected under exceptional
circumstances, please pay attention to the use of PA in
order to achieve the best performance and maximum
safety:
1. It is necessary to configure PA before use,
including the connection of input and output
cables, improper wiring will result in equipment
failure;
2. Before turning on the power supply of the device,
make sure that the volume control knob is
adjusted to the minimum. Otherwise, sudden
bursts of sound may damage your hearing;
3. Do not connect the ground wire of the output
cable and the ground wire of the input signal,
which will form ground loop and cause oscillation;
To Dante network
5

4. Do not connect the output to the power supply,
battery or mains supply. Otherwise it may cause
an electric shock;
5. Tampering with the circuit or unauthorized
modification of the circuit can be dangerous and
cause all services provided by the agent fail;
6. Please do not make mixer overload, otherwise it
will send the clipping signal to PA, and PA will
precisely reproduce these signals and speakers
may be damaged;
7. Do not use PA below the nominal load, too low
load may cause PA output protection and
premature clipping may damage the speaker;
8. When PA is switched on, the output interface may
have a fatal voltage.
Note: TAIDEN is not responsible for any damage
caused by excessive use of other system
components.
6

3.4 Web control
Operating environment: Firefox, Chrome, or IE11 or higher.
Factory default network setting:
IP 192.168.1.60 Gateway 192.168.1.1 Netmask 255.255.0.0
Input IP address in browser to enter web server, or search HPA-160/02 with TAIDEN Device Discovery, as shown below:
Figure: search device
How to enter Web server:
Input default IP address: 192.168.1.60 (if cannot modify the network parameters) in the web browser;
Or, Using TAIDE Device Discovery tool, select the device, click "Open" button;
Or, Using TAIDE Device Discovery tool, select the device, right click on it, and click " Open by DNS / Open by IP
Address";
Or, input the IP address of the device (for example 192.168.2.63) in the web browser.
7

Web interface for HPA-160D/02 is shown below, and HPA-160A/02 has no Dante function. Two icons at the top-right are
"Channel Parameters ( )" and "System Setting ( )".
Channel Parameters
When input mode is “Balance”, the web interface will display channel 1/2/3; when input mode is “Mono/Stereo”, the web
interface will display channel 1/2/3/4; please use DanteController to assign input signals for Dante input; channel 5 is the
mixer out of PA. "MUTE" button can be used to mute corresponding Channel. Click “DSP” to open DSP setting interface.
Note: please click “Save” after DSP settings in order to recall it expediently next time.
Figure: Channel Parameters
Click "DSP" button to go to DSP setting interface. Select channel in drop-down box, and DSP parameters can be saved
in scene, supports up to four scenes. Click “Reset” on any scene to reset parameters to 0 dB settings, click “Save” to
save parameters, click scene name to call scene.
PEQ:
In PEQ (parametric equalizer) interface, frequency response curve is displayed at the top. The default parameter curve is
a straight line. Channel name and gain are displayed at the bottom. There are 5 filters with type of "Parametric", "Low
Shelf", and "High Shelf". And "Freq.", "Gain" and quality "Q" can be set.
Note:
Scene parameters of mixer out can be set and saved.
Output audio
gain and level
Channel Parameters Setting
8

Figure: PEQ of input channel
Figure: PEQ of output channel
GEQ:
31 segment graphical equalization, drag pushers to adjust equilibrium parameter. It is only for output channel. You can
also enable/disable low-cut and high-cut features, and set their frequency point.
Volume gain of loudspeaker Parameters setting for all output:
Line out, Speaker out, Dante out
9

Figure: GEQ of output channel
DRC:
DRC (dynamic ratio compressor) interface is shown as below. It is only for output channel. Threshold, Ratio, Attack Time
and Decay Time can be set.
Figure: DRC of output channel
Speaker Output:
Speaker Output setting is only for Output1 and Output2 of HPA-160/02. Three speaker sound effects can be select:
Normal, Music and Speech. Delay and mute can be setting for each output.
Parameters setting for all output: Line out, Speaker out, Dante out
Parameters setting for all output: Line out, Speaker out, Dante out
10

Figure: Speaker output setting
System Setting
Device information and Dante information can be viewed in system setting page, the following items can be modified:
Device name;
DHCP: ON/OFF, when DHCP is OFF, IP Address, Netmask and Gateway can be set;
Input mode: Stereo, Balance and Mono;
Input source: 2 Analog + 2 Dante Chs, 4 Dante Chs;
Sound test: Normal, Sine wave, White noise and Pink noise for selection, and its volume can be adjusted via
analog 1; it can be used to detect the integrity of sound reinforcement system; it also can provide audio signals
for acoustic environment detection, and adjust DSP parameters according to acoustic environment detection
result in order to achieve a more perfect sound reinforcement effect;
Low power: ON/OFF;
Work state: Normal/Standby/Fault
When lower power is off, the state is normal;
When lower power is on and with audio output, the state is normal;
When lower power is on and without audio input, the state is standby;
When short circuit or overload protection happened, the state is fault;
Select language: English and Chinese.
The relationship among input mode, input source and output is as follows:
2 Analog + 2 Dante Chs 4 Dante Chs
Stereo Analog1 and Analog2 to output1 and output2;
Dante3 and Dante4 mixed to all outputs
✘
Balance Mixer audio to all outputs ✘
Mono Mixer audio to all outputs Mixer audio to all outputs
Note:
The “Restore” button in the upper-right corner of the interface is used to restore the default setting of the PA,
shutting down the page and restarting the PA to take effect, and the IP address is restored to default: 162.168.1.60.
11

Figure: parameters of PA
12

Chapter 4 Specifications
PA HPA-160/02
Rated power
(EIAJ THD=1%，1 kHz)
2×200 W (4 Ω/6Ω)
2×160 W (8 Ω)
1×400 W (8 Ω, Bridge)
1×400 W (4 Ω/6Ω, Bridge)
1×400 W (70 V Constant voltage)
1×400 W (100 V Constant voltage)
Voltage gain (8 Ω, 1 kHz) 24.0 dB
Rising slope (1 kHz, Bypass low-pass filter) 50 V/μs
Input sensitivity (Rated power, 1 kHz) 3.5 Vrms
THD+N (10% Rated power, Typical value) 0.04%
IMD-SMPTE (10% Rated power, Typical value) 0.05%
DIM30 (10% Rated power, Typical value) 0.05%
Crosstalk suppression
(Below rated power, 20 Hz - 1 kHz) ≥70 dB
Frequency response
(10% Rated output power, 8 Ω, 20 Hz - 20 kHz) ±1 dB
Input impedance 20 kΩ(Balanced), 10 kΩ(Unbalanced)
Damping coefficient (8 Ω, 20 Hz - 100 Hz) ≥200
SNR (A weighted, 20 Hz - 20 kHz) ≥95 dB
Power supply 100-240 VAC, 50/60 Hz
Protection Short circuit protection, over temperature protection, DC protection
Box dimension (h×w×d, mm) 62×179×252
Product weight 1.7 kg
13

Chapter 5 RS-232 control
1. RS-232 Setting
Baud Rate 115200
Hardware flow control None
Data format Start bit: 1, Data bit: 8, Stop bit: 1, Parity bit: None
2. Control format
type - print type
mode - print input souce, input mode
pwr - set PA on/off. Syntax: pwr <status>
status: on/off
vol - set input volume. Syntax: vol <channel> <volume>
channel: ch1/ch2/ch3/ch4/spk
volume:
ch1~4:0x80(mute),0~60(-30dB~+30dB)
spk: 0x80(mute),0~30(-30dB~0dB)
? - print this help
Note: please press the Enter key after command is entered.
3. Instruction of volume control
Volume control command format: " vol <channel> <volume> Enter"
<channel> stands for audio channel, details to the following table
<volume> stands for audio volume, 0x80: mute, 0~60 for -30 dB ~30 dB
1）HPA-160D/02 input interface: LineIn(Balance/Stereo/Mono×2), Dante1,Dante2
Input source Input mode Input channel Output channel
CH1 CH2 CH3 CH4 SPK
Dante×4
Dante1 Dante2 Dante3 Dante4 Loudspeaker volume
Analog×2 + Dante×2
Balance LineIn Non Non Non Loudspeaker volume
Stereo LineIn-L LineIn-R Dante3 Dante4 Loudspeaker volume
Mono LineIn-1 LineIn-2 Dante3 Dante4 Loudspeaker volume
2）HPA-160A/02 input interface: LineIn 2(Balance), LineIn 1(Stereo/Mono×2)
Input source Input mode Input channel Output channel
CH1 CH2 CH3 CH4 SPK
Analog×2 Stereo LineIn1(Balance)+LineIn2(LR) Non Non Non Loudspeaker volume
Mono LineIn1(Balance)+LineIn2(1+2) Non Non Non Loudspeaker volume
14
