Tank Touring Deluxe 150cc Operating instructions

Tank Touring
Tank Touring
Deluxe Scooter
Deluxe Scooter
150cc 4 Stroke
150cc 4 Stroke
Operating and Maintenance
Manual

Save Driving Regulations 1 Parking 19
Driving Tips 2 Inspection & Servicing 21
Loading 3 Fuel 21
Features and Controls Locations 4 Braking 22
Operation 6 Brake Lights 23
Meters 6 Turn Signals 23
Indicators 6 Tires 24
Main Switch 7 Changing Gear Oil 24
Starting Button-Headlight
Switch 8 Air Cleaner 25
Hi-Lo Beam Switch-Horn
Button 9 Maintenance Schedule 26
Turn Signal Switch 9 Spark Plug 27
Key-Helmet-Luggage
Box 10 Fuse Replacement 28
Steering Lock 11 Clean Battery 29
Ignition Switch 12 Adjusting Carburetor
and Choke 30
Electric Starting 13 Cleaning Air Cleaner 31
Kick Starting 13 Specifications 33
Natural Way Of Driving 14 Electrical Diagram 34
Driving Correctly 16
Break In 17
Contents
Contents

Disclaimer
I have done my best interpreting this manual. However, there may be
mistakes in the translation, decimal points, etc. I take no credit for those.
Using this manual is at your own risk. I accept no responsibility for
any errors or omissions herein. You will in no way hold me responsi-
ble for any problems associated with usage of this scooter or this
manual. You agree to this by accepting this manual.
I am not associated with the company who manufactures the scooter or with
any importer or dealer who imports or sells this scooter.
I am just a guy who works as an English Consultant in Taiwan and who has
been dealing with this kind of situation for 7 years now and saw a need for a
manual in understandable American English.
I don’t as yet own one of these scooters. However, I intend to remedy that
situation soon, within the next month or so when I take my annual leave in
the US. I have a picture of it hanging on the wall in front of my computer to
keep reminding me.
I hope that my endeavor helps you with understanding the scooter opera-
tions, maintenance, etc. I know, who reads the manual anyway?
Enjoy.
Russell C. Huff
800 Chung Shan N. Road
Section 6
Taipei, Taiwan 11100

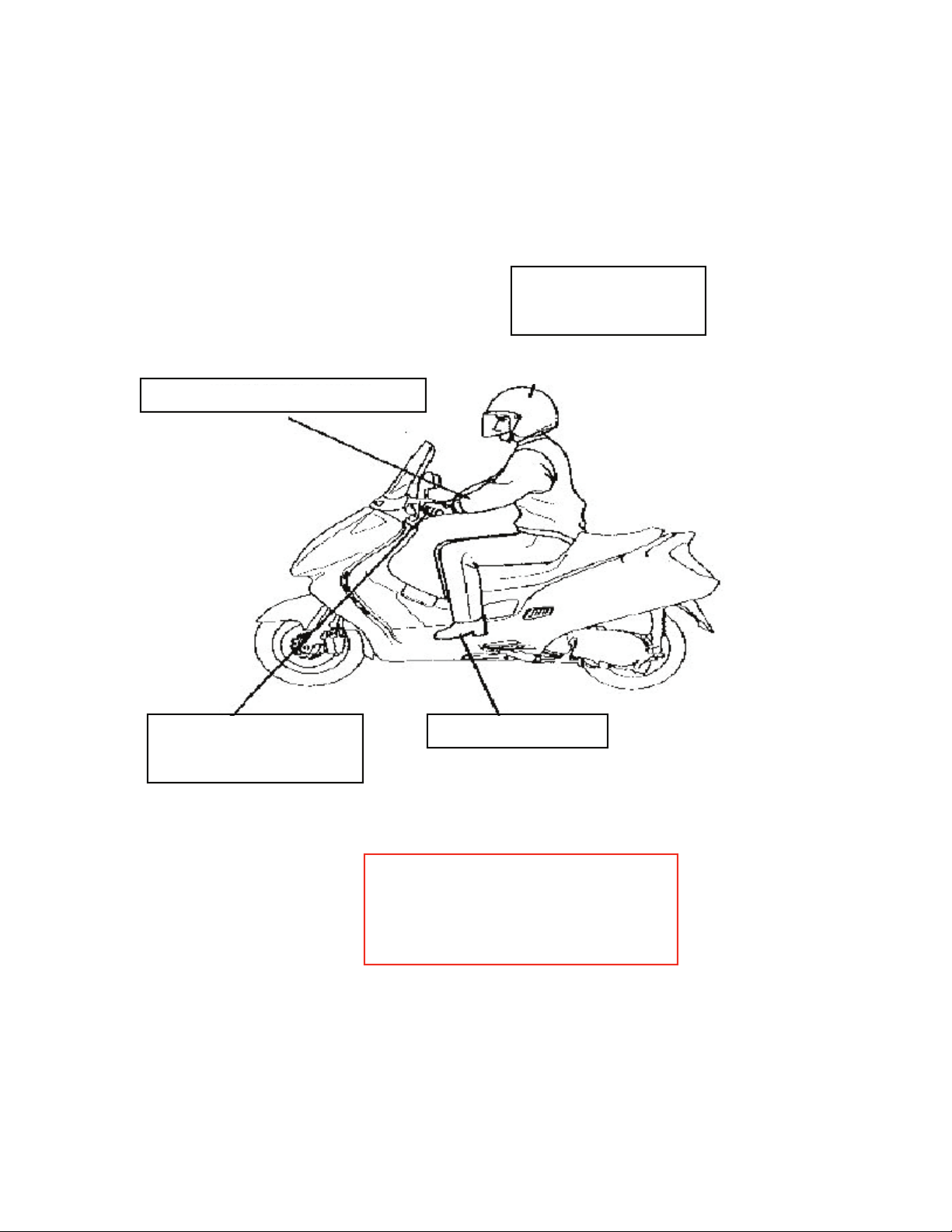

Safe Driving
Safe Driving
The main point of safe
driving is to relax and
wear comfortable clothing.
Wear helmet and gloves when driving.
Hold the handlebars with
both hands. Never drive
using only one hand.
Wear protective shoes.
Avoid wearing loose or long clothing.
To avoid a burn injury, be careful to avoid
any contact with the hot exhaust system
after running the engine.
1.

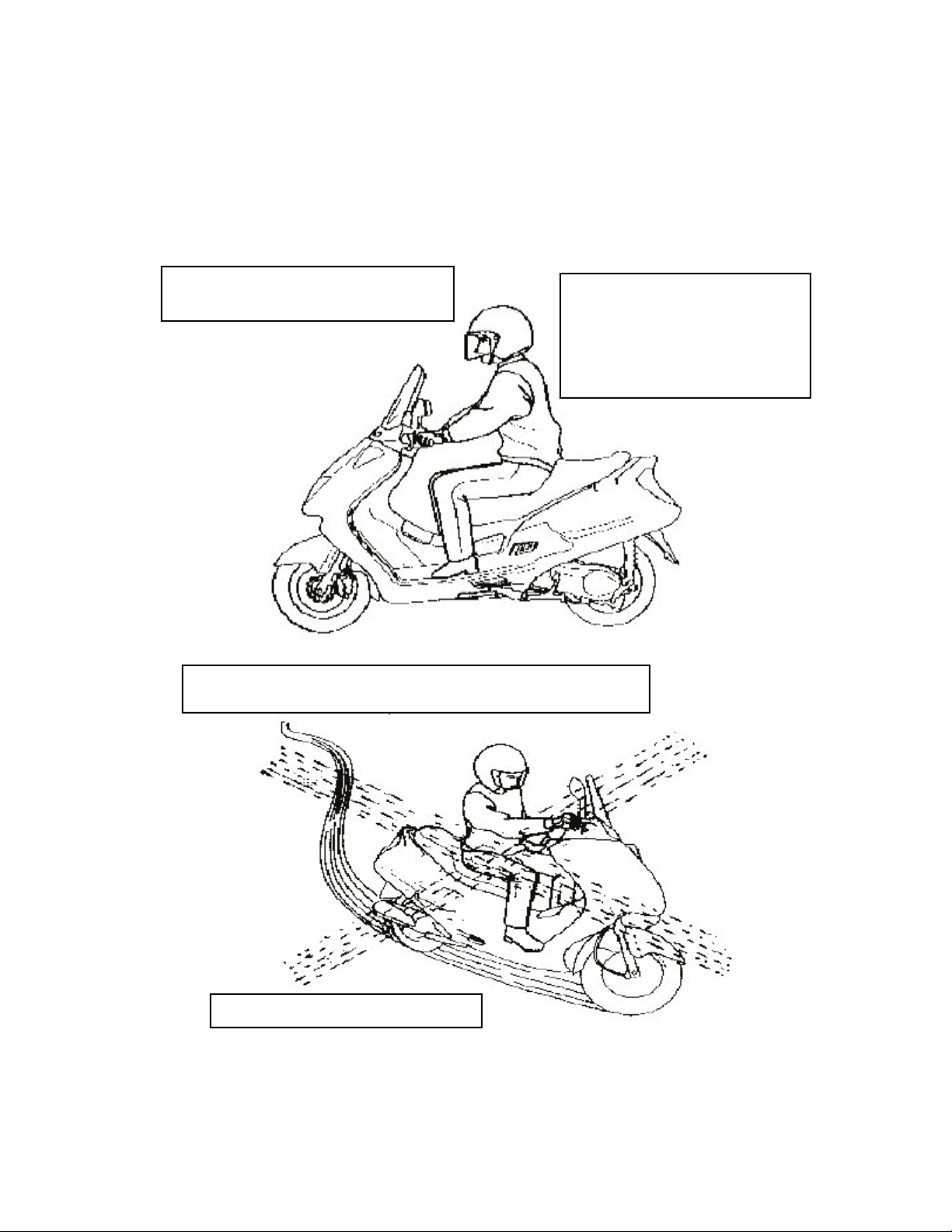

Maintain your natural posture while
operating the motorscooter.
Driving Tips
Driving Tips
For proper weight distribution, sit
on the center of the double seat.
Sitting further back will reduce the
weight on the front end, making
the steering more sensitive.
When turning or swerving, keep your weight to the inside of the
turn.
Be alert when driving on rough roads.
2.

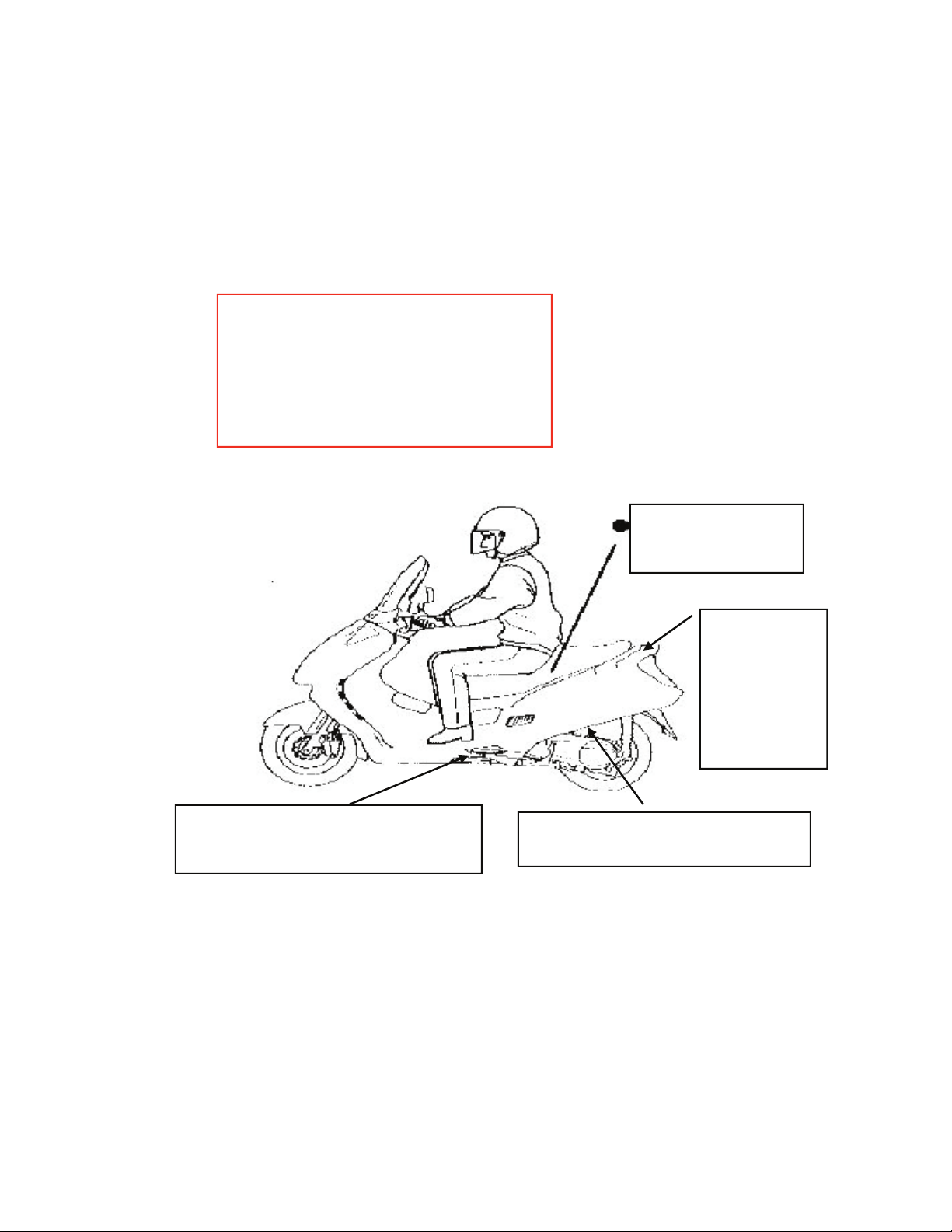

Loading
Loading
Maximum Weight
under the seat:
22 Lbs.
The steering becomes more sensitive when
placing weight to the rear of the motorscooter.
When passing, with a load on the motor-
scooter, the steering may become very light.
Please drive with caution.
Be careful not to allow clothing to cover
the air filter as this will choke the engine.
Don’t allow clothing to cover the air intake
on the frame side panel as this will over-
heat the engine.
Don’t replace
the bolts of the
luggage rack
with pointed
bolts or screws
as this will
damage the
body.
3.

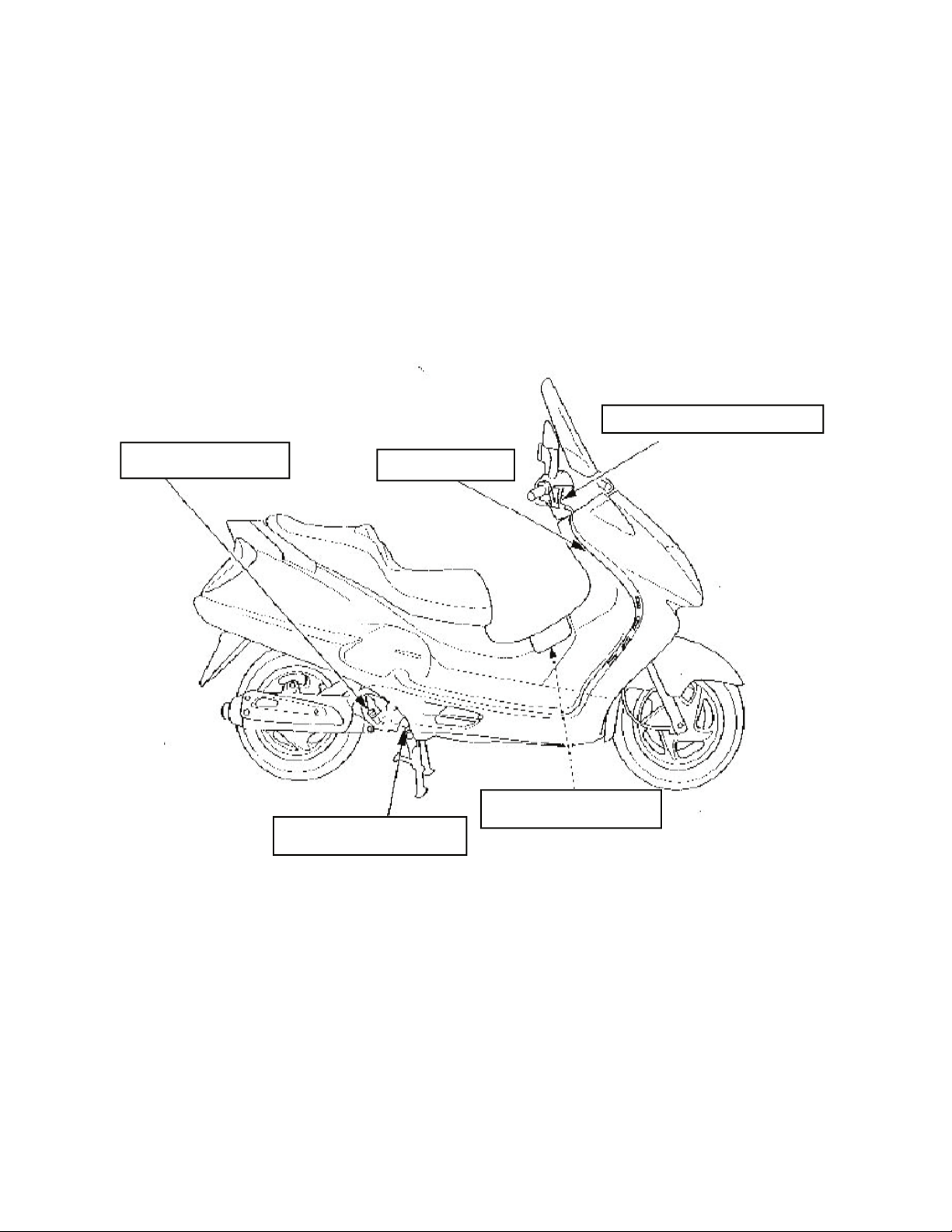

Features and Controls
Features and Controls
Locations
Locations
Rear Brake Lever
Head Light
Helmet Hook
Under Seat Storage
Seat Lock
Air Cleaner
Engine ID Number Location
Center Stand
Side Stand
Frame ID Number Location
4.

Features and Controls
Features and Controls
Locations
Locations
Oil Dipstick Filler Cap Main Switch
Front Brake Lever
Fuel Filler
Trademark Location
5.

Operation
Operation
1
Speedometer and Indicator Lights
2
3
4
5
6
4
Mileage Indicator
Displays distance traveled by the motorscooter in Kmh.
Speedometer
Displays speed in Kmh.
1 kilometer = 0.621371192 mile
Headlight Indicator
When lit, indicates headlight is on.
Turn Signal Indicator
When lit, indicates turn signal is activated.
Fuel Gauge
Indicates the remaining fuel in the fuel tank (with the main
switch turned ON the indicator is correct, with the main switch turned
OFF the indicator is not correct) When the needle reaches the red
zone, it indicates 1.5L of fuel is remaining in the tank. 90 octane fuel
needs to be supplied within a short time.
1 liter = 0.264172051 US gallon
Trip Meter
Used for short trips and can be reset to “0”.
1
2
3
4
5
6
6.

Electrical source is turned off and the engine stopped.
The key can be removed.
Electrical source is on, engine may be started.
The key cannot be removed.
The steering column is locked.
The key can be removed.
NOTE: To prevent theft, when parking the motorscooter, lock the steering
column and remove the key .

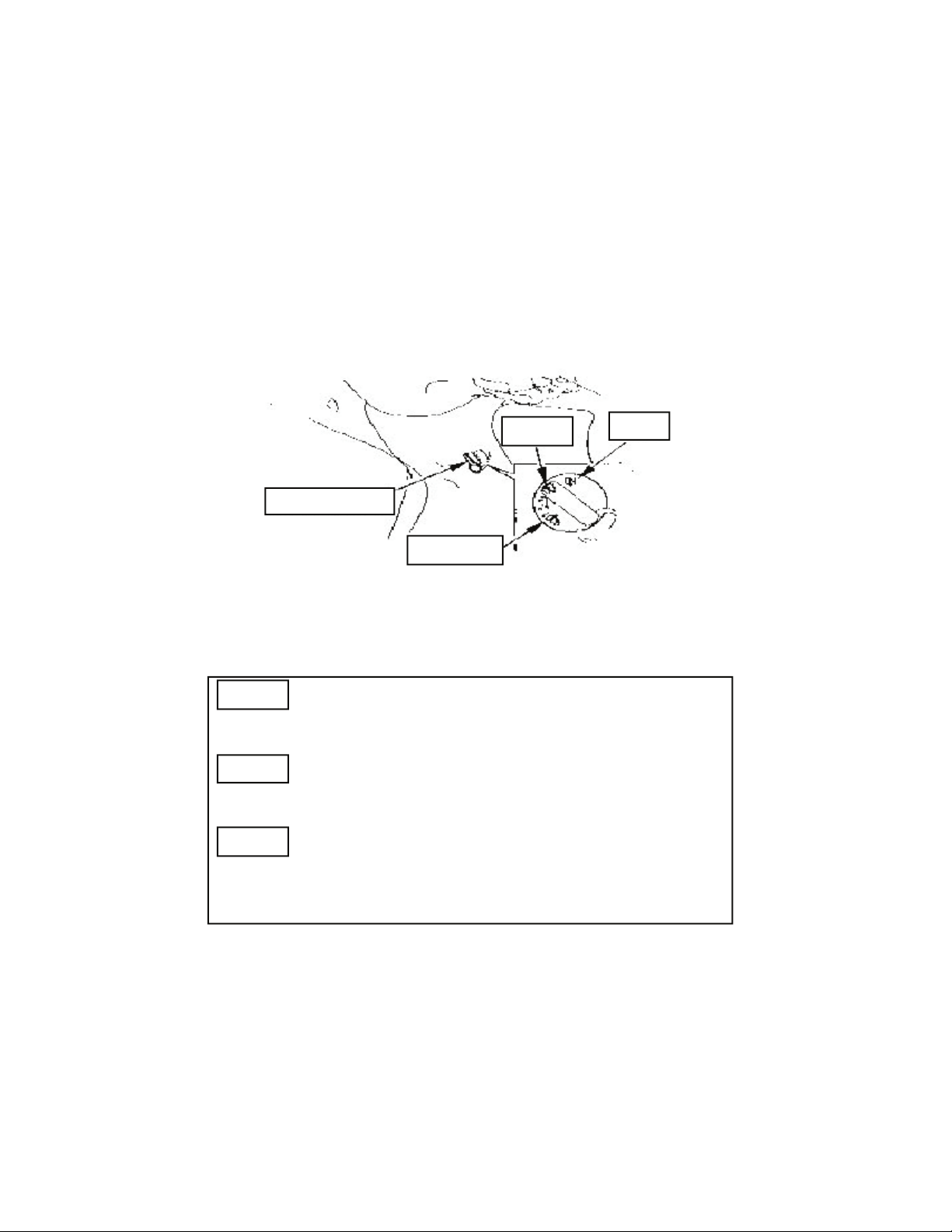

Main Switch
Main Switch
OFF ON
LOCK
Main Switch
OFF
ON
LOCK
7.

Controls
Controls

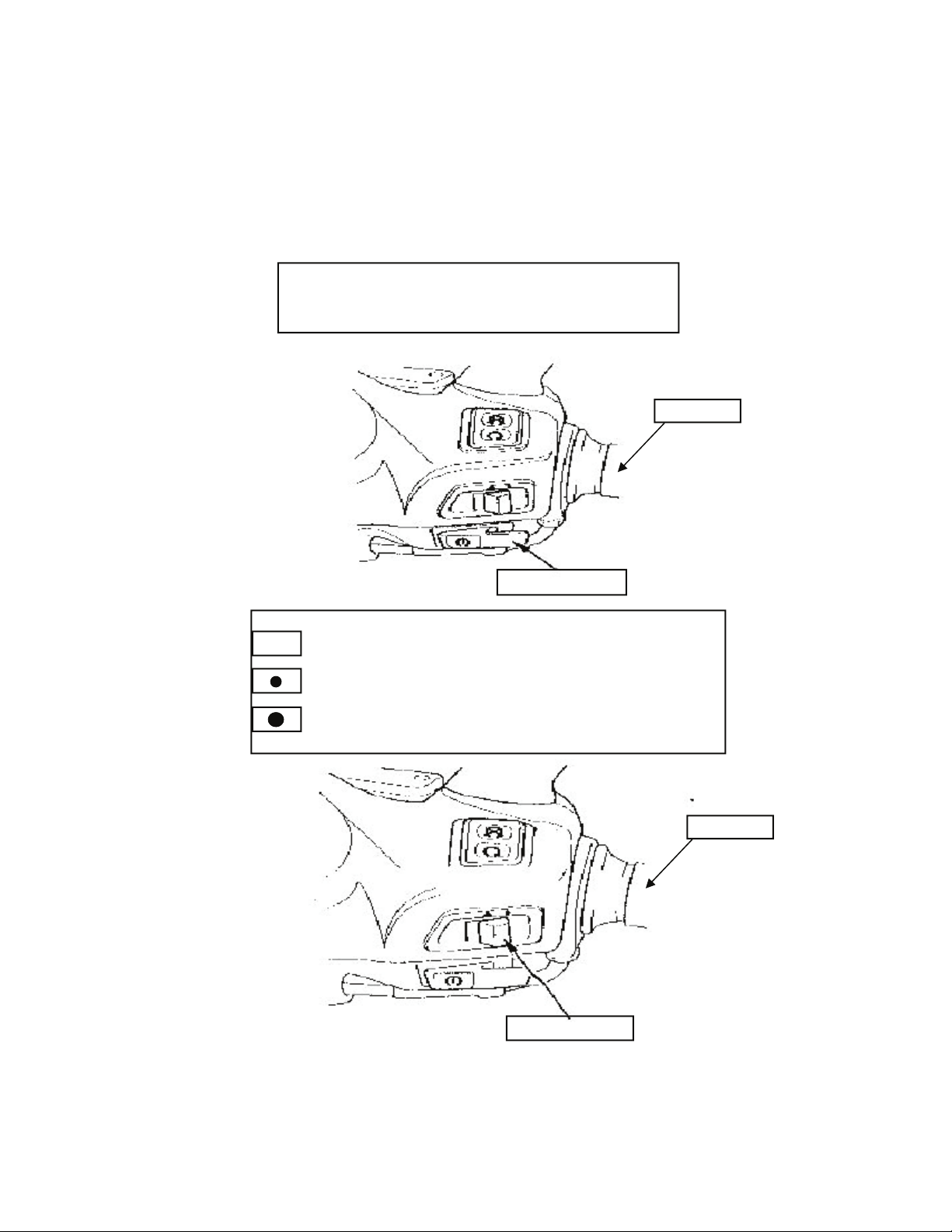

Starter Button
In order to use the electric start, you must engage the
front or rear brake by pulling on the brake lever.
Starter Button
Headlight Switch
Headlights, side lights and speedometer light OFF.
Sidelights and speedometer lights ON, headlights OFF.
Headlights and speedometer lights ON, sidelights OFF
OFF
Light Switch
8.
Throttle
Throttle

Controls
Controls
Headlight, Hi/Lo Beam and Passing Switch
High beam, high speed driving.
Low beam, low speed and city driving.
Flashes lights to indicate passing.
HI
LO
PASSING
Left Handgrip
Horn Button
Main switch ON, press to sound horn.
9.
Turn signal switch is not
self canceling, please
turn off after finishing
your turn.
Turn Signal Switch
L Left Turn.
R Right Turn.

10.
Controls
Controls

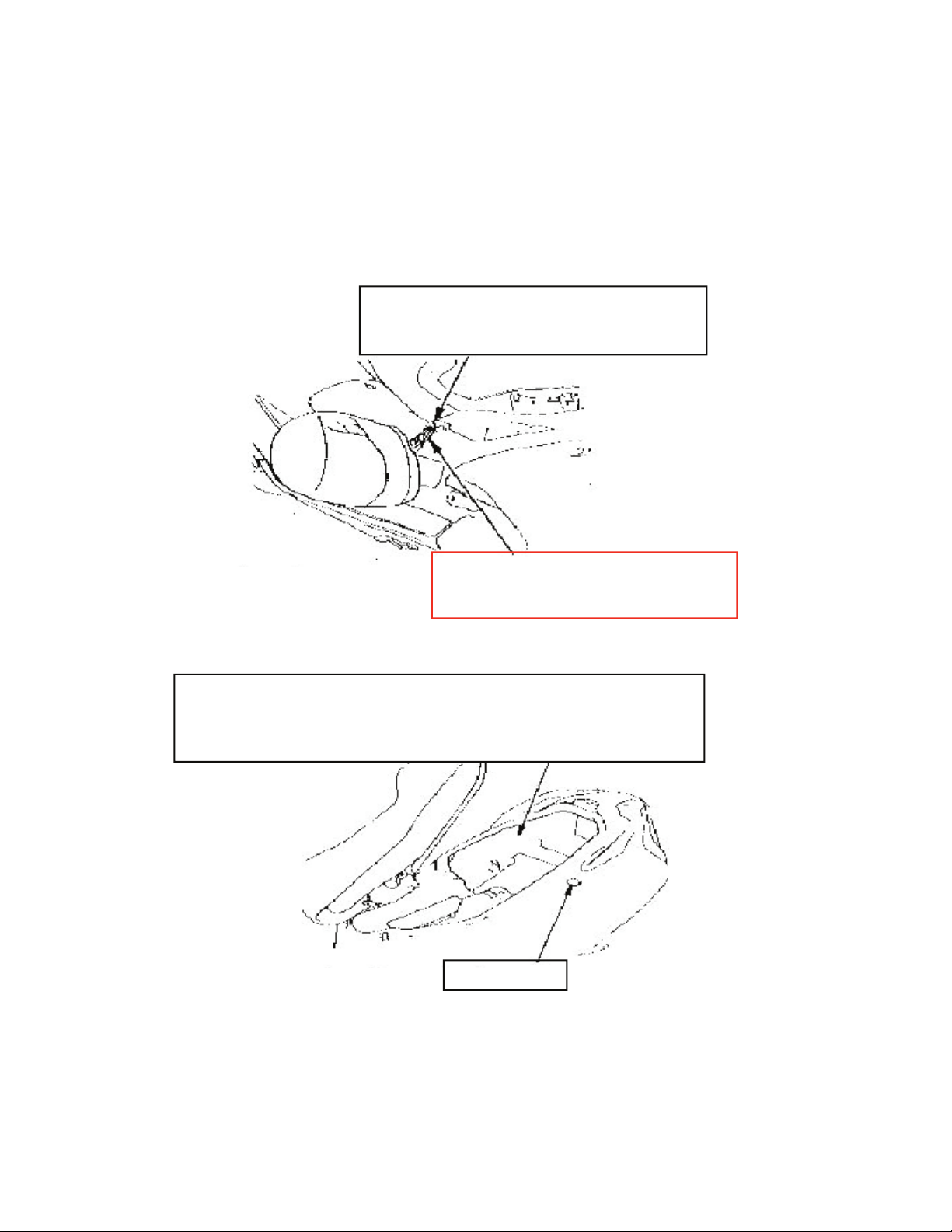

Helmet Lock
Unlock and raise the seat, insert the helmet
strap into the hook, lower and lock the seat.
Do not leave a helmet in the lock while
driving as body damage will occur to the
scooter
Underseat Storage
Do not exceed item weight of 22 lbs.
Do not carry food or any other items that will be harmed by the engine heat.
Be careful not to get water inside during scooter washing.
Seat Lock

11.
Controls
Controls
Steering Column Lock
To avoid theft, lock the steering when parking by turning the steering
to the left and turning the key to LOCK.
Turn the steering lightly after locking to ensure it is locked.
To avoid damage do not move the scooter after locking the steering .

Controls
Controls
12.
Starting The Engine
1. Check the fuel, oil and battery before starting.
2. Stand the scooter on the Main Stand and make sure the rear wheel is up.
3. Turn the key to ON.
4. Pull in on either the front or rear brake handle and engage the starting
button.
In cold weather, turn the key off and engage the kick starter 5 times then turn
key on and engage the electric start. Let warm up 2-3 minutes before using.
Use the above procedure after not using the scooter for a long period of time.
The life of the scooter can be prolonged by using the above procedure when
the scooter is new.

Controls
Controls
13.
Electric Starting
Kick Starting
Do not engage the starter longer than 3 seconds if the scooter fails to start.
Wait 10 seconds then try again but do not exceed 4 times.
Allow the starter to cool down before trying again.
After starting, release the starter button and continue to hold the brake.
Before riding, return the kick
starter lever to it’s stored
position

Scooter Operations
Scooter Operations
14.
Push the scooter forward to remove it from the main stand
which will fold up under the frame automatically.
Mount the scooter from the left side, seat comfortably and
keep the left foot on the ground. Keep the brake engaged.
NOTE: Do not run the engine at high rpm until it has warmed up.

Scooter Operations
Scooter Operations
15.
Release the brake.
NOTE: Do not add throttle before releasing
the brake
Turn the throttle slowly.
Add the throttle slowly to avoid a dangerous
fast start.

Scooter Operations
Scooter Operations
16.
Add the throttle slowly to avoid a dangerous
fast start.

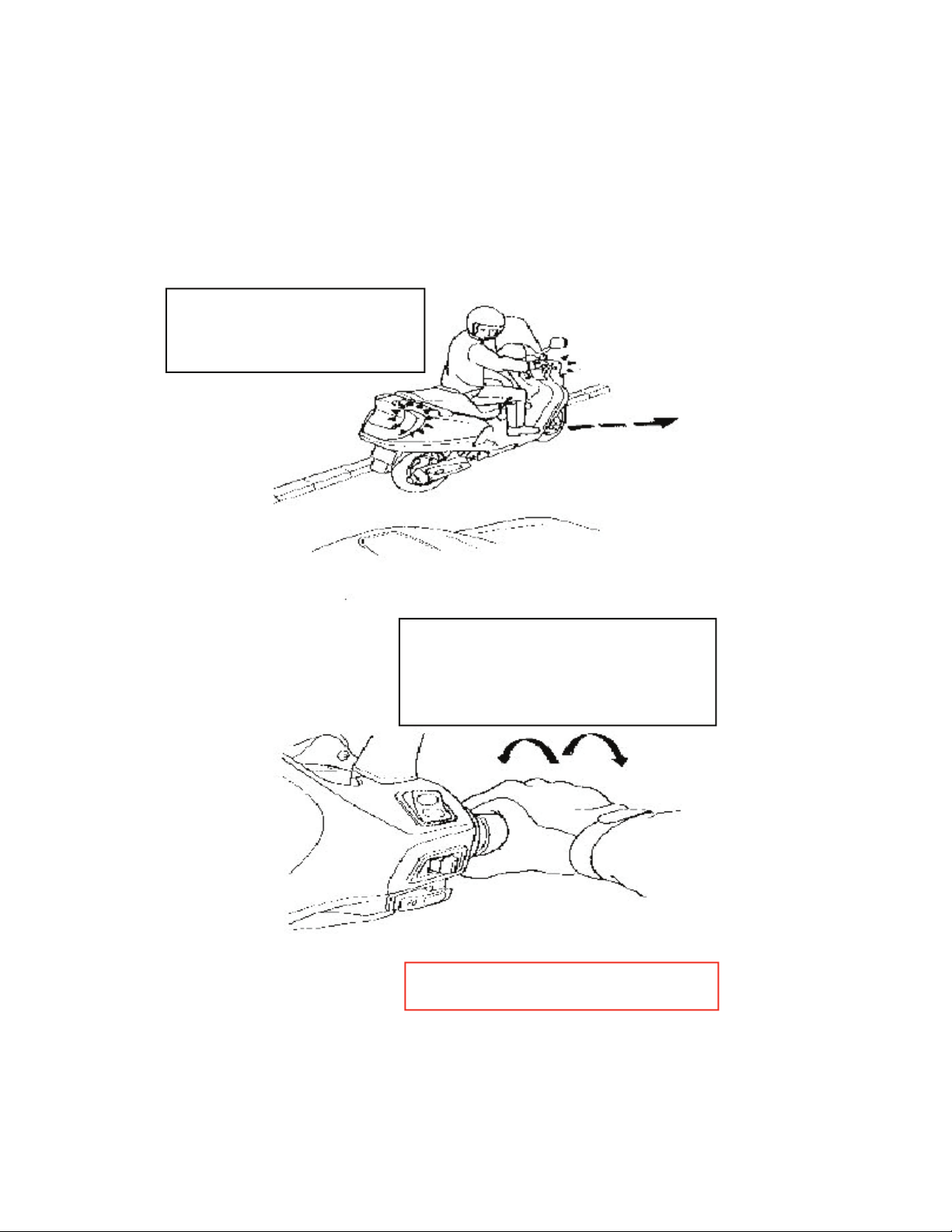

Drive Safely. Before proceeding,
turn on the turn signal and ensure
there is no traffic approaching from
the rear.
Speed is controlled by the throttle. Twisting
towards you will increase the speed and
power. Twisting away from you will lower
the speed and power. If released, the throt-
tle will return to it’s original position.

Scooter Operations
Scooter Operations
17.
The break-in period of the new motorscooter
Avoid accelerating quickly and passing.
Change the crankcase oil and gear oil after warming the motorscooter up.
Avoid driving a long time at full throttle by changing speeds after the break-in period.
Please keep the speed less than 60 km/h during the first 1500 km,
details as follows:
Driving Mileage km 0-300 300-500 500-1000 1000-1500
Speed km/h 25-30 35-40 45-50 55-60
Use The Front And Rear Brakes When Stopping
Or Parking.
Return the throttle to off position, then stop slowly using both brakes.
Place your left foot on the ground upon stopping.
Using only one brake may cause the scooter to skid.
