Invacare Lynx SX3P Instruction Manual

Yes, you can. ™
Panther™ / Lynx™ / Zoom-3
Scooters
Lynx™ SX3P/SX3/LX3/LX3Plus
Panther™ LX4/MX4
Parts Catalog Issued: Apr 3, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 99-142. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can. and the Medallion Design are registered trademarks; Lynx and Panther are trademarks
of Invacare Corporation.
Parts Catalog Usage Guide
1
Form No. 99-142
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories .............................................................................................................................. 51
Accessories - Oxygen Holder ................................................................................................... 54
Anti-Tippers .............................................................................................................................. 16
Arm Assembly .......................................................................................................................... 46
Baskets ..................................................................................................................................... 50
Battery Harnesses & Chargers ................................................................................................. 29
Controller & Harnesses ............................................................................................................ 27
Disc Brake Assembly - Panther MX4 ....................................................................................... 36
Forks & Hardware .................................................................................................................... 31
Frame Hardware - Lynx & Zoom-3 ........................................................................................... 6
Frame Hardware - Panther ....................................................................................................... 8
Front Axle Assembly ................................................................................................................ 34
Front Bumper Cover - Panther LX4 .......................................................................................... 35
Front Shrouds - Lynx & Zoom-3 ............................................................................................... 10
Front Shrouds - Panther ........................................................................................................... 12
Headlight Assembly .................................................................................................................. 48
Packaging & Literature ............................................................................................................. 4
Rear Shrouds ........................................................................................................................... 14
Seat Assembly - Lynx SX3P/SX3/LX3/LX3 Plus & Panther LX4/MX4 ..................................... 42
Seat Assembly - Zoom-3 .......................................................................................................... 44
Shocks - Panther MX4 ............................................................................................................. 37
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Steering Assembly ................................................................................................................... 32
Tiller Assembly w/ Harness - Lynx LX3 (Before S/N 00F622315) - Panther LX4 (Before S/N
00F622475) - Panther MX4 (Before S/N 00F623495)
17
Tiller Assembly w/ Harness - MFG (After 12/01) - Lynx SX3P (After S/N 00F623034) - Lynx
LX3 (After S/N 00F622314) - Panther LX4 (After S/N 00F622474) - Panther MX4 (After S/N
00F623494)
22
Tiller Assembly w/ Harness - MFG (Before 1/02) - Lynx SX3P (After S/N 00F623034) - Lynx
LX3 (After S/N 00F622314) - Panther LX4 (After S/N 00F622474) - Panther MX4 (After S/N
00F623494)
19
Tiller Assembly with Harness - Zoom-3 .................................................................................... 25
Trans-Axle Assembly - Lynx LX3/LX3Plus & Panther LX4/MX4 .............................................. 40
Trans-Axle Assembly - Lynx SX3P/SX3 & Zoom-3 .................................................................. 38
Wheels ..................................................................................................................................... 55
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Packaging & Literature
When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
Packaging Kits
Model Number Part Number Description
1 ea. Cardboard Insert
6 ea. Foam
1 ea. EPE Foam
4 ea. Wrapping Material
1 ea. Carton
1112796-NLAZoom-3
3 ea. Partition Board
1 ea. Foam
2 ea. EPE Foam
3 ea. Protection Mat
1 ea. Carton
1091864-NLALynx SX3P/SX3
4 ea. Protection Mat
1 ea. Foam
4 ea. Partition Board
2 ea. EPE Foam
1 ea. Carton
1091865-NLALynx LX3/LX3 Plus
4 ea. Protection Mat
1 ea. Foam
3 ea. Partition Board
2 ea. EPE Foam
1 ea. Carton
1091866-NLAPanther LX4
Literature
Part Number Description
Owner's Manual - All Models1090132 NLA - Owner's Manual (English/French Canadian)1104920-NLA
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Packaging & Literature
When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
Warning Label Kits
Part Number Description
NLA - Warning Label Kit - French Canadian
1093214-NLA
See Note(s) A
NLA - Kit, Warning Label - Domestic Spanish
1093215-NLA
See Note(s) B
A - Includes Warning Labels and Instruction Sheet.
B - Includes Owner's Manual, Warning Labels and Instruction Sheet.
NOTE:
Touch-Up Paint
Part Number Description
Candy Red1102705 Metallic Green1102706-NLA Champagne1102707-NLA Deep Blue1101326
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

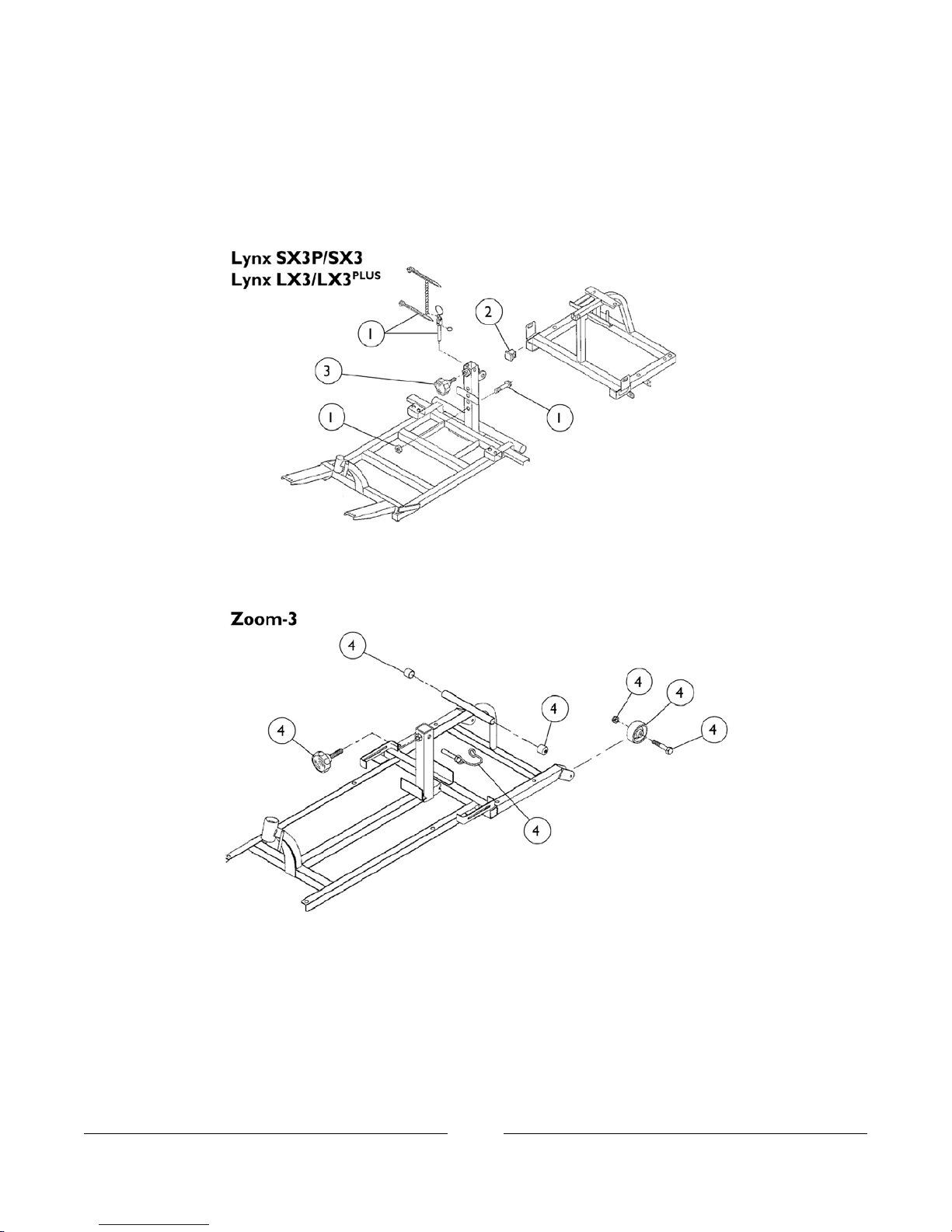

Frame Hardware
Lynx & Zoom-3
Note: Frame is not sold as a service part.
Note: All Front and Rear Frames shown for reference only.
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Frame Hardware
Lynx & Zoom-3
Note: Frame is not sold as a service part.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088660 Frame Hardware, Frame, Front -
Includes: 1 each Safety Pin Assembly
2 each Cable Tie
1 each Chain
1 each Pin, Safety
1 each Bolt, Hex Head (M6 x 1.0 x40)
1 each Nut, Self-Lock (6 x 10)
1 11
1088792-NLA NLA - Hardware, Frame - Rear - Lynx
SX3P/SX3/LX3/LX3Plus and Panther LX4
Includes: 1 each Rubber
1 12
1088767 Knob, Seat Post - Lynx SX3P/SX3/LX3/LX3Plus
and Panther LX4 1 13
1105914-NLA NLA - Hardware, Frame - Zoom-3
Includes: 1 ea. Knob, Seat Post
2 ea. Rubber Cover
2 ea. Wheel, Anti-Tip
2 ea. Screw, Hex Cap (M6 x 1.0 x 40)
2 ea. Nut, Self-Lock (6 x 10)
1 ea. Pin, Connecting
1 14
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Frame Hardware
Panther
Note: All Front and Rear Frames shown for reference only.
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Frame Hardware
Panther
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088738-NLA NLA - Front Frame Hardware-Panther LX4
Includes: 2 each Screw, Hex (M8 x 1.25 x 35)
2 each Screw, Hex (M8 x 1.25 x 25)
4 each Nut (M8 x 13)
4 each Washer, Spring (8 x 13)
2 each Rubber
1 each Bolt, Hex Head (M6 x 1.0 x 40)
1 each Nut, Self-Lock (6 x 10)
2 each Pin, Safety
1 each Cable Tie
1 each Chain
1 each Cushion
2 each Washer (6 x 18 x 1.6)
2 each Washer, Spring (6 x 10)
2 each Screw (M6 x 1.0 x 16)
1 11
1088792-NLA NLA - Hardware, Frame - Rear - Lynx
SX3P/SX3/LX3/LX3Plus and Panther LX4
Includes: 1 each Rubber
1 12
1088767 Knob, Seat Post - Lynx SX3P/SX3/LX3/LX3Plus
and Panther LX4 1 13
1091138-NLA NLA - Hardware, Frame, Front - Panther MX4
Includes: 1 each Bracket
2 each Screw (M6 x 1.0 x 16)
2 each Washer, Spring (6 X 10)
2 each Pin, Safety
2 each Cable Tie
1 each Chain
1 each Bolt, Hex Head (M6 x 1.0 x 40)
1 each Nut, Self-Lock (6 x 1.0 x10)
1 14
1091139-NLA NLA - Hardware, Frame, Rear - Panther MX4
Includes: 1 each Rubber
2 each Bolt (M8 x 1.25 x 45)
2 each Nut, Self-Lock (8 x 1.25 x 13)
2 each Pin, Connecting
1 each Cable Tie
1 each Chain
1 each Bind Ring
1 each Screw, SelfTapping (M4 x 15)
1 15
1091859-NLA NLA - Knob, Seat Post - Panther MX4 1 16
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Front Shrouds
Lynx & Zoom-3
Note: Shroud Assemblies include Carpet with Hook and Loop and Hardware.
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Front Shrouds
Lynx & Zoom-3
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088687-NLA NLA - Carpet with Hook and Loop 1 11 1088688 Carpet with Hook and Loop 1 11 1105916-NLA NLA - Carpet with Hook and Loop, Zoom-3 1 11 1088710 Boot 1 12 1088711 Hardware, Shroud -
Includes: 2 each Washer (6 x 18 x 1.6)
2 each Washer, Spring (6 x 10)
2 each Screw (M6 x 1.0 x 20)
1 13
1088678-NLA NLA - Shroud with Carpet and Hardware, Candy
Red 1 14
1088679-NLA NLA - Shroud with Carpet and Hardware - Metallic
Green 1 14
1088680 Shroud with Carpet and Hardware, Deep Blue 1 14 1104157-NLA NLA - Shroud with Carpet and Hardware, Magic
Black - Lynx LX3Plus 1 14
1088793-NLA NLA - Hardware, Shroud - Lynx SX3P/SX3
Includes: 2 each Washer (6 x 18 x 1.6)
2 each Washer, Spring (6 x 10)
2 each Screw (M6 x 1.0 x 16)
1 15
1088674-NLA NLA - Shroud with Carpet and Hardware, Gray
(Before S/N 00F623035) 1 16
1102246-NLA NLA - Shroud with Carpet and Hardware - Lynx
SX3P (After S/N 00F623034) - Ivory 1 16
1088675 Shroud with Carpet and Hardware, Candy Red 1 16 1088677-NLA NLA - Shroud with Carpet and Hardware, Deep Blue 1 16 1105917-NLA NLA - Hardware, Shroud - Zoom-3
4 ea. Washer (6 x 18 x 1.6)
4 ea. Plate Nut, U-Type
4 ea. Screw (M6 x 1.0 x 16)
1 17
1105915-NLA NLA - Shroud with Carpet and Hardware - Zoom-3 -
Candy Red 1 18
1076178-NLA NLA - Seat Hardware -- --
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

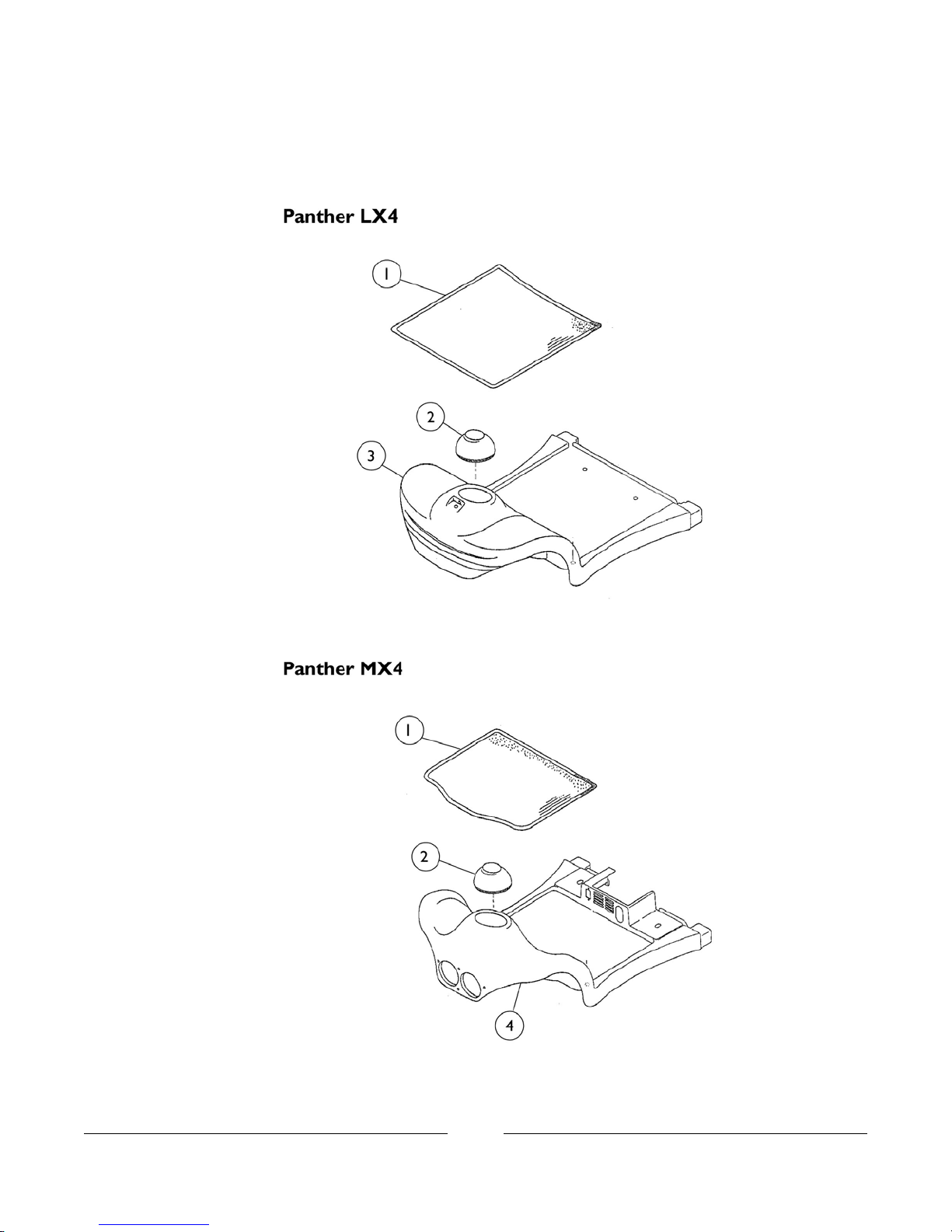

Front Shrouds
Panther
Note: Shroud Assemblies include Carpet with Hook and Loop and Hardware.
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Front Shrouds
Panther
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088689 Carpet with Hook and Loop 1 11 1088690-NLA NLA - Carpet with Hook and Loop 1 11 1088710 Boot 1 12 1088681-NLA NLA - Shroud w/Carpet and Hardware, Candy Red 1 13 1088682-NLA NLA - Shroud w/Carpet and Hardware, Metallic
Green 1 13
1088683-NLA NLA - Shroud w/Carpet and Hardware, Deep Blue 1 13 1104158 Shroud with Carpet and Hardware - Panther LX4 -
Magic Black 1 13
1088684 Shroud w/Carpet and Hardware, Champagne 1 14 1088797-NLA NLA - Hardware, Shroud - Panther LX4
Includes: 2 each Plate Nut, U Type
4 each Washer (6 x 18 x 1.6)
4 each Washer, Spring (6 x 10)
4 each Screw (M6 x 1.0 x 20)
1 1A
1091140-NLA NLA - Hardware, Shroud - Panther MX4
Includes: 3 each Washer (4 x 12 x 0.8)
1 each Screw (M4 x 0.7 x 80)
1 each Nut (M4 x 0.7 x 7)
1 each Spring
2 each Washer (4 x 9 x 1)
1 each Nut, Self-Lock (4 x 0.7 x 7)
2 each Screw (M6 x 1.0 x 20)
2 each Washer, Spring (6 x 10)
2 each Washer (6 x 18 x 1.6)
1 1A
A - Not Shown
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Rear Shrouds
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Rear Shrouds
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088661-NLA NLA - Shroud, Rear, Gray (Before S/N 00F623035) 1 11 1102247-NLA NLA - Shroud, Rear, Ivory - Lynx SX3P (After S/N
00F623034) 1 11
1088662-NLA NLA - Shroud, Rear, Candy Red 1 11 1088664-NLA NLA - Shroud, Rear, Deep Blue 1 11 1105918 Shroud, Rear - Zoom-3 1 12 1105919-NLA NLA - Boot, Rear Shroud 1 13 1088665 Shroud, Rear, Candy Red 1 14 1088666-NLA NLA - Shroud, Rear, Metallic Green 1 14 1088667-NLA NLA - Shroud, Rear, Deep Blue 1 14 1104160 Shroud, Rear, Magic Black - Lynx LX3 Plus 1 14 1088668-NLA NLA - Shroud, Rear, Candy Red 1 14 1088669-NLA NLA - Shroud, Rear, Metallic Green 1 14 1088670-NLA NLA - Shroud, Rear, Deep Blue 1 14 1104161-NLA NLA - Shroud, Rear, Magic Black - Panther LX4 1 14 1088671-NLA NLA - Kit, Shroud w/ Lights, Rear - Champagne 1 15 1088774 Kit, Tail Lights
Includes 2 red lights and 2 yellow lights. 2 16
1088782-NLA NLA - Harness, Tail Light 1 17
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly

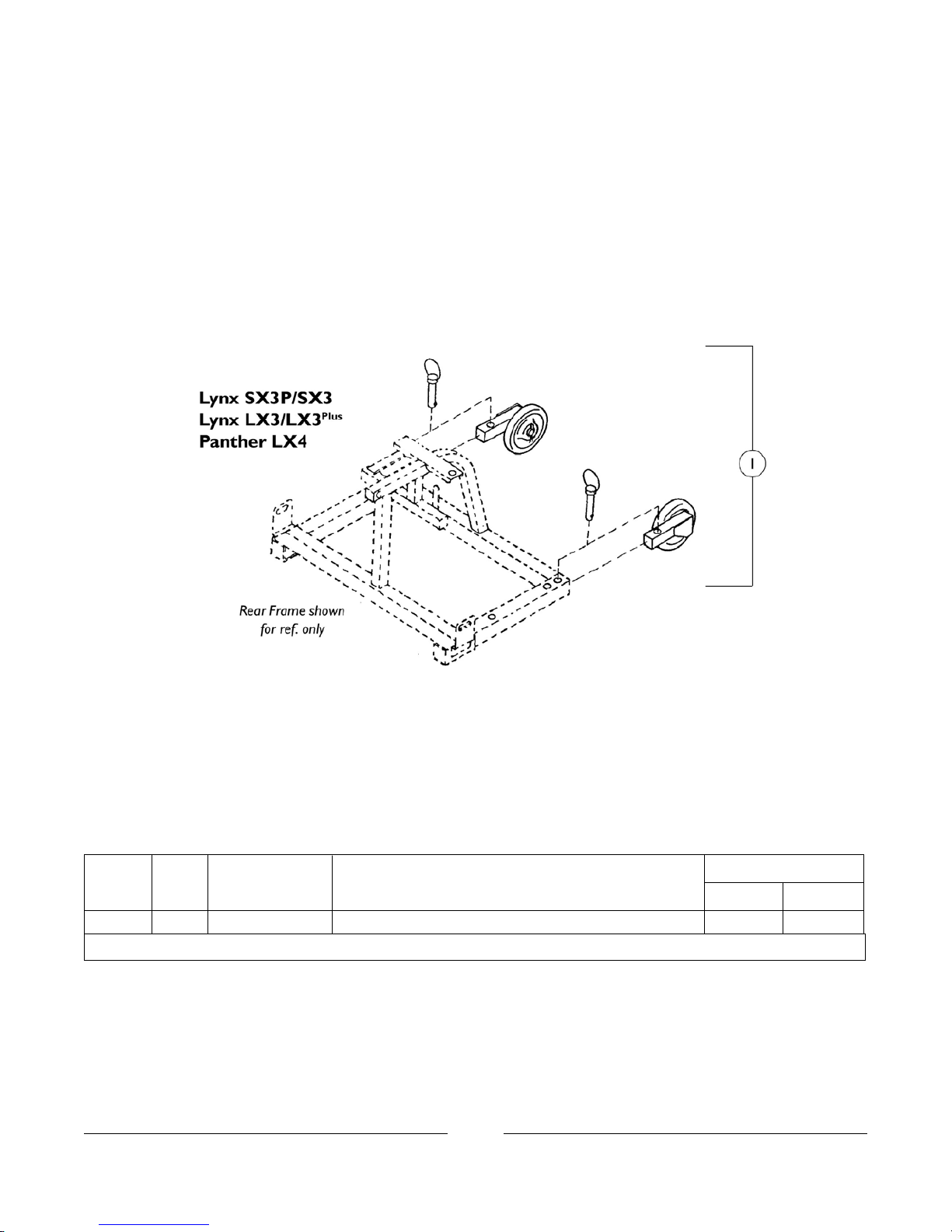

1088658 Anti-Tipper (Pair) 2 11
Zoom-3 models do not have removable Anti-Tippers. Anti-Tip Wheels are available as service parts in Frame Hardware.
Anti-Tippers
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

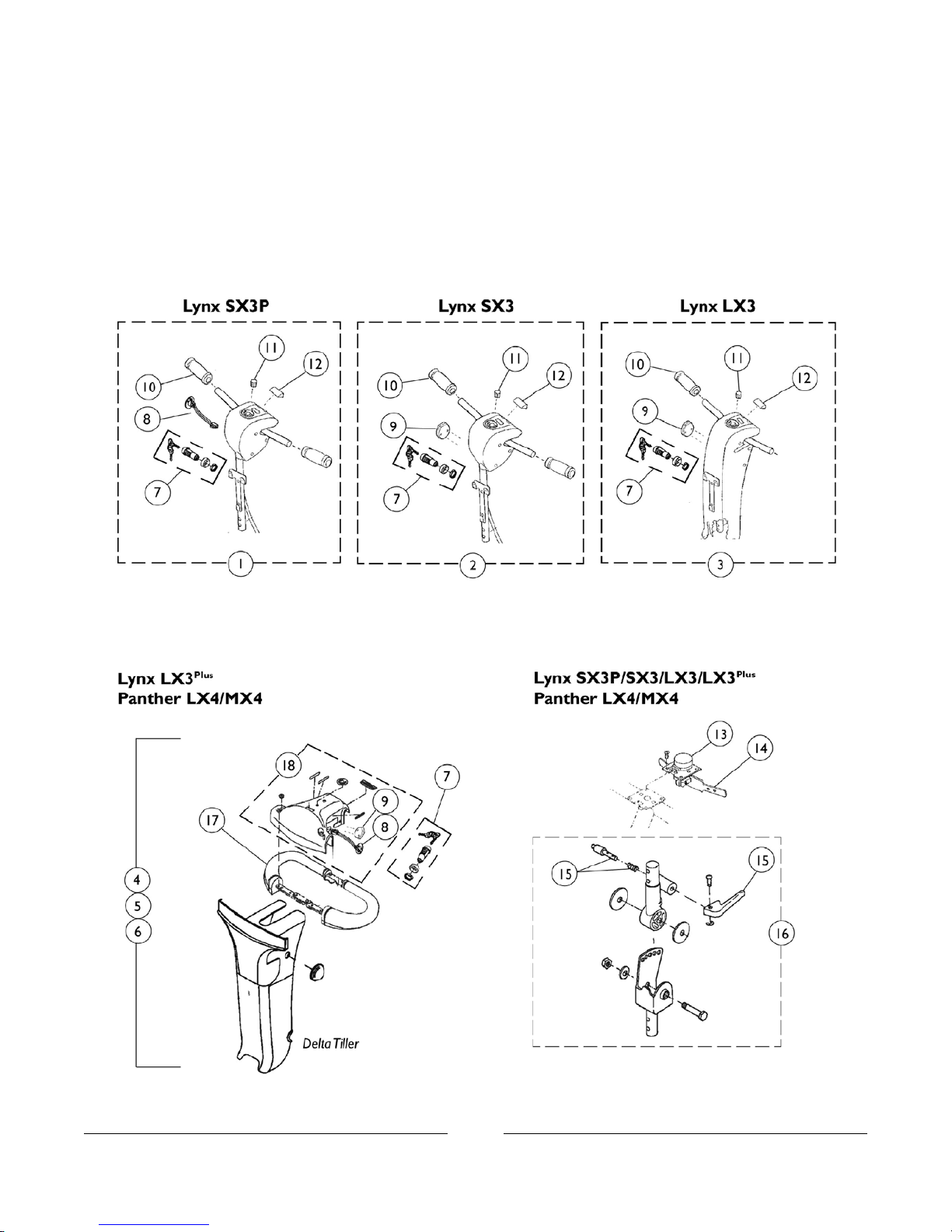

Tiller Assembly with Harness
Lynx LX3 (Before S/N 00F622315)
Panther LX4 (Before S/N 00F622475)
Panther MX4 (Before S/N 00F623495)
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Tiller Assembly with Harness
Lynx LX3 (Before S/N 00F622315)
Panther LX4 (Before S/N 00F622475)
Panther MX4 (Before S/N 00F623495)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088691-NLA NLA - Tiller Assembly w/ Harness, Gray 1 11 1088692-NLA NLA - Tiller Assembly w/ Harness, Candy Red 1 12 1088694 Tiller Assembly w/ Harness, Deep Blue 1 12 1088695-NLA NLA - Tiller Assembly w/ Harness, Candy Red 1 13 1088696-NLA NLA - Tiller Assembly w/ Harness, Metallic Green 1 13 1088697 Tiller Assembly w/ Harness, Deep Blue 1 13 1088698-NLA NLA - Tiller Assembly w/ Harness, Candy Red 1 14 1088699-NLA NLA - Tiller Assembly w/ Harness, Metallic Green 1 14 1088700-NLA NLA - Tiller Assembly w/ Harness, Deep Blue 1 14 1088701-NLA NLA - Tiller Assembly w/ Harness, Champagne 1 15 1102927-NLA NLA - Key Switch with Keys 1 16 1088704-NLA NLA - Keys Only (Pair) 2 16 1091863 Charger Port - Lynx SX3P, Panther LX4 and
Zoom-3 1 17
1091862 Cover, Charger Port - Lynx SX3/LX3/LX3 Plus and
Panther MX4 1 18
1088706-NLA NLA - Grips, Hand (Pair) 2 19 1088705 Knob, Tiller Speed 1 110 B 1088707-NLA NLA - Canopy, LED 1 111 1101276-NLA NLA - Potentiometer 1 112 C 1088708 Lever, Throttle 1 113 1088709-NLA NLA - Handle, Latch with Spring and Pin 1 114 1099708-NLA NLA - Swivel Bracket Assembly 1 115 1088778-NLA NLA - Brake, Hand - Panther MX4 1 116 1097017-NLA NLA - Kit, Decal w/ Instruction Sheet,
Forward/Reverse - Left Hand 1 1A
1088794-NLA NLA - Tiller Hardware - All Models
Includes: 2 each Bolt (M6 x 1.0 x 35)
2 each Nut, Self-Lock (6 x 10 x 8)
1 each Washer (8 x 39 x 2)
1 each Washer (8 x 39 x 1.6)
1 each Bolt (M8 x 1.25 x 50)
1 each Washer (8 x 22 x 2)
1 each Nut, Self-Lock (8 x 1.25 x 13)
1 1A
A - Not Shown
B - This Knob is used on all tiller models - it is not shown on some.
C - The Throttle Lever is included with this item. If the tiller for this part is for is not a "Delta" tiller, please contact the technical
services department for instructions on replacing this item.
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142

Tiller Assembly with Harness
(Manufactured Before 1/02)
Lynx SX3P (After S/N 00F623034)
Lynx LX3 (After S/N 00F622314)
Panther LX4 (After S/N 00F622474)
Panther MX4 (After S/N 00F623494)
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 99-142
