Taurus Amplification SH 7 APOGEE Plus User manual

DESIGNED BY MUSICIANS FOR MUSICIANS
GUITARAMPLIFIEROWNER’SMANUAL
EDITION
Custom
Stomp-Head
7
SHSH
APOGEE
Plus

Powerful Guitar Amplifier
in stompbox shape
The Stomp-Head is an ultra light, very compact floor amplifier with integrated
footswitches, designed to be set on the pedalboard along with effects or
independentlyplaceddirectlyonthestagefloor.
Apedal-boardamplifierprovidesacompleteready-to-usesoundsystem.
Simply connect your speaker cabinet, guitar and power source, and the system is
readytogo.
TheStomp-HeadisbasedonanMTD(MasterTubeDesign)technology.Itisourown
groundbreakingtechnologywhichallowsustocreatepowerfulguitaramplifiersina
verycompactshape.Thistechnologyusesallthesignificantfeaturesoftubeswhich
determine the classic sound of guitar amps. We offer players a fully analog
amplifier, extremely light weight, in a very compact dimension along with a noble
and powerful sound. The sound characteristics and power of our MASTER TUBE
basedamplifiersareequaltotheclassictubeampswiththesamepowerrating.
The Stomp-Head is an ultra light, very compact floor amplifier with integrated
footswitches, designed to be set on the pedalboard along with effects or
independentlyplaceddirectlyonthestagefloor.
Apedal-boardamplifierprovidesacompleteready-to-usesoundsystem.
Simply connect your speaker cabinet, guitar and power source, and the system is
readytogo.
TheStomp-HeadisbasedonanMTD(MasterTubeDesign)technology.Itisourown
groundbreakingtechnologywhichallowsustocreatepowerfulguitaramplifiersina
verycompactshape.Thistechnologyusesallthesignificantfeaturesoftubeswhich
determine the classic sound of guitar amps. We offer players a fully analog
amplifier, extremely light weight, in a very compact dimension along with a noble
and powerful sound. The sound characteristics and power of our MASTER TUBE
basedamplifiersareequaltotheclassictubeampswiththesamepowerrating.

The amplifier set up on a pedal-board:
What are the benefits?
There is no need for additional foot-switches to control the Stomp-Heads
functions, because they are all integrated into our compact amplifier.
However, if needed, our amp is also equipped with the option of controlling
all its features via an external controller
Much less humming and interference noises due to very short connections
There is no need for large amounts of long and heavy cable runs to
connect effect loops or amplifier switchers. As a result, when all external
wiring of the amp controller and FX Loop is eliminated, the whole guitar
sound system is extremely compact and light.
Connecting wires between the amplifier and the effects are much shorter
than in traditional set-ups, therefore problems related to loss of signal
quality are reduce (much less humming and interference).
Set up is extremely easy and takes just seconds. All you need to do is
connect the speaker cabinet, plug the power cable into the pedalboard,
and hook up your guitar. Three external wires - that’s all.
All the controls to precisely adjust the sound of the amp or effects are in
plain view on the pedalboard right in front of the guitarist. Therefore,
immediate adjustments can be done at any time, without lag.
The sound of your guitar can be precisely set at the exact spot on stage
where you play.
Stomp-Head offers a whole range of on-board sounds as a CLEAN,
CRUNCH, DRIVE and BOOST function. This eliminates the need for these
extra effects on your pedalboard, and creates more space for your other
stompboxes.

DRIVECLEAN
CHANNEL-1 CHANNEL-1 CHANNEL-2
CRUNCH
REVERB BOOST
NOISE GATE
REVERBSERVO
PRESENCE VOLUME
RANGE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
HI-GAIN BASS TREBLE PRESENCE VOLUMEMIDDLE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
GAIN MUTE
54
3
2
1
6
7
8
CRUNCH
MASTER TUBE
DESIGN
POWER RANGE
SELECTOR
200Watt
Power Stage Efficiency
12W
40W
20W
90W
EDITION
Custom
Stomp-Head
7
SHSH
APOGEE
Taurus
Amplification
RANGE
BASS TREBLEMIDDLE
(1) - Power Range Selector
(2) - SERVO control
(3) - SERVO GAIN switch
(4) - REVERB control and LED ON indicator
(5) - NOSE GATE indicator
(6) - NOSE GATE on/off switch
(7) - NOSE GAIN LEVEL adjustment
(8) - CRUNCH control activated by footswitch
(9) - CRUNCH LED indicator on/off
(10) - HIGH GAIN control for DRIVE channel
(11) - BASS control
(12) - MIDDLE control
(13) - MID-RANGE switch
(14) - TREBLE control
(15) - PRESENCE control
(16) - VOLUME control
(17) - LED indicator / LEAD-channel ON
(18) - LED indicator / CLEAN- channel ON
(19) - BOOST control
(20) - MUTE switch
Front panel
NOISE GATE
REVERBSERVO
BASS TREBLE PRESENCE VOLUMEMIDDLE
RANGE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
HI-GAIN BASS TREBLE PRESENCE VOLUMEMIDDLE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
RANGE
GAIN MUTE
54
3
2
1
6
7
8
CRUNCH
MASTER TUBE
DESIGN
POWER RANGE
SELECTOR
200Watt
Power Stage Efficiency
12W
40W
20W
90W
811
11
12
12
13
13
14
14
15
15
16
16
19
20
18
17
5 6 7
24 1031
9
6
SHSH
Footswitches
REVERB, CLEAN section,,CRUNCH section, DRIVE section, BOOST
RANGE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
54
3
2
1
6
7
8
54
3
2
1
6
7
8
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
54
3
2
1
6
7
8
Marked in colours sections are active when the paricular switches are turned on.

Rear panel
External connections
(1)- POWER on/off switch
(2)- Voltage selector 230V/120V
(3)- AC POWER input
(4)- Speakers output / impedance: 4-8-16ohm [auto detect. impedance]
(5) - CABINET RESONANCE feedback switch control, extending range of low
and high frequency.
(6) - RETURN connection for effect loop
(7) - SEND connection for effect loop
(8) - INPUT
(9) - INPUT GAIN boost +6dB
(10) - USB connection for IR files transfer
(11) - 16-position CAB SIM selector
(12) - Microphone position of IR CAB simulation
(13) - EXTERNAL CONTROLLER input for DRIVE and BOOST
(14) - EXTERNAL CONTROLLER input for CLEAN and CRUNCH
(15) - Two channel LINE OUTPUT with and without speaker simulation
To control CLEAN, CRUNCH and DRIVE you can use momentary (pulse) or
bistable (on/off) switches. For BOOST you need to use bistable (on/off) switch.
Fuse: 2.5AFuse: 2.5A
(PA-INPUT)
SEND
RETURN
EFX
LO HI
CABINET
RESONANCE
SERIAL NO:
MADE IN
EU
CAUTION!
SPEAKERS
4-8-16ohm
Fuse: 2.5A
THIS APPARATUS
MUST BE EARTHED
Power Stage Efficiency:
200Watt
RISK OF ELECTRIC SHOCK,
DO NOT OPEN.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCTS TO RAIN OR MOISTURE
GAIN
EXT.CTRL.
CABINETS
Two mode output
DRY
SIMULATION
LINE OUT
MIC
POSITION
IR-CAB
loader
0
1
2
3
0
1
2
3
12 2
3
3
01
3
0
12
0
Pangaea CAB SIM
designed by
AMT
GAIN
EXT.CTRL.
CABINETS
Two mode output
DRY
SIMULATION
LINE OUT
MIC
POSITION
IR-CAB
loader
0
1
2
3
0
1
2
3
12 2
3
3
01
3
0
12
0
Pangaea CAB SIM
designed by
AMT
1
346
78
13
14
15
25
12
9
11
10
Mono jack
Ground
Signal with speaker simulation
CLEAN external switch
DRIVE external switch
CRUNCH external switch
BOOST external switch
Stereo jack
Stereo jack
Ground
Ground
Signal without speaker simulation
Stereo jack
Ground
Signal with speaker simulation
DRIVE and BOOST
control
CLEAN and CRUNCH
control
LINE OUTPUT - two types of connection

Fuse: 2.5AFuse: 2.5A
(PA-INPUT)
SEND
RETURN
EFX
LO HI
CABINET
RESONANCE
SERIAL NO:
MADE IN
EU
CAUTION!
SPEAKERS
4-8-16ohm
Fuse: 2.5A
THIS APPARATUS
MUST BE EARTHED
Power Stage Efficiency:
200Watt
RISK OF ELECTRIC SHOCK,
DO NOT OPEN.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCTS TO RAIN OR MOISTURE
GAIN
EXT.CTRL.
CABINETS
Two mode output
DRY
SIMULATION
LINE OUT
MIC
POSITION
IR-CAB
loader
0
1
2
3
0
1
2
3
12 2
3
3
01
3
0
12
0
Pangaea CAB SIM
designed by
AMT

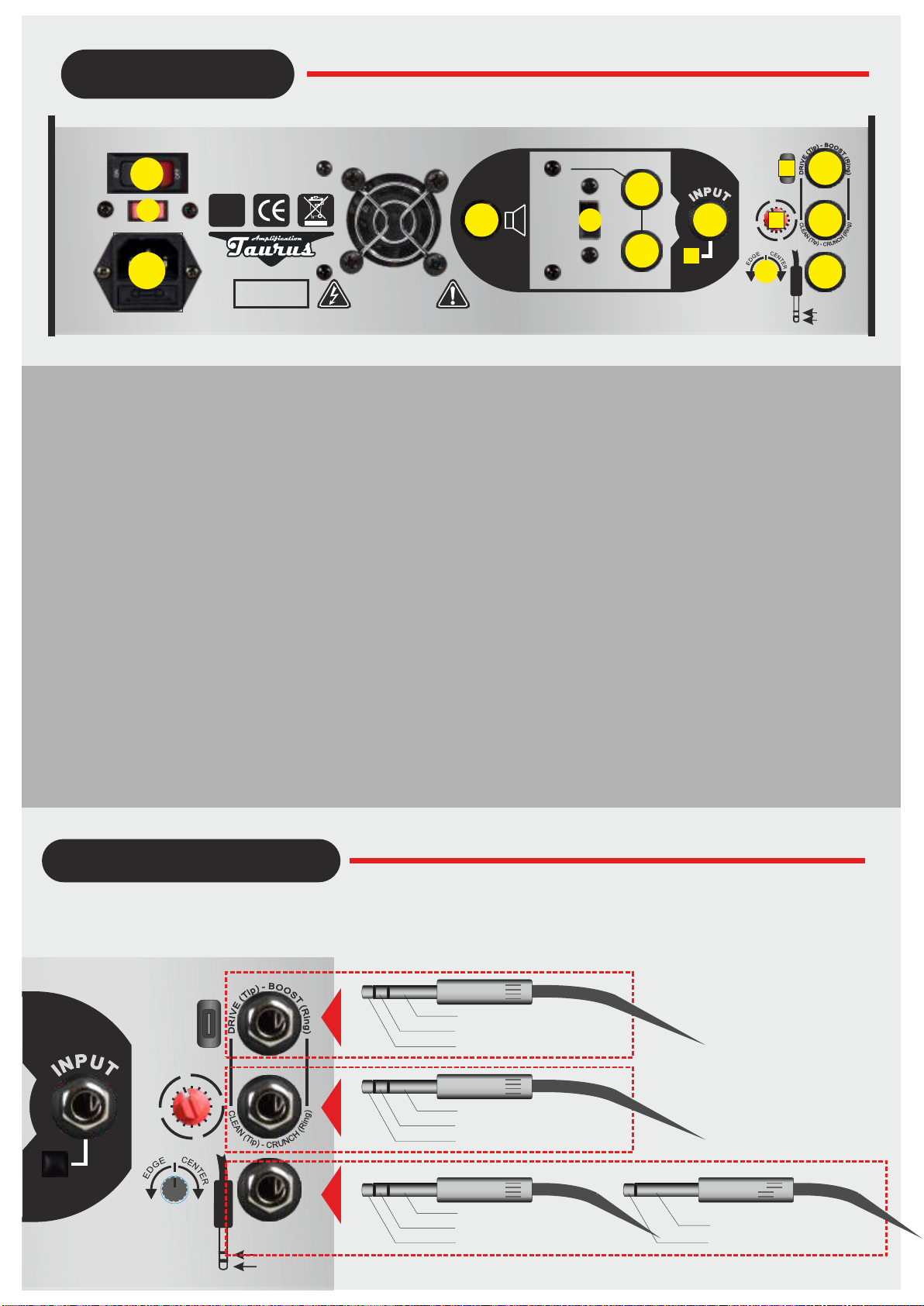

External connections

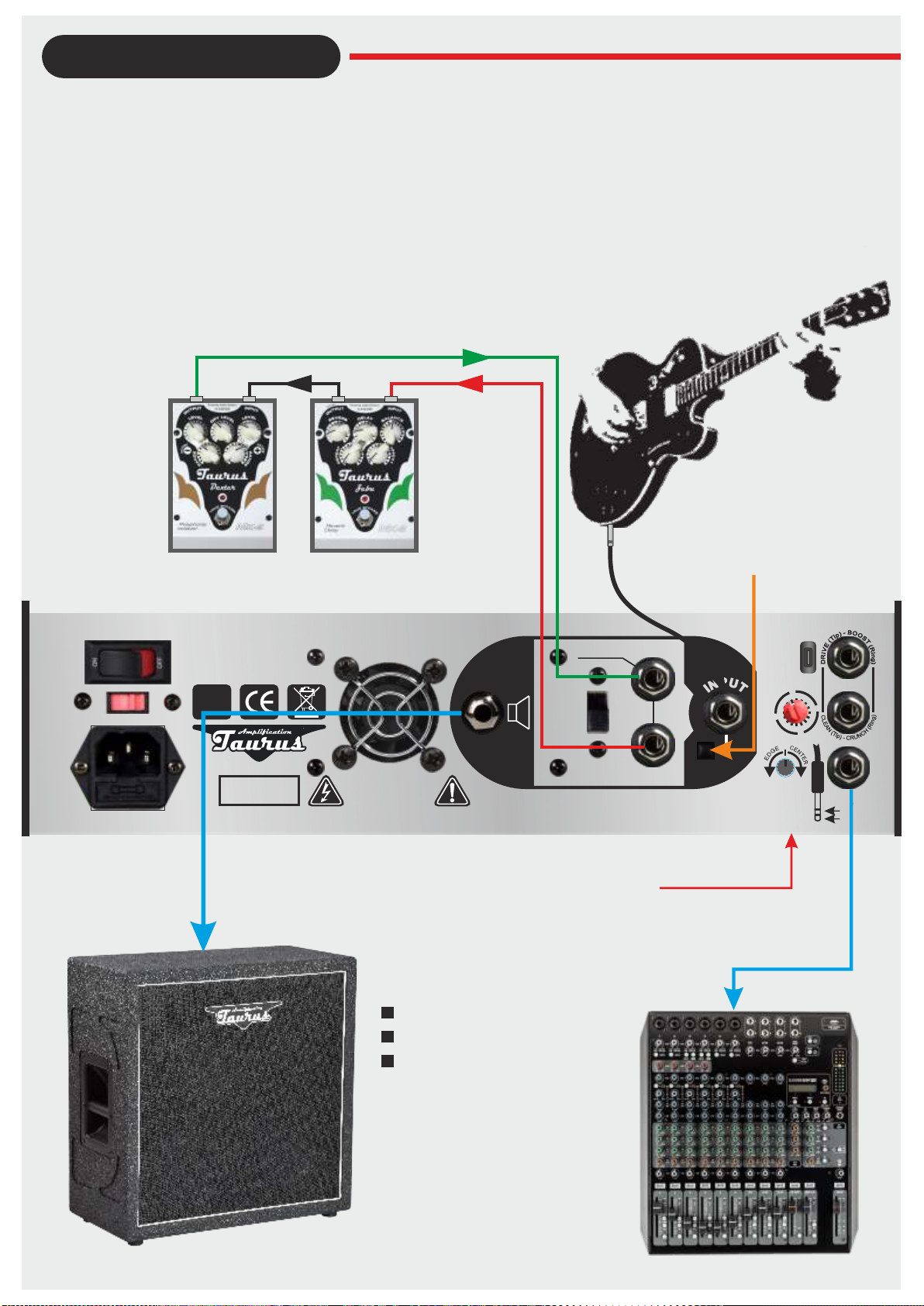

The external effects may be connected between both preamps (CLEAN and
LEAD) and the MASTER section through the parallel EFFECT LOOP. This
typeofconnectionisrecommendedwhentheVolumepedalorDelay,Reverb,
Flanger type of effects are used. When the mixer or the external amplifier is
connected, the LINE-OUTPUT with integrated cabinet simulator must be
used. Signal from Line-out can be lead in different ways: with simulation,
withoutsimulationorboth.
Effectspedals
OUT OUT
IN IN
IR-CAB similation module.
Useful tool if you want to send signal
from LINE OUT to PA system or mixer.
Using this module you can set
following options:
speaker type
cabinet cubature
microphone position.
If you need more
GAIN at preamp section,
push this button.

IR CAB Simulation

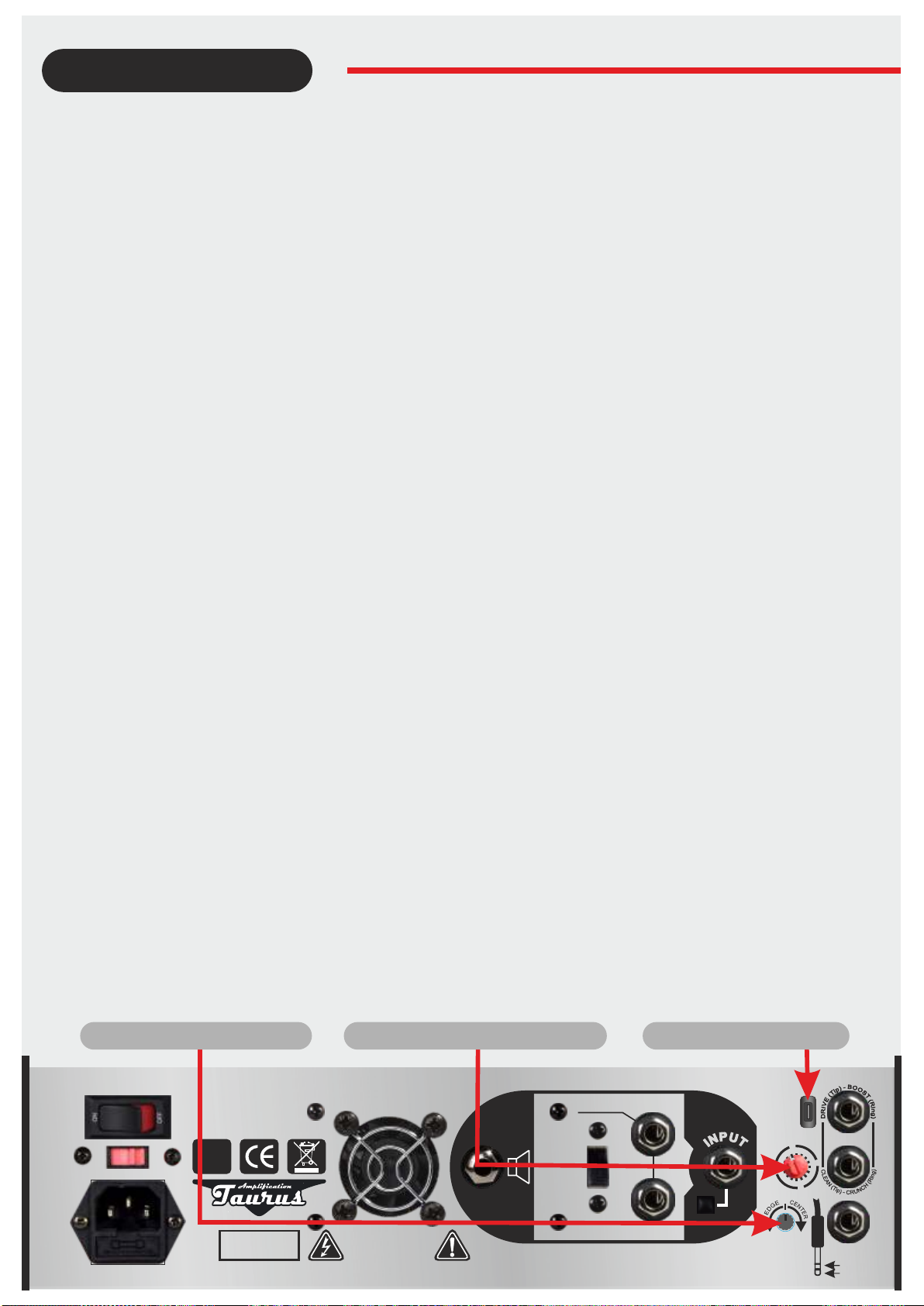

If you want to record your guitar or use the amplifier as a pre-amp without a cabinet then you
have a special tool on board - an advanced loudspeaker simulator with IR louder. It is possible
to save 16 IR files of speaker simulation through the USB port.
A simulation of the microphone position is also available and provides additional possibilities of
equalizing the colour of your sound at the line output. Thanks to this solution you can get closer
to the sound conditions of a classic set of speakers with a microphone setup.You get the right
placement and sound of the instrument in the band's mix by transmitting the signal from the
line output without using the speaker. All this is done in an analog way, very simple and
intuitive, without the use other additional processors. The line output has two signals paths,
with or without simulation. This feature also allows you to connect an external loudspeaker
simulator. So you can use the built-in simulation, external simulation or both of them at once.
How to transfer IR files.
1. Download and install the IR converter on your computer.
The program allows you to convert files of various formats to the IR Sh7 format.
2. Download and install the file for editing and saving files.
The program allows you to save and transfer files to the amplifier as well as edit the sound
or create your own speaker profiles to define the sound on line output.
CAB SIM has 16 factory profiles that can be edited or loaded your own.
To load your own files, first convert them in the file converter installed on your computer as
follows:
1. Start the IR converter program
2. Click "select source IR files" and select the files to convert.
3. Click "select destination folder" and select a folder to save files in the new format
4. Make the conversion by clicking on "Start conversion".
To load the prepared pulses, connect the SH7 to the computer with the MINI-USB / USB cable
without turning on the amplifier's power.
Then the SH7 loader will be visible on computer screen as an external drive to which the
previously prepared IR files should be transferred.
The memory bank architecture is set as follows: there are four banks (0,1,2,3).
Each of them may contain four files marked on the selector (0,1,2,3).
After loading the files, turn on the amplifier. Then start to use the loaded files by choose them
with the selector located on the back panel.
Each of the files can also be edited and saved using the IR pulse editing program: AMT
Pangea CP PA. The timbre of the sound can be easily adjusted live with the MIC POSITION
knob.
Download files with software from the website: www.taurusamps.pl/sh7-download
Fuse: 2.5AFuse: 2.5A
(PA-INPUT)
SEND
RETURN
EFX
LO HI
CABINET
RESONANCE
SERIAL NO:
MADE IN
EU
CAUTION!
SPEAKERS
4-8-16ohm
Fuse: 2.5A
THIS APPARATUS
MUST BE EARTHED
Power Stage Efficiency:
200Watt
RISK OF ELECTRIC SHOCK,
DO NOT OPEN.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCTS TO RAIN OR MOISTURE
GAIN
EXT.CTRL.
CABINETS
Two mode output
DRY
SIMULATION
LINE OUT
MIC
POSITION
IR-CAB
loader
0
1
2
3
0
1
2
3
12 2
3
3
01
3
0
12
0
Pangaea CAB SIM
designed by
AMT
MICROPHONE POSITION USB for files transfer16-position CAB SIM selector

SERVO
SERVO plays the role of some kind of "soul post" of the amplifier and
enriches the sound in a magical way. Servo perfectly complements
cleansounds,especiallymakingthesoundof singlecoilpickupsmuch
richer.
It makes the sound very vivid and saturated and gives the feeling of
playing on much higher quality instrument. The SERVO saturates the
sound of the instrument by adding the qualities which make playing
moreenjoyableand,moreimportantly,moreinspiring.Additionally,the
guitarsoundisverywellsetintheband'soverallmix.
The SERVO complements the features playing and gigging guitarists
needthemosttoachievefullcomfort.
The unit generates harmonics which significantly enrich the sound of
the instrument and greatly complements the sound. Suddenly,
guitaristswilldiscovertoneswhichwereabsentintheirsound,andnow
begintoflowfreely,becomingsofriendlyandinspirational.
NOISE GATE
SERVO
GAIN
54
3
2
1
6
7
8
200Watt
Power Stage Efficiency
POWER RANGE
SELECTOR
12W
40W
20W
90W
reaching a very deep, fat, distorted
sound is needed.
This function is very useful when
Gradually increases sound
saturation.
If the knob is set on
minimum then the
SERVO is not active.

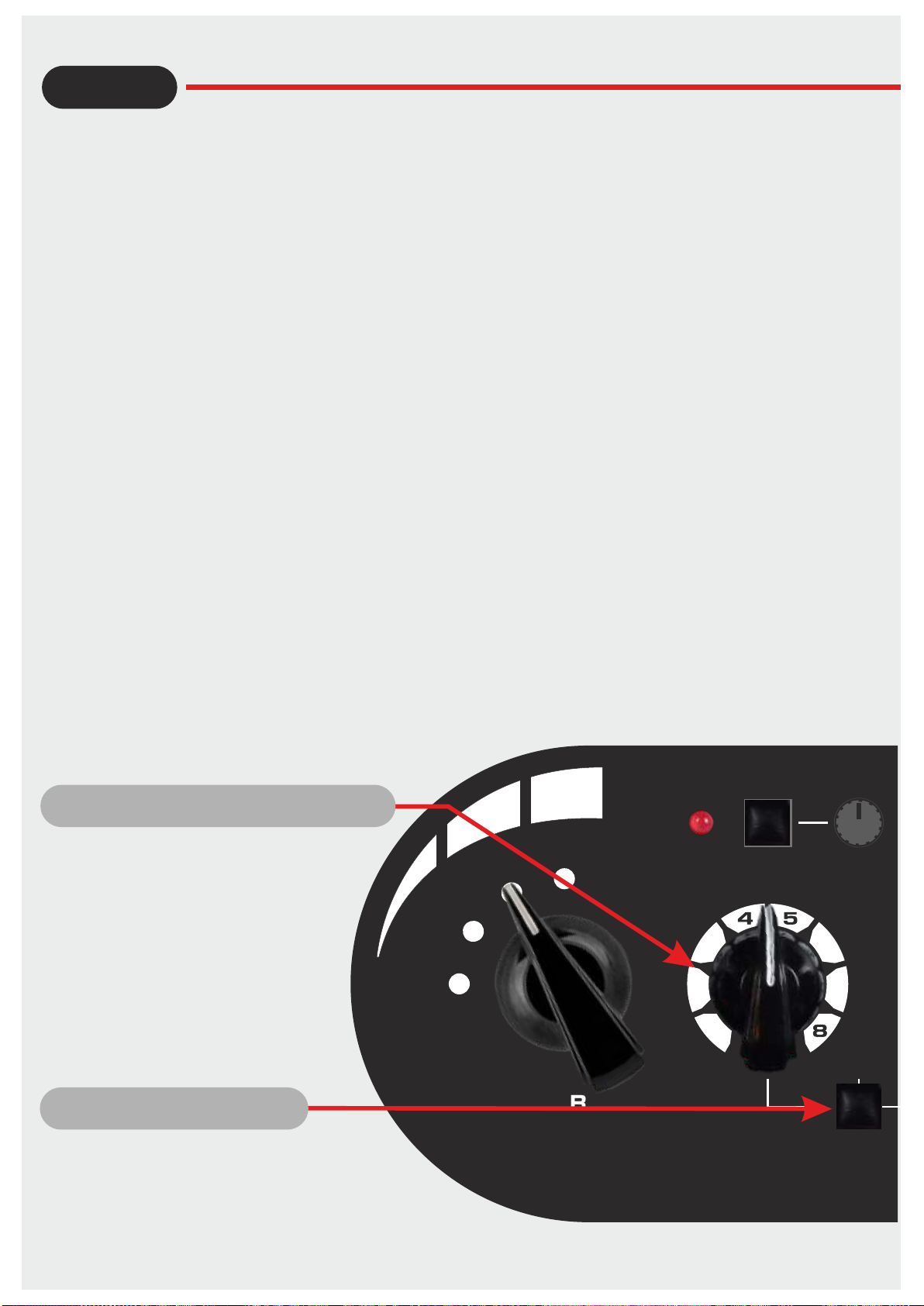

SERVO GAIN ADJUSTMENT
SERVO GAIN BOOST

TONE CONTROLS
NOISE GATE
RESONANCE
Each channel is equipped with a standard 4-point equalizer: BASS, MIDDLE,
TREBLE and PRESENCE. The MID-RANGE switch sweeps the frequency of the
MIDDLE potentiometer. This option is very useful in the proper setting of the guitar's
sound in an overall band's mix depending on the style of music played and type of
guitar used.Additionally, the highest frequency range of the guitar can be altered by
theBRIGHT/DARKswitch.
NOISE GATE is a very useful in conditions when you have to take care of minimize
interference that often occurs on the stage and are picked up by sensitive guitar
pickups.
The resonance switch increases the sound in the resonance range of the
loudspeaker. This function is available only when a cabinet is connected to the
amplifier. The level of resonance gained depends on the speaker cabinet's
properties,size,impedanceandtypeofspeaker.
BASS TREBLE PRESENCE VOLUMEMIDDLE
RANGE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
CRUNCH
NOISE GATE
REVERBSERVO
54
3
2
1
6
7
8
HI-GAIN
54
3
2
1
6
7
8
54
3
2
1
6
7
8
GAIN
54
3
2
1
6
7
8
CRUNCH
200Watt
Power Stage Efficiency
POWER RANGE
SELECTOR
12W
40W
20W
90W
NOISE GATE ON/OFF
OPERATION LED INDICATOR
LEVEL ADJUSTMENT
(This LED lit if signal is gated)
Fuse: 2.5AFuse: 2.5A
(PA-INPUT)
SEND
RETURN
EFX
LO HI
CABINET
RESONANCE
SERIAL NO:
MADE IN
EU
CAUTION!
SPEAKERS
4-8-16ohm
Fuse: 2.5A
THIS APPARATUS
MUST BE EARTHED
Power Stage Efficiency:
200Watt
RISK OF ELECTRIC SHOCK,
DO NOT OPEN.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCTS TO RAIN OR MOISTURE
GAIN
EXT.CTRL.
CABINETS
Two mode output
DRY
SIMULATION
LINE OUT
MIC
POSITION
IR-CAB
loader
0
1
2
3
0
1
2
3
12 2
3
3
01
3
0
12
0
Pangaea CAB SIM
designed by
AMT
CABINET RESONANCE

BOOST MODE
TUBES
POWER SELECTOR
The BOOST MODE allows for instant
increase of volume level during a
performance. The potentiometer and a
foot-switch BOOST are designed to control
the BOOST MODE. The BOOST function
performs two features at the same time: it
boosts a signal at the input of the preamp,
giving extra compression and raising the
volume. Desired volume level may be
adjusted by tweaking the potentiometer. By
thenpressingthe BOOSTswitchlocatedon
the top of the amp, two different volume
levels previously set will be obtained. The
BOOST MODE is quite beneficial as it
heightens the guitar solo during a live
performances.
The amplifier automatically adjusts its
operating parameters and can serve
4, 8 and 16 Ohm cabinets.
The amp can also be used without a
speaker cabinet. If so, the power amp is
automatically locked (LINE OUT is active only).
The amplifier is equipped with a 4-way power
output selector. It allows you to use speaker
cabinets of any size, power and impedance.
The following power options are available:
12W, 20W, 40W and 90Wat.
Optimal operating parameters of tubes 12AX7 are set during amp's manufacturing
process.Thecharacteristicsofeachtubeintheamplifieris individuallytunedatMTD
system (Master Tube Design), to achieve the best performance possible. It is not
recommended to replace the tubes. Replacing working tubes with some other brand
will not improve the sound. The 12Ax7 are already tuned to perform at maximum
capability. Only broken tubes should be replaced.The tubes in MTD technology
works in perfectly designed environment which allows them to have very long life
span.Ifnotmechanicallydamagedthereisnoreasontochangethemforyears
NOISE GATE
SERVO
GAIN
54
3
2
1
6
7
8
200Watt
Power Stage Efficiency
POWER RANGE
SELECTOR
12W
40W
20W
90W
VOLUME
54
3
2
1
6
7
8
VOLUME
54
3
2
1
6
7
8
54
3
2
1
6
7
8
MUTE
MASTER TUBE
DESIGN

Power stage efficiency: 200Watt
Power output selector: 90W, 40W, 20W, 12W
Speakers impedance auto detection: 4,8 and 16ohm
Tubes: 12AX72
Channels: CLEAN+CRUNCH and LEAD
Footswitches: CLEAN, CRUNCH, DRIVE, REVERB, BOOST
CHANNEL controls (CLEAN & LEAD):
GAIN, BASS, MIDDLE, MID-RANGE switch, TREBLE, PRESENCE,
VOLUME
MASTER controls:
SERVO – analog enhancer level with SERVO GAIN switch
BOOST - access to set two different volume levels
REVERB
NOISE GATE
INPUT GAIN boost (switch +6dB)
MUTE
RESONANCE – switch increasing the sound in the resonance range of the
loudspeaker
Serial EFFECT LOOP
LINE OUTPUT with Speaker Simulation. Allows send linear signal with
simulation (PIN) or without simulation (RING) or both simultaneously
EXTERNAL CONTROLLER INPUT for channel selector and BOOST
Voltage selector 230V/50Hz or 115V/60Hz
Dimensions: (H x W x D) 90 x 330 x 205 mm
Weight: 2,65kg
Specifications
Made in Poland

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European
countries with separate collection programs)
This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste
whenyouwishtodisposeofit.Instead,itshouldbehandedovertoanapplicablecollectionpointfortherecyclingofelectrical and
electronicequipment.Byensuring this productisdisposed of correctly,youwill help prevent potentialnegativeconsequences to
the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of
materialswillhelptoconservenaturalresources.Formoredetailedinformationabouttherecyclingofthisproduct,pleasecontact
yourlocalcityoffice,householdwastedisposalserviceortheretailstorewhereyoupurchasedthisproduct.
Precautions
RoHS
Amplifier produces high volume levels. Staying in places of high volume
levels could cause permanent hearing loss.
Do not use the amplifier in humid and dusty places.
Do not operate the amplifier through the unearthed socket.
Do not leave the amplifier in the vicinity of children.
Do not use the amplifier with broken power outlet or improper power cord.
Do not install nor use the amplifier near any heat sources, in case of
overheating the amplifier turns off
Do not cover the vent holes!
In order to ensure proper air circulation, do not block any of the ventilation
openings.
Never put any liquid containers near the amplifier.
In case of any objects or liquid access inside the amplifier, urgently switch the
apparatus off and unplug the power supply cord.
Protect the amplifier from any strikes.
ATTENTION: To reduce the risk of electrical shock, do not remove the back
cover of the amplifier. Inside parts can be repaired only by qualified service
personnel.
WARNING: To prevent the risk of electrical shock do not expose this
appliance to moisture, rain or any liquid.
and will return to work after cooling the unit.
Box Electronics ul. Leśna 15 , 81-876 Sopot, Poland
e-mail [email protected] / www.taurusamps.pl
