Fryette DELIUERANCE II Series User manual

VACUUM TUBE GUITAR AMPLIFIER
MODEL D60/D120 SERIES II
OWNERS MANUAL

WELCOME TO THE FAMILY
Congratulations on your new purchase and welcome to the family!
At Fryette Amplification, we know you are constantly searching for new sounds and new ways to improve your
existing sound. We understand the constantly evolving nature of artistic creativity and the search for the perfect
sound to complement your ever-widening musical vision. Providing the tools to help you to create your own
sonic signature is our primary mission.
As with all Fryette amplifiers, the Deliverance Series II amps beautifully accentuate the inherent qualities of any
instrument. It breathes and dynamically responds to your playing technique exactly the way a great guitar amp
should. And as stomp boxes have gained more widespread appeal, you will find Deliverance amps to be pedal
friendly and ultra-responsive to the many colors pedal effects produce.
The Deliverance preamp section has a broad dynamic range, which accounts for its extra touch-sensitivity and
excellent guitar volume response. In addition, clean and overdriven voicings can easily be dialed up using the
unique GAIN I / GAIN II structure, tone controls, presence and depth. From there, just a little tweaking on your
guitar volume and tone controls will yield a surprising amount of control.
The Deliverance power amp section is designed for big round tone and dynamic response at low to medium
guitar volumes and a rapid but smooth transition into saturation, turning rich and thick at full guitar volume. This
combination of preamp voicing and power amp response enhances the unique character of any guitar and
pick-up type.
The Deliverance Series II amps now feature a foot-switchable Solo Master and assignable More Mode and
Bright Mode switches for even more flexibility on the fly. And the new effect loop is the most quiet, transparent
loop available anywhere.
Getting familiar with the Deliverance amplifier is easy, so don’t be terribly surprised when you find yourself up
and running in no time. First-hand experience and real-world application will yield the ultimate satisfaction of
finding your own path of comprehension and self-expression.

IMPORTANT SAFETY INSTRUCTIONS
This symbol warns the user of dangerous voltage levels localized within the enclosure.
This symbol advises the user to read all accompanying literature for safe operation of the Unit.
Read, retain, and follow all instructions. Heed all warnings.
Only connect the power supply cord to an earth grounded AC receptacle in accordance with the
voltage and frequency ratings listed under the AC input on the rear panel of this product.
WARNING: To prevent damage, fire or shock hazard, do not expose this unit to rain or moisture.
Unplug the power supply cord before cleaning the unit exterior (use a damp cloth only). Wait
until the unit is completely dry before reconnecting it to power.
Maintain at least 6 inches (15.25 cm) of unobstructed air space behind the unit to allow for
proper ventilation and cooling of the unit.
This product should be located away from heat sources such as radiators, heat registers, or
other products that produce heat.
This product may be equipped with a polarized plug (one blade wider than the other). This is a
safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace
your obsolete outlet. Do not defeat the safety purpose of this plug.
Protect the power supply cord from being pinched or abraded.
The power supply cord of this product should be unplugged from the outlet when left unused for
a long period of time, or during electrical storms.
This product should be serviced by qualified service personnel when: the power supply cord or
the plug has been damaged; or objects have fallen, or liquid has been spilled onto the product;
or the product has been exposed to rain; or the product does not appear to operate normally or
exhibits a marked change in performance; or the product has been dropped, or the enclosure
damaged.
Do not drip nor splash liquids, nor place liquid filled containers on the unit.
CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only.
FRYETTE® amplifiers and loudspeaker systems are capable of producing very high sound
pressure levels which may cause temporary or permanent hearing damage. Use care when
setting and adjusting volume levels during use.
Hazardous voltages may be present within the chassis even with the power switch off and power
cord connected. Therefore, disconnect the power cord from the rear panel power inlet before
servicing. The power inlet must remain readily operable.

IT ALL STARTS HERE
The Input Sensitivity of an amplifier, commonly referred to as GAIN, determines how much overdrive and
sustain your guitar will produce. Tonal balance, which we refer to as VOICING determines how the amp will
respond to your playing style and sound with a particular guitar. Like all amplifiers, the Deliverance has tone
and gain controls, but unlike any other amplifier the D60 and D120 amps give you total control over VOICING
and GAIN. This GAIN I / GAIN II / MASTER VOLUME configuration is the key to dialing in the Deliverance
sound and volume to your specific requirements.
GAIN I increases the gain amount as you rotate the knob clockwise. As the gain increases, the tonal balance is
shifted from a treble and upper mid emphasis, which produces an up-front sparkling tone, to a lower mid and
bass emphasis, which produces a thick meaty tone.
GAIN II increases the gain amount as you rotate the knob clockwise but with no alteration of the tonal balance.
Different combinations of GAIN I and GAIN II settings, will have a dramatic effect on the response of the
amplifier and the personality of your instrument. It is easy to get familiar with the action of these controls and
you’ll be amazed with your ability to make any guitar sound mellow, fat, soulful or aggressive.
The MORE / LESS switch activates or defeats a tube gain stage. The interesting and often overlooked benefit
of this switch is that you can use it in conjunction with the gain controls to tailor your tone as well as distortion
amount. For example, set GAIN I, GAIN II, MORE/LESS and MASTER VOLUME as shown in the photo above

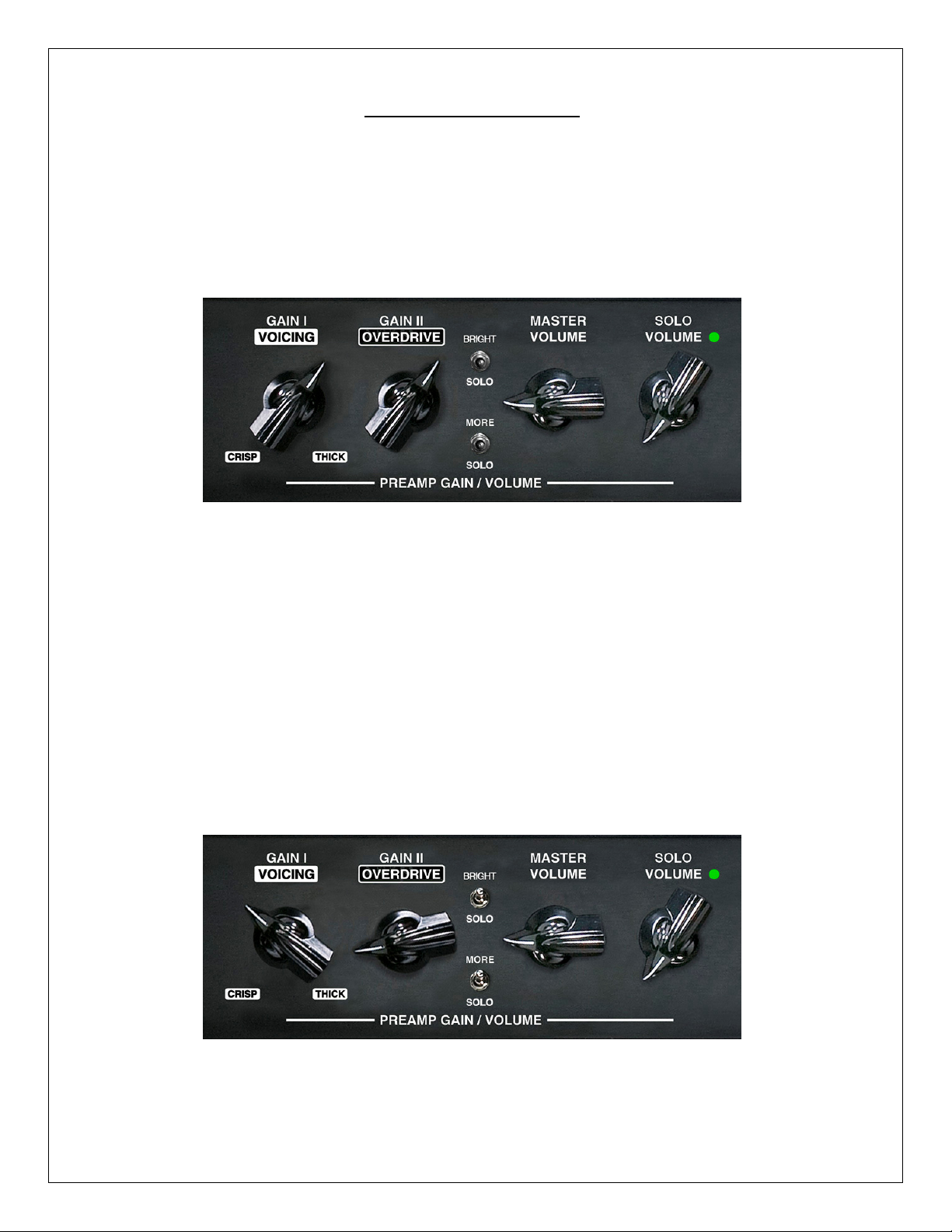

and play for a few minutes. Now set these controls as shown in the photo below. Notice that the overall amount
of overdrive is approximately the same as it was but the tonal balance has shifted markedly from full and warm
to crisp and spanking.
As you will see, by experimenting with combinations of settings you can cover an awful lot of tonal territory
before you even begin to start thinking about tone control settings.

DELIVERANCE D60/120 FUNCTIONS

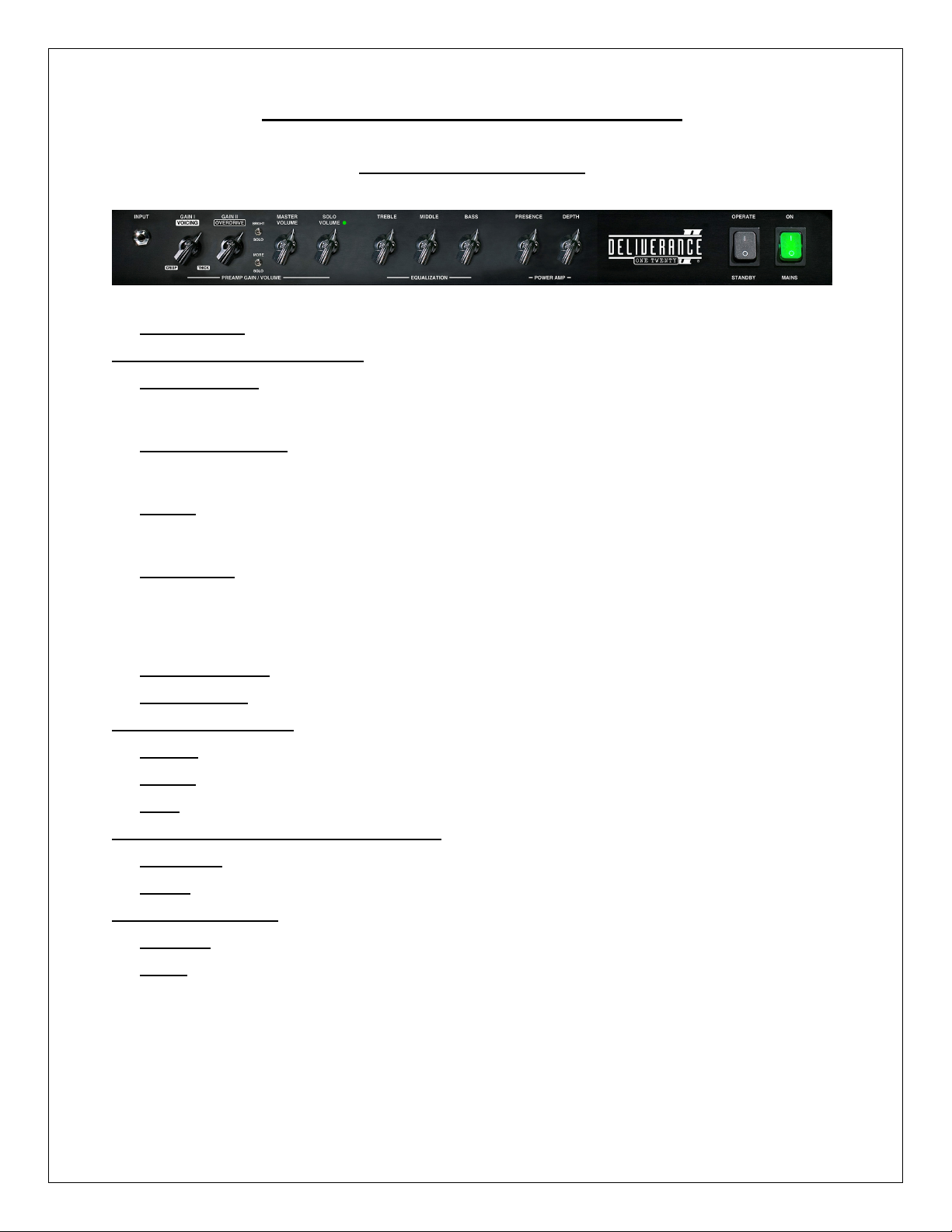

FRONT PANEL, LEFT TO RIGHT
1. GUITAR INPUT – Plug in your guitar or stompbox here.
PREAMP GAIN / VOLUME SECTION
2. GAIN I / VOICING – Sets the amount of overdrive in the second gain stage. This first gain control also
serves as a tone shaping control, counterclockwise for crisp and articulate, clockwise for thick and
saturated.
3. GAIN II / OVERDRIVE – Full frequency gain boost or cut. Sets the amount of overdrive in the third gain
stage. Works in conjunction with Gain I to dial in the perfect overdrive/sustain amount for your guitar and
pick-up combination.
4. BRIGHT – Selects between the normal balanced Deliverance voicing and a more aggressive top end
flavor that can be switched on manually in the up position or assigned to the Solo Master in the down
position.
5. MORE / LESS –This switch selects three stages or four stages of tube preamp gain depending on the
amount of overdrive required. LESS = 3 stages, MORE = 4 stages. When using stomp boxes or active
pick-ups, four stages of gain are often unnecessary and generate undesirable levels of background noise,
so the ability to defeat the additional stage is a real plus. More mode can be switched on manually in the
up position, or assigned to the Solo Master in the down position.
6. MASTER VOLUME - Power amp volume – loudness - control.
7. SOLO MASTER – The second Master Volume is only activated by using the rear panel Remote jack.
EQUALIZATION SECTION – Passive / Interactive tone controls.
8. TREBLE – Passive High frequency equalization.
9. MIDDLE – Passive Mid frequency equalization.
10. BASS – Passive low frequency equalization.
POWER AMP RESPONSE CONTROL SECTION
11. PRESENCE – High frequency variable feedback in power amp section.
12. DEPTH - Variable damping. Controls low frequency interaction between amplifier and speakers.
AC POWER / STANDBY
13. STANDBY - Turns on high voltage to output section.
14. MAINS – Switches main AC power on or off.

DELIVERANCE D60/120 FUNCTIONS
REAR PANEL, LEFT TO RIGHT
1. AC MAINS INPUT – Connect to a grounded outlet in accordance with the voltage and frequency
specified on the rear panel of your amplifier.
Use only the factory supplied cord set or a UL approved equivalent type.
2. MAINS FUSE – Protects the amplifier from electrical faults. Replace only with type and rating specified
on the rear panel of your amplifier.
3. DC FUSE – Protects the power supply and output transformer from electrical faults. Replace only with
type and rating specified on the rear panel of your amplifier.
Warning! Replace only with same fuse type and rating.
4. 16 OHM SPEAKER OUTPUT – Use this jack when using a single 16 Ohm cab.
5. IMPEDANCE SELECT – 4 or 8 Ohms. Example: Two 8 Ohm cabs = 4 Ohms, two 16 Ohm cabs = 8
Ohms.
6. SPEAKER OUTPUT – Parallel wired jacks. Impedance switch setting should equal total of all cabinet
impedances plugged into both jacks. “Use First” jack must be plugged in for output to operate.
7. FOOTSWITCH JACK – Footswitch TRS jack for remotely engaging the SOLO MASTER (tip) and
EFFECTS LOOP (ring). You can use any standard 2-function TRS latching footswitch or remote switching
device. Shielded or non-shielded cable is suitable for this application. (Footswitch sold separately.)
8. EFFECTS LOOP SWITCH – Engages the Effects loop. This switch can also be remotely engaged with a
footswitch.
9. RETURN JACK – Also serves as a power amp input.
10. LEVEL SWITCH – Sets overall send and return level for Effects Loop, (LOW = -10 dB, HI = 0 dB).
11. SEND JACK – Send level is set by preamp volumes. Also serves as a preamp output for recording and
slaving.

TROUBLESHOOTING GUIDE
WON’T TURN ON
1. Make sure AC cord is securely connected at
both ends.
2. Verify the power source with something you
know works.
3. Check the mains fuse and replace if
necessary. If it blows again, refer to qualified
service personnel.
NO SOUND
1. Check input cable.
2. Check volume controls.
3. Make sure the selected channel volume
and/or gain controls are turned up.
4. Check to see if the effects loop is engaged.
5. Check speaker cable to see if it is
disconnected or shorted.
6. Make sure that the impedance selector is set
properly.
7. Check the standby switch.
8. Check for a blown speaker.
9. Look at the preamp tubes to see if they are
lighting up.
RUNNING HOT
1. Make sure that the unit has adequate
ventilation.
2. Make sure that the impedance selector is set
to the proper impedance.
3. Power tubes may be drawing excessive
current
(refer to qualified service personnel).
NOTE:
Always set the amplifier to standby when taking
breaks and turn the amplifier off when not in
use. This will extend tube life and improve long
term reliability.
DISTORTION
1. Check the impedance setting.
2. Check the speaker cable for shorts.
3. Check the speaker.
4. Check the signal level at other devices in the
signal path or in the loop.
5. Power tubes may be weak (refer to qualified
service personnel).
BLOWING MAINS FUSE
1. Bad power tube or other internal power
supply component (refer to qualified service
personnel).
BLOWING DC FUSE
1. Replace power tubes.
2. Possible internal power supply component
(refer to qualified service personnel).
SPECIFICATIONS
MODEL: DELIVERANCE ONE TWENTY
MODEL NUMBER: D120H.
POWER REQUIREMENT: 350W
POWER AMP OUTPUT:
High Power: 100W RMS @ 5% THD, 1kHz sine
into 8Ω
INPUT IMPEDANCE: 1Megohm
OUTPUT IMPEDANCE: 4Ω/ 8Ω(selectable),
16Ω(fixed)
FUSE: 100V UNITS: MAINS T5A, 250V.
120V UNITS: T4A, 250V.
220V-240V UNITS: T2A, 250V.
FUSE DC: F1A
DIMENSIONS:
HEIGHT: 10.5 in (27 cm)
WIDTH: 29.50 in (75 cm)
DEPTH: 9.500 in (24 cm)
WEIGHT: 46 lb (23 kg)
SPECIFICATIONS
MODEL: DELIVERANCE SIXTY
MODEL NUMBER: D160H.
POWER REQUIREMENT: 200W
POWER AMP OUTPUT:
High Power: 60W RMS @ 5% THD, 1kHz sine
into 8Ω
INPUT IMPEDANCE: 1Megohm
OUTPUT IMPEDANCE: 4Ω/ 8Ω(selectable),
16Ω(fixed)
FUSE: 100V UNITS: MAINS T2.5A, 250V.
120V UNITS: T4A, 250V.
220V-240V UNITS: T2A, 250V.
FUSE DC: F1A
DIMENSIONS:
HEIGHT: 10.5 in (27 cm)
WIDTH: 29.50 in (75 cm)
DEPTH: 9.500 in (24 cm)
WEIGHT: 40 lb (18 kg)

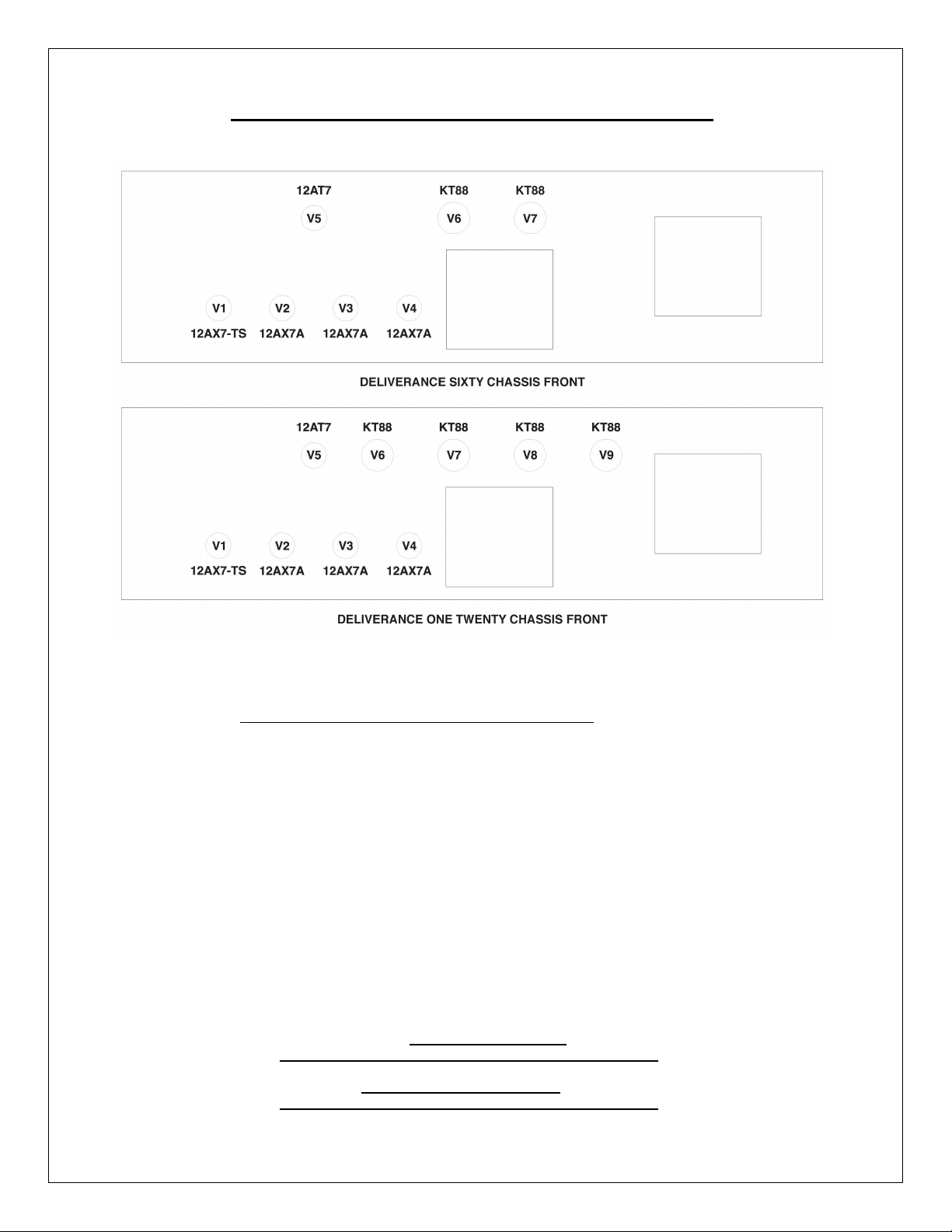

TUBE FUNCTION AND LOCATION CHART
Preamp tube locations are indicated by tube type on the rear panel of the chassis. Tube types are factory selected for
superior performance, consistent tone quality and reliability. While substituting other brands may not cause damage to the
amplifier this may affect amplifier performance in unpredictable ways. For best performance, replace only with factory
recommended tubes. Warning! Substituting other tube types is not recommended.
Each preamp tube has two sections/functions. Section A is shown first, Section B is second. Factory recommended tubes
are listed under each location. Numbering sequence is right to left looking at back of amp starting with the row closest to
front panel of amp.
V1 (shielded tube) Input Gain Stage 1 (Parallel Triodes).
12AX7A Tung-Sol
12AX7WB Sovtek Use in place of Tung-Sol for smoother top end and less upper mids.
12AX7 China Selected Use in place of WB if more gain is required.
V2 (shielded tube) Gain Stage 2.
12AX7A/7025 China Gain Stage 4. Active only when MORE / LESS switch is set to MORE.
V3 (shielded tube) Gain Stage 3.
12AX7A/7025 China Tone Control Driver.
V4 Master Volume buffer and post EQ gain stage.
12AX7A/7025 China
V5 Phase Inverter buffer. MUST USE ONLY 12AT7.
12AT7 China NOT INTERCHANGEABLE WITH ANY OTHER TUBE TYPES!
V6 – V9 (D120) Power Tubes MUST USE ONLY KT88 or 6550.
V6 – V7 (D60) NOT INTERCHANGEABLE WITH ANY OTHER TUBE TYPES!
KT88/6550 Sovtek
KT88 EH

Certificate of Compliance
Restriction of the use of Hazardous Substances (RoHS)
We certify that all of our products (exceptions see listed below) are compliant with the European Union
Directive 2002/95/EC for the Restriction of the use of certain Hazardous Substances in Electrical and
Electronic Equipment (RoHS).
No Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent Chromium (Cr+6), PBB or PBDE is
intentionally added to these devices. Any trace impurities of these substances contained in the parts are
below the RoHS specified threshold levels.
All information provided in this Certificate of Compliance is accurate to the best of our knowledge as of
the date this Certification was issued.
Certificate of Compliance
Registration, Evaluation, Authorization and Restriction of chemicals (REACh)
We declare that all of our products are compliant with European Union Directive EC1907/206 for the
Registration, Evaluation, Authorization and Restriction of chemicals (REACh), and contain none or less
than 0.1% of the chemicals listed as hazardous chemicals in the REACh regulation. All information
provided in this Certificate of Compliance is accurate to the best of our knowledge as of the date this
Certification was issued.
Declaration of Conformity
EMC and Low Voltage Directive (CE)
Product Name: Deliverance Sixty/Deliverance One Twenty
Model Number: D60H/D120H
This is to certify that the product listed above complies with the following European Union Council Directives
and Standards relating to electromagnetic compatibility (EMC Directive 89/336/EEC) and the low voltage
Directive (73/23/EEC).
This declaration of conformity of the European Communities is the result of an examination carried out by
Electromagnetic Engineering Services, Inc. in accordance with European Standards EN 50081-1, EN 50082-1
and EN 60065 for low voltage, as laid down in Article 10 of the EMC Directive.
Steven Fryette Design, Inc
6850 Vineland Ave. Unit P
North Hollywood, CA 91605 USA

LIMITED WARRANTY
Subject to the obligations and exclusions found below this product is warranted by Steven Fryette Design Inc. (herein SFD)
against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of purchase with
the exception of the tubes fuses and speakers where applicable which carry a 90 day warranty.
The warranty period commences on the date of purchase by the original user. Performance under this warranty must be
obtained at one of the following: an SFD Authorized Service Station by returning the unit to the SFD factory with prior written
authorization or (in countries outside of the United States) by a representative SFD distributor.
Obligations
ObligationsObligations
Obligations
1. This warranty will be honored only on the presentation of the original proof of purchase.
2. Transportation of the product to and from an authorized SFD service outlet is the responsibility of the user. Units
sent directly to the SFD factory for warranty repairs must be authorized by SFD and shipped prepaid.
Exclusions
ExclusionsExclusions
Exclusions
1. This warranty shall not cover adjustment of consumer-operated controls as explained in the appropriate instruction
manual or products that have been altered or have missing or defaced serial numbers.
2. This warranty shall not apply to the appearance of accessory items including but not limited to cabinets cabinet
parts or knobs.
3. This warranty does not apply to uncrating setup installation or the removal and reinstallation of products for
repair.
4. This warranty shall not apply to repair or replacements necessitated by any cause beyond the control of SFD
including but not limited to any malfunction defects or failure caused by or resulting from unauthorized service or
parts damaged or broken tubes incorrect line voltage improper maintenance modification or repair by the user
abuse misuse neglect accident fire flood or other Acts of God.
5. Responsibility for the repair of any SFD product sold outside of U.S. boundaries is borne by the SFD representative in
that particular country or territory. Also the warranty term and conditions may be different from those stated above.
Please contact the SFD distributor or dealer in your country for more information.
The foregoing is in lieu of all other expressed warranties and SFD does not authorize any party to assume for it any other
obligation or liability. In no event shall SFD be liable for special or consequential damages arising from the use of this product
or for any delay in the performance of this warranty due to causes beyond our control. Some states do not allow limitations on
how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential damages so the above
limitations on implied warranty and consequential damages may not apply to you. This warranty gives you specific legal rights.
You may have other rights that vary from state to state.
WARRANTY REGISTRATION
WARRANTY REGISTRATIONWARRANTY REGISTRATION
WARRANTY REGISTRATION
U.S. and Canadian residents
U.S. and Canadian residentsU.S. and Canadian residents
U.S. and Canadian residents: Your warranty is validated using the original purchas
: Your warranty is validated using the original purchas: Your warranty is validated using the original purchas
: Your warranty is validated using the original purchaser
erer
er’
’’
’s proof of purchase
s proof of purchase s proof of purchase
s proof of purchase receipt
receiptreceipt
receipt. All other
. All other . All other
. All other
international residents please contact the authorized distributor your Fryette product was purchased from. For a list of
international residents please contact the authorized distributor your Fryette product was purchased from. For a list of international residents please contact the authorized distributor your Fryette product was purchased from. For a list of
international residents please contact the authorized distributor your Fryette product was purchased from. For a list of
international distributors please visit
international distributors please visit international distributors please visit
international distributors please visit ww
wwww
www.fryette.com/dealers.html
w.fryette.com/dealers.htmlw.fryette.com/dealers.html
w.fryette.com/dealers.html
STEVEN FRYETTE DESIGN INC.
6850 VINELAND AVE. UNIT P
NORTH HOLLYWOOD CA 91605
TEL [phone] FAX [phone] www.fryette.com
Copyright 2020 Steven Fryette Design Inc.
