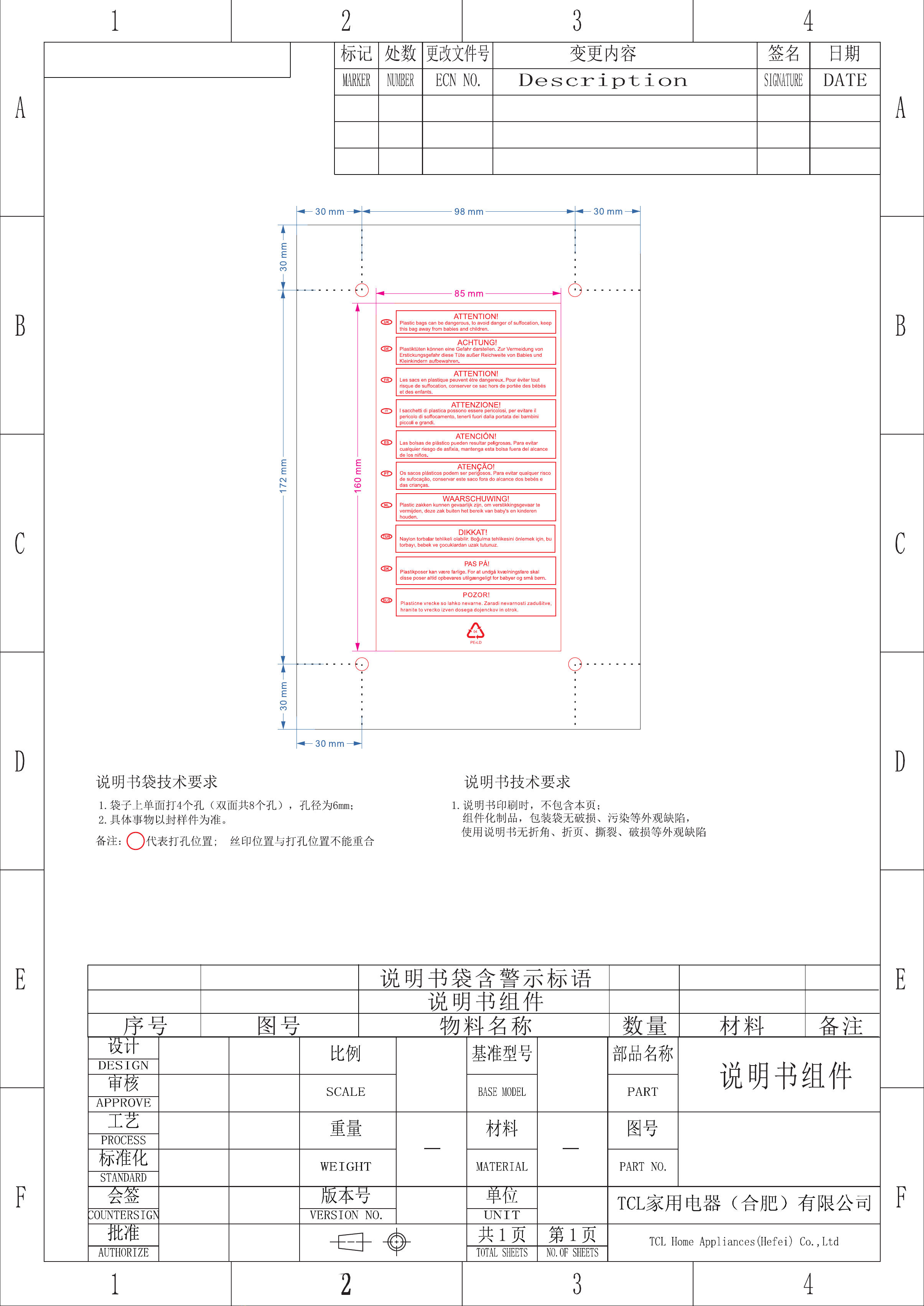

TCL FC060BW2510GR User manual

1:1
mm
1
1PE
8C104-000546
2107100005AB
1
2A.1
A.1
朱爽
丁苏星
王峰
余孟兰
车加彬
周丑国
2020/04/09
2020/04/09
2020/04/09
2020/04/09
2020/04/09
2020/04/09
A.1
FC060BW2510GR
3.使用说明书必须满足QB.T0025《产品说明书及其它类似印刷件技术规范》要求；
4.制品必须符合QB.T0001《家用电器有害物质技术要求》有关规定。
；
2.
双胶纸
8C104-000546
8C104-000546

nBefore using your washing machine,please read
this manual carefully and keep it for future
reference.
nThis manual shall also be available by sending
E-mail to client.
nThe drawings in this manual are for instruction
only.it may be vary from the model you buy
WASHING MACHINE
OWNER’S MANUAL
TCL Home Appliances(HeFei)Co.,Ltd.

Contents
Products Specification ......................................................................1
Safety Precaution ..............................................................................3
Important Hints...................................................................................5
Overview of Washing Machine .........................................................6
Install Washing Machine ...................................................................7
Operate Washing Machine................................................................10
Maintenance .......................................................................................15
Troubleshooting .................................................................................17
Appendix .............................................................................................19
Products Fiche ...................................................................................21
PRODUCT REGISTRATION
Thank you for purchasing our TCL product.
This easy-to-use manual will guide you in
getting the best use of your washer. lnside you
will find many helpful hints on how to use and
maintain your washing machine properly.
You’ll find many answers to common problems
in the chart of troubleshooting tips.
Remember to record the model and serial
numbers. They are on the back of the unit.
Model number
Serial number
Date of purchase

FC060BW2510GR FC070BW4210GR
FC080BW4220GR
1900W
595*520*850
FC080BS4220GR
Products Specification
NOTE:
All the pictures in the manual are used for schematic only.
It may be different from the machine you buy.
Parameter /
Capacity
Universal Motor Series
Model
Voltage
Rated Power
Water Pressure
Outer
Dimension
(W*D*H)mm
Parameter
/ Capacity Inverter Motor Series
Model
Voltage
Rated Power
Water Pressure
Outer
Dimension
(W*D*H)mm

FC090BW4620GR FC110BS4620GR
Inverter Motor Series
FC090BS4620GR
NOTE:
All the pictures in the manual are used for schematic only.
It may be different from the machine you buy.
Products Specification
Parameter /
Capacity
Model
Voltage
Rated Power
Water Pressure
Outer
Dimension
(W*D*H)mm

Safety Precaution
WARNING
To reduce the risk of fire,electric shock,or injury to persons when
using your appliance,follow basic precautions,including the following
ŸIf the power cord is damaged,it must be replaced by the manufacturer, service agent
or similarly qualified persons in order to avoid the hazard.
ŸThe new hose-sets supplied with the washer are to be used and that old hose-sets
should not be reused.
ŸThis appliance is not intended for use by persons(including children)with reduced
physical,sensory or mental capabilities,or lack of experience and knowledge,unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.Children should be supervised to ensure that they
do not play with the appliance.(This warning is not for European market)
ŸThis appliance can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.Children shall not play
with the appliance.Cleaning and user maintenance shall not be made by children
without supervision. (This warning is for EUROPEAN market)
ŸCarpet does not obstruct the opening for washing machine with ventillation openings
in the base.
ŸChildren of less than 3 years should be keep away unless continuously supervised.
ŸThis appliance is inteded to be used in household and similar applications such as:
-staff kitchen areas in shops,offices and other working environments;
-farm houses
-by clients in hotels,motels and other residential type environments;
-bed and breakfast type environments;
-areas for communal use in blocks of flats or launderettes.
ŸTake care that power voltage and frequency shall be identical to those of washing
machine.
ŸTo ensure your safety,power cord plug must be inserted into an earthed
socket.Check carefully and make sure that your socket is proper and earthed reliably.
ŸDo not use any socket with rated current less than that of washing machine.
ŸDo not operate your washer when parts are missed or broken.
ŸNever pull out power plug with wet hands.

Safety Precaution
ŸReplace immediately worn power cord,loose plugs/power sockets.
ŸUnplug your washer before cleaning or making any repair.
ŸPlease check whether the water inside the drum has been drained before opening
the door.Please do not open the door if there is any water visible.
ŸGlass door may be very hot duing the operation.Keep kids and pets far away from the
washer during the operation.
ŸMake sure that the water and electrical device must be connected by a qualified
technician in accordance with the manufacturer’s instruction and local safety
regulations.
ŸBefore operating this machine,all packages and transit bolts must be
removed.Otherwise,the washing machine may be seriously damaged while washing
the clothes.
ŸFlammable and explosive or toxic sovents are forbidden.Gasoline and alcohol
etc.Shall not be used as detergents.Please only select the detergents suitable for
machine washing.
ŸBe careful of scald while the washer drainning hot washing water.
ŸNever unplug your washer by pulling on the supply cord.Always grasp the plug firmly
and pull straight out from the outlet.
ŸIf your old appliance is not being used anymore,we recommend that you remove the
door and cut off the supply cord.
ŸPacking materials may be dangerous to the kids.Please keep all packing
materials(plastic bags,foams etc)far away from the kids.
ŸDo not climb up and sit on top cover of the machine.
ŸPets and kids may climb into the machine.Check the machine before every operation.
ŸDo not lean against the door of the washer.

Important Hints
ŸThe household washing machine isn't intended to be built-in.
ŸThis washing machine is for indoor using only.
ŸMake sure that all pockets are empty.Sharp and rigid items such as
coin,brooch,nail,screw or stone etc.May cause serious damages to the washer.
ŸPlease remember to disconnect water and power supply immediately after the clothes
are washed.
ŸThe washing machine shall not be installed in bath room or very wet rooms as well as
in the rooms with explosive or caustic gases.
ŸBefore washing the clothes at first time,the washing machine shall be operaed in one
round of the whole procedures without the clothes inside.
ŸDo not repair or replace any part of the washer unless you have been specifically
recommended in the user-repair instructions and you have the knowledge and skills to
make it.
ŸIt is forbidden to wash carpets and bras inset with steel wire.
ŸNever refill water by hand during washing.
ŸAfter the program is completed,please wait for two minutes to open the door.
ŸWhen handing the machine,the accumulated water shall be drained out of the machine
firstly.Handle the machine carefully.Never hold each protruded part on the machine
while lifting.Machine door can not be used as the handle during the conveyance.
ŸThe washing machine with single inlet valve only can be connected to the cold water
supply.The washing machine with double inlet valves can be connected to the hot
water and cold water supply.

Overview of Washing Machine
SAVE THESE INSTRUCTIONS
THE MACHINE IS HOUSEHOLD USE ONLY
Control Panel Assembly
Drawer Handle
Door Assembly
Leg Assembly
(4EA)
Pump Case Cover
Drain Hose Clips
Inlet Valve
(Cold)
Inlet Valve
(Hot)
* Only double inlet machine
have the hot valve
Power Cord
Drain Hose
Transit Bolt(4EA)
Back Cover
Power Plug

Install Washing Machine
We recommend that your new washer should to installed by a qualified appliance technician.If
you feel that you have the skills to install the washer,please read the installation instructions
carefully before installing.
■ Tools needed
You may need to have the following tools to help you in the installation of your washer:
• Scissors • Pliers
• Gloves • Spanner
• Standard Screwdriver

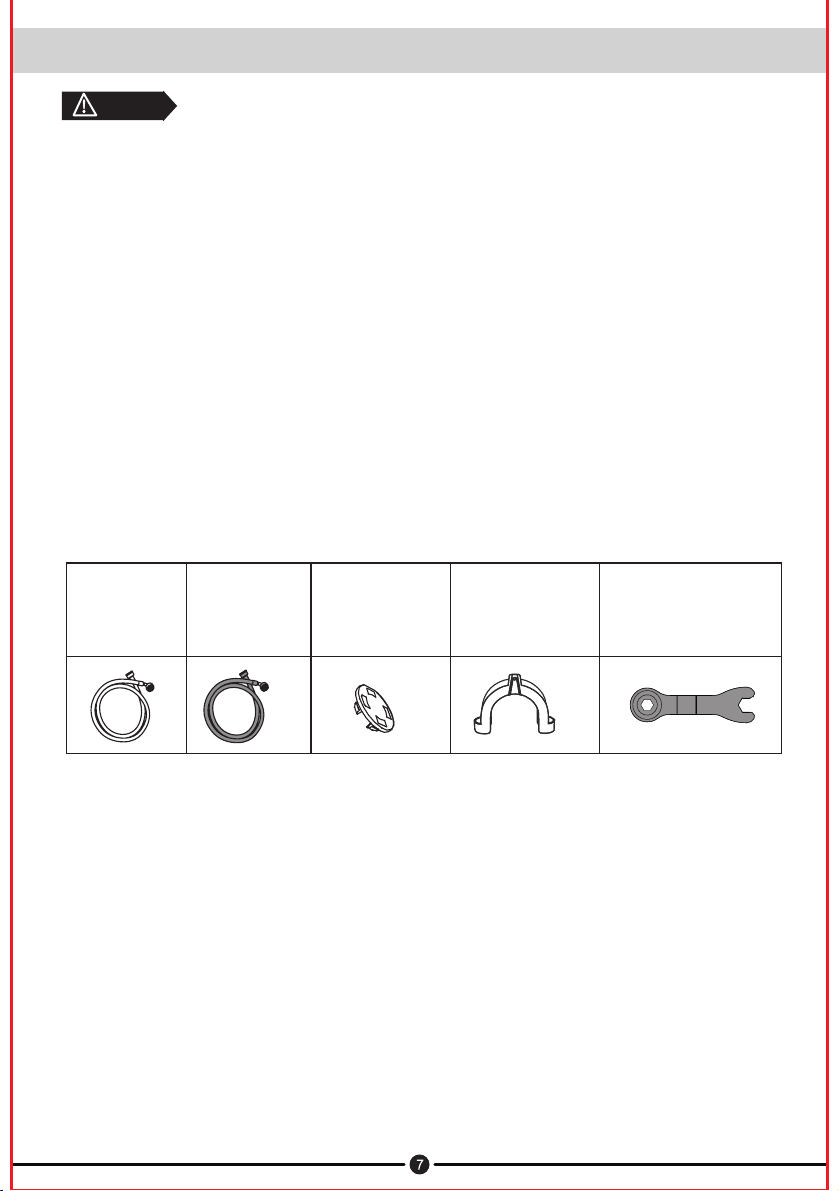

■ Unpacking the washing machine
Unpacking your washing machine and check if is there any damage during the
transportation.Also make sure that all the the items(as shown below) in the attached bag are
received. If there is any damage to the washing machine during the transportation,or any item
is missing or damaged,please contact the local dealer immediately. If your washing machine is
not double inlet, you do not have the hot inlet hose.
Inlet Hose
(Connect to
cold water
supply)
Hot Inlet Hose
(Connect to Hot
water supply)
Hole Cover (4EA)
(Used to plug
transit bolt holes)
Drain Hose Support
Bracket
(Used to loop the
end of drain hose)
Spanner
(1.Used to adjust the bottom of
the machine,
2.Remove the transport bolt on
the back of the machine)
*lf washing machine is not double inlet, the machine does not have the hot inlet hose.
■ Select the location
Before installing the washer,the location characterized as follows shall be
selected:
-Rigid,dry,and level surface(if not level,please make it level with reference to the
following figure’Adjustable Leg’).
-Avoid direct sun light.
-Sufficient ventilation.
-The ambient temperature shall be between 0-40°C.
-The ambient humidity shall be below 95%(When the temperature is 25°C).
-Keep far away from the heat resources such as coal or gas.Make sure that the
washer will not stand on power cord.Do not install the washer on the carpet floor.
NOTE

Install Washing Machine
Remove transit bolts
Before using this washing machine,transit bolts must be removed from the
backside of this machine.Please take the following steps to remove the bolts:
Keep the transit bolts properly for futher use.
1.Loosen the four transit bolts
with a spanner 2.Take each bolt head and pull it through the
wide part of the hole.Repeat for each bolt.
3.Fill the holes with the
supplied plastic covers.
■ Level the washing machine
Install or place the washing machine under the environmental temperature of not
less than 0 ºCbut not outdoors, for it may damage the programming controller.
Base foot structure Factory status
Lock nut
Support foot covered
with rubber
Locking nut close to
bottom of box
Supporting foot close
to locking nut
Note:in order to facilitate installation,the factory stutus of the foot may not be all
locked,please be sure to lock all four feet before adjusting the level!
1.When pairing the machine,check
whether the bottom foot is in the factory
state.if not,please restore the bottom foot
to the factory state:the locking nut is
locked tightly on bottom of the box,and
the support foot is locked tightly on the
locking nut:
2.After the machine is placed,press the
opposite corner of the top cover plate of the
washing machine with both hands in turn
and shake it vertically downward to check
whether the supporting foot is close to the
ground and whether the machine is shaken
3.To ensure that the machine is placed in the right
state, loosen the locking nut according to
thedirection shown in the diagram with the
attachedspanner to the appropriate height until the
supporting foot is close to the ground and the
machine is free from shaking
Support base is close
to the ground
4.Finally,use the spanner to turn the lock nut
back to thebottom of the box to lock it(you can
also slightly fix the support foot by hand to avoid
the support foot moving again)
Ensure that the supporting
feet do not move again
CAUTION
1.The machine must be perfectly leveled and stabilized when the four supporting feet are close to
the ground. Lower the feet as much as possible on the basis that the machine is leveled.
2.Improper leveling adjustment may cause loud noise, machine vibrating, machine displacement
and other abnormal phenomena.
3.Air-vent is designed on the bottom of the machine (prevent blockage). Install the washing
machine on solid, smooth and skid-proof ground. Do not place the washing machine on soft
blanket or wooden floor, or various desktops and stands, in case of unnecessary injury.

Install Washing Machine

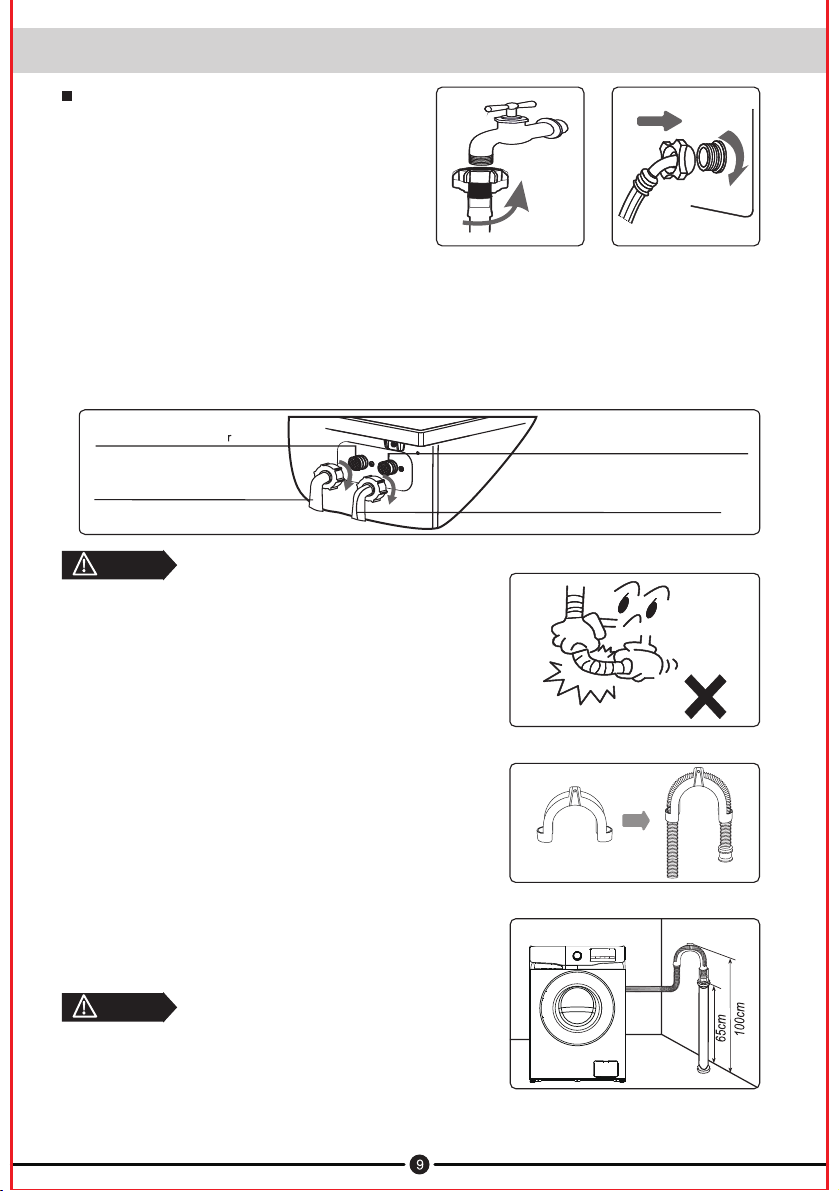

Connect the inlet hose
1.Connect the inlet hose to tap and fasten it
anticlockwise.
ŸIf there is any leakage with hose after
the connection,then repeat the steps to
connect inlet hose.
ŸDo not bend the hose.
ŸCheck for inlet hose connection
carefully before using the washer each
time.
ŸThe drain hose shall be placed at a
height of 65-100cm above the floor,
otherwise,it can cause poor drainage
ŸYou can use the supplied drain hose
support bracket to loop the drain hose
down into the wall,standpipe or laundry
tub.
ŸTake care to ensure all hose
connections are tight.
ŸThe end of the drain hose cannot be
immersed in water for the washer to
work properly.
2.Connect the other end of the inlet hose to the inlet valve at the backside of the
washing machine and fasten the hose tightly clockwise.when there is a inlet at
the back of the machine,it must be connected to a cold water supply.If there
are two inlet valve,one is connected to a cold water supply and the other is
connected to a hot water supply. Follow the indication of the picture below to
complete the connection.
■ Connect the drain hose
inlet valve for cold water
inlet hose for cold water
inlet valve for hot water with a red grid
inlet hose for hot water with a red side
NOTE
NOTE

Install Washing Machine

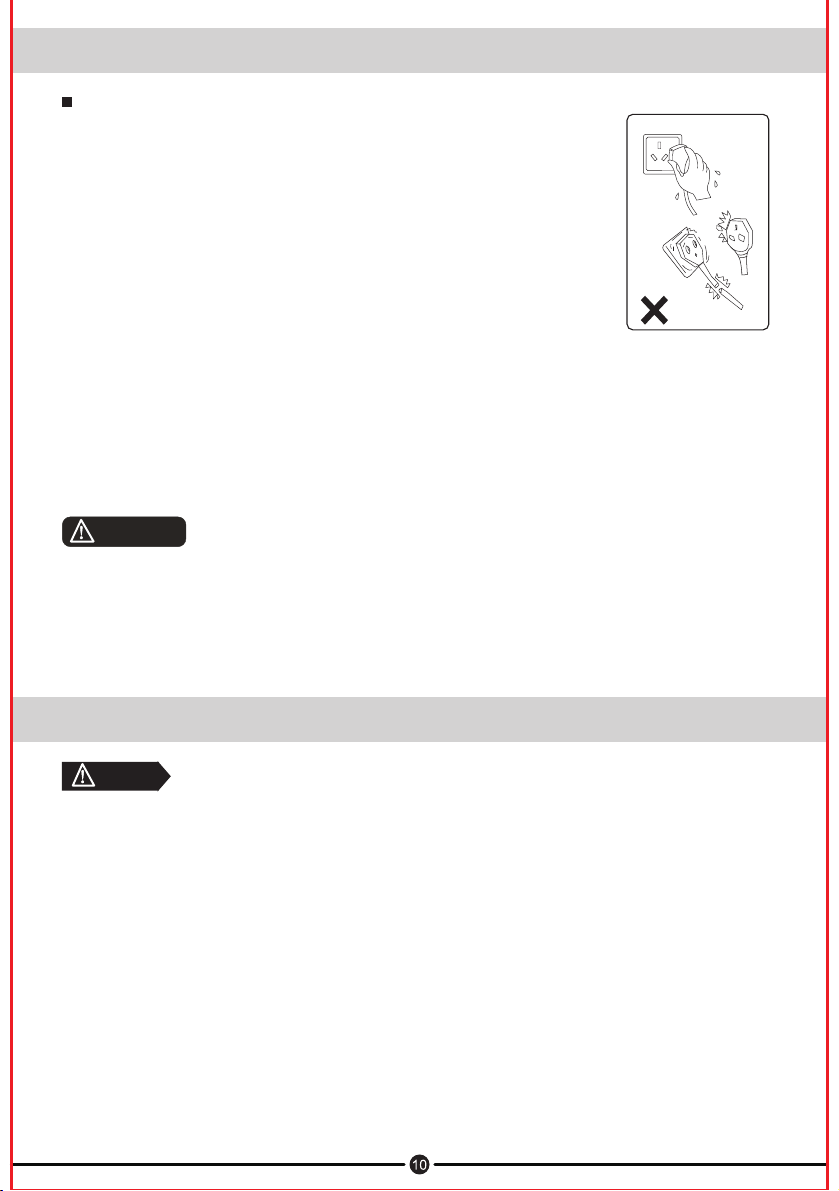

Connect the power
WARNING
NOTE
1.This machine must be earthed properly. If there is any short circuit,
earthing can reduce the danger of electrical shock.
2.Washing machine shall be operated in a circuit separate from other
electrical appliances. Otherwise, power protector may be tripped or fuse
may be burned out.
Operate Washing Machine
Ensure your machine is installed properly before use.
Before washing clothes for the first time, you must run a complete cycle without
clothes. To do this:
1.Connect power source and water.
2.Put a little detergent(about 10g) into the drawer and close it.
3.Press the On/Off button.
4.Turn the knob to the “Cotton”.
5.Press the Start/Pause button.
This will remove any water from the manufacturer’s test run remaining
in the machine.
ŸAs the maximum current through the unit is 10A when you
are using its heating function, please make sure the power
supply system (current, power voltage and wire) at your
home can meet the normal loading requirements of the
electrical appliances.
ŸPlease connect the power to a socket which is correctly
installed and properly earthed.
ŸMake sure the power voltage at your plate is same to that in
the machine’s rated voltage.
ŸPower plug must match the socket.
ŸDo not use multi-purpose plug or socket as extension cord.
ŸDo not connect and pull out plug with wet hands.
ŸWhen pulling out the plug, hold the plug tightlly and then pull
it out. Do not pull power cord forcibly.
ŸIf power cord is damaged or has any sign of being broken,
special power cord must be selected or purchased from its
manufacturer or service center for replacement.

Operate Washing Machine
Sort clothes
Please read this recommendation carefully to avoid the troubles of washing
machine and damages of clothes.
1. Pull out the detergent drawer.
2. Add detergent for prewash into compartment I
3. Add detergent for main wash into compartment II
4. Add fabric softener into compartment.
5. Please choose suitable type of detergent for the
various washing temperature to get the best washing
effect with less water and energy consumption.
1. Do not put clothes over load the rated capacity.
2. Sort the laundry by colour and by care label. Most garments
have a textile care label in the collar or side seam.
3. Make sure all the pockets are empty, Foreign objects (e.g.
nails, coins, paper clips, etc.) can cause damage to
garments and components in the machine.
4. Close any zips, fasten hooks etc. before washing.
5. For clothes to be washed, they should be sorted according to
color. Dark clothes should not be washed with light clothes
especially.
6. Badly soiled areas, stains etc. should be pre-treated with
liquid detergent,stain removers etc.
7. Turn overthe clothes which pill easily and is with woolen
surface before putting them into the machine.
NOTE:Make sure that no clothes is caught between the door and the seal.
Put detergent
View of control panel
Knob
Button
Super Quick
Intensive
Spin
Rinse+Spin
Drum Clean
Allergy Care
Bedding
Sport/Fitness
Cotton
+Prewash
Dark Colour
Mix
Wool
Shirt
Synthetics
Silk/Delicate
Temperature
Button
Speed
Button Time Delay
Button Start/Pause
Button
Power
Button

Operate Washing Machine
Function
ŸTemperature Button: Use this button to select water temperature.
Available selections(from cold to max °C) vary for each cycle.The targeted setting
will blink on the screen during the selection process.
ŸSpeed Button: Use the button to select a spin speed. Available selections (from 0 to
max rpm)vary for each cycle. The targeted setting will blink on the screen during the
selection process.
ŸTime Delay Button: Press the button repeatedly to cycle through the available
delayed start options (from 3 to 24 hours in one hour increments).
ŸStart/Pause Button: Press the button once to start a cycle.
Press the button a second time will pause the operating cycle. During a pause,
setting and options can be modified and selected again if it is permit. Pressing the
button again will resume the active cycle.
ŸPower Button: Press once to turn the washing machine on, press again to turn the
washing machine off. If the washing machine power is left on for longer than 10
minutes without any buttons being touched, the power automatically turns off.
Indicators
When the indicator appears, it means the “Time Delay” function has been selected.
When the indicator appears, it means the “Sound Off” function has been
selected.
When the indicator appears, it means the “Child Lock” function has been selected.
The indicator will keep on when the door is locked normally, otherwise, it can not
appear.
Spuer Quick: This procedure is suitable for washing few and not very dirty clothes
quickly.
lntensive: You can select this procedure wash the tough clothes, that need much
more strength.
Spin: This cycle is use to extract water from clothes.
Rinse+Spin: This cycle is use to clean remaining detergent in clothes and extract
water from clothes.
Programe

Operate Washing Machine
Drum Clean: This cycle is specially set in this machine to clean the drum and tube. It
applys 60/90°C high temperature sterilization to make the drum and tube
more green. When proper amount of chlorine bleaching agent is put in, the
barrel cleaning effect will be better.When you run this program, we suggest
not to put any clothes, you can use this procedure regularly according to the
need.
Allergy Care:The procedure can quite make clothes rinse to more clean, avoid the
laundry detergent for skin allergy.
Bedding:You can select this procedure to wash clothes that is heavy. It is recommended
to wash jeans, bedding etc.
Sport/Fitness:The procedure is quite suitable for sports clothes.
Cotton:You can select this procedure to wash the daily washable clothes.
It is recommended to wash the hard-wearing fabrics, heat-resistant fabrics made
of cotton or linen.
Prewash:The Prewash function can get an extra wash before main wash. When you
choose this cycle .detergent for prewash is recommended to be put into the
detergent drawer ( “compartment l”,as shown in page 11).
Dark Colour: You can select this procedure to wash the dark-coloured fabrics made of
cotton and dark easy-care fabrics.
Mix:You can select this procedure to wash clothes that are different kinds , except for
colors. Dark clothes should not be washed with clothes that are light especially.
Wool: You can select this procedure to wash the wool textiles labeled with “Machine
Wash”. Please select the proper washing temperature according to the label on the
articles to be washed.
Synthetics: You can select this procedure to wash the quite delicate clothes. It is
recommended to wash fabrics made of silk,satin,synthetic fibers or blend.
Shirt: You can select this procedure to wash shirts made of cotton,linen, synthetic fibers or
blended fabrics.
Silk/Delicate: This procedure is suitable for delicate garments made of synthetic fibres,
mixed fibres, rayon and easy care cottons. Aso suitable for machine-
washable silks.

Operate Washing Machine
Features
1. Power-off memory: In case of power failure during the cycle, the settings will be
saved, and operation will resume when the power is restored.
2. Child lock: Press the “Temperature” and “Spin” button simultaneously for 3
seconds can activate or cancel the “Child lock”feature to avoid misoperations. When
the feature is activated,the indicator‘ ’lights up, all buttons cannot be set until the
operation is over or it is canceled.
3.Sound off: Press the “Spin” and “Time Delay” button simultaneously for 3 seconds
can activate or cancel the “Sound off ” feature. When the feature is activated, the
indicator ‘ ’ lights up, the sound of knob operation and all the button action will
disappear.
4. Unbalance protection: When the machine is ready to spin, The washer may take a
few time to balance clothes due to great unbalance. If clothes is still unbalance in
the drum after that, the spinning speed can be slow down to avoid great vibration. If
clothes in drum is too less, the machine may not to spin due to the unbalance
protection, then you should add more clothes in the machine to make it to spin.
5. Reload: lf you want to add clothes in the washer during the procedure, press the
“Start/Pause” button for 3s,when you sound two beeps, it means the reload feature
has been activated. Please wait for the indicator ‘ ’ disappears then open the door.
Press the “Start/Pause” button to resume the procedure after reload.
Table of Washing Procedures
Parameter
Procedure
Max Load(kg) Temp. Range
(°C;- -= cold)
Speed Range
(r/min;0=no spin)
6kg 7kg 8kg 9kg 11kg
Super Quick 1,5 22,5 3 4
Intensive 6 7 8 9 11
Spin 678 9 11
Rinse+Spin 678 9 11
Drum Clean 0 00 0 0
Allergy Care 33,5 4 4,5 5,5
Bedding 456 7 9
Sport/Fitness 22,5 3 3,5 4,5
Cotton 6 78 9 11
+Prewash 4 4,5 5 5,5 6,5
Dark Colour 3 3,5 44,5 5,5
Mix 3 3,5 4 4,5 5,5
Wool 1,5 22,5 3 4,5
Shirt 2 2.5 3 3,5 4,5
Synthetics 33,5 4 4,5 5,5
Silk/Delicate 3 3,5 44,5 5,5

Operate Washing Machine
The “standard cotton 60°C/40°C with max speed” programme are the standard
washing programs, and they are suitable to clean normally soiled cotton laundry
and that they are the most efficient programmes in terms of combined energy
and water consumptions for washing that type of cotton laundry, that the actual
water temperature may differ from the declared cycle temperature.

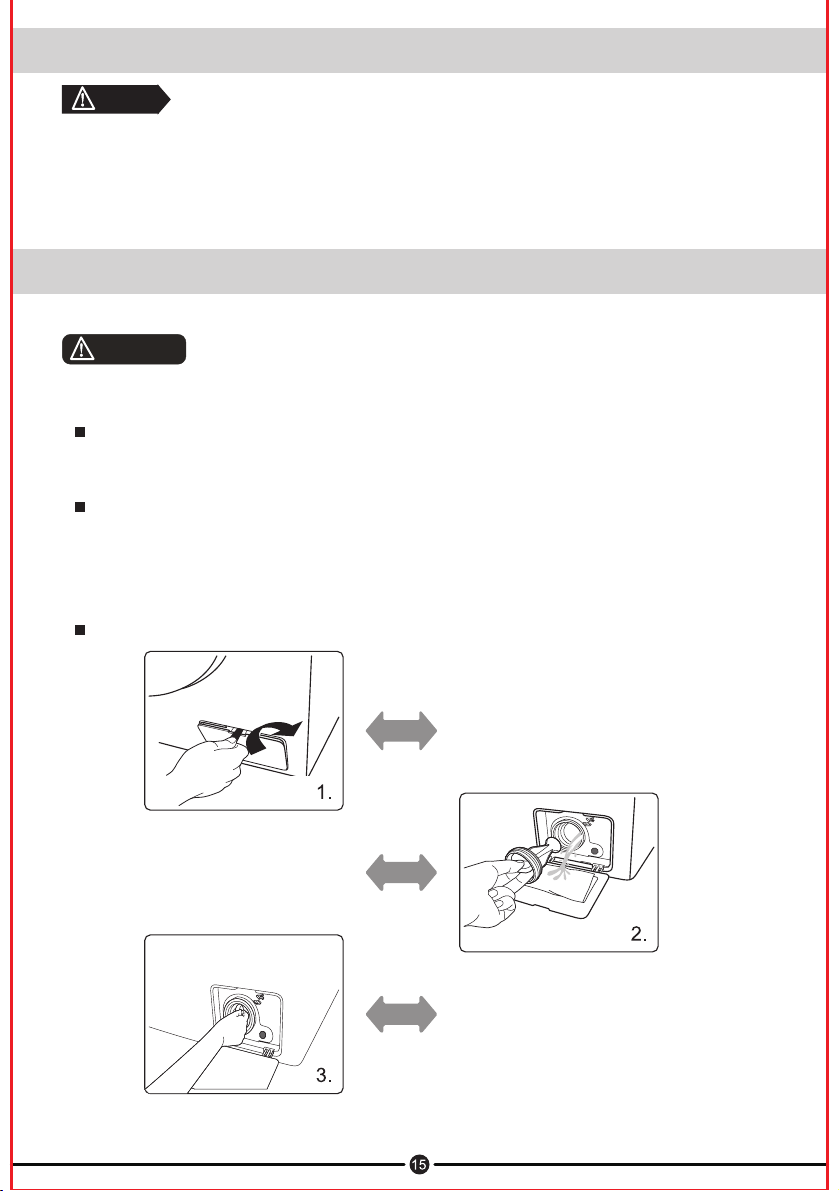

Maintenance
Proper maintenance on the washing machine can extend its work life.
WARNING
Before your maintenance starts, please do pull out the power plug or
disconnect power and close the tap.
Clean internal drum
The rusts left inside the drum by the metal articles shall be removed immediately
with chlorine-free detergents. Never use steel wool.
Clean surface
1.If there is any water overflow, use the dry cloth to wipe it off immediately. No
sharp items are allowed to strike the washer.
2.The surface can be cleaned with diluted non-abrasive neutral detergents when
necessary.
Clean the drain pump
Unscrew the filter and pay
attention to the remaining water,
taking out any foreign material
from the drain pump filter;
Reinstall the filter.
NOTE
Open the filter cover with tools
such as coins according to the
direction of the graphic;

Maintenance
■ Clean Inlet valve filter
The inlet filter shall be cleaned if there is not any or insufficient water in
when the tap is opened.
1.Lower the water pressure:
a. Close the tap.
b.S elect any procedure except “Spin” procedure.
c.P ress the button “Start/Pause” and keep the
procedure running for about 40 seconds.
d.Pull out the power plug.
2.Remove the inlet hose from the tap.
3.Use water to wash the filter.
4.Reconnect the inlet hose.
■ Clean detergent drawer
1.Press down the part inside the drawer ①
and take out the detergent drawer.
2.Lift the clip up and take out softener cover
and wash all grooves with water.
3.Restore the softener cover and push the
drawer into positon.
Dispose an easily get frozen washer
If the washer is exposed to temperature below 0°C, certain precaution should be
taken.
1.turn off the tap.
2.Unscrew the inlet hose.
3.Unhook the drain hose from the rear support and position the end of this hose
and that of the inlet hose in a bowl.Run the spin programme.
4.Disconnect the washer.
5.Screw the inlet hose and reposition the drain hose.
1.When the washing machine is reused, make sure the ambient temperature is
above 0°C.
2.If your washing machine is located in the room where it can get frozen easily,
please drain the remaining water inside drain hose and inlet hose thoroughly.
3.Please contact a technician if your washer is frozen.
NOTE

Troubleshooting
TROUBLES SOLUTIONS
There is some remaining
water in the machine
This is normal and is the result of water tests
performed at the factory
The washer does not run
Check if the power plug is inserted well.
Check if the tap is opened.
Check if the button “Power” is pressed.
Check if the button “Start/Pause” is pressed.
Check if the delay feature is activated.
Water leakage
Abnormal noise and great
vibration
Check and fasten inlet hose.
Clean up drain hose and ask a specialized
person to repair it when necessary.
Washing efficiency is not
satisfied
Select a proper procedure.
Add the proper detergent quantity according
to the instructions in detergent package.
The machine take no
answer after press buttons
Check if the “Child-lock” feature has beenactivate.
Press button “Start/Pause” first then press other
buttons.
Actually running time of
procedures is not
corresponded to the
display time
Check if clothes in the drum is dispersive enough.
Check if the water is drain out or inflow well.
The washer fills while
draining
Check if the max height of the drain hose is lower
than 65cm
Check if the drain hose is immersed.
Check if the transit bolts has been removed.
Check if the adjustable legs are adjusted level.
Check if the washer is installed on the solid and level
floor.
Check if there are any barrettes or metal articles
inside.
