TDC USA 21881 User manual

Outdoor Sling Bar
with Canopy
Made in China
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions. Keep the packaging and bags away from children and dispose
of all packaging properly before use. Keep this manual for future reference.
Steel Frame with Powder Coating
Assembly Instructions

2
PLEASE DO NOT
RETURN THIS
PRODUCT
TO THE STORE
We will be happy to correct any problems that you may
have, or answer any of your questions regarding the
purchase of this product. Please contact us at our Toll
Free customer service number 1-800-599-8898 for any
assistance and replacement parts. Thank You.
Dist. by TDC USA, Inc. Faireld, NJ 07004
©2022 All Rights Reserved.
Made in China
Item 21881
www.tdcusainc.com

3
Warnings
WARNING!
• Keep all children and pets away from assembly area. Children
and pets should be supervised when they are in the area of the
product construction.
• Some parts may contain sharp edges. When assembling and
using this product, basic safety precautions should always be.
• Please read all the instructions and warnings before assembling.
In order to make the whole product adjust to the best, please
install all the screws on the product and tighten all the screws
after adjusting the product which can stand on the oor even.
Not intended for commercial use.
• Check all bolts for tightness before use.
• IMPORTANT - check and tighten bolts often to keep them secure
• Read all the instructions before assembly. Failure to do so may
result in faulty assembly and potential injury! Assemble product
on a soft, non-abrasive surface such as a carpet or cardboard to
avoid damaging
• CHOKING HAZARD - Small parts. Not suitable for children under 36 months.
The product contains small parts, keep children away when assembling.
• ADULT ASSEMBLY REQUIRED. Always remove protective material and poly
bags and dispose before assembly.

4
Parts
A (x4)
Pole
B (x2)
Crossbeam
C (x2)
Rack
D (x4)
Two Tier Ribs
E (x2)
Beam
F (x2)
Panel
G (x1)
Panel
H (x1)
Panel
I (x1)
Panel
J (x4)
Panel
K (x2)
Shelves
L (x2)
Shelves
M (x2)
Shelves
N (x1)
Counter
O (x1)
Counter
P (x1)
Bar
V (x4)
Stake
Q (x1)
Connector
W (x1)
Canopy
R (x4)
Rib Brace
X (x36)
M6*15 Bolt
S (x4)
Corner Brace
Y (x44)
M6*28 Bolt
T (x4)
Panel Brace
Z (x12)
M6*40 Bolt
U (x4)
Panel Brace
AA (x16)
Nut
.

5
Z
AA
2X
JJ
J
J
Y F
F
G
G
F
F
U
U
U
U
Z
AA
U
8X
4X
Step 1:
Insert one M6x28 Bolt (Y) through either end of Panel Brace (U), and into the bolt-
threading found in the middle of Panel (F), see Fig 1. Follow this step to secure a second
Panel Brace (U) to the bottom of Panel (F). Follow these steps to secure remaining U’s to
the remaining F.
Insert two M6x40 Bolts (Z) through eyelets on the side of Panel (F), through eyelets on
the side of Panel (G), and use two Nuts (AA) to hold parts together, see Fig. 2. Follow this
step to secure remaining F to the opposite side of G.
Step 2:
Insert two M6x40 Bolts (Z) through eyelets on the side of Panel (J), through eyelets of
a second J, and use two Nuts (AA) to hold parts together, see Fig. 3. Follow this steps to
assemble remaining two J’s.
.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 3
Fig. 2
Fig. 1

6
Y
T
T
I
H
4X 4X
T
Y
T
T
T
4X
X
R
B
B
A
A
A
A
C
C
X
Step 4:
Secure Rib Braces (R) to the top of each Pole (A) using M6x15 Bolts (X), see Fig. 6.
Insert two M6x15 Bolts (X) through eyelets at one end of Crossbeam (B), and into bolt-
threading found at the top of Pole (A), see Fig. 6. Follow this step to connect opposite
end of B to a second A. Follow these steps to assemble remaining B with remaining A’s.
Insert two M6x15 Bolts (X) through eyelets at one end of Rack (C), and into bolt-
threading found at the top of Pole (A). Follow this step to connect opposite end of C to a
second A. Follow these steps to assemble remaining C with remaining A’s.
Step 3:
Insert one M6x28 Bolt (Y) through either end of Panel Brace (T), and into the bolt-
threading found in the middle of Panel (H), see Fig. 4. Follow this step to secure a second
Panel Brace (T) to the bottom of Panel (H). Follow these steps to secure remaining T’s to
Panel (I), see Fig. 5.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 6
Fig. 5
Fig. 4

7
D
Q
D
DD
Step 5:
Insert Two Tier Ribs (D) into openings of Connector (Q) until they are locked in place,
see Fig 7. Place assembled ribs with connector over the height of assembled frame.
Place longer ribs of Two Tier Ribs (D) in between Rib Braces (R). Insert one M6x28 Bolt
(Y) through each Rib Brace (R), through each Two Tier Rib (D), and use one Nut (AA) to
hold parts together.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 7

8
Y
GF
F
4X
Step 6:
Insert two M6x28 Bolts (Y) through eyelets on opposite side of Panel (F), and into Pole
(A), see Fig. 8. Follow this step to connect opposite end of second F to adjacent A.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 8

9
Y
J
J
8X
Step 7:
Insert two M6x28 Bolts (Y) through eyelets on the side of assembled Panels (J) and into
Pole (A), see Fig. 9. Follow this step to connect opposite end of J’s to adjacent A. Follow
these steps to assemble second set of J’s with A’s on opposite side of frame.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 9

10
Y
H
I
4X

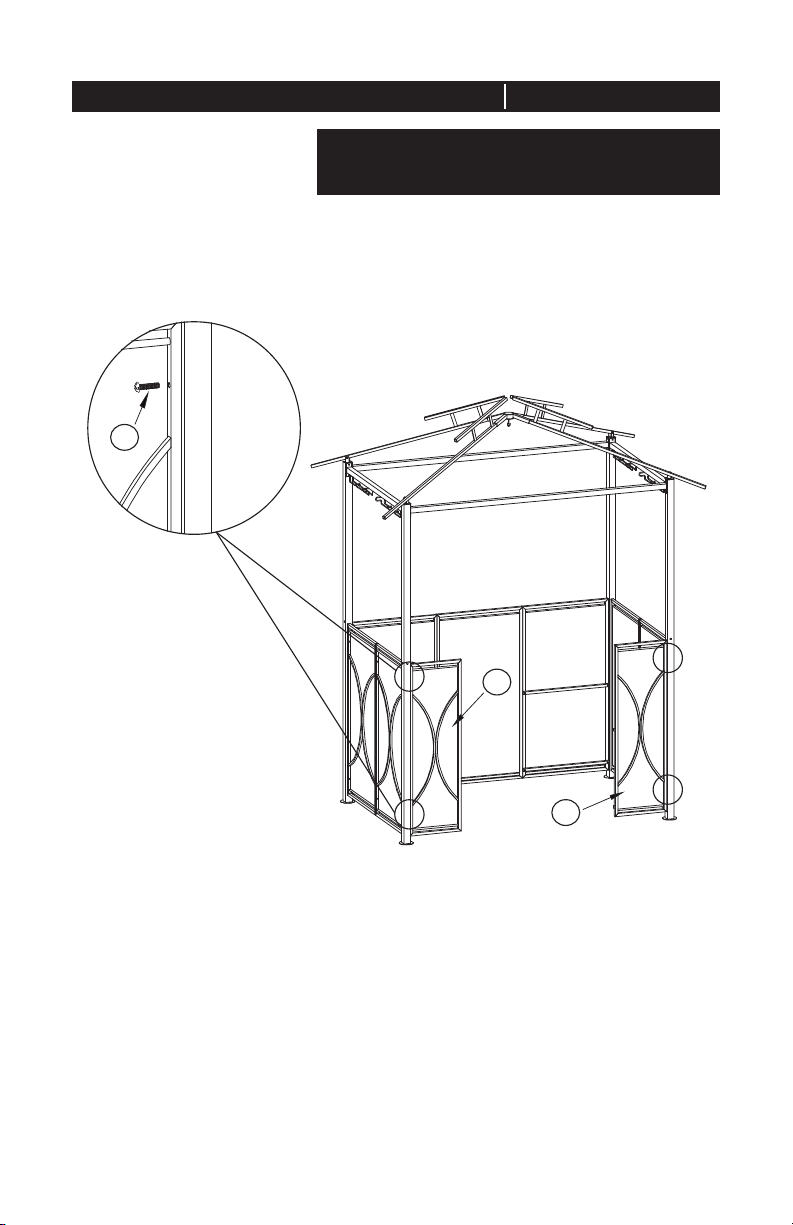

Step 8:
Insert two M6x28 Bolts (Y) through eyelets on the side of Panel (H)
and into Pole (A), see Fig. 10. Follow this step to assemble Panel (I) with adjacent A.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 10

11
M
Z
AA
L
K
4X
T
L M
&
8X
Step 9:
Insert pins at either end of Shelves (L) into the eyelets found in the center of Panel
Braces (U) [connected to Panel (F)], and into the eyelets found in the center of Panel
Braces (T) [connected to Panel (I)], see Fig. 11. Follow this step to connect Shelves (M)
to Panel Braces (T&U) on opposite side of frame. Place Shelves (K) midway and at the
bottom of assembled Panels (F&G) using the interlocking latches found on these parts
to connect them to Shelves (L&M). Insert M6x40 Bolts (Z) through eyelets at the end of
Shelves (K), through eyelets on the sides of Shelves (L&M), and use Nuts (AA) to hold
parts together, see Fig. 12.
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 12
Fig. 11

12

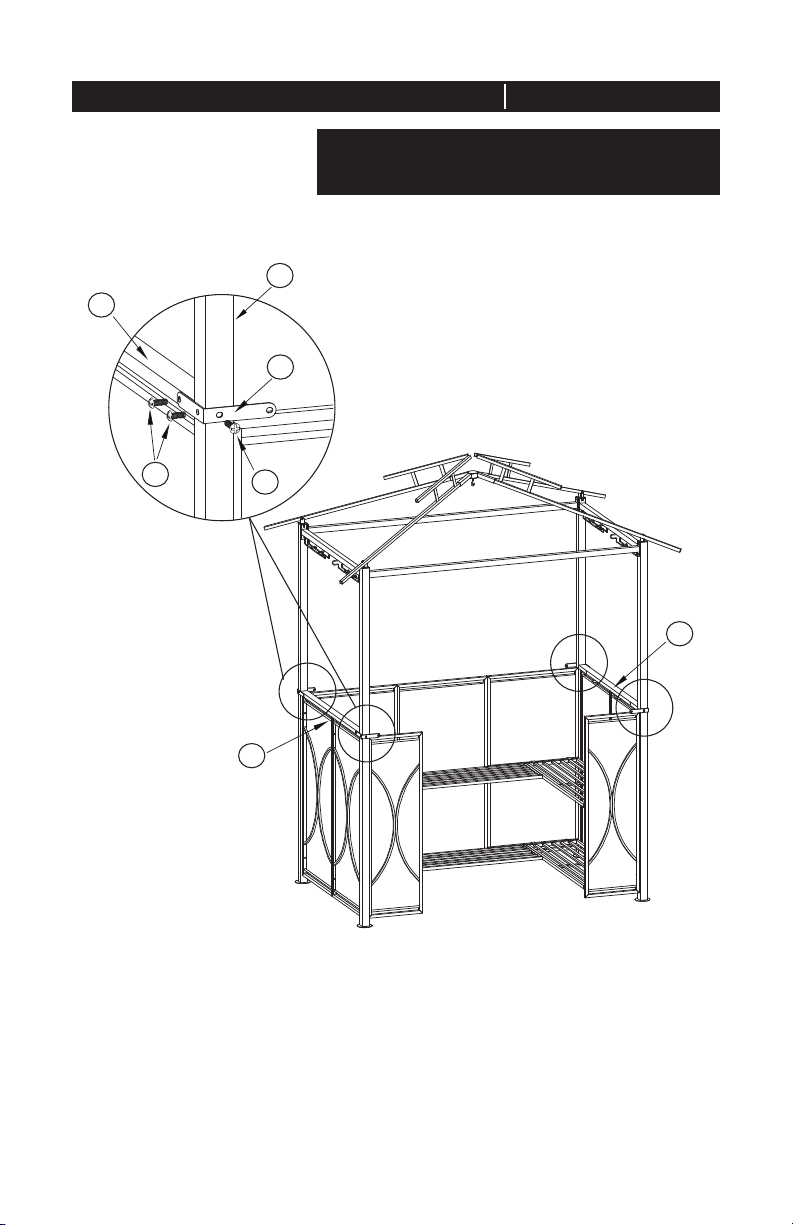

Step 10:
Place Beam (E) over assembled Panels (J). Insert two M6x15 Bolts (X) through middle
eyelets of Corner Brace (S), and into bolt-threading found on two sides of Pole (A), see
Fig. 13. Insert additional M6x15 Bolt (X) through eyelet at the end of Corner Brace (S),
and into the bolt-threading on the side of Beam (E), see Fig. 13. Follow these steps
to assemble opposite end of Beam (E) to adjacent Pole (A). Follow these steps to
assemble remaining E with two A’s on opposite side of frame.
E
E
S
E
X
X
A
Assembly Instructions
*Do not tighten bolts down completely
during this portion of assembly.*
Fig. 13

13
Y
OP
N
Do not put glass onto bar and counters
until this step is completed
X
Y
Y
Step 11:
Remove glass from Counter (O), Counter (N), and from Bar (P), and
carefully set those aside.
Place Counter (O) rim over assembled Panels (J) and Panel (H). Insert
M6x15 Bolts (X) through remaining eyelet of Corner Brace (S), and into
bolt-threading at the end of Counter (O), see Fig. 14.
Place Counter (N) rim over assembled Panels (J) and Panel (I). Insert
M6x15 Bolt (X) through remaining eyelet of Corner Brace (S), and into
bolt-threading at the end of Counter (N), see Fig. 14.
Place Bar (P) rim over assembled Panels (F&G) so that they are aligned with Counter (O)
and Counter (N). Insert one M6x28 Bolt (Y) through eyelets at either end of Bar (P), and
into the bolt-threading on the sides of Beams (E), see Fig. 15. Insert two M6x28 Bolts
(Y) through eyelets on the side of Bar (P), and into the bolt-threading at the end of
Counter (N), see Fig. 15. Insert two M6x28 Bolts (Y) through eyelets on the side of Bar
(P), and into the bolt-threading at the end of Counter (O).
*Tighten all bolts that have been left loose throughout the assembly process.*
Assembly Instructions
Fig. 15
Fig. 14

14
W
Step 12:
Carefully put glass back in place for Bar (P) and Counters (N&O). Place the larger
Canopy (W) over lower ribs of Two Tier Ribs (D). Unfold the larger Canopy (W)
completely so that pockets underneath canopy t into rib ends.
Run two Stakes (V) through designated eyelets at bottom of Poles (A), and into the
ground for extra stability.
Assembly Instructions

15
Limited Warranty
Please contact our service hotline by phone, email, or fax when needing
assistance with assembly or with faulty parts. This allows us to provide
support in the event of possible operator errors.
All furniture manufactured and sold by TDC USA, Inc. is warranted to the original purchaser
against defects in workmanship and materials. If a product manufactured by TDC fails
during the rst year from date of purchase under the terms of our limited warranty, TDC will
replace the item at no charge. After one year, it will be the original purchases’ responsibility
to pay for freight and packing. TDC reserves the right, in the case of discontinued or out
of production models, to replace with an item of similar quality. (Glass breakage is not
warranted.)
NOTE: You must retain original receipt to obtain warranty!
FRAMES:
Frames are warranted against defects in materials and workmanship from the date of
original purchase. Damage to frames or welds due to commercial use, improper assembly,
exposure to water and sub-freezing temperatures, and/or abuse are not covered.
FABRIC:
Fabric on cushions, slings, and umbrellas is warranted against separation at the seams.
Fading, mildew, and/or discoloration due to exposure to elements, chemicals, and spills are
not covered.
POWDER COAT AND/OR PAINT:
The nish is warranted against blistering, peeling, or cracking. Fading resulting from
exposure to the elements, chemicals, and spills are not covered. Scratches and chips due to
normal wear and use are not covered.
FREIGHT & PACKING:
TDC will be responsible for shipping, handling, and packaging charges for all valid warranty
claims.
CARE & MAINTENANCE:
Be careful to never allow water build up in fames as this will cause corrosion and freeze
damage in cold climates. Wash all frames with a solution of mild soap and water. Rinse will
clean water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid
wax for maximum protection against UV rays and/or salty damp air. If your set includes
cushions, slings, and/or an umbrella, they may be cleaned be hand with a solution of soap
and water with a clean water rinse.

16
Limited Warranty
LIMITED WARRANTY EXCLUSIONS:
• Damage caused by acts of nature
• Wind damage
• Failure caused by unreasonable, unanticipated, or abusive use
• Failure caused by a lack of reasonable and necessary care and maintenance
• Normal fade of fabrics, upholstery, or woven materials
• Glass table tops
• Burstingorcracking of tubing due toexposuretowaterandfreezingtemperatures
• Changes in wood color due to the natural aging of the wood
A sales receipt must be provided to validate
1-Year Limited Warranty.
Customer Service:
Monday - Friday • 9:00 am - 5:00 pm
Phone: [phone]
Email: suppor[email protected]om
TDC USA, Inc.
5 Industrial Rd, STE 1
Faireld, NJ 07004-3017

Dist. by TDC USA, Inc. Faireld, NJ 07004
©2022 All Rights Reserved. Made in China.
Item #21881
Questions and Comments
1-800-599-8898 (9 am - 5 pm EST)
www.tdcusainc.com
Outdoor Sling Bar
with Canopy
Steel Frame with Powder Coating
