TDK R520M User manual

Bluetooth Solutions

2
Contents
Introduction .................................................................................................................................................................................................3
Box Content .........................................................................................................................................................................................3
Getting Started............................................................................................................................................................................................4
Installing the Software..........................................................................................................................................................................4
Installing the Hardware ........................................................................................................................................................................5
Bluetooth Configuration...............................................................................................................................................................................6
My Bluetooth Places ...................................................................................................................................................................................8
Device Discovery .................................................................................................................................................................................9
Service Discovery ..............................................................................................................................................................................10
Bluetooth Services (Profiles)..............................................................................................................................................................11
Pairing Guide ............................................................................................................................................................................................13
Ericsson R520m.................................................................................................................................................................................14
Ericsson T39m...................................................................................................................................................................................16
Ericsson T68/T68i..............................................................................................................................................................................18
Sony Ericsson P800...........................................................................................................................................................................20
Nokia 6210.........................................................................................................................................................................................21
Nokia 6310/6310i...............................................................................................................................................................................22
Nokia 7650.........................................................................................................................................................................................23
Nokia 8910/8910i...............................................................................................................................................................................24
HSCSD .....................................................................................................................................................................................................25
Frequently Asked Questions .....................................................................................................................................................................26
Technical Support .....................................................................................................................................................................................27
Regulatory Information................................................................................................................................ Error! Bookmark not defined.
Safety Statements.....................................................................................................................................................................................28
Technical Information................................................................................................................................................................................29
Glossary....................................................................................................................................................................................................30
Warranty ...................................................................................................................................................................................................31

3
Introduction
Bluetooth is a short range wireless communication technology. It is designed to replace the traditional cable connections currently used
to link compatible devices. These can be cable connections between computers and printers, computers and mobile phones and
between mobile phones and headsets. Bluetooth is designed to operate in the internationally recognised ISM (Industrial Scientific and
Medical) frequency band. Within the ISM band (2.4GHz – 2.48GHz) Bluetooth transmissions hop between 79 separate frequencies
1,600 times every second. Bluetooth is a low power radio designed for short range communication of about 10 metres and has an
impressive peak data throughput of 721Kbps.
The potential applications for this new wireless technology are enormous – in time Bluetooth technology will touch all our lives in some
shape or form. In the short term, Bluetooth will make mobile computing much easier and far more convenient than it’s ever been. In the
longer term, Bluetooth will open up a whole new world of infinitely flexible personal connectivity.
Box Content
Bluetooth USB Adaptor
•USB Adaptor
•Installation CD-ROM
•Instruction Booklet
•Green Oval Housing (2)
Bluetooth PC Card
•PC Card
•Installation CD-ROM
•Instruction Booklet

4
Getting Started
Installing the Software
Note: Do not connect your Bluetooth USB Adaptor or insert your Bluetooth PC Card until you have completed the install
procedure detailed below.
1) Insert the CD into the CD/DVD drive on your PC. The CD should start automatically and present you with an installation menu.
If the CD fails to start automatically, click on the Start button, select Run and type D:\Setup.exe (assuming your CD/DVD drive is
D) then press Enter or click OK.
2) Choose Install Bluetooth Software to start the InstallShield Wizard.
3) Click Next.
4) If you agree with the license terms select I accept the terms in the license agreement and click Next.
5) Ensure the device name and type are set correctly then click Next.
Note: The device name should be unique. This will be visible to other people when they discover your Bluetooth device.
6) Choose to accept the default folder by clicking Next, or change the location by using the Change option.
7) Click Install.
8) When the install has completed click Finish.
9) Click Yes to restart Windows.

5
Installing the Hardware
Bluetooth USB Adaptor
1) Insert the Bluetooth USB Adaptor into the USB port.
2) Windows will inform you that new hardware has been
discovered and that it is being installed.
Note: Windows XP users will need to click Next, Continue
Anyway then Finish.
Bluetooth PC Card
1) Insert the Bluetooth PC Card into a free PC Card Slot.
2) Windows will inform you that new hardware has been
discovered and that it is being installed.
Note: Windows XP users will need to click Next, Continue
Anyway then Finish.

6
Bluetooth Configuration
After successful installation of the software and hardware you
should have a new item on the Windows taskbar. This is the
Bluetooth tray icon.
Bluetooth Tray Icon
Windows 2000
Bluetooth Tray Icon
Windows XP
Right-click on it, select Advanced Configuration and you will see
the following screen.
Note: The computer name you see here is the same as your
computer name or the name you chose during the installation
process. The computer type is either “Desktop” or “Laptop”. This
information is shown to other Bluetooth users when they search for
your computer.
Bluetooth Configuration - General

7
To check your hardware is working click on the Hardware tab.
If the Device Status is showing Device Not Found then your USB Adaptor or PC Card has not been detected by the software. If the
device is not plugged in, insert it and select this hardware option again.
Note: There are more details about the Bluetooth Configuration Panel in the Bluetooth help guide. You can view this help by clicking on
the Help button, seen here in the bottom right hand corner.
Bluetooth Configuration – Hardware
Windows 2000
Bluetooth Configuration – Hardware
Windows XP

8
My Bluetooth Places
After installation of the Bluetooth software you will
have a new icon on your desktop. This is the My
Bluetooth Places icon.
My Bluetooth Places - Desktop Icon
Double-click on this icon to bring up My Bluetooth
Places.
My Bluetooth Places

9
Device Discovery
Windows 98/Me/2000
Double-click on Find Bluetooth Devices. A search
for other Bluetooth devices within radio range will
start automatically. If any devices are discovered
they will be displayed.
Windows XP
Click on View devices in range. A search for other
Bluetooth devices within radio range will start
automatically. If any devices are discovered they
will be displayed.
Note: The search may take a few minutes if there
are many discoverable Bluetooth devices within
range.
If you have not configured other Bluetooth devices
yet, set them up now then click View, Refresh to re-
discover these Bluetooth devices. There is a
section later in this guide to help set up Bluetooth
connections with the most popular Bluetooth mobile
phones.
Entire Bluetooth Neighborhood – Search Complete

10

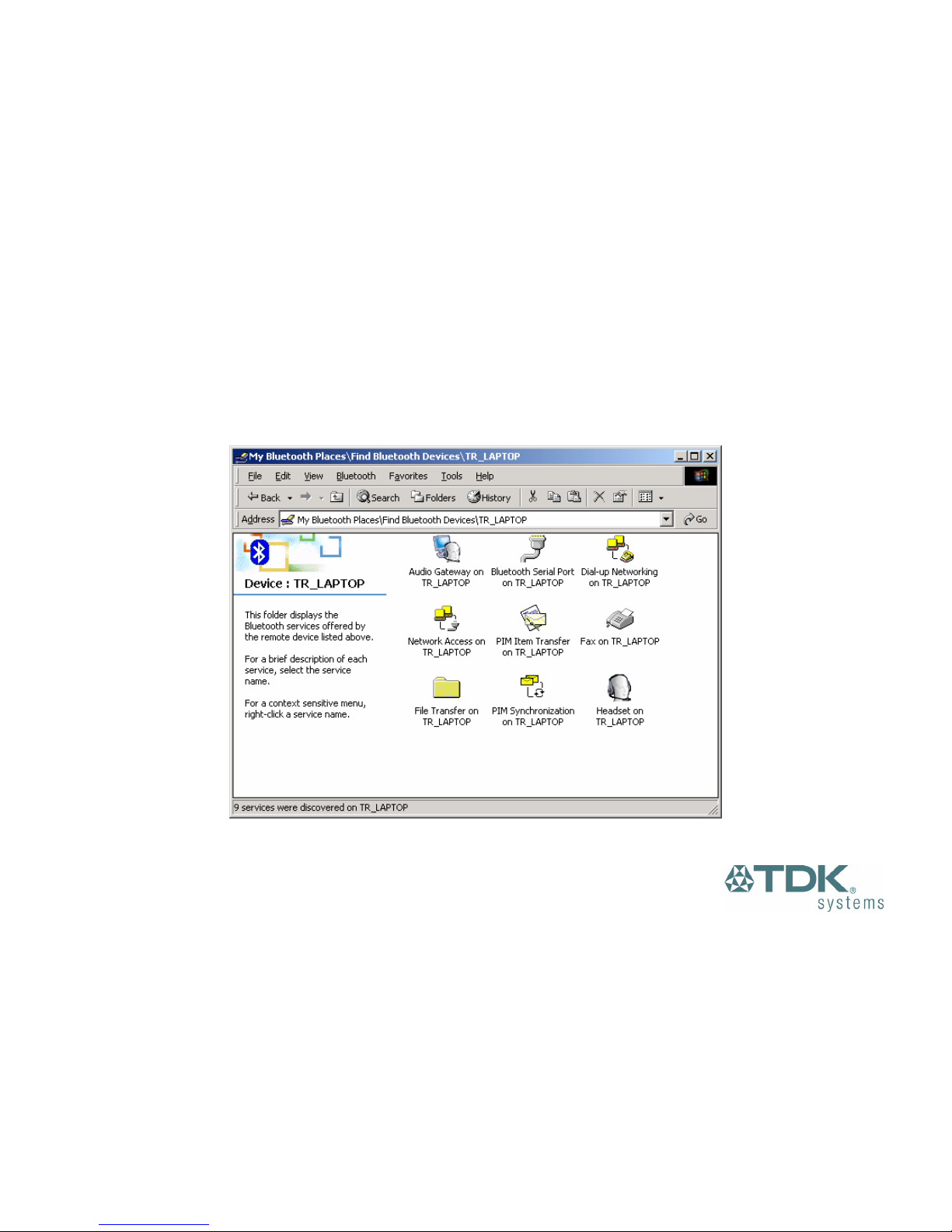

Service Discovery
Each device you have discovered will have services you can access. To find out which services a device supports double click on that
device. You will then see all the services listed, providing the services are compatible and the device has not gone out of range or been
switched off.
Service Discovery

11
Bluetooth Services (Profiles)
The Bluetooth Serial Port allows you to establish a
serial connection to a Bluetooth serial port on another
Bluetooth device. The serial connection can be used by
legacy applications as it emulates a simple RS232 serial
cable link between two Bluetooth devices.
The Dial-Up Networking (DUN) service allows you to access
and use the modem on another Bluetooth device to dial out, typically
to an Internet Service Provider (ISP) to browse the internet and
send/receive email.
The Audio Gateway service allows remote devices to
use the audio features of your computer.
The Headset service allows you to connect to Bluetooth
headset devices.
Network Access allows you to connect to the Internet
and LAN through another Bluetooth device’s LAN connection.
PIM Item Transfer is used to exchange items between the
personal information managers (PIM) via Bluetooth.
If you want to copy, move or drag and drop files you
should use file transfer. In fact you can perform any usual file
transfer actions with File Transfer such as open, cut, copy,
paste and delete.
PIM Syncronization is used to syncronize the information (PIM
database) between you and another Bluetooth device.
If you wish to send a Fax over Bluetooth you can
access the fax service of another Bluetooth device to do this.
Note: You are advised to view the Help file supplied with this software for more detailed information about all of these services.

12
LED Status
Bluetooth USB Adaptor
The USB Adaptor is designed to meet USB specification 1.1 and
incorporates an integral antenna.
Each LED indicates the following
LED Description Function
1 Power/Data Normally on. Flashes whilst data transfer is
in progress
2 Status Flashes every 2 seconds when the device
is discoverable
Bluetooth PC Card
The PC Card is a type II PC Card. It incorporates an integral
antenna.
Each LED indicates the following
LED Description Function
1 Data Normally on. Flashes whilst data transfer
is in progress
2 Power Permanently on when the device is
powered
3 Status Flashes every 2 seconds when the
device is discoverable

13
Pairing Guide
Pairing (also referred to as bonding) is the process of associating Bluetooth devices with each other. It is advisable to pair with
frequently used Bluetooth devices. This will establish a permanent security link between the devices and enable quick access to the
services provided, without the need to enter passkeys.
Once a device is paired it remains paired even if the user:
•Reboots one or both devices
•Stops and starts the services on the devices
Note: A paired device will be displayed in the Entire Bluetooth Neighborhood window even if the device is not within radio range and/or
powered on at the time Entire Bluetooth Neighborhood is opened and explored.
For additional information on how to pair a specific device that is not included in the following section, refer to the documentation
supplied with that Bluetooth device.
Note: blue5 and blueM users should refer to the online user guide provided on the blue5/blueM software CD.
The following section shows how to pair your USB Adaptor or PC Card solution with other popular Bluetooth solutions.

14
Ericsson R520m
1 From the standby screen, press or to enter the menu.
2 Press 5 to enter the Extras menu.
3 Select Bluetooth.
4 Press 2 to select Paired devices.
5 Select Add device and choose Phone accepts.
Note: If the Add device option in the Paired devices menu is greyed out and unselectable, the Bluetooth option may be disabled. Return
to the Bluetooth menu, press 4 for Operation Mode and set the mode to On or Automatic.
6 Double-click My Bluetooth Places on the desktop.
7 Double-click Find Bluetooth Devices.
8 Wait while discoverable Bluetooth devices that are in range are discovered.
9 Right-click your R520m phone shown in the list of devices found and select Pair Device.

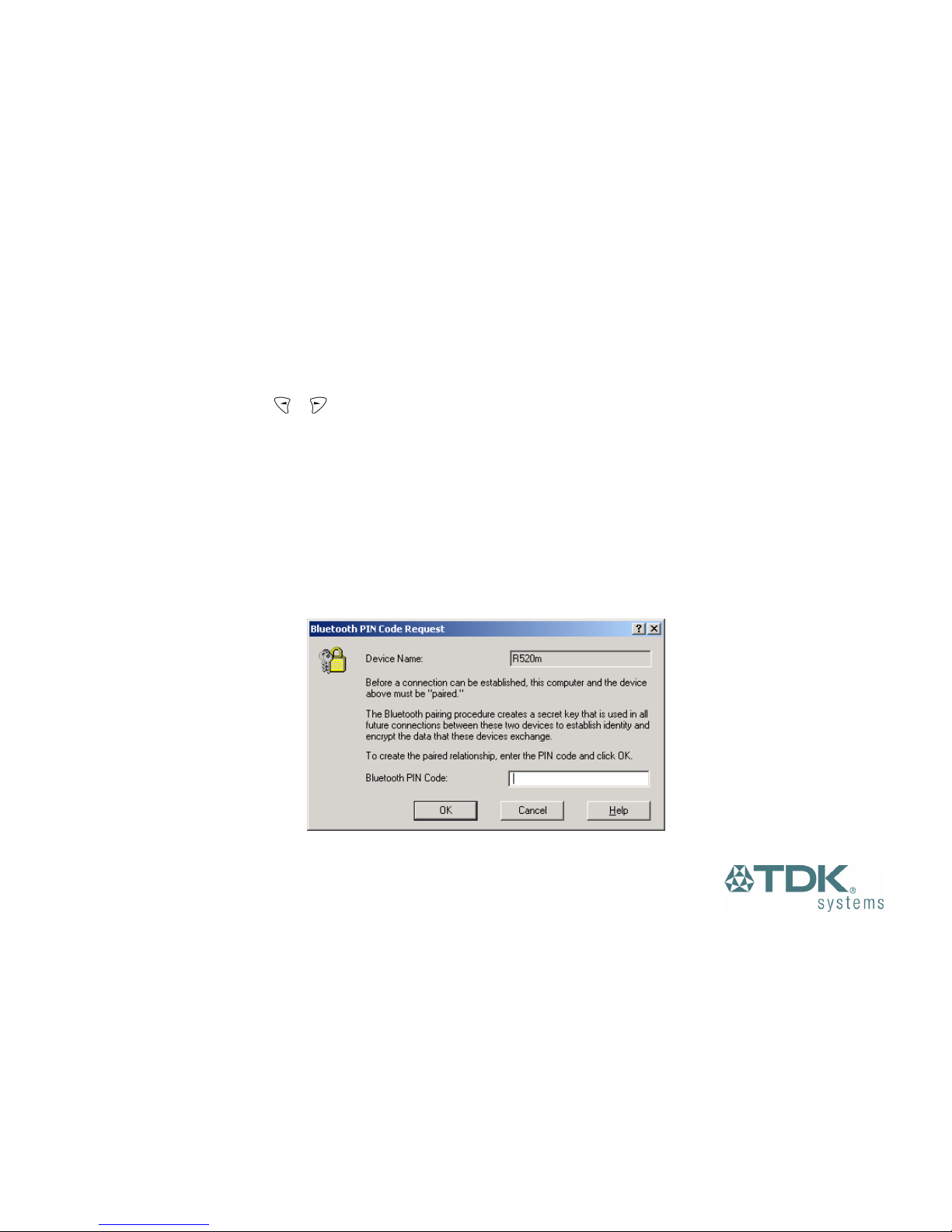

Bluetooth PIN Code Request

15
10 Enter a passkey of your choice (the passkey can be up to 16 characters long and must be numerical).
11 Click OK.
12 Your Ericsson phone will prompt you to Add to paired devices.
13 Press Yes.
14 Enter the same passkey on your phone.
15 Press Yes.
16 Your Ericsson phone will prompt you to edit the name tag. When you are satisfied with the name tag, press Yes.

16
Ericsson T39m
1 From the standby screen, press to enter the menu.
2 Press 5 to enter the Extras menu.
3 Select Bluetooth.
4 Press 2 to select Paired devices.
5 Select Add device and choose Phone accepts.
Note: If the Add device option in the Paired devices menu is greyed out and unselectable, the Bluetooth option may be disabled. Return
to the Bluetooth menu, press 4 for Operation Mode and set the mode to On or Automatic.
6 Double-click My Bluetooth Places on the desktop.
7 Double-click Find Bluetooth Devices.
8 Wait while discoverable Bluetooth devices that are in range are discovered.
9 Right-click your T39m phone shown in the list of devices found and select Pair Device.
Bluetooth PIN Code Request

17
10 Enter a passkey of your choice (the passkey can be up to 16 characters long and must be numerical).
11 Click OK.
12 Your Ericsson phone will prompt you to Add to paired devices.
13 Press Yes.
14 Enter the same passkey on your phone.
15 Press Yes.
16 Your Ericsson phone will prompt you to edit the name tag. When you are satisfied with the name tag, press Yes.

18
Ericsson T68/T68i
1 From the standby screen, move the joystick to the right to enter the menu.
2 Press 8 to enter the Connect menu.
3 Select Bluetooth.
4 Press 2 to select Paired devices.
5 Select Add device and choose Phone accepts.
Note: If the Add device option in the Paired devices menu is greyed out and unselectable, the Bluetooth option may be disabled. Return
to the Bluetooth menu, select Operation Mode and set the mode to On or Automatic.
6 Double-click My Bluetooth Places on the desktop.
7 Double-click Find Bluetooth Devices.
8 Wait while discoverable Bluetooth devices that are in range are discovered.
9 Right-click your T68/T68i phone shown in the list of devices found and select Pair Device.
Bluetooth PIN Code Request

19
10 Enter a passkey of your choice (the passkey can be up to 16 characters long and must be numerical).
11 Click OK.
12 Your Ericsson phone will prompt you to Add to paired devices.
13 Press Yes.
14 Enter the same passkey on your phone.
15 Press Yes.
16 Your Ericsson phone will prompt you to edit the name tag. When you are satisfied with the name tag, press Yes.

20
Sony Ericsson P800
1 Tap and go to Control panel > Connections > Bluetooth.
2 Tap Settings and set the Operation mode to Discoverable.
3 Double-click My Bluetooth Places on the desktop.
4 Double-click Find Bluetooth Devices.
5 Wait while discoverable Bluetooth devices that are in range are discovered.
6 Right-click your P800 phone shown in the list of devices found and select Pair Device.
Bluetooth PIN Code Request
7 Enter a PIN Code of your choice (the PIN Code can be up to 16 characters long and must be numerical).
8 Click OK.
9 Enter the same PIN Code (passkey) on your phone.
10 Tap Done.
