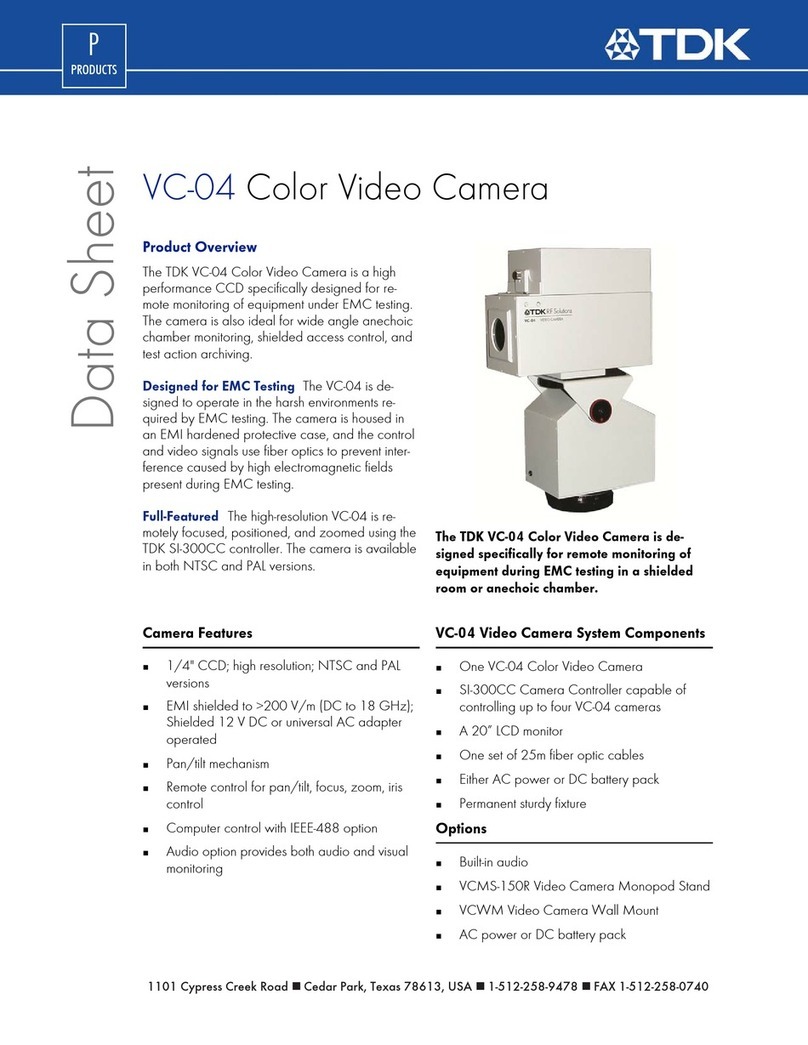

VC-04 Color Video Camera
1101 Cypress Creek Road Cedar Park, Texas 78613, USA 1-512-258-9478 FAX [phone]
Data Sheet
Product Overview
The TDK VC-04 Color Video Camera is a high
performance CCD specifically designed for
remote monitoring of equipment under EMC
testing. The camera is also ideal for wide angle
anechoic chamber monitoring, shielded access
control, and test action archiving.
Designed for EMC Testing The VC-04 is
designed to operate in the harsh environments
required by EMC testing. The camera is housed in
an EMI hardened protective case, and the control
and video signals use fiber optics to prevent
interference caused by high electromagnetic fields
present during EMC testing.
Full-Featured The high-resolution VC-04 is
remotely focused, positioned, and zoomed using
the TDK SI-300CC controller. The camera is
available in both NTSC and PAL versions.
The TDK VC-04 Color Video Camera is
designed specifically for remote monitoring
of equipment during EMC testing in a
shielded room or anechoic chamber.
VCS-04 Video Camera System Components
One VC-04 Color Video Camera
SI-300CC Camera Controller capable of
controlling up to four VC-04 cameras
A 20” LCD monitor
One set of 25m fiber optic cables
Either AC power or DC battery pack
Options
Built-in audio
VCMS-150R Video Camera Monopod
Stand
VCWM Video Camera Wall Mount
AC power or DC battery pack
Camera Features
1/4" CCD; high resolution; NTSC and PAL
versions
EMI shielded to >200 V/m (DC to 18
GHz); Shielded 12 Vdc or universal AC
adapter operated
Pan/tilt mechanism
Remote control for pan/tilt, focus, zoom, iris
control
Computer control with IEEE-488 option
Audio option provides both audio and
visual monitoring

P
PRODUCTS
To learn more about TDK RF Solutions’ wide range of innovative products and services visit www.tdkrfsolutions.com
©Copyright 2008 TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice.
VC-04 Color Video Camera
Overall Dimensions
With pan/tilt unit: 10.5” H x 6.2” D x
3.0” W (26.7 cm x
15.8 cm x 7.6 cm)
Without pan/tilt unit: 5.0” H x 6.2” D x
3.0” W (12.7 cm x
15.8 cm x 7.6 cm)
Electrical/Environmental Specifications
Image: 1/4” IT CCD Active
Picture Elements
NTSC: 768 (H) x 494 (V)
PAL: 752 (H) x 582 (V)
Resolution:
NTSC: 470 (H) x 350 (V)
PAL: 460 (H) x 400 (V)
Signal to Noise Ratio: min 49 dB
Video Output: Optically encoded
NTSC or PAL
Color Balance: Automatic Synchroni-
zation
Operating temperature: 0° to +40° C
Storage Temperature: -10° to +50° C
Motor Box Specifications
Houses the motors which power the pan/tilt
mechanism.
Power: 110-220 VAC /
12 VDC
Dimensions: 7.0” H (including
mount) x 7” D x 4.7”
W (18 cm x 12 cm x
7.6 cm)
Contruction: Painted steel
DSVC04040808
Optical Capabilities
Focal Length: 3.5 – 91 mm
Zoom: 26x Optical zoom
12x Digital zoom
Angular Field of View: 55owide; 2.3otele-
Minimum Object Distance: 35 mm (wide);
800 mm (telephoto)
Angle of Pan/Tilt: Pan: +/- 150° degrees
Tilt: +/- 30° degrees
Fiber Optic Cable: 62.5 u glass fiber
Iris Control: Manual and
Automatic
Minimum Illumination: 0.7 lux
Ordering Information
Product: Video Camera
Model Number: VC-04
Warranty: 1 year
