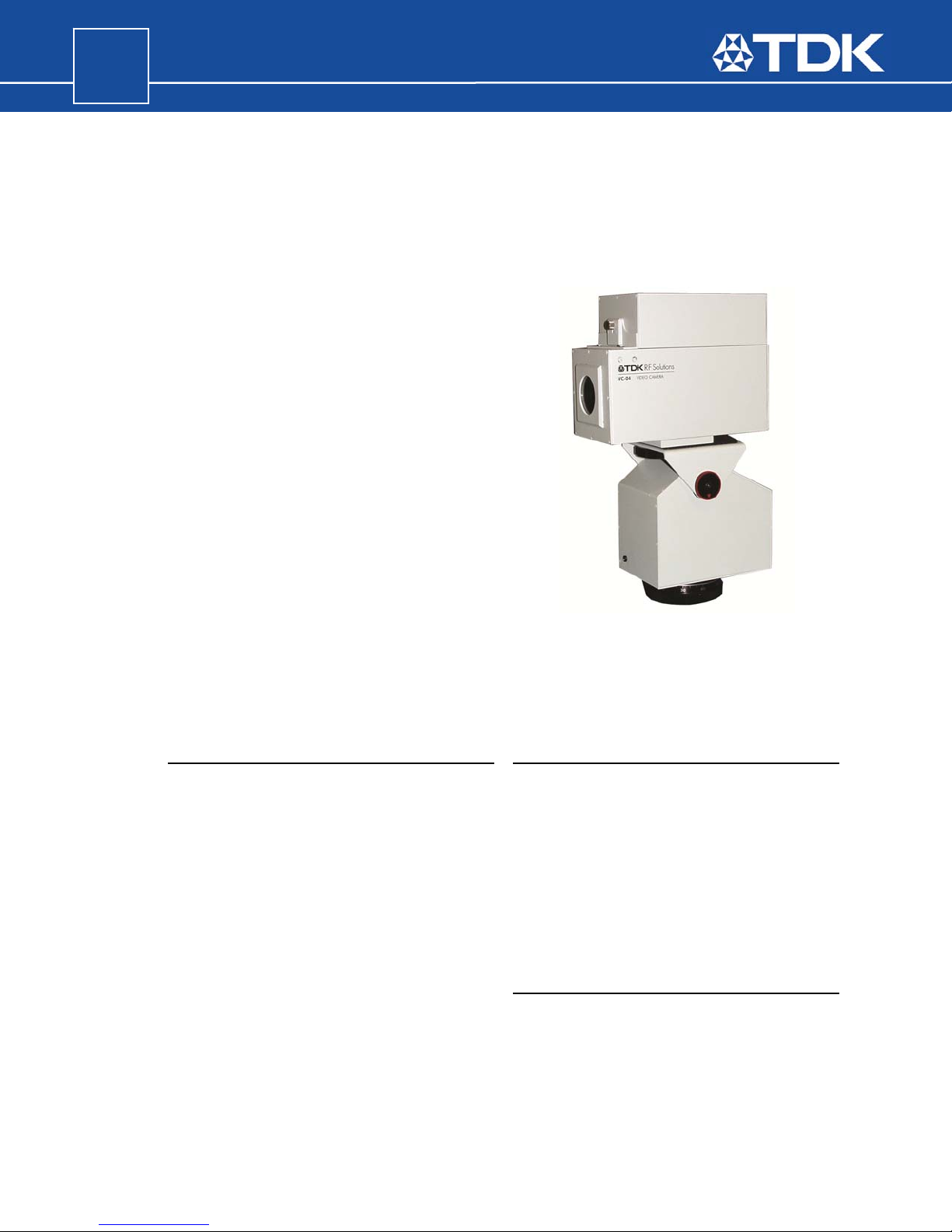

VC-04 Color Video Camera
Product Overview
The TDK VC-04 Color Video Camera is a high
performance CCD specifically designed for re-
mote monitoring of equipment under EMC testing.
The camera is also ideal for wide angle anechoic
chamber monitoring, shielded access control, and
test action archiving.
Designed for EMC Testing The VC-04 is de-
signed to operate in the harsh environments re-
quired by EMC testing. The camera is housed in
an EMI hardened protective case, and the control
and video signals use fiber optics to prevent inter-
ference caused by high electromagnetic fields
present during EMC testing.
Full-Featured The high-resolution VC-04 is re-
motely focused, positioned, and zoomed using the
TDK SI-300CC controller. The camera is available
in both NTSC and PAL versions.
VC-04 Video Camera System Components
 One VC-04 Color Video Camera
 SI-300CC Camera Controller capable of
controlling up to four VC-04 cameras
 A 20” LCD monitor
 One set of 25m fiber optic cables
 Either AC power or DC battery pack
 Permanent sturdy fixture
Options
 Built-in audio
 VCMS-150R Video Camera Monopod Stand
 VCWM Video Camera Wall Mount
 AC power or DC battery pack
The TDK VC-04 Color Video Camera is de-
signed specifically for remote monitoring of
equipment during EMC testing in a shielded
room or anechoic chamber.
Camera Features
 1/4" CCD; high resolution; NTSC and PAL
versions
 EMI shielded to >200 V/m (DC to 18 GHz);
Shielded 12 V DC or universal AC adapter
operated
 Pan/tilt mechanism
 Remote control for pan/tilt, focus, zoom, iris
control
 Computer control with IEEE-488 option
 Audio option provides both audio and visual
monitoring

S
SYSTEMS
C
CHAMBERS
P
PRODUCTS
SW
SOFTWARE
TS
TEST SERVICES
TOTALIRF EXPERTISE™
www.tdkrfsolutions.com
To learn more about TDK’s wide range of innovative test products, solutions and services visit www.tdkrfsolutions.com
Copyright © TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice.
P
PRODUCTS
VC-04 Color Video Camera
Overall Dimensions
With pan/tilt unit: 10.5” H x 6.2” D x 3.0”
W (26.7 cm x 15.8 cm
x 7.6 cm)
Without pan/tilt unit: 5.0” H x 6.2” D x 3.0”
W (12.7 cm x 15.8 cm
x 7.6 cm)
Electrical/Environmental Specifications
Image: 1/4” IT CCD Active
Picture Elements
NTSC: 768 (H) x 494 (V)
PAL: 752 (H) x 582 (V)
Resolution:
NTSC: 470 (H) x 350 (V)
PAL: 460 (H) x 400 (V)
Signal to Noise Ratio: min 49 dB
Video Output: Optically encoded
NTSC or PAL
Color Balance: Automatic Synchroniza-
tion
Operating temperature: 0° to +40° C
Storage Temperature: -10° to +50° C
Motor Box Specifications
Houses the motors which power the pan/tilt mech-
anism.
Power: 110-220 VAC /
12 VDC
Dimensions: 7.0” H (including
mount) x 7” D x 4.7” W
(18 cm x 12 cm x 7.6
cm)
Construction: Painted steel
Ordering Information
Product: Video Camera
Model Number: VC-04
Warranty: 1 year
To place an order or to learn more about the
TDK products that best meet your needs, con-
tact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
World Wide Web: www.tdkrfsolutions.com
Rev. 2011-08-02
Optical Capabilities
Focal Length: 3.5 – 91 mm
Zoom: 26x Optical zoom
12x Digital zoom
Angular Field of View: 55° wide; 2.3° telepho-
to
Minimum Object Distance: 35 mm (wide);
800 mm (telephoto)
Angle of Pan/Tilt: Pan: +/- 150° degrees
Tilt: +/- 30°
digress
Fiber Optic Cable: 62.5 u glass fiber
Iris Control: Manual and
Automatic
Minimum Illumination: 0.7 lux
