Teamson Home PT-WF0004 User manual

Peaktop
21.26 Inch Freestanding Water
Decor with Fire Pit
PT-WF0004
www.teamson.com
TIME SAVER!
3D Interactive Instruction

** Got questions? Please have your product code (on the first page of this instruction,
e.g. PT-WF0004) and the order number ready, give us a call or email us through our
customer care support! We are always ready to assist you!
01

Thank you for choosing Teamson Home
www.teamsonhome.com
Serving you well gives us great joy!
ASIA
[phone]
USA
[email protected]
Mon - Fri 10:00am ~ 2:00pm EST
[phone]
[email protected]
Mon - Thu 9:00am ~ 5:00pm GMT
Friday 9:00am ~ 4:00pm GMT
EU
[phone].分机号108
[email protected]
Mon - Sat 9:00am ~ 5:00pm GMT+8
[email protected]
[phone]
Mon - Fri 9:00am ~ 5:00pm GMT+8
深圳办公室:
台北辦公室:
3D Interactive Instruction
02

SAFETY INFORMATION
03
Questions?
Scan Here
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
•
•
•
•
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected
for use shall not be stored in the
vicinity of this or any other appliance.
If the information in this manual is not
may result causing property damage,
personal injury,or loss of life.
WARNING
For outdoor use only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
followed exactly, a fire or explosion
WARNING
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper,tent,car or home.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.

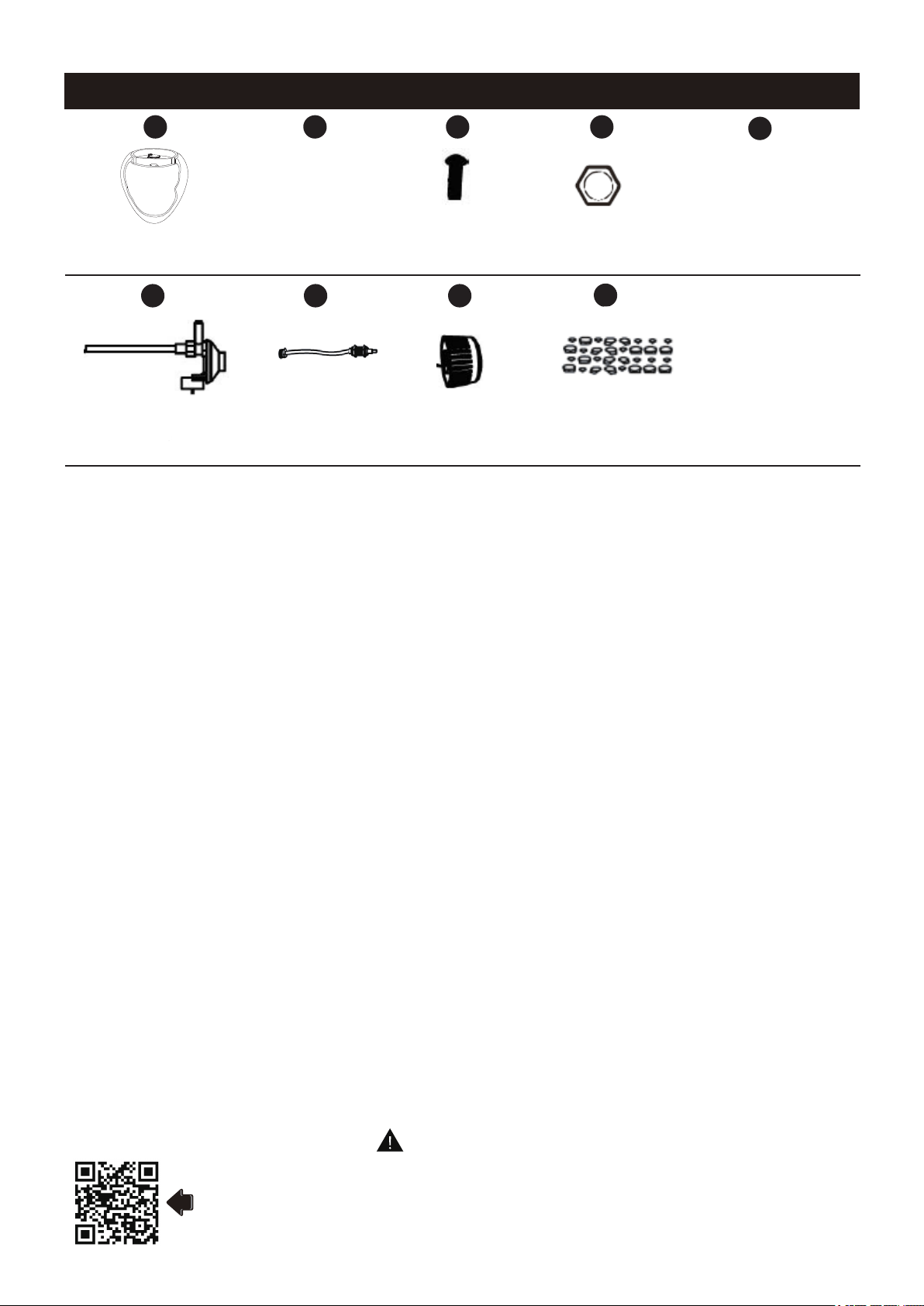

Product Parts
04
Questions?
Scan Here
K
I
Body Screw Nut
Thermocouple Control Knob
Burner connection
Burner
1PC
1PC 1PC 2PCS 2PCS
!Regulator assembly
1PC 1PC
1PC
fire glass
1Box
1. Do not let any sharp objects touch or rub the surface of the product.
2. When assemblying, do not let children play around the working area.
3. Please confirm all parts are correct before starting the assembly process.
4. Do not tighten all bolts and screws completely until the entire unit has been
assembled and set up.
WARNING:
ABCDE
FGHI

INSTALLATION INSTRUCTIONS
05
Questions?
Scan Here
WARNING:
This item is heavy. All necessary
precautions should be taken when lifting
and assembling this fireplace.
Make certain the fireplace body always
remains upright. Do not lie on its side or
you could cause damage to the body.
Most parts of this fireplace are pre-assembled
before shipment. Please follow below assembly
instructions before you start to enjoy your
fireplace.
Step 1: Carefully unpack the product, and take
out all the components. Make sure you take out
all the packaging materials as well.
Step 2: Put the fireplace body on the final
position. It should only be put on a flat and
NON-COMBUSTIBLE floor, and there must be a
minimum of 24 inches of clearance from the
tabletop to COMBUSTIBLE walls. Make sure the
valve on the control panel is turned all the way
clockwise to the “OFF” position. (Figure 1)
Step 3: Put up the body (Figure 2), put up 1
pound gas tank’s adopter to connect valve
assembly tight it up by clockwise direction.
(Figure 3)
Now you’re ready to enjoy your pillar fireplace.
Follow the operation instructions when you’re
using this appliance
(Figure 1)
(Figure 2)
(Figure 3)

INSTALLATION INSTRUCTIONS OF THE FOUNTAIN
06
Questions?
Scan Here
1. Put the basin stand on a clean level surface that cannot be damaged by water.
2. Put the pump in the fountain basin, Thread the electrical cord through the pipe that is not in the center down into
the center of the stand.
3. Put the upper fountain on its edge (as shown).
4. Connect the hose to the pump.
5. Put the pump cover in place.
6. Connect a 1LB propane tank to the metal connection inside the column.
7. Fill with clean water.
8. Put the proper tank cover in place.
9. Start as per operating instruction.
10. Plug pump outlet into a properly grounded outlet, check the water flow.
11. Place the wind guard on top of the fountain. The wind guard will help to prevent fire from extinguishing due to a
mild breeze. Fire feature should not be used and Gas should be shut off, during windy and stormy conditions.
OPERATION INSTRUCTIONS
Lighting and Setting Control for Gas
Before lighting, make sure the valve knob is in the “OFF” position.
1. From the OFF position, push in and turn control knob anti-clockwise to the LOW position.
2. Always perform a leak test before lighting the burner. See page 4
3. Hold a lit match within 1/4” to the lava logs as shown on below picture, until the burner is lit. If burner fails to
light, turn to OFF. Wait 5 minutes before attempting to re-light.
4. Turn control knob to desired heat setting, LOW or HIGH.
Shut-down for Gas
1. Turn the control knob gently to “OFF” position.
2. Disconnect and remove the gas tank when the gas fireplace is not in use.
MAINTENANCE INFORMATION
1. The flames should look like those in the figure below. Adjust the control knob to reach different height for flame.
2. If in raining day, burner should be turned off, and put the cover on the burner. Vinyl cover should not be
put on this fireplace until the fireplace is cooled down. Do not light or use gas unit if lava rock are wet,
ensure lava rocks are completely dry before igniting as intense heat could cause the rock to crack.
3. It is recommended that the fireplace be stored indoors in freezing temperatures. The cylinder must be
disconnected and removed from the appliance before the appliance can be stored indoors.
4. The propane canister must be stored outdoors and never close to the operating unit.

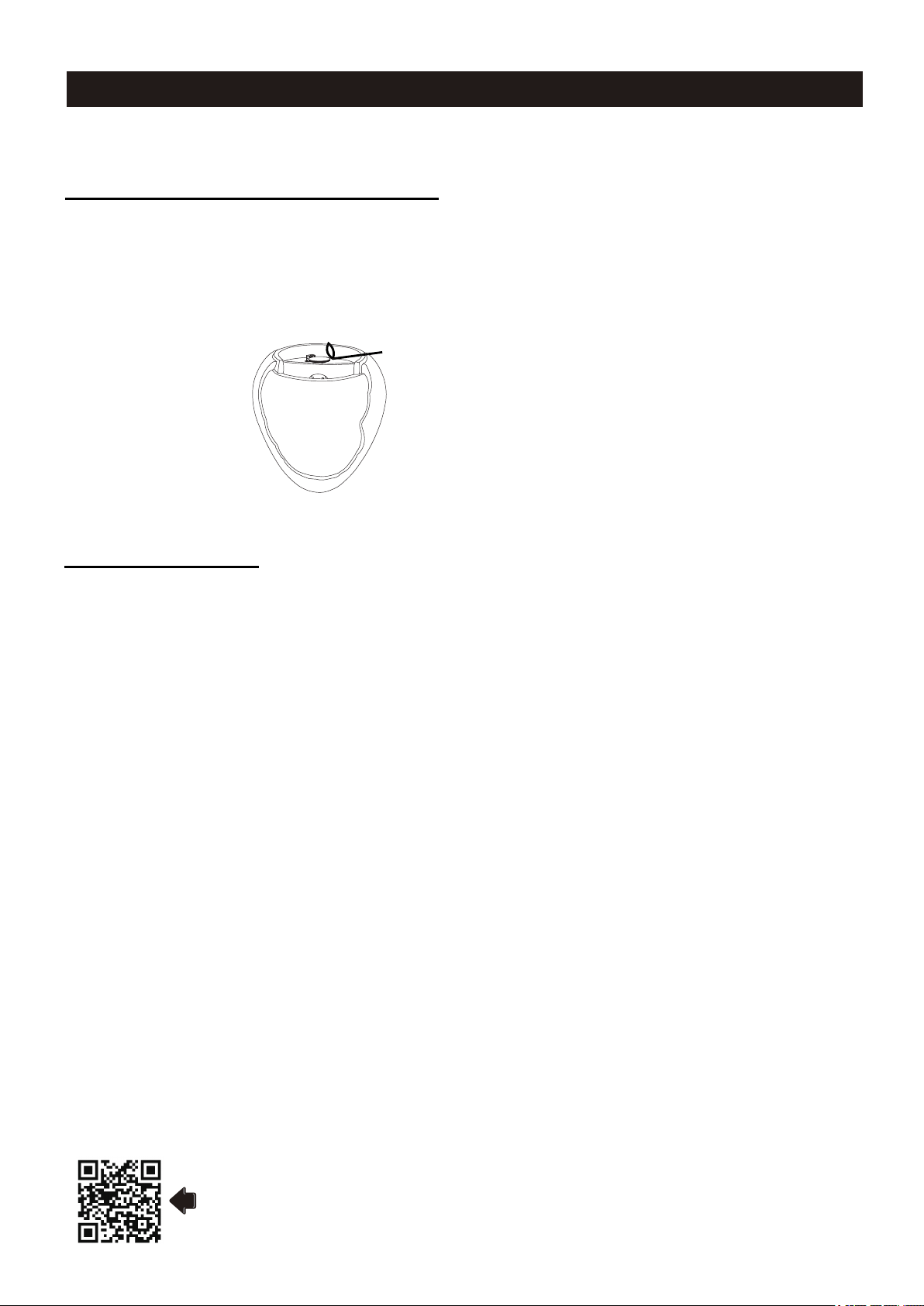

OPERATION INSTRUCTIONS
07
Questions?
Scan Here
Lighting and Setting Control for Gas
Before lighting, make sure the valve knob is in the “OFF” position.
1. From the OFF position, push in and turn control knob anti-clockwise to the LOW position.
2. Always perform a leak test before lighting the burner. See page 4
3. Hold a lit match within 1/4” to the glass logs as shown on below picture, until the burner is lit. If burner fails
to light, turn to OFF. Wait 5 minutes before attempting to re-light.
4. Turn control knob to desired heat setting, LOW or HIGH.
Shut-down for Gas
1. Turn the control knob gently to “OFF” position.
2. Disconnect and remove the gas tank when the gas fireplace is not in use.
MAINTENANCE INFORMATION
1. The flames should look like those in the figure below. Adjust the control knob to reach different height for flame.
2. If in raining day, burner should be turned off, and put the cover on the burner. Vinyl cover should not be
put on this fireplace until the fireplace is cooled down. Do not light or use gas unit if fire glass are wet,
ensure fire glass are completely dry before igniting as intense heat could cause the rock to crack.
3. It is recommended that the fireplace be stored indoors in freezing temperatures. The cylinder must be
disconnected and removed from the appliance before the appliance can be stored indoors.
4. The propane canister must be stored outdoors and never close to the operating unit.

SAFETY INFORMATION
08
Questions?
Scan Here
Before you assemble or operate this unit, please carefully read this entire manual. Failure to
do so may result in a fire explosion, injury, or death.
WARNING
• The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223. 1/
NFPA54, OR CAN/CGA-B149.1, National gas and Propane Installation Code.
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated space
and
shall not be used in any enclosed area.
• This unit is to be used with propane gas only!
• Do not attach a remote gas supply to this unit.
• This unit is not intended for natural gas.
• Converting this unit to natural gas is dangerous and not recommended. The conversion of this unit will void
the
manufacturer warranty.
• Do not use any solid fuel or charcoal with this unit.
• When igniting this unit, stay away from the burner as the flame may light up and may cause injury.
• LP GAS WARNING: Do not use any more than 1/4” depth lava rocks/pumice stones/glass above the
burner holes. Doing so will suffocate the flame.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following: 1. Disconnect
the propane gas tank. 2. Do not attempt to fix the problem yourself. 3. Contact your gas supplier or fire
department for help.
• Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit so that
the
remaining gas may escape.
• Do not use a flame to check for gas leaks.
• The max. inlet supply pressure: max. Gas supply 11in w.c. (2.74kPa)
• Use LP propane tanks with the following dimensions: diameter 12in, height 18in, capacity 20lbs.
• You must use a propane tank that has a collar to protect the gas valve.
• DO NOT fill tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should
be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this fire table.
• Do not burn if the glass rock is wet
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any flammable items away and do not use any other fireplace cover for this unit.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or fingers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
•
SAFETY INFORMATION

• Combustible material should not be within 72 inches of the top of the unit, or within 48 inches around
the entire unit.
• If the flame goes out while burning, turn the gas valve off. Wait 5 minutes before repeating the initial
lighting procedure. Once you have a flame started, hold down the control knob for 1 minute.
• Donotaddwaterintotheunit.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to
inspect the appliance andreplace any part of the control system and any gas control which has been
under
water.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the unit is stored indoors, detach the propane tank and leave outdoors.
• Do not operate on a boat or vehicle.This unit must be used on aflat surface and outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Do not set the protective cover over the unit until it is turned off and completely cooled down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while near this unit.
• Keep gas tank at least 5 ft away from unit when lit. (if external tank)
• The maximum gas supply pressure is 250psi.
• All installation and repair should be done by a qualified professional.This unit should be inspected annually
and
cleanedregularly.
• Inspect all elements of this heating unit before each use. If there is damage, the burner must be replaced.
• Keep the hose out from any pathwaysto eliminate any accidental damage. (if external tank)
• Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or injury.
• The gas supply tank should be constructed and marked with the specifications for the LP gas tanks of the
U.S.DepartmentofTransportationortheNationalStandardofCanadaCAN/CSA-B339,LPgastanks,spheres
andtubesforTransportationof DangerousGoods;andCommission.
• TheLPgastankmusthavealistedoverfillingpreventiondeviceandaQCCIorTypeI,(CGA810)LPgastank
connection.
• This unit should not be used on plastic or artificial wood decks.
• Combustible material should not be within 72 inches of the top of the unit, or within 48 inches around
the entire unit.
• Instructions to keep the appliance away from and free from combustible materials, gasoline, and other
• flammable vapors and liquids.
• Do not use the unit without inspecting the hose. Prior to use if there are any signs of wear or
• abrasionyoumustreplacethehose.
• Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to
avoid burns or clothing ignition.
• children Young should be carefully supervised when they are in the area of the appliance.
• Clothing or other flammable materials should not be hung from appliance or placed on, in, or near the
appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced prior
to operating
the appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected
before use at least annually by a qualified service person. More frequent cleaning may be required
as
necessary. It is imperative that the control compartment, burners, and circulation air passageways of
the
appliance are kept clean.
SAFETY INFORMATION
09

SAFETY INFORMATION
10
NOTE: You must follow all steps to properlyassemblethis heating item. Make surethe gasvalveis
turned "OFF" before assembling. Do NOT attempt to assemble without proper tools.
IF APPLICABLE:
• Allowunittocoolcompletelybeforeplacingon the protective cover
• DO NOT use the item while covered.
NOTE:Youmustfollowallsteps toproperlyassemblethis heating item.Makesurethe gas valve
isturned"OFF"beforeassembling.DoNOTattempttoassemblewithoutpropertools.
Note: Combustible material should not
be within 72 in of the top of the unit,
or within 48 in around the entire unit.
Combustible materials could be and
are not limited to any items that may
catchfire such as dry vegetation, wood,
branches,leaves,plants,buildings,
structures,fabrics,clothing,sawdust,
all chemicals,and all flammableliquids.

I
11
Step 3
TROUBLESHOOTING
Igniter pin and burner are wet Dry off with a soft cloth
Igniter battery is incorrectly inserted Check which direction the battery
is inserted
Heating unit won’t light Igniter pin is broken Contact Teamson design corp. for
a replacement part
Electrode wire is loose or
disconnected Reconnect wire to the igniter box located inside the table behind the igniter box
Electrode wire is shorting between
valve and igniter pin Contact Teamson design corp. for a
replacement part
Burner won’t light
while using a match
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to
the tank Tighten regulator connection to the gas tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them out.
Heating unit emits a lot
of black smoke
Flame is obstructed at burner ports Check that all burner ports are free of
any small lava rocks/pumice stones/
LavaGlass® pieces
Regulator hose is kinked Straighten hose of all bends or kinks
Sudden drop in gas
flow
Excess flow safety valve has been
activated Turn the control knob to the ‘off’ position.
Close the tank valve and disconnect
propane gas tank. Turn the control
knob to ‘high’; wait 1 minute. T urn the
control knob back to the ‘off’ position.
Reconnect propane gas tank. Light the
fire unit as indicated in the ‘To Light’
section of this manual.
Flame blows out easily
High or gusting winds Increase flame to ‘high’
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated See ‘sudden drop in gas flow’ above

SAFETY INFORMATION
12
O
IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating
item is in use.
Only use the regulator and hose assembly provided with this unit. Replacement parts
must be supplied directly by Teamson design corp.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do
not operate the appliance. For assistance with repair or replacement of the burner or
any other parts, calls [phone].
NOTE: You must follow all steps to properly assemble this heating item.
Make sure the gas valve is turned “OFF” before assembling. Do NOT attempt to
assemble without proper tools.

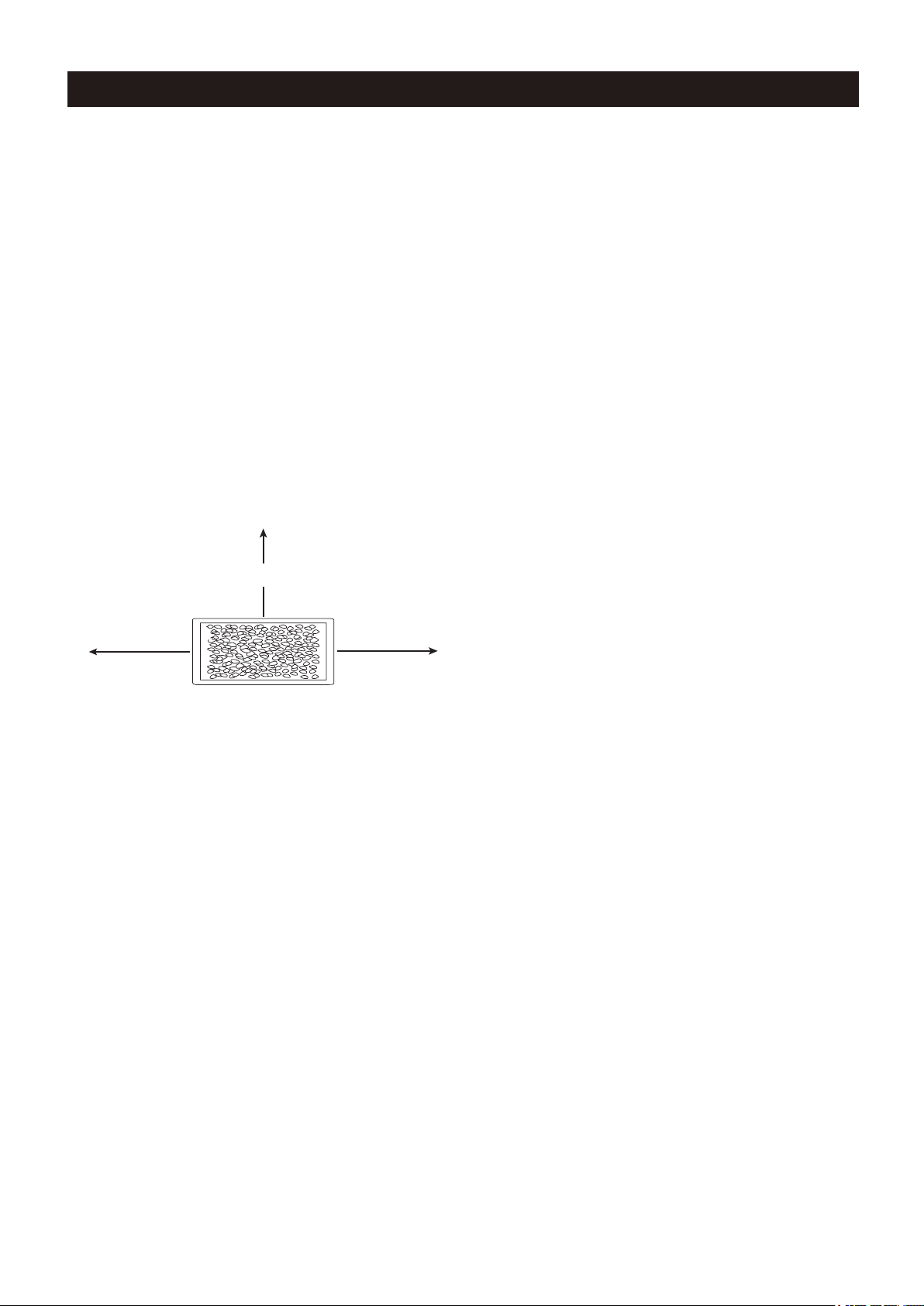

Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Combustible materials should not be within
72 inches of the top of the unit, or within 48
inches around the entire unit.
