Teamson Home Peaktop User manual

www.teamson.com
TIME SAVER!
3D Interactive Instruction
Peaktop
30" Rattan Base Tempered
Glass Top Propane Firepit
HF30200AA
已

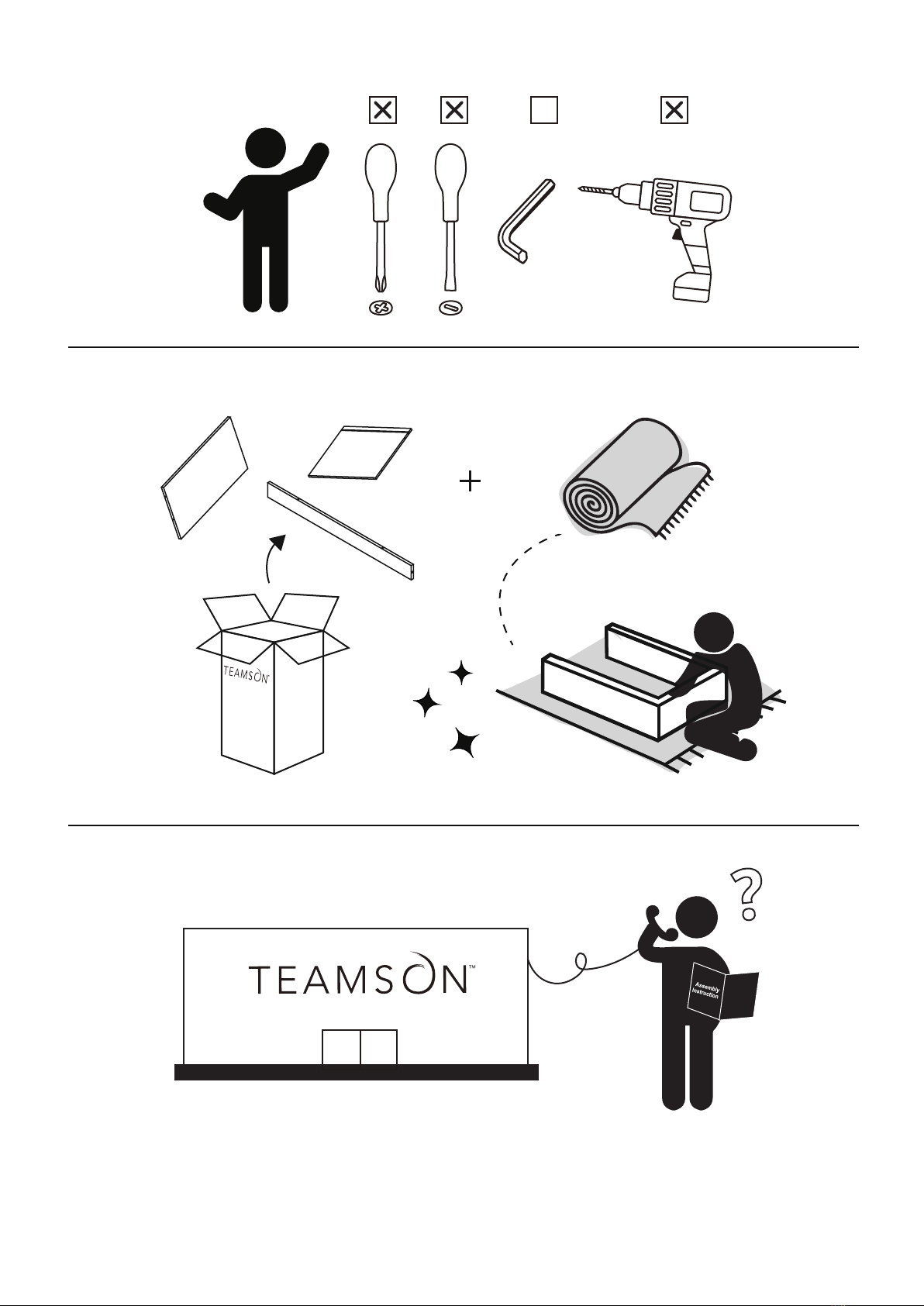

** Got questions? Please have your product code (on the first page of this instruction,
e.g. HF30200AA) and the order number ready, give us a call or email us through our
customer care support! We are always ready to assist you!
01
√

Thank you for choosing Teamson Home
www.teamsonhome.com
Serving you well gives us great joy!
ASIA
[phone]
USA
[email protected]
Mon - Fri 10:00am ~ 2:00pm EST
[phone]
[email protected]
Mon - Thu 9:00am ~ 5:00pm GMT
Friday 9:00am ~ 4:00pm GMT
EU
[phone].分机号108
[email protected]
Mon - Sat 9:00am ~ 5:00pm GMT+8
[email protected]
[phone]
Mon - Fri 9:00am ~ 5:00pm GMT+8
深圳办公室:
台北辦公室:
3D Interactive Instruction
02

SAFETY INFORMATION
03
Questions?
Scan Here
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
•
•
•
•
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected
for use shall not be stored in the
vicinity of this or any other appliance.
If the information in this manual is not
may result causing property damage,
personal injury,or loss of life.
WARNING
For outdoor use only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
followed exactly, a fire or explosion
WARNING
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper,tent,car or home.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.

SAFETY INFORMATION
04
Before you assemble or operate this unit, please carefully read this entire manual.
Failure to do so may result in a fire, explosion, injury or death.
• The installation of this unit must adhere to local codes or Propane Storage and Handling
Code,CSA B149.2.
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors,
in a ventilated space and shall not be used in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• Solid fuels shall not be burned in this appliance.
• when igniting this unit,stay away from the burner as the flame will light up and may cause
injury.
• LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/
LavaGlass® above the burner holes. Doing so will suffocate the flame.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
1.Disconnect the propane gas tank. 2.Do not attempt to fix the problem yourself.
3. Contact your gas supplier or fire department for help.
• Applying too much propane may result in gas pooling and will not burn. Allow fresh air into
the unit so that the remaining gas may escape.
• Do not use a flame to check for gas leaks.
• Manifold pressure: 11 inch w.c. (2.74kPa).
• Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity
20 lbs.
• You must use a propane tank that has a collar to protect the gas valve.
• DO NOT fill tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be
hazardous and should be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this fire table.
• Keep away from the unit for the first 20 minutes after igniting your unit for the first time,an lava
rocks/pumice stones/LavaGlass® could pop out and cause injury. Should any rocks pop out,
discard them.
• Always ensure that lava rocks/pumice stones/LavaGlass® are completely dry before use.
Failure to do so will cause them to crack or pop.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any flammable items away and do not use any other fireplace cover for this unie.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or fingers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
• Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
around the entire unit.
• Keep the appliance area clear and free from combustible material,gasnline and other
flammble vapors and liquids.
WARNING

SAFETY INFORMATION
05
O
• if the flame goes out while burning, turn the gas valve off. Wait 5 minutes before repeating
the initial lighting procedure. Once you have a flame started, hold down the control knob for
1 minute.
• Do not add water into the unit.
• Do not operate unit if any part has been under water. Immediately call a quali�ed service
technician to inspect the appliance and replace any part of the control system and any gas
control that has been under water.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
• Do not operate on a boat or vehicle. Thins unit must be used on a flat surface and
outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Do not set the protective cover over the unit until it is turned off and completely cooled
down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while
near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external tank)
• Maximum gas supply: 250 psi; Min. gas supply: 10 psi.
•All installation and repair should be done by a quaalified professional.This unit
should be inspected annually and cleaned regularly.
• Inspect all elements of this heating unit before each use. If there is damage, the burner
must be replaced.
• Keep the hose out from any pathways to eliminate any accidental damage.
(if external tank)
• Be aware of the hazards of high temperatures and stay away from the unit to avoid any
burns or injury.
• The gas supply thak should be constructed and marked with the specificationgs for the LP
gas tanks of the U.S. Department of Transportation or the National Standard of Canada
CAN/CSA-B339, LP gas tanks, spheres and tubes for Transportation of Dangerous Goods;
and Commission.
• The LP gas tank must have a listed overfilling prevention device and a QCCI or Type I,
(CGA791) LP gas tank connection.
• This heating appliance should not be used on plastic or artificial wood decks.
• Children and adults should be alerted to the hazards of high surface temperatures
and should stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the
appliance.
• Clothing or other flammable materials should not be hung from the appliance or
placed on or near the appliance.
•Any guard or other protective device removed for servicing the appliance shall be
replaced prior to operating the appliance.
•Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a qualified service person.
More frequent cleaning circulating airways of the appliance are kept clean.

SAFETY INFORMATION
06
O
IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating
item is in use.
Only use the regulator and hose assembly provided with this unit. Replacement parts
must be supplied directly by Teamson design corp.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do
not operate the appliance. For assistance with repair or replacement of the burner or
any other parts, calls [phone].
NOTE: You must follow all steps to properly assemble this heating item.
Make sure the gas valve is turned “OFF” before assembling. Do NOT attempt to
assemble without proper tools.
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Combustible materials should not be within
72 inches of the top of the unit, or within 48
inches around the entire unit.

Product Parts
07
Questions?
Scan Here
Lid Door Front Panel
Right Panel
1PC
1PC Fire Table with Burner
1PC 1PC
PVC Cover
1PC
Back Panel
1PC
1PC 1PC
Lava Rocks
1BOX(3KGS)
Screw(M6*16MM)
4PCS
1. Do not let any sharp objects touch or rub the surface of the product.
2. When assemblying, do not let children play around the working area.
3. Please confirm all parts are correct before starting the assembly process.
4. Do not tighten all bolts and screws completely until the entire unit has been
assembled and set up.
WARNING:
ABCDE
FGHIJ
KLM
Contorl Knob
1PC
Metal Stand
Screw(M6*30MM)
8PCS
Washer
12PCS

ASSEMBLY INSTRUCTION
08
Questions?
Scan Here
Do not lock the screws until the assembly is complete.
Step1.Check that the control knob (J) for the gas supply system is
turned to the 'OFF' position before starting any assembly.
Step2. Attach back panel (E), right panel (F) and front panel
(D) together using 4 pcs M6 x 30 screws (L) and 4 pcs
washers (M) .
J
E
F
D
L
M

09
Questions?
Scan Here
ASSEMBLY INSTRUCTION
Step3.Attach the metal stand (G) to the woven base using 4 pcs M6
x 30 screws (L) and 4 pcs washers (M) .
Step4.Attach woven base to the bottom part of the table top (B)
using 4 pcs M6 x 16 screws (K) and 4 pcs washers (M).
M
K
G
ML

10
Questions?
Scan Here
ASSEMBLY INSTRUCTION
5.Put the table lid.
已

11
Questions?
Scan Here
ASSEMBLY INSTRUCTION
Step6. Insert the bottom of the door (C) to the hole on the
metal stand (G) and rotate the top to the unit, this will
attach the door (C) to the body.
G
C

ASSEMBLY INSTRUCTION

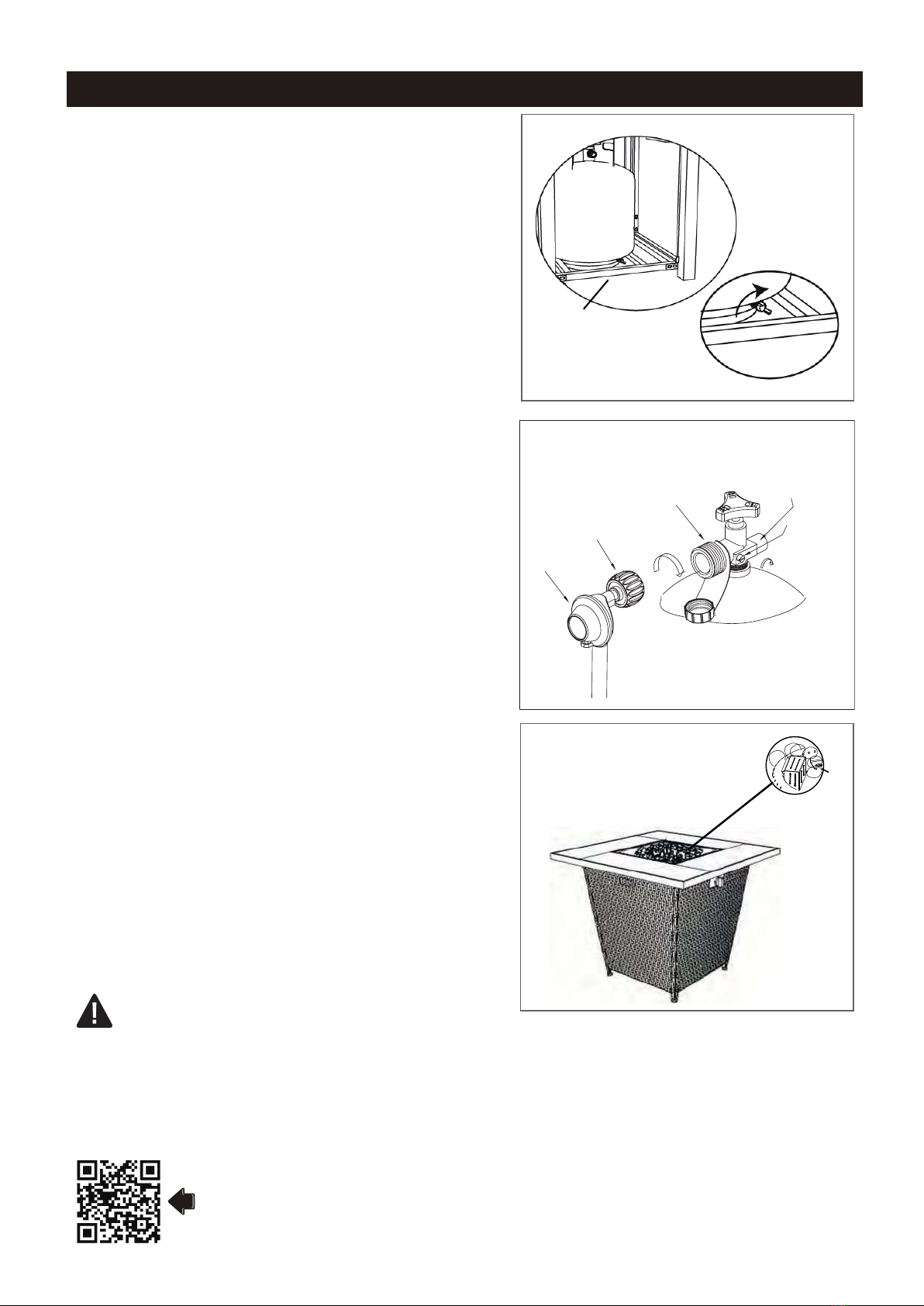

Place propane gas tank (not included) into the
metal stand (G). Make sure the gas tank sits
on the metal stand completely.
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
REGULATOR
BLACK COUPLING NUT
turn clockwise to connect
turn clockwise
to reseal
Turn the cylinder valve on the tank clockwise
to close the propane tank. Attach the
preassembled regulator from the table top (B)
to the cylinder valve by turning the regulator
coupling nut clockwise. Make sure it is
fastened securely and tighten connections by
hand only.
G
Questions?
Scan Here
12
Pour the lava rocks into the firebowl
CAUTION
To ensure proper function, the guard on this
burner should be free of lava rocks at all
times.

Questions?
Scan Here
OPERATION
To Extinguish
1.Make sure the control knob is in the "OFF" position.
2.Open the door and slowly open the valve on the propane gas tank by turning the knob
counterclockwise.
3.Close the door on the body.
4.Push the ignition control knob in fully and rotate about 1/4 turn counterclockwise until a
click is heard, it may take several attemps to light the burner. Once lit, keep holding down
the control knob for 15 seconds.
5.If ignition doesn't occur within a few seconds, release the control knob and rotate to
the "OFF" position. Wait for 5 minutes for gas to clear and then repeat the above
lighting instructions.
6.To adjust the flame, turn the control knob either clockwise or counterclockwise
depending on whether you want to lower or raise the flame.
1.Turn control knob clockwise to the "HIGH" position; push and continue turning the control
knob to the "OFF" position.
2.Close the cylinder valve on the propane gas tank if you don't intend to use it for a long time.
MAINTENANCE
•
•Keep the heating item free and clear from combustible materials.
•Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
•Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/
lava rocks/LavaGlass®are completely cooled down. Wipe down with a soft cloth.
•Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
•Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
•Keep the heating unit stored away from direct sunlight.
•If storing this unit inside, disconnect the propane gas tank from the gas valve.
•Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
•Always place lid (if applicable) or protective cover on heating item when not in use.
Before performing any maintenance always disconnect propane gas tank.
Store your product indoors during winter months. Avoiding extreme cold
temperatures will prevent from exposure damage.
•
13

14
Questions?
Scan Here
TROUBLESHOOTING
Igniter pin and burner are wet Dry off with a soft cloth
Igniter battery is incorrectly inserted Check which direction the battery
is inserted
Heating unit won’t light Igniter pin is broken Contact Teamson design corp. for
a replacement part
Electrode wire is loose or
disconnected
Reconnect wire to the igniter box located
inside the table behind the igniter box
Electrode wire is shorting between
valve and igniter pin
Contact Teamson design corp. for a
replacement part
Burner won’t light
while using a match
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to
the tank
Tighten regulator connection to the gas
tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged
Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them out.
Heating unit emits a lot
of black smoke
Flame is obstructed at burner ports Check that all burner ports are free of
any small lava rocks/pumice stones/
LavaGlass® pieces
Regulator hose is kinked Straighten hose of all bends or kinks
Sudden drop in gas
flow
Excess flow safety valve has been
activated
Turn the control knob to the ‘off’ position.
Close the tank valve and disconnect
propane gas tank. Turn the control
knob to ‘high’; wait 1 minute. Turn the
control knob back to the ‘off’ position.
Reconnect propane gas tank. Light the
fire unit as indicated in the ‘To Light’
section of this manual.
Flame blows out easily
High or gusting winds Increase flame to ‘high’
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated See ‘sudden drop in gas flow’ above

15
Questions?
Scan Here
SAFETY INFORMATION
In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be
shut-off and the appliance shall be investigated and rectified before it is used again. Tighten any
leaking fittings, then turn on gas supply and recheck.If necessary, substitute gasket
(according to EN 549 Class B2)
Maintenance and Cleaning
To enjoy years of outstanding performance from your appliance, regular services of the
appliance is mandatory as followings:
The appliance should be inspected before at least one time a year by a Qualified Service only.
More frequent cleaning may be required according to the use of the appliance.
Any guard or other protective device removed for servicing the appliance must be replaced
before operating it.Keep exterior surfaces clean, free and clear from combustible materials.
