ELEMENTI Manhattan OFG103NG User manual

1
/
18
OFG103-NG
Manhattan Table owner’s manual
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away
from the appliance and
immediately call your gas
supplier
or fire department.
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
This unit is not for use with
propane. Use only with Natural
gas.
WARNING
For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.
IMPORTANT
SAVE THESE
INSTRUCTIONS
!
If the information in this manual is not
follow exactly, a fire or explosion may
result causing property damage
personal injury or loss of life
Read the in
stallation, operation
and maintenance instructions
tho
roughly before installing or
servicing this equipment.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or p
roperty damage.
Save these instructions for
future
reference. If you are assembling
this unit for someone else, give
this
manual to him or her to read
and save for future
reference.

2
/
18
Table of Contents
Important Safety Information 3
Natural Gas Warnings 5
Parts List 7
Pre-use Instructions 8
Lighting Instructions 12
Care and Cleaning 13
Gas Component Connection Checks 14
Troubleshooting 16
Warranty 18
CARBON MONOXIDE HAZARD
Never use this appliance in an enclosed
space such as camper, tent, car or home.
DANGER

3
/
18
IMPORTANT SAFETY INFORMATION
•
WARNING: Always shut off gas supply at the shut-off valve and disconnect the quick
disconnect socket from the main gas supply when the fire table is not in using.
•
WARNING: Installation and service must be performed by a qualified installer, service agency or
gas supplier.
•
WARNING: Failure to follow with the safety warnings and precautions in this manual
may result in serious bodily injury or death, a fire or an explosion causing damage to
property.
•
IMPORTANT NOTICE: Read and understand all warnings and precautions prior to
assembly and use your gas fire table. Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
•
NOTE: The use and installation of this product must conform to local codes. In the absence of
local code s, use the National Fuel Gas Code, ANSI Z21.97. Reference to Natural Gas and Propane
Installation code CSAB14 9.1 or Propane Storage and Handling code B149.2.
•
NOTE: When an appliance is for connection to a fixed piping system, the installation must conform
with local codes, or in the absence of local codes with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, or International Fuel Gas Code.
•
Minimum clearance from unit to combustible materials 72” (182.9cm) from the top; 48” (121.9 cm)
from all sides and back. Do not locate this fire table under any overhead enclosure.
•
This portable fire pit is approved for use on an outdoor wood deck if the required
minimum clearances are met.
•
Always use this outdoor fire table on a level surface. Surfaces such as dirt and grass may
prevent the unit from having proper ventilation.
•
This gas fire table and its individual shut off valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 of psi
(3.5 kPa). The appliance must be isolated from the gas supply piping system by closing its
individual manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
•
Keep these instructions for future reference. If you are assembling this unit for someone else,
give this manual to him or her to read and keep for future reference.
•
This gas fire table must be used ONLY out doors in a well- ventilated space and shall NOT be
used inside a building, garage, or any other area.
•
DO NOT use this outdoor gas fire table for indoor heating. Toxic carbon monoxide fumes can
accumulate and cause asphyxiation.
•
NEVER leave this gas fire pit unattended when in use.
•
Children should be alerted to the hazards of high surface temperatures and kept at a safe
distance while fire table is in use.
IF YOU SMELL GAS:
Shut off gas supply to the fire table.
Extinguish any open flame.
Do not try lighting any appliance.
Do not touch any electrical switch, do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone.
If you cannot reach your gas supplier, call the fire department.
WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY

4
/
18
•
DO NOT store or use gasoline or other flammable vapors and liquids within 25 feet (7.62m) of this or
any other appliance.
•
DO NOT store any combustible materials in the base enclosure.
•
DO NOT use in an explosive atmosphere. Keep gas fire table area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
•
This outdoor fire table is NOT to be operated by children. Young children should be closely supervised
when in the vicinity of this outdoor fire table.
•
This outdoor fire table is not to be installed or used in or on recreation vehicles and/or boats.
•
Always use in accordance with all applicable local, state and national codes. Contact your local fire
department for details on outdoor burning.
•
Use the same precautions you would with any open fire when using this outdoor fire table.
•
DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs,
driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure treated wood in this
outdoor fire table.
•
DO NOT use this outdoor fire table until it is completely assembled and all parts are securely
fastened and tightened.
•
DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles.
•
DO NOT use this outdoor fire table under any overhead structure or near any unprotected combustible
constructions. Avoid using near or under overhanging trees and shrubs.
•
The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly
assemble or safely operate this outdoor fire table.
•
DO NOT use this outdoor fire table if any part has been under water. Immediately call a qualified
service technician to inspect the fire table and to replace any part or control system and any gas control
which has been under water.
•
DO NOT wear flammable or loose clothing when operating this outdoor fire table.
•
DO NOT use in windy conditions.
•
Keep all electrical cords away from a hot outdoor fire table.
•
Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch hot
surfaces until the unit has cooled unless you are wearing protective gear such as insulated pot
holders or heat resistant gloves or mittens to avoid burns.
•
DO NOT hang or place clothing or other flammable materials on or near the gas fire table.
•
Any guard or other protective device removed for servicing the fire table must be replaced prior to
operating the fire table.
•
DO NOT attempt to move or store this outdoor fire table until all parts are cool.
•
DO NOT lean over this outdoor fire table when lighting or when in use.
•
Use only the natural gas hose and quick disconnect assembly provided. The replacement
natural gas hose and quick disconnect assembly shall be that specified by the manufacturer.
•
DO NOT attempt to disconnect natural gas hose or quick disconnect socket from the main gas supply
or any gas fitting while the outdoor fire table is in use.
•
Always shut off the gas supply at the shut-off valve and disconnect the quick disconnect socket
from the main gas supply when the fire table is not in use.
•
DO NOT sit on the fire table when the unit is in operation.
•
DO NOT throw anything onto the fire when the unit is in operation.
•
Lava rocks are very hot; please keep children and pets at a safe distance.
•
It is essential to keep the outdoor fire table valve compartment, burners, and circulating air
passages clean. Inspect outdoor fire table before each use.
•
Prior to each fire table operation, check the hose for evidence of excessive abrasion or wear by looking
through the visual check hole. If the hose is damaged, cracked or cut, it must be replaced before using
the gas fire table. The hose assembly can only be replaced with a hose assembly specified by the
manufacturer. Please call Elementi at 1-909-985-5553.
IMPORTANT SAFETY
INFORMATION
(Continued)

5
/
18
•

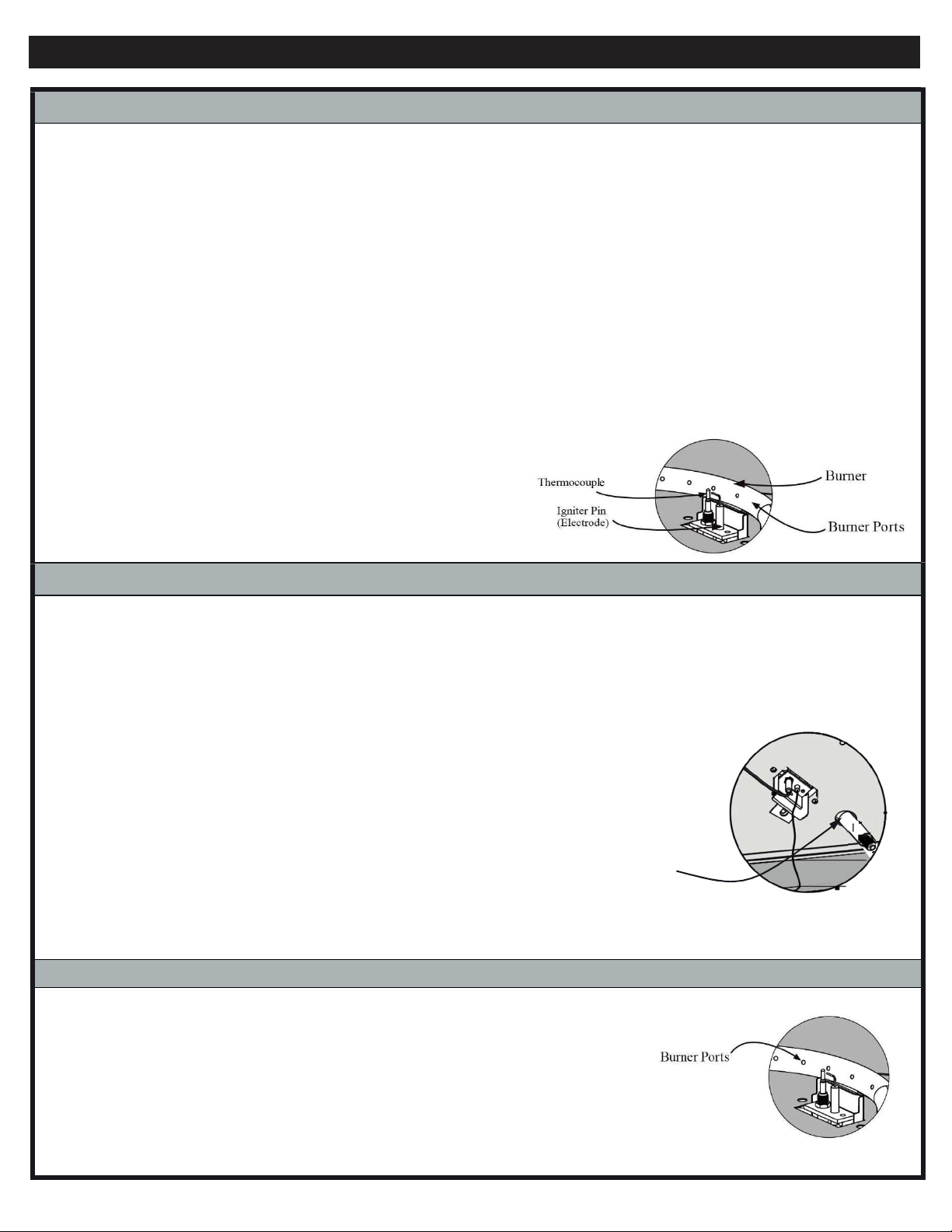

Before each use, remove the lava rocks. Examine the burner and its components. If dirty, clean with a
soft brush and soapy water solution. Also examine the area around the burner. Any dirt or foreign
material, such as spider webs or nests in this area should be removed. If it is evident that the burner is
damaged, the fire table must not be used. The burner assembly cannot be replaced. Please contact
Elementi at 909-985-553 for technical support.
•
Place the hose out of the pathways where people may trip over it. Do not place the hose in areas where it
may be subjected to accidental damage.
ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the
operations manual will void manufacturer warranty.
NATURAL GAS DANGERS AND WARNINGS
Natural gas is flammable and hazardous if handled improperly. Become aware of the
characteristics before using any natural gas product.
Natural Gas Characteristics:
•
Flammable, explosive under pressure, lighter than air and settles in pools in high areas.
•
In its natural state, natural gas has no odor. For your safety, an odorant has been added.
•
Contact with natural gas could burn the skin.
•
Natural gas is extremely flammable and hazardous if handled improperly.
Chemicals known to the state of California to cause cancer, birth defects, or other
reproductive harm are created by the combustion of natural gas.
Your natural gas fire pit is designed to operate on natural gas only, at a pressure of seven
inches’ water column (7" W.C.) Check with your gas utility for local gas pressure, because in
some areas natural gas pressure varies. Also, check with your gas company or with local
building codes for instructions to install gas supply line, or call a licensed and qualified
installer.
It is recommended that an ON/OFF manual shut-off valve be installed at the gas supply
source:

Outdoors after the gas line exits outside wall and before quick-disconnect or
before gas supply line enters ground.

Indoors in the branch gas line in an accessible location near the gas supply line.
Pipe sealing compound or pipe thread tape of the type resistant to the action of natural
gas must be used on all male pipe threads. Apply compound or tape to at least the first
three to four threads when making a connection.
IMPORTANT SAFETY INFORMATION (Continued)
DANGER
This outdoor fire table is for use with natural gas only. The conversion to or attempted use of
Liquid Propane in this out door fire table is dangerous and could result in serious personal
injury, or property damage.

6
/
18
!
Never store or use gasoline or other volatile substance in the vicinity of this fire table.
Natural Gas Connection
Connect a manual shut-off valve to gas supply line. Apply sealing compound or pipe thread tape
of the type resistant to the action of natural gas on all male pipe threads. Connect the end, with
the quick release connector, or the natural gas hose to manual shut-off valve at the gas supply.
The outdoor fire table must be isolated from the gas supply piping system by closing
the Individual manual shut-off valve during any pressure testing of the gas supply
piping system at least equal to or less than 1/2 psi (3.5 kPa).
NATURAL GAS DANGERS AND WARNINGS (Continued)
During any high pressure testing of the gas supply piping system at test pressures in
excess of ½ psi (3.5 kPa), the appliance and its individual shut-off valve must be
disconnected from the gas supply piping system.
WARNING
Burner valves are pre-tested at the factory to operate on natural gas. Do not attempt to
convert or change.

7
/
18

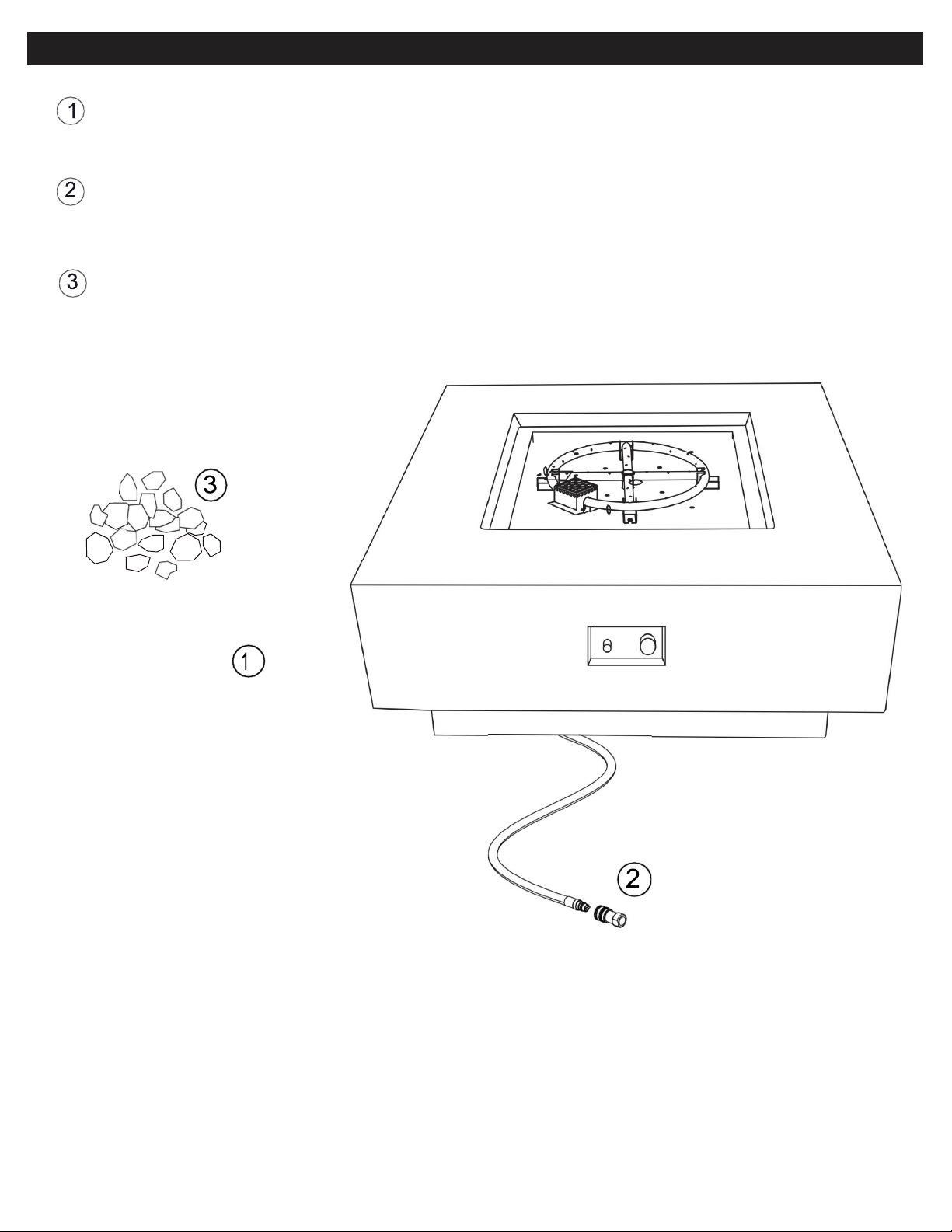

PARTS LIST
Fire Table 1
Natural Gas Hose 1
and Quick Disconnect
Lava Rock 1

8
/
18

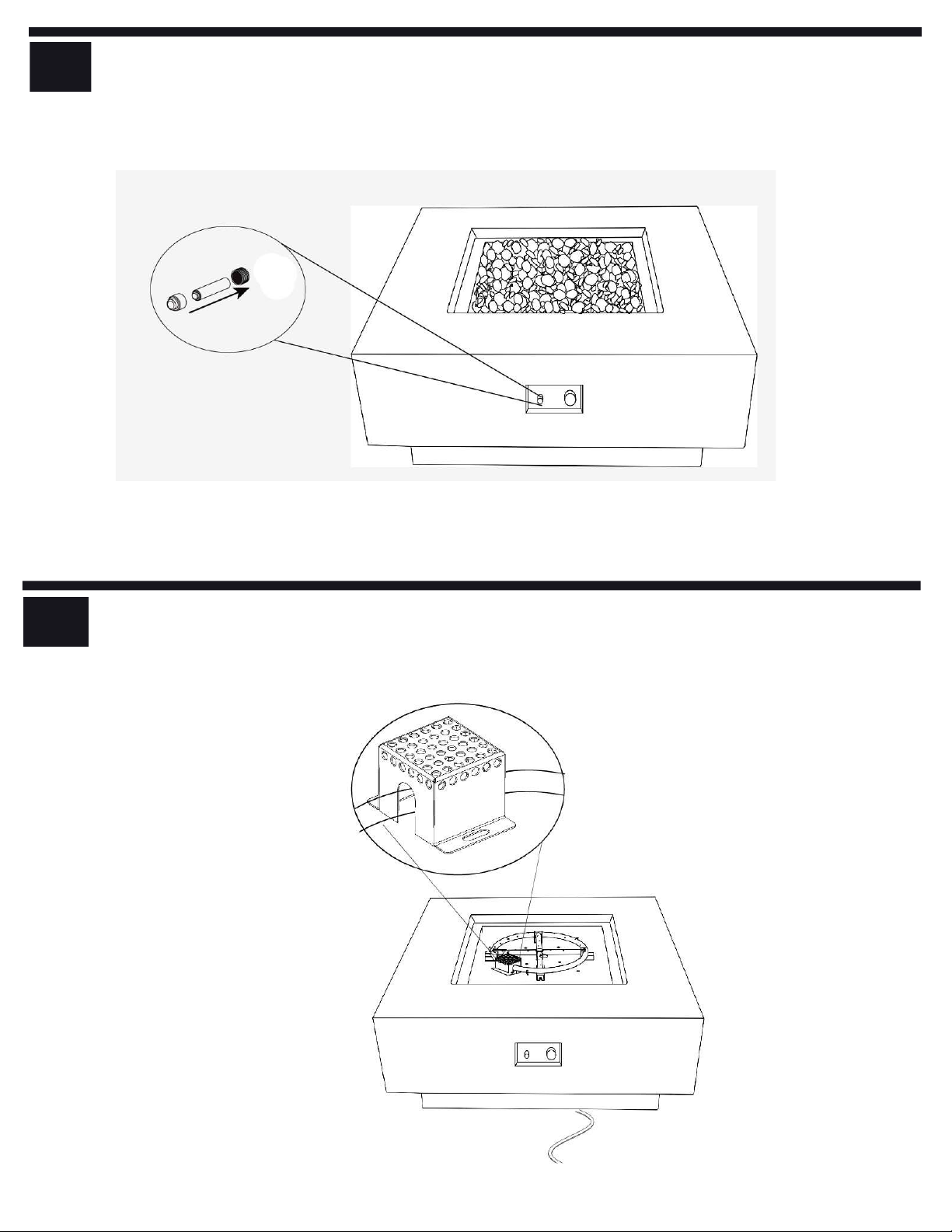

Install the AAA battery as shown in the diagram below.
Battery included.
Place lava rock by hand. DO NOT dump bag out in to the tray to avoid clogging the
burner with dust. Position the lava rock (10kgs) to a level about 1” above the t op of
the burner. Make sure that you do not block the igniter box with lava rock to ensure
proper ignition.
1
2

9
/
18

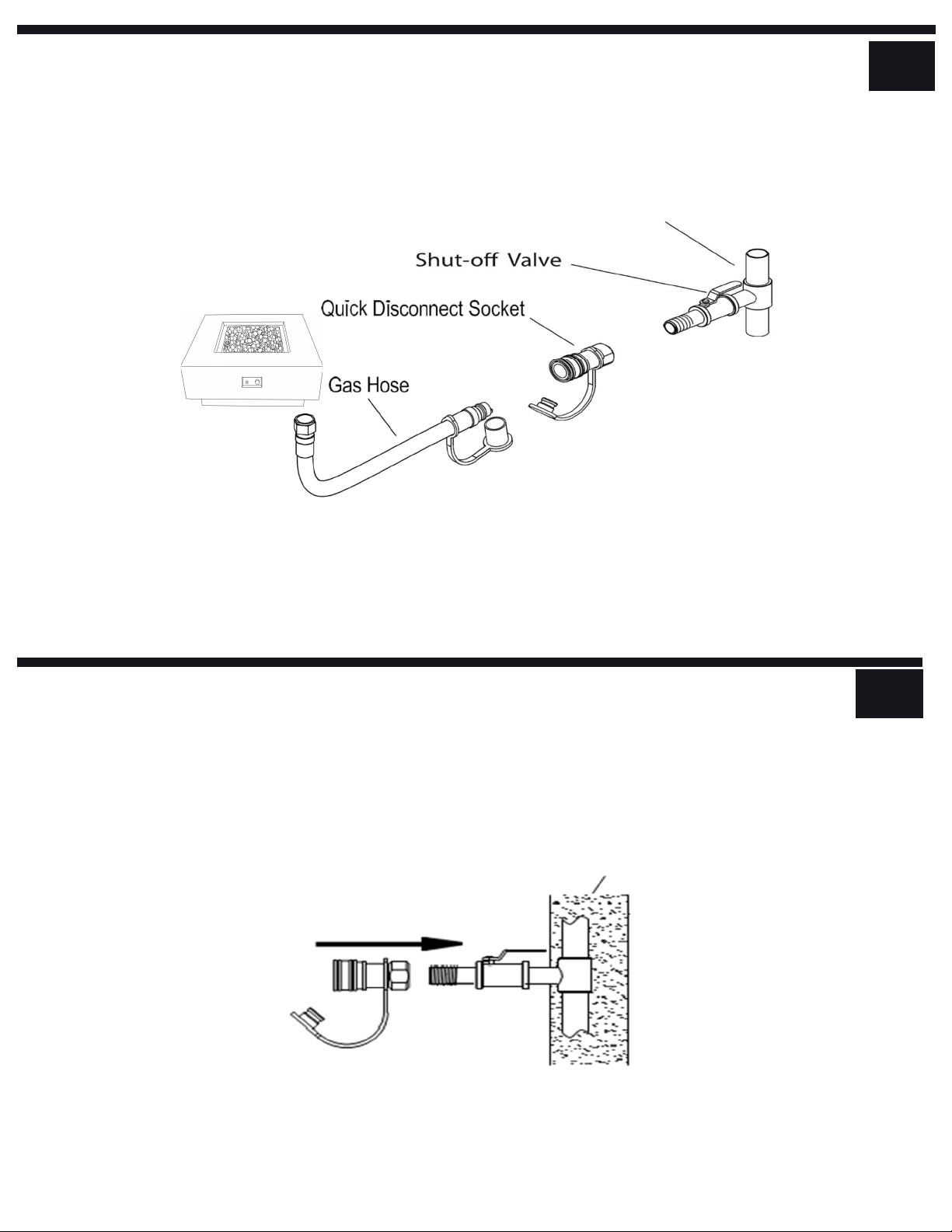

Connecting your Fire Table to the Natural Gas Source
A professionally installed shut-off valve between the supply piping and the socket
is recommended by the National Fuel Gas Code. Socket connection must be made
outdoors.
House Natural Gas Piping
Connecting the Socket
Coat the gas supply pipe nipple with gas resistant pipe compound or approved
Teflon PTFE tape. Screw socket onto gas supply pipe (house gas source) as shown
to the right, and wrench tighten. The quick disconnect socket should never be
connected to the fire table. Direction of gas flow is indicated on the socket.
Wall
3
4

10
/
18
Using the Quick Connect Socket
Pull back the sleeve on the quick disconnect socket and insert the unattached end
of the gas hose into the socket. Release the sleeve and continue pushing the hose
into the socket until the sleeve snaps into the locked position. After making all
connections, perform a leak test as described on page 11 of this manual.
Wall
5

11
/
18
PRE-USE INSTRUCTIONS
Prior to each gas fire table operation, check the hose and
valve for evidence of excessive abrasion or wear through
the visual check hole on the side of the base.
Replace visual check cap prior to operating fire table.
Burner Connections
Make sure the Natural Gas hose and quick disconnect
socket connections are securely fastened to the burner and
the gas supply. If your unit was assembled for you, visually
check the connection between the burner pipe and orifice.
Make sure the burner pipe fits over the orifice.
Please refer to diagram for proper installation.
If the burner pipe does not rest flush to the orifice, please
contact Elementi at 1-909-985-5553 for assistance.
Checking for Leaks
Make a leak check solution by mixing 1-part dishwashing soap with 3
parts water in a spray bottle.
Make sure control knob is “OFF.” Then, turn natural gas on at its
source.
Spray leak solution on valve connections paying particular attention to
the areas indicated by arrows.
If any bubbles appear turn natural gas off, reconnect and
re-test. If you continue to see bubbles after several attempts,
disconnect natural gas source and contact Elementi at 1-909-985-
5553 for assistance.
If no bubbles appear after one-minute turn source
OFF, wipe away solution and proceed.
Check for leaks at these locations
Failure to inspect this connection or follow these instructions could cause a fire
or an explosion, which can cause death, serious bodily injury, or damage to
property.
WARNING
Before using this outdoor fire table, make sure you have read, understand and are
following all information provided in the Important Safety Information section of this
manual. Failure to follow those instructions can cause death, serious injury or property
damage.
5

12
/
18
LIGHTING INSTRUCTIONS
Using the Igniter
1. Read and understand all operating instructions before lighting. Ensure that all protective
film has been removed from stainless burn tray prior to lighting.
2. Burner control knob must be in the “OFF” position.
3. Connect natural gas source (see above pages).
4. Open the natural gas supply to the unit.
5. Push and hold igniter but t urn to create sparks.
6. While holding the igniter button with one hand, use your other hand to push and turn the control knob
to the “LIGHT” position to light the burner.
7. Keep the burner control knob pressed in for 15-30 seconds after ignition.
8. If ignition does not occur in 30 seconds, turn control knob to the “OFF” position and turn gas off at the
source, wait 5 minutes until gas has cleared and repeat lighting procedure.
9. After lighting, rotate the burner control knob counter clockwise to “Low” setting.
Observe flame, make sure all burner ports are lit. Flame height should be no higher than
13 inches tall.
10. Adjust the flame to the desired height with the control
knob.
Using a Long Match or Lighter
1. Prior to lighting, use a shovel to move
the lava rocks for access to the burner.
2. Wearing heat resistant gloves, position the burning long
match or burning butane lighter near the side of the
burner. Do NOT lean over the fire table while lighting!
3. Turn control knob counter clockwise to “LIGHT”.
4. Remove long match/long butane lighter.
5. After lighting, use a shovel and heat resistant
gloves to carefully move the lava rocks back
into their proper position.
6. After lighting, rotate the burner control knob counter
clockwise to “Low” setting. Observe the flame, make sure
all burner ports are lit. Flame height should be no higher
than 13 inches tall.
7. Adjust the flame to the desired height with the
control knob.
Please refer to the trouble shooting pages
for additional support, beginning on page 17.
WARNING
If burner flame goes out during operation, immediately
turn the control knob “OFF” and let the gas clear a
minimum of 5 minutes before attempting to re-light the
fire table.
WARNING
When using this method to light your
fire table use heat resistant gloves
and follow the step by step
instructions. Failure to do so could
result in severe injury.
WARNING
DO NOT wear loose or flammable
clothing while lighting fire table.
Control Knob

13
/
18
CARE AND CLEANING
Inspecting
This outdoor fire table must be inspected regularly to ensure that the product is safe to use and to
extend product life.
1.
Check the burner to make sure it is securely in place.
2.
Check the venturi tube to make sure it is clear and free of inserts, spider nests and other debris.
3.
Check all gas connections for leaks.
4.
Check ignition system to insure proper sparking.
5.
Check components for any signs of damage, rust or excessive wear.
6.
If damage to any component is detected, DO NOT operate until the proper repairs have been made.
General Care and Cleaning
This outdoor fireplace should be cleaned regularly to ensure safe use and extend product life.
Note: After repeated use, a slight discoloration of the finishes may occur.
Fire Table
1. Wipe exterior surfaces with a mild dishwashing soap or baking soda, then rinse clean with water.
Stainless Steel
1.
For general cleaning use warm water, soap, ammonia, or detergent apply with a soft cloth or sponge.
2.
For finger prints or smears use 3M Stainless Steel Cleaner, Arcal 20, Lac-O-Nu, Lumin Wash,
O’Cedar Cream Polish, Stainless Shine, this will provide a barrier film to minimize fingerprints. *
3.
For stubborn stains and discoloration use 3M Stainless Steel Cleaner and Polish, AllChem
Concentrated Cleaner, Same Twinkle, Cameo Copper Cleaner, Liquid Nu Steel, Copper’s or Revere
Stainless Steel Cleaner, apply using a soft cloth in the same direction of the polish lines. *
4.
Note: Even the finest cleaning powders can scratch or burnish a mill-rolled finish. On polished
finishes, rubbing or wiping should be done in the direction of polish lines.
* Use of proprietary names is intended only to indicate type of cleaner and does not constitute an endorsement. Omission of any proprietary
cleanser does not imply it’s in adequacy. All products should be used in strict accordance with instructions on package.
Storage
1.
Turn off the gas supply and disconnect the quick connect valve.
2.
Carefully remove rock filler and store components flat to protect them from breakage.
3.
Always cover your outdoor fire table when not in use. Store in a cool, dry location away from children
and pets.
4.
Store in a cool, dry location away from children and pets.
WARNING DO NOT INSPECT THIS OUTDOOR FIRE TABLE UNTIL THE FIRE IS COMPLETELY OUT
WARNING
DO NOT tamper with this appliance. This is dangerous and will void the warranty. Any part found to be faulty
must be replaced with an approved part, confirmed by the manufacturer. For technical support or replacement
parts contact Elementi at 1-909-985-5553.
WARNING
DO NOT attempt to clean this outdoor fireplace unless the fire is completely out and the unit is cool to the touch.
DO NOT use oven cleaner or abrasive cleaners as they will damage this
product. DO NOT use solvents while in closed spaces or while smoking.
WARNING DO NOT move or store this fire table unless the fire is completely out and is cool to the touch.

14
/
18
GAS COMPONENT CONNECTION CHECKS
If the burner will not light or stay lit, please perform the following checks.
1.
Make sure the electrode wire is correctly connected.
Both elect rode wires must be fully inserted in to the igniter box.
2.
Make sure that the pilot housing is unobstructed.
Clear any debris on top of the pilot housing and make sure there is no debris
between the igniter pin, thermocouple and the burner tube
CORRECT INCORRECT

15
/
18
Wire should
be in line
with valve
GAS COMPONENT CONNECTION CHECKS
Thermocouple
Igniter Pin
3.
Make sure that the igniter pin and thermocouple are correctly positioned.
-
The igniter pin should be pointed straight to the thermocouple.
-
The thermocouple should be positioned 5mm away from the burner tube.
Thermocouple
Wire
Valve
Thermocouple Wire
Igniter Box
Valve
4.
Make sure that the thermocouple wire is correctly positioned. The thermocouple
wire should be in line with the valve.
5.
Make sure thermocouple wire is not resting against any metal surfaces along its run.
This would affect its function.

16
/
18
Ports
TROUBLESHOOTING
Problem: Burner will not light using igniter
Possible Cause 1: Electrode and burners are wet.
-Wipe dry with cloth.
Possible Cause 2: Igniter battery is dead.
-Check or replace the AAA battery in the igniter.
Possible Cause 3: Igniter Pin cracked or broken - sparks at crack
-Call Elementi at 909-985-5553 for technical supporting.
Possible Cause 4: Wire loose or disconnect ed.
-Reference page 14, step 1, reconnect wire. Call Elementi at 909-985-5553
Possible Cause 5: Wire is shorting (spark) between igniter and electrode.
-Call Elementi at 909-985-5553 for supporting.
Possible Cause 6: Igniter Pin not pointing at thermocouple.
-Reference page 16, turn electrode to point at the thermocouple.
Possible Cause 7: Bad Igniter
-Call Elementi at 1-909-985-5553 for supporting.
Problem: Burner will not light with match
Possible Cause 1: No Gas Flow.
-Check if Natural Gas supply is stopped. If it is not stopped, refer to
“Problem: Sudden drop in gas flow” on the following page.
Possible Cause 2: Quick Connect not fully engaged.
-Disconnect the quick connect at the gas supply and reconnect to ensure a proper
connection is made.
Possible Cause 3: Obstruction of gas flow.
-Check for bent or kinked hose.
Possible Cause 4: Spider webs or insect nest in the venturi.
-Clean the venturi.
Possible Cause 5: Burner ports clogged or blocked.
-Reference “Problem: Irregular flame pattern” on the
following page. Clean the burner ports as described there.
Problem: The fire table emits a lot of black smoke when in use
Possible Cause 1: Hose from gas fire table is pinched.
-Make sure the hose is not pinched between the
fire table and the source of the gas.
Possible Cause 2: Flame is being obstructed at burner ports.
-Make sure that the gas ports on the burner are free of any
lava rocks so that the flame can flow naturally.
venturi

17
/
18
TROUBLESHOOTING
Problem: Sudden drop in gas flow, or a reduced flame height
Possible Cause 1: Out of gas.
-
Call your local gas company.
Possible Cause 2: Excess flow safety device may have been activated.
-
Turn control knob to “OFF”, wait 30 seconds and light outdoor fire table. If
flames are still too low reset the excessive flow safety device by running off
the control knob and the gas supply. Disconnect the quick disconnect socket.
Turn the burner control knob to “HIGH”. Wait 1 minute. Turn the burner
control knob off. Reconnect the quick disconnect socket, turn on the main
gas supply and perform a leak check at the natural gas connection.
Problem: Irregular
flame pattern, flame does not run the full length of the burner
Possible Cause 1: Burner ports are clogged or blocked.
- Clean burner ports. Do this by inserting a
paperclip in to each of the burner ports to
ensure they are not clogged.
WARNING: Make sure burner is not on, and has
had sufficient time to cool before touching it. Burner Ports
Problem: Flame blow out
Possible Cause 1: High or gusting winds.
-
Increase flame to “HIGH” setting.
Possible Cause 2: Low natural gas pressure.
-
Call your local gas company.
Possible Cause 3: Excess flow valve tripped.
-
Refer to “Problem: Sudden drop in gas flow”

18/
18
WARRANTY
Ocean Rock USA LLC doing business as Elementi, warrants Elementi fire features and
accessories to be free from defects in parts and workmanship under normal use and service for
a period of 1 year from the date of purchase. In the event of such defects Elementi will, at its
option, repair or replace the defective product. The foregoing is at the discretion of Elementi.
There will be no charge for the replacement parts or product, however it will be the consumer’s
responsibility to return the product to the original place of purchase.
Elementi will not be responsible for consequential damages in excess of the purchase price of
the product on which such liability is based and the warranty does not cover costs including
freight, removal and reinstallation.
This warranty is non-transferable and applies only for units that are for non-commercial
personal use only.
Under this warranty agreement, all gas lines must be installed by a licensed gas fitter.
Damage caused by shipping, staining and abuse are not covered under this warranty. Dings,
dents and scratches, fading and natural weathering are not covered under this warranty.
Decorative rock is not covered under this warranty. Improper installations, repair or modifications
made by anyone other than Elementi or its authorized agents will void this warranty and any
damage caused by such is also not covered under this warranty.
Minor chipping, weather fading, water staining and non-structural hairline cracks are typical of
the material of this product and are not covered under this warranty. Some color and texture
variation is typical of the material and finish for this product and is not covered under this warranty.
Cast concrete is a hand finished process. As such, this product’s finish will vary by unit. There will
be a color variance of up to 15% in each unit. There may also be uneven texture or pattern as
well as small holes in the surface caused by air or water trapped on the surface during casting.
This is a normal trait of cast concrete and is not covered under warranty.
Ocean Rock USA LLC
1300W. 9th ST, Upland, CA 91786
www.elementifire.com
