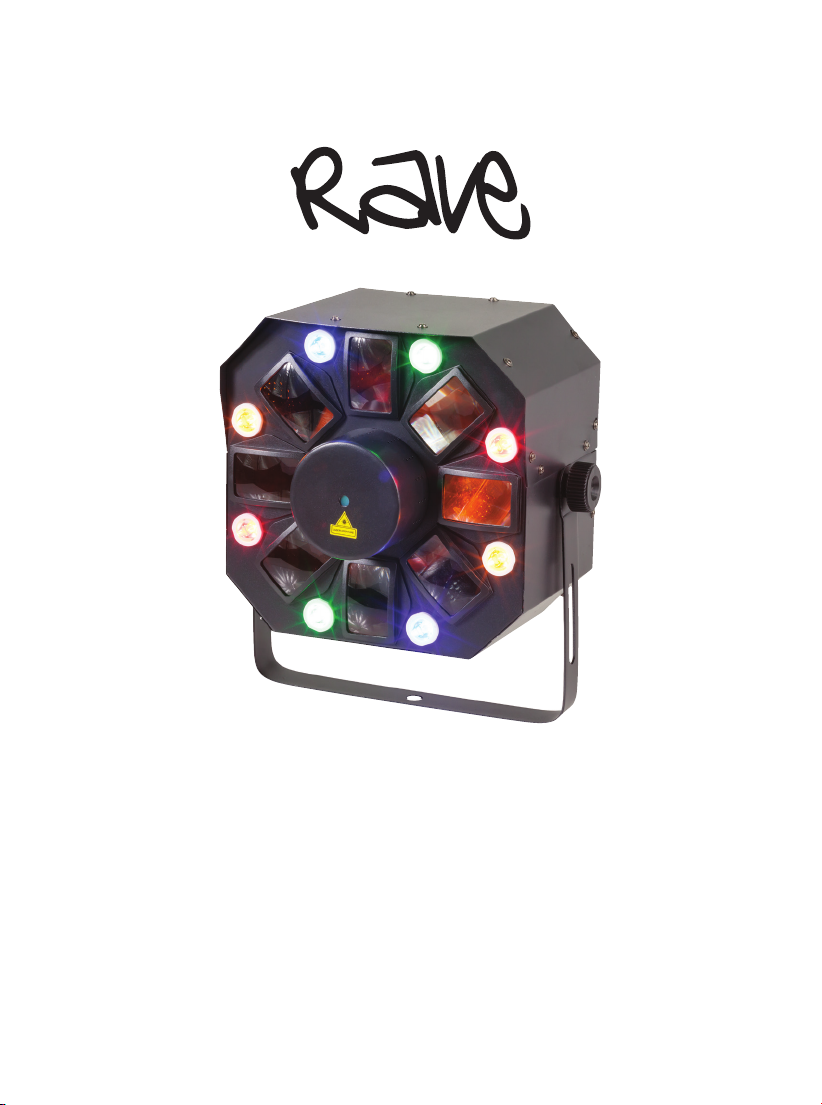

TechBrands Rave SL-3410 User manual
User Manual
Dual Laser & LED
Light Show
SL-3410
Dear User, thank you for choosing the SL-3410 Party Light, before operating this device,
please read this manual thoroughly, and retain for future reference.
USER MANUAL
WARNING
BOX CONTENTS
• If the external, flexible cable or cord of this product is damaged it must be replaced by
a correct approved cable.
• Shields, lenses or ultraviolet screens should be changed if they become damaged to
an extent that their effectiveness is impaired, for example by cracks or deep scratches.
• Change the lamp if it is damaged or thermally deformed.
• After opening, carefully unpack the carton and check contents to ensure that all parts
are in good condition.
• Contact the supplier or store of purchase immediately and retain packaging for
inspection if any parts are damaged.
• Follow this user manual to operate this unit, making sure you are clear on all laser
safety information and unit operation before powering it on.
• Incorrect operation will void warranty.
1 x Laser Light
1 x Power Cord
1 x Keys for switch
1 x Interlock switch
1 x User Manual
SAFETY INSTRUCTIONS
LASER SAFETY
• If the external, flexible cable or cord of this product is damaged it must be replaced by
a correct approved cable.
• Shields, lenses or ultraviolet screens should be changed if they become damaged to
an extent that their effectiveness is impaired, for example by cracks or deep scratches.
• Change the lamp if it is damaged or thermally deformed.
• After opening, carefully unpack the carton and check contents to ensure that all parts
are in good condition.
• Contact the supplier or store of purchase immediately and retain packaging for
inspection if any parts are damaged.
• Follow this user manual to operate this unit, making sure you are clear on all laser
safety information and unit operation before powering it on.
• Incorrect operation will void warranty.
• To protect the environment, please try to recycle the packing material as much as
possible.
• The fixture is for indoor use only and rated IP20. Use only in dry locations.
• Keep this device away from rain and moisture, excessive heat, humidity and dust.
• Do not allow contact with water or any other fluids, or metallic objects.
• Don’t throw this product away just as general trash, please deal with the product by
following the abandoned electronic product regulations in your country.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or
liquids.
• The fixture must be fixed at least 50cm from surrounding walls.
• To avoid condensation forming inside, allow this unit to adapt to the surrounding
temperatures when bringing it into a warm room after transport.
• Don’t install it on a flammable object.
• Do not use it when the maximum ambient temperature is higher than 40 degrees.
• Unplug the unit when it is not in use for a long period of time or before replacing the
bulb.
• Do not open the top cover to avoid unit damage.
• Please use the original packing when the device is being transported.
• According to EN 60825-1:2007, this product belongs to class 3B.
• Direct eye contact may cause injury.
• This product is for laser shows only.
• The class 3B laser light should be operated by a professional operator only.
• This is a show laser, emitting radiation with a wavelength spectrum between 400 and
700nm and producing lighting effects for shows.
• International laser safety regulations require that the vertical height from installation to
ground is more than 3 meters, horizontal distance is 2.5 meters from audience.
• Never direct the laser beam to people or animals and never leave this device running
unattended.
• The legal requirements for using laser entertainment products vary from country to
country. The user is responsible for the legal requirements at the location/country of
use.
• Warning! Avoid direct eye contact with laser beams during operation, especially when
the laser beams stay still, or injury to eyes may occur.
• Caution! The laser security measures are designed according to the specific terms
of the relevant international laser safety standards and has the following laser safety
protection means:
Laser Key Switch: Laser is available only when the key is turned on.
Laser Emergency Switch: Remote connecting switch, it will cut off the laser
light path instantly once the device is in a potential hazard.
1 x Laser Light
1 x Power Cord
1 x Keys for switch
1 x Interlock switch
1 x User Manual
INSTALLATION
AC POWER LINKING
• Attention! The installation must be carried out by qualified service personnel only.
• Improper installation can result in serious injuries and /or damage to property.
• Overhead rigging requires extensive experience!
• Working load limits should be respected, certified installation materials should be
used, and the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during
rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/
or liquids.
• The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where
persons may walk by or be seated.
• The device should be well fixed; a free swinging mounting is dangerous and should
not be considered!
• Do not cover any ventilation opening as this may result in overheating
• Before first time use it must be inspected by professional staff to ensure it is safe.
• A safety inspection should be performed regularly every year.
• Never expose the lens to direct sunlight, even for a short period. This may damage the
light effect or even cause a fire!
Connection between laser lights and DMX must use the shield cable of diameter greater
than 0.5mm. Please use the attached 3 pin XLR plug/socket to connect the DMX output/
input interface. The connection between socket and cable is shown below (note the plug/
socket’s 3 pin number and position).
Note, XLR plug/socket’s 3 pin cannot be touched by inner hull, connection between
pins is not allowed. Except above connection, XLR plug/socket cannot be connected
with XLR control line. Device receives international standard DMX512(1990) control
signal.
• When using standard DMX512 control signal, the last device’s output interface must
be connected to a DMX plug. This plug is putting a 120-ohm resistance between
“canon” plug’s 2 pin and 3 pin. Shown in below diagram. Sticking this plug into the last
device’s signal output interface will avoid the interference during the process of signal
transmission.
DMX-Output
XLR Mounting-Sockets (Rear View)
Please use the power cable supplied, note that power voltage and frequency are the
same as the marked voltage and frequency of device when connecting power. Every
device’s power should be connected separately, so that device can be controlled
individually.
The power cord specification table:
Cable (EU) Cable (EU) Pin International
Brown Black Live L
Light Blue White Neutral N
Yellow/Green Green Earth
- 3 -
installation
Attention The installation must be carried out by qualified service personal only. Improper installation can result
in serious injuries and /or damage to property .Overhead rigging required extensive experience! Working load
limits should be respected, Certified installation materials should be used, the installed device should be inspected
regularly for safety.
Make
sure the area below the installation place is free from unwanted persons during rigging, de-rigging and
servicing.
Locate
the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must
be fixed at least 50cm from surrounding walls.
The
device should be installed out of reach of people and outside areas where persons may walk by or be seated.
The device should be well fixed; a free swinging mounting is dangerous and may not be considered!
Do not cover any ventilation opening as this may result in overheating
Before the first time use, it must be inspected by professional staff to make sure safety, , inspection regularly every
year.
Never expose the lens to direct sunlight, even for a short period, This may damage the light effect or even cause fire!
AC power linking
Please use the attached power, note that power voltage and frequency
are the same as the marked voltage and frequency of device when
connecting power. Every device’ s power should be connected separately,
so that device can be controlled individually.
The power cord specification table
Cable(EU) Cable(US) Pin International
Brown Black Live L
Liht blue White Neutral N
Yellow/Green Green Earth
INSTALLATION - DMX CONNECTION
• Attention! The installation must be carried out by qualified service personnel only.
• Improper installation can result in serious injuries and /or damage to property.
• Overhead rigging requires extensive experience!
• Working load limits should be respected, certified installation materials should be
used, and the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during
rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/
or liquids.
• The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where
persons may walk by or be seated.
• The device should be well fixed; a free swinging mounting is dangerous and should
not be considered!
• Do not cover any ventilation opening as this may result in overheating
• Before first time use it must be inspected by professional staff to ensure it is safe.
• A safety inspection should be performed regularly every year.
• Never expose the lens to direct sunlight, even for a short period. This may damage the
light effect or even cause a fire!
Connection between laser lights and DMX must use the shield cable of diameter greater
than 0.5mm. Please use the attached 3 pin XLR plug/socket to connect the DMX output/
input interface. The connection between socket and cable is shown below (note the plug/
socket’s 3 pin number and position).
• Note, XLR plug/socket’s 3 pin cannot be touched by inner hull, connection between
pins is not allowed. Except above connection, XLR plug/socket cannot be connected
with XLR control line. Device receives international standard DMX512(1990) control
signal.
• When using standard DMX512 control signal, the last device’s output interface must
be connected to a DMX plug. This plug is putting a 120-ohm resistance between
“canon” plug’s 2 pin and 3 pin. Shown in below diagram. Sticking this plug into the last
device’s signal output interface will avoid the interference during the process of signal
transmission.
DMX-Output
XLR Mounting-Sockets (Rear View)
DMX-Input
XLR Mounting-Plugs (Rear View)
1. Shield
2. Shield (-)
3. Shield (+)
Cable (EU) Cable (EU) Pin International
Brown Black Live L
Light Blue White Neutral N
Yellow/Green Green Earth
- 4 -
installation
DMX connection
Connection
between
laser
lights
and
DMX
must
use
the
shied
cable
of
diameter
more
than
0.5mm.
Please
use
the
attached
3
pin
XLR
plug/socket
to
connect
the
DMX
output/input
interface.
The
connection between socket and cable as
below( note the plug/socket’
s 3 pin number and position).
DMX-output DMX-input
XLR mounting-sockets(rear view) XLR mounting-plugs(rear view)
1- Shield
2- Shield(- )
3- Shield(+)
Note,
XLR
plug/socket’
s
3pin
can
not
be
touched
by
inner
hull,
connection
between
pins
is
not
allowed.
Except
above
connection,
XLR
plug/socket
can
not
be
connected
with
XLR
control
line.
Device receives international standard DMX512(1990) control signal.
When
using
standard
DMX512
control
signal,
the
last
device’
s
output
interface
must
be
connected
to
a
DMX
plug.
This
plug
is
putting
a
120
ohm
resistance
between canon”
plug’
s
2
pin
and
3
pin.
Showing
as
below
pic.
Sticking
this
plug
into
the
last
device’
s
signal
output
interface,
it
will
avoid
the
interference
during
the
process
of
signal transmission.
- 4 -
installation
DMX connection
Connection
between
laser
lights
and
DMX
must
use
the
shied
cable
of
diameter
more
than
0.5mm.
Please
use
the
attached
3
pin
XLR
plug/socket
to
connect
the
DMX
output/input
interface.
The
connection between socket and cable as
below( note the plug/socket’
s 3 pin number and position).
DMX-output DMX-input
XLR mounting-sockets(rear view) XLR mounting-plugs(rear view)
1- Shield
2- Shield(- )
3- Shield(+)
Note,
XLR
plug/socket’
s
3pin
can
not
be
touched
by
inner
hull,
connection
between
pins
is
not
allowed.
Except
above
connection,
XLR
plug/socket
can
not
be
connected
with
XLR
control
line.
Device receives international standard DMX512(1990) control signal.
When
using
standard
DMX512
control
signal,
the
last
device’
s
output
interface
must
be
connected
to
a
DMX
plug.
This
plug
is
putting
a
120
ohm
resistance
between canon”
plug’
s
2
pin
and
3
pin.
Showing
as
below
pic.
Sticking
this
plug
into
the
last
device’
s
signal
output
interface,
it
will
avoid
the
interference
during
the
process
of
signal transmission.
- 4 -
installation
DMX connection
Connection
between
laser
lights
and
DMX
must
use
the
shied
cable
of
diameter
more
than
0.5mm.
Please
use
the
attached
3
pin
XLR
plug/socket
to
connect
the
DMX
output/input
interface.
The
connection between socket and cable as
below( note the plug/socket’
s 3 pin number and position).
DMX-output DMX-input
XLR mounting-sockets(rear view) XLR mounting-plugs(rear view)
1- Shield
2- Shield(- )
3- Shield(+)
Note,
XLR
plug/socket’
s
3pin
can
not
be
touched
by
inner
hull,
connection
between
pins
is
not
allowed.
Except
above
connection,
XLR
plug/socket
can
not
be
connected
with
XLR
control
line.
Device receives international standard DMX512(1990) control signal.
When
using
standard
DMX512
control
signal,
the
last
device’
s
output
interface
must
be
connected
to
a
DMX
plug.
This
plug
is
putting
a
120
ohm
resistance
between canon”
plug’
s
2
pin
and
3
pin.
Showing
as
below
pic.
Sticking
this
plug
into
the
last
device’
s
signal
output
interface,
it
will
avoid
the
interference
during
the
process
of
signal transmission.
OPERATING INSTRUCTIONS
- 5 -
Operation instructions
1
2
3
4
LOCK
Product operation
NO
Name FUNCTION
1
Hanging bracket Laser show, do not look directly into the hole
2
LED 5 colors output RGB AW *3 W
3
Laser aperture Laser show, do not look directly into the hole
4
LED white color output 8*1W
5
Function Select Choose a variety of work mode
6
MUSIC indicator In sound model, green indicate light on.
7
DMX indicator In DMX model, red indicate light on after DMX connected,
8
LED display For setting model
9
AUTO indicator In Auto model, blue indicate light on.
10
Sound receiver Receive sound signal
11
SLAVE indicator In slave model, orange indicate light on
12
DMX input 3PIN male XLR interface, for DMX communication
13
DMX output 3PIN female XLR interface, for DMX communication
14
Sound active Modulation
Knob
Adjust the voice sensitive
15
Safety key laser switch
16
interlock An external remote laser switch
17
Insurance rings Connecting wire rope to prevent illegal operation and fall
18
Power input Power input socket, built-in protective tube and spare tube
19
Fuse To prevent the current over load
No. Name Function
1 Hanging Basket Laser show, do not look directly into the hole
2 LED 5 Colour Output RGBAWx3W
3Laser Aperture Laser show, do not look directly into the hole
4 LED white color output 8x1W
5 Function Select Choose from a variety of work mode
6 Music Indicator In DMX mode, red indicater light on after DMX
connected,
7 DMX Indicator For setting mode
8 LED Display In Auto mode, blue indicater light on
9 Auto Indicator In Auto mode, blue indicater light on.
10 Sound Receiver Receive sound signal
11 Slave Indicator In slave mode, orange indicater light on
12 DMX Input 3-Pin Male XLR interface, for DMX communication
13 DMX Output 3-Pin female XLR interface, for DMX
communication
14 Sound Active Modulation
Knob Adjust the voice sensitivity
- 6 -
Menu operating instruction
Once after every power on laser the VERSION and MANUFACTURE INFORMATION will be shown in LCD monitor
of rear panel. When laser is powered on, LCD monitor on rear panel shows the current operating standalone mode or
DMX address of DMX mode. With help of LCD control panel, is very easy to set and change the operating mode of laser
After every resetting and saved, the new mode information will be shown on LCD monitor at next power on.
Mode Option, to choose the operating mode of laser
Confirmation, to confirm the laser to show the present mode at the next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
into speed choice
Auto
Aut0 Laser+RGBAW+8/W
Aut 1 Laser+RGBWA
Aut 2 Laser+8/W
Aut 3 RGBWA+8/W
Aut 4 RGBWA
Aut 5 Laser
Aut 6 8/W
UP/DOWN to choose display speed
S 1 is fastest
S100 is slowest
S 0 is defualt
confirm
Sound
Sou0
Laser+RGBAW+8/W
Sou 1 Laser+RGBWA
Sou 2 Laser+8/W
Sou 3 RGBWA+8/W
Sou 4 RGBWA
Sou 5 Laser
Sou 6
8/W
Confirm choice, adjust sensitivity by potentiometer
SLAVE It’s work will follow the procedure in host
device by DMX signal
LED letter strobes means DMX signal or SLAVE signal
is not connected well, please check cable, control panel
and other equipments.
DMX D001 to D504
FUNC UP DOWN
ENTER
ENTER
DOWN
- 6 -
Menu operating instruction
Once after every power on laser the VERSION and MANUFACTURE INFORMATION will be shown in LCD monitor
of rear panel. When laser is powered on, LCD monitor on rear panel shows the current operating standalone mode or
DMX address of DMX mode. With help of LCD control panel, is very easy to set and change the operating mode of laser
After every resetting and saved, the new mode information will be shown on LCD monitor at next power on.
Mode Option, to choose the operating mode of laser
Confirmation, to confirm the laser to show the present mode at the next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
into speed choice
Auto
Aut0 Laser+RGBAW+8/W
Aut 1 Laser+RGBWA
Aut 2 Laser+8/W
Aut 3 RGBWA+8/W
Aut 4 RGBWA
Aut 5 Laser
Aut 6 8/W
UP/DOWN to choose display speed
S 1 is fastest
S100 is slowest
S 0 is defualt
confirm
Sound
Sou0
Laser+RGBAW+8/W
Sou 1 Laser+RGBWA
Sou 2 Laser+8/W
Sou 3 RGBWA+8/W
Sou 4 RGBWA
Sou 5 Laser
Sou 6
8/W
Confirm choice, adjust sensitivity by potentiometer
SLAVE It’s work will follow the procedure in host
device by DMX signal
LED letter strobes means DMX signal or SLAVE signal
is not connected well, please check cable, control panel
and other equipments.
DMX D001 to D504
FUNC UP DOWN
ENTER
ENTER
DOWN
- 6 -
Menu operating instruction
Once after every power on laser the VERSION and MANUFACTURE INFORMATION will be shown in LCD monitor
of rear panel. When laser is powered on, LCD monitor on rear panel shows the current operating standalone mode or
DMX address of DMX mode. With help of LCD control panel, is very easy to set and change the operating mode of laser
After every resetting and saved, the new mode information will be shown on LCD monitor at next power on.
Mode Option, to choose the operating mode of laser
Confirmation, to confirm the laser to show the present mode at the next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
into speed choice
Auto
Aut0 Laser+RGBAW+8/W
Aut 1 Laser+RGBWA
Aut 2 Laser+8/W
Aut 3 RGBWA+8/W
Aut 4 RGBWA
Aut 5 Laser
Aut 6 8/W
UP/DOWN to choose display speed
S 1 is fastest
S100 is slowest
S 0 is defualt
confirm
Sound
Sou0
Laser+RGBAW+8/W
Sou 1 Laser+RGBWA
Sou 2 Laser+8/W
Sou 3 RGBWA+8/W
Sou 4 RGBWA
Sou 5 Laser
Sou 6
8/W
Confirm choice, adjust sensitivity by potentiometer
SLAVE It’s work will follow the procedure in host
device by DMX signal
LED letter strobes means DMX signal or SLAVE signal
is not connected well, please check cable, control panel
and other equipments.
DMX D001 to D504
FUNC UP DOWN
ENTER
ENTER
DOWN
No. Name Function
1 Hanging Basket Laser show, do not look directly into the hole
2 LED 5 Colour Output RGBAWx3W
3Laser Aperture Laser show, do not look directly into the hole
4 LED white color output 8x1W
5 Function Select Choose from a variety of work mode
6 Music Indicator In DMX mode, red indicater light on after DMX
connected,
7 DMX Indicator For setting mode
8 LED Display In Auto mode, blue indicater light on
9 Auto Indicator In Auto mode, blue indicater light on.
10 Sound Receiver Receive sound signal
11 Slave Indicator In slave mode, orange indicater light on
12 DMX Input 3-Pin Male XLR interface, for DMX communication
13 DMX Output 3-Pin female XLR interface, for DMX
communication
14 Sound Active Modulation
Knob Adjust the voice sensitivity
15 Safety Key Laser Switch
16 Interock An external remote laser switch
18 Power Input Power input socket, built-in protective tube and
spare tube
19 Fuse To prevent thecurrentover load
INSTALLATION - DMX CONNECTION
Once after every power on laser the VERSION and MANUFACTURE INFORMATION
will be shown in LCD monitor on rear panel. When laser is powered on, LCD monitor
on rear panel shows the current operating standalone mode or DMX address of DMX
mode. With help of LCD control panel, it is very easy to set and change the operating
mode of the laser. After resetting and saving, the new mode information will be shown on
LCD monitor at next power on.
Mode Option, to choose the operating mode of laser.
Confirmation, to confirm the laser to show the present mode at the next
operation.
UP/DOWN, to change operating mode, parameter or DMX
address.
Func Up + Down Enter Enter
Auto
Aut 0 Laser +RGB AW+8/W
Up/Down to
choose display
speed
S1 is fastest
S100 is best
S0 is default
Confirm
Aut 1 Laser +RGBWA
Aut 2 Laser +8/W
Aut 3 RGBWA +8/W
Aut 4 RGBWA
Aut 5 Laser
Aut 6 8/W
Sound
Sou 0 Laser+RGBAW+8W
Confirm choice, adjust by
potentiometer.
Sou 1 Laser+RGBWA
Sou 2 Laser+8/W
Sou 3 RGBWA+8/W
Sou 4 RGBWA
Sou 5 Laser
Sou 6 8/W
- 6 -
Menu operating instruction
Once
after
every
power
on
laser
the
VERSION
and
MANUFACTURE
INFORMATION
will
be
shown
in
LCD
monitor
of
rear
panel.
When
laser
is
powered
on,
LCD
monitor
on
rear
panel
shows
the
current
operating
standalone
mode
or
DMX
address
of
DMX
mode.
With
help
of
LCD
control
panel,
is
very
easy
to
set and change the operating mode of laser
After every resetting and saved, the new mode information will
be shown on LCD monitor at next power on.
Mode Option, to choose the operating mode of laser
Confirmation, to confirm the laser to show the present mode at the next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
into speed choice
Auto
Aut0 Laser+RGBAW+8/W
Aut 1 Laser+RGBWA
Aut 2 Laser+8/W
Aut 3 RGBWA+8/W
Aut 4 RGBWA
Aut 5 Laser
Aut 6 8/W
UP/DOWN to choose display speed
S 1 is fastest
S100 is slowest
S 0 is defualt
confirm
Sound
Sou0
Laser+RGBAW+8/W
Sou 1
Laser+RGBWA
Sou 2
Laser+8/W
Sou 3
RGBWA+8/W
Sou 4
RGBWA
Sou 5
Laser
Sou 6
8/W
Confirm choice, adjust sensitivity by potentiometer
SLAVE It’s work will follow the procedure in host
device
by DMX signal
LED letter strobes means DMX signal or SLAVE signal
is
not connected well, please check cable, control panel
and
other equipments.
DMX D001 to D504
FUNC UP DOWN
ENTER
ENTER
DOWN
Channel Value Function
Ch1 Mode
0-9 Blackout
10-24 Aut0
25-39 Aut1
40-54 Aut2
55-69 Aut3
70-84 Aut4
85-99 Aut5
100-114 Aut6
115-129 SOU0
130-144 SOU1
145-159 SOU2
160-174 SOU3
175-189 SOU4
190-204 SOU5
205-220 SOU6
221-255 DMX Mode
Func Up + Down Enter Enter
Auto
Aut 0 Laser +RGB AW+8/W
Up/Down to
choose display
speed
S1 is fastest
S100 is best
S0 is default
Confirm
Aut 1 Laser +RGBWA
Aut 2 Laser +8/W
Aut 3 RGBWA +8/W
Aut 4 RGBWA
Aut 5 Laser
Aut 6 8/W
Sound
Sou 0 Laser+RGBAW+8W
Confirm choice, adjust by
potentiometer.
Sou 1 Laser+RGBWA
Sou 2 Laser+8/W
Sou 3 RGBWA+8/W
Sou 4 RGBWA
Sou 5 Laser
Sou 6 8/W
DMX INSTRUCTIONS
Slave Its work will follow the procedure
in host device by DMX signal.
LED letter strobes means DMX
signal or SLAVE signal is not
connected correctly, please check
cable, control panel and other
equipment.
DMX D001 to D505
DMX INSTRUCTIONS
CH2 LED
Operation
0-9 Blackout
10-14 Red
15-19 Green
20-24 Blue
25-29 Amber
30-34 White
35-39 White+Red 15
40-44 Red+Green 12
45-49 Green+Blue 23
50-54 Blue+Amber 34
55-59 Amber+White 45
60-64 White+Green 25
65-69 Green+Amber 24
70-74 Amber + Red 14
75-79 Red+Blue
80-84 Blue+White
85-89 Red+Green+Blue 123
90-94 Red+Green+Amber 124
95-99 Red+Green+White 125
100-104 Red+Amber+Blue 125
105-109 Red+White+Blue 135
110 -114 Red+Amber+White 114
115 - 119 Amber+Green+Blue 234
120-124 Blue+Green+White 235
125-129 Amber+Green+White 245
130-134 Amber+White+Blue 345
135-139 Red+Green+Blue+Amber 1234
140-144 Red+White+Blue+Amber 1345
145-149 Red+Green+White+Amber 1245
CH2 LED
Operation
0-9 Blackout
10-14 Red
15-19 Green
20-24 Blue
25-29 Amber
30-34 White
35-39 White+Red 15
40-44 Red+Green 12
45-49 Green+Blue 23
50-54 Blue+Amber 34
55-59 Amber+White 45
60-64 White+Green 25
65-69 Green+Amber 24
70-74 Amber + Red 14
75-79 Red+Blue
80-84 Blue+White
85-89 Red+Green+Blue 123
90-94 Red+Green+Amber 124
95-99 Red+Green+White 125
100-104 Red+Amber+Blue 125
105-109 Red+White+Blue 135
110 -114 Red+Amber+White 114
115 - 119 Amber+Green+Blue 234
120-124 Blue+Green+White 235
125-129 Amber+Green+White 245
130-134 Amber+White+Blue 345
135-139 Red+Green+Blue+Amber 1234
140-144 Red+White+Blue+Amber 1345
145-149 Red+Green+White+Amber 1245
150-154 Red+Green+Blue+Amber+White 1235
155-159 White+Green+Blue+Amber 2345
160-164 Red+Green+Blue+Amber+White
165-209 Automatic (Single Colours Only)
210-255 Automatic (Two Colours at a time)
CH3 Automatic Speed (When CH2 is between
160-255)
0-255 Slow-fast (Only Colours)
CH4 LED
Strobe 0-4 No-Function
5-254 Strobe (Slow>Fast) (Max 30Hz)
255 Sound-activated strobe mode
CH5 8pcs
White LED
Control
0-9 Black Out
10-19 Picture1 (Slow-Fast)
20-29 Picture2 (Slow-Fast)
30-39 Picture3 (Slow-Fast)
40-49 Picture4 (Slow-Fast)
50-59 Picture5 (Slow-Fast)
60-69 Picture6 (Slow-Fast)
70-79 Picture7 (Slow-Fast)
80-89 Picture8 (Slow-Fast)
90-99 Picture9 (Slow-Fast)
100-109 Picture10 (Slow-Fast)
110-255 ON
CH6 Laser 0-9 Black Out
10-49 Red On
50-89 Green On
90-129 Red & Green On
130-169 Green On & Red Strobe
170-209 Red On & Green Strobe
210-255 Red & Green (Alternate Strobe)
CH7 Laser
Strobe 0-4 No Function
5-254 Strobe (Slow-Fast) (Max 30Hz)
255 Sound-activated Strobe Mode
Ch8 LED
Rotate 0-4 Stop
5-127 Rotate Clockwise (Slow-Fast)
128-133 Stop
134-255 Rotate Counter-clockwise (Slow-Fast)
Ch9 Laser
Rotate 0-4 Stop
5-127 Rotate Clockwise
128-133 Stop
134-255 Rotate counter-clockwise
PRODUCT SPECIFICATIONS
Dimensions: 246(L) x 246(W) x H152(H) (203)mm
Weight: 4.2kg
Power Input:
Range: 100-240V 50/60Hz
Rate: 66W
Fuse: 2A
Light Source:
Type: Class 3B Laser Diodes / LED CHIP
Power Quantity/Colour: 1/Red, 1/Green
Laser Power Rate: 100mW 50mW
Wave Length: 650mm 532mm
Quantity/Colour: 1/Red, 1/Green, 1/Blue, 1/Orange, 1/White, 2/Red, 2/
Green, 2/Blue, 2/Yellow
LED Power Rate: 3W, 3W, 3W, 3W, 3W, 2W, 2W, 2W, 2W
Wave Length: 620mm, 520mm, 460mm, 600mm, 6500K
Distributed by:
TechBrands by Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere
NSW 2116 Australia
Ph: 1300 738 555
Int’l: +61 2 8832 3200
Fax: 1300 738 500
www.techbrands.com
