TECHLIGHTING ELEMENT Merge User manual

1.0
Installation Instructions for
Merge Gimbal Spot Head, Drop Down Spot Head, and FreeJack Adaptor
920MERGESA
GP I :ENERAL RODUCT NFORMATION
This product is suitable for dry locations.
Maximum loading of the low-votage busbar is 240W (20 AMPS).
Maximum one spot per foot of linear panel.
Install Modules
1A
1Ensure that the locking tabs are in the upward position.
Install the modules into the fixture channel at the
desired location and rotate them 90 into place.°
3Lock the modules into place by rotating locking tabs
downward.
1B
2
LOCKING TAB
1
1
3
3

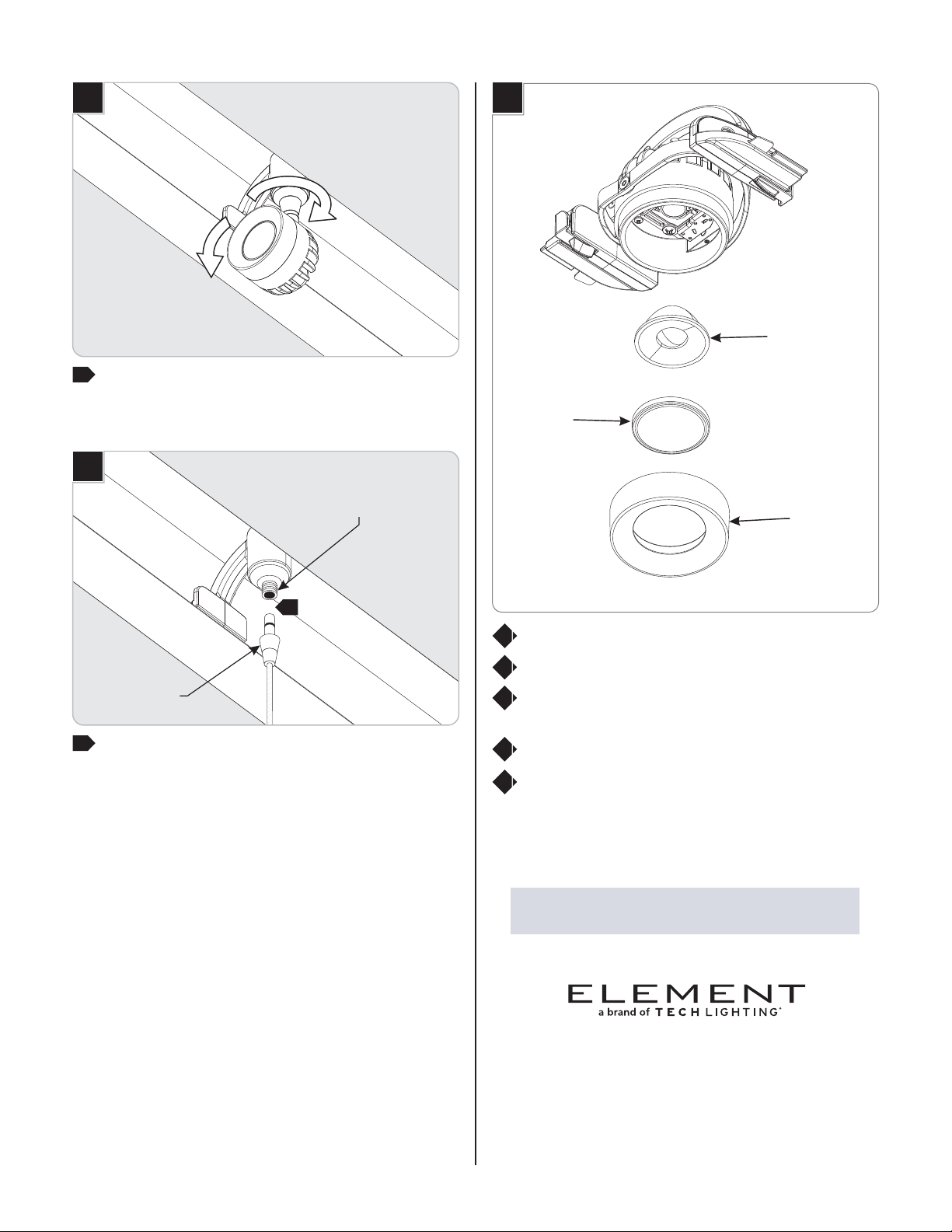

Adjust the Gimbal Spot Head
3Aim the modules to the desired location by tilting it on
either axis.
2A

2
Screw the Fixture FreeJack male connector into the
FreeJack female connector.
3A
Tilt and/or rotate the spot head to the desired location.
1
Adjust the Drop Down Spot Head
4A
1
Install FreeJack Fixture
FREEJACK ADAPTOR
CONNECTOR
1
1Unscrew and remove the .snoot
Remove the optic.
If installing an optional lens, discard the Bubble Lens and
rest the optional lens (maximum two) inside the snoot.
Install the optic (replacement or existing) inside the .snoot
Screw the back on.snoot
2
3
SNOOT
BUBBLE LENS
OPTIC
4
5
Replace/Install Optics and Lenses
7400 Linder Ave.
Skokie, 60077IL
847.410.4400
www.element-lighting.com
© 2015 Tech Lighting, L.L.C.All rights reserved.The "Element" graphic
is a registered trademark of Element. Element reserves the right to
change specifications for product improvements without notification.
SAVE THESE INSTRUCTIONS!
5A
FIXTURE FREEJACK
CONNECTOR
