Technics EAH-AZ80 User manual

EAH-AZ80

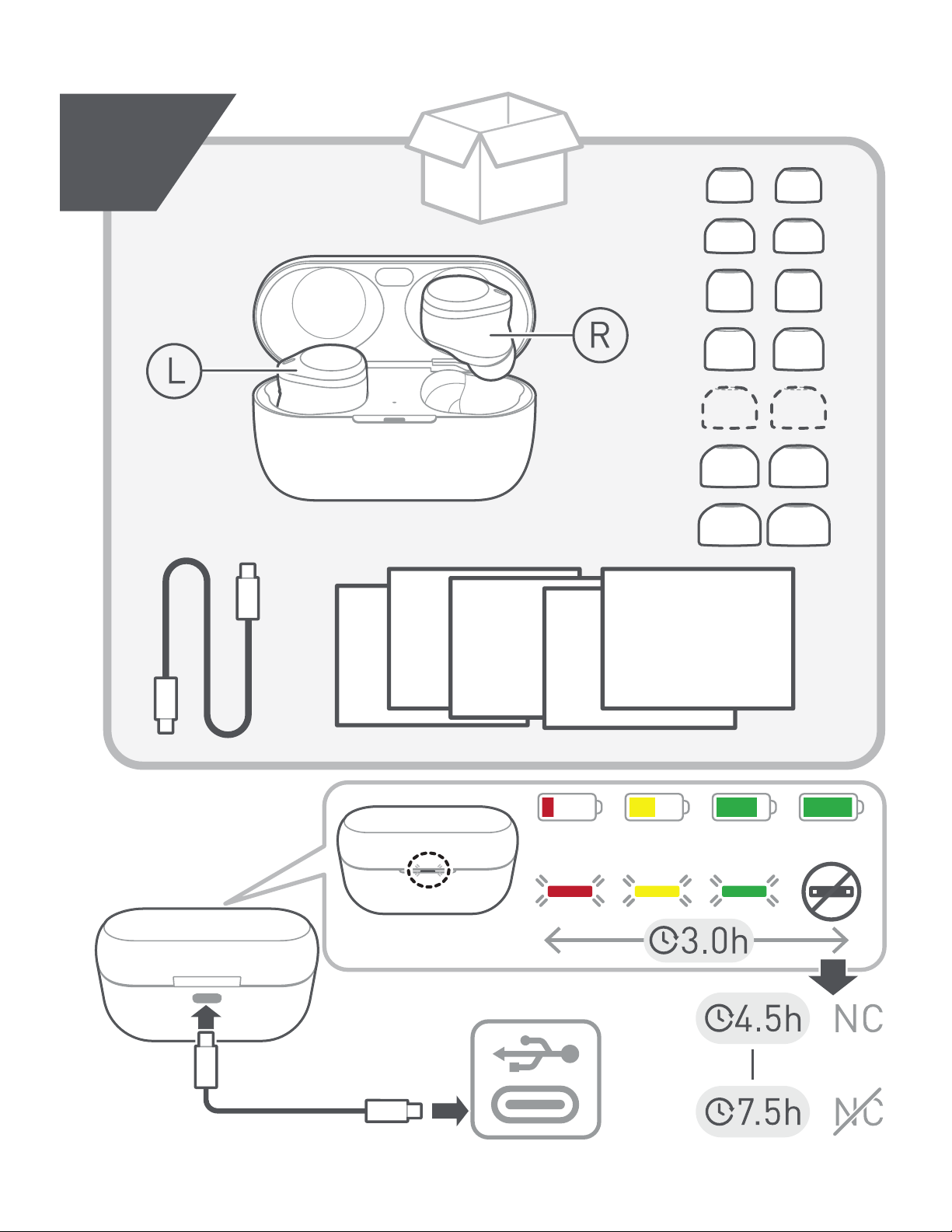

Let’s get Started
commençons
https://jp.technics.com/support/downloads/TWS/oi/index.html
PNQW6169YA

USB Type-C
100%
1

Technics Audio Connect
2
3
FAQ

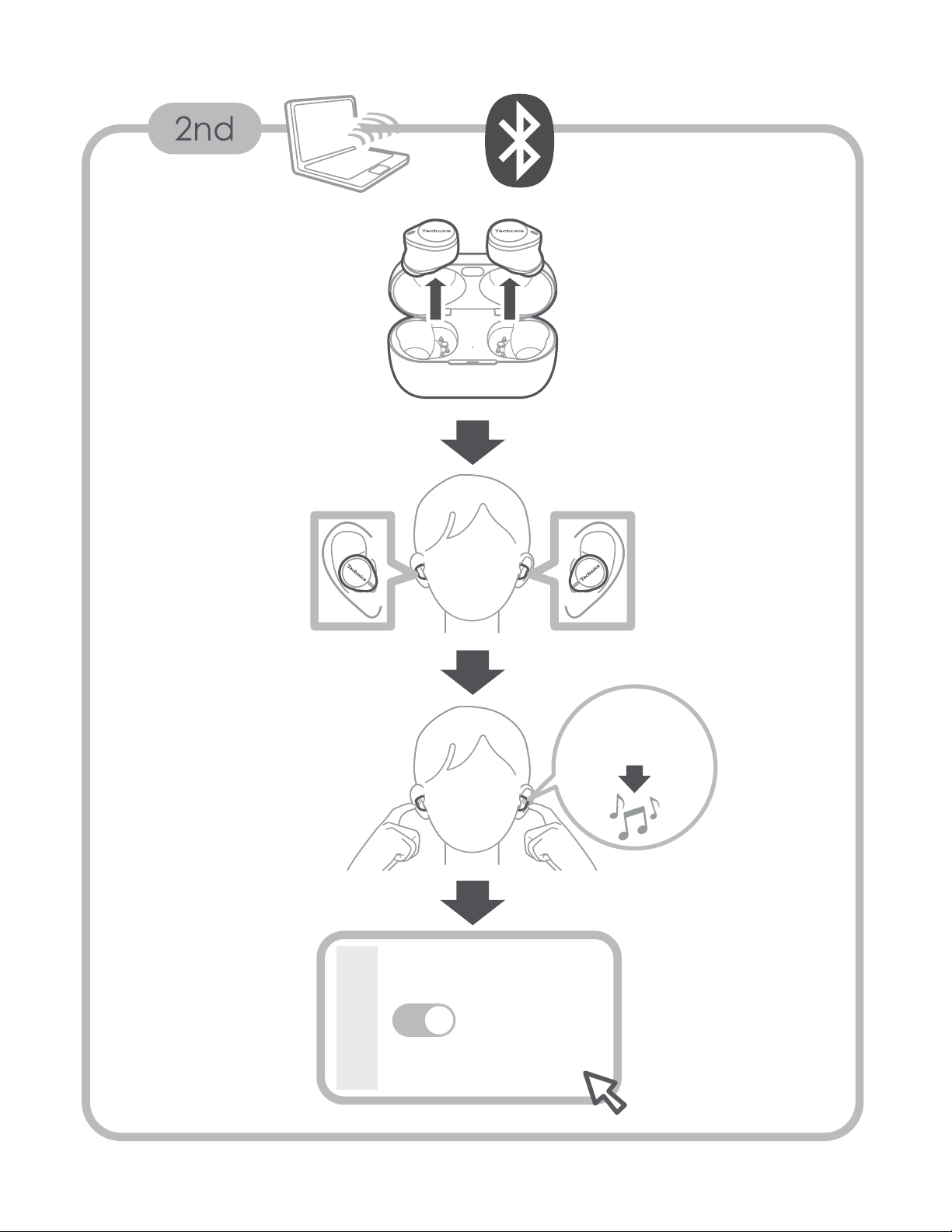

Technics EAH-AZ80
Bluetooth
Bluetooth
ON
5
4

ON
Bluetooth
Technics EAH-AZ80
Press
for 5-8s

https://www.technics.com/support/downloads/TWS/oi/index.html
EAH-AZ60M2 / EAH-AZ40M2
EAH-AZ80
Instrucciones de seguridad
Instruções de segurança
Bezpečnostní pokyny
Instrucţiuni de siguranţă
Turvajuhend
Säkerhetsanvisningar
Sikkerhetsinstruksjoner
Safety Instructions
Consignes de sécurité
Istruzioni di sicurezza
Bezpečnostné pokyny
Saugos instrukcijos
Sigurnosne upute
Sikkerhedsanvisninger
Mesures de sécurité
Sicherheitshinweise
Zasady bezpieczeństwa
Biztonsági előírások
Инструкции за безопасност
Varnostna navodila
Turvaohjeita

Please read these instructions carefully before using this product, and save this manual for future use.
IMPORTANT SAFETY INSTRUCTIONS
Read this Owner’s Manual carefully before using the unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep this Owner’s Manual handy for future reference.
1. Do not use this apparatus near water.
2. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
3. Unplug this apparatus during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power‑supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
5. Clean only with dry cloth.
3
English

Safety precautions
THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA.
This device complies with Part 15 of FCC Rules and Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
(For the U.S.A. only)
EAH-AZ80, EAH-AZ60M2 and EAH-AZ40M2 have been tested and found to comply with FCC radiation
exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines.
(For Canada only)
EAH-AZ80, EAH-AZ60M2 and EAH-AZ40M2 have been tested and found to comply with ISED radiation
exposure limits set forth for an uncontrolled environment and meet RSS-102 of the ISED radio frequency
(RF) Exposure rules.
EAH-AZ80
FCC ID: ACJ-EAH-AZ80
Model: EAH-AZ80
IC: 216A-EAHAZ80
EAH-AZ60M2
FCC ID: ACJ-EAH-AZ60M2
Model: EAH-AZ60M2
IC: 216A-EAHAZ60M2
EAH-AZ40M2
FCC ID: ACJ-EAH-AZ40M2
Model: EAH-AZ40M2
IC: 216A-EAHAZ40M2
4
English

THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
5
English

FCC Caution:
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Supplier’s Declaration of Conformity
Responsible Party: Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Support Contact: http://shop.panasonic.com/support
EAH-AZ80
Trade Name: Technics
Model No.: EAH-AZ80
EAH-AZ60M2
Trade Name: Technics
Model No.: EAH-AZ60M2
EAH-AZ40M2
Trade Name: Technics
Model No.: EAH-AZ40M2
THE FOLLOWING APPLIES ONLY IN CANADA.
CAN ICES-003(B)/NMB-003(B)
CAN ICES-001(B)/NMB-001(B)
EAH-AZ80 EAH-AZ60M2
6
English

The serial number of this product can be
found on the bottom of the charging
cradle. Please note them in the space
provided below and keep for future
reference.
MODEL NUMBER
SERIAL NUMBER
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
WARNING
Unit
To reduce the risk of fire, electric shock or product damage,
RDo not use, store, or leave in places with high humidity, dust, smoke, steam, or in places with high temperature
such as near fire, in direct sunlight, or in cars. (Causes fire, electric shock, overheating, or ignition)
RDo not expose this unit to rain, moisture, dripping or splashing.
RNever insert the charging cradle or USB charging cable when they are wet. (Causes fire, electric shock, heat
generation, or ignition)
7
English

If the terminal of the USB charging cable is inserted while it is wet, a short circuit may occur due to liquid (tap
water, seawater, soft drink, etc.) or foreign matter on the charging cradle or USB charging cable, and cause
abnormal heat generation or malfunction.
RUse only manufacturer’s recommended accessories.
RDo not remove covers.
RDo not repair this unit by yourself. Refer servicing to qualified service personnel.
Avoid the use in the following conditions
RDo not use the unit while it is covered with a blanket, etc. (Heat accumulates and causes cradle deformation or
fire)
RHigh or low extreme temperatures during use, storage or transportation.
RDisposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an
explosion.
RExtremely high temperature and/or extremely low air pressure that can result in an explosion or the leakage of
flammable liquid or gas.
When using the wireless charging pad
REAH‑AZ80 and EAH‑AZ60M2 only
RDo not attach metallic objects such as stickers made from material containing metal on the wireless charging
pad and unit. (Causes fire, burns, or injuries)
RWhen using the wireless charging pad, do not place metallic objects such as straps or clips made from material
containing metal on the wireless charging pad. (Causes fire, burns, or injuries)
8
English

RWhen charging with the wireless charging pad, remove the parts such as covers attached to the charging case.
Depending on the material or thickness of the cover, or due to foreign objects caught between the charging
case and the cover, charging may not be performed properly. (Causes fire, burns, or injuries)
RQi standard wireless chargers are supported.
RThe unit is not guaranteed to charge with all commercially available Qi standard wireless chargers.
RThis unit does not support wireless chargers that are not Qi standard certified or have magnetic attachments. Do
not use these chargers to charge the charging cradle. (It may cause the charging cradle to malfunction.)
Built‑in battery
RDo not heat or expose to flame.
RDo not leave the unit in a car exposed to direct sunlight for a long period of time with doors and windows
closed.
CAUTION
Unit
RDo not place this unit near a heat source.
RDo not listen with this unit at high volume in places where you need to hear sounds from the surrounding
environment for safety, such as at railroad crossings, and construction sites.
RKeep this unit away from something susceptible to the magnetism. Such devices as a clock may not operate
correctly.
9
English

RBe aware that this unit (earphones) may get warm while charging or immediately after charging. Depending on
your constitution and health status, putting the earphones on may trigger adverse reactions such as skin
redness, itching, and rash if the earphones have just been taken out of the charging cradle and are still warm.
Earphones/Earpieces
RKeep the earphones and the earpieces out of reach of children and pets to prevent swallowing. After use, put
them in the charging cradle and close the lid for storage.
RSecurely attach the earpieces. If they are left in the ears after coming off, injury or sickness may be caused.
Allergies
RDiscontinue use if you experience discomfort with the earphones or any other parts that directly contact your
skin.
RContinued use may cause rashes or other allergic reactions.
Precautions for listening with the Earphones
RExcessive sound pressure from earphones and headphones can cause hearing loss.
RDo not use your earphones at a high volume. Hearing experts advise against continuous extended play.
RIf you experience a ringing in your ears, reduce volume or discontinue use.
RDo not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.
RYou should use extreme caution or temporarily discontinue use in potentially hazardous situations.
10
English

This unit may receive radio interference caused by mobile telephones during use. If such interference occurs,
please increase separation between this unit and the mobile telephone.
Use only the supplied USB charging cord when connecting to a computer.
The symbols on this product (including the accessories) represent the following: DC
Specifications
General
EAH‑AZ80 EAH‑AZ60M2 EAH‑AZ40M2
Power supply (Charging
cradle)
DC 5 V, 500 mA (USB)
Built‑in Battery Earphones: 3.7 V,
Lithium polymer 85 mAh
Charging cradle: 3.7 V,
Lithium polymer 700 mAh
Earphones: 3.7 V,
Lithium polymer 85 mAh
Charging cradle: 3.7 V,
Lithium polymer 650 mAh
Earphones: 3.7 V,
Lithium polymer 55 mAh
Charging cradle: 3.7 V,
Lithium polymer 450 mAh
11
English

EAH‑AZ80 EAH‑AZ60M2 EAH‑AZ40M2
Operating time*1, *2
(Earphones)
Approx. 7.0 hours (AAC)
Approx. 6.5 hours (SBC)
Approx. 4.5 hours (LDAC)
Approx. 7.0 hours (AAC)
Approx. 6.5 hours (SBC)
Approx. 4.5 hours (LDAC)
Approx. 5.5 hours (AAC)
Approx. 5.0 hours (SBC)
Approx. 3.5 hours (LDAC)
Operating time*1, *2
(Earphones j Charging
cradle)
Approx. 24 hours (AAC)
Approx. 23 hours (SBC)
Approx. 16 hours (LDAC)
Approx. 24 hours (AAC)
Approx. 23 hours (SBC)
Approx. 16 hours (LDAC)
Approx. 18 hours (AAC)
Approx. 17 hours (SBC)
Approx. 12 hours (LDAC)
Charging time*3
(25 °C (77 °F))
Earphones:
Approx. 2.0 hours
Charging cradle/USB:
Approx. 2.5 hours
Earphones j Charging
cradle/USB:
Approx. 3.0 hours
Earphones:
Approx. 2.0 hours
Charging cradle/USB:
Approx. 2.5 hours
Earphones j Charging
cradle/USB:
Approx. 3.0 hours
Earphones:
Approx. 2.0 hours
Charging cradle/USB:
Approx. 2.5 hours
Earphones j Charging
cradle/USB:
Approx. 3.0 hours
Charging temperature
range
10 °C to 35 °C (50 °F to 95 °F)
Operating temperature
range
0 °C to 40 °C (32 °F to 104 °F)
12
English

EAH‑AZ80 EAH‑AZ60M2 EAH‑AZ40M2
Operating humidity
range
35 %RH to 80 %RH (no condensation)
Charging terminal USB Type‑C Shape
Water resistant IPX4 equivalent (Earphones only)
Mass (Weight) Earphone: Approx. 7 g
(0.25 oz)
(one side only: L and R are
the same)
Charging cradle: Approx.
50 g (1.8 oz)
Earphone: Approx. 7 g
(0.25 oz)
(one side only: L and R are
the same)
Charging cradle: Approx.
45 g (1.6 oz)
Earphone: Approx. 5 g
(0.18 oz)
(one side only: L and R are
the same)
Charging cradle: Approx.
35 g (1.2 oz)
*1 It may be shorter depending on the operating conditions.
*2 Measured with “Noise cancelling” set to “ON”
*3 The time required to charge the batteries from empty to full.
RSpecifications are subject to change without notice.
13
English

Bluetooth® section
EAH‑AZ80 EAH‑AZ60M2 EAH‑AZ40M2
Frequency band 2402 MHz to 2480 MHz
Supported profiles A2DP, AVRCP, HSP, HFP
Supported codec SBC, AAC, LDAC
Trademarks
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Panasonic Entertainment & Communication Co., Ltd. is under license.
Other trademarks and trade names are those of their respective owners.
LDAC and LDAC logo are trademarks of Sony Corporation.
Other system names and product names appearing in this document are in general the registered trademarks or
trademarks of the respective developer companies. Note that the TM mark and ® mark do not appear in this
document.
14
English

This product incorporates the open source software other than the software licensed under the GPL V2.0 and/or
LGPL V2.1. The software categorized as above are distributed in the hope that it will be useful, but WITHOUT
ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE. Please refer to the detailed terms and conditions thereof shown at the following web page.
https://panasonic.jp/support/global/cs/audio/download/index.html
This unit complies with the “High Resolution Audio” standard of the Japan Audio Association.
RTo enjoy wireless high‑resolution quality (sound quality certified by the high‑resolution wireless logo), use a
playback device with the high‑resolution wireless logo and set the Bluetooth® sound quality setting to sound
quality priority mode / LDAC 990 kbps.
RIn modes other than the above (connection priority mode, etc.), playback may not be possible with high
resolution quality.
About Bluetooth®
Restrictions of use
RWireless transmission and/or usage with all Bluetooth® equipped devices is not guaranteed.
RDepending on the specifications and settings of a device, it can fail to connect or some operations can be
different.
15
English
