Technics SH-DX1200 User manual

ORDERNO. EMID0009039A3
AudioMixer
SH-DX1200
Colour
(K)............Black Type
Area
(GN)..........Oceania.
Please fileand use thismanual together with the service manual for
Model No.SH-DJ1200, Order No.AD9609186C0.
SPECIFICATIONS
Specification
1

Input sensitivity/input impedance
PHONO 1.5to15mV/47k
LINE 100 to1000mV/more than10k
AUX/EFFECTOR 150mV/47k
MIC 0.7mV/1k
Ratedoutput voltage
LINE 1V/600
MONITOR 2V/2.2k
PHONES 1.5V/100 (100 load)
REC 1V2.2k
Maximumoutput voltage(10k loadexcluding headphones)
LINE 8V
MONITOR 8V (headphones open)
PHONES 1.5V (100 load)
REC 8V
Applicableloadimpedance
LINE More than600
MONITOR More than10k
PHONES More than47
REC More than10k
Residual humand noise Less than0.2mV
Frequencyresponse
PHONO 30Hz to15kHz (RIAA±1dB)
LINE 10Hz to70kHz (-3dB)
AUX/EFFECTOR 10Hz to100kHz (-3dB)
MIC 100Hz to15kHz (-3dB)
Tonecontrol characteristics 12dB/oct
LOW +12dB, -24dB (63Hz)
HIGH +12dB, -24dB (10kHz)
General
Power supply AC 230-240V, 50/60Hz
Power consumption 16W
Dimensions(W×H×D) 260×102×305mm
Mass 3.5kg
Note: / Specificationsare subject tochangewithout notice. /
Mass and dimensionsare approximate.
2000 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.

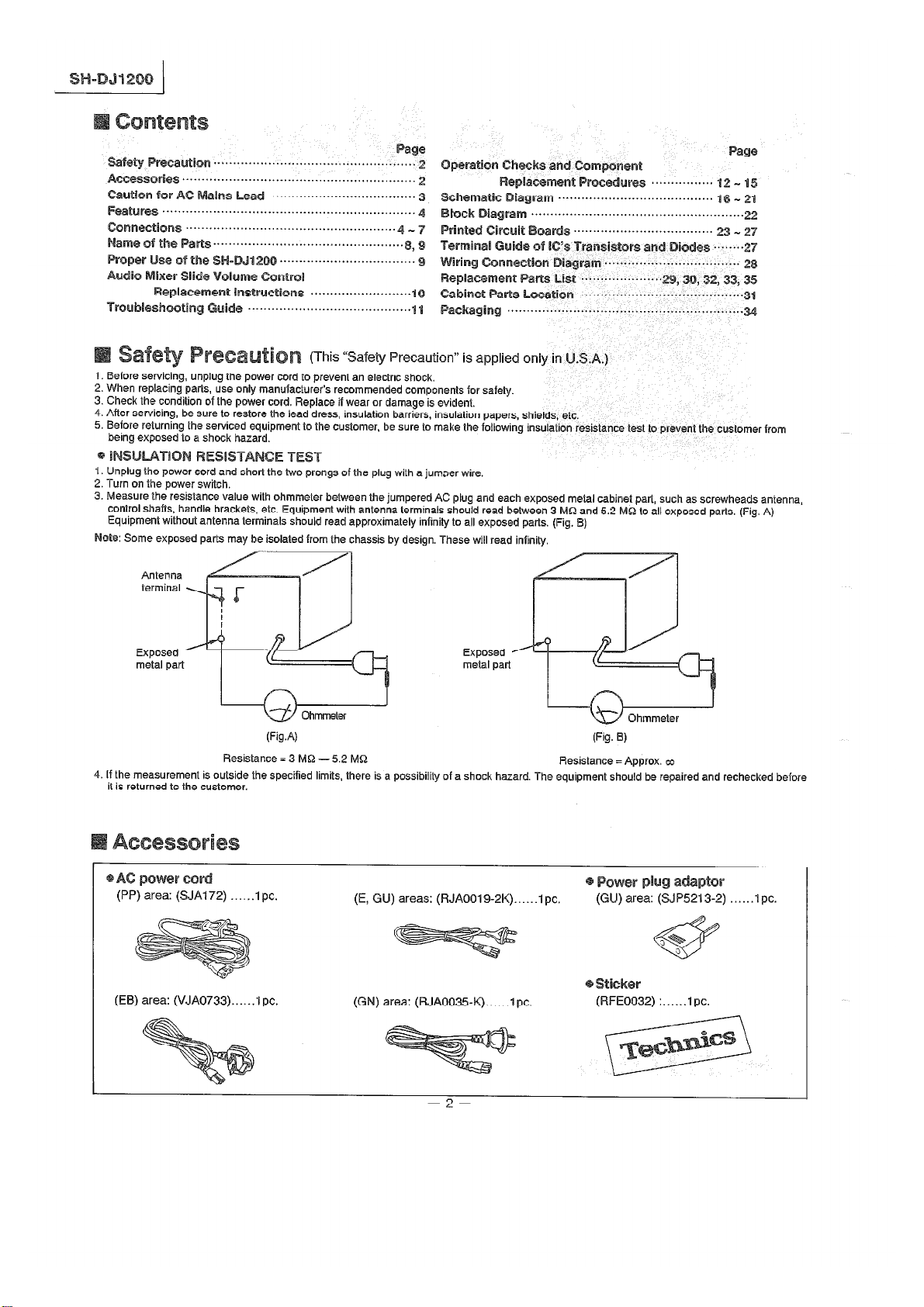

1. Note
2

-Thissimplified service manual isprovided to indicate the
differences between the original No. SH-DJ1200 and the
subsequent model No. SH-DX1200.
2. Additional Instructions

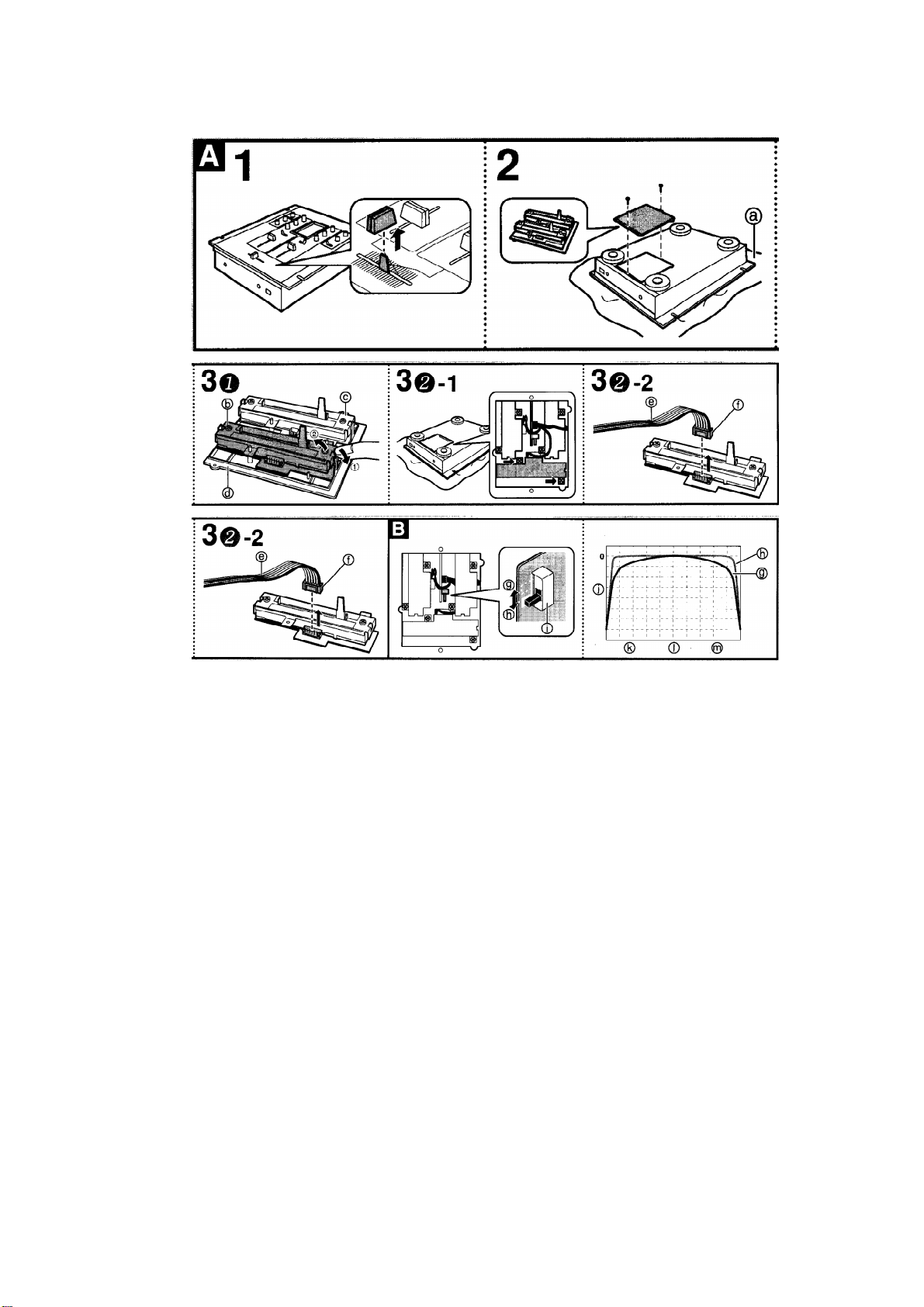

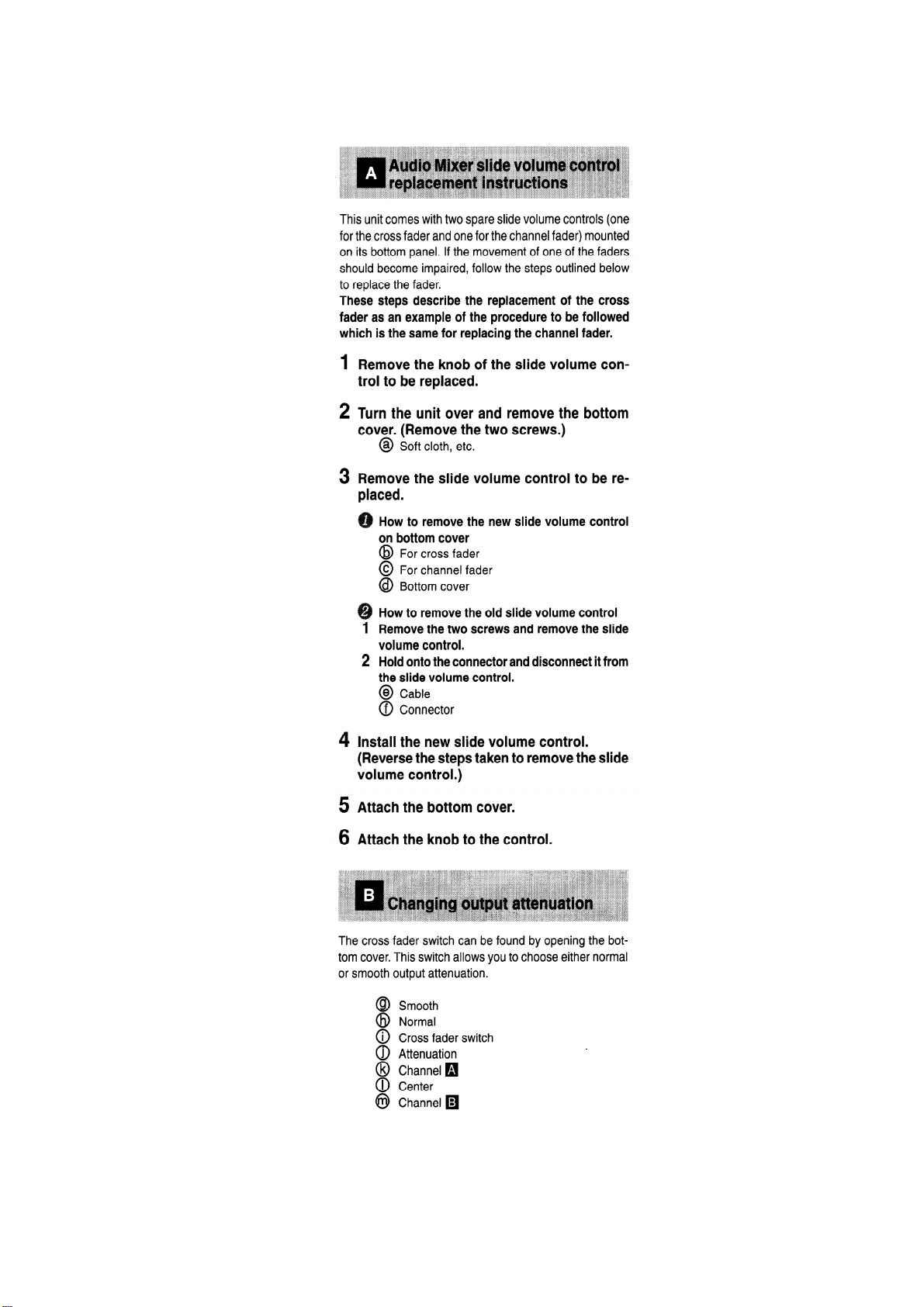

1. CROSS FADERKIT(RFKVHDX1200A)
-CROSS FADERVR. (1pc)
-P.C.B. (1pc)
-CONNECTOR(1pc)
-BRACKET (1pc)
-HIMELON(2pcs)
-SCREW (2pcs)
2. CHANNEL FADERKIT(RFKVHDX1200B)
-CHANNEL FADERVR. (1pc)
-P.C.B. (1pc)
-CONNECTOR(1pc)
-BRACKET (1pc)
-HIMELON(2pcs)
-SCREW (2pcs)
3

4

3. Schematic Diagram
3.1. Notes
S101
CH. Ainput selector switch in“PHONO”position.
S102
Cross fader switch.
S201
CH. Binput selector switch in“PHONO”position.
S701
Headphones monitor selector switch in“A”position.
S801
Power ON/OFF switch in“ON”position.
VR101-1,101-2
CH. Ainput sensitivitycontrol.
VR102-1,102-2
5

CHANNEL FADERcontrol (INPUTA).
VR103-1,103-2
CHANNEL FADERcontrol (INPUTB).
VR104-1,104-2
CROSS FADERcontrol.
VR201-1,201-2
CH. Binput sensitivitycontrol.
VR301-1,301-2
CH. Ahigh-range level control.
VR302-1,302-2
CH. Alow-range level control.
VR401-1,401-2
CH. Bhigh-range level control.
VR402-1,402-2
CH. Blow-range level control.
VR501-1,501-2
Master volume level control.
VR601
Micvolume level control.
VR602-1,602-2
AUX/EFFECTORvolume level control.
VR701-1,701-2
Monitor balance control.
VR702-1,702-2
Monitor volume level control.
VR102S-1,102S-2
CHANNEL FADERcontrol (spare).
VR104S-1,104S-2
CROSS FADERcontrol (spare).
-The voltage value and waveforms are the reference voltage of this
unitmeasured byDC electronicvoltmeter (high-impedance) and
oscilloscope on the basisof chassis. / Accordingly, there may
arisesome error involtage values and waveformsdepending upon
6

the internal impedance of the tester or the measuring unit.
-Important safetynotice: / Components identified bymark have
special characteristics important for safety. When replacing anyof
these components, use onlymanufacturer’sspecifiedparts.
-Thisschematicdiagram maybe modified at anytime with the
development of new technology.
-Caution! / ICand LSI are sensitive to staticelectricity. / Secondary
troublecan be prevented bytaking care during repair. / Cover the
parts boxes made of plastics with aluminum foil. / Ground the
soldering iron. / Put aconductive maton the work table. / Donot
touch the legs of ICor LSI with the fingers directly.
3.2. SchematicDiagram
4. Block Diagram
5. Printed Circuit Boards
6. Terminal Guide Of IC’s Transistors and Diodes
7. Wiring Connection Diagram
8. Replacement Parts List
Notes:
-Important safetynotice: / Components identified bymark have
special characteristics important for safety. / Futhermore, special
parts which have purposes of fire-retardant (resistors), high-
qualitysound(capacitors), low-noise (resistors), etc. are used. /
When replacing anyof components, be sure to use only
manufacture’sspecified parts showninthe parts list.
-The parenthesized indications inthe Remarks columns specifythe
areas. (Refer to the cover page for area.)/ Parts without these
indications can be used for all areas.
-The “<IA>”mark inRemarks indicate language of instruction
manual. / <IA>:English
-The marking (RTL) indicates that Retention Time isLimited for this
item. After the discontinuation of thisassemblyinproduction, the
item will continue to be availablefor aspecificperiod of time. The
retention period of availabilityisdependenton the type of
7

assembly, and inaccordance with the lawsgoverning part and
product retention. After the end of thisperiod, the assemblywill
no longer be available.

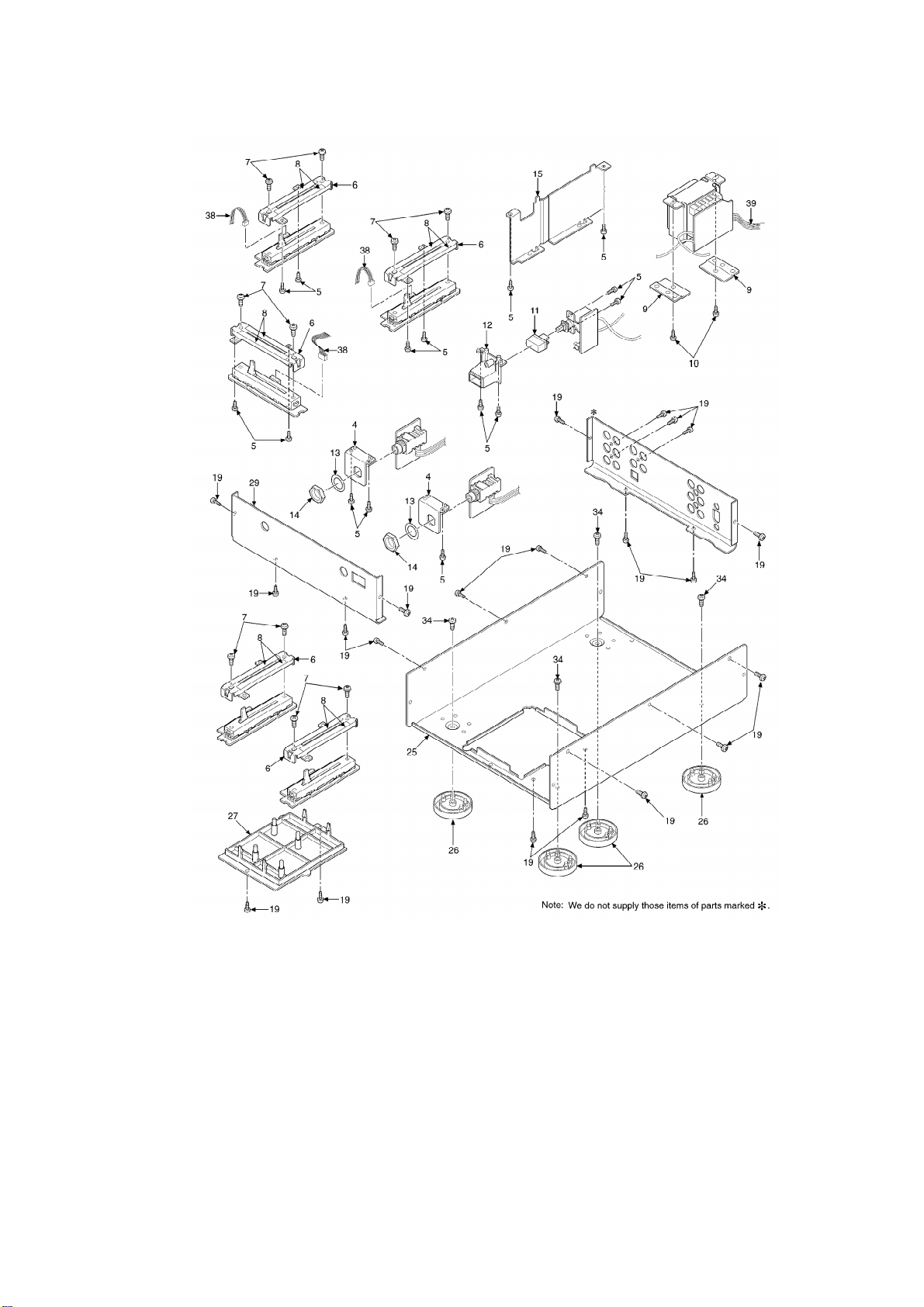

Ref. No. PartNo. PartName& Description Pcs Remarks
1RYP0945B-K PANEL ASS'Y 1
1-1 RMS0562 SCREW 2
1-2 RMS0564 BOSS 6
2RMN0203 P.C.B.HOLDER 6
3RMN0412 HOLDER 1
4RMQ0664 BRACKET,JACK 2
5XTB3+8J SCREW 24
6RMQ0663 BRACKET,SLIDEVR 5
7 XYN3+C5S SCREW 10
8RMF0246 HIMELON A 10
9RMN0408 BRACKET,P.TRANSFORMER 2
10 XTB4+8J SCREW 2
11 RGU0890-K KNOB,POWER 1
12 RMR1287-K BRACKET,POWER SW 1
13 RHW1A001 WASHER 2
14 XNSS12 NUT 2
15 RMV0126 BARRIER 1
16 REZ0947 FFC(16P) 1
17 REZ0952 FFC(23P) 1
18 RMN0407 BRACKET,JACK 1
19 XTBS3+8JFZ1 SCREW 25
20 XNS9 NUT 11
21 RGV0195-N KNOB,PHONO/LINE/EFF SEND 3
22 XXE2C3FT SCREW 3
23 RMF0247 HIMELON B 3
24 XYN3+C6S SCREW 7
25 RKU0073-K BOTTOMBOARD 1
26 RKA0053-A FOOT 4
27 RMR1028-K BOTTOMCOVER 1
29 RGQ0197-K FRONTCOVER 1
30 RGV0194-K KNOB,MASTER/SUB MASTER 3
31 RGW0258-K KNOB,MASTER 5
32 RGW0257-K KNOB,TRIM 6
33 RMK0341-2 CHASSIS 1
34 XTB3+6G SCREW 4
35 RFKNHDX1200K METER FRAMEASS'Y 1
36 XYN3+C8S SCREW 1
37 SHR328 BINDER 2
38 REZ1298 WIREKIT 1
39 REZ1297 WIREKIT 1
40 XYN3+C6S SCREW 1
A1 RQT5375-B O/I BOOK 1 <IA>
A2 RQCA0738 SUB MANUAL 1
A4 RFE0032 STICKER 1
A5 RJA0035-K AC CORD 1
A6 RQX7433ZA WARRANTYCARD 1
8

Ref. No. PartNo. PartName& Description Pcs Remarks
A7 RQCB0169 SERVICENTER LIST 1
C101,02 ECBT1H181KB5 50V180P 2
C103,04 RCE1HKA3R3BG 50V3.3U 2
C105,06 ECEA1CKS330 16V33UF 2
C107,08 ECBT1E223ZF 25V0.022U 2
C109,10 ECBT1H391KB5 50V390P 2
C111,12 ECQB1H562JF3 50V5600P 2
C113,14 ECQB1H223JF3 50V0.022U 2
C115,16 ECBT1C472KR5 16V4700P 2
C117,18 ECEA1CKS100 16V10U 2
C119,20 ECEA1HKS010 50V1U 2
C121,22 ECBT1H220J5 50V22P 2
C123,24 ECBT1H181KB5 50V180P 2
C125,26 RCE1HKA3R3BG 50V3.3U 2
C127 ECBT1E223ZF 25V0.022U 1
C131-34 ECEA1HKS010 50V1U 4
C135,36 ECBT1E223ZF 25V0.022U 2
C137,38 ECBT1H101KB5 50V100P 2
C139-42 ECEA1HKS010 50V1U 4
C143,44 ECBT1E223ZF 25V0.022U 2
C145,46 ECBT1H101KB5 50V100P 2
C151,52 ECEA1CKS100 16V10U 2
C153-56 ECBT1H473ZF5 50V0.047U 4
C201,02 ECBT1H181KB5 50V180P 2
C203,04 RCE1HKA3R3BG 50V3.3U 2
C205,06 ECEA1CKS330 16V33UF 2
C207,08 ECBT1E223ZF 25V0.022U 2
C209,10 ECBT1H391KB5 50V390P 2
C211,12 ECQB1H562JF3 50V5600P 2
C213,14 ECQB1H223JF3 50V0.022U 2
C215,16 ECBT1C472KR5 16V4700P 2
C217,18 ECEA1CKS100 16V10U 2
C219,20 ECEA1HKS010 50V1U 2
C221,22 ECBT1H220J5 50V22P 2
C223,24 ECBT1H181KB5 50V180P 2
C225,26 RCE1HKA3R3BG 50V3.3U 2
C227 ECBT1E223ZF 25V0.022U 1
C251,52 ECEA1CKS100 16V10U 2
C301,02 ECBT1E223ZF 25V0.022U 2
C303-06 ECBT1H330J5 50V33P 4
C307,08 ECBT1E223ZF 25V0.022U 2
C309,10 ECQB1H153JF3 50V0.015U 2
C311,12 ECQB1H273JF3 50V0.027U 2
C313,14 ECQB1H272JF3 50V2700P 2
C315-18 ECA1CM221 16V220UF 4
C319-22 ECQB1H152JF3 50V1500P 4
C323,24 ECQB1H682JF3 50V6800P 2
C325,26 ECEA1CKS101 16V100U 2
C327,28 ECA1CM221 16V220UF 2
C401,02 ECBT1E223ZF 25V0.022U 2
C403-06 ECBT1H330J5 50V33P 4
C407,08 ECBT1E223ZF 25V0.022U 2
C409,10 ECQB1H153JF3 50V0.015U 2
9

Ref. No. PartNo. PartName& Description Pcs Remarks
C411,12 ECQB1H273JF3 50V0.027U 2
C413,14 ECQB1H272JF3 50V2700P 2
C415-18 ECA1CM221 16V220UF 4
C419-22 ECQB1H152JF3 50V1500P 4
C423,24 ECQB1H682JF3 50V6800P 2
C425,26 ECEA1CKS101 16V100U 2
C427,28 ECA1CM221 16V220UF 2
C503,04 ECBT1E223ZF 25V0.022U 2
C505,06 ECBT1H330J5 50V33P 2
C511,12 RCE1HKA3R3BG 50V3.3U 2
C513,14 ECBT1H101KB5 50V100P 2
C515,16 ECBT1E223ZF 25V0.022U 2
C517,18 ECEA1CKS100 16V10U 2
C519,20 ECBT1H101KB5 50V100P 2
C521,22 ECBT1H220J5 50V22P 2
C523-25 RCE1HKA3R3BG 50V3.3U 3
C526 ECEA1CKS101 16V100U 1
C529-33 ECEA1CKS100 16V10U 5
C535,36 ECBT1H221KB5 50V220P 2
C541-43 RCE1HKA3R3BG 50V3.3U 3
C601 ECBT1H181KB5 50V180P 1
C602 ECQV1H154JM3 50V0.15UF 1
C603 ECEA1HKS010 50V1U 1
C604 ECBT1E223ZF 25V0.022U 1
C605 ECBT1H101KB5 50V100P 1
C606 ECBT1H100J5 50V10P 1
C607 ECBT1E223ZF 25V0.022U 1
C608,09 ECBT1H101KB5 50V100P 2
C610 ECEA1HKS010 50V1U 1
C611 ECBT1H100J5 50V10P 1
C612 ECEA1HKS010 50V1U 1
C615,16 ECBT1H181KB5 50V180P 2
C617,18 RCE1HKA3R3BG 50V3.3U 2
C619-22 ECBT1H101KB5 50V100P 4
C625,26 ECBT1E223ZF 25V0.022U 2
C630 ECBT1E223ZF 25V0.022U 1
C631 ECEA1HKS010 50V1U 1
C632 ECBT1H221KB5 50V220P 1
C709-12 ECEA1CKS100 16V10U 4
C713,14 ECBT1H330J5 50V33P 2
C715,16 ECEA1CKS100 16V10U 2
C717,18 RCE1HKA3R3BG 50V3.3U 2
C719,20 ECBT1H101KB5 50V100P 2
C721,22 ECEA1CKS100 16V10U 2
C723,24 ECBT1H101KB5 50V100P 2
C725,26 ECBT1H220JC5 50V22P 2
C730 ECBT1E223ZF 25V0.022U 1
C731,32 ECBT1H473ZF5 50V0.047U 2
C735,36 ECBT1H391KB5 50V390P 2
C801,02 ECA1EM101 25V100U 2
C803,04 ECBT1E223ZF 25V0.022U 2
C805,06 ECA1EM472 25V1000U 2
C807 ECKR2H682PE 500V6800P 1
C808 ECEA1HKSR33 50V0.33UF 1
10

Ref. No. PartNo. PartName& Description Pcs Remarks
C809 ECEA0JKS101 6.3V100U 1
C810 ECEA1CKS101 16V100U 1
C811 ECBT1E223ZF 25V0.022U 1
C812 ECA1EM472 25V1000U 1
C813 ECKR1H103ZF5 50V0.01U 1
CN101 RJS6T4ZA CONNECTOR(6P) 1
CN102 RJP6G17ZA CONNECTOR(6P) 1
CN103 RJP5G17ZA PLUG(5P) 1
CN104 RJS3T4ZA CONNECTOR(3P) 1
CN105 RJS5T7ZA CONNECTOR(5P) 1
CN106 RJP3G18ZA CONNECTOR(3P) 1
CN107 RJP4G18ZA SOCKET(4P) 1
CN110 RJP3G18ZA CONNECTOR(3P) 1
CN111 RJP6G18ZA CONNECTOR(6P) 1
CN111S RJP6G18ZA CONNECTOR(6P) 1
CN112 RJP3G18ZA CONNECTOR(3P) 1
CN112S RJP3G18ZA CONNECTOR(3P) 1
CN113 RJS10T7ZA SOCKET(10P) 1
CN201 RJS6T4ZA CONNECTOR(6P) 1
CN501 RJS4T7ZA CONNRVYOT(4P) 1
CN502B RJS1A6216-1 CONNECTOR(16P) 1
CN502A RJS1A6716-Q CONNECTOR(16P) 1
CN503B RJS1A6223-1 CONNECTOR(23P) 1
CN503A RJS1A6723-Q CONNECTOR(23P) 1
CN701 RJS6T4ZA CONNECTOR(6P) 1
CN703 RJS11T7ZA SOCKET(11P) 1
CN704 RJS4T7ZA CONNRVYOT(4P) 1
CN801 RJS5T7ZA SOCKET(5P) 1
D101,02 MA4100M DIODE 2
D103,04 MA4030LTA DIODE 2
D105,06 MA165 DIODE 2
D501-03 MA165 DIODE 3
D504-06 LNV112106 LED(12) 3
D507 LN850RPLS LED 1
D801-09 RL1N4003N02 DIODE 9
D810 MA4056M DIODE 1
F1 XBA2C012TB0S FUSE 1
FW101 RJS2A1306 CABLEHOLDER(6P) 1
FW104 RJS2A1303 CABLEHOLDER(3P) 1
FW113 RJS2A1310 CABLEHOLDER(10P) 1
FW201 RJS2A1306 CABLEHOLDER(6P) 1
FW701 RJS2A1306 CABLEHOLDER(6P) 1
FW703 RJS2A1311 CABLEHOLDER(11P) 1
FW704 RJS2A1304 CABLEHOLDER(4P) 1
FW801 RJS2A1305 CABLEHOLDER(5P) 1
IC101 AN6558F IC,PHONO EQ AMP 1
IC102-04 UPC4570C IC,BUFFER AMP 3
IC105,06 M5207L05 IC,BUFFER AMP 2
IC107 UPC4570C IC,BUFFER AMP 1
11

Ref. No. PartNo. PartName& Description Pcs Remarks
IC201 AN6558F IC,PHONO EQ AMP 1
IC202 UPC4570C IC,BUFFER AMP 1
IC301-04 UPC4570C IC,TONEAMP 4
IC401-04 UPC4570C IC,TONEAMP 4
IC501 AN6558F IC,BUFFER AMP 1
IC502-04 UPC4570C IC,METER AMP 3
IC505-07 BA682A IC,LED DRIVE 3
IC601 AN6558F IC,MIC AMP 1
IC602 UPC4570C IC,AUXAMP 1
IC701,02 UPC4570C IC,MONITOR 2
IC801 M5F7815L IC,REGULATOR 1
IC802 M5F7915L IC,REGULATOR 1
IC803 M5F7812L IC,REGULATOR 1
JK101 SJF3067-2A PHONE/LINE 1
JK201 RJH2602A PHONE/LINE/MONITOR 1
JK601 RJJ63TA01 MIC 1
JK602 RJH2602A REC/LINEOUT/AUXIN 1
JK702 RJJ63TA01 HEADPHONES 1
JK801 SJS9236-1 AC INLET 1
K1 RFKVHDX1200A CROSS FADER KIT 1
K2 RFKVHDX1200B CHANNEL FADER KIT 1
L1 RLQZ371 COIL 1
P1 RPG5011 PACKING CASE 1
P2 RPN1007 CUSHION 2
P3 XZB25X34C03X POLYETHYLENEBAG 1
P4 SPP756 PROTECTION BAG 1
P5 RPH0032 PROTECTION SHEET 1
P6 RPQ0708 SPACER 1
PCB1 REP2967B-M MAIN PCB ASS'Y 1 (RTL)
PCB2 REP2968A-S VR P.C.B. ASS'Y 1 (RTL)
PCB3 REP2971A-M CONTROL P.C.B.ASS'Y 1 (RTL)
Q501-05 2SC3327A TRANSISTOR 5
Q701-04 2SC3327A TRANSISTOR 4
Q705 UN4115 TRANSISTOR 1
Q801,02 2SD2144STA TRANSISTOR 2
R101,02 ERDS2FJ102 1/4W1K 2
R103,04 ERDS2FJ224 1/4W220K 2
R105,06 ERDS2FJ101 1/4W100 2
R107,08 ERDS2FJ563 1/4W56K 2
R109,10 ERDS2FJ271 1/4W270 2
R111,12 ERDS2FJ680 1/4W68 2
R113,14 ERDS2FJ123 1/4W12K 2
R115,16 ERDS2FJ184 1/4W180K 2
R117,18 ERDS2FJ102 1/4W1K 2
R119,20 ERDS2FJ563 1/4W56K 2
R121-24 ERDS2FJ103 1/4W10K 4
12

Ref. No. PartNo. PartName& Description Pcs Remarks
R125,26 ERDS2FJ224 1/4W220K 2
R127,28 ERDS2FJ102 1/4W1K 2
R129,30 ERDS2FJ563 1/4W56K 2
R141-44 ERDS2FJ223 1/4W22K 4
R145-48 ERDS2FJ472 1/4W4.7K 4
R149,50 ERDS2FJ182 1/4W1.8K 2
R151,52 ERDS2FJ103 1/4W10K 2
R153-56 ERDS2FJ474 1/4W470K 4
R161-64 ERDS2FJ103 1/4W10K 4
R165,66 ERDS2FJ102 1/4W1K 2
R171,72 ERDS2FJ102 1/4W1K 2
R173,74 ERDS2FJ124 1/4W120K 2
R175,76 ERDS2FJ103 1/4W10K 2
R177,78 ERDS2FJ472 1/4W4.7K 2
R179,80 ERDS2FJ563 1/4W56K 2
R181,82 ERDS2FJ103 1/4W10K 2
R183,84 ERDS2FJ331 1/4W330 2
R201,02 ERDS2FJ102 1/4W1K 2
R203,04 ERDS2FJ224 1/4W220K 2
R205,06 ERDS2FJ101 1/4W100 2
R207,08 ERDS2FJ563 1/4W56K 2
R209,10 ERDS2FJ271 1/4W270 2
R211,12 ERDS2FJ680 1/4W68 2
R213,14 ERDS2FJ123 1/4W12K 2
R215,16 ERDS2FJ184 1/4W180K 2
R217,18 ERDS2FJ102 1/4W1K 2
R219,20 ERDS2FJ563 1/4W56K 2
R221-24 ERDS2FJ103 1/4W10K 4
R225,26 ERDS2FJ224 1/4W220K 2
R227,28 ERDS2FJ102 1/4W1K 2
R229,30 ERDS2FJ563 1/4W56K 2
R301-08 ERDS2FJ223 1/4W22K 8
R309,10 ERDS2FJ563 1/4W56K 2
R311,12 ERDS2FJ183 1/4W18K 2
R313,14 ERDS2FJ152 1/4W1.5K 2
R315,16 ERDS2FJ563 1/4W56K 2
R317,18 ERDS2FJ104 1/4W100K 2
R319,20 ERDS2FJ473 1/4W47K 2
R321,22 ERDS2FJ152 1/4W1.5K 2
R323,24 ERDS2FJ472 1/4W4.7K 2
R401-08 ERDS2FJ223 1/4W22K 8
R409,10 ERDS2FJ563 1/4W56K 2
R411,12 ERDS2FJ183 1/4W18K 2
R413,14 ERDS2FJ152 1/4W1.5K 2
R415,16 ERDS2FJ563 1/4W56K 2
R417,18 ERDS2FJ104 1/4W100K 2
R419,20 ERDS2FJ473 1/4W47K 2
R421,22 ERDS2FJ152 1/4W1.5K 2
R423,24 ERDS2FJ472 1/4W4.7K 2
R501-04 ERDS2FJ472 1/4W4.7K 4
R505,06 ERDS2FJ123 1/4W12K 2
R511,12 ERDS2FJ563 1/4W56K 2
R513,14 ERDS2FJ471 1/4W470 2
R515,16 ERDS2FJ183 1/4W18K 2
13

Ref. No. PartNo. PartName& Description Pcs Remarks
R517,18 ERDS2FJ563 1/4W56K 2
R519 ERDS2FJ100 1/4W10 1
R521,22 ERDS2FJ222 1/4W2.2K 2
R523,24 ERDS2FJ561 1/4W560 2
R525,26 ERDS2FJ102 1/4W1K 2
R531,32 ERDS2FJ683 1/4W68K 2
R533-35 ERDS2FJ822 1/4W8.2K 3
R537-39 ERDS2FJ103 1/4W10K 3
R541-43 ERDS2FJ103 1/4W10K 3
R544,45 ERDS2FJ681 1/4W680 2
R547,48 ERDS2FJ333 1/4W33K 2
R551-53 ERDS2FJ244 1/4W240K 3
R554-56 ERDS2FJ391 1/4W390 3
R557-59 ERDS2FJ473 1/4W47K 3
R560-62 ERDS2FJ103 1/4W10K 3
R601 ERDS2FJ471 1/4W470 1
R602 ERDS2FJ103 1/4W10K 1
R603 ERDS2FJ272 1/4W2.7K 1
R604 ERDS2FJ223 1/4W22K 1
R605 ERDS2FJ273 1/4W27K 1
R606,07 ERDS2FJ104 1/4W100K 2
R611,12 ERDS2FJ102 1/4W1K 2
R613,14 ERDS2FJ563 1/4W56K 2
R615 ERDS2FJ102 1/4W1K 1
R707-12 ERDS2FJ103 1/4W10K 6
R713,14 ERDS2FJ223 1/4W22K 2
R715,16 ERDS2FJ103 1/4W10K 2
R719,20 ERDS2FJ563 1/4W56K 2
R721,22 ERDS2FJ471 1/4W470 2
R723,24 ERDS2FJ562 1/4W5.6K 2
R725,26 ERDS2FJ563 1/4W56K 2
R729,30 ERDS2FJ101 1/4W100 2
R731 ERDS2FJ224 1/4W220K 1
R732 ERDS2FJ471 1/4W470 1
R733-36 ERDS2FJ102 1/4W1K 4
R739,40 ERDS2FJ471 1/4W470 2
R741,42 ERDS2FJ222 1/4W2.2K 2
R801 ERDS2FJ274 1/4W270K 1
R802 ERDS2FJ104 1/4W100K 1
R803 ERDS2FJ473 1/4W47K 1
R804 ERDS1FJ152 1/2W1.5K 1
R805 ERDS2FJ103 1/4W10K 1
S101 RST2B001-H SW,PHONO/LINE 1
S102 RSS2D004 SW,FAIDECARVE 1
S201 RST2B001-H SW,PHONO/LINE 1
S701 RST2B001-H SW,CUE 1
S801 ESB92S22B SW,POWER 1
T801 RTP1U4B001-V POWER TRANSFORMER 1
VR101 EVJC20F03B24 VR,TRIM 1
VR102-2S EVBNKAM20A15 VR,INPUTA/B 3
14

Ref. No. PartNo. PartName& Description Pcs Remarks
VR104 EVBNK9M20B15 VR,CROSS FADER 1
VR104S EVBNK9M20B15 VR,CROSS FADER 1
VR201 EVJC20F03B24 VR,TRIM 1
VR301,02 EWCCU3FB7G54 VR,HIGH/LOW 2
VR401,02 EWCCU3FB7G54 VR,HIGH/LOW 2
VR501 EVJC20F03V15 VR,MASTER 1
VR601 EVJ01BF03D54 VR,MIC 1
VR602 EVJC20F03D54 VR,AUX/EFFECTOR 1
VR701 EVJCACFA7G15 VR,MONITOR BALANCE 1
VR702 EVJC20FA7V15 VR,MONITOR LEVEL 1
9. Cabinet Parts Location
15

16

10. Packaging
17

K000900000YH
18
