Technika DL5GPTC Instruction Manual

TECHNIKA
European Cooking Appliances
COOKING HOB
ELECTROGAS
The manufacturer declines all responsibility for possible inaccuracies
:£entr:;nhetdtjnmtksepoanmoEtL:#er:a::::ttfhno8s:rc£::¥]:ns8toerbr:rcs6n¥£ed:::edrve
necessary or useful, without jeopardizing the essential characteristics.
COD. 1.001.72.1
Models
DL5GPTC, DL5GTC, DL4G, PA5GTC
EL4GTC, 40GTC, 40G1, 40Gl-Col
10G1,11G1, 20G1
Installation / Use / Maintenance
Customer Care Centre
Phone 03 97054144
Fax 03 97041796
Toll Free 1800333244
5GG-ASHOTPLATEBY TECH
`ir:`Li cippRovflL CERT No 5760 0fls
(LPG) TEST POINT
2673
" RflL 8fls TO"L NOMINf)L 3fls CONSUMPTION 36 5 MJ/h
TEST POINT PRESSURE I a kp8
``r`TDf)NE 0fls TO"L NOMINO. 3qs CONSUMPTION 39 5 MJ/h
I tl^\ T---__.. _
PF)ESSUF]E 2 75 kpa
I `JURS S"INLE§§ STEEL
c;t~q|f}L NR @21043@@28
REF: DEL PROF
4G + WMI XS

Dear customer,
We thank you and congratulate you on
your choice.
This new carefully designed product,
manufactured with the highest quality
materials, has been carefully tested to sa-
tisfy all your cooking demands.
We would therefore request you to read
and follow these easy instructions which
will allow you to obtain excellent results
right from the start.
May we wish you all the very best with
your modern appliance!
THE MANUFACTURER
AI'PLIANCE IS DESIGNED FOR DOMESTIC USE
ONLY. THE MANUFACTURER SHALL NOT IN ANY
WAY BE HELD RESPONSIBLE FOR WHATEVER
INJURIES 0R DAMAGES ARE CAUSED BY
INCORRECT INSTALLATION OR BY UNSUITABLE,
WRONG OR ABSURD USE.

INSTRUCTIONS FOR USE
Installation
All the opercltions concerned with the installation (electriccll connection) must be
carried out by an authorized instciller, in terms with the standclrds in force.
For specific instructions, kindly read the part reserved for the installation technician.
All the opercitions concerned with the installation (electrical and gas) must be carried
out by qualified technicians, in terms with the standards in force, and the
requirements of the local authorities.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Where this appliance is installed in marine and or in a caravan, it shall NOT be used
as a space heater.
Use
fhaes%::a:rns!F!tie];:)s.burneriscarriedoutbyputtingasmallflametotheupperpart
holes of the burner, pressing cind rotating the corresponding knob in an anti-clockwise
manner, until the maximum position has coincided with the marker. When the gas
burner has been turned on, adjust the flame according to need. The minimum position
is found at the end of the anti-clockwise rotation direction.
In models with automatic ignition, operate the knob as described above, pressing
simultaneously, the corresponding push-button. The electric spark between the
ignition plug and the bumer provides the ignition of the burner itself. After ignition,
immediately release the push-button and adjust the flame according to need.
To start the burner in models equipped with a flame failure keep the knob pressed
hard for 10 seconds, as described above, after placing it on its maximum value. After
releasing the knob, make sure the burner is actually lit.
N.B. -we recommend the use of pots and pans with a diameter matching that of the
burner, thus preventing the flame from escaping from the bottom part and
surrounding the pot
-do not leave any empty pots or pans on the fire
-do not use any tools for grill-cooking on Crystal hobs.
When cooking is finished, it is also a good norm to close the main gas pipe tap and
cylinder.
25
©
1
u±IIi
0000
11

Maintenance
Gas
Prior to any operation, disconnect the appliance from the electrical system.
For long-life to the equipment, a general cleaning operation must take place
periodically, bearing in mind the following:
• the glass, steel and /or enamelled parts must be cleaned with suitable non-abrasive or
corrosive products (found on the market). Avoid chlorine-base products (bleach, etc.);
• avoid leaving acid or alkaline substances on the working area (vinegar, salt, lemon
juice' etc.).
• the wall baffle and the small covers (mobile parts of the burner) must be washed
frequently with boiling water and detergent, taking care to remove every possible
encrustation. Dry carefully and check that none of the burner holes is fully or
partially clogged;
• the electrical parts are cleaned with a damp cloth and are lightly greased with
lu'bricating oil when still warm.
• the stainless steel grids of the working area, after having been heated, take on a
bluish tiiit which does not deteriorate the quality. To bring colour back to its original
state, use a slightly abrasive product.
N.B.-Cleaning of the taps must be carried out by qualified personnel, who must be
consulted
in case of any functioning anomaly.
Check periodically the state of conservation of the flexible gas feed pipe. In case of
leakage, call immediately the qualified technicians for its replacement.
Service required
Abnormal operation which may require the appliance to be serviced are, Flame lifting
or floating, looking appreciatingly yellow and or having any objectionable odour.

INSTRUCTIONS FOR THE INSTALLER
Installation (Electrical)
These Instructions are for the authorised installer, as a guide to the installation,
adjustment and maintenance, according to the laws and standards in force. Any of
these operations must always be carried out when the appliance has been disconnected
from the electric system.
Installation (Gas)
This appliance is not provided with a combustion product discharge. It is
recommended that it be installed in accordance with the Australian Standard
AS560l/AC60l and any other local regulations or by laws. The quantity of air which
is necessary for combustion must not be below 2.0 m3/h for each kw of installed
Power.
See table of burner power.
The OPERATION of the appliance including the ignition system must be tested
before leavilig.
PF?;.£t3£)?Ti:8appliancecanbefittedintoaworkingareaasillustratedonthe
corresponding figure.
Apply the seal provided over the whole of the area perimeter.
Gas connection
(Fig. 4) Connect the appliance to the gas cylinder or to the installation according to the
prescribed standards in force, and ensure beforehand, that the appliance matches the
type of gas available. Otherwise, see "Adaptation to various types of gas".
Furthermore, check that the feed pressure falls within the values described on the
table: "User chacteristics".
Rigid/semi rigid metal connection
Carry out the connection with fittings and metal pipes (even flexible pipes) so as to
#i:I.n#tiies:Lesst:[t[t:i;nnnf:spg::Sn°cfatrhr:eapop:£t::a:.cktheperfectsealingoftheentire
connection system, by using a soapy solution.
Electrical connection
(Fig. 5) Prior to carrying out the electrical
connection, please ensure that:
•::;Ptahnattc;:::adcftceartj:i£Cosnatrfes:Cahtra;:tp°]:::-
placed at the bottom of the working area;
• that the plant is fitted with an efficient
earth connection, following the standards
and law provisions in force. The earth
connection is compulsory in terms of the
law.
•ffi:S8:£t8,,tFR,
Fig. 4
Should there be no cable and /or plug on
the equipment, use suitable absorption material for the working temperature as well,
as indicated on the matrix plate. Under no circumstance must the cable reach a tem-
peratureabove50°Coftheambienttemper3ture.
Should a direct connection to the network be reqiiired, it will be necessary to interpose
an omnipolcir switch with minimum ciperture between the 3 mm. contacts,
dimensioned to becir the plate locid cilid it must follow the standards in force (the yel-
low/green earth cable must not be interrupted by the switch). The plug or omnipolar
switch must be easily reached on the instcilled equipment.
Tlie maniifacturers decline ciny responsibility in the event of non-compliance witli
what is described above and the ciccident prevention norms not being respected and
followed.
Adaptation to various types of gas
(Fig. 6-7) Should the applicince be pre-set for a different type of gas than thcit available,
proceed as follows:
• replace the injectors (Fig. 7) with tlie corresponding type of gcis to be used (see table
"Uses characteristics").
• to adjust to the minimiim, use a screwdriver ()n the screw placed on the tap (Fig. 6)
after turning the tap to its minimum position. For LPG (butane/propane) screw
tight.
Test point pressure
The test point pressure should be set to 1.Okpa (when using natural gas) with both
semi rapid burners operating at maximum.

USER CHARACTERISTICS
GAS BURNERS
FEED
BURNER © INJECTORS
CONSUMPTION
TypE pREssuRE kr>A
1 / 100 mm
MJ/hour
Natural gas
fast 155
11.8
semi fast 115
6.5
G20 l kpA
auxiliary 90
4.5
wok 175
14.5
fish 155
11.8
LPG
fast 85
11.0
scmifast 70
6.5
G30/G31 2,75 kpA
ciuxiliary 55
4.5
wok 105
14.0
fish 92
11.0
10
This manual suits for next models
10
Table of contents
Other Technika Hob manuals
Popular Hob manuals by other brands

Ariston
Ariston FTGHL 641 D/IX/A LPG operating instructions

Gorenje
Gorenje HET649BSC installation manual

Electrolux
Electrolux HOI623S user manual

Omega Australia

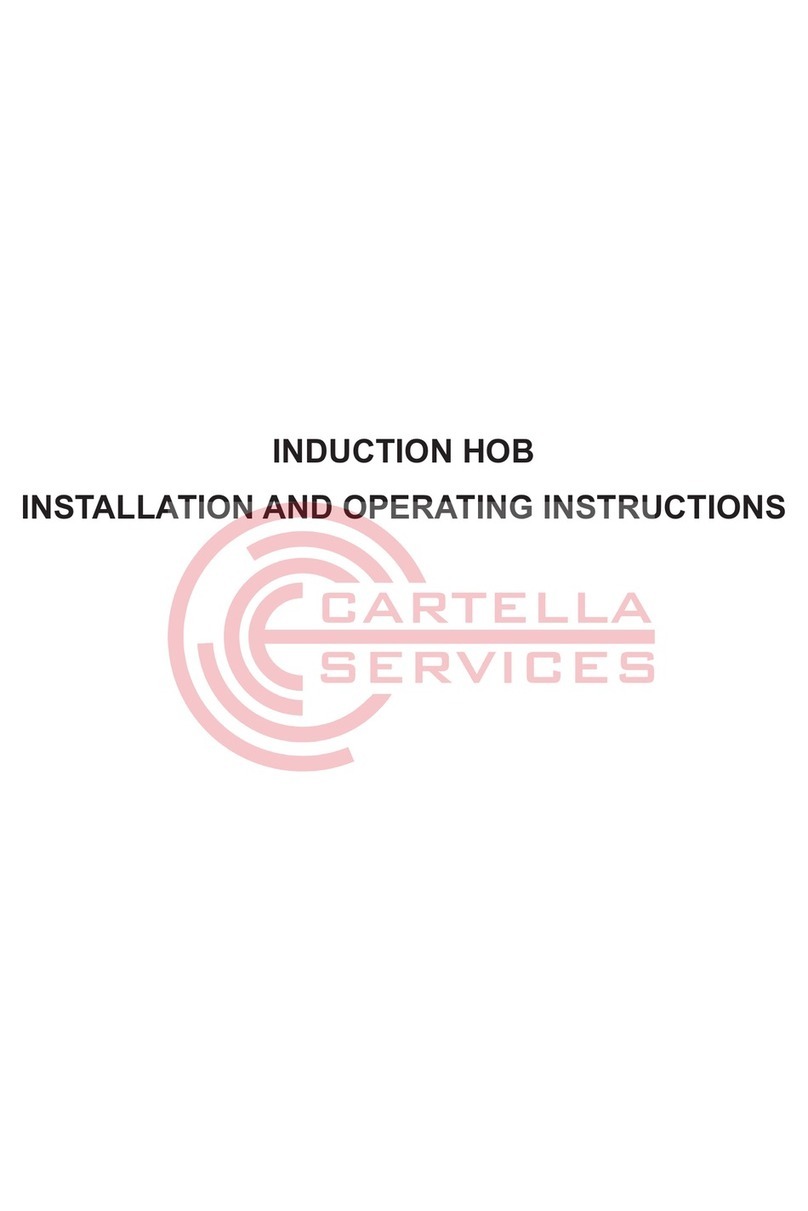

Omega Australia OI64Z Installation and operating instructions
