TECHNYLIGHT TRIDENT 450 User manual

TECHNYLIGHT
Entertainment Lighting Effects
T

1
Please read this manual carefully before you initially start-up!

2
OPEN THE BOX FOR CHECKING
Thank you for your purchase of this product TRIDENT450 tri-color Laser show
System.
In order to use this product safety and reasonable, please read over this manual carefully
before use and the operation must strictly according to this manual to avoid any damage
to the product and personal safety.
Once you receive this product, please immediately take it out carefully and check whether
the product was damaged during the transportation. Then please check if the following
parts are included:
TRIDENT450 RGY tri-colorlaser 1pc
Powercable 1pc
DMX signal cable 1pc
User manual 1pc
Wiresling 1pc
Specifications
Laser type: Green Laser: Diode Pumped Solid Stated Laser (DPSSL)
Red Laser: Semiconductor Diode Laser
Laser class: Class IIIb
Laser life: >5000 Hours
Cooling ways: Air-cooled.
Color: Red@650nm
Green@532nm
Laser output: 450mW (350mW@650nm 100mW@532nm)
Scanner system: High speed optical scanner
Scan angle: 0°~±20°
Control mode: Sound Active / Auto / DMX512
DMX channels: 10 channels
Power supply: AC 90-240V 50/60Hz
Power consumption: 150W
Dimensions: W200mm ×H260 mm ×D310 mm
Net Weight: 6.0Kg

3
DANGER LASER RADIATION!
Avoid direct eye exposure!
Laser radiation can cause eye damage and/or skin damage
All protective measures for a safe operation of this laser must be applied.
Safety instructions
-If the device has been exposed to drastic temperature fluctuation, do not switch it on
immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
-The laser must only be used for shows. The operation is only allowed if it is controlled
by a skilled and well-trained operator.
-Never leave this device running unattended and keep it away from children and
amateurs.
-Keep away from heaters and other heating sources. In order to safeguard sufficient
ventilation, leave 50 cm of free space around the device.
-Never direct the laser beam to people or animals.
-CAUTION LASER DIODE: Never unscrew the housing!
There are no serviceable parts inside the device. Maintenance and service operations
are only to be carried out by authorized dealers.
-Always disconnect from the mains when the device is not in use or before cleaning it.
-HEALT HAZARD! Never look directly into the light source, as sensitive
persons may suffer an epileptic shock!
Operating determinations
-The operator has to make sure that laser radiation – also reflected laser radiation –
higher than the highest allowed level is avoided by technical or organizational
measures.
-Make sure that the used voltage is: AC 220V~240V, 50/60Hz with ground.
-If the device is used in a flying installation, the mounting brackets and an appropriate
safety-rope must be fixed.
-Laser effects are not designed for permanent operation. Consistent operation breaks
will ensure that the device will serve you for a long time without defects.
-In some country, the operator must notify the accidence insurance and the authority
for industrial safety, before operating a laser. For more information, contact the
relevant authorities.

4
-Please consider that unauthorized modifications on the device are forbidden due to
safety reasons!
-If this device will be operated in any way different to the one described in this manual,
the product may suffer damages and the guarantee becomes void.
-Furthermore, any other operation may lead to dangers like short-circuit, burns, electric
shock, etc.
Product Rear View
FUNCTION TABLE:
1 MIC Audio in
2 VOLUME Volume sensitive
3 Mode Switch Select the operating modes
4 POWER SWITCH Power switch
5 DMX IN DMX 512 signal input
6 DMX OUT DMX 512 signal output
7 START ADDRESS Setting the DMX start address
8 ILDA IN ILDA standard signal input

5
9 ILDA THRU ILDA standard signal through
10 Ground Ground conector
11 POWER SUPPLY AC 220V/50-60 Hz

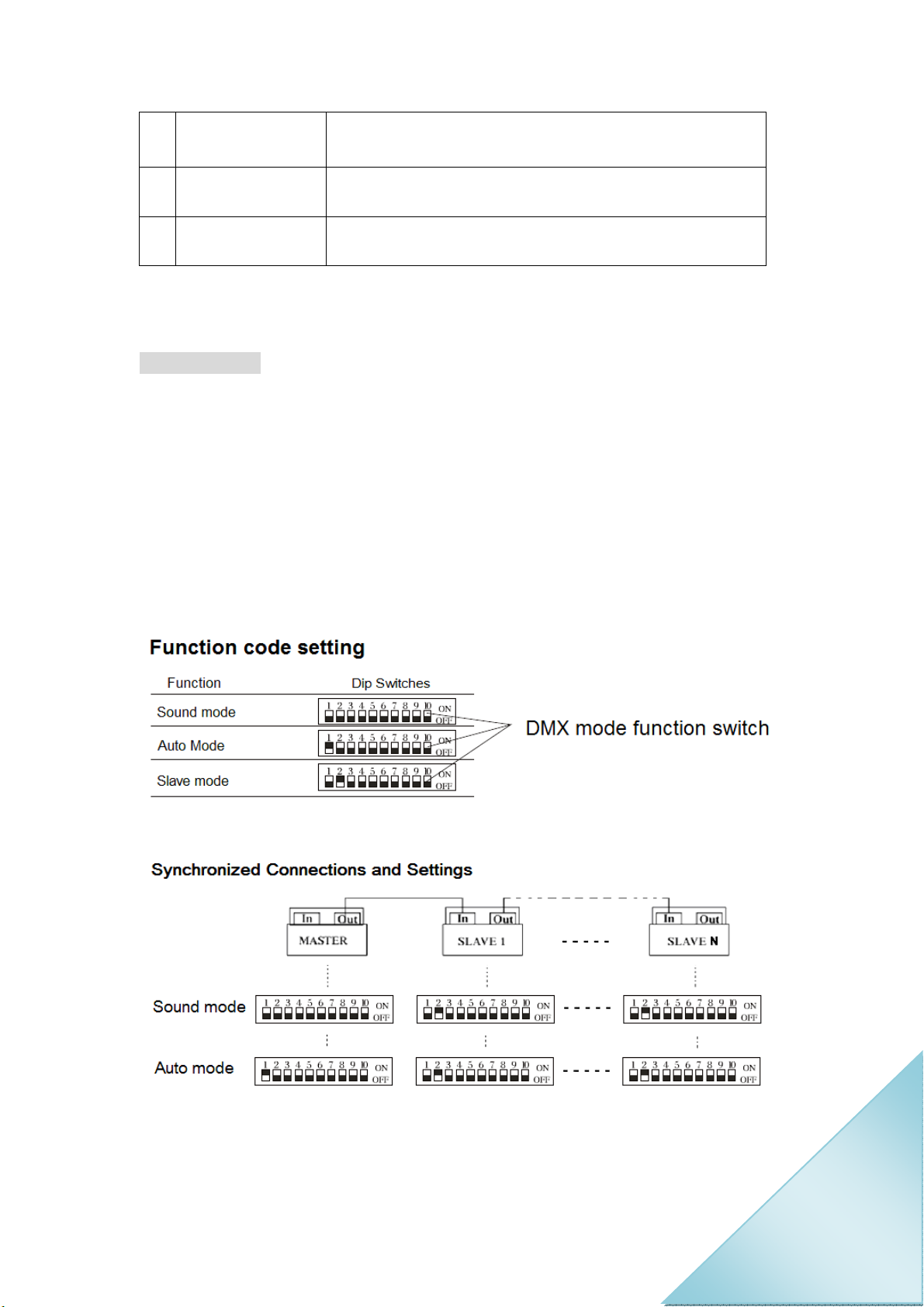

Control mode
You can choose the control mode at the dip switches:
zWhen the 10th switch is OFF, 1-9 are function codes. Here the functions as
bellows:
-If the first switch is OFF, the device is working in sound mode.
-If the first switch is ON, the device is working in automatic mode.
-For master/slave mode, put the second switch in ON position and it is the
Slave device.
zFor DMX mode, the 10th dip switch must be ON. Then, switch 1-9 can be
used for adjusting the DMX base address.

6

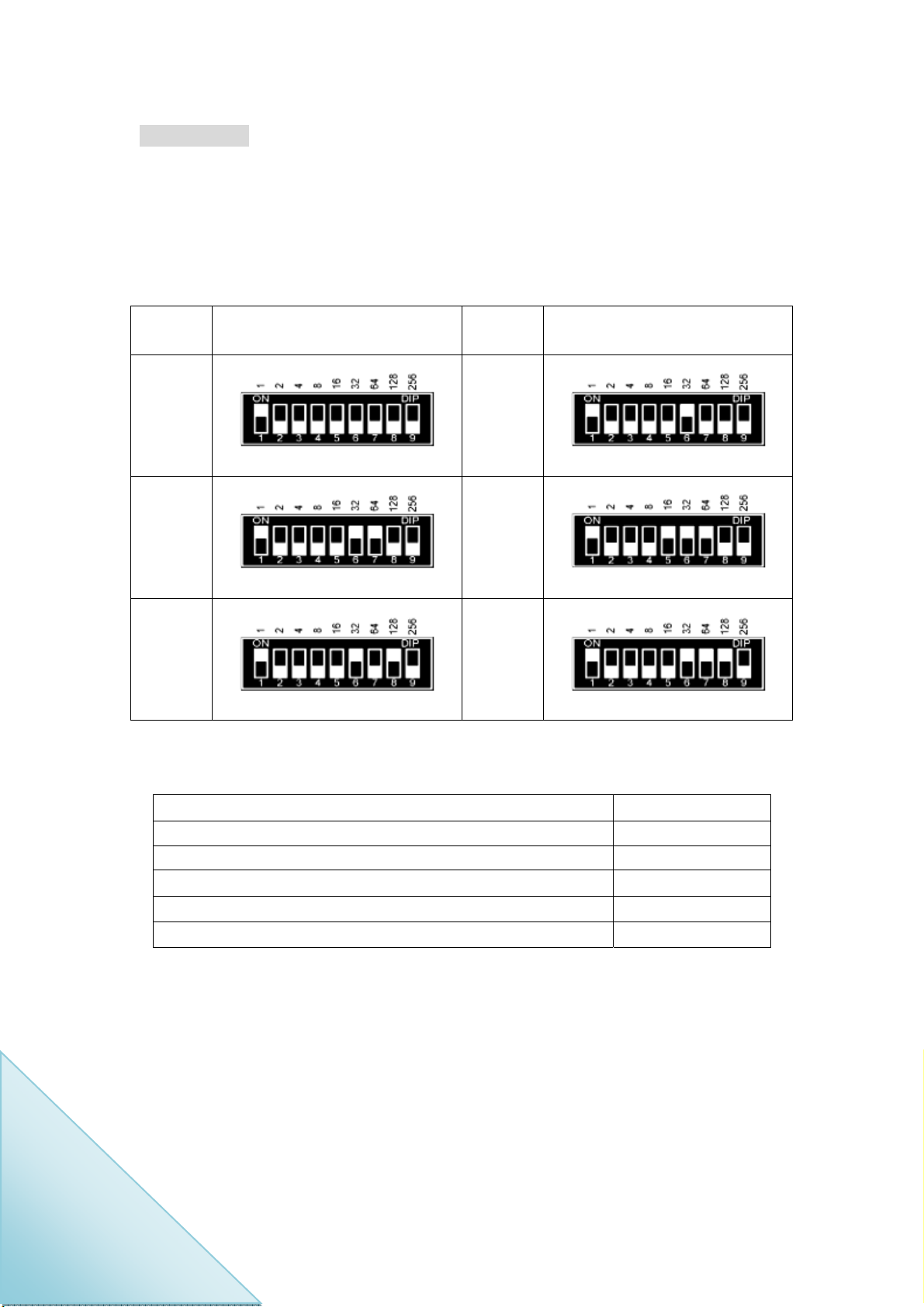

DMX control
Set the DMX base address with the binary system “0” or “1” and remind that
the 10th Dip switch is ON for DMX mode.
Examples:
DMX
address
DMX
address
1 33
65 113
161 225
DMX base adds. 1-10 setting: (ON is 1, OFF is 0)
The device has 10 operating channels. If you set the first on DMX address “1”,
the next DMX device can follow at address 20.
1 ~ 10 Function
0,0,0,0,0,0,0,0,0,0 Sound Control
1,0,0,0,0,0,0,0,0,0 Auto Mode
0,1,0,0,0,0,0,0,0,0 Auto
1,1,0,0,0,0,0,0,0,0 Number from rear
x,x,x,x,x,x,x,x,x,1 DMX 512 control

7
DMX channels:
Channel DMX512
VALUE FUNCTION
0--63 Sound control (3-10ch useless)
64--127 Auto mode (3-10ch useless)
128--191 DMX control
1.Control Mode
192--255 Auto mode
0--5 blackout
6--15 red
16--25 green
26--35 yellow
36--105 single color(auto)
106--175 tri-color(auto)
176--245 tri-color(move)
2.Blanking
& Blackout
246--255 bounded color
3.Pattern 0--255 124patterns(0-255)
0--127 manual vertical move
128--191 auto down, speed up accordingly
4.Vertical Move
192--255 auto up, speed up accordingly
0-127 manual horizontal
128--191 manual right, speed up accordingly
5.Horizontal
Move 192-255 manual left, speed up accordingly
0--127 manual vertical rotation
6.Vertical Roll
128--255 auto vertical rotation, speed up accordingly
0--127 manual horizontal rotation
7.Horizontal Roll 128--255 auto horizontal rotation
0--127 manual rotation
128--191 auto clockwise rotation, speed up accordingly
8.Rotation
192--255 auto anti-clockwise rotation, speed up
accordingly
0--85 from small to large, speed up accordingly
86--170 from large to small, speed up accordingly
9.Zoom In
& Out 171--255 large ←→ small, speed up accordingly
F
I
R
S
T
P
A
T
T
E
R
N
G
R
O
U
P
10.Point Draw 0--255 0--nil 1~255—faint ~bright
Remark: Product design & subject to change without further notice.
Please note: The artificial damage or maintains the label to tear, not in maintenance
scope!
