TECO TVF84WMBM User manual

Engineered To Perform
IMPORTANT NOTE:
Thank you for selecting a TECO quality appliance.
Read this manual carefully before installing or operating your new appliance.
Make sure to save this manual for future reference.
The design and specications are subject to change without prior
notice for product improvement. Consult with the place of purchase, sales
representative or check the TECO website for details.
84L VERTICAL FREEZER
USER’S MANUAL
Model : TVF84WMBM
To ensure proper use of the appliance and your safety, please read the
following user manual completely before operating this appliance.
UPRIGHT FREEZER
User Manual
TVF84WMBM

CONTENTS
Important Safety Instructions
Name of Parts and Usage
Packing List
Transporting the Appliance
Installation Instructions
Operating Instructions
Defrosting
Energy Saving Tips
Maintenance
Disconnection of the Appliance
Reversing the Door
Troubleshooting
Repair, Service & Warranty
Specifications
1
4
5
6
6
7
8
8
9
10
11
13
14
15

1
Important Safety Instructions
Warning:risk of fire / flammable materials.
• Thank you for purchasing our product and thank you for placing your
confidence in us.
• Read this manual carefully before use. Follow instructions and keep the
manual for future reference.
• Follow the operating instructions and safety notices in this manual.
• If any trouble arise, do not attempt to fix it yourself. Please contact TECO
service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
• This freezer is designed and approved for use with flammable R600a
refrigerant.
• The appliance is specifically constructed for domestic use only. The appliance
has not been designed or manufactured for professional use. TECO declines
all responsibility for damage deriving from improper use of the appliance. The
freezer has undergone the necessary tests on the tightness of the refrigeration
circuit and complies with the safety regulations for electrical appliances.
• All images, illustrations and photos contained in this manual are for illustration
purposes only and may differ from your appliance.
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or endanger
the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
•This appliance contains a small quantity of flammable, non-synthetic
R600a refrigerant.
•The room for installing the appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate attached
to the appliance.
•If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect
the appliance from the mains power. Thoroughly
ventilate the room in which the appliance is situated
for several minutes.
1

2
•The refrigerator is designed to operate on a single phase power supply
within a voltage range of 220~240V/50Hz.
•This product is for indoor use only.
•Do not use extension cords or ungrounded (two prong) adapters.
•Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
•If the supply cord is damaged, it must be replaced by authorised TECO
service personal, service agent or similarly qualified persons in order to
avoid a hazard.
•Do not place electrical items or cooking equipment nearby. Keep away
from substances which could cause ignition and good ventilation
shall be always maintained.
•Do not place objects on top of the appliance which are magnetic, heavy
or filled with water.
•Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
•Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or liquids
can leak at low temperature. There is a risk of explosion or fire.
•Do not splash water on the appliance. It may cause malfunction or electric
shock.
•Always switch off and unplug appliance before cleaning.
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•The refrigeration system contains refrigerant. Do not allow any sharp
objects to come in contact with the refrigerant system.
•Do not use electrical appliances inside the food storage compartments of
the appliance.
•For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance.
•This appliance is intended to be used in household and similar
applications such as:
ostaff kitchen areas in shops, offices and other working
environments;
ofarm houses and by clients in hotels, motels and other residential
type environments;
obed and breakfast type environments;
ocatering and similar non-retail applications.

3
3
Refrigerant and cyclopentane foaming material used for the
refrigerator are flammable. Therefore, when the refrigerator
is scrapped. it shall be kept away from any fire source and
be recovered by a special recovering company with
corresponding qualification other than be disposed by
combustion, so as to prevent damage to the environment or
any other harm.
When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put the
doors and shelves in a proper place, so as to prevent
trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not be
disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
•Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
•Young children should be supervised to ensure that
they do not play with the appliance.
•Packing (e.g. wraps, polystyrene etc.) can be
dangerous for children. There is a risk of suffocation.
Keep packaging materials away from children.

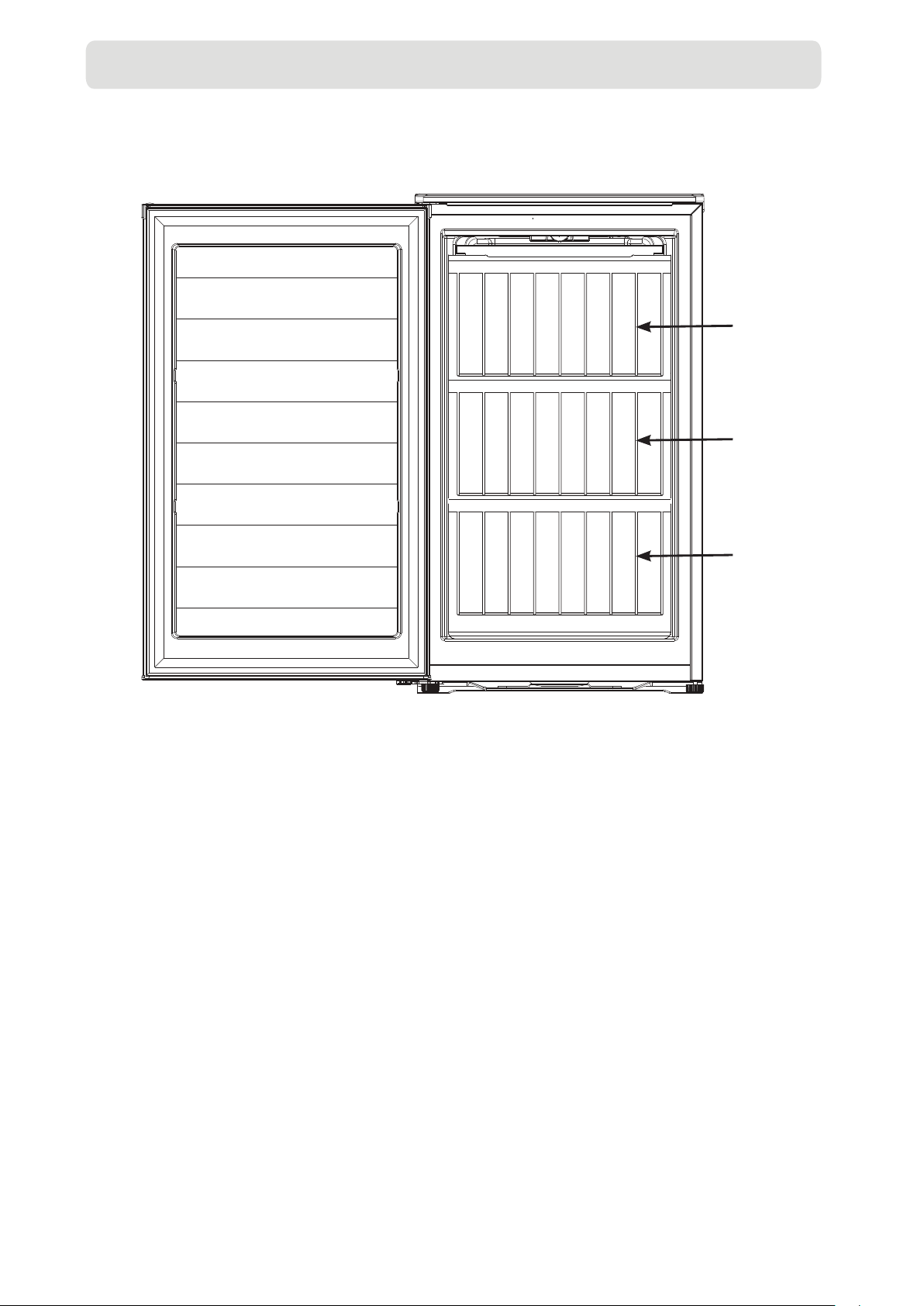

1. Storage Basket
The freezer you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however the
functions and operating methods will not change.
If you use the freezer for the rst time, remove any adhesive tapes.
Do not pull or push the drawers forcefully during use in case of damage.
1
1
1
Name of Parts and Usage
4

Check the packing list that all items have been included.
Note: Product speci cations are subject to change without prior notice.
Model TVF84WMBM
Storage Basket
User manual
3 pieces
1 copy
Part No.
(see pg.4)
1
Packing List
5

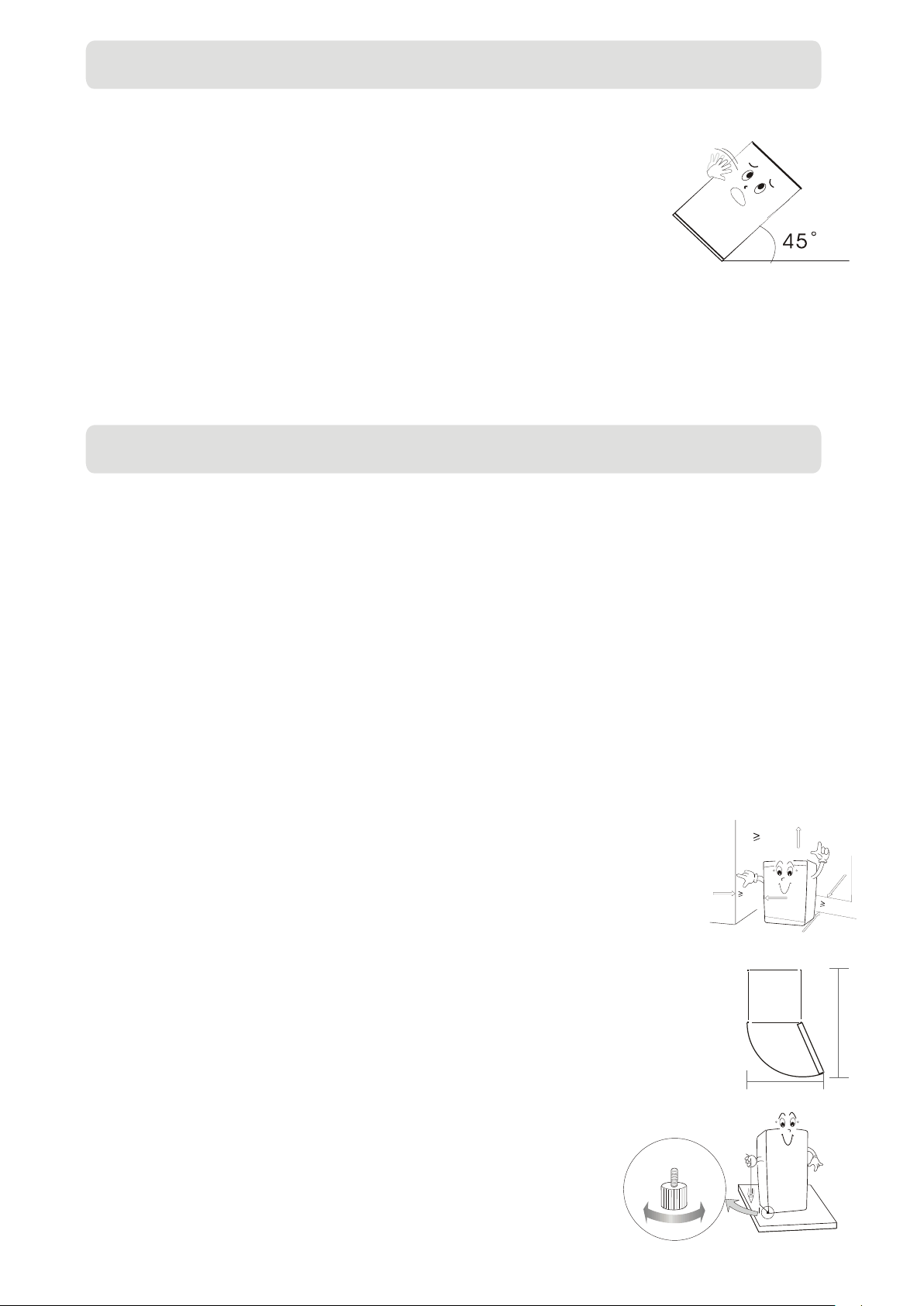

1.The appliance must be transported only in a vertical
position. The packing must be intact during the
transportation.
2. When unpacking and re-packing the appliance,
please memorise the position of each accessory of
the appliance when unpacking it. When re-packing the appliance for
transportation, ensure all accessories are secured before transportation.
3. Do not lift or pull the door during transportation
1. When moving the appliance, do not tilt >45 degrees (the angle of the
vertical direction). Please avoid strong vibration and impacts that could
cause damage to the appliance.
2. The freezer should be located on a rm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not rm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
3. Choose a location which is not exposed to sunlight, high
temperature or humid, as humidity may cause staining.
4. It is recommended a clearance of at least 50mm away
from objects and walls on both sides and back. Ensure
the clearance above the appliance is not less than
200mm and at least 780mm clearance for the door to
swing open.
5. If the appliance is unstable, rotating either of the
front two legs in a clockwise direction will raise the
appliance. Turn them anticlockwise to lower.
6. When adjusting the front legs, ensure the
appliance slopes backwards slightly for keeping the door
closed.
7. Remove all internal packaging before operating.
200mm
50mm
50mm
Transporting the Appliance
Installation Instructions
6

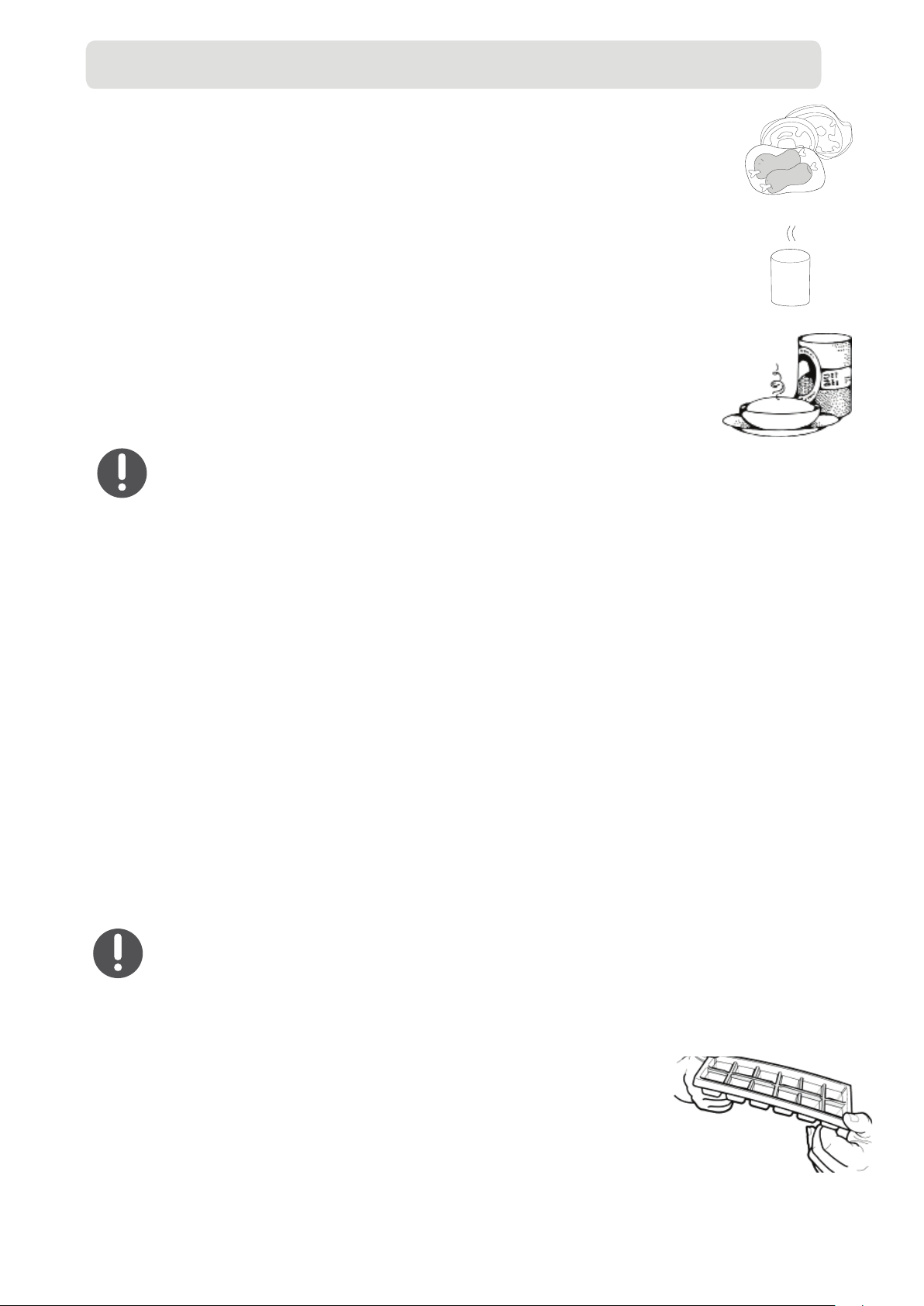

PLACEMENT OF FOOD
1. There should always be some space between
items inside for air circulation.
2. Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
3. Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
4. Reduce opening the door frequently.
This will increase the appliance efciently and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
TEMPERATURE ADJUSTMENT
The temperature of the freezer can be controlled manually by adjusting
the thermostat dial located at the rear, near the compressor. The number
shown on the dial does not directly represent the temperature. Instead,
the larger the number is, the lower the interior temperature will be.
Turn the dial to position 3-4 (approx. -15
o
C) for normal use, turn it to
position 5-6 if a lower interior temperature (approx. -20
o
C) is required;
alternatively, to increase the interior temperature select position 2-1
(approx. -12
o
C).
The rst time you turn the unit on, set the temperature control to the
maximum position (6). After 24 to 48 hours, adjust the temperature control
to the setting that best suites your needs.
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
ICE MAKING
To make ice cubes, ll an ice tray with drinking water
and place it in the freezer. To remove ice cubes
easily, run water on the tray before gently twisting
and inverting the tray.
Operating Instructions
7

Heavy frost will effect the refrigerating process or internal temperature of
the appliance and increase the power consumption. Thus, defrosting is
required if the frost is >5mm thick. Defrosting is a manual process.
Please follow these steps:
1. Switch off and disconnect the appliance.
2. Remove all food from the ice box and freezer compartments.
3. Remove the freezer drawer.
4. Open the door and wait for the ice to defrost.
5. When de-icing, a scraper or plastic utensil may be used. Never use
metal instruments or electrical appliances to de-ice the ice box.
6. To speed up the defrosting process, you can place a bowl of hot water
in the compartment and close the door.
7. When defrosting is complete, clean the appliance.
8. Replace the shelf and food before restoring power.
Do not use an electric heater or hair dryer to increase
the defrost process. It may destroy the cooling system.
1. Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
2. Only open the door when required. Frequently opening the door will
increase power consumption.
3. Maintain good air circulation within the freezer.
7
Defrosting
Energy Saving Tips
8

The appliance should be maintained and cleaned frequently.
For your safety, pull the plug out of the socket before cleaning.
1.Interior and exterior maintenance
Clean the interior of the appliance with clean water and wipe it dry
with a piece of dry cloth.
Cleansers such as soap powder, abrasive cleaning powder, alkali
cleansers, chemical cloth, thinners, alcohol, acid petroleum products
and hot water should not be used to clean the freezer as they
may damage the painted cover and plastics.
2. Smearing can age the interior plastic components, so remove it as
soon as possible.
3. Wipe the door gasket clean, it is easy to damage the door gaskets if
polluted by stains, e.g. oil, sauce, etc.
4. Please check the points below after maintenance:
(1) Is there any damage or loss of the power lead?
(2) Can the power plug be inserted into the power socket correctly?
(3) Is the power plug and/or lead heating up?
Please remove the gasket from the door before disposing.
The disposed apparatus should be handled by professionals,
as it may be harmful to the environment. If disposal is
necessary, please contact your local authorities for correct
method of disposal. Dispose of all packaging in a responsible
manner in accordance with local council regulations.
8
Maintenance
9

If a power failure occurs, even in summer, the freezer could store
food normally for some time.
1. Power failure
During a power failure, do not put additional food in the appliance
and reduce opening the door frequently.
Place several ice cubes into each freezer drawer if power failure is
anticipated beforehand, and place it in the top of the freezer.
2. Power failure during vacation
Before departure of short vacation, remove any items that could
spoil if a power failure occurs. Ensure the door is closed rmly.
If going on a long vacation, remove all items, defrost the appliance,
clean and wipe dry the internal of the appliance, prior to
disconnecting the power and leave the door open.
3. Storage of appliance
If the freezer will be stopped for a long period of time (storage),
remove all items, defrost the appliance, clean and wipe dry the
internal of the appliance, unplug the appliance from the power outlet.
The door should be kept open in order to prevent unpleasant
odours.
After unplugging the appliance from the power outlet,
please leave at least 5 minutes before reconnection.
9
Disconnection of the Appliance
10

Follow these steps to reverse the door from the supplied position.
Step 1. Remove the cover
from the door hinge and
remove the two screws
holding the hinge bracket.
Step 3. Carefully tilt the freezer back so the under side can be accessed.
Remove the adjustable foot and the three (3) bolts. Remove the hinge.
16.5mm
±2mm
19mm
Step 2. Lift the door from
the hinge. Place the door in
a safe location to avoid
scratches or damage.
Step 4. Remove the frame screw from the upper
right corner (refer to Step 7) and unscrew the
adjustable leg. Ensure the two bolt holes are
accessible.
NOTE: The adjustable feet attached to the hinge is
the same length on both sides. It is not necessary
to swap them over when reversing the door.
Step 5. Fasten the bracket to the right side of the
freezer. Do not tighten completely to enable slight
adjustments to the door once in place. Fasten the
adjustable foot.
Step 1a Step 1b
Step 3
Step 4 Step 5
Reversing the Door
11

Step 9. Place the hinge on the right side and align
the holes before screwing in bolts. Do not tighten
bolts completely until after aligning the door and
ensuring proper seal between the door and the
freezer. Replace the hinge cover.
Step 10. Once the door is in place and all bolts (top hinge bracket and bottom
hinge bracket) are securely tightened, insert caps on left side of the freezer and
door.
Step 8. Remove the caps
covering the bolt holes
and door from the right top
side. Place the door onto
the bottom hinge pin.
Step 7. Fasten the adjustable leg
and frame screw into the left side
of the freezer.
Step 6. The hinge pin must be removed
and relocated onto the opposite side
of the bracket. Remove the nut and
washers, relocate the pin, then fasten.
The hinge pin should now be pointing
upward for the door to t onto.
Step 6 Step 7
Step 8 Step 9a Step 9b
Step 10
12

Troubleshooting
)DLOHGRSHUDWLRQ
2GRU
2GRURXVIRRGVVKDOOEHWLJKWO\ZUDSSHG
&KHFNZKHWKHUWKHUHLVDQ\URWWHQIRRG
&OHDQWKHLQVLGHRIWKHUHIULJHUDWRU
Check whether the appliance is connected to power or
whether the plug is in well contact.
Check whether the voltage is too low.
Check whether there is a power failure or partial circuits
have tripped.
Long operation of the freezer is normal in summer when
the ambient temperature is high.
It is not recommended having too much food in the
freezer at the same time.
Food shall get cool before being put into the freezer.
The doors are opened too frequently.
Long-time
operation of the
compressor
The door is stuck by food packages.
The freezer is tilted.
Door cannot be
properly closed
Loud noise Check whether the floor is level and whether the freezer
is placed stably.
Hot housing Heat dissipation of the built-in condenser via the housing,
which is normal. It is recommended to provide sound
ventilation to facilitate heat dissipation.
Surface
condensation
Condensation on the exterior surface and door seals of
the freezer is normal when the ambient humidity is too
high. Just wipe the condensate with a clean towel.
Abnormal noise
The compressor may have buzz noises during operation.
This is normal.
The flow of refrigerant through the pipeline coil could
cause gurgling, similar to water boiling, which is normal.
Heavy frost Make sure the door is fully closed.
Too cold Check the position of the temperature dial located at the
rear.
The freezer
does not work
efficiently as
expected
It may be caused by heavy frost build up in the freezer
caused by a warm temperature setting, frequent
opening of the door, or low voltage.
13

5HSDLUV6HUYLFH:DUUDQW\
,WLVKD]DUGRXVIRUDQ\RQHLQVWDOOLQJUHPRYLQJDOWHULQJUHSDLULQJVHUYLFLQJ
WHVWLQJRUFHUWLI\LQJWKHJDVV\VWHPRIDJDVGHYLFHLHFKDUJLQJGLVFKDUJLQJRU
EUHDNLQJLQWRWKHUHIULJHUDWLRQV\VWHPWKDWXVHVK\GURFDUERQUHIULJHUDQWV
2QO\DQ$XWKRULVHG6HUYLFH3HUVRQFDQFDUU\RXWVHUYLFLQJRUUHSDLUVWRWKLV
DSSOLDQFH,Q4XHHQVODQGWKHDXWKRULVHGSHUVRQPXVWKROGD*DV:RUN
$XWKRULVDWLRQIRUK\GURFDUERQUHIULJHUDQWVEHIRUHFDUU\LQJRXWVHUYLFLQJRU
UHSDLUVZKLFKLQYROYHWKHUHPRYDORIFRYHUV
Individuals will need to hold appropriate refrigeration/air conditioning
competencies and also training in hydrocarbon refrigerants. This type of
authorisation is provided to individuals only.
,)6(59,&(,65(48,5('
,I\RXKDYHDSUREOHPDQGWKHSUREOHPSHUVLVWVDIWHU\RXKDYHPDGHWKH
FKHFNVPHQWLRQHGLQWKLVPDQXDOFRQWDFW
7(&2$XVWUDOLD¶V6HUYLFHRQDPSP0RQa)UL$(67
)RUZDUUDQW\GHWDLOVSOHDVHYLVLW
ZZZWHFRFRPDX
6HUYLFH(PDLOKDGVHUYLFH#WHFRFRPDX
6SDUH3DUWVKDGSDUWV#WHFRFRPDX
14

Specifications
Model TVF84WMBM
Climate class T
Classification of
installation and use
Class 1
Indoor use only
Rated Total Gross
Volume (L) 84
Frequency (Hz) 50
Noise Level (dB) 48
Refrigerant type R600A
Dimensions
(mm)
IP rating
Height
Width
Depth
860
501
540
IPX0
Net Weight (Kg) 26
Voltage (V) 220~240




 

15

www.teco.com.au
LCB-v3E&OE
