Teknik 5424256 User manual

The original desktop.
Essentials Computer Desk
Model 5424256
Teknik
www.teknikoffice.co.uk

Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
Table of Contents Assembly Tools Required
3
4
5-28
29-32
33-36
37-38
39
Page 2

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
V RIGHT END (1)
W LEFT END (1)
X UPRIGHT (1)
Y TOP (1)
Z MODESTY PANEL (1)
AA BACK (1)
BB SHELF (1)
CC ADJUSTABLE SHELF (1)
DD BOTTOM (1)
EE SKIRT (1)
FF DOOR (1)
GG KEYBOARD SIDE (2)
HH KEYBOARD BACK (1)
JJ KEYBOARD SHELF (1)
KK KEYBOARD FRONT (1)
LL LEFT DRAWER SIDE (1)
MM DRAWER BACK (1)
NN RIGHT DRAWER SIDE (1)
OO DRAWER BOTTOM (1)
PP DRAWER FRONT (1)
V
W
X
Y
Z
AA
BB
CC
DD
EE
FF
GG
GG
HH
JJ KK LL
MM NN
OO
PP
Page 3

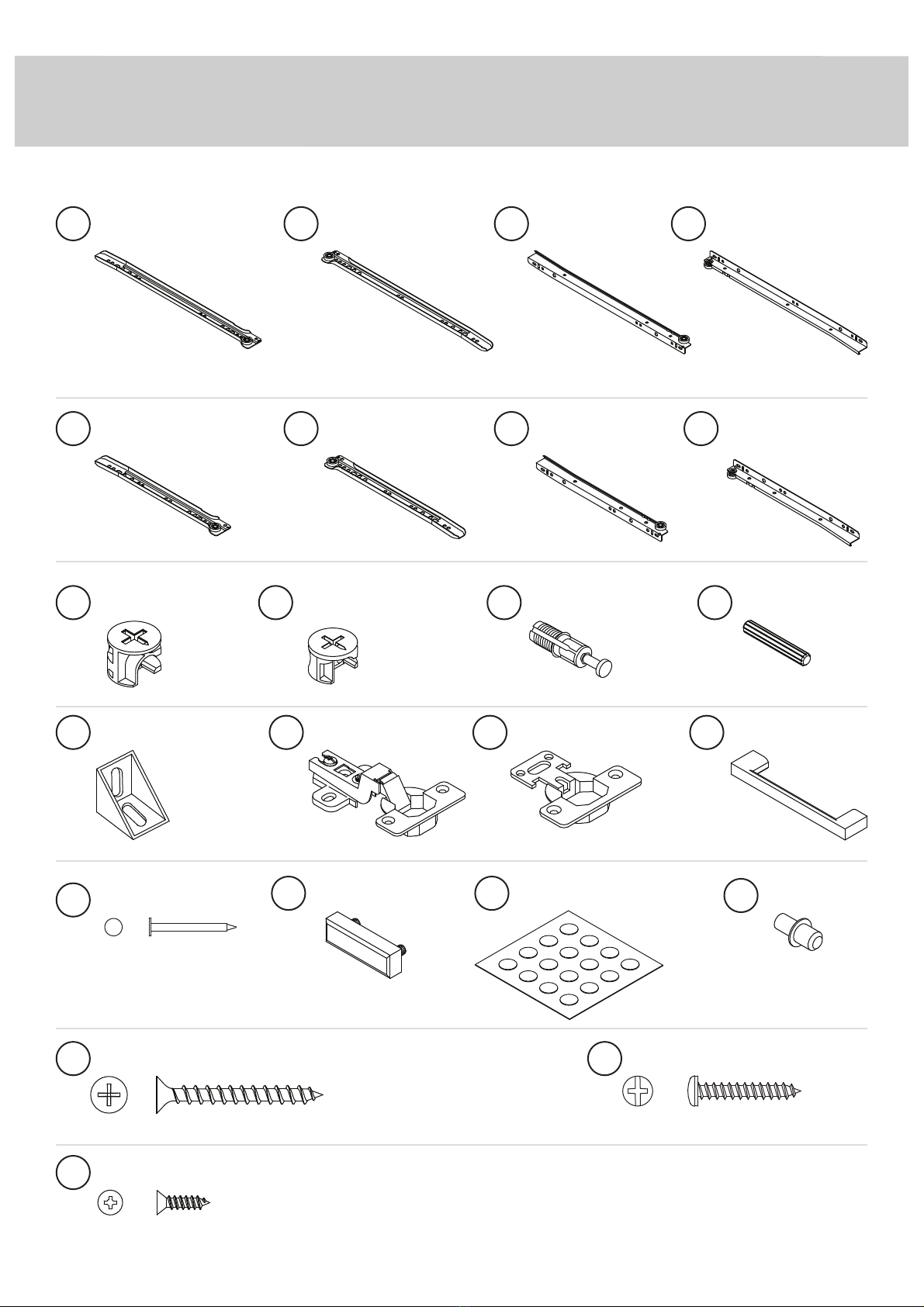

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
GOLD 1-1/2" FLAT HEAD SCREW - 21
44
HIDDEN CAM - 7
32 CAM DOWEL - 9 34 WOOD DOWEL - 6 35
SMALL HIDDEN
CAM - 2
33
LONG DRAWER
LEFT - 1
27
LONG DRAWER
RIGHT - 1
26
SHORT DRAWER
LEFT - 1
31
SHORT DRAWER
RIGHT - 1
30
SHORT CABINET
RIGHT - 1
28
ANGLE BRACKET - 6
36 KEYBOARD HINGE- 2
3837 HINGE - 2 PULL - 3
39
METAL PIN - 4
43
DOOR STOP- 1
41
NAIL - 18
40 APPLIQUE CARD - 1
42
GOLD 1/2" FLAT HEAD SCREW - 54
46
SILVER 15/16" PAN HEAD SCREW - 6
45
LONG CABINET
RIGHT - 1
24 LONG CABINET
LEFT - 1
25
SHORT CABINET
LEFT - 1
29
Page 4

HOW TO USE A HIDDEN CAM & CAM DOWEL
Hidden CamHidden Cam
Arrow
Push a HIDDEN CAM into
the part. The arrow in the
HIDDEN CAM must point
toward the hole in the
edge of the board.
Hole
Cam Dowel
Gently tap a CAM DOWEL into the part.
Insert the CAM DOWEL into the HIDDEN CAM.
Tighten the HIDDEN CAM.
1
2
Hardware Usage Guide
Page 5

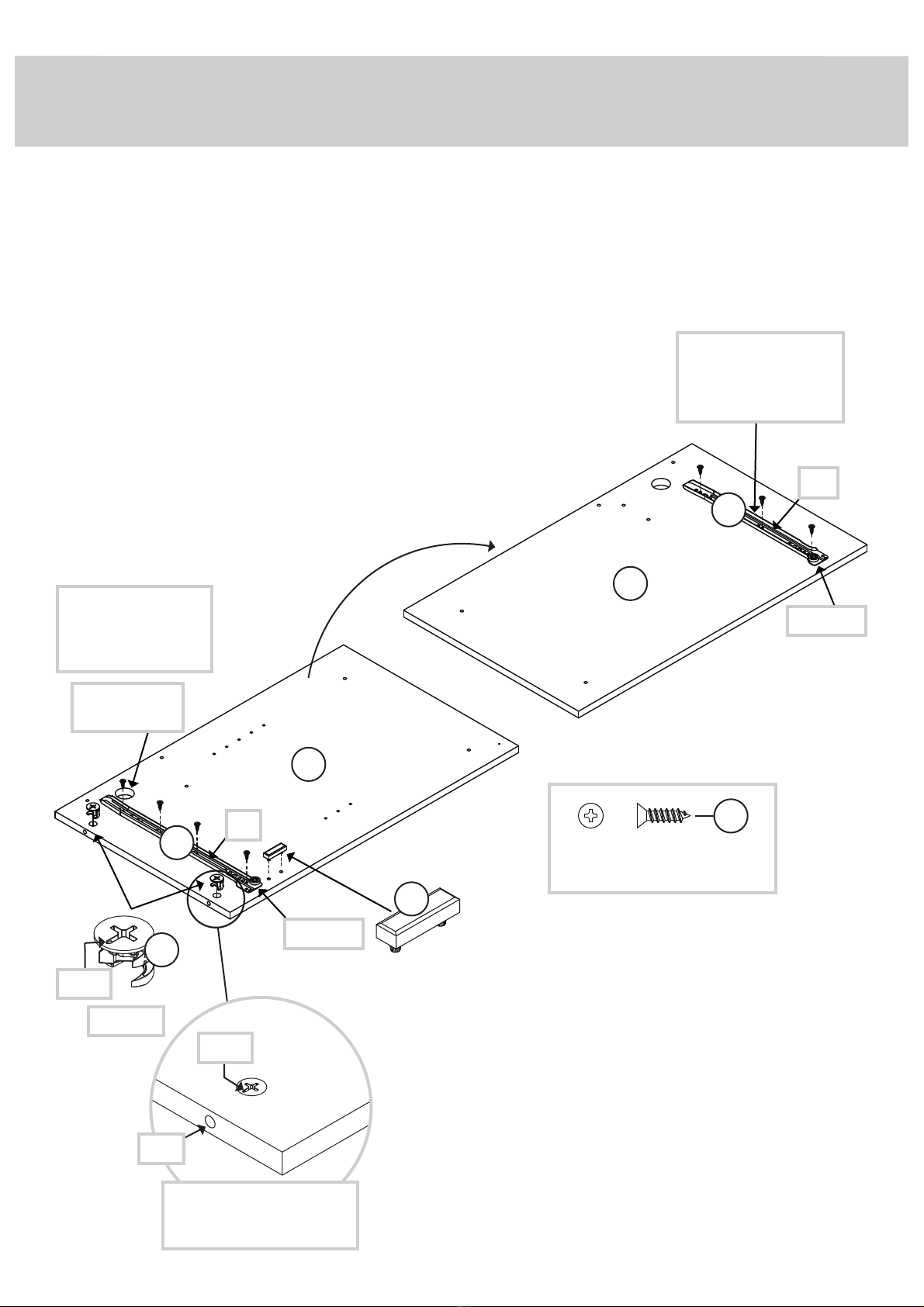

å Push two HIDDEN CAMS (32) into the UPRIGHT (X).
å Push the DOOR STOP (41) into the holes in the UPRIGHT (X).
å Fasten the LONG CABINET LEFT (25) to the UPRIGHT (X). Use four GOLD 1/2" FLAT HEAD SCREWS (46).
å Flip the UPRIGHT (X) over. Fasten the SHORT CABINET RIGHT (28) to the UPRIGHT (X).
Use three GOLD 1/2" FLAT
HEAD SCREWS (46).
Step 1
Arrow
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
GOLD 1/2" FLAT HEAD SCREW
(7 used in this step)
46
Use the 1st, 5th, 7th and
11th hole from the roller
end of the LONG
CABINET LEFT (25).
Use the 1st, 5th, and 11th
hole from the roller end
of the SHORT CABINET
RIGHT (28).
Roller end
Roller end
CL
CR
F
L
I
P
O
V
E
R
41
28
25
X
X
Arrow
32
(2 used)
The large hole
must be here.
Page 6

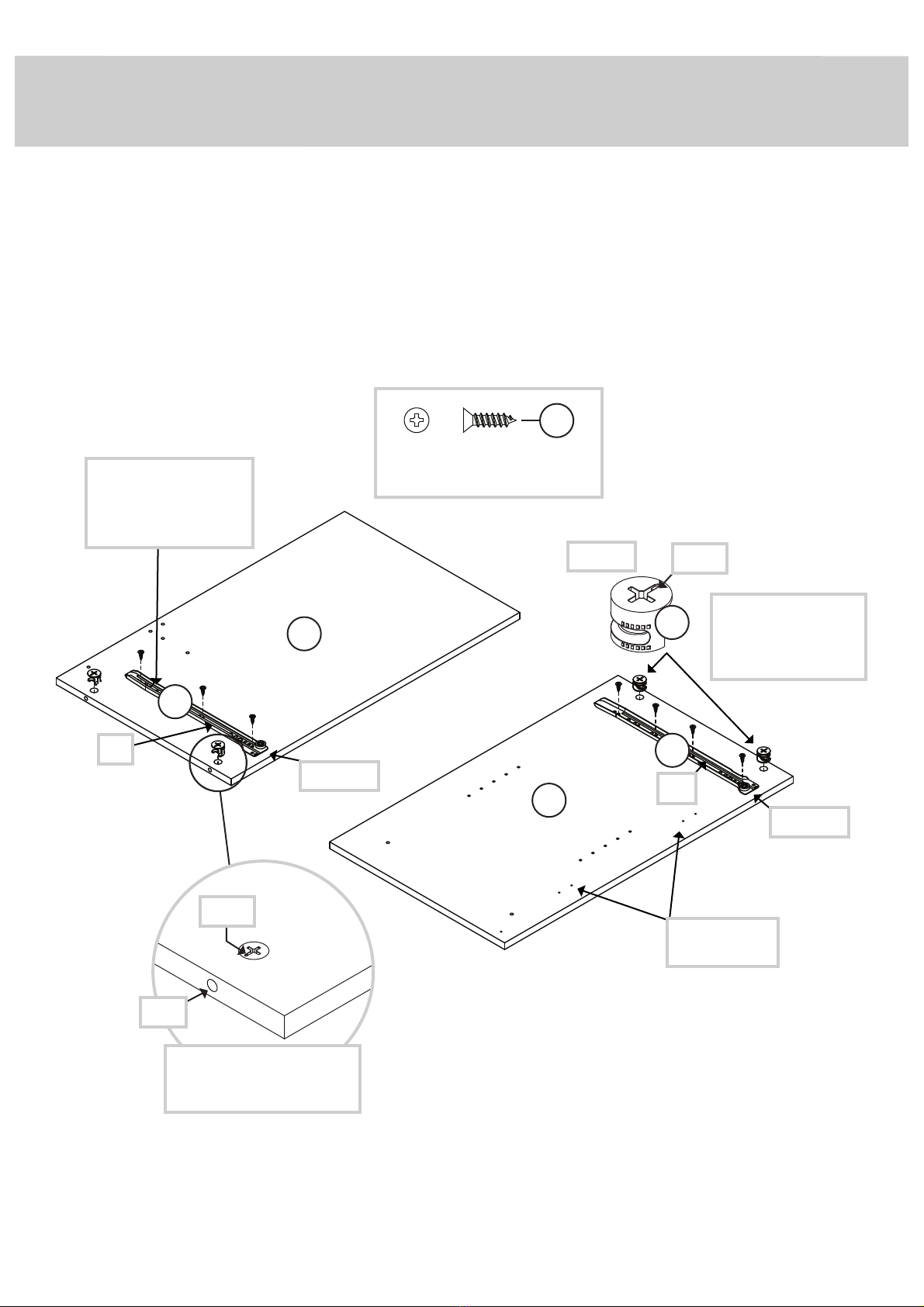

å Push four HIDDEN CAMS (32) into the ENDS (V and W).
å Fasten the LONG CABINET RIGHT (24) to the RIGHT END (V). Use four GOLD 1/2" FLAT HEAD SCREWS (46).
å Fasten the SHORT CABINET LEFT (29) to the LEFT END (W).
Use three GOLD 1/2" FLAT HEAD SCREWS (46).
Step 2
32
Arrow
Arrow
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
(4 used)
V
W
24
29
GOLD 1/2" FLAT HEAD SCREW
(7 used in this step)
46
These holes
must be here.
Roller end
Use the 1st, 5th, 7th and
11th hole from the roller
end of the LONG
CABINET RIGHT (24).
Use the 1st, 5th, and 11th
hole from the roller end
of the SHORT CABINET
LEFT (29).
Roller end
CL
CR
Page 7

Step 3
å Fasten six ANGLE BRACKETS (36) to the SHELF (BB),
BOTTOM (DD), and SKIRT (EE). Use six GOLD 1/2" FLAT
HEAD SCREWS (46).
å NOTE: Be sure the edges of the ANGLE BRACKETS are
even with the edges of the SHELF, BOTTOM and SKIRT.
å Insert four WOOD DOWELS (35) into the holes in the edges
of the KEYBOARD BACK (HH) and SHELF (BB) as shown.
EE
DD
BB
HH
35
35 35
35
36
36
36
36
Unfinished surface
Unfinished surface
Unfinished surface
Page 8
Some assembly
(and snacks) required.
GOLD 1/2" FLAT HEAD SCREW
(6 used for the ANGLE BRACKETS)
46

å Push the HIDDEN CAM (32) into the MODESTY PANEL (Z).
å Fasten the UPRIGHT (X) and LEFT END (W) to SHELF (BB)
and MODESTY PANEL (Z). Use seven GOLD 1-1/2" FLAT
HEAD SCREWS (44).
å NOTE: Be sure the WOOD DOWELS in the SHELF insert into
the UPRIGHT and LEFT END.
å Fasten the SHELF (BB) to the MODESTY PANEL (Z). Use two
GOLD 1/2" FLAT HEAD SCREWS (46) through the ANGLE
BRACKETS and into the MODESTY PANEL.
Step 4
32
Arrow
Z
X
W
Z
BB
GOLD 1/2" FLAT HEAD SCREW
(2 used in this step)
46
GOLD 1-1/2" FLAT HEAD SCREW
(7 used in this step)
44
Page 9
Roller end

å Fasten the BOTTOM (DD) to the UPRIGHT (X). Use two
GOLD 1-1/2" FLAT HEAD SCREWS (44).
å Fasten the RIGHT END (V) to the BOTTOM (DD). Use two
GOLD 1-1/2" FLAT HEAD SCREWS (44).
Step 5
GOLD 1-1/2" FLAT HEAD SCREW
(4 used in this step)
44
V
X
DD
Unfinished surface
The ANGLE
BRACKETS
should be here.
Page 10

Step 6
å With a hammer, gently tap nine CAM DOWELS (34) into
the TOP (Y) and DRAWER FRONT (PP).
Y
PP
34
Page 11
(9 used)

Unfinished surface
Step 7

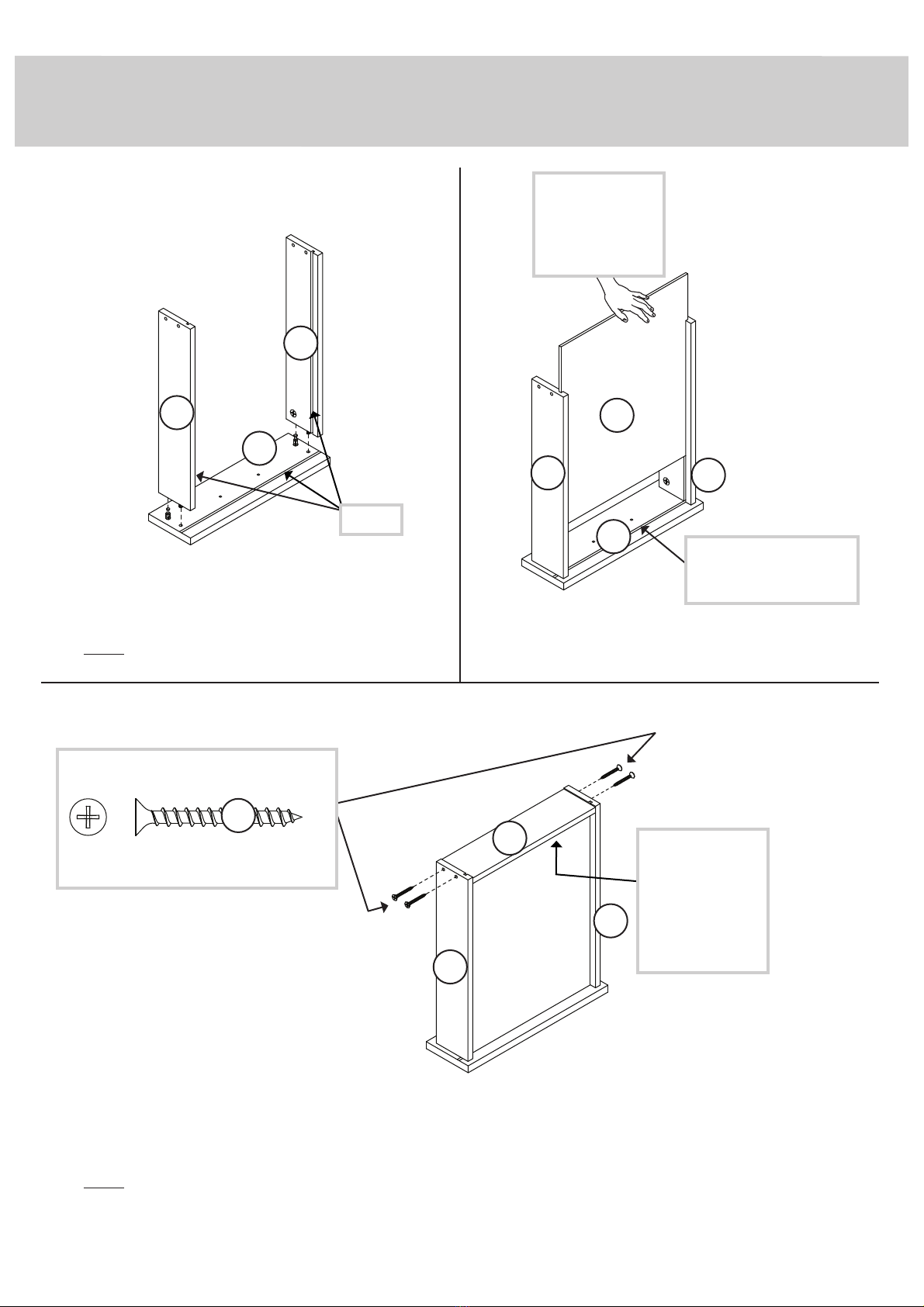

å Fasten the TOP (Y) to the ENDS (V and W), UPRIGHT (X), and
MODESTY PANEL (Z). Tighten seven HIDDEN CAMS.
V
X
Z
Y
W
Page 12

6"
1/4"
Step 8
å Carefully turn your unit over onto its front edges.
å Make equal margins along all four edges of the BACK (AA).
å Fasten the BACK (AA) to your unit using the NAILS (40).
The NAILS should be 6" apart and 1/4" in from the edges.
NAIL
(16 used in this step)
40
AA
Page 13
Side Step: Make
nachos. (Optional, but
recommended.)

Step 9
V
X
GOLD 1/2" FLAT HEAD SCREW
(4 used in this step)
46
EE
å Fasten the SKIRT (EE) to the RIGHT END (V) and UPRIGHT (X).
Use four GOLD 1/2" FLAT HEAD SCREWS (46).
Page 14

å Fasten the KEYBOARD SIDES (GG) to the
KEYBOARD BACK (HH). Use two GOLD 1-1/2" FLAT
HEAD SCREWS (44).
Step 10
Finished surface
Wood dowels
Edge with holes
Edge with holes
GOLD 1-1/2" FLAT HEAD SCREW
(2 used in this step)
44
GOLD 1-1/2" FLAT HEAD SCREW
44
GG
HH
GG
Page 15

å Fasten the KEYBOARD HINGE (38) to the KEYBOARD
SHELF (JJ). Use four GOLD 1/2" FLAT HEAD SCREWS (46).
å Flip the KEYBOARD SHELF (JJ) over. Fasten the
KEYBOARD SHELF (JJ) to the KEYBOARD SIDES (GG). Use
four GOLD 1-1/2" FLAT HEAD SCREWS (44).
å NOTE: Be sure the WOOD DOWELS in the KEYBOARD
BACK insert into the holes of the KEYBOARD SHELF.
Step 11
GOLD 1/2" FLAT HEAD SCREW
(4 used in this step)
46
JJ
JJ
GG
GG
GOLD 1-1/2" FLAT HEAD SCREW
(4 used in this step)
44
The HINGES
should be here.
Page 16
38
38

å Fasten the SHORT DRAWER RIGHT (30) and SHORT
DRAWER LEFT (31) to the KEYBOARD SHELF (JJ). Use six
GOLD 1/2" FLAT HEAD SCREWS (46).
Step 12
JJ
Roller end
Roller end
GOLD 1/2" FLAT HEAD SCREW
(6 used for SHORT DRAWER SLIDES)
46
30
31
Page 17

å Flip the KEYBOARD SHELF (JJ) over. Fasten the
KEYBOARD FRONT (KK) to the HINGES on the KEYBOARD
SHELF (JJ). Use four GOLD 1/2" FLAT HEAD SCREWS (46).
Step 13
KK
JJ
GOLD 1/2" FLAT HEAD SCREW
(4 used in this step)
46
Page 18

å Push two SMALL HIDDEN CAMS (33) into the DRAWER
SIDES (LL and NN).
å Insert two WOOD DOWELS (35) into the short edges of
the DRAWER SIDES (LL and NN).
Step 14
NN
LL
35
35
Arrow
33
Arrow
33
Page 19

Step 15
å Fasten the DRAWER BACK (MM) to the DRAWER SIDES (LL and NN). Use four GOLD 1-1/2" FLAT HEAD SCREWS (44).
å NOTE: Be sure the DRAWER BOTTOM (OO) inserts into the groove of the DRAWER BACK (MM).
12
3
å Fasten the DRAWER SIDES (LL and NN) to the
DRAWER FRONT (PP). Tighten two HIDDEN CAMS.
å NOTE: Be sure the WOOD DOWELS in to the DRAWER
SIDES insert into the DRAWER FRONT.
å Slide the DRAWER BOTTOM (OO) into the grooves in the
DRAWER SIDES (LL and NN) and DRAWER FRONT (PP).
NN
NN
NN
PP
PP
LL
LL
LL
OO
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BACK groove.
Groove
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
With the palm of
your hand, tap
the DRAWER
BOTTOM down
into the groove.
Start each screw a few turns before
completely tightening any of them.
GOLD 1-1/2" FLAT HEAD SCREW
(4 used in this step)
44
MM
Page 20
