Teledyne DALSA Piranha HS-40-04k40 User manual

Piranha HS
Camera User’s Manual
HS-40-04k40
HS-80-04k40-00-R
HS-80-08k40-xx-R
HS-80-08k80-00-R
HS-82-04k80-00-R
08 March 2013
Document number
03-032-20013-04

Piranha HS-xx RoHS User Manual
03-032-20013-04 Teledyne DALSA
2
© 2013 Teledyne DALSA. All information provided in this manual is believed to be accurate and reliable.
No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make
changes to this information without notice. Reproduction of this manual in whole or in part, by any
means, is prohibited without prior permission having been obtained from Teledyne DALSA.
About Teledyne Technologies and Teledyne DALSA, Inc.
Teledyne Technologies is a leading provider of sophisticated electronic subsystems, instrumentation and
communication products, engineered systems, aerospace engines, and energy and power generation
system s. Teled yne Technologies’ operations are prim arily located in the United States, the United
Kingd om and Mexico. For more information, visit Teled yne Technologies’ website at w w w .teled y ne.com.
Teledyne DALSA, a Teledyne Technologies company, is an international leader in high performance
digital imaging and semiconductors with approximately 1,000 employees worldwide, headquartered in
Waterloo, Ontario, Canada. Established in 1980, the company designs, develops, manufactures and
markets digital imaging products and solutions, in addition to providing MEMS products and services.
For more information, visit Teled yne DALSA’s website at www.teledynedalsa.com.
Support
For further inform ation not includ ed in this m anual, or for information on Teledyne DALSA’s extensive
line of image sensing products, please contact:
North America
605 McMurray Rd
Waterloo, ON N2V 2E9
Canada
Tel: [phone]
Fax: [phone]
www.teledynedalsa.com
[e-mail]
[e-mail]
Europe
Teledyne DALSA GmbH
Felix-Wankel-Strasse 1
D-82152 Krailling (Munich)
Germany
Tel: +49 - 89 - 89545730
Fax: +49 - 89 –895457346
www.teledynedalsa.com
[e-mail]
[e-mail]
Asia Pacific
Ikebukuro East 13F
3-4-3 Higashi-Ikebukuro
Toshima-ku, Tokyo 170-0013
Japan
Tel: [phone]
Fax: [phone]
www.teledynedalsa.com
[e-mail]
[e-mail]

Piranha HS-xx RoHS User Manual
Teledyne DALSA 03-032-20013-04
3
Contents
Introduction to the Piranha HS-xx Camera______________________________________ 5
1.1 Camera Highlights.......................................................................................................................................................5
1.2 Camera Performance Specifications.............................................................................................................................7

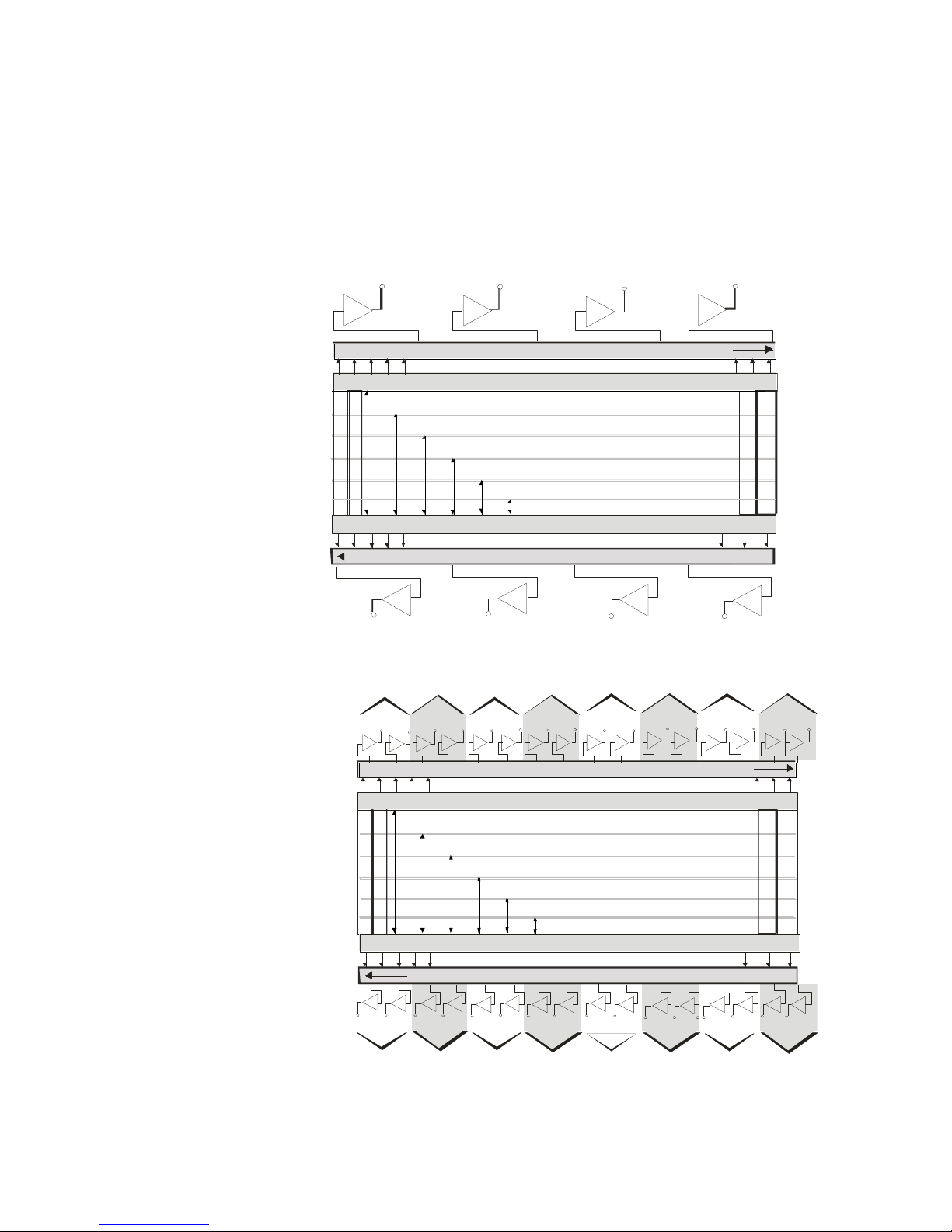

1.3 Image Sensor...............................................................................................................................................................14
1.4 Responsivity.................................................................................................................................................................15
Camera Hardware Interface________________________________________________ 16
2.1 Installation Overview...................................................................................................................................................16
2.2 Input/Output Connectors and LED ...............................................................................................................................16
2.2.1 LED Status Indicator...............................................................................................................................18
2.2.2 Power Connector....................................................................................................................................18
2.2.3 Camera Link Data Connector.................................................................................................................19
2.3 Camera Link Video Timing..........................................................................................................................................21
Optical and Mechanical Considerations________________________________________ 24
3.1 Mechanical Interface ....................................................................................................................................................24
3.2 Lens Mounts.................................................................................................................................................................25
3.3 Optical Interface...........................................................................................................................................................26
Software Interface: How to Control the Camera __________________________________ 28
4.1 First Power Up Camera Settings..................................................................................................................................32
4.2 Command Categories...................................................................................................................................................33
4.3 Sensor Output Format .................................................................................................................................................34
4.3.1 Selecting TDI or Area Mode Operation..................................................................................................34
4.2 Selecting the Number of CCD Integration Stages......................................................................................35
4.3.3 Setting the Camera’s CCD Shift Direction ..............................................................................................36
4.3.4 Increasing Sensitivity with Binning........................................................................................................37
4.3.5 Exposure Mode and Line/Frame Rate....................................................................................................39
4.4 Camera Output Format................................................................................................................................................42
4.4.1 How to Configure Camera Output..........................................................................................................42
4.4.2 Setting the Camera Link Mode...............................................................................................................47
4.4.3 Setting the Camera Throughput.............................................................................................................48
4.4.4 Setting the Pixel Readout Direction.......................................................................................................48
4.4.5 Setting a Pretrigger ...............................................................................................................................50
4.5 Data Processing ...........................................................................................................................................................50

Piranha HS-xx RoHS User Manual
03-032-20013-04 Teledyne DALSA
4
4.5.1 Setting a Region of Interest ...................................................................................................................50
4.5.2 Analog and Digital Signal Processing Chain ........................................................................................51
4.5.3 End-of-line Sequence.............................................................................................................................66
4.6 Saving and Restoring Settings.....................................................................................................................................68
4.6.1 Saving and Restoring Factory and User Settings ...................................................................................68
4.6.2 Saving and Restoring PRNU and FPN Coefficients ................................................................................69
4.6.3 Rebooting the Camera...........................................................................................................................71
4.7 Diagnostics...................................................................................................................................................................72
4.7.1 Generating a Test Pattern......................................................................................................................72
4.7.2 Returning Video Information.................................................................................................................74
4.7.3 Temperature Measurement....................................................................................................................75
4.7.4 Voltage Measurement ............................................................................................................................76
4.7.5 Camera Frequency Measurement...........................................................................................................76
4.7.6 Returning Camera Settings....................................................................................................................76
Error Handling and Command List ___________________________________________ 83
Error Handling...................................................................................................................................................................83
Commands: Quick Reference.............................................................................................................................................85
Camera Link™ Reference, Timing, and Configuration Table _________________________ 95
Camera Link Bit Definitions ..............................................................................................................................................97
Camera Link Configuration Tables....................................................................................................................................97
EMC Declaration of Conformity _____________________________________________ 106
Troubleshooting________________________________________________________ 107
Common Solutions.............................................................................................................................................................107
Troubleshooting Using the Serial Interface .......................................................................................................................108
Specific Solutions ...............................................................................................................................................................109
CCD Handling Instructions_________________________________________________ 112
Electrostatic Discharge and the CCD Sensor.......................................................................................................................112
Protecting Against Dust, Oil and Scratches ........................................................................................................................112
Cleaning the Sensor Window.............................................................................................................................................113
Revision History ________________________________________________________ 114
Index _______________________________________________________________ 115

Piranha HS-xx RoHS User Manual
Teledyne DALSA 03-032-20013-04
5
1
Introduction to the
Piranha HS-xx Camera
1.1 Camera Highlights
Features
4096 or 8192 pixels, 7 µm x 7 µm or 14 µm x 14 µm (HS-82) pixel pitch, 90% fill factor
4 or 8 taps, bidirectional TDI
Up to 160, 320, or 640 megapixels/ second throughput
Greater than 100 kHz line rate (HS-82 model)
100x antiblooming
Broadband responsivity of 1170 DN (nJ/ cm2)
6 independently stage-selectable Time Delay and Integration (TDI) imaging regions
for remarkable user-controlled sensitivity
CE compliant
The following models are RoHS compliant: HS-80-04k40, HS-80-08k40, HS-80-08k80,
and HS-82-04k80
Programmability
Serial interface (ASCII, 9600 baud, adjustable to 19200, 57600, 115200), through
Camera Link™
Programmable gain, offset, frame rates, trigger mode, test pattern output, and camera
diagnostics
Mirroring and direction control
Selectable Area or TDI Mode of operation. Area Mode facilitates camera alignment
and focusing. Area mode can also be used for regular operation

Piranha HS-xx RoHS User Manual
03-032-20013-04 Teledyne DALSA
6
Selectable pixel size (binning)
Flat-field correction—minimizes lens vignetting, non-uniform lighting, and sensor
FPN and PRNU
Selectable Base, Medium, or Full Camera Link configuration, depending on camera
model
Description
The Piranha HS camera family represent Teledyne DALSA's latest generation of high
sensitivity, TDI based cameras. The Piranha HS family maximizes system throughput and
provides the largest number of pixels available in a TDI camera. All cameras are capable
of bi-directionality with up to 96 stages of integration.
Applications
The Piranha HS family is ideal for applications requiring high speed, superior image
quality, and high responsivity. These applications include:
Postal sorting (flats)
Flat panel display inspection
Printed circuit board inspection
High performance document scanning
Large web inspection
Low-light applications
Models
The Piranha HS-xx cameras are available in the following model configurations:
Table 1: Piranha HS-xx Camera Models Overview
Model Number
Description
HS-40-04k40
4k resolution, programmable 2 or 4 taps, up to 160
megapixels/ second throughput, 40/ 80MHz strobe rate, Base or
Medium Camera Link configuration
HS-80-04k40
4k resolution, programmable 4 or 8 taps, up to 320
megapixels/ second throughput, 40/ 80MHz strobe rate, Medium or
Full Camera Link configuration. RoHS compliant.
HS-80-08k40
8k resolution, programmable 4 or 8 taps, up to 320
megapixels/ second throughput, 40/ 80MHz strobe rate, Medium or
Full Camera Link configuration. RoHS compliant.
HS-80-08k80
8k resolution, programmable 4 or 8 taps, up to 640
megapixels/ second throughput, 40/ 80MHz strobe rate, Medium or
Full Camera Link configuration. RoHS compliant.
HS-82-04k80
4k resolution, programmable 4 or 8 taps, up to 640 megapixels /
second throughput, 40/ 80MHz strobe rate, over 100 kHz line rate,
Medium or Full Camera Link configuration. RoHS compliant.
Throughout the manual, the cameras are refered to as the Piranha HS-xx camera family
unless a section is valid to a specific m od el only w here the cam era’s mod el nu mber is
used.

Piranha HS-xx RoHS User Manual
Teledyne DALSA 03-032-20013-04
7
1.2 Camera Performance Specifications
Features and Specifications
Model
HS-40-04k40
HS-80-04k-40
HS-80-08k40
HS-80-08k80
HS-82-04k80
Imager Format
Bidirectional TDI —all models
Resolution
4096 pixels
4096
8196
8196
4096 x 48
Pixel Fill Factor
90 %
100 %
90 %
100 %
100 %
Pixel Size
7x7 µm
7x7 µm
7x7 µm
7x7 µm
14 x 14 µm
Output Format (# of
Camera Link taps)
2 or 4
4 or 8
4 or 8
4 or 8
4 or 8
Stage Selection
16, 32, 48, 64, 80, 96 —all models
Antiblooming
100 x —all models
CCD Shift Direction
Change
0.2 seconds—all models
Optical Interface
Model
HS-40-04k40
HS-80-04k-40
HS-80-08k40
HS-80-08k80
HS-82-04k80
Back Focal Distance
F Mount
M42x1 Mount
M72 Mount
46.50 ± 0.18 mm
6.56 ± 0.25 mm
—
—
6.56 ± 0.25
—
—
6.56 ± 0.25
—
—
6.56 ± 0.25
—
—
6.56 ± 0.25
Sensor Alignment
(aligned to sides of
camera)
± 0.05 mm x
± 0.05 mm y
± 0.25 mm z
± 0.2 ° z
Lens Mount Hole1
62 mm hole. M42 or
F mount adapter
available.
M72 x 0.75
M72 x 0.75
M72 x 0.75
M72 x 0.75
Mechanical Interface
Model
HS-40-04k40
HS-80-04k-40
HS-80-08k40
HS-80-08k80
HS-82-04k80
Camera Size
85 (l) x 85 (h) x 55.4
(w) mm
80 (l) x 150 (h) x
65 (w)
80 (l) x 150
(h) x 65 (w)
80 (l) x 150 (h) x
65 (w)
80 (l) x 150 (h) x
65 (w)
Mass
< 500 g
< 800 g
< 800 g
< 800 g
< 800 g
Connectors
6 pin male Hirose, power
MDR26 female, data
Electrical Interface
Model
HS-40-04k40
HS-80-04k40
HS-80-08k40
HS-80-08k80
HS-82-04k80
Input Voltage
+ 12 to + 15 ± 5 % Volts DC —all models
Power Dissipation2
10 W
19 W
14.4 W
19 W
< 20 W
Operating
Temperature3
0 to 50 °C —all models
Bit Width
8 or 12 bit user selectable bits —all models
Output Data
Configuration
Base or Medium
Camera Link
Medium or Full
Camera Link
Medium or
Full Camera
Link
Medium or Full
Camera Link
Medium or
Full Camera
Link

Piranha HS-xx RoHS User Manual
03-032-20013-04 Teledyne DALSA
8
Operating Ranges
Model
HS-40-04k40
HS-80-04k40
HS-80-08k40
HS-80-08k80
HS-82-04k80
Minimum Line Rate
3.5 kHz —all models
Maximum Line Rate
36.563 kHz
68.610 kHz
34.305 kHz
68.610
110 kHz
Throughput
selectable 80 or 160
Mpix/ sec
selectable 160 or
320 Mpix/ sec
selectable 80,
160, or 320
Mpix/ sec
selectable 160, 320
or 640 Mpix/ sec
selectable 320
or 640
Mpix/ sec
Gain
-10 to +10 dB —all models
Calibration Time
4.3 seconds —all models
Table 2: Camera Performance Specifications
Performance
Gain -10 dB
Gain 0 dB
Gain +10 dB
Min
Typ
Max
Min
Typ
Max
Min
Typ
Max
Dynamic Range
HS-40-04k40
313
1140
208
357
63
114
HS-80-04k40
312
1190
166
357
56
119
HS-80-08k40
312
1920
312
607
100
192
HS-80-08k80
312
1190
166
357
56
119
HS-82-04k80
312
1190
166
357
56
119

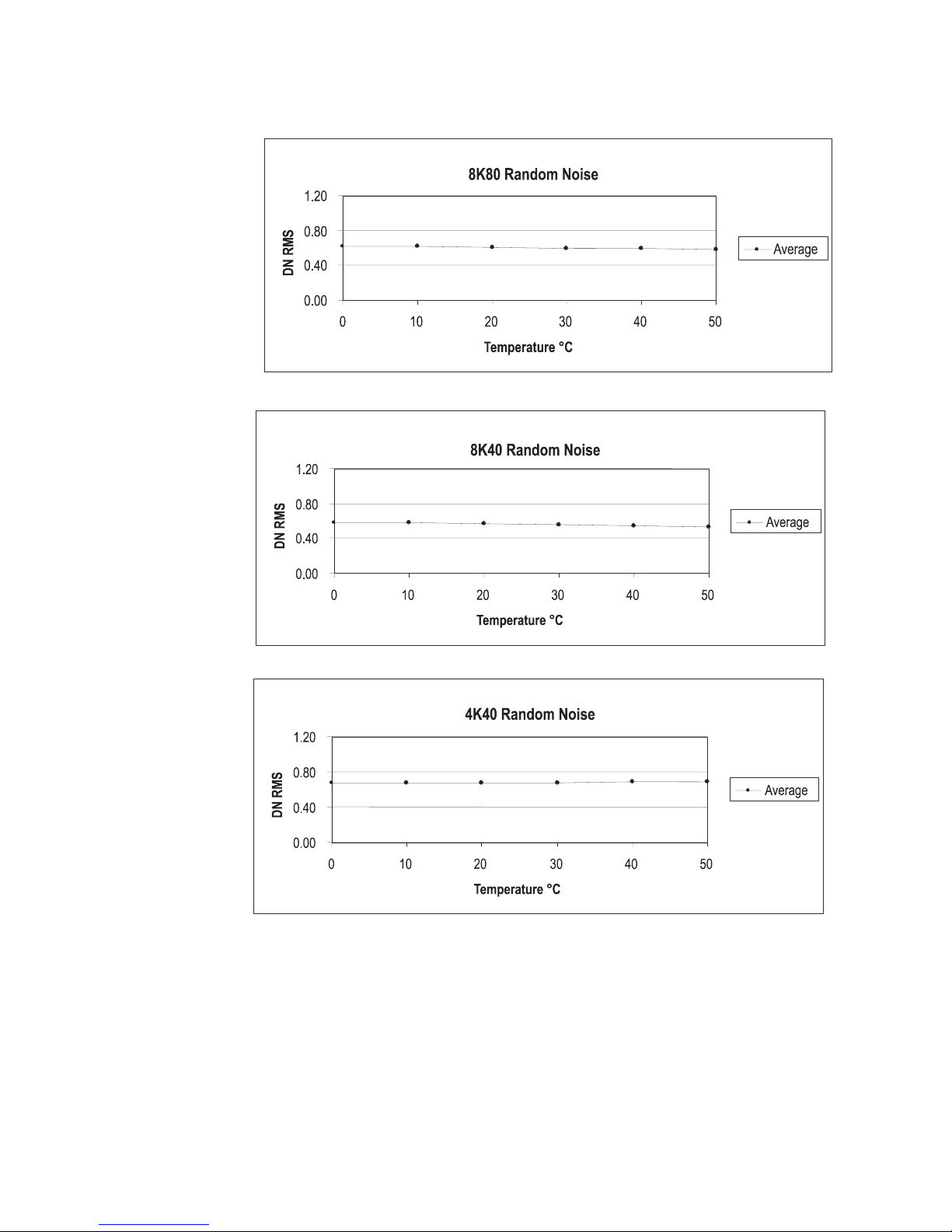

Random Noise
DN rms
HS-40-04k40
0.22
0.8
0.70
1.2
2.20
4
HS-80-04k40
0.22
0.8
0.70
1.5
2.1
4.5
HS-80-08k40
0.16
0.8
0.41
0.8
1.3
2.5
HS-80-08k80
0.22
0.8
0.70
1.5
2.1
4.5
HS-82-04k80
0.22
0.8
0.7
1.5
2.1
4.5
SEE nJ/cm2
HS-40-04k40
2.13
0.68
0.21
HS-80-04k40
2.13
0.68
0.21
HS-80-08k40
2.13
0.65
0.21
HS-80-08k80
2.13
0.68
0.21
HS-82-04k80
2.13
0.68
0.21
NEE pJ/cm2
HS-40-04k40
1.9
6.8
1.9
3.2
1.9
3.4
HS-80-04k40
1.9
6.8
1.9
4.1
1.8
3.8
HS-80-08k40
1.1
6.8
1.1
2.2
1.1
2.1
HS-80-08k80
1.9
6.8
1.9
4.1
1.8
3.8
HS-82-04k80
1.9
6.8
1.9
4.1
1.8
3.8
Analog Broadband
Responsivity (DN/nJ/ cm2)
HS-40-04k40
117
352
370
389
1170
HS-80-04k40
117
352
370
389
1170
HS-80-08k40
117
352
370
389
1170
HS-80-08k80
117
352
370
389
1170
HS-82-04k80
117
352
370
389
1170
FPN DN p-p
with correction
HS-40-04k40
0.5
2

Piranha HS-xx RoHS User Manual
Teledyne DALSA 03-032-20013-04
9
Performance
Gain -10 dB
Gain 0 dB
Gain +10 dB
HS-80-04k40
0.5
2
HS-80-08k40
0.5
2
HS-80-08k80
0.5
2
HS-82-04k80
0.5
2
FPN DN p-p
w/o correction
HS-40-04k40
1
3
2
6
10
18
HS-80-04k40
3
4.5
3
9
HS-80-08k40
3
3
3
9
HS-80-08k80
3
4.5
3
9
HS-82-04k80
3
4.5
3
9
PRNU DN p-p
with correction
HS-40-04k40
3
5.5
HS-80-04k40
4.0
8
HS-80-08k40
3.2
5.5
HS-80-08k80
4.0
8
HS-82-04k80
4.0
8
PRNU %
w/o correction
HS-40-04k40
4
10
5
12
10
25
HS-80-04k40
22
22
10
25
HS-80-08k40
22
22
7
25
HS-80-08k80
22
22
10
25
HS-82-04k80
22
22
10
25
Saturation Output Amplitude
DN
255 typ
DC Offset
DN
3 min
5 typ
6 max
Test conditions for all models, unless otherwise noted:
TDI mode of operation. These specifications are not guaranteed for area mode of
operation.
Line Rate: 10 kHz.
Nominal Gain setting.
Light Source: Broadband Quartz Halogen, 3250 k, with 700 nm IR cutoff filter
installed.
All Max specifications are valid over a 0-50 °C temperature range.
All Typ specifications are measured at 25 °C.
All values are referenced at 8-bit.
1. Maximum using highest Camera Link mode and maximum line rate.
2. Measured at the front plate.

Piranha HS-xx RoHS User Manual
03-032-20013-04 Teledyne DALSA
10
Figure 1: PRNU Uncorrected (pk-pk) Forward or Reverse @ 10 kHz line rate and 0 dB Gain over
Temperature
