Temptech COLD NMB47BG User manual

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTION.
INSTRUCTION MANUAL
NMB47BG
NMB115BG
V2/2021

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury
when using your appliance, follow these basic
precautions:
·Before using the appliance, please read this user manual to ensure that you gain the maximum
benefit from it.
WARNING:
1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
2) Children should be supervised to ensure that they do not play with the appliance.
3) This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6) When positioning the appliance, ensure the supply cord is not trapped or damaged.
7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
10) Do not damage the refrigerant circuit.
11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
13) This appliance is intended to be used in household and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
15) To avoid contamination of drink, please respect the following instructions:
-Opening the door for long periods can cause a significant increase of the temperature in
thecompartments of the appliance.
-Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
-Clean water tanks if they have not been used for 48 h; flush the water system connected to a water
supply if water has not been drawn for 5 days.
-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
·Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane.
Please avoid contact fire when you transport and use it.
Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal
station when you discard it.
-Save these instructions-

INSTALLATION INSTRUCTIONS
This appliance is designed to be free standing only, and should not be recessed or built-in.
Place your appliance on a floor that is strong enough to support the appliance when it is fully
loaded. To level your appliance, adjust the leveling legs at the bottom of the appliance.
Allow 10 cm of space between the top, the back and sides of the appliance, which allows the proper
air circulation to cool the compressor and condenser.
Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
Avoid locating the appliance in moist areas.
Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Products service center.
After plugging the appliance into a wall outlet, allow the appliance to cool down for 2-3 hours
before placing any items in the compartment.

PRODUCT INSTRUCTIONS
NMB47BG
1: Upper Hinge 4: Door Handle
2: Door Gasket 5: Adjust Foot
3: Shelf 6: Bottom Hinge
NMB115BG
1: Upper Hinge 4: Door Gasket
2: Door Handle 5: Adjust Foot
3: Shelf 6: Temperature Control

OPERATING YOUR UNIT

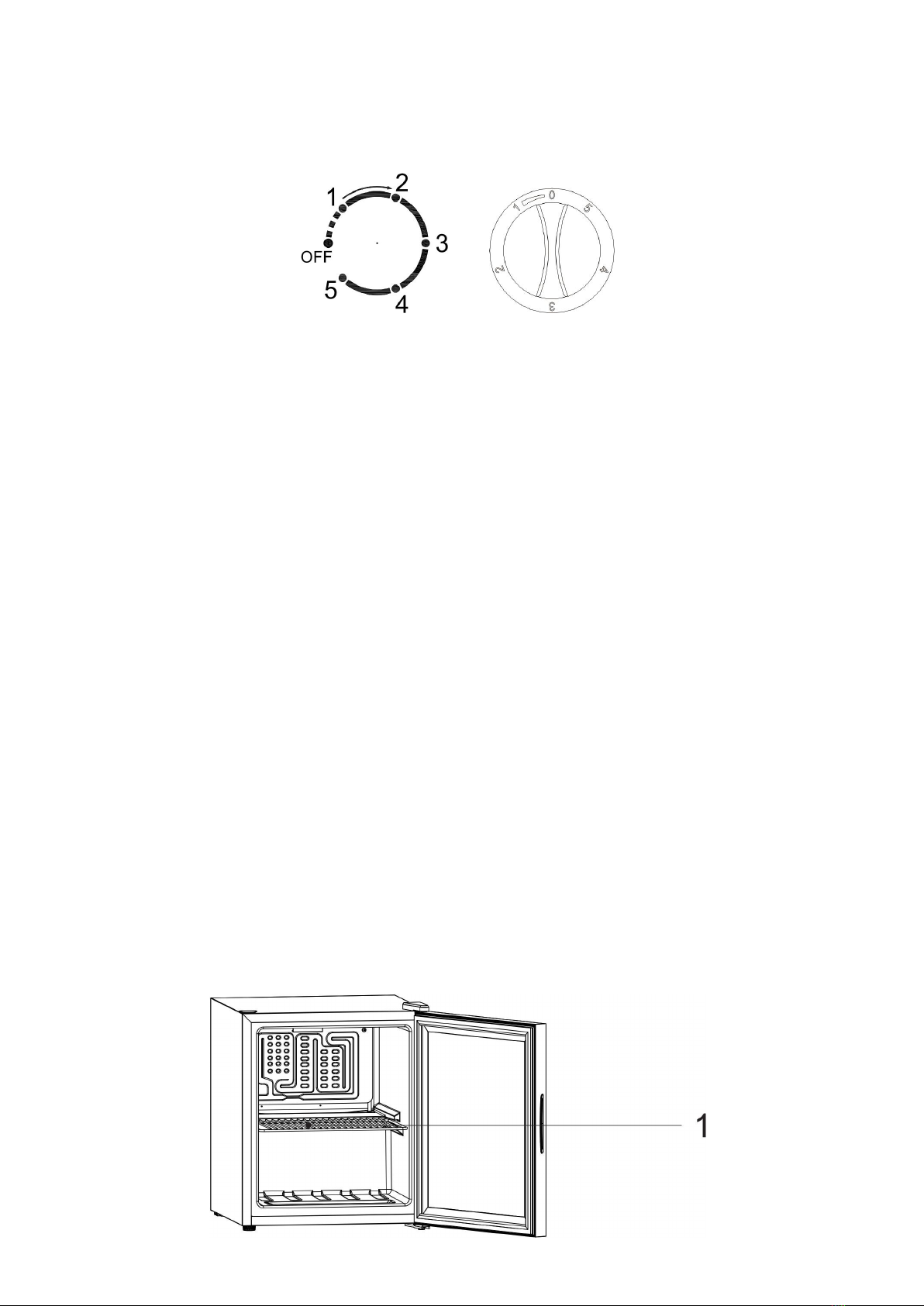

Setting the Temperature Control
NMB47BG NMB115BG
1) The temperature control knob is a device to adjust the temperature in the refrigerator. The gear
on the knob does not represent the temperature value. At the same ambient temperature, the
larger the gear, the lower the temperature in the box; the smaller the gear, the higher the
temperature in the box. Users can adjust the temperature control knob according to their needs.
2) If the ambient temperature is high, it is not recommended to set the temperature control knob to
"5", otherwise the compressor will continue to work.
3) Before the refrigerator is powered off, please set the gear to "0".
4) If the power supply of the refrigerator is cut off, it needs to wait for 5 minutes to restart. If the
refrigerator is started before this time, the refrigerator may not be able to start.
5) When the temperature control knob is set to "0", the compressor will stop working, but the
power supply of the refrigerator will not be cut off.
Tips
It is intended to be used exclusively for the pantry.
This refrigerating appliance is not suitable for the freezing foodstuffs.
The pantry is recommended to be designed at 17°C.
The shelves placed in factory mode is the most efficient use of energy for the refrigerating
appliances.
The following combination of shelves is recommended for energy to be used as efficiently as
possible by the refrigeration unit.
THERE ARE ONE SHELVES IN NMB47BG

THERE ARE THREE SHELVES IN NMB115BG
When the surrounding temperature is 25°C and the pantry has no load, it will take around 30
minutes to decrease the pantry ’s temperature from 25°C to 17°C
 The
pantry is recommended to be designed at 17°C. The energy consumption is 0.132kWh/24h. If
the setting temperature is higher than 17°C, the energy consumption will be lower. If the setting
temperature is lower than 17°C, the energy consumption will be higher.
When the surrounding temperature is 25°C and the pantry has no load, it will take around 30
minutes to decrease the pantry ’s temperature from 25°C to 17°C
 The pantry is recommended to be designed at 17°C. The energy consumption is 0.181kWh/24h. If
the setting temperature is higher than 17°C, the energy consumption will be lower. If the setting
temperature is lower than 17°C, the energy consumption will be higher.
NMB47BG
NMB115BG

GENERAL FAULT DESCRIPTION
If the product is not working properly, please check and handle according to the following methods.
If the situation can not be changed, please contact the local after-sales service center in time, and
be sure to provide the model name and product number in detail.
The refrigerator doesn't work
Is the power on?
Is the power supply voltage too low?
The light is not bright
The light switch was
not pressed
Is the power on?
It's noisy
Whether the ground is
flat and whether the
product is placed
stably
Is the product in
contact with external
objects or walls
The internal temperature is not low
Improper setting
temperature, please
select the appropriate
temperature
The door is not closed
tightly or opened
frequently, and the
opening time is too
long
Is the location exposed
to direct sunlight or
too close to the
furnace and other heat
sources
Poor heat dissipation,
please check whether
there is enough cooling
space around the
product

Correct disposal of this product
This symbol on the product, or in its packaging, indicates
that this product may not be treated as household waste.
Instead, it should be taken to the appropriate waste
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused
by the inappropriate waste handling of this product. For
more detailed information about the recycling of this
product, please contact your local council, your
household waste disposal service, or the shop where you
purchased the product.
SERVICE
Access to professional repair: https://service.temptech.no/
Ordering spare parts: Please send emails to [email protected]
How to find the model information in the product database: Please visit our website
https://temptech.no/ to find the instruction about how to find production information in EU
database.
We take reservations about typing faults and if any problems occure, please contact us at
[email protected]
