USER MANUAL
MIG175GD

USER MANUAL - 1- YF-74L A2
CONTENTS
1. CONTENTS.................................................................................................................... 1
2. SAFETY WARNING............................................................................................................................. 2
3. PRODUCT DESCRIPTION.................................................................................................................. 7
4. TECHNICAL PARAMETERS .............................................................................................................. 8

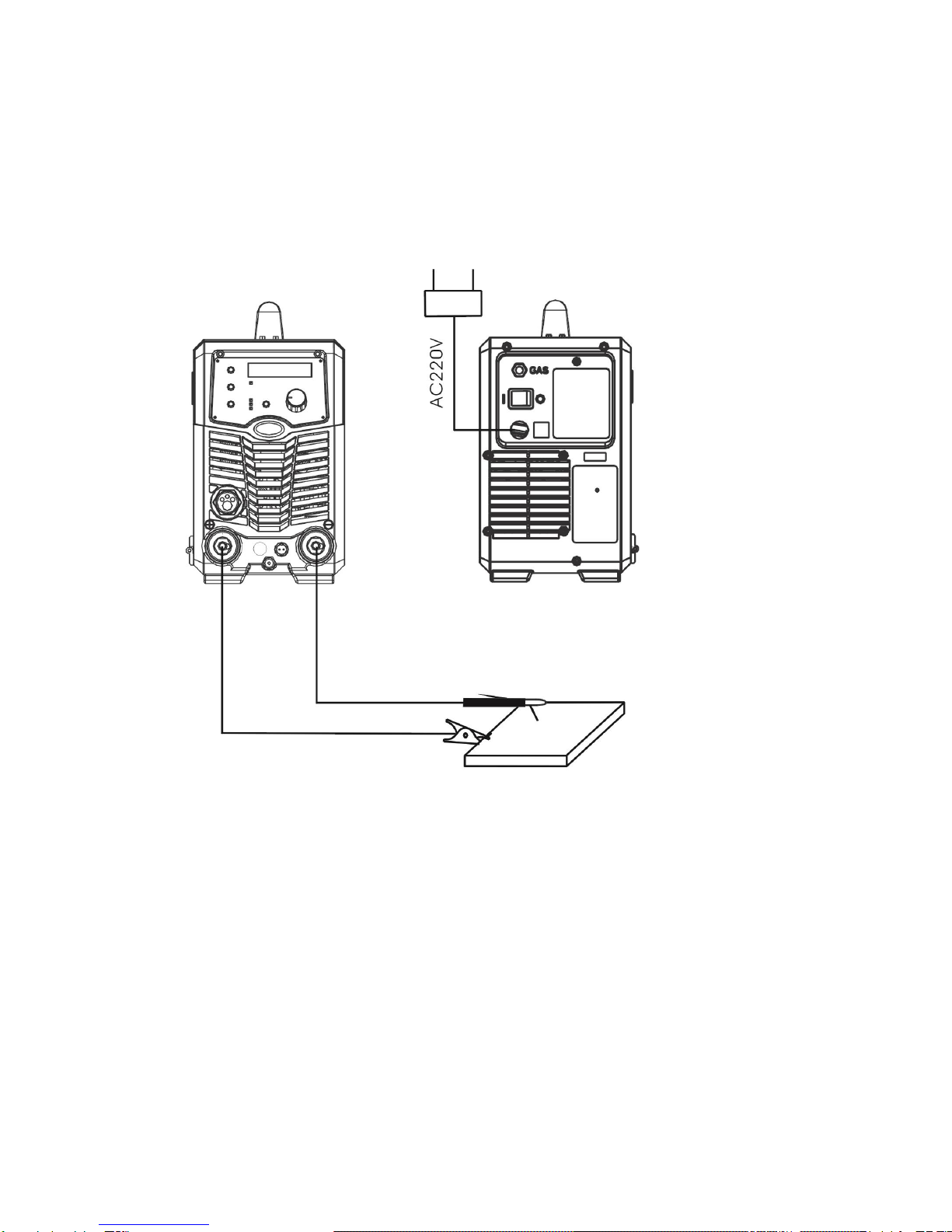

5. INSTALLATION INSTRUCTION ......................................................................................................... 9
6. PANEL FUNCTION ILLUSTRATION ................................................................................................ 13
7. OPERATION PARAMETER RECOMMENDATION.......................................................................... 19
8. STRUCTURE CHART AND MAJOR PARTS LIST .......................................................................... 22
9. CIRCUIT DIAGRAM .......................................................................................................................... 24
10. ATTENTIONS & PREVENTIVE MEASURES................................................................................... 25
11. POTENTIAL OPERATING PROBLEMS........................................................................................... 26
12. DAILY MAINTENANCE..................................................................................................................... 27
13. TROUBLESHOOTING AND FAULT FINDING................................................................................. 28
14. INITIAL PROBLEMS DIAGNOSE..................................................................................................... 29
15. DAILY CHECKING............................................................................................................................. 31

USER MANUAL - 2- YF-74L A2
1. DECLARATION OF CONFORMITY
TER SRL - Via Leopardi, 13 - 36030 Caldogno (VI) Italy
declares that the machines descripted in this manual must be use solely for
professional purposes in an industrial environment and they are manufactured in
compliance with the instructions contained in the harmonized standard:
2014/35/EU (LDV) –2014/30/EU (EMC) –2002/95 (RoHs)
and with the instructions contained in the harmonized standard, if applicable:
EN 60974-1 EN 60974-2 EN 60974-3 EN 60974-5 EN 60974-7 EN 60974-10 EN 60974-12
Date 30/03/2016
Maurizio Terzo
General director
IN CASE OF ANY TECHNICAL PROBLEM ASK FOR QUALIFIED
SERVICE ASSISTANCE
The equipment don’t compiles with EN/ IEC 61000-3-12.
The installer or the user must be sure that it can be connected to the public low voltage power line, if necessary, in consultation with the network
distributor.

USER MANUAL - 3- YF-74L A2
SAFETY WARNING
● Please read this manual carefully before using it.
● The safety notes listed in this manual is to ensure correct use of the machine and to keep you and
other people from being hurt.
● The machine is safety considered designed, please refer to the safety warning listed in the manual
when using it in case of bad accidents.
● Wrong use of the machine will cause different extent of hurt as follows, and there will be warning sign
and description for remind.
Warning sign
Description
Meaning
High-danger
“High-danger” means there is possibility of severe dangerous, and
may cause dead if not avoid. This sign is used in extreme case,
which is normally related to body dangerous neither than property
loss.
Danger
“Danger” means there is possibility of dangerous situation, and
may cause badly hurt if not avoid. It can also refer to property
loss.
Notes
This means it may cause body hurt if not avoid. Please refer to
the related description when this sign occurred.
Danger! Please follow the rules below in case of bad accidents:
1. Do not use the machine in none-welding areas.
2. The machine is safety considered designed, please do read the warning notes carefully in case of
dead or other bad accidents.
3. Follow related regulations for the construction of the input drive force, selection of the setup place,
usage of the high-pressure gas, storage and configuration, safe-keeping of the workpiece after
welding and management of the offal etc.
4. No entry of unrelated person to the welding area.

USER MANUAL - 4- YF-74L A2
5. People using heart pacemaker cannot get close to the welding machine and area without the doctor’s
permit. The magnetism caused when connecting the machine will cause influence to the pacemaker.
6. Ask profession person to install, check and maintain the machine.
7. Please correctly understand the contents of this manual to ensure safety, and ask those professional
people with safety knowledge and technique to operate the machine.
Danger! Please follow the rules below in case of electric shock:
＊Any contact of electric parts may cause fatal electric shock or burnt.
1. Don’t touch any electric parts.
2. Ask professional person to connect the machine and workpiece to the ground.
3. Cut off the power box before the installation or checking, and restart after 5 minutes. For the
capacitance is chargeable, please ensure it has no voltage before restart even if the power source is
cut off.
4. Do not use cable without enough section or with worn-out cover or broken conductor.
5. Do ensure insulation at the cable joint parts.
6. Do not use the machine when the housing is off.
7. Do not use broken or wet insulation gloves.
8. Use safety net when work at high position.
9. Check and maintain regularly, don’t use it until the broken parts are fixed well.
10. Cut off all the input power when not use.
11. Follow the national or local related standard and regulations when using the AC/DC machine at
narrow or high position.
Danger! Please use preventive measures to avoid gas and fumes.
＊Gas and fumes are harmful to health.
＊It may cause choke when operate in narrow space.
1. In case of accidents like gas poisoning or choke, please use suggested exhaust equipment and
breathe preventive facilities.
2. In case of hurt and poisoning by gas and other powder, please use suggested part exhaust
equipment and breathe preventive facilities.

USER MANUAL - 5- YF-74L A2
3. When operated on trunks, boilers, cabins etc.,the CO2 and argon gas will stay in the bottom. Please
replace gas sufficiently and use gas respire facilities in case of oxygen shortage.
4. Please accept the supervisor’s check when operate in narrow space, and ensure enough gas supply
and use breathe preventive facilities.
5. Do not weld in degrease, washing and spray space.
6. Use breathe preventive facilities as it will cause poisonous dust and gas when weld shielded steel.
Danger! Please follow the below notes to avoid accidents like fire and explode:
＊Spark and hot workpiece can cause fire.
＊It may cause fire if the cable is not connected well or when the current circuit of
the steel or other workpiece are not connected completely.
＊Do not weld on the case of tinder stuff, or it may cause explode.
＊Do not weld airtight containers such as slot, pipe etc., or may break.
1. Do not put tinder stuff in welding area.
2. Do not weld around tinder gas.
3. Do not put heat workpiece near the tinder stuff.
4. When weld the dooryard, ground and wall, do move away the tinder stuff around.
5. The cable joint place should be insulated.
6. The cable joint of the workpiece should be close enough to the welding place.
7. Do not weld those facilities with gas pipe or airtight slot.
8.Put fire extinguisher around the welding area in case of fire.
Notes! Please wear protective appliance to avoid arc, spark, residue and noise.
＊Arc ray can cause eye inflammation or skin burnt.
＊Spark and residue will burn your eyes and skin.
1. When welding or supervise welding, please use preventive facilities with enough shielding.
2. Please wear preventive glasses.
3. Please wear preventive facilities such as leather gloves, coat, foot-safeguard and apron.
4. Set preventive shield screen around the welding area to protect other people from harmful arc rays.

USER MANUAL - 6- YF-74L A2
Notes! Please follow the below notes to avoid gas cylinder toppling over or broken.
＊Toppling over of the gas cylinder will cause body hurt.
＊Wrong use of the gas cylinder will lead to high-pressure gas eruption and
cause human hurt.
1. Use the gas cylinder correctly.
2. Use the equipped or recommended gas adjustment.
3. Read the manual of the gas adjustment carefully before using it, and pay attention to the safety
notes.
4. Fix the gas cylinder with appropriative holder and other relative parts.
5. Do not put the cylinder under high temperature and sunshine.
6. Do not put your face close to the gas cylinder exit when opening it.
7. Put on the gas shield when not use.
8. Do not put the torch on the gas cylinder or touch the electrode.
Notes! Any touch of the switch part will cause injury, please pay attention to the below
notes:
＊Do not put fingers, hair, clothes etc. near to the moving parts such as the fan.
1. Do not use the machine when the housing is off.
2. Ask professional person to install, operate, check and maintain the machine.
3. Do not put fingers, hair, clothes etc. near to the switch parts such as the fan.
Notes! Follow the below note as the wire end may cause body hurt:
＊The wire shoot out from the torch can stab eyes, face and other naked parts.
1. Before feeding the wire, do not look into the electric conduction hole, or the wire shooted out may
stab your eyes and face.
2. When feeding the wire manually or press the torch, do not put the torch end near to your eyes, face
and other naked parts.

USER MANUAL - 7- YF-74L A2
Notes! Follow the below notes to ensure better work efficiency and power source:
＊No person under of in front of the machine when swing in case of injury!
1. Precautions against toppling over.
2. Warning against the use of welding power source for pipe thawing.
3. Lift the power source from two sides when use the up-down forklift truck in case of toppling over.
4. When using the crane for lift, tie the rope to the ears with an angle no more than φ15 to the vertical
direction.
5. If the machine is equipped with gas cylinder and wire feeder, download them from the power source
and ensure the horizontal of the machine. Do fix the gas cylinder with gallus or chain when moving it
in case of body hurt.
6. Ensure fastness and insulation when using the swing ring to lift the wire feeder in welding.
7. If the machine is equipped with gallus or handles, they are only for hands not for crane, fork-lift truck
or other swing equipments.
Notes for electromagnetism disturb:
1. It may need extra preventive measures when the power is used in some partial space.
2. Before the installation, please estimate the potential electromagnetism problems of the environment
as follows:
1) Upper and down parts of the welding equipments and other nearby power cable, control cable,
signal cable and phone cable.
2) Wireless electric as well as TV radiation and reception equipment.
3) Computer and other control equipments.
4) Safety-recognition equipment etc. Eg: supervise of industrial equipments.
5) Health conditions of the people around. Eg: use of the heart pacemaker and audiphone.
6) Equipments for adjustment and measurement.
7) Anti-disturb capability of other used equipments .Users should ensure these equipments and the
environment are compatible, and this may need extra preventive measures.
8) Practical state of the welding and other activities.
3. Users should follow the below notes to decrease radiation disturb:
1) Connect the welding equipments to the power supply lines.

USER MANUAL - 8- YF-74L A2
2) Maintain the welding equipments regularly.
3) The cable should be short enough to be close to each other and near to the ground.
4) Ensure the safety of all the metal parts and other parts nearby.
5) The workpiece should be well connected to the ground.
6) Shield or protect the other cable and equipments to decrease the influence of disturb. The welding
equipments can be fully shielded under special conditions.
4. Users are responsible for the disturb problems caused by welding.
PRODUCT DESCRIPTION
The welding machine applies the most advanced inversion technology in the world.
The principle of inversion is to transform the power frequency of 50Hz/60Hz into direct current and invert it into high
frequency (25KHz) through high-power device IGBT, then perform voltage-drop and commutation with the output high-
power D.C power supply via Pulse Width Modulation (PWM). Since the switch power inversion technology is adopted,
the weight and volume decrease greatly while the conversion efficiency increase of more than 30%
Additional to MIG, the machine has the functions of STICK and TIG. It adopts full digital panel display, which can
realize synergic adjustment of feeding speed and welding voltage as well to regulate the welding parameters easily.
Our CO2gas shielded welding machine is equipped with unique electronic reactor circuit, which can precisely control the
short-circuiting transfer and mixed transfer resulted in better performance than other machines. Compared with silicon
controlled welding machine and tapped welding, our products have the following advantages: stable wire feed rate,
portable, energy-saving, electromagnetic noise free. Besides, our products spatter less, easier arc starting, deep welding
pool, high duty cycle etc.
Thank your for choosing our products. Please feel free to propose your valuable suggestions; we will make efforts to
perfect our products and service.
WARNING！
The machine is mainly used for industrial purpose. It will cause radio interference indoor, operators
shall take fully preventative measures.

USER MANUAL - 9- YF-74L A2
TECHNICAL PARAMETERS
Type Item
MIG175GD
Power voltage (V)
1 phase
220V15%
Frequency (Hz)
50/60
Rated input current (A)
28
No-load voltage(V)
56
Output current adjustment (A)
20-175(MMA)
10-175(TIG)
50-175(MIG)
Output voltage (V)
16.5-22.8
Duty cycle (%)
35
Power factor
0.73
Efficiency (%)
80
Type of wire feeder
Internal
Wire feed speed (m/min)
2-12
Post flow time (S)
3
Welding-wire diameter (mm)
0.6/0.8/1.0
Insulation grade
F
Housing protection grade
IP23S
Welding thickness (mm)
More than 0.8
Weight (kg)
12.8
Overall dimension (mm)
420*220*439

USER MANUAL - 10 - YF-74L A2
INSTALLATION INSTRUCTION
The welding equipment is equipped with power voltage compensation device. It keeps the machine work normally when
power voltage fluctuating ±15% of rated voltage.
When using long cable, in order to reduce voltage drop, big section cable is suggested. If the cable is too long, it will
affect the performance of arcing and other system function, it is suggested to use the recommend length.
1. Make sure the intake of the machine is not covered or blocked to avoid the malfunction of the cooling system.
2. Use ground cable whose section no less than 6mm2to connect the housing and earth. The method is to connect the
grounded interface in the back to the earth device, or make sure the earth end of power interface has been reliably
and independently grounded. Both ways can be used together for better security.
MIG 175GD Installation Procedures：
1、Correct Installation of MIG：
1) Connect the gas cylinder with CO2 decompression flow mete tightly to CO2 mouth behind the machine via air tube.
2) Insert the swift plug of earth cable into socket at the front panel.
3) Set the wire wheel with wire on the wheel axis, the wheel hole should be matched with the wheel fixer.
4) Choose wire slot according to wire size.
5) Loosen the screw of wire-pressing wheel, pit the wire into slot via wire-lead tube, adjust the wire-pressing wheel to
keep wire fix from gliding, but strength should be suitable in case the wire distorts and affects wire sending.
6) Wire roll should turn clockwise rotation to let out wire, to prevent wire from gliding; wire is usually set to the fixed hole
on the wheel side. To prevent the bent wire from getting stuck, please cut off this part of the wire.
7) Put and tighten the torch on the output socket and put the wire into the torch by hand.
2、Correct Installation of LIFT TIG：
1) Connect the shielded-gas source correctly. The gas supplying route shall include gas cylinder, argon decompression
flow meter and gas pipe. The connecting parts of the gas pipe should be fastened by hose clamp or other objects, in
order to prevent leakage and air-in.
2) Connect the plug of TIG torch to “-“of the front panel, and fasten it clockwise.
3) Connect the plug of TIG torch to the relative interfaces of panel and fasten the screw.
4) Connect one end of the earth clamp cable to “+” of the front panel, and fasten it clockwise, the other end clamp the
workpiece.

USER MANUAL - 11 - YF-74L A2
3、Correct Installation of STICK：
1) Make sure cable with electrode holder and quick plug connected well. Connect the quick plug to the socket “-” of the
machine, and fasten it clockwise tightly.
2) Connect the quick plug at one end of the cable into the socket “+” of the machine, and fasten it clockwise, the other
end clamps the workpiece.
3) Please pay attention to the connecting terminal, DC welding machine has two connecting ways: positive connection
and negative connection. Positive connection: holder connects with “-” terminal, while work piece with the “+”
terminal. Negative connection: work piece with the“-” terminal, holder with the “+” terminal. Choose suitable way
according to the working situation. If unsuitable choice is made, it will cause unstable arc, more spatters and
conglutination. If such problems occur, please change the polarity of the fastened plug. It should adopt negative
connection when welding with alkaline electrode, while positive connection when welding with acid electrode.
This procedure shall be operated by electrician!
Connect proper power cable
to the distribution box with corresponding capacity according to the input voltage and current (See technical parameter
table). Do not connect to the inappropriate voltage and make sure that the difference of power supply is within permitted
range.

USER MANUAL - 12 - YF-74L A2
Explanatory drawing for Installation of MIG 175GD(MIG):

USER MANUAL - 13 - YF-74L A2
Explanatory drawing for Installation of MIG 175GD(LIFT TIG):

USER MANUAL - 14 - YF-74L A2
Explanatory drawing for Installation of MIG 175GD(STICK):

USER MANUAL - 15 - YF-74L A2
PANEL FUNCTION ILLUSTRATION
Front panel instruction：
1. STICK/LIFT TIG/MIG switch key
2. WIRE CHECK
3. VRD/2T/4Tswitch key
4. Data selection key (effective under MIG mode)
5. Multifunctional data adjusting knob（coarse adjustment by pressing the knob and turning it: big regulating rate
and high speed; fine adjustment only by turning the knob: small regulating rate and low speed）
6. Multifunctional data display
Polarity conversion joint
This machine has the polarity conversion; There are positive output terminal and negative output terminal between
wire feeder and wire spool; When use solid wire with gas protection, torch socket should be connected to the positive
output terminal, ground cable should be connected to the negative output terminal; When use flux-cored wire, the two
connected cable should be exchanged.

USER MANUAL - 16 - YF-74L A2
Operation Instruction：
1）The starting up display
Switch on the welding power source, the front panel displays as Chart 1. After the【Multifunctional data display】(or
any key or knob on front panel) flashes for 5 seconds, the machine enters into the welding mode that saved in the
last shutdown.
Chart 1: the starting-up display interface
2）Operation instruction under STICK mode.
1 When welding stops, Press the【STICK/LIFT TIG/MIG switch key】，the STICK indicator lights up，and it
turns into STICK mode.
2 When under STICK mode, pressing the 【VRD/2T/4T switch key】, VRD function is enabled when the
indicator lights up, and displays in 【multifunctional data display】. Or, the VRD function isn’t enabled if the
indicator is off. (Chart 2, Chart 3)
Chart 2: under STICK mode, preset current display with VRD enabled Chart 3: under STICK mode preset current
display VRD disabled
3 【multifunctional data display】shows the preset current“080A”, its unit is ampere(A).
4 Adjusting the 【Multifunctional data adjusting knob】can change the welding current during welding process,
and displayed in 【multifunctional data display】. The welding current range is 10A-175A.
5 3 seconds later after setting the welding parameters, the 【multifunctional data display】would flashes for one
time, which means the data has been saved. Moreover, the panel would display these data when restart the
machine next time if the parameters keep unchanged.
6 The panel displays as Chart 4 when perform welding, which means the welding voltage is 23.2V, and the
preset current 80A. 5 seconds later, it returns to the preset current state.

USER MANUAL - 17 - YF-74L A2
Chart4: The display status when welding under STICK mode.
3）Operation instruction under LIFT TIG mode.
1 When welding stops, press the【STICK/LIFT TIG/MIG switch key】，the LIFT TIG indicator lights up，and it
turns into LIFT TIG mode. LIFT TIG means the tungsten contacts the workpiece first, then press the torch
switch, the arc is ignited by lifting the torch.
2 Under LIFT TIG mode, press 【VRD/2T/4T switch key】to choose the welding mode, which displays as Chart
5. 2T NORMAL lighting up means 2 step control way: press the torch switch, open the shielded gas, and start
the main circuit, lift up the arc, the welding current increases till to a steady-state value. While, 4T LATCH
lighting up means 4 step control way: press the torch switch for the first time, open the shielded gas, and start
the main circuit, lift up the arc, and ignite it; then release the torch switch, the machine outputs steady current.
Press the torch switch for the second time, the welding current attenuates until to crater value and keep on,
then release the torch switch again, the arc quenches soon and the welding stops.
Chart5: The preset current under LIFT TIG mode
3 【multifunctional data display】shows the preset current“080A”, its unit is ampere(A).
4 Adjusting the 【Multifunctional data adjusting knob】can change the welding current during welding process,
and display in 【multifunctional data display】. The welding current range is 10A-175A.
5 3 seconds later after setting the welding parameters, the 【multifunctional data display】would flashes for one
time, which means the data has been saved. Moreover, the panel would display these data when restart the
machine next time if the parameters keep unchanged.
6 The panel displays as Chart 6 when perform welding, which means the welding voltage is 17.2V, and the
preset current is 80A.
7 Releasing the torch switch and stopping welding, the panel displays as Chart 7. Moreover,“HOLD” flashes for 3
seconds and quenched, which means the welding stops. 2 seconds later, 【multifunctional data display】
redisplays the preset current.
Note：The machine adopts touched ignition way when perform welding under TIG mode. Firstly make sure the
tungsten contacts the workpiece completely, then press the torch switch, lifting up the torch to ignite arc
successfully.

USER MANUAL - 18 - YF-74L A2
Chart 6：Display status when perform welding under Chart 7：Display status after stop welding under
LIFT TIG mode TIG mode
4）Operation instruction under MIG mode.
1 When welding stops, press【STICK/LIFT TIG/MIG switch key】，MIG indicator lights up, and the machine
enters into MIG mode.(Chart 8)
2 Under MIG mode, pressing 【WIRE CHECK】,the indicator lights up, which can realize high speed wire
feeding(Chart 9). 【multifunctional data display】would flash continuously until pressing the torch switch or any
key or knob on the panel. Both 【multifunctional data display】and 【WIRE CHECK】stops flashing, and the
wire stops feeding.
Chart 8: Preset voltage display under MIG mode Chart 9: Wire Check display under MIG mode
3 【multifunctional data display】shows the preset voltage “19.5V”, its unit is volt(V). while “05.0m/min means
the preset wire feeding speed, its unit is m/min”
4 Under MIG mode, operate 【VRD/2T/4T switch key】to choose the welding mode. 2T NORMAL lighting up
means 2 step control way: press the torch switch, feed the gas in advance, and perform welding normally;
release the torch switch, burn back and get rid of the ball on the end of wire, then stop feeding gas 3 seconds
later. While, 4T LATCH lighting up means 4 step control way: press the torch switch for the first time, feed the
gas in advance, and ignite the arc to perform welding; then release the torch switch and perform welding
normally. Press the torch switch for the second time, the welding current attenuates until to crater value and
keep on, then release the torch switch again, burn back and get rid of the ball on the end of wire, then stop
feeding gas 3 seconds later.
5 Adjust【Multifunctional data adjusting knob】during welding can realize the synergic manipulation of welding
voltage and feeding speed, which displays in【multifunctional data display】. The adjustable range is 17.5V
2.0m/min－25.8V 12m/min.
6 Press the【data selection key】for the first time, the【multifunctional data display】displays as Chart 10,
which means the welding voltage is adjustable, and the adjustment range of preset voltage is ±20%; Press
the【data selection key】for the second time, the【multifunctional data display】displays as Chart 11, which
means the inductance is adjustable, and its adjustment range is ±10%; Press the【data selection key】for the
