Technical Description and Operating Instructions
CD Receiver
KB 20 CR
91886 GB 20111117.indd 191886 GB 20111117.indd 1 17.11.11 15:4317.11.11 15:43

2• KB 20 CR
Contents
General notes and information . . . . . . . . . . . . . . . . . . .3
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Original packaging. . . . . . . . . . . . . . . . . . . . . . . 3
Complaints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caution icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

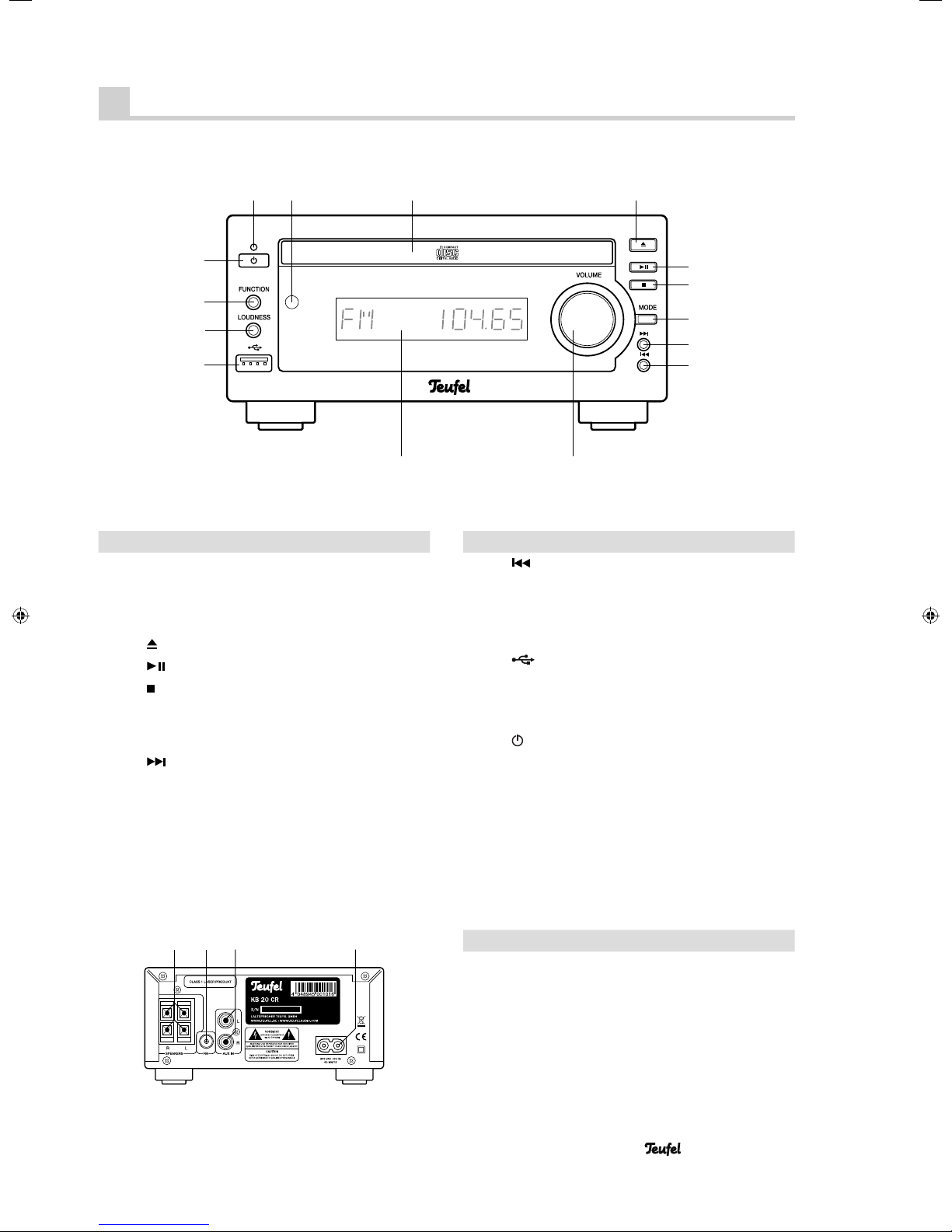

Control elements and connections . . . . . . . . . . . . . . . . . 7
Setup and connection . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Location tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the speakers . . . . . . . . . . . . . . . . . . . 9
Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Audio input . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting to a power supply . . . . . . . . . . . . . . . 9
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Changing the batteries . . . . . . . . . . . . . . . . . . . 10
Functionality. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

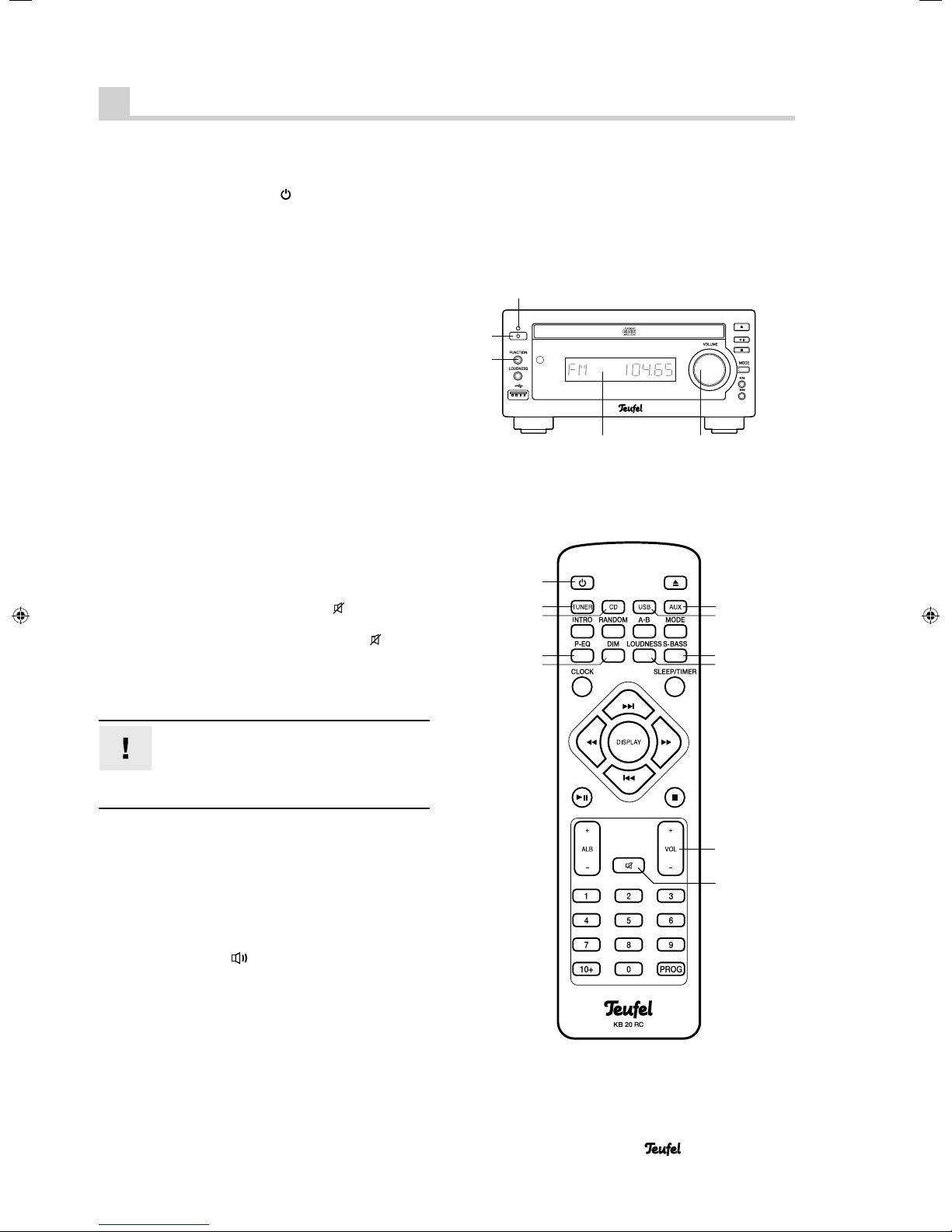

Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Activating and deactivating . . . . . . . . . . . . . . . . 11
Selecting a source. . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . 11
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the sound. . . . . . . . . . . . . . . . . . . . . . 11
Equalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Aurally compensated volume . . . . . . . . . . . . . . . 11
Bass boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . 12
Automatically via RDS . . . . . . . . . . . . . . . . . . . . 12
Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reading the time. . . . . . . . . . . . . . . . . . . . . . . . 12
Sleep function . . . . . . . . . . . . . . . . . . . . . . . . . 12
Radio playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the radio stations . . . . . . . . . . . . . . . . . . 13
Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Station scanning . . . . . . . . . . . . . . . . . . . . . . . . 13
Mono/stereo . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Station memory . . . . . . . . . . . . . . . . . . . . . . . . 13
Saving stations . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting stations from the memory . . . . . . . . . . . 13
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

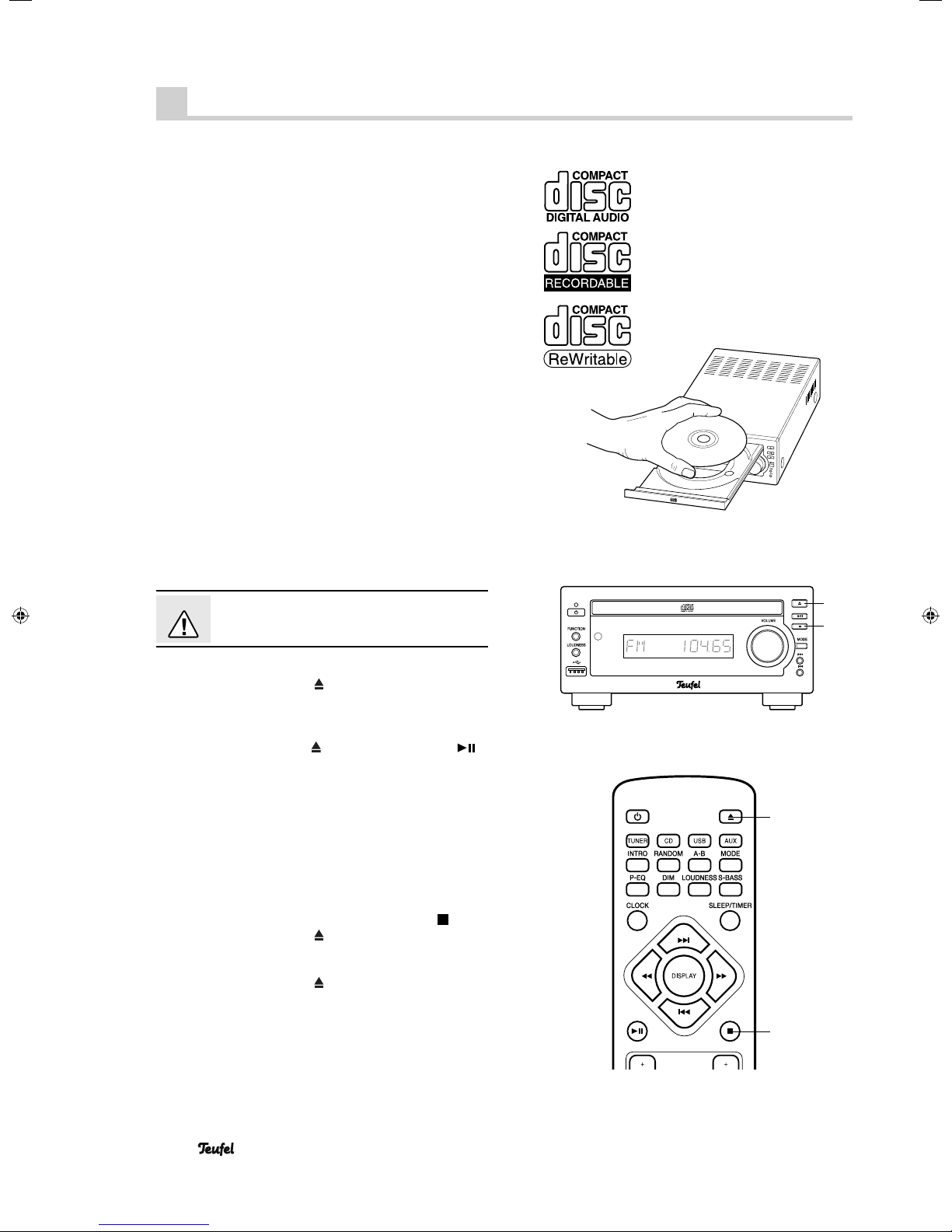

Suitable CDs . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Handling CDs. . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inserting a CD . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ejecting a CD. . . . . . . . . . . . . . . . . . . . . . . . . . 14
USB mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Inserting and playing a USB stick . . . . . . . . . . . . 15
Removing a USB stick . . . . . . . . . . . . . . . . . . . . 15

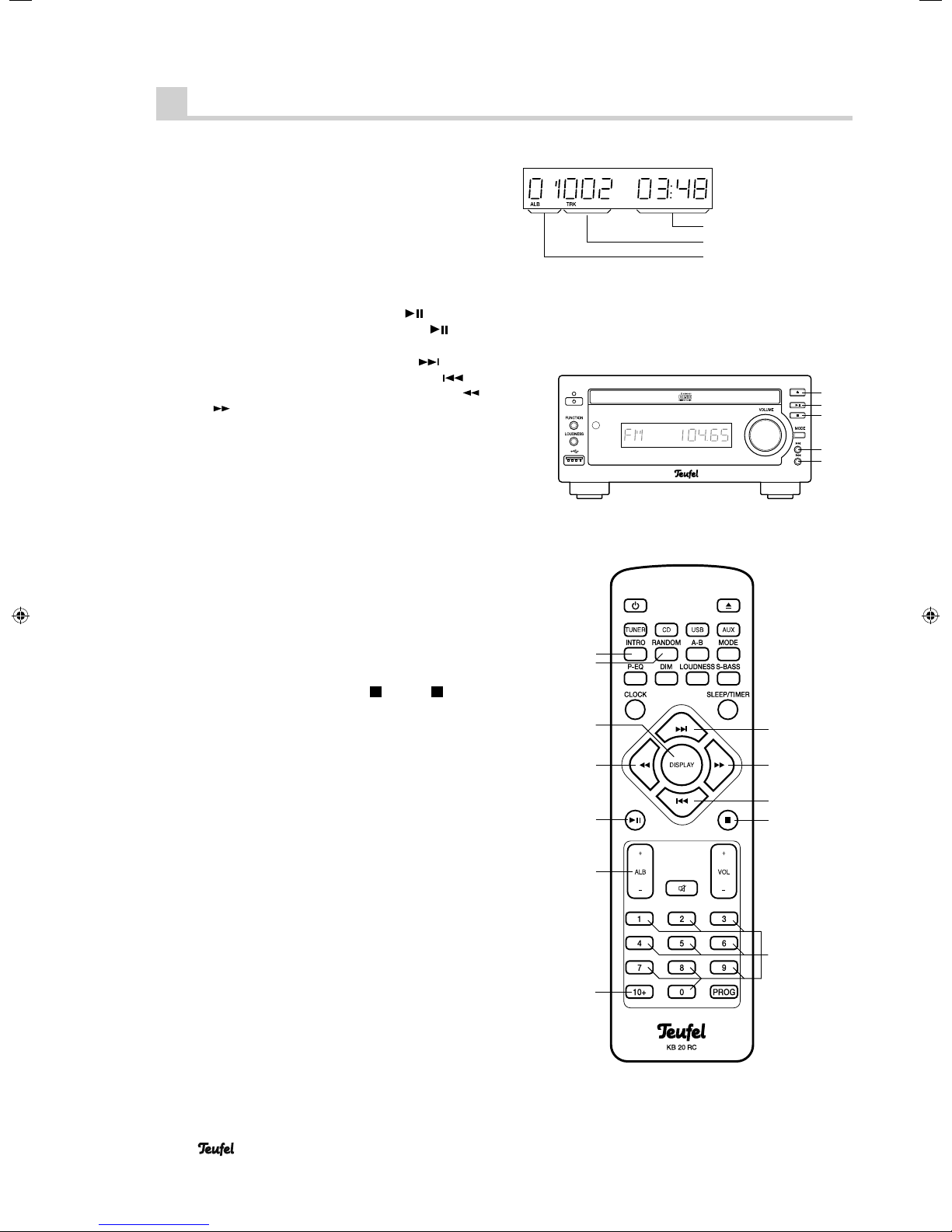

Playback functions (CD, MP3/WMA, USB) . . . . . . . . . . 16
Search by track number. . . . . . . . . . . . . . . . . . . 16
Repeat function. . . . . . . . . . . . . . . . . . . . . . . . . 16
Repeat section . . . . . . . . . . . . . . . . . . . . . . . . . 17
Playlist playback. . . . . . . . . . . . . . . . . . . . . . . . 17
Creating a playlist. . . . . . . . . . . . . . . . . . . . . . . 17
Playing the playlist . . . . . . . . . . . . . . . . . . . . . . 17
Deleting a playlist . . . . . . . . . . . . . . . . . . . . . . . 17

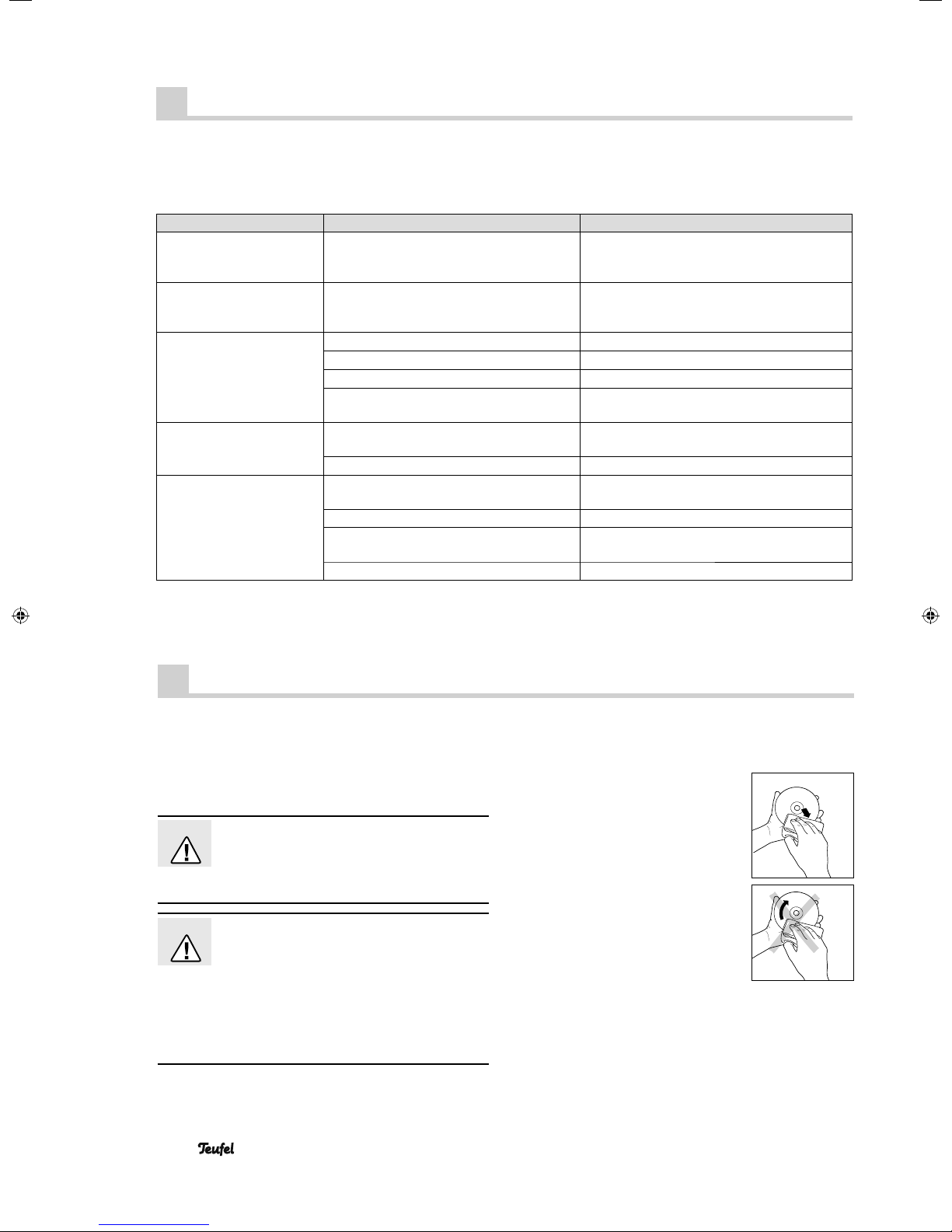

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Protecting the environment . . . . . . . . . . . . . . . . . . . . . 19
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
91886 GB 20111117.indd 291886 GB 20111117.indd 2 17.11.11 15:4317.11.11 15:43

• KB 20 CR 3
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, me-
chanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
November 2011
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packag-
ing. We can only accept the return of the speakers WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following informa-
tion to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confirmation received as a PDF
document, e.g. 4322543
2. Serial number or batch number
Located on the back of the unit,
e.g. serial number: KB20240129A-123.
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone: 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 - 300 930 930
E-mail: [e-mail]
www.teufelaudio.com
Proper use
Only use the unit as described in these operating instruc-
tions. Any other use will be deemed as not in accordance
with the instructions and may lead to damage to property
or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before you operate the unit for the first time,
please first carefully read through the safety
notes and operating instructions. This is the only
way to use all functions safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
General notes and information
91886 GB 20111117.indd 391886 GB 20111117.indd 3 17.11.11 15:4317.11.11 15:43

4• KB 20 CR
Safety notes
Caution icons
You will find the following caution icons in these instruc-
tions:
Danger High risk!
Failure to observe the warning may result in
severe personal injury or death.
Attention Moderate risk!
Failure to observe the warning may result in
property damage.
Minor risk!
Points which should be observed when han-
dling the unit.
Safety notes
Danger Risk of electric shock!
Faulty electrical installation or mains
voltage
which is too high may result in an electric shock.
• The device is suitable for use with a power supply volt-
age of 230 V / 50 Hz.
• If the unit’s case or mains cable is defective or shows
other signs of visible damage, disconnect the mains
adapter immediately from the socket and do not oper-
ate the device.
• If the unit emits smoke or smells of burning or other
unusual odours, disconnect it immediately from the
power supply and do not operate it.
• The standby button doesn’t disconnect the unit from the
power supply. Set up the unit so that the mains plug is
easily accessible.
• Never open the unit case.
Repairs may only be carried out by an authorised
specialist workshop. Only parts which conform with
the original unit specifications may be used in this
case. There are electrical and mechanical parts in this
unit which are essential in order to provide protection
against sources of danger.
• Do not insert any objects through the vent slots into the
housing.
• Only use the unit in indoor areas.
• Do not use the unit in damp areas and protect it from
drops of water and splash water.
Also take care not to stand vases or other containers
filled with liquid on or near the unit in order to avoid
liquid getting into the housing. If water or other foreign
bodies should enter the unit, immediately disconnect
the mains plug. Then send the unit to our service ad-
dress.
• Never touch the mains adapter with damp hands.
• Check the unit regularly for damage.
Danger Danger to children!
Children can become trapped in the packing
film when playing and suffocate.
• Do not allow children to play with the unit or the pack-
ing film. Danger of suffocation.
• Ensure that children do not remove small parts from the
unit or take them off of the unit (e.g. the remote control
batteries, control buttons or plug adapters). They could
swallow the parts and choke.
• If a battery is swallowed, immediately consult a physi-
cian with the child.
• Never allow children to operate electrical devices
unsupervised.
Danger to hearing!
Loud noise may lead to hearing loss.
Very high noise pressure may suddenly be
emitted, especially if the unit is activated and set to full
volume. This may have psychological consequences and
also cause physical injury. Children and pets are particu-
larly at risk.
• Set the volume control of your unit to a low level.
• When the volume is set to a high level, never place
your ear directly on the speaker.
• To avoid damage to health, avoid extended listening at
high volume.
Danger Danger of chemical burns!
Leaking battery acid may lead to chemical
burns.
• Do not allow battery acid to come into contact with
skin, eyes and mucus membranes. In case of contact
with acid rinse the affected areas immediately with
plenty of plain water and if necessary see a doctor.
Danger Danger of explosion!
Batteries (particularly lithium batteries) can
explode if used improperly.
• Never attempt to recharge batteries.
• Only use batteries of the same or equivalent type.
• Do not heat or short circuit batteries or rechargeable
batteries and do not dispose them in fire.
• Do not expose batteries and storage batteries to direct
sunlight.
91886 GB 20111117.indd 491886 GB 20111117.indd 4 17.11.11 15:4317.11.11 15:43

• KB 20 CR 5
Danger Danger of injury/damage!
Setting up the unit in an unsuitable location
may result in injury to persons and/or damage
to property.
• Do not use the device in vehicles without having it
secured, in unstable locations, wobbly tripods or
furniture, on insufficiently dimensioned brackets etc.
The device could tip or fall down and cause injury to
persons or be damaged itself.
• Set up the unit so that you do not accidentally tip it
over and that the cables do not pose a trip hazard.
• Do not place the unit near sources of heat (e.g. heat-
ers, ovens, other heat generating equipment such as
amplifiers etc.).
Danger Danger to eyes and skin!
Opening the disc compartment with the lock
deactivated will cause an invisible or visible
laser beam to be emitted.
• Do not look into the beam, even if you are using opti-
cal instruments.
Attention Fire hazard!
Improper use may lead to damage or fire.
• Do not place open flames such as burning candles or
similar on the unit.
• Do not place the unit in direct sunlight.
• Ensure sufficient ventilation.
• Do not cover the vents with curtains, blankets, news-
papers or similar. Heat build-up inside the unit can
shorten its lifetime.
Attention Risk of damage!
External influences may damage or destroy the
device.
• If the unit is to be left unsupervised for a long period
(e.g. during a holiday), or if a thunderstorm is forecast,
disconnect the mains plug from the power socket. Oth-
erwise, a sudden overvoltage may cause a defect.
• Leaked batteries may damage the remote control.
In case of prolonged absence, remove any batteries
from the remote control.
• If the device is subjected to warm temperatures after
being cold (e.g. after transport), condensation may
occur inside of it.
In this case, wait at least 2 hours before you connect
and activate it.
91886 GB 20111117.indd 591886 GB 20111117.indd 5 17.11.11 15:4317.11.11 15:43

6• KB 20 CR
Product Contents
햲1 x CD receiver (KB 20 CR)
햳1 x remote control (KB 20 RC)
햴1x mains cord
햵1 x USW throw-out aerial (FM)
햶2 x speaker cable
The speakers for this system are delivered in separate
packaging. Please observe the operating instructions
included with the speakers.
Check to be sure
• Check that all items have been delivered and that noth-
ing is damaged.
• If the delivery is incomplete or you find damage sus-
tained in transit, do not operate the unit but contact our
service department (see page 3).
Overview
햲
햳
햴
햵
햶
91886 GB 20111117.indd 691886 GB 20111117.indd 6 17.11.11 15:4317.11.11 15:43

• KB 20 CR 7
Control elements and connections
Front
Back side
Item Name Description
1— Standby display
2— Infrared receiver for remote
control
3— CD tray
4Open/close CD tray
5Playback/pause
6Stop button
7MODE Radio mode: Switch between
stereo/mono
USB and CD: Set repeat
8Radio mode: Scan stations in
ascending order
USB and CD: Next track
9
8
6
5
7
4
32
1011
12
13
14
15
16 17 18 19
1
Item Name Description
9Radio mode: Scan stations in
descending order
USB and CD: Previous track
10 VOLUME Volume control
11 — Display panel
12 USB connection
13 LOUDNESS Activate/deactivate aurally-
compensated volume
14 FUNCTION Switch signal source
15 Switch the device on or to
standby
+
–
Item Name Description
16
SPEAKERS Connections for speakers
17 FM Connection for FM/USW
antenna
18
AUX IN Connection for external audio
source
19
— Connection to a power supply
91886 GB 20111117.indd 791886 GB 20111117.indd 7 17.11.11 15:4317.11.11 15:43

8• KB 20 CR
Remote control
2444
2246
2642
2345
2147
2048
2741
31
32
33
3536
34
37
38
2939
40
28
30
2543
Item Name Description
20 Open/close CD tray
21 AUX Select an external source device
(AUX)
22 USB Select USB source device
23 MODE Radio mode: Switch between
stereo/mono
CD and USB: Set repeat
24
A–B Only CD and USB: Repeat
section
25
S-BASS Activate/deactivate super bass
26
LOUDNESS Activate/deactivate aurally-
compensated volume
27
SLEEP/TIMER SLEEP function (10–90 minutes)
28 Radio mode: Scan stations up
CD and USB: Next track
29 Radio mode: Increase tuning
frequency
CD and USB: Fast forward
30 Radio mode: Scan stations in
descending order
USB and CD: Previous track
31 Stop button
32
Vol +/– Adjust volume
33 Mute speakers
34
1 ... 0 Number buttons
35
PROG Radio mode: Save station
USB and CD: Set playlist play-
back
36
10+ Select track or station memory
slot >10
37
ALB +/– Radio mode: Next/previous sta-
tion memory slot
CD and USB mode: Select next/
previous album
38 Playback/pause
39 Radio mode: Decrease tuning
frequency
CD and USB: Fast rewind
40
DISPLAY Radio mode: Display RDS info
USB and CD: Display track info
41
CLOCK Display time
42
DIM Select display panel brightness
43
P-EQ Adjust the sound
44
RANDOM CD and USB: Random playback
45
INTRO CD and USB: Sample a track
46
CD CD mode
47
TUNER Radio mode
48 Switch the device on or to
standby
91886 GB 20111117.indd 891886 GB 20111117.indd 8 17.11.11 15:4317.11.11 15:43

• KB 20 CR 9
Setup and connection
Location tips
• Select a stable, level base.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connector cables so that they do not pose
a trip hazard.
• Do not place any heavy objects on top of the cables or
the unit.
Connecting the speakers
Use the enclosed speaker cables to connect the speakers.
You can order longer cables if you need them in our web-
shop (www.teufelaudio.com) in the “Accessories” area.
The connector terminals 16 “SPEAKER” for the right (“R”)
and left (“L”) speaker are located on the back side of the
CD receiver.
The terminals are each marked in red (+) and black (-).
Make sure the polarity is correct!
Connect the like-coloured terminal clips with
one another. Otherwise, the sound quality will
suffer. The strands of the speaker cables are marked
with different colours or shapes.
• Split the single-wire down to
approx. 30 mm on both ends
and strip approx. 10 mm of
insulation off of each cord.
Twist the single wire so that
no strands are protruding. Tin
coating is not necessary.
• Flip up the connector terminal lever
up or down to open the terminal.
• Insert the stripped cable end into the
terminal opening and then fold the
lever down again. The cable has now
been clamped in place.
Antenna
Danger Risk associated with lightning strike!
If you are using outdoor or roof antennas, be
absolutely sure that the antenna has lightning
protection.
Connect the antenna for receiving FM/USW stations to
the jack 17 “FM”. This may be a roof/outside antenna,
but also a cable television connection. You will need a
coaxial connector cable for this.
If no antenna connection is available at the location, you
can use the enclosed throw-out aerial
햵. Push the aerial plug into the jack
17 “FM” and adjust the position of
the throw-out aerial for best recep-
tion. Then fix the antenna in place
with adhesive tape.
Audio input
You can connect almost any audio source such as a com-
puter, MP3 player (with/without a dock), video game sys-
tem, television etc. to the RCA jacks 18 “AUX IN” on the
back side of the device. The source device only requires
an output with line control. Such outputs are configured
either as stereo RCA jacks or as 3.5 mm jack plug. You
can connect these devices to the jacks 18 “AUX IN” with
a corresponding connector cable. You can find such
cables in our webshop (www.teufelaudio.com) in the “Ac-
cessories” area.
Connecting to a power supply
Connect the jack 19 on the back side of the device with a
power supply socket via the power cord 햴. The standby
light 1on the front of the device will illuminate in blue.
16 17 18 19
+
–
91886 GB 20111117.indd 991886 GB 20111117.indd 9 17.11.11 15:4317.11.11 15:43

10 • KB 20 CR
Remote control
A 3-volt button cell, type CR2025 is used to power the
remote control.
This battery is already located in the remote control upon
delivery and is insulated with a plastic strip. This plastic
strip is visible on the back side of the remote control. Just
pull it out carefully. The remote control is now ready for
use.
Changing the batteries
• Hold the remote control with the bottom facing up.
• Remove the screw with a Phillips screwdriver.
• Pull the battery compartment out of the remote control.
• Take out the old battery (please follow the notes on
page 19).
• Insert the new battery in the bracket, the symbol “+”
must be visible on the battery and the bracket in the
process.
• Put the bracket back into the unit and push the com-
partment until it locks into place.
• Tighten the Phillips screw to secure.
Functionality
The remote control relays the control signals by means of
infrared light. For this, the remote control must be pointed
towards the device. Make sure that the infrared light is
not obstructed by objects.
Fluorescent lamps and energy saving lamps installed in
the direct vicinity may affect the functions of the remote
control or even impair them.
91886 GB 20111117.indd 1091886 GB 20111117.indd 10 17.11.11 15:4317.11.11 15:43

• KB 20 CR 11
Basic functions
10
32
33
14
47
46
42
43 26
25
22
21
11
1
48
15
Activating and deactivating
• Pushing the button 15 or 48 “ ” switches the CD
receiver to operational or standby mode. In standby
mode, the blue standby light 1on the front of the
device illuminates.
Selecting a source
Once switched on, the last audio source selected is
activated.
Pushing the button 14 “FUNCTION” switches the source
or you can select a source directly with the buttons
• 47 “Tuner” (radio)
• 46 “CD” (CD player)
• 22 “USB” (USB storage device)
• 21 “AUX” (external audio source)
The selected source is shown in the display panel 11.
Adjusting the volume
• With the control 10 “VOLUME” or the button 32 “Vol”
you can adjust the volume as desired.
The selected volume is shown in the display panel 11
in the range from 0 (low) to 30 (high).
Mute
• Turn off the sound with the button 33 “ ”. The mes-
sage “MUTING” will blink in the display panel 11.
• Turn the sound back on: Push the button 33 “ ” again
or adjust the volume.
Adjusting the sound
Important!
The sound programs “LOUDNESS” and
“S-BASS” cannot be combined. Instead they
deactivate one another to prevent overloading the ampli-
fier and speakers, particularly in the bass range.
Equalizer
Pushing the button 43 “P-EQ” cycles through preset sound
patterns: FLAT (unchanged sound), POP, JAZZ, CLASSIC
and ROCK.
Aurally compensated volume
Pushing the button 26 “LOUDNESS” activates and deacti-
vates aurally-compensated volume. When the function is
activated, the symbol “ ” appears in the display panel
11. When the playback is quiet, the sound is fuller.
Bass boost
Pushing the button 25 “S-BASS” activates/deactivates the
boost of low tones and to some degree of the high tones
as well. The message “S-BASS ON” or “OFF” appears in
the display panel 11.
Dimmer
Pushing the button 42 “DIM” adjusts the display panel
brightness. The display changes every time you push the
button: bright, medium, dark.
91886 GB 20111117.indd 1191886 GB 20111117.indd 11 17.11.11 15:4317.11.11 15:43

12 • KB 20 CR
10
32
41 27
11
1
48
15
The integrated clock displays the current time in the
display panel 11. The clock is set manually or via RDS in
radio mode. A sleep function is also available (up to 90
minutes).
Setting the time
Automatically via RDS
Set a radio station with RDS signal (see page 13). After a
few minutes, the CD receiver receives the time signal from
the radio station and sets the clock accordingly.
Manually
If no RDS station is received, you can also set the clock
manually:
• Switch the device to standby mode with the button 15
or 48 “ ” (the blue light illuminates).
• Briefly push the button 41 “CLOCK” once. The current
time will appear in the display panel 11.
• Push and hold the button 41 “CLOCK” for three sec-
onds. The message “CLOCK SET” will appear briefly
in the display panel 11 and then the time “0:00”. The
hours will blink.
• You can set the number of hours with the volume con-
trol 10 “VOLUME” or with the button 32 “Vol +/–”.
• Briefly push the button 41 “CLOCK” once. The number
of minutes will now blink in the display panel 11.
• Set the number of minutes with the volume control 10
“VOLUME” or with the button 32 “Vol +/–”.
• Briefly push the button 41 “CLOCK” once.
The time has now been set.
Reading the time
To read the time, briefly push the button 41 “CLOCK”. The
time will appear in the display panel for 3 or 90 seconds
(in standby).
Sleep function
This function switches the CD receiver off after a preset
time.
• Start the selected playback.
• Push the button 27 “SLEEP/TIMER”. The message
“SLEEP OFF” will appear in the display panel 1.
• Pushing the button 27 “SLEEP/TIMER” again sets the
desired time to deactivate in minutes: 90, 60, 30, 20
or 10, the setting “SLEEP ---” switches off the sleep
function.
Clock
91886 GB 20111117.indd 1291886 GB 20111117.indd 12 17.11.11 15:4317.11.11 15:43

• KB 20 CR 13
Radio playback
Select “Radio” as the source (see page 11). The CD
receiver is capable of receiving mono and stereo stations
in the frequency range from 87.5 to 108 MHz.
The name of the station is shown in the display panel for
stations with an RDS signal, and you can view the pro-
gram type and time by pushing the button 40 “Display”
(not all radio stations offer this service).
Setting the radio stations
Manually
With the buttons 29 “ ” and 39 “ ” you set the tuning
frequency: The frequency is increased or reduced by one
increment (0.05 MHz) each time the button is tipped.
Station scanning
You can start the scan by pushing the buttons 28 “ ”
(up) and 30 “ ” (down). The scan will stop once the first
station with sufficient reception is found.
Mono/stereo
Stations with a weak signal may result in sound interfer-
ence in stereo mode. Pushing the button 7or 23 “Mode”
then switches to mono mode.
Station memory
Your radio can save up to 20 stations. You can conven-
iently select the stations with the push of a button later.
Saving stations
1. Set the desired station as described above.
2. Push the button 35 “PROG”. The message “PROG” will
blink in the display panel.
3. Push the button 37 “ALB +/–” to select the desired
memory slot number or enter it with the number buttons
34 “1 ... 0”. Enter the tens column with the button 36
“10+”.
4. Push the button 35 “PROG”. The station has now been
stored.
Selecting stations from the memory
• Push the button 37 “ALB +/–” to increase or decrease
the memory slot number.
• Enter the desired memory slot number with the number
keys 34 “1 ... 0”. Enter the tens column with the button
36 “10+”.
10
11
1
15
8
7
9
32
34
3536
41
39
37
27
29
23
28
30
48
40
91886 GB 20111117.indd 1391886 GB 20111117.indd 13 17.11.11 15:4317.11.11 15:43

14 • KB 20 CR
Suitable CDs
• Only use commercially-available CDs that carry one of
the adjacent symbols.
• CDs containing MP3 and WMA files can also be read.
• Normal CDs with a diameter of 80 and 120 mm can
be used.
• Normally, self-burned CDs/CDR, CDRW can be read.
However, an excessively high burning speed or low-
quality blank CDs may cause problems. Unfortunately,
the only solution here is trial and error.
• CDs that are produced for industrial use cannot always
be read.
Handling CDs
Each CD is encased in a resistant plastic layer that pro-
tects it against outside influences. However, you still al-
ways have to protect the disc against dirt and scratches.
CD players can compensate small flaws on the CD.
Larger scratches or other damages may result in skipping
or similar errors.
Observe the notes on the CD case for proper handling of
CDs!
Inserting a CD
Attention Risk of damage!
Do not insert multiple CDs on top of one an-
other. Only insert CDs and no other objects.
• Select “CD” as the source (see page 11).
• Push the button 4or 20 “ ”. The tray will eject to the
front.
• Carefully insert the CD with the printed side up in the
depression in the CD tray.
• Push the button 4or 20 “ ” or the button 5or 38 “ ”.
The CD tray will close and the CD is read. The message
“LOADING” will appear in the display panel and play-
back will begin automatically after a few seconds.
The playback functions for CD and USB are identical
and are described in the section “Playback functions” on
page 16.
Ejecting a CD
• Stop playback by pushing the button 6 or 31 “ ”.
• Push the button 4or 20 “ ”. The tray will eject to the
front.
• Take the CD out of the CD tray.
• Push the button 4or 20 “ ”. The CD tray will close.
CD mode
20
31
4
6
91886 GB 20111117.indd 1491886 GB 20111117.indd 14 17.11.11 15:4317.11.11 15:43

• KB 20 CR 15
USB mode
Your new CD receiver can read USB storage devices with
USB 1.0 and 2.0 specifications and capacities up to 32
GB. It can also play music files saved on it in MP3 and
WMA formats.
Important
Do not use any storage devices that exhibit
mechanical damages or have fallen in a liquid.
Do not subject the storage devices to direct sunlight.
Improper use may result in data loss! Backup your
music on your PC.
Inserting and playing a USB stick
• Select “USB” as the source (see page 11).
The message “READ USB” will appear in the display
panel.
• Insert the USB stick in the port 12 “USB”. The plug
only fits the port in one position.
• If there are music files on the stick, playback will begin
automatically.
• If there are no files for playback on the USB stick, the
display panel will stay dark.
The playback functions for CD and USB are identical
and are described in the section “Playback functions” on
page 16.
Removing a USB stick
Attention Risk of damage!
Never remove the USB storage device while the
CD receiver is still accessing it, that is, during
playback or when paused! Before, stop playback with
the button 6 or 31 “ ”.
• Simply pull the stick out of the unit. 31
6
12
91886 GB 20111117.indd 1591886 GB 20111117.indd 15 17.11.11 15:4317.11.11 15:43

16 • KB 20 CR
During playback, the album number appears as two dig-
its in the display panel (file folder only for MP3/WMA),
the number of the current rack and the elapsed time.
By pushing the button 40 “DISPLAY” you can also access
the track name, artist and the album name (only for MP3/
WMA) to the extent this information is available on the
CD or the USB storage device.
• Stop playback: Push the button 5or 38 “
”.
• Continue playback: Push the button 5or 38 “ ”
again.
• Play the next track: Tip the button 8or 28 “ ”.
• Play the previous track: Tip the button 9or 30 “ ”.
• Fast track playback: Push and hold the button 39 “ ”
or 29 “ ”.
Playback occurs without sound; the elapsed time of the
track will appear in the display panel.
Release the button to continue normal playback.
• Only for MP3/WMA – Select the next album (next file
folder): Tip the top part “+” of the button 37 “ALB +/–”.
• Only for MP3/WMA – Skip to the start of the album
or to the previous album: Tip the bottom part “–” of the
button 37 “ALB +/–” several times if necessary.
• Random playback: Push the button 44 “RANDOM”. All
tracks are played in random order and the message
“SHUF” appears in the display panel.
Deactivate function: Push the button 44 “RANDOM”
again.
• Sample function: Push the button 45 “INTRO”. Only the
first 10 seconds of each track are played.
Deactivate function: Push the button 45 “INTRO”
again.
• Stop playback: Push the button 6“ ” or 31 “ ”.
Search by track number
The CD receiver numbers all tracks on a CD or a USB
stick in consecutive order – even if they are stored in dif-
ferent folders. Enter the desired number with the number
buttons 34 “1 ... 0” and edit the tens column with the
button 36 “10+”. The playback will begin.
Repeat function
Pushing the button 7or 23 “MODE” cycles through the
different repeat functions; you will see the selected func-
tion in the display panel:
• REP TRK (blinking) – Repeat the current track.
• REP ALB (blinking, only for MP3/WMA) – Repeat all
tracks for the current album (file folder).
• REP ALL – Play all tracks and start again from the
beginning.
Playback functions (CD, MP3/WMA, USB)
38
29
28
30
39
40
45
44
37
36
31
4
5
8
6
9
34
Elapsed time (3:48)
Track number (002)
Album number (01)
(only for MP3/WMA)
91886 GB 20111117.indd 1691886 GB 20111117.indd 16 17.11.11 15:4317.11.11 15:43

• KB 20 CR 17
Repeat section
With this function you can mark a section for repetition.
1. Start playback.
2. To start the desired section, briefly push the button 24
“A – B”.
3. Briefly push the button 24 “A–B” again at the end of
the desired section.
The section will now be continually repeated.
4. To continue normal playback, briefly push the button
24 “A–B” again.
Playlist playback
You can program up to 20 tracks for playback in the
desired order you specify. You can also enter a track on
the playlist several times.
Creating a playlist
Do not push the stop button 6“ ”or 31 “ ” during
programming. Otherwise, the program/playlist will be
deleted.
1. Push the button 35 “PROG”.
The number of the playlist slot (“P–00”) will appear on
the right of the display panel and the message “PROG”
will blink.
2. Set the first track number:
• Make your entry with the button 36 “10+” for the
tens column and the number buttons 34 “1 ... 0” or
• select the album (MP3/WMA only) with the button
37 “ALB +/–” and then select the track number with
the button 8or 28 “ ” and 9or 30 “ ”.
3. Push the button 35 “PROG”.
The number of the next playlist slot (e.g. “P–01”) will
appear on the left of the display panel.
4. Enter all desired tracks this way.
Playing the playlist
• After you have entered the last track, start the playlist
with the button 5or 38 “
”.
All tracks programmed are played in the order of
entry. The message “PROG” will appear in the display
panel.
• To stop playlist playback, briefly push the stop button
6“ ” or 31 “ ” once – the program will remain saved
in the process.
Deleting a playlist
• Push the button 6“ ”or 31 “ ” twice during playlist
playback or once in stop mode.
The message “PROG” will disappear from the display
panel.
38
28
30
23
24
37
36
31
35
7
5
8
6
9
34
91886 GB 20111117.indd 1791886 GB 20111117.indd 17 17.11.11 15:4317.11.11 15:43

18 • KB 20 CR
Troubleshooting
The following advice should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3).
Take note of the warranty instructions.
Problem Possible cause Solution
The CD receiver is not
working, the display panel
is dark.
The CD receiver has no power. Check the power cord and socket.
The CD receiver is not
working, but the display
panel is on.
The volume has been set too low. Increase the volume with the control 10 “VOL-
UME” or 32 “Vol +”.
No CD playback and/or
“NO DISC” appears.
No disc inserted. Insert a CD.
Disc inserted upside down. Insert the disc with the labelled side up.
CD damaged or dirty. Clean or change the disc.
Condensation in the device. Remove the disc and do not use the device for
one to two hours.
No or distorted music
playback.
The data storage device contains files in a
format other than MP3 or WMA.
Delete the incorrect files.
File damaged. Delete or skip file.
Remote control doesn’t
work.
No line of sight between the remote con-
trol and the device.
Remove any obstacles.
Remote control not pointed properly. Point the remote control towards the device.
Battery inserted in the remote control with
incorrect polarity.
Insert the battery the right way around (see
page 10).
Battery in the remote control is empty. Insert a new battery (see page 10).
Care and cleaning
Clean the CD receiver and the remote control regularly
with a soft, damp microfibre cloth. When doing so,
please be absolutely sure to observe the following instruc-
tions:
Danger Risk of electric shock!
In contact with live parts, water can lead to
electric shock or short circuit.
• Make sure that no liquid penetrates the unit.
• Disconnect the mains plug before cleaning.
Attention Risk of damage!
Using the wrong cleaning materials may dam-
age the delicate surface of the case.
• If possible, only use plain water without any additives.
In case of stubborn marks, a mild soap solution may
be used.
• In no circumstances should caustic cleaning products,
white spirit, thinners, petrol or similar be used for
cleaning.
How to clean your CDs
Only clean your CDs with cleaners
designated for this purpose.
If necessary, carefully wipe off the
disc with a soft, lint-free cloth from the
middle to the edge. In the process,
hold the disc between your index
finger and thumb of the other hand.
Touching the playback side of the disc
could cause playback problems.
91886 GB 20111117.indd 1891886 GB 20111117.indd 18 17.11.11 15:4317.11.11 15:43

• KB 20 CR 19
Technical data
Operating voltage: 230 V / 50 Hz
Power consumption: Operation: max. 60 watts
Standby mode: < 1 watt
Dimensions (W x H x D): 15.9 x 7.8 x 28 cm
Net weight: 1530 g
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC.
Technical changes reserved!
Disposing the unit
Used units must not be disposed of with house-
hold waste.
If the unit is no longer operational, every
consumer is required by law to dispose of used
devices separately from household waste,
e.g. at a collection point run by the communal authority
borough. In this way it is ensured, that used devices are
properly recycled and that negative consequences on the
environment are avoided.
For this reason, electrical equipment is labelled with the
displayed symbol.
Protecting the environment
Batteries and rechargeable batteries
Batteries and rechargeable batteries must
not be disposed of with household waste!
Every consumer is required by law to bring all
batteries and rechargeable batteries, whether
they contain harmful substances*) or not, to a collection
point run by the communal authority or borough or run
commercially, so that they can be disposed of in an envi-
ronmentally friendly manner.
Please only hand in fully discharged batteries and re-
chargeable batteries!
*) labelled with: Cd = Cadmium, Hg = Mercury,
Pb = Lead
91886 GB 20111117.indd 1991886 GB 20111117.indd 19 17.11.11 15:4317.11.11 15:43

Instruction No. 9188 6 G B 20111117
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
No liability is accepted for the
accuracy of this information. Tech-
nical changes, typographical errors
and other errors reserved.
Tel.: [phone] (toll-free)
Fax: [phone]
www.teufelaudio.com
91886 GB 20111117.indd 2091886 GB 20111117.indd 20 17.11.11 15:4317.11.11 15:43
