TFI CLM-855WS User manual

CLM-855WS
Lat/Low Row Combo Machine
w/200 Lbs. Weight Stack
CLM-855WS_Rev0
Revision Date 4-22-2014
OWNER’S MANUAL
Maintenance & Assembly Instructions
IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
TUFFSTUFF FITNESS INTERNATIONAL
NOTICE
It is the Purchaser’s/Owner’s obligation:
1. To disclose and post all Rules & Regulations, Danger, Warning and Caution
labels axed on the machine to their customers/users.
2. Equipment to be installed by TFI Authorized Dealer or a service
company approved by TFI.
3. Provide trained personnel, supervision and correct usage of the equipment.
4. Provide scheduled inspection, maintenance & repairs and must be performed
by TFI Authorized Dealer or a service company approved byTFI.
5. Must use only genuine TFI replacement parts.
6. Machine must be anchored to a solid and level surface.

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com2
Table of Contents
TuStu Fitness International Inc. continually engages in research related to product improvements. Please take the time to carefully read through
this owner’s manual thoroughly. Instructions contained in this owner’s manual are not intended to cover all details or variations possible with
equipment, or to cover every contingency that may be met in conjunction with assembly, installation, operation, maintenance or troubleshooting of
the equipment. Eventhough we have prepared this owner’s manual with extreme care, neither the manufacturer nor the author can accept
responsibility for any errors in, or omission from, the information given. Should additional information be required, or should situations arise that are
not covered by this owner’s manual, the matter should be directed to Customer Service at TuStu Fitness International Inc. in Chino, California.
Overhead Specications.................................................................................Page 3
Danger, Warning, & Caution Labels Information ...............................Page 4-7
Anchoring ............................................................................................................Page 8
Important Safety Instructions.......................................................................Page 9
Registration, Service & Aassembly........................................................... Page 10
Inspection/Maintenance ............................................................................. Page 11

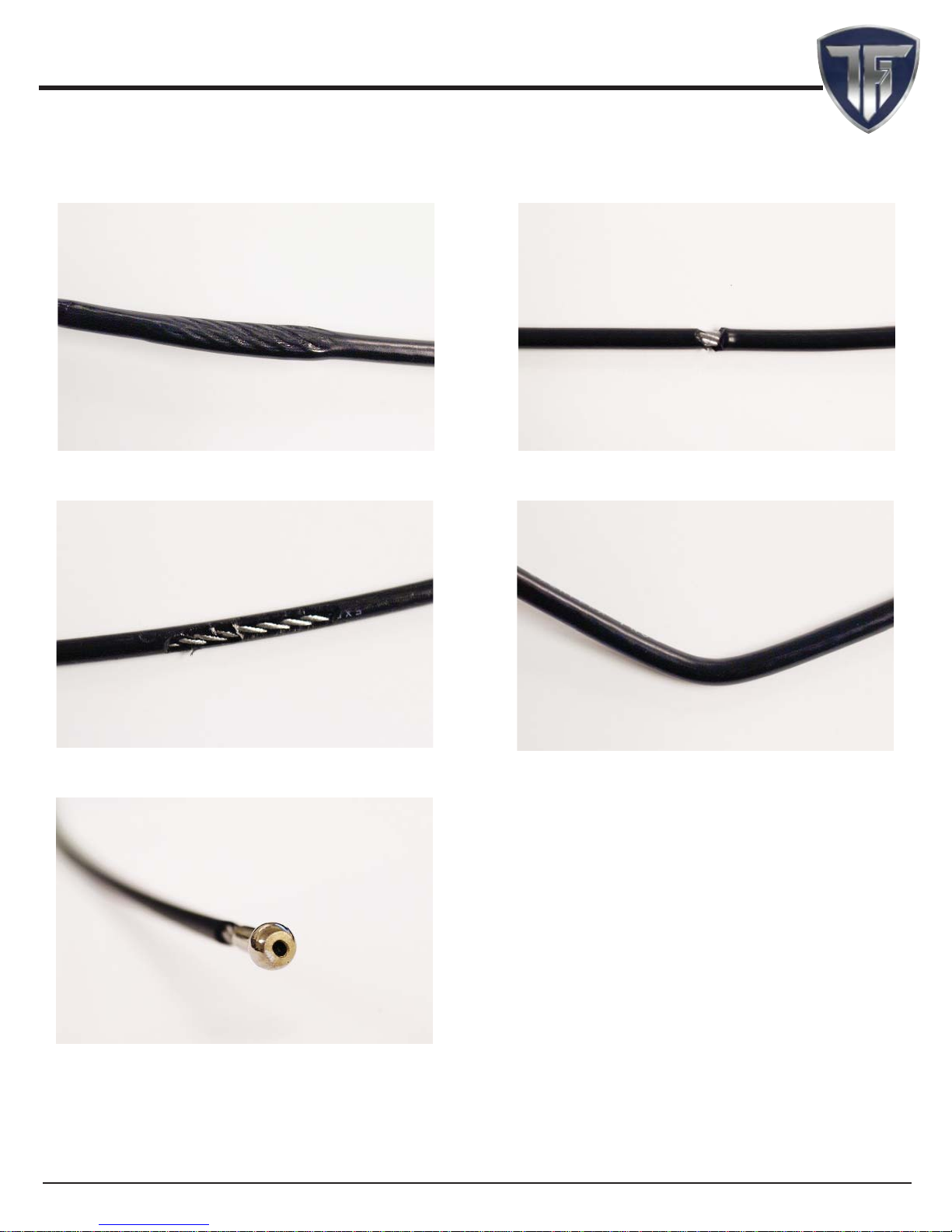

Cable Inspection............................................................................................. Page 12

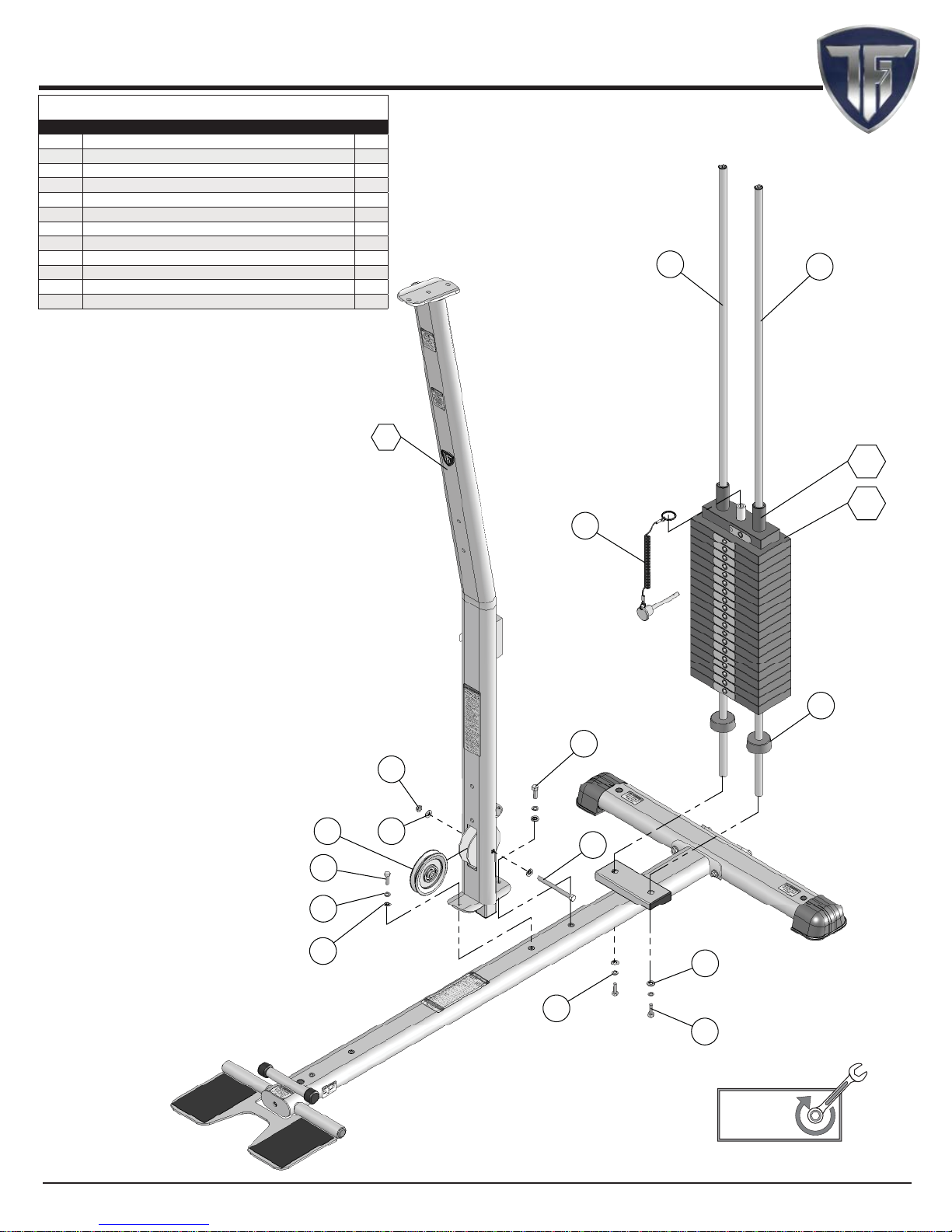

STEP 1 ................................................................................................................. Page 13
STEP 2 ................................................................................................................. Page 14
STEP 3 ................................................................................................................. Page 15
STEP 4 ................................................................................................................. Page 16
STEP 5 Cable Routing.................................................................................... Page 17
STEP 6 ................................................................................................................. Page 18
Parts List............................................................................................................. Page 19
Pre-Assembled Components ...............................................................Page 20-23
Warranty ............................................................................................................ Page 24

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com 3
Overhead Specications
L 77” X W 46”X H 83”
PRODUCT WEIGHT 345 lbs
MAX-LOAD WEIGHT LIMIT - 200 lbs

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com

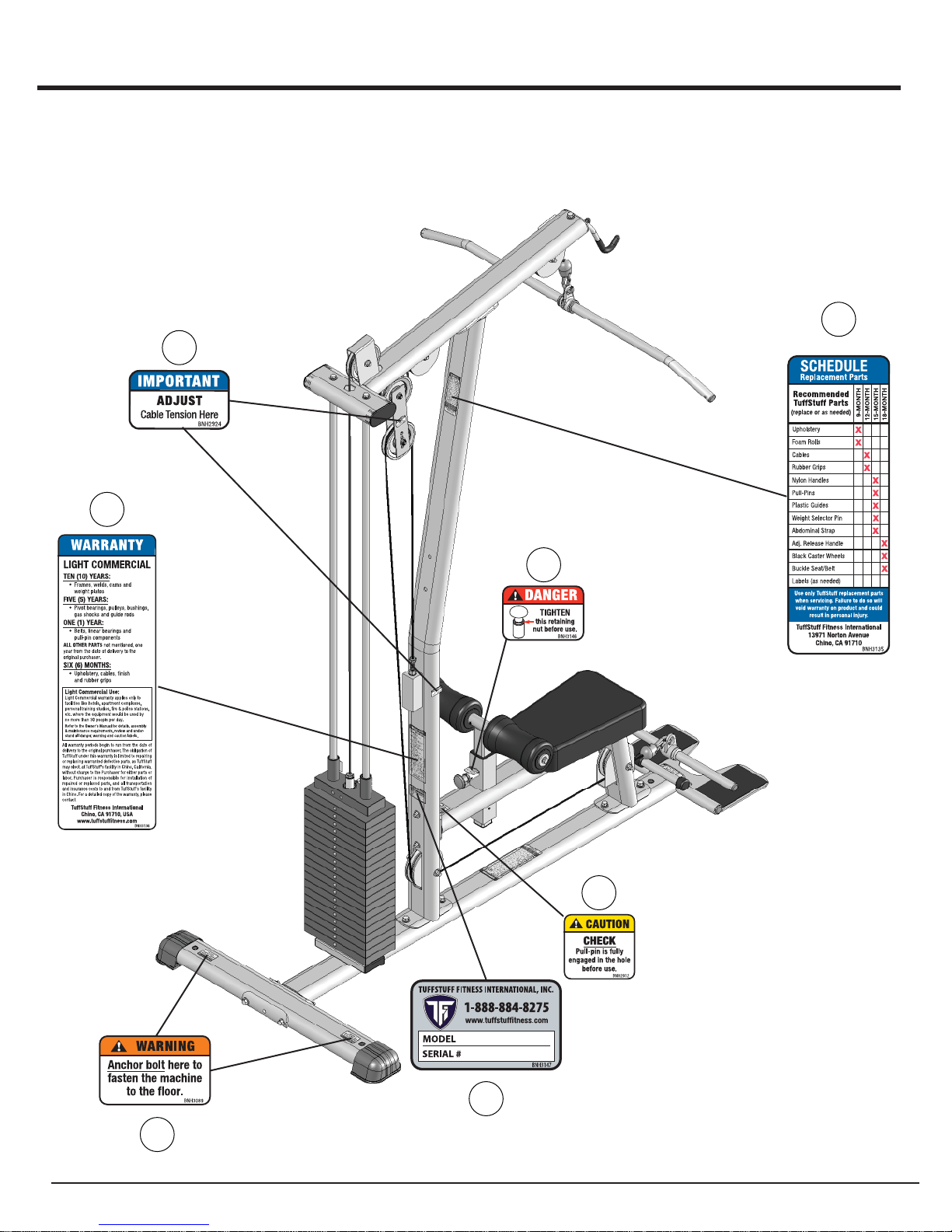

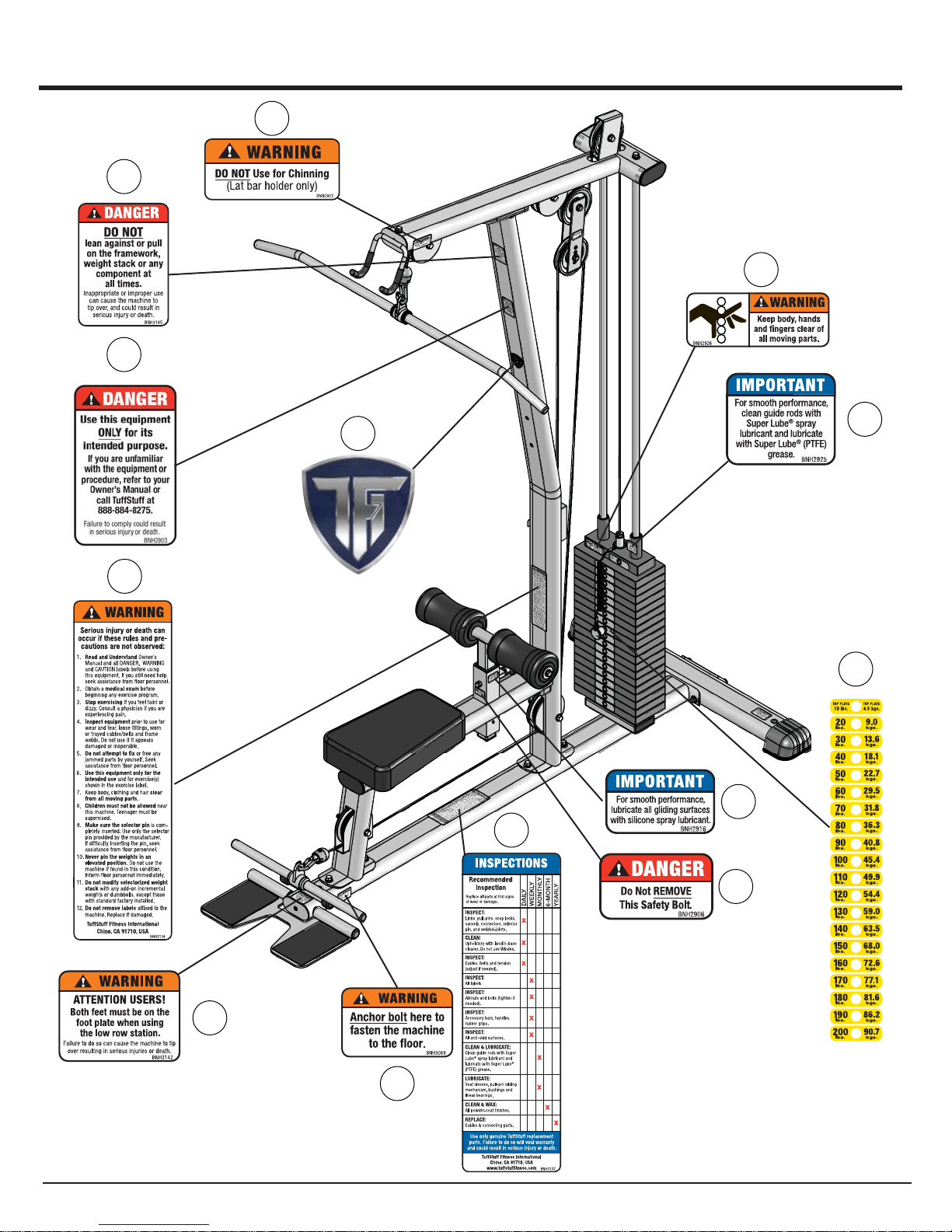

Carefully read ALL Danger, Warning & Caution labels posted on the machine
4
65
74
69
64
70
67
68
73
46
79
76
61
72

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
Carefully read ALL Danger, Warning & Caution labels posted on the machine
5
62
61
71
63
78
66
75

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com6
Carefully read ALL Danger, Warning & Caution labels posted on the machine
65
7469
64
76
79
71
78
75

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
It is extremely important that the Alert Sign for home shown to
the left be installed in plain view of the unit.
You should have received it along with this Owners Manual. If
you did not receive this Alert Sign for home with your order, you
can obtain one at no cost to you from TuStu Fitness by
contacting our service department at:
1 [phone]
service@tustu.net
service1@tustu.net
Carefully read ALL Danger, Warning & Caution labels posted on the machine
7
70
67 68
73
72
62
77
61
63
6646
76

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
Anchoring
8
Holes on frame are provided for anchoring the unit to the oor. (See anchoring hole locations below)

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
Important Safety Instructions
It is the responsibility of the facility owner and/or owner of the equipment to review the Owner’s Manual with their facility
personnel and understand all Danger, Warning and Caution labels axed on the machine. It is the responsibility of the oor
personnel to instruct users on proper operation of the equipment and review all danger, warning and caution labels.
SERIOUS INJURY OR DEATH CAN OCCUR
IF THESE SAFETY PRECAUTIONS ARE NOT OBSERVED:
1. Obtain a medical exam before beginning any exercise program.
2. Read and understand Owner’s Manual and all Danger, Warning
and Caution labels before using this equipment. If you still need
help, seek assistance from oor personnel.
3. Inspect the equipment before each use for wear and tear, loose
ttings, worn or frayed cables and frame welds. DO NOT USE if it
appears to be inoperable or damaged.
4. Stop exercising if you feel faint or dizzy. Consult a physician if you
are experiencing pain.
5. Use this equipment only for the intended use.
6. Keep body, clothing and hair clear from all moving parts. Do not
attempt to free any jammed parts by yourself.
7. Always warm-up before and cool-down after weight training.
Warm-up for 10-15 minutes with stretching and cardiovascular
exercises. Cool-down should include light stretching exercises for
5-15 minutes.
8. Never hold your breath – will limit the ow of oxygen to your brain
and may cause dizziness. The most often used breathing pattern is
inhaling during least resistance and exhaling during maximum
resistance.
9. Do not use accessories or accessory attachments that are not
recommended by TFI.
10. Make sure selector pin is completely inserted. Use only the selector
pin provided by the manufacturer.
11. Never pin the weights in an elevated position. Do not use the
machine if found in this condition.
Facility Safety Guidelines and Practices
1. Read and understand the Owner’s Manual before assembling,
servicing or using the equipment.
2. Equipment to be installed by TFI Authorized Dealer or
Professional Service Company approved by TFI.
3. Make sure each machine is set up and operated on a solid level
surface. Do not install equipment on an uneven surface.
4. Anchoring of equipment must be completed at time of
installation and inspected prior to use. Failure to anchor the
machine to the oor could cause the machine to tip or fall over
due to incorrect usage and misuse, and could result in serious
injury or death.
DANGER: indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
CAUTION: indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
5. Provide an adequate safety perimeter between the machine,
walls and other equipment to ensure that the facility has proper
clearance for usage and training.
6. Post and disclose all safety, rules and regulations on a bulletin
board easily accessible to users.
7. Perform regular maintenance (see Inspection Label). Pay special
attention to areas most susceptible to wear and tear, including but
not limited to cables, pulleys and rubber grips.
8. Do not lean against or pull on the framework, weight stack or
any component at all times.
9. Children must not be allowed near the equipment. Teenager must
be supervised.
10. Replace immediately all parts at rst sign of wear or damage. If
unable to replace worn or damaged components/parts, remove
machine from service until the repair is made.
11. Use only genuineTuStu replacement parts. Failure to do so will
void warranty and could result in serious injury or death to the users.
12. Do not remove any decals axed to the machine. Replace if
damaged.
13. Do not alter or modify the original manufacturer’s weight stack
with any add-on incremental weights, weight plates or
dumbbells except those with standard factory installed option.
14. Maintain a service contract with a TFI Authorized Dealer or a
Professional Service Company approved by TFI. Keep a service
log of all maintenance and repair activities. NOTICE: It is the sole
responsiblity of the owner or facility operator to ensure that regular
maintenance is performed.
9

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
Thank you for purchasing the CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack. This machine is part of the
TuStu line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s Manual thoroughly.
Required Tools
The basic tools that you will need to assemble the CLM-855WS but are
not limited to:
• 9/16”, 3/4”, 1/2”combination wrenches
• Adjustable wrench
• Ratchet wrench with 9/16”, 3/4”, 1/2”sockets
• External retaining ring pliers
• Rubber mallet, measuring tape & utility knife
• Super Lube® spray lubricant and grease
• Windex or household glass cleaner
Assembly Requirements
Follow these installation requirements when assemblying the CLM-
855WS. Use the overhead view on the Content Page to layout your oor
plan before assemblying.
Set up the CLM-855WS on a clean, solid, at surface. A smooth, at
surface under the machine helps keep it level.
Allow ample space around the machine for safe unrestricted use and
easier access.
Insert all bolts in the same direction. For aesthetic appearance, insert all
bolts in the same direction unless specied (in text or illustration) to do
otherwise.
Leave room for adjustments. Do not fully tighten fasteners until
instructed in the assembly steps to do so (to prevent any diculty with
alignment of parts during the assembly process). When not instructed,
tighten fasteners such as bolts, nuts and screws so the unit is stable, but
leave room for adjustments.
Assembly Tips
Read all“Notes”on each page before beginning each step.
While you may be able to assemble the CLM-855WS using the illustra-
tions only, IMPORTANT safety notes and other tips are included in the
text.
Some pieces may have extra holes that you will not use. Use only those
holes indicated in the instructions and illustration.
NOTE: With so many assembled parts, proper alignment and
adjustment is critical.While tightening the nuts and bolts,
be sure to leave room for nal adjustments.
CAUTION: Obtain assistance fromTFI if you have diculty
assemblying the CLM-855WS. Please do not attempt to
complete the assembly as this could result in equipment
failure and serious injuries to the users.

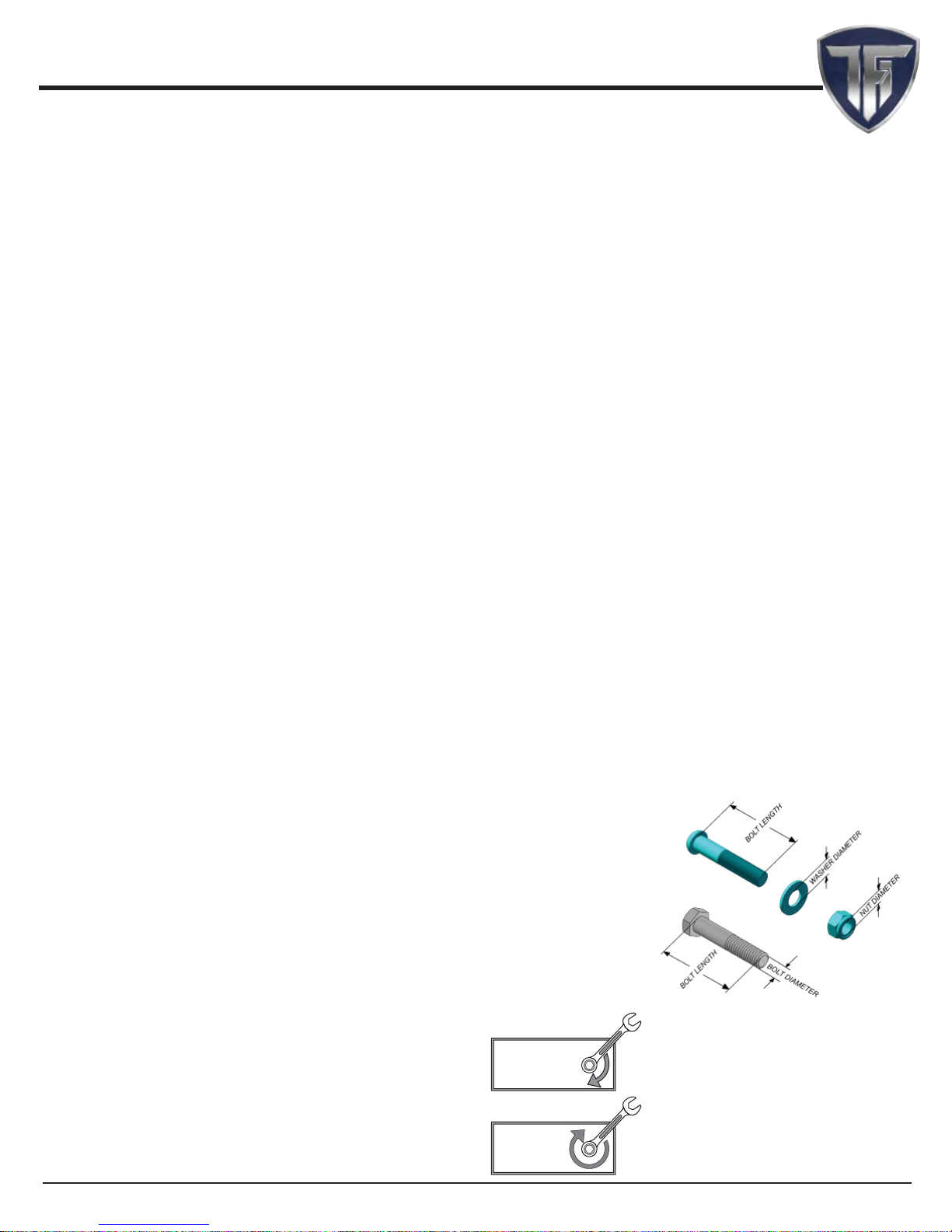

Symbols & Description
Registration, Service & Assembly
Loosely Tighten
70%
100%
Fully Tighten
Loosely Tighten
Loosely tighten all hardware in this step. DO NOT Fully
Tighten. Some component(s) may need pre-assembly
and or alignment during the assembly process.
Fully Tighten
Wrench tighten all hardware in this step.
10
Registration
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on le with our company, be
sure to register online at http://www.tustutness.com or mail to
address shown below within 10 days of purchase.
Obtaining Service
Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part number
and description from this owner’s manual. Use only genuine TuStu
replacement parts when servicing the equipment. Failure to do
so will void warranty and could result in serious injury or death.
For information about product operation or service:
Phone: [phone] Toll Free 888-884-8275
Fax: [phone]
E-mail: service@tustu.net or service1@tustu.net
Hours: M–F 8:00 – 4:30 PST
Or write to: TuStu Fitness International Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710
Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:
1. Model Number 2. Place of Purchase
3. Serial Number 4. Part # and Description

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
Perform regular maintenance (see Inspection Label). Pay special attention to areas most susceptible to wear and tear, including
but not limited to cables, pulleys and rubber grip. TFI recommends you maintain a service contract with a TFI Authorized Dealer or a
Professional Service Company approved by TFI. Keep a service log of all maintenance and repair activities. Extra copies can be downloaded
from our website www.tustutness.com
Inspection/Maintenance
INSPECTION / MAINTENANCE RECORDS
DATE REPLACEMENT REPAIRS INSPECTED BY
WARRANTY REPAIRS
DATE REPLACEMENT REPAIRS INSPECTED BY
11

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
Cable Inspection
WARNING:
THE FOLLOWING CONDITIONS MAY INDICATE A WORN CABLE. REPLACE IMMEDIATELY.
IMPORTANT NOTE:
DAMAGED OR WORNED CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S). YOU MUST INSPECT
THE PULLEYS AT THIS TIME FOR WEAR AND TEAR. REPLACE IF NEEDED.
“NECKING”, STRETCHED CABLE COVERING
A TEAR IN THE CABLE COVER
CABLE END SLIPPING OUT
A CRACK IN THE CABLE COVER
A BREAK ON THE CABLE
12

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com

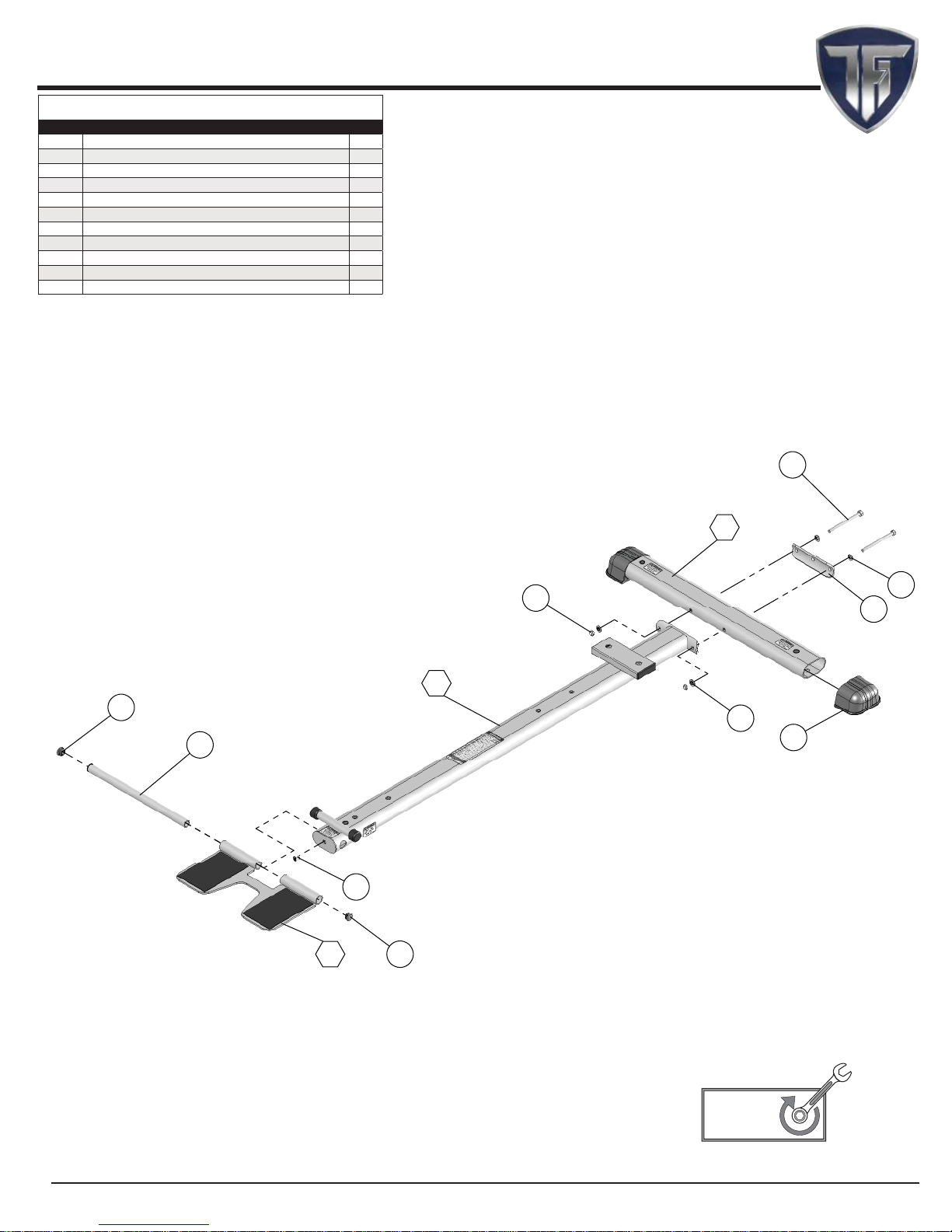

Step 1
ş
ȘŘ
ȘŞ
Șŗ
řř
ŚŖ
ŘŘ
ŚŖ
řŝ
Śŝ
Śŝ
ŗş
řŜ
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
13
Step 1 Assembly List
Item # Description Qty.
*1 STABILIZER 1
*2 BASE FRAME 1
*8 LOW ROW FOOT SUPPORT 1
9 FOOT ROLL TUBE 1 X 16 1
19 REINFORCEMENT PLATE 1/4 X 2 X 7 (BEND) 1
22 PLASTIC HORIZONTAL ELLIPTICAL SHOE W/LOCK 2
33 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5 2
36 SOCKET SET SCREW Z/P 3/8-16 X 3/4 1
37 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 2
40 FLAT WASHER SAE Z/P 3/8” 4
47 PLASTIC INSERT CAP 1” RD 10-12 GA 2

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
ŘŖ ŘŖ
ȘŚ
ȘŘŗ
ȘśŜ
Řś
řŘ
ŚŖ
Řş
ŚŖ
řŞ
ŗŝ
Řş
řŝ
řŞ
ŚŖ
Řş
Řř
Step 2 Assembly List
Item # Description Qty.
*4 CENTER POST 1
17 BLK NYLON PULLEY WIDEGROOVE 3/8 X 1 X 4 1/2 1
20 GUIDE ROD 3/4 X 73 1/8 2
*21 10 LB TOP PLATE W/22” SLTR BAR 1
23 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 1
25 RUBBER DONUT 3/4 X 2 1/2 2
29 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 4
32 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4 1/2 1
37 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 1
38 SPLIT LOCK WASHER Z/P 3/8” 4
40 FLAT WASHER SAE Z/P 3/8” 6
*56 10 LB STEEL WEIGHT PLATE BLACK 19
Step 2
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
14

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
řŝ
ŚŖ
řŝ
ŗŝ
řŝ
řŗ
ŚŖ
řŞ
ŚŖ řŖ
ŗŝ řŖ
ŗŝ řŖ
řŞ
ŚŖ
Řş
Șś
ȘŜ
řŗ
ŚŖ
řŝ
ŚŖ
Řş
ŚŖ
řŞ
řŝ
řŘ
ŗŝ ŚŖ
Șř
Șŝ
Řş
řŞ
ŚŖ
ŘŞ
Şř
ŞŚ

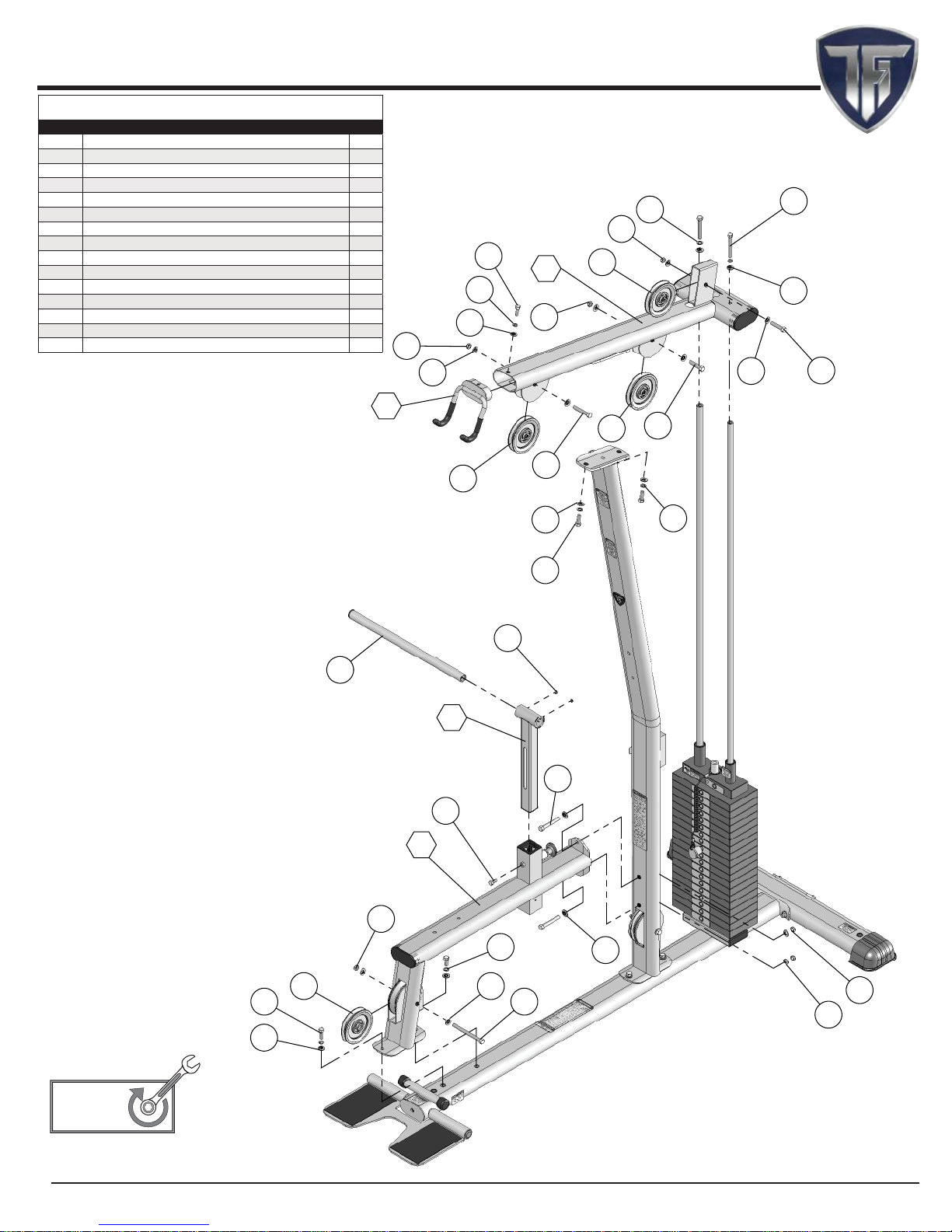

Step 3
15
Step 3 Assembly List
Item # Description Qty.
*3 BENCH FRAME 1
*5 TOP ASSEMBLY 1
*6 ADJUSTABLE TUBE 1
*7 LAT BAR HOLDER 1
17 BLK NYLON PULLEY WIDEGROOVE 3/8 X 1 X 4 1/2 4
28 HEX HEAD CAP SCREW Z/P 5/16-18 X 1 1
29 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 5
30 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4 3
31 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 4
32 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4 1/2 1
37 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 6
38 SPLIT LOCK WASHER Z/P 3/8” 5
40 FLAT WASHER SAE Z/P 3/8” 19
83 FOOT ROLLTUBE 1 X 18 1/4 1
84 SOCKET SET SCREW Z/P 1/4-20 X 1/4 2
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Note:
1. Make sure item #83 is centered.

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
Step 4
16

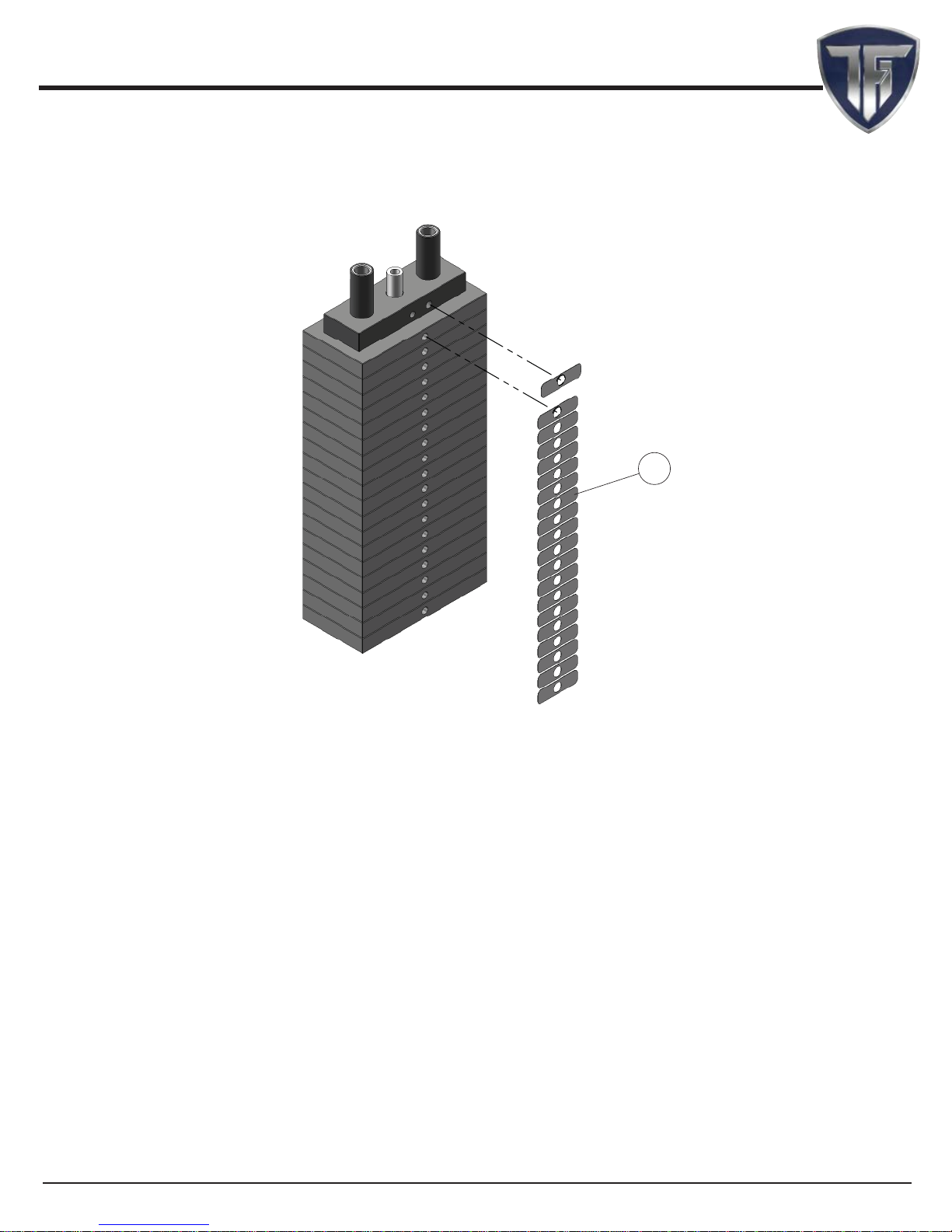

Weight stack label and lubrication instructions
1. Wipe front surface of weight stack with rubbing alcohol and wipe dry.
2. Peel o back sheet (adhesive side) from label (#70) and make sure that the label remains
attached to the application tape.
3. Line up left edge of label sheet with outside edge of weight holes.
4. Line up the rst label to hole on top plate.
5. Make sure label is straight and slowly press into place.
6. Gently remove application tape and rub each label rmly against the weight stack.
7. Allow labels to stand for 2 days to allow adhesive to cure fully.
8. Open the lube package provided and apply a thin lm of lubricant around the rst 3 inches
of the guide rods above the top plate.
9. After the cables are installed, do a set of reps to spread the lubricant thoroughly.
NOTE:
1. TOP PLATE LABEL GOES ON HOLE OFF CENTER AS
SHOWN. LABEL WILL COVER HOLE ON CENTER.
70

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
26
26 26
23
12
13
49
13
50
39
43
44
45
12
*11
*10
12
35
39 *21
Step 5 Cable Routing
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Step 5 Assembly List
Item # Description Qty.
*10 LAT BAR 1
*11 LOW ROW BAR 1
12 LAT CABLE 1
13 LOW ROW CABLE 1
*21 10 LB TOP PLATE W/22” SLTR BAR 1
24 COIL CHAIN Z/P 3/16 X 21 1
26 SNAP LINK Z/P 8MM X 80MM 3
35 SPLIT BOLT GR-8 Z/P 1/2-13 X 1 (RND CUT) 1
39 SPLIT LOCK WASHER Z/P 1/2” 2
43 CABLE STOPPER SHELL 1 1/2 X 1 3/4 2
44 OVAL HEAD PHILLIPS MACHINE SCREW Z/P #10-32 X 1 1/8 2
45 7/8 RD X 1 5/8 LINK (3/16 CABLE) 2
49 SPLIT HEX TAP BOLT GR-5 B/O 1/2-13 X 3 1/2 1
50 FINISHED HEX NUT B/O 1/2-13 1
17

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
ŗŚ
řŚ
řŞ
Řŝ
ŗś
ŗś
Řŝ
řŞ
řŚ
ŚŖ
řŗ
ŗŚ
ŚŖ
řŗ
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Step 6
Step 6 Assembly List
Item # Description Qty.
14 UPHOLSTERY PAD 2
15 FOAM FOOT ROLL 1 X 4 X 7 W/VINYL 2
27 ALUMINUM WASHER .390 ID X 1.500 OD X .150 THK 2
31 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 4
34 BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 2
38 SPLIT LOCK WASHER Z/P 3/8” 2
40 FLAT WASHER SAE Z/P 3/8” 4
18

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stack www.tustutness.com
Parts List
19
CLM-855WS REV0
Item No. Description Rev. Part No. Qty. Item No. Part No. Qty.
1STABILIZER 0 UP8340 1 43 BNH4230 2
2BASEȱFRAME 0 UP8341 1 44 BNH2793 2
3BENCHȱFRAME 0 UP8342 1 45 7/8ȱRDȱXȱ1ȱ5/8ȱLINKȱ(3/16ȱCABLE) BNH4232 2
4CENTERȱPOST 0 UP8343 1 46 LABELȬWARNINGȱCLMȬ855WSȱFOOTȱPLATE BNH3142 1
5TOPȱASSEMBLY 0 UP8344 1 47 PLASTICȱINSERTȱCAPȱ1ȈȱRDȱ10Ȭ12ȱGA BNH3271 6
6ADJUSTABLEȱTUBE 0 UP8345 1 48 SOCKETȱSETȱSCREWȱZ/Pȱ10Ȭ32ȱXȱ1/8 BNH2088 1
7LATȱBARȱHOLDER 0 UP8305 1 49 SPLITȱHEXȱTAPȱBOLTȱGRȬ5ȱB/Oȱ1/2Ȭ13ȱXȱ3ȱ1/2 BNH1131 1
8LOWȱROWȱFOOTȱSUPPORT 0 UP8346 1 50 FINISHEDȱHEXȱNUTȱB/Oȱ1/2Ȭ13 BNH0201 1
9FOOTȱROLLȱTUBEȱ1ȱXȱ16 0 UP8347 1 51 PLASTICȱINSERTȱCAPȱ1ȱ1/2ȈȱSQȱ10Ȭ14ȱGA BNH0009 2
10 LATȱBAR BNH0295 1 52 PUSHȱPULLȱPINȱ1/2ȱXȱ2ȱ3/4ȱDRILLEDȱASSY BNH1151 1
11 LOWȱROWȱBAR BNH0294 1 53 NYLONȱSNAPȬINȱFINISHINGȱPLUGȱ9/16ȈBNH1859 3
12 LATȱCABLE 0 UP8348 1 54 PLASTICȱSTOPPERȱ1ȱIDȱXȱ1ȱ3/8ȱODȱXȱ1BNH2053 2
13 LOWȱROWȱCABLE 0 UP8349 1 55 PLASTICȱTUBEȱGLIDEȱ2ȱXȱ1ȱXȱ8BNH1874 2
14 UPHOLSTERYȱPAD 0 UP8350 2 56 10ȱLBȱSTEELȱWEIGHTȱPLATEȱBLACKȱ4ȱ9/16ȱXȱ9ȱ7/16ȱASSY BNH1650 19
15 FOAMȱFOOTȱROLLȱ1ȱXȱ4ȱXȱ7ȱW/VINYL 0 UP8168 2 57 NYLONȱBUSHINGȱ25/32ȱIDȱXȱ1ȱ1/16ȱODȱXȱ29/32 BNH0532 42
16 FOAMȱROLLȱ1ȈȱNYLINERȱBUSHING BNH2025 4 58 ROLLȱPINȱB/Oȱ5/16ȱXȱ2BNH0668 1
17 BLKȱNYLONȱPULLEYȱWIDEGROOVEȱ3/8ȱXȱ1ȱXȱ4ȱ1/2 BNH2834 7 59 SAFETYȱTAPEȱANTIȬSLIPȱ4ȱ9/16ȱXȱ7ȱ1/4 BNH2054 4
18 ADJȱPULLEYȱPLATEȱ1/8ȱXȱ2ȱXȱ90 UP0092 2 60 YELLOWȱGRIPȱ1/2ȱXȱ4ȱ7/8 BNH1514 2
19 REINFORCEMENTȱPLATEȱ1/4ȱXȱ2ȱXȱ7ȱ(BEND) 0 UP8170 1 61 LABELȬWARNINGȱANCHORȱBOLT,ȱ2ȱXȱ1ȱ1/4ȈBNH3089 3
20 GUIDEȱRODȱ3/4ȱXȱ73ȱ1/8 0 UP8351 2 62 LABELȬTFIȱSERIALȱNO.ȱ2.5ȱXȱ1.5 BNH3147 1
21 10ȱLBȱTOPȱPLATEȱW/22ȈȱSLTRȱBARȱ19ȱBLKȱWTSȱASSY BNH2020 1 63 LABELȬCAUTIONȱCHECKȱȱPULLȬPINȱISȱFULLY...ȱ1ȱ1/2ȱXȱ1ȱ3/8 BNH2912 1
22 PLASTICȱHORIZONTALȱELLIPTICALȱSHOEȱW/LOC
K
BNH3236 2 64 LABELȬDANGERȱDOȱNOTȱLEANȱAGAINSTȱORȱPULL... BNH3145 1
23 SELECTORȱPINȱW/COILȱ3/8ȱXȱ4ȱGOLDȱKNOB 0 UP3035 1 65 LABELȬDANGERȱUSEȱTHISȱEQUIPMENTȱONLY...ȱBNH2903 1
24 COILȱCHAINȱZ/Pȱ3/16ȱXȱ21ȱȱ BNH1262 1 66 LABELȬIMPORTANTȱADJUSTȱCABLEȱTENSIONȱHERE BNH2924 2
25 RUBBERȱDONUTȱ3/4ȱXȱ2ȱ1/2 BNH0068 2 67 LABELȬIMPORTANTȱFORȱSMOOTHȱPERFORMANCE... BNH2916 1
26 SNAPȱLINKȱZ/Pȱ8MMȱXȱ80MM BNH0065 3 68 LABELȬIMPORTANTȱFORȱSMOOTHȱPERFORMANCE… BNH2925 1
27 ALUMINUMȱWASHERȱ.390ȱIDȱXȱ1.500ȱODȱXȱ.150ȱTHK BNH1541 2 69 LABELȬINSPECTIONSȱRECOMMENDEDȱINSPECTION… BNH3137 1
28 HEXȱHEADȱCAPȱSCREWȱZ/Pȱ5/16Ȭ18ȱXȱ1BNH4140 1 70 LABELȬNUMBERSȱ10Ȭ200ȱLBS/KGSȱ7/8ȱXȱ3ȱYELLOWȱ&ȱBLACK BNH4069 1
29 HEXȱHEADȱCAPȱSCREWȱGRȬ5ȱZ/Pȱ3/8Ȭ16ȱXȱ1BNH2037 9 71 LABELȬSCHEDULEȱREPLACEMENTȱPARTS… BNH3135 1
30 HEXȱHEADȱCAPȱSCREWȱGRȬ5ȱZ/Pȱ3/8Ȭ16ȱXȱ1ȱ3/4 BNH2040 5 72 LABELȬWARNINGȱDOȱNOTȱUSEȱFORȱCHINNING... BNH2923 1
31 HEXȱHEADȱCAPȱSCREWȱGRȬ5ȱZ/Pȱ3/8Ȭ16ȱXȱ2ȱ3/4 BNH2045 8 73 LABELȬWARNINGȱKEEPȱBODY,ȱHANDS... BNH2926 1
32 HEXȱHEADȱCAPȱSCREWȱGRȬ5ȱZ/Pȱ3/8Ȭ16ȱXȱ4ȱ1/2 BNH2052 2 74 LABELȬWARNING_SERIOUSȱINJURYȱORȱDEATH BNH3134 1
33 HEXȱHEADȱCAPȱSCREWȱGRȬ5ȱZ/Pȱ3/8Ȭ16ȱXȱ5BNH2051 2 75 LABELȬWARRANTYȱLIGHTȱCOMMERCIAL BNH3136 1
34 BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱZ/Pȱ3/8Ȭ16ȱXȱ1 BNH2033 2 76 TFIȱEMBLEMȱ1.88ȱHIGHȱXȱ1.98ȱWIDEȱBLUEȱANDȱCHROME BNH4304 1
35 SPLITȱBOLTȱGRȬ8ȱZ/Pȱ1/2Ȭ13ȱXȱ1ȱ(RNDȱCUT) BNH0479 1 77 FACILITYȱSIGNȱBEȱALERT!ȱTHEȱFITNESSȱEQUIPMENT... BNH3138 1
36 SOCKETȱSETȱSCREWȱZ/Pȱ3/8Ȭ16ȱXȱ3/4 BNH2108 1 78 LABELȬDANGERȱCHECKȱRETAININGȱNUT...ȱȱ1.5ȱXȱ1BNH3146 1
37 NYLONȱINSERTȱJAMȱLOCKȱNUTȱZ/Pȱ3/8Ȭ16 BNH2026 11 79 LABELȬDANGERȱDOȱNOTȱREMOVE...ȱBNH2906 1
38 SPLITȱLOCKȱWASHERȱZ/Pȱ3/8ȈBNH2032 13 80 HEXȱKEYȱ3/16ȈBNH2542 1
39 SPLITȱLOCKȱWASHERȱZ/Pȱ1/2ȈBNH0572 2 81 HEXȱKEYȱ3/32ȈBNH2543 1
40 FLATȱWASHERȱSAEȱZ/Pȱ3/8ȈBNH2030 37 82 SUPERȱLUBEȱTEFLONȱLUBRICANTȱ82340 BNH0704 1
41 PLASTICȱINSERTȱCAPȱ1ȈȱXȱ3Ȉȱ11ȱGA BNH0007 2 83 FOOTȱROLLȱTUBEȱ1ȱXȱ18ȱ1/4ȱUP8352 1
42 PLASTICȱINSERTȱCAPȱELLIPTICALȱ2ȱXȱ4BNH1794 3 84 SOCKETȱSETȱSCREWȱZ/Pȱ1/4Ȭ20ȱXȱ1/4 BNH3263 2
Item No. Description Rev. Part No. Qty. Item No. Description Rev. Part No. Qty.
*1 STABILIZER 0 UP8340X1 1 *10 LATȱBARȱ48ȈBNH0295 1
*2 BASEȱFRAME 0 UP8341X1 1 *11 LOWȱROWȱBARȱ20ȈBNH0294 1
*3 BENCHȱFRAME 0 UP8342X1 1 *12 LATȱCABLE 0 UP8348X1 1
*4 CENTERȱPOST 0 UP8343X1 1 *13 LOWȱROWȱCABLE 0 UP8349X1 1
*5 TOPȱASSEMBLY 0 UP8344X1 1 *18 ADJȱPULLEYȱPLATEȱ1/8ȱXȱ2ȱXȱ9 0 UP0092X1 2
*6 ADJUSTABLEȱTUBE 0 UP8345X1 1 *21 10ȱLBȱTOPȱPLATEȱW/22ȈȱSLTRȱBARȱ19ȱBLKȱWTSȱASSY BNH2020 1
*7 LATȱBARȱHOLDER 0 UP8305X1 1 *56 10ȱLBȱSTEELȱWEIGHTȱPLATEȱBLACKȱ4ȱ9/16ȱXȱ9ȱ7/16ȱASSY BNH1650 19
*8 LOWȱROWȱFOOTȱSUPPORT 0 UP8346X1 1
Pre-Assembled Components
CLM-855WS
Parts List
Description
CABLEȱSTOPPERȱSHELLȱ1ȱ1/2ȱXȱ1ȱ3/4
OVALȱHEADȱPHILLIPSȱMACHINEȱSCREWȱZ/Pȱ#10Ȭ32ȱXȱ1ȱ1/8
COLOR CHART
GRAY= SUB-ASSEMBLY PARTS
BLACK= HARDWARE

CLM-855WS Lat/Low Row Combo Machine w/200 Lbs. Weight Stackwww.tustutness.com
ŝŚ
ŝŗ
ŜŜ
ŝś
ŜŘ
Ŝś
Ś
ŝŜ
ŜŚ
śř
Ŝŗ
śř
Ŝŗ
ŗ
Śŗ
Śŗ
Ř
śř
Ŝŗ
śŚ
śŚ
Şś
Ŝş
řŜ
Pre-Assembled Components
*1 UP8340X1
*2 UP8341X1
*4 UP8343X1
20
