The Collection By Michael Miller Aleesia DDAL RN Series Mounting instructions

Aleesia
CONVENTIONAL FLUE LOG EFFECT GAS FIRE
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model No. DDAL**RN is only for use on Natural Gas (G20) at a
supply pressure of 20 mbar in G.B. / I.E.
** denotes cosmetic variant

Information Requirements for Commission Regulation (EU) 2015/1188
Model Identifier DDAL**RN
Indirect Heating Functionality No
Direct Heat Output 4.2kW
Indirect Heat Output Not Applicable
Fuel Natural Gas
(G20)
NOx Emissions 130mg/kWh
Nominal Heat Output 4.2kW
Minimum Heat Output (Indicative, all models) 2.1kW
Useful Efficiency at Nominal Heat Output 74.8%
Useful Efficiency at Minimum Heat Output (Indicative) 50.0%
Auxilliary Power Consumption at Nominal Heat Output 0.03kW
Auxilliary Power Consumption at Minimum Output 0.03kW
Auxilliary Power Consumption at Standby Mode 0.03kW
Permanent Pilot Flame Requirement Not Applicable
Type of Heat Output / Room Temperature Control With electronic room temperature
control.
Contact Details BFM Europe Ltd.
Gordon Banks Drive
Trentham Lakes North
Stoke-on-Trent
ST4 4TJ
Tel : [phone]

CONTENTS
Section 1 Information and Requirements PAGE
1.0 Appliance nformation 3
1.1 Conditions of nstallation 4
1.2 Flue and chimney suitability 4
1.3 Fireplace / surround suitability 5
1.4 Shelf position 5
1.5 Flue / chimney inspection 5
1.6 Fire place opening / catchment space 6-7
1.7 Chair bricks 8
1.8 Metal flue boxes 8
1.9 Fitting with direct flue connection 8
1.10 Spillage monitoring system 9
Section 2 Installation of Fire
2.1 Unpacking the fire 10
2.2 nstalling the fire box 10-18
2.3 Making the electrical connection 18
2.4 nstallation of downlights 19-20
2.5 Gas tightness and inlet pressure 21
2.6 nstalling the Aleesia surround 22-23
2.7 Checking mechanical fixing of all surround types 24
Section 3 Assembling Fuel Bed and Commissioning
3.1 Fitting the log fuelbed 25-28
3.2 Operating the fire 29
3.2.1 Basic operation of the fire in manual mode 30-34
3.3.1 Advanced operation modes of the fire 35-40
3.4 Fitting the handset wall bracket 40
3.5 nstructing the user / product handover 40
3.6 Checking for clearance of combustion products 41
3.7 Removal / re-fitting the restrictor baffle 42
Section 4 Maintenance
4.1 Removal of the burner assembly 43
4.2 Removal of the gas control valve 44
4.3 Removal of the oxypilot 44
4.4 Replacing the battery in the handset 45
4.5 Removal of the RF receiver unit 44-45
4.6 Access and checking the flue debris void 45
4.7 Wiring diagram 46
4.8 Spare parts shortlist 47
Section 5 User Instructions Section
5.1 Conditions of installation 48
5.2 About your new fire 49
5.3 Basic operation of the fire in manual mode 50-56
5.4 Advanced operation modes of the fire 56-61
5.5 Removal / re-fitting the glass panel 62
5.6 Cleaning instructions 63
5.7 Removal / replacement of the fuelbed 64-67
5.8 User replaceable parts 69
This appliance is manufactured by :- BFM Europe Ltd, Trentham Lakes, Stoke-on-Trent, ST4 4TJ.
2

SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APPLIANCE INFORMATION
Model DDAL**RN
Gas Type G20
Main injector (1 off) Cat 82 size 380
Pilot Type ERTA-PG-82-770
Max. Gross Heat nput : 6.3kW
Min. Gross Heat nput : 4.2kW
Cold Pressure : 20.0 +/-1.0 mbar
gnition : Via remote
Electrode Spark Gap 4.0mm
Packed Weight 51.0kg
Gas Connection : 8mm Compression (supplied with fire)
Supply Voltage : 230V a.c.
Supply Frequency : 50Hz
Supply Fuse : 3 Amp to BS 1362
Electrical Supply Required 230v AC, 50Hz
P Rating PX0
Appliance Efficiency Declaration
The efficiency of this appliance has been measured as specified in BS 7977-1 : 2009 +A1 : 2013
and the result is 74.8%. The net calorific value of the fuel has been used for this efficiency
calculation.
The test data from which it has been calculated has been certified by BSI. The efficiency value
may be used in the U Government’s Standard Assessment Procedure (SAP) for energy rating of
dwellings.
3
Fig. 1

INSTALLATION REQUIREMENTS
1.1 CONDITIONS OF INSTALLATION
t is the law that all gas appliances are installed only by a GAS SAFE Registered
nstaller, in accordance with these installation instructions and the Gas Safety
( nstallation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. t is in your own interest and that of safety to
comply with the law.
The installation must also be in accordance with all relevant parts of the Local and
National Building Regulations where appropriate, the Building Regulations
(Scotland Consolidation) issued by the Scottish Development Department, and all
applicable requirements of the following British Standard Code of Practice.
1. B.S. 5871 Part 2 nstallation of nset Fuel Effect Gas Fires
2. B.S. 6891 nstallation of Gas Pipework
3. B.S. 5440 Parts 1 & 2 nstallation of Flues and Ventilation
4. B.S. 1251 Open fire place components
5. B.S. 715 Metal flue pipes for gas appliances
6. B.S. 6461 Part 1 nstallation of Chimneys and flues
7. B.S. E.N. 1858 Chinmeys Components & Concrete Flue Blocks
8. .S. 813 : 1996 Domestic Gas nstallation (Republic of reland)
No purpose made additional ventilation is normally required for this
appliance, when installed in G.B. When Installing in I.E. please consult
document I.S. 813 : 1996 Domestic Gas Installation, which is issued by the
National Standards Authority of Ireland. If installing in Northern Ireland,
please consult local building regulations. Any purpose made ventilation
must be checked periodically to ensure that it is free from obstruction.
1.2 FLUE AND CHIMNEY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys
and fabricated flues conforming to BS 715. All flues must conform to the following
minimum dimensions.
Minimum diameter of circular flues 125 mm (without flue
restrictor fitted)
Minimum effective height of all flue types 3 metres
When fitting to conventional chimneys or 175mm flues it may be desirable to
leave the flue restrictor baffle (supplied) in place to reduce the flue flow and
increase the efficiency of the fire. Safe clearance of products must always
be checked by carrying out a smoke match test as described.
4

1.3 FIREPLACE / SURROUND SUITABILITY
The fire must must not be installed directly onto carpet or other combustible
floor materials.
f a heating appliance is fitted directly against a wall combustible material must be
removed from behind it. Soft wall coverings such as blown vinyl, wall paper etc.
could be affected by the rising hot air and scorching and/or discoloration may
result. Due consideration should be made to this when installing or decorating.
1.4 SHELF POSITION
The fire must not be fitted below a combustible shelf. Any surround design not
supplied by BFM Europe must still conform to the required surround dimensions as
issued by the manufacturer. Please contact BFM Europe Ltd for further details.
1.5 FLUE / CHIMNEY INSPECTION
Before commencing installation, a flue or chimney should be inspected to ensure
that all the following conditions are satisfied.
1. Check that the chimney / flue only serves one fire place and is clear of any
obstruction. Any dampers or register plates must be removed or locked in
the open position.
2. Brick/stone built chimneys or any chimney or flue which has been used for
an appliance burning fuel other than gas must be thoroughly swept. The
base of the chimney / flue must also be thoroughly cleared of debris etc.
3. Any under-floor air supply to the fire place must be completely sealed off.
4. Ensure that the inside of the chimney / flue is in good condition along it’s
length and check that there is no leakage of smoke through the structure
of the chimney during and after the smoke pellet test.
5. Using a smoke pellet, check that there is an up-draught in the
chimney / flue and that the smoke can be seen issuing from the
terminal / chimney pot outside.
There must be no leakage of smoke through the structure of
the chimney during or after the smoke pellet test and it is
important to check inside upstairs rooms adjacent to the chimney /
flue. Check the chimney pot / terminal and general condition of the
brickwork or masonry. f the chimney or flue is in poor condition or if
there is no up-draught do not proceed with the installation. f there is a
history of down-draught conditions with the chimney / flue, a tested and
certificated flue terminal or cowl suitable for the relevant flue type should
be considered.
6. A spillage test must always be carried out during commissioning of
the appliance.
5

1.6 FIRE PLACE OPENING
1.6.1 Fireplace Opening for Engine Only Applications
The front opening of the fire place must be between 580mm and 600mm wide,
between 700mm and 720mm high and 300mm deep. f the opening exceeds
these dimensions then a surround must be constructed from suitable non-
combustible material to produce a correct size opening. Any surround must be
suitably sealed to the fire place to prevent leakage. See below in figure 2.
NOTE :- f installing with a retailer designed surround package please consult
the retailer to determine installation height required for the fire.
When installing into a brick built chimney, you must ensure that there is sufficient
depth to accomodate any debris which may fall from the chimney. This depth
must be sufficient to accomodate 12 litres of volumetric space in a conventional
brick built chimney.
6

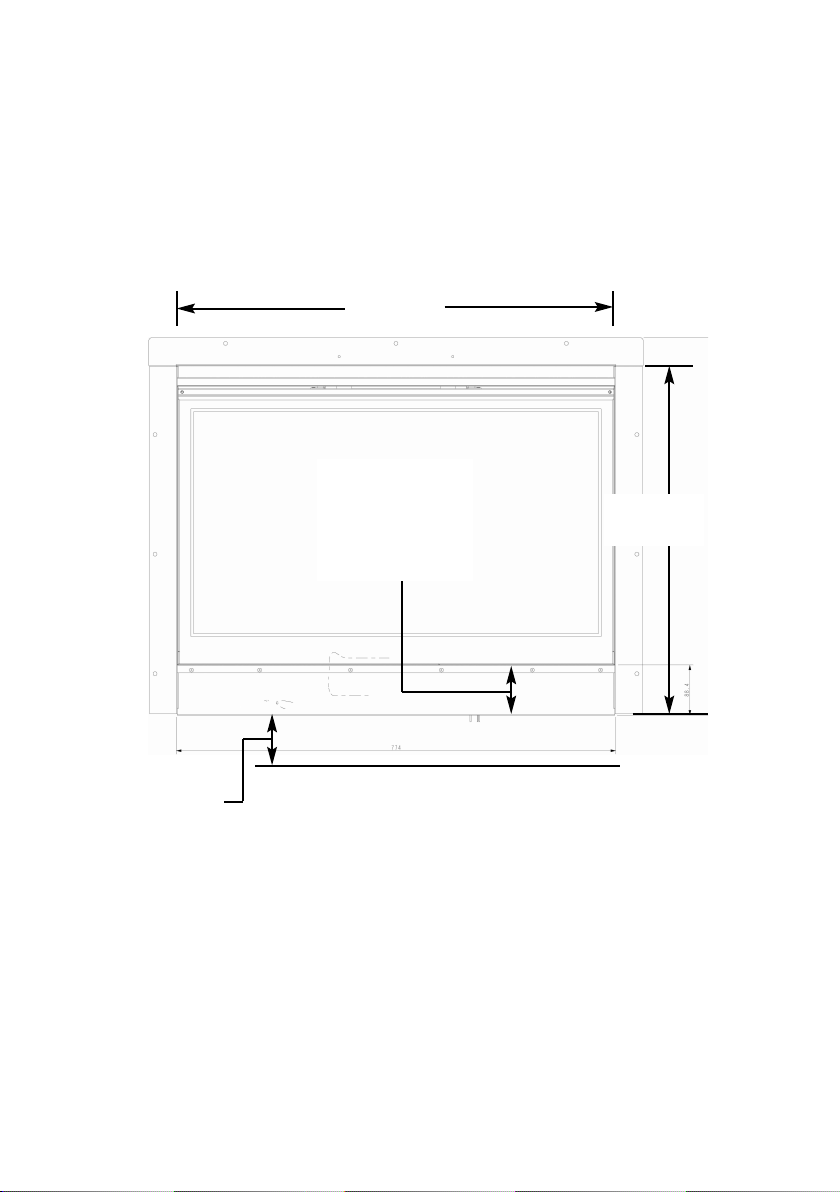

Minimum 225mm from
grill on fire to base of
opening required to
comply with ADJ of
Building Regulations for
hole in the wall type
installations
Fig. 2
135mm base
of box to floor
level minimum to
attain 225mm as
required
Opening height
615mm to
630mm
Opening width
780mm to
800mm

1.6.2 Fireplace Opening for The Collection by Michael Miller Surround
f fitting this fire with a surround supplied from BFM Europe then the fireplace
opening of width / height of 615mm minimum to 630mm maximum needs to be
prepared at the height shown below. See figure 3 below.
Fig. 3
7
Aleesia Surround
Opening to be 145mm
from floor level to base
of opening

Table A - Installation Depth Re uirements for The Collection by Michael
Miller Aleesia being installed into a brick built chimney, re uiring 12.0 litres
of debris collection volume (figure 4).
Opening Width (mm) Minimum Depth Required (mm)
780-800mm 300mm
Fig. 4
1.7 FITTING TO FIREPLACES WITH EXISTING CHAIRBRIC S AND
CONVENTIONAL BRIC BUILT CHIMNEYS
This appliance is not suitable for use in fireplaces fitted with an existing chairbrick
without the removal of the chairbrick.
1.8 FITTING TO PRE-FABRICATED TWIN WALL METAL FLUE BOXES
The appliance may be fitted to twin wall metal flue boxes conforming to the
constructional requirements of BS 715. The top face of the box must be insulated
with a minimum thickness of 50mm of non-combustible mineral wool insulation or
similar material. The flue box must stand on a non-combustible base of minimum
thickness 12mm. A suitable box is available from the manufacturer, please quote
part number 1195-1008106.
1.9 FITTING WITH DIRECT FLUE CONNECTION
This appliance may be fitted with a direct flue connection via the use of an optional
flue adaptor, part number 1192-1004909. The minimum effective flue height must
conform with section 1.2, if fitting with the flue adaptor the restrictor must not be
installed.
8
Opening Width (780-800mm)
Depth Required
(300mm)

1.10 SPILLAGE MONITORING SYSTEM
This appliance is fitted with an atmosphere sensing spillage monitoring system in
the form of an oxygen sensing burner. This is designed to shut the fire off in the
event of a partial or complete blockage of the flue causing a build up of
combustion products in the room in which the fire is operated. The following are
important warnings relating to this spillage monitoring system :-
1.10.1 The spillage monitoring system must not be adjusted by the installer.
1.10.2 The spillage monitoring system must not be put out of operation.
1.10.3 When the spillage monitoring system is exchanged only a complete
original manufacturers part may be fitted.
9

SECTION 2
INSTALLATION OF FIRE
2.1 UNPAC ING THE FIRE
Carefully lift the fire out of the carton. Remove the loose item packaging, check
the contents as listed below :-
NOTE : DO NOT UNDER ANY CIRCUMSTANCES USE THIS APPLIANCE IF THE GLASS PANEL IS
BRO EN OR NOT SECURELY FIXED TO THE FIREBOX.
Packing Check List - All Models
Pack 1 - Fire Pack
1 off Combustion chamber & glass frame assembly
1 off Boxed ceramic fuel-bed set (packed inside combustion chamber)
1 off nstallation / user instruction manual & guarantee card
1 off Loose items pack – containing :- 2 off AAA battery, remote handset,
1 off fixing kit, 1 off handset wall brkt (inc. fixings),
1 off glass removal tool, 1 off downlight kit, 1 off restrictor baffle & fixing
screws, 2 off bags of vermiculite, 4 off nylon wallplugs,
4 off 30mm woodscrews, 4 off No. 12 x 40mm screws.
Pack 2 - Surround (If selected)
1 off Supplied in wooden crate, see section 2.4
2.2 INSTALLING THE FIRE BOX
Establish which type of flue you are intending to install the fire in to :-
225 x 225mm (9 inch x 9 inch) brick built chimneys
175mm (7 inch) diameter lined brick or stone flue, or insulated pre-fabricated
metal flue box to B.S. 715.
When installing into 125mm (5 inch) diameter lined brick or stone flue, or
insulated pre-fabricated metal flue box to B.S. 715, the restrictor baffle must
not be fitted.
A spillage test must always be carried out to check satisfactory clearance of
flue products, regardless of the type of flue the appliance is being fitted to.
10

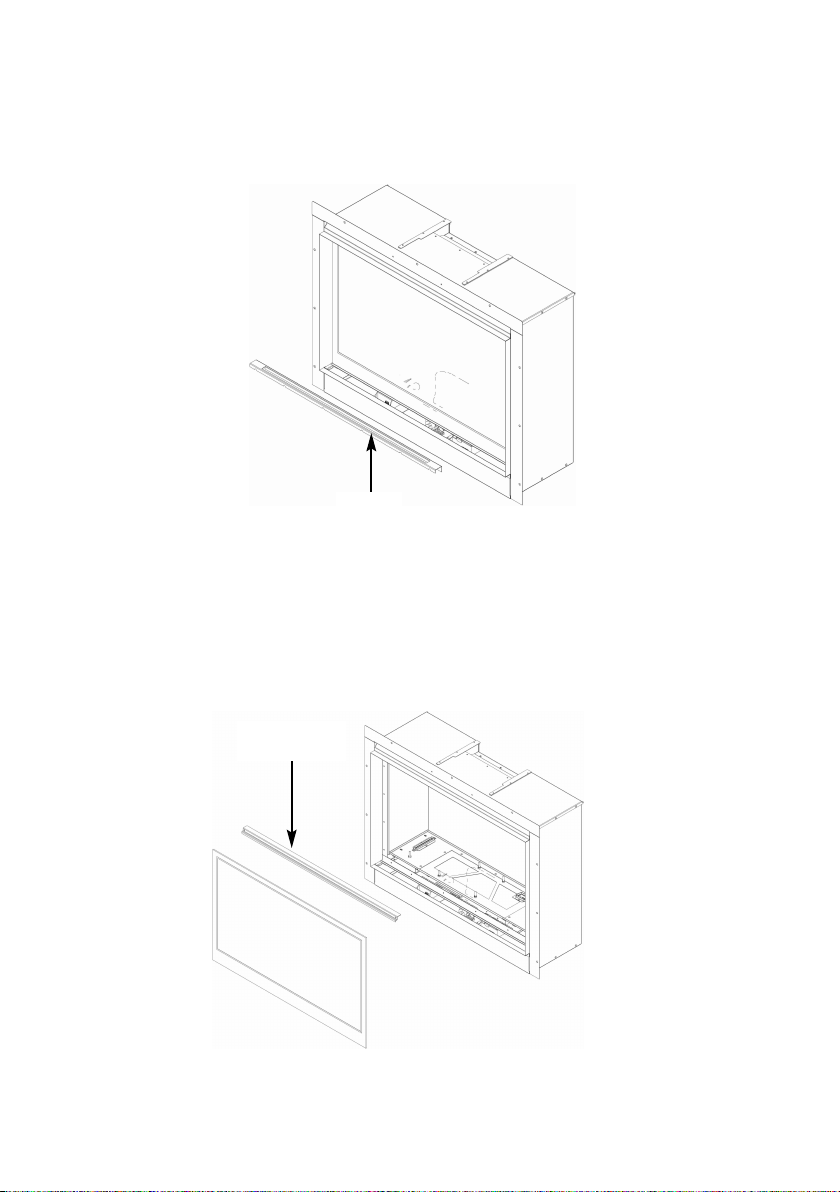

2.2.1 Remove the front grill by lifting clear as shown below in figure 5.
Fig. 5
2.2.2 Remove the two off screws which secure the glass panel retaining
bracket as shown below in figure 6, then tilt the glass panel forward to
remove it. Take care not to allow the glass panel to fall forwards under
its own weight.
Fig. 6
11
Glass panel
retaining bracket
Front grill

2.2.3 Store the glass panel in a safe place.
2.2.4 Re-assemble in reverse order when re-fitting the glass assembly.
2.2.5 DO NOT OPERATE THE FIRE WITHOUT THE GLASS PANEL IN
POSITION OR NOT CORRECTLY LOCATED.
12

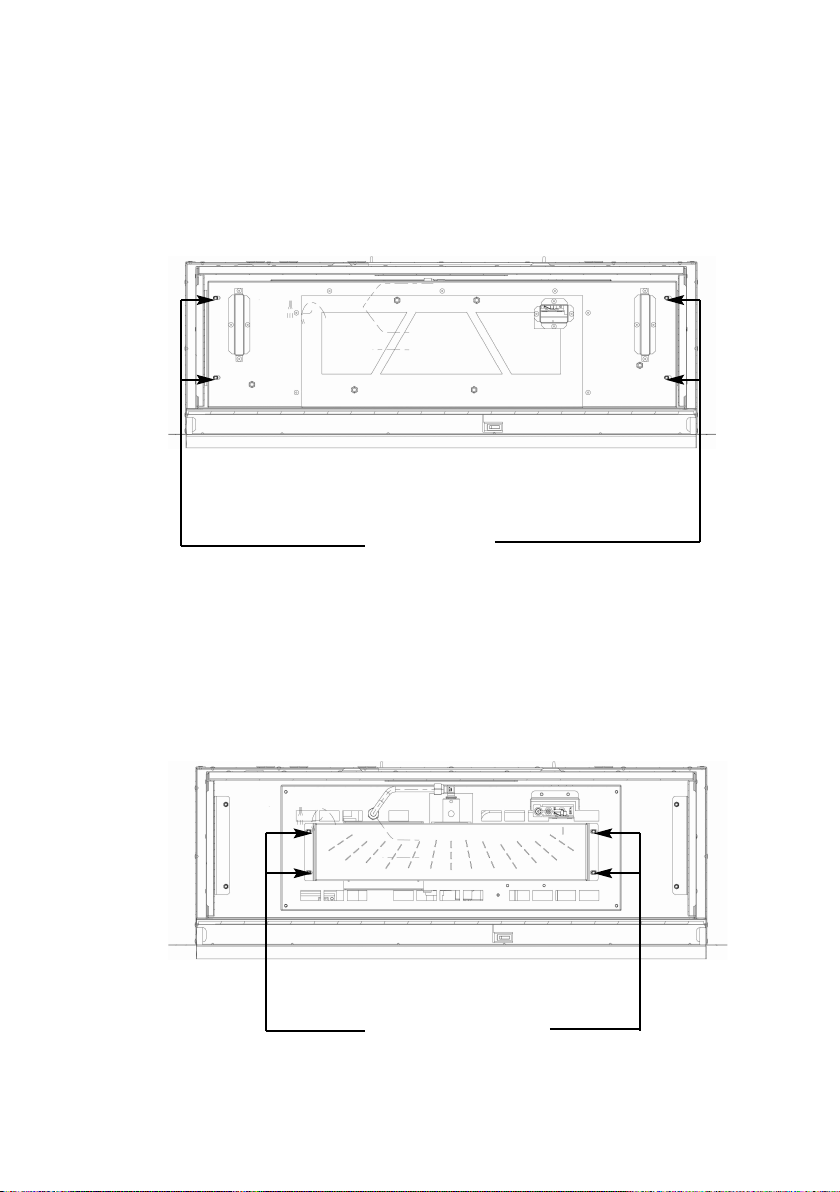

2.2.6 Remove the burner. To allow burner removal, the ceramic support
panel must be removed to allow access to the burner fixings. Remove
the 4 off ceramic support retaining screws as shown below in figure 7.
Fig. 7
2.2.7 Remove the 4 off screws that hold the burner in position, see figure 8
below.
Fig. 8
13
Four off ceramic
support retaining
screws
Four off burner retaining
screws

2.2.8 Loosen screw holding injector, the burner can then be slid forward and
lifted clear as shown below in figure 9.
Fig. 9
2.2.9 As shown in figure 9 above the gas supply cover plate should be
removed, allowing access to the gas inlet valve and pressure test point
as shown below in figure 10.
Fig. 10
14
Main burner injector
Gas supply cover plate
Gas inlet elbow &
pressure test point

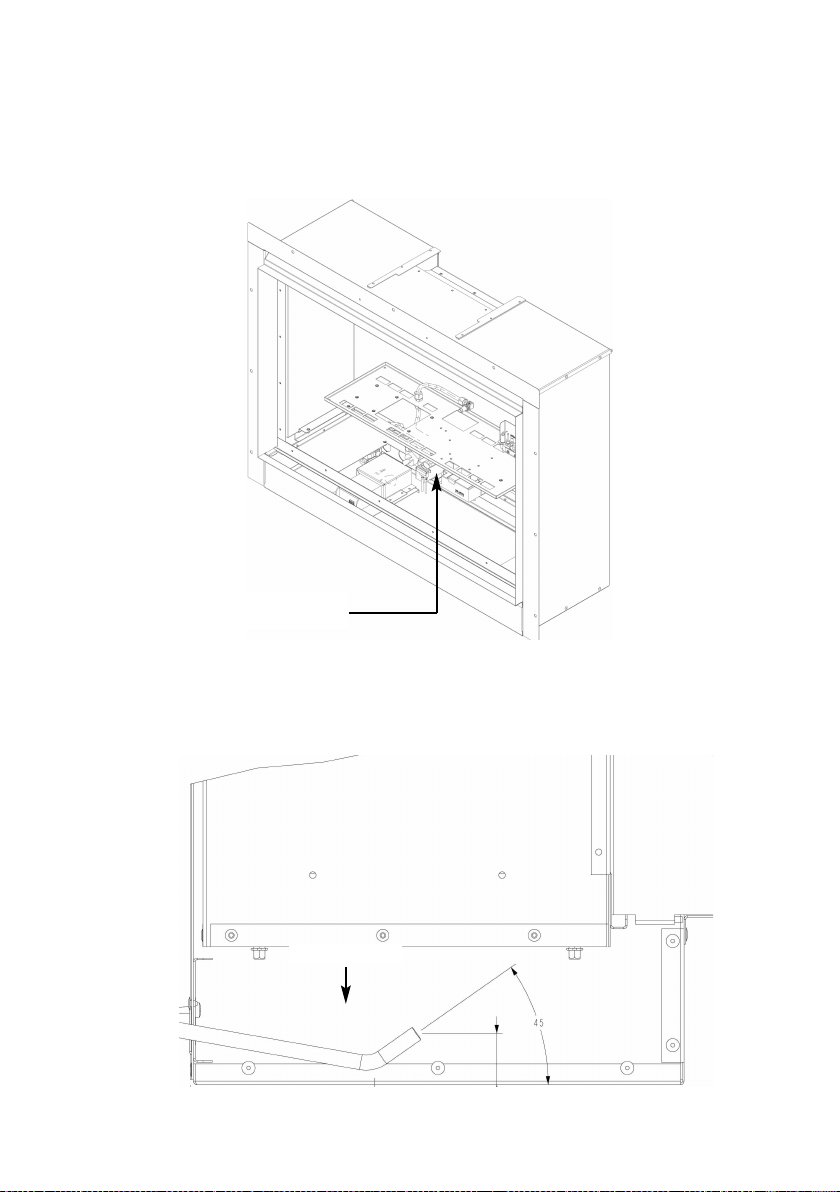

2.2.10 The burner base plate can now be removed by removing the four
screws and lifting clear as shown below in figure 11. Tilt the assembly
up at the back as it is removed to clear the on/off switch from the inlet
channel.
Fig. 11
2.2.11 The gas supply can be routed into the fire to the rear left, see
figure 12 below for dimensional information regarding position and
route of gas supply pipe.
Fig. 12
Burner base plate held in
position by 4 off screws
15
Gas supply route

2.2.12 Store the removed burner components in a safe position.
2.2.13 The gas connection to the appliance should be made to the isolating /
inlet elbow using 8mm rigid tubing. There must be no soldered joints
within the firebox. Use the grommet supplied in the loose items pack to
seal the knock-out removed from the firebox where the gas pipe enters
the firebox.
2.2.14 Ensure that the hearth (if fitted) is protected from damage and carefully
lift the fire box into the fire opening, then slide it back into position.
Check that the fire box flange fits flush to the sealing face of the fire
surround or wall with no gaps present.
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound.
2.2.15 Carefully withdraw the fire box from the opening to enable the gas
supply and fire fixing to be completed.
There is a choice of methods of fixing the firebox which are provided to enable the
installer to deal with any type of installation.
The preferred method of fixing which is suitable for almost all situations is
the cable fixing method which is described in the following section in detail.
The fire may be secured using the cable method as described below, or
alternatively, in installations where the cable method is not suitable (eg. loose
masonary in rear of fire opening) the fire box can be directly secured to the fire
surround using screw fixings (not provided).
To fit using the preferred cable method proceed as follows-
2.2.16 Mark out and drill 4 off No 14 (7mm) holes in the back face of the fire
opening in the positions shown below in figure 13.
Fig. 13
16
Fireplace Opening
775mm
420mm
620mm
205mm

2.2.17 Uncoil the two fire fixing cables and thread one end of each of the
cables through one of the two cable holes on each side of the rear
brackets on the firebox (see figure 14 on page 18 for details of these
holes)
2.2.18 Position the fire carefully on the (protected) surface of the hearth and
reach into the fire opening. Thread each of the cables vertically
downwards through the pair of fixing eyes on the same side of the fire.
Thread the free end of the cables through the corresponding circular
hole on each side of the lower rear of the fire. Carefully slide the fire
box back into the fire opening and pull both cables tight.
2.2.19 Thread a tensioning screw over each of the cables and ensure that the
tensioning nut is screwed fully up against the hexagon shoulder of the
tensioning screw (this provides maximum travel for the tensioning nut).
2.2.20 Fit a screwed nipple on to each of the cables and pull hand tight up
against the tensioning screw, then secure each nipple with a
screwdriver.
2.2.21 Evenly tighten the tensioning nuts to tension both cables and pull the
fire snugly against the wall. Do not overtighten, it is only necessary to
pull the seal up against the sealing face of the wall, it does not need to
be compressed. Check that there are no gaps behind the seal.
2.2.22 Refit the burner in reverse order to which it was removed.
NOTE : ENSURE THAT THE ON/OFF SWITCH ON THE CONTROL
VALVE IS IN THE “ON” POSITION BEFORE RE-FITTING THE
BURNER UNIT
2.2.23 Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
17

The other firebox fixing method is as follows :-
2.2.24 n installations where the cable method is not suitable (e.g. loose
masonary in rear of fire opening) the firebox can be secured to the
opening using four screws and wall plugs (not provided). Below (figure
14) is a diagram to indicate the hole centre positions available on the
firebox to facilitate the screw fixing to the fireplace / surround.
Fig. 14
2.3 MA ING THE ELECTRICAL CONNECTION.
WARNING : TH S APPL ANCE MUST BE EARTHED AND SHOULD BE
PREFERABLY CONNECTED V A A 3 AMP SW TCHED
F XED FUSED SPUR W TH A M N MUM CONTACT
SEPARAT ON OF 3MM.
T MAY HOWEVER BE CONNECTED TO A 3 P N PLUG TO
BS 5733, THAT S F TTED W TH A 3 AMP FUSE TO BS
1362.
2.3.1 The product is supplied with a mains cable and 3 pin plug fitted. The
mains cable will exit the combustion chamber from the rear left hand
side (viewed from the front), through the grommet. f the supply cord is
damaged, it must be replaced by the manufacturer, it’s service agent or
similarly qualified persons in order to avoid a hazard.
2.3.2 Plug the mains cable supplied into a suitable socket in close proximity
to the appliance or remove the plug and wire into a 3 amp switched
fixed fused spur.
18
Cable holes
Cable holes

2.4 INSTALLATION OF LAMP ASSEMBLIES

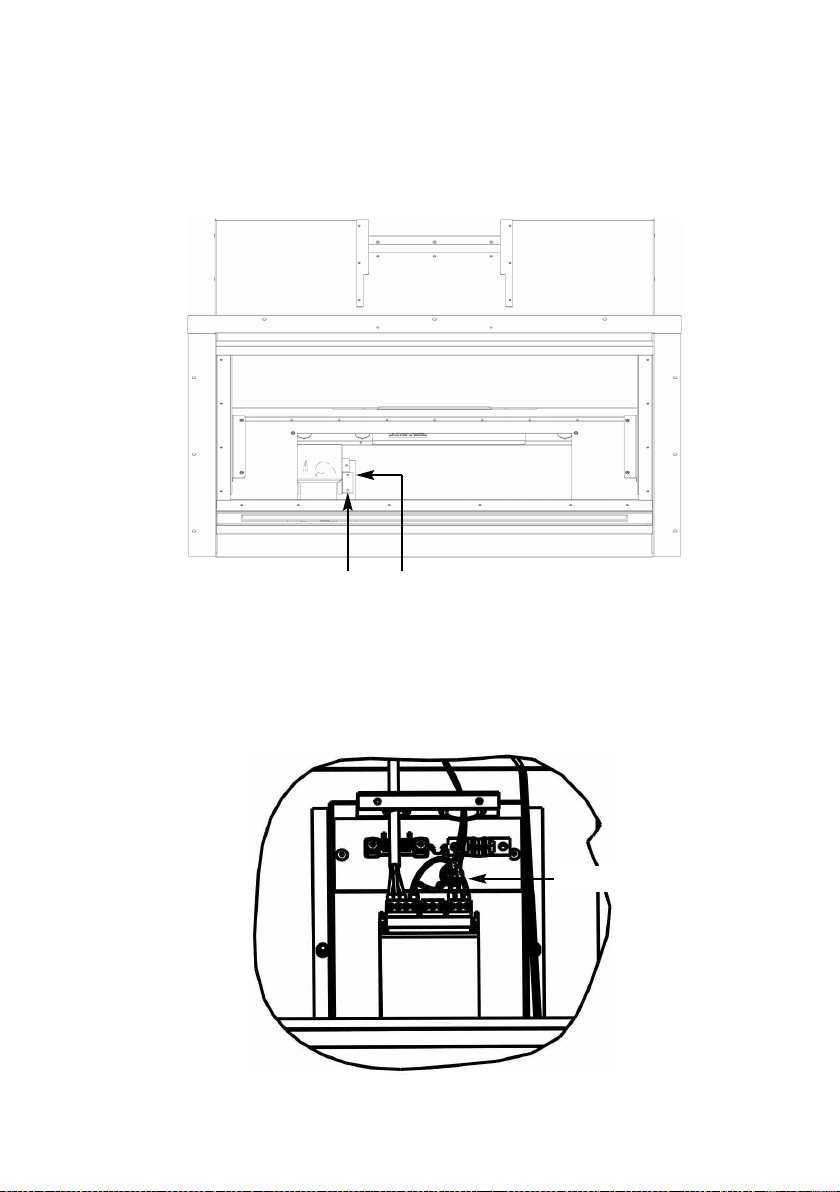

2.4.1 Remove two screws from the electric cover as shown below in figure
15.
Fig. 15
2.4.2 Remove two screws from electric cover (see figure 15) and remove
cover, feed wiring from lamp assemblies through the grommet in the
side of the fire and make connections as shown in figure 16 below.
Fig. 16
Electric cover screws
Lamp connections
19
