Model: BE-32
Owner’s Manual
Installation and Operation
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,serviceagency, orthe
gas supplier.
WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may result
causing property damage, personal
injury, or death.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. Do
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high temperatures.
• Do NOT operate with protective barriers open or
removed.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
• Keep children away.
DO NOT DISCARD THIS MANUAL
CAUTION
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installedinaccordancewiththemanufacturer’sinstructionsand
themanufactured home construction and safety standard,Title
24CFR,Part3280orStandardforInstallationinMobileHomes,
CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
TechnologiessuggestsNFI certifiedor factory-trained
professionals, or technicians super-
vised by an NFI certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
WARNING
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fitter;
See Table of Contents for location of additional
Commonwealth of Massachusetts requirements.

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
2
Congratulations

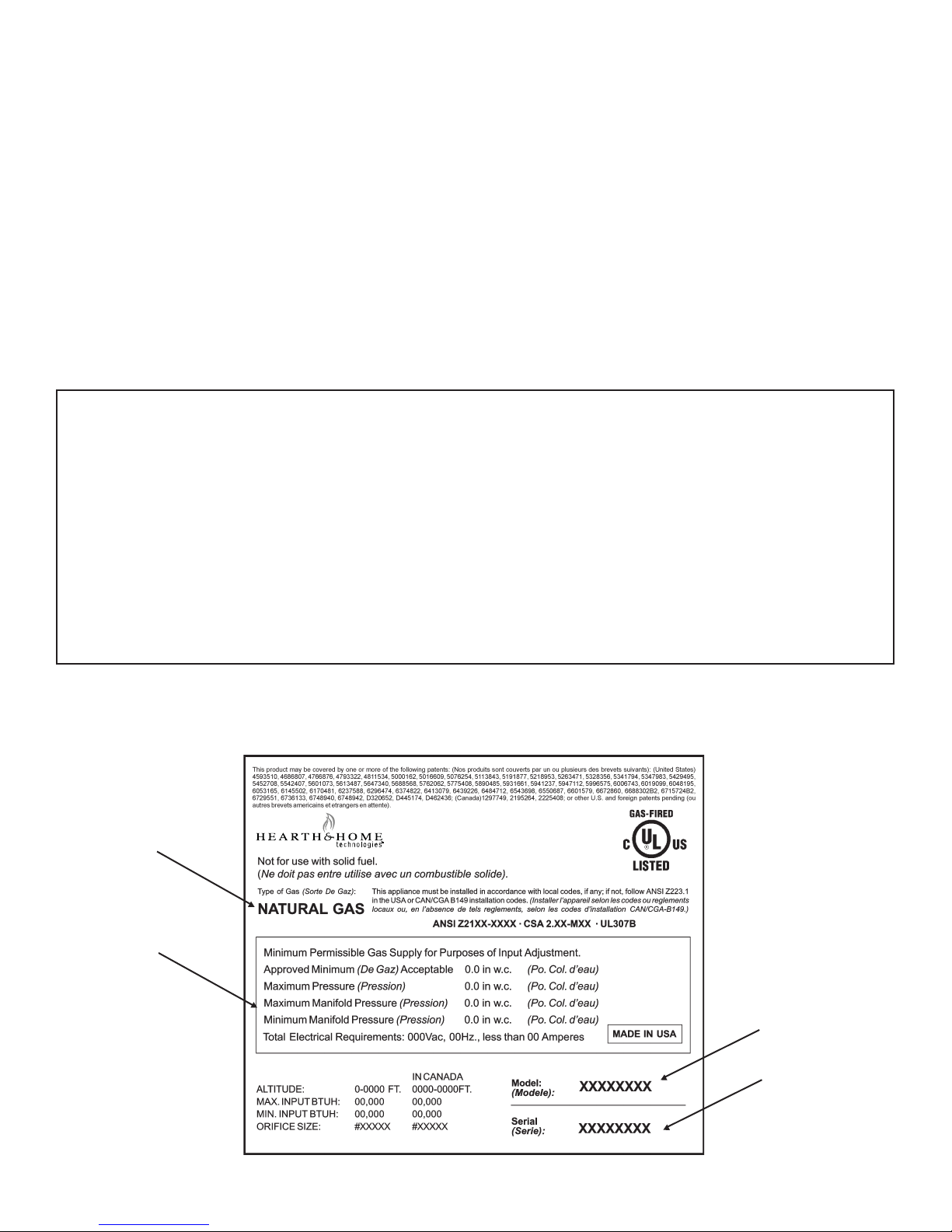

Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Hearth & Home
Technologies gas appliance —an elegant and clean
alternative to wood burning appliances. The Hearth &
Home Technologies gas appliance you have selected is
designed to provide the utmost in safety, reliability, and
efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions
and Warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Hearth & Home Technologies gas appliance will
give you years of durable use and trouble-free enjoyment.
Welcome to the Hearth & Home Technologies family of
appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Gas and Electric
Information
Model Number
Serial Number
Type of Gas
The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Hearth & Home Technologies, Inc.
20802 Kensington Blvd., Lakeville, Mn 55044

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 3
Î
- Table of Contents -
Î= Contains updated information.
Section 1: Listing and Code Approvals
A. Appliance Certification................................... 4
B. Glass Specifications...................................... 4
C. BTU Specifications........................................ 4
D. High Altitude Installations .............................. 4
E. Non-Combustible Materials Specification...... 4
F. Combustible Materials Specification.............. 4
G. Requirements for the Commonwealth
of Massachusetts........................................... 5
Section 2: Getting Started
A. Design and Installation Considerations.........6
B. Tools and Supplies Needed........................... 6
C. Inspect Appliance and Components.............. 6
Section 3: Framing and Clearances
A. Selecting Appliance Location......................... 7
B. Constructing the Appliance Chase ................8
C. Clearances .................................................... 8
D. Mantel Projections......................................... 9
Section 4: Termination Locations
A.Vent Termination Minimum Clearances....... 10
Section 5: Vent Information and Diagrams
A. Vent Table Key............................................. 12
B. Use of Elbows.............................................. 12
C. Measuring Standards .................................. 12
D. Use of Flex Vent.......................................... 13
E. Vent Diagrams............................................. 14
Section 6: Vent Clearances and Framing
A. Pipe Clearances to Combustibles ............... 21
B. Wall Penetration Framing............................ 21
C. Vertical Penetration Framing....................... 22
Section 7: Appliance Preparation
A. Top Vent....................................................... 23
B. Rear Vent..................................................... 24
C. Securing and Leveling the Appliance ..........25
Section 8: Installing Vent Pipe
A. Assembly of Vent Sections for DVP Pipes .. 26
B. Disassembly of Vent Sections..................... 28
C. Installing Heat Shield and
Horizontal Termination Cap ........................ 30
D. Installing Roof Flashing and Vertical
Termination Cap .......................................... 32
Î
Î
Î
Section 9: Gas Information
A. Fuel Conversions...................................... 34
B. Gas Pressures.......................................... 34
C. Gas Connection........................................ 34
Section 10: Electrical Information
A. Recommendation for Wire........................ 36
B. Connecting to the Appliance.....................36
C. Standing Pilot Ignition System Wiring....... 36
D. Junction Box Installation........................... 37
E. Wall Switch Installation for Fan................. 38
Section 11: Finishing
A. Mantel Projections.................................... 39
B.Facing Material......................................... 39
Section 12: Appliance Setup
A. Remove Shipping Materials...................... 40
B. Clean the Appliance.................................. 40
C. Accessories .............................................. 40
D. Ember and Lava Rock Placement............ 40
E. Positioning the Logs ................................. 41
F. Glass Assembly ........................................ 42
G. Grilles and Trim......................................... 42
Section 13: Operating Instructions
A. Before Lighting Appliance......................... 43
B. Lighting Appliance..................................... 44
C. After Appliance is Lit ................................. 45
D. Frequently Asked Questions..................... 45
Section 14: Troubleshooting
A. Standing Pilot Ignition System.................. 46
Section 15: Maintaining and Servicing Appliance........... 48
Section 16: Reference Materials
A. Appliance Dimension Diagram ................. 50
B. Vent Components Diagrams..................... 51
C. Service Parts ............................................ 56
D. Warranty ................................................... 60
E. Contact Information .................................. 61

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
4
B. Glass Specifications
Hearth&HomeTechnologiesappliancesmanufacturedwith
tempered glass may be installed in hazardous locations
such as bathtub enclosures as defined by the Consumer
Product Safety Commission (CPSC). The tempered glass
has been tested and certified to the requirements of ANSI
Z97.1andCPSC16 CFR 1202(SafetyGlazing Certification
Council SGCC# 1595 and 1597.Architectural Testing, Inc.
Reports 02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
NOTE: Thisinstallationmustconformwithlocalcodes.Inthe
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
NOTINTENDED FOR USEAS A PRIMARYHEATSOURCE.
Thisapplianceistestedandapprovedaseithersupplemental
room heat or as a decorative appliance. It should not be fac-
tored as primary heat in residential heating calculations.
Listing and Code Approvals
D. High Altitude Installations
U.L.Listed gasappliances aretestedandapprovedwithout
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above
a 2000 foot elevation in the U.S.A., or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
C. BTU Specifications
1
MODEL: BE-32
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Gas Appliance Heater
STANDARD: ANSI Z21.88-2002•CSA2.33-M02•UL307B
WARNING
DoNOTusethisapplianceifany part has beenunderwater.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
RecreationalVehicles”,and “GasFiredAppliancesfor Use
at High Altitudes”.
Models
(U.S. or Canada) Maximum
Input BTUH Orifice Size (DMS)
BE-32 (NG) US
(0-2000 FT) 17,800 46
CANADA
(2000-4500 FT) 16,000 47
BE-32 (LP) US
(0-2000 FT) 15,500 56
CANADA
(2000-4500 FT) 13,680 57
A. Appliance Certification
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750oC, shall be considered
non-combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can
ignite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 5
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where
the side wall exhaust vent termination is less than seven
(7) feet above finished grade in the area of the venting,
includingbut notlimited todecksandporches,the following
requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gasfitter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the
floor level where the gas equipment is to be installed. In
addition, the installing plumber or gasfitter shall observe
that a battery operated or hard wired carbon monoxide
detector with an alarm is installed on each additional level
of the dwelling, building or structure served by the side
wallhorizontal vented gasfueled equipment.It shall bethe
responsibility of the property owner to secure the services
of qualified licensed professionals for the installation of
hard wired carbon monoxide detectors.
Inthe eventthatthesidewall horizontallyvented gasfueled
equipmentisinstalled inacrawl spaceoran attic,thehard
wired carbon monoxide detector with alarm and battery
back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
ownershallhave aperiod of thirty(30) daystocomply with
the above requirements; provided, however, that during
said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Eachcarbon monoxidedetectoras requiredin accordance
with the above provisions shall comply with NFPA720 and
be ANSI/UL 2034 listed and IAS certified.
Signage
Ametal or plastic identification plate shall be permanently
mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with
the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size,
“GAS VENT DIRECTLY BELOW. KEEP CLEAR OFALL
OBSTRUCTIONS”.
Inspection
Thestate or localgas inspectorofthe sidewall horizontally
vented gas fueled equipment shall not approve the
installationunless, uponinspection, theinspector observes
carbon monoxide detectors and signage installed in
accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure used
in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontallyventedgas fueledequipment does notprovide
the parts for venting the flue gases, but identifies “special
venting systems”, the following requirements shall be
satisfied by the manufacturer:
• The referenced “special venting system” instructions
shallbeincluded withthe appliance orequipment instal-
lation instructions; and
• The“special ventingsystems”shallbeProductApproved
bythe Board,andtheinstructionsfor thatsystem shallin-
clude a parts list and detailed installation instructions.
Acopyofall installationinstructionsforallProductApproved
sidewall horizontallyvented gasfueled equipment,allvent-
inginstructions, allparts listsforventinginstructions,and/or
all venting design instructions shall remain with the appli-
ance or equipment at the completion of the installation.
See Gas Connection section for additional Common-
wealth of Massachusetts requirements.
G. Requirements for the Commonwealth of
Massachusetts
NOTE: The following requirements reference various
Massachusetts and national codes not contained in this
document.
Î

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
6
A. Design and Installation Considerations
Hearth & Home Technologies direct vent gas appliances
are designed to operate with all combustion air siphoned
from outside of the building and all exhaust gases ex-
pelled to the outside. No additional outside air source is
required.
Getting Started
C. Inspect Appliance and Components
2
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed.
• The vent system configuration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Manometer Voltmeter
Tape measure Noncorrosive leak check solution
One 1/4 inch female connection (for optional fan).
• Carefully remove the appliance and components from
the packaging.
• Theventsystemcomponentsandtrimdoorsareshipped
in separate packages.
• The gas logs may be packaged separately and must
be field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the in-
stallation. Follow these instructions carefully dur-
ing the installation to ensure maximum safety and
benefit.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
WARNING
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged
appliance or vent system component.
WARNING
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 7
3Framing and Clearances
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
WARNING
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselecting alocation foryour applianceit isimportantto
consider the required clearances to walls (see Figure 3.1).
Figure 3.1 Appliance Locations
NOTE: For actual appliance dimensions refer to Sec-
tion 16.
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Section 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
ABC DEF G H I
Inches 39-3/8 34 55-5/8 37-3/8 1 1/2 46-1/16 65-1/8 52-1/16
mm 1000 864 1413 949 25 13 1170 1654 1322

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
8
Fire Risk.
•Construct chase to all clearance
specifications in manual.
•Locate and install appliance to all
clearance specifications in manual
WARNING
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gasappliance and/orits ventsystem. Verticalvents thatrun
on the outside of a building may be, but are not required to
be, installed inside a chase.
Construction of the chase may vary with the type of building.
These instructions are not substitutes for the requirements
of local building codes. Local building codes MUST be
checked.
Chasesshouldbe constructed inthe manner ofall outside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
shouldbe insulated.Vaporandair infiltrationbarriersshould
beinstalled inthechaseasper regionalcodes fortherest of
the home.Additionally, in regions where cold air infiltration
may be an issue, the inside surfaces may be sheetrocked
and taped for maximum air tightness.
To furtherpreventdrafts,thewall shieldandceilingfirestops
shouldbe caulkedwithhightemperaturecaulk tosealgaps.
Gas line holes and other openings should be caulked with
C. Clearances
Figure 3.2 Clearances to Combustibles
Fire Risk.
Odor Risk.
•Install appliance on hard metal or wood
surfaces extending full width and depth of
appliance.
•Do NOT install appliance directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
high temp caulk or stuffed with unfaced insulation. If the
appliance is being installed on a cement slab, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
C
B
D
A
E
H
I
F
FROM TOP
OF HOOD
TO CEILING
G
J
ABCDE F GHIJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
(From Top of
Hood)
Non-Combustible
Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
SL
PIPE Inches 8-5/8 31 16-1/4 34 32 0 0 1/2 1/2 36
mm 219 787 413 864 813 0 0 13 13 914
DVP
PIPE Inches 10 31 27-1/2 34 32 0 0 1/2 1/2 36
mm 254 787 699 864 813 0 0 13 13 914

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 9

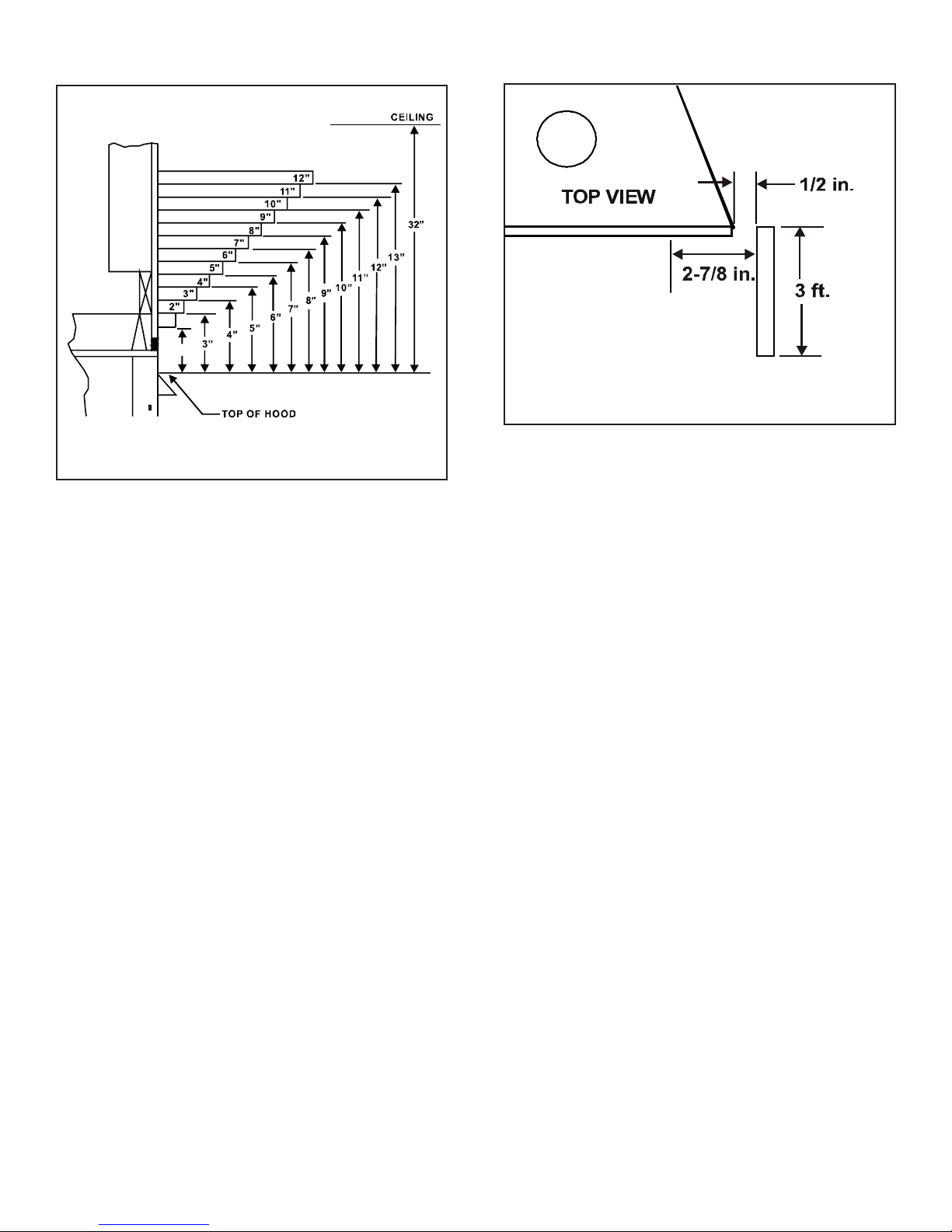

D. Mantel Projections
Figure 3.3 Clearances to Mantels or other
Combustibles above Appliance
Figure 3.4 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)
1”
2”
Note: Clearance
from opening to
perpendicular wall.

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
10
A. Vent Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
WARNING
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0
Figure 4.1
Figure 4.2 Minimum Height from Roof to
Lowest Discharge Opening
Termination Locations
4
Measure horizontal clearances from this surface.
Measure vertical clearances from this surface.
Figure 4.3 Multiple Vertical Termination
Figure 4.2 specifies minimum vent heights for various
pitched roofs.
(See Figure 4.4 for specific clearances)
* 3 foot minimum in snow regions
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Gas Termination Wood & Fuel Oil Termination
A6 in. 20 in.
20 IN.
(MINIMUM) TO
PERPENDICULAR
WALL
(GAS ONLY)
GAS
TERMINATION
GAS, WOOD OR FUEL
OIL TERMINATION

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 11
V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 4.4 Minimum Clearances for Termination
A = 12 inches...............clearancesabove grade,veranda,
porch, deck or balcony
B = 12 inches...............clearances to window or door
thatmay be opened, or toperma-
nently closed window. (Glass)
D* = 18 inches...............vertical clearance to unventilated
soffitortoventilated soffit located
above the terminal
*30 inches..............for vinyl clad soffits and below
electrical service
F = 9 inches................clearance to outside corner
G = 6 inches.................clearance to inside corner
H = 3 ft. (Canada)........not to be installed above a gas
meter/regulator assembly within 3
feet (90 cm) horizontally from the
center-line of the regulator
I = 3 ft. (U.S.A.)
6 ft. (Canada).........clearance to gas serviceregulator
vent outlet
J = 9 inches (U.S.A.)
12 inches (Canada) clearance to non-mechanical
air supply inlet to building or the
combustion air inlet to any other
appliance
K = 3 ft. (U.S.A.)
6 ft. (Canada)...........clearance to a mechanical
(powered) air supply inlet
L** = 7 ft...........................clearance above paved
sidewalk or a paved driveway
located on public property
M*** = 18 inches.................clearance under veranda, porch,
deck, balcony or overhang
42 inches ................vinyl
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED.
** avent shall notterminate directly abovea sidewalkorpaved driveway
whichis locatedbetween twosingle familydwellings andserves both
dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a
minimum of 2 sides beneath the floor, or meets Note 2.
NOTE 1: On private property where termination is less than 7 feet above
a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap
shield is suggested. (See vents components page)
NOTE 2: Termination in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum
between termination caps. 2. All mechanical air intakes within 10 feet
of a termination cap must be a minimum of 3 feet below the termination
cap. 3. All gravity air intakes within 3 feet of a termination cap must be a
minimum of 1 foot below the termination cap.
(See Note 1)
(See Note 1)
(See Note 2)
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity to
doors or other traffic areas.
NOTE 5: Location of the vent termination must not interfere with
access to the electrical service.
WARNING: In the U.S: Ventsystemtermination isNOT permittedin
screenedporches.You must follow sidewall, overhangand ground
clearances as stated in the instructions.
In Canada: Vent system termination is NOT permitted in screened
porches. Vent system termination is permitted in porch areas with
two or more sides open. You must follow all side walls, overhang
and ground clearances as stated in the instructions.
Hearth & Home Technologies assumes no responsibility for the
improper performance of the appliance when the venting system
does not meet these requirements.
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL
N = 6 inches ..................non-vinyl sidewalls
12 inches ................vinyl sidewalls
P = 8 ft.
Alcove Applications
S = 6 inches...................clearance from sides of elec-
trical service
T = 12 inches..................clearance above electrical
service
(See Note 5)
(See Note 5)
Electrical
Service
V
S
VS
V
T
D*
V
MN
P
R
Q
QMIN RMAX
1 cap 3 feet 2 x Q ACTUAL
2 caps 6 feet 1 x Q ACTUAL
3 caps 9 feet 2/3 x Q ACTUAL
4 caps 12 feet 1/2 x Q ACTUAL

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
12
5Vent Information and Diagrams
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
Do NOT connect this gas appliance to a
chimney flue serving a separate solid-fuel or
gas burning appliance.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
WARNING
CAUTION
ALL vent configuration specifications MUST be followed.
• This product is tested and listed to these
specifications.
• Appliance performance will suffer if specifications are
not followed.
B. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect (see
Figure 5.1).
Two450elbowsmay beused inplaceof one900elbow.On
450runs, one foot of diagonal is equal to 8.5 inches hori-
zontal run and 8.5 inches vertical run. A length of straight
pipe is allowed between two 450elbows (see Figure 5.1).
Figure 5.1
A. Vent Table Key
The abbreviations listed in this vent table key are used in
the vent diagrams.
C. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards.
1. Pipemeasurementsareshownusingtheeffectivelength
of pipe (see Figure 5.2).
2. Measurementsaremadefrom theappliance outerwrap,
not from the standoffs.
3. Horizontal terminations are measured to the outside
mountingsurface (flangeofterminationcap)(see Figure
4.1).
4. Vertical terminationsaremeasuredtobottom oftermina-
tion cap.
5. Horizontal pipe installed level with no rise.
Figure 5.2 DVP Pipe Effective Length
Effective
Height/Length
DVP4 4
DVP6 6
DVP12 12
DVP24 24
DVP36 36
DVP48 48
DVP6A 3 to 6
DVP12A 3 to 12
DVP12MI 3 to 12
DVP24MI 3 to 24
Length/
Inches
Pipe
Symbol Description
V1First section (closest to appliance of vertical length
V2Second section of vertical length
H1First section (closest to appliance) of horizontal length
H2Second section of horizontal length
Horizontal
V
ertical
8-1/2 in.
8-1/2 in.
12 in.

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 13
3in.CLEARANCE TERMINATION
CAP
FLEX-VENT
1in.
CLEARANCE
D. Use of Flex Vent
The flex vent must be supported with
the spacing between support intervals
notexceeding 4feet,with nomore than
½ inch sag between supports.
A support is required at each change
in venting direction, and in any location
where it is necessary to maintain the
necessary clearance to combustibles.
A simple “up and out” installation
(Figure 5.3) requires only enough
support to maintain the necessary
clearance to combustibles. However,
the vent attachment point and the
firestop location are considered to be
supports.
Figure 5.3

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
14
H2
H1
V1
Figure 5.4
Figure 5.5
E. Vent Diagrams
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles between ceiling firestops.
• ALWAYS maintain specified clearances around venting and firestop systems.
• Install wall shield and ceiling firestops as specified.
Failure to keep insulation or other material away from vent pipe may cause fire.
WARNING

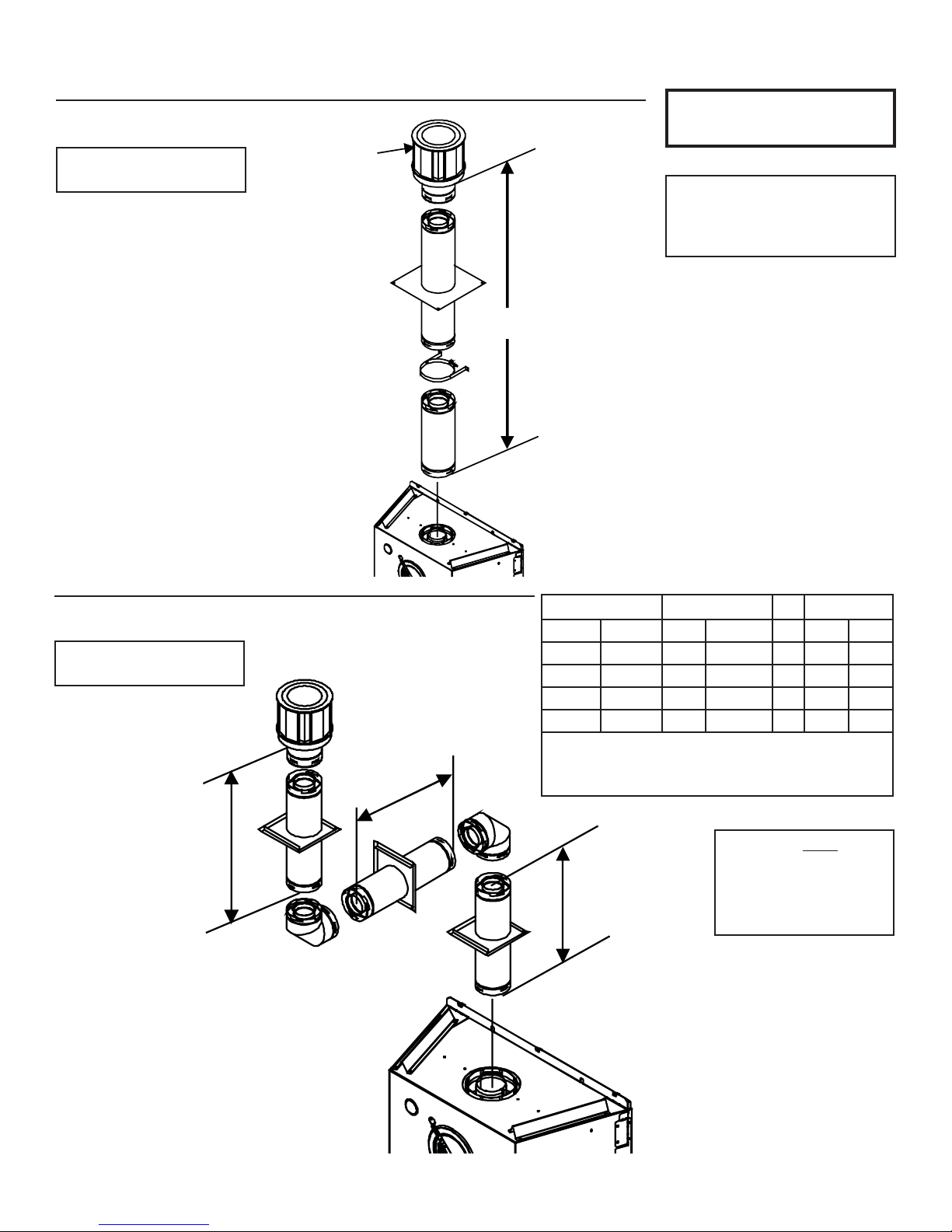

1. Top Vent - Horizontal Termination
One Elbow
Two Elbows
V1Minimum H1Maximum
Elbow only 1.5 ft 457 mm
1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.2 m
3 ft. 914 mm 9 ft. 2.7 m
4 ft. 1.2 m 12 ft. 3.7 m
V1+ H1= 30 ft. (9.1 m) Maximum
V1Minimum H1+ H2Minimum
6 in. 152 mm 1-1/2 ft. 457 mm
1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.2 m
3 ft. 914 mm 6 ft. 1.8 m
4 ft. 1.2 m 8 ft. 2.4 m
5 ft. 1.5 m 10 ft. 3.0 m
V1+ H1 + H2= 50 ft. (15.2 m) Maximum
H1 + H2= 17 ft. (5.2 m) Maximum
H1
V1
Note: Use SL Series
components only.
Note: Use SL Series
components only.
NOTE: There MUST be a
25% reduction in total H
when using flex vent except
when using the simple up
and out installation (see
Figure 5.3).
NOTE: There MUST be a
25% reduction in total H
when using flex vent except
when using the simple up
and out installation (see
Figure 5.3).

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 15
Figure 5.6
1. Top Vent - Horizontal Termination - (continued)
Three Elbows
H2
V2
H1
V1
V1Min. H1Max. V2Min. H2Max. V1 + V2Min. H1+ H2Max.
Elbow only Not allowed Not allowed Not allowed Not allowed Not allowed
1-1/2 ft. 457 mm 1 ft. 305 mm 6 in. 152 mm 1 ft. 305 mm 2 ft. 610 mm 2 ft. 610 mm
2-1/2 ft. 762 mm 2 ft. 610 mm 1-1/2 ft. 457 mm 2 ft. 610 mm 4 ft. 1.2 m 4 ft. 1.2 m
3-1/2 ft. 1.1 m 3 ft. 914 mm 1-1/2 ft. 457 mm 3 ft 914 mm 5 ft. 1.5 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 4 ft. 1.2 m 1-1/2 ft. 457 mm 1-1/2 ft. 457 mm 6 ft. 1.8 m 6-1/2 ft. 2.0 m
5-1/2 ft. 1.7 m 5 ft. 1.5 m 1-1/2 ft. 457 mm 1-1/2 ft. 457 mm 7 ft. 2.1 m 6-1/2 ft. 2.0 m
H1+ H2= 8 ft. (2.4 m) Maximum V1+ V2+ H1+ H2 = 50 ft. (15.2 m) Maximum
Note: Use SL Series
components only.
NOTE: There MUST be a
25% reduction in total H
when using flex vent except
when using the simple up
and out installation (see
Figure 5.3).

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
16
2. Top Vent - Vertical Termination
No Elbow
Figure 5.7
Figure 5.8
Two Elbows
NOTE: If installing a vertical vent/
termination off the top of the appli-
ance, the optional vertical termina-
tion baffle should be used.
CAP
V1
V2
H1
V1
V1= 41 ft. Max. (12.5 m)
V1 H
1 Maximum V2V1 + V2 Min.
1 ft 305 mm 2 ft 610 mm * * *
2 ft 610 mm 4 ft 1.2 m * * *
3 ft 914 mm 6 ft 1.8 m * * *
4 ft 1.2 m 8 ft 2.4 m * * *
5 ft 1.5 m 12 ft 3.7 m * * *
V1 + V2 + H1 = 45 ft (13.7 m) Maximum
*No specific restrictions on this value EXCEPT
V1 + V2 + H1 cannot exceed 45 ft (13.7 m)
Note: Use SL Series
components only.
Note: Use SL Series
components only.
NOTE: There MUST be a
25% reduction in total H
when using flex vent except
when using the simple up
and out installation (see
Figure 5.3).

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 17
Figure 5.9
2. Top Vent - Vertical Termination - (continued)
Three Elbows
H2
V
2
H1
V1
V1 H
1+ H2 V2V1 + V2 Minimum H 1+ H2 Maximum
ELBOW ONLY 0 0 1-1/2 ft 457 mm 1-1/2 ft 457 mm 0 0
1-1/2 ft 457 mm 3 ft 914 mm * * * * 3 ft 914 mm
2-1/2 ft 762 mm 5 ft 1.5 m * * * * 5 ft 1.5 m
3-1/2 ft 1.1 m 7 ft 2.1 m * * * * 7 ft 2.1 m
4-1/2 ft 1.4 m 11 ft 3.4 m * * * * 11 ft 3.4 m
H1+ H2 = 11 ft (3.4 m) Maximum
V1+ V2 + H1+ H2= 33 ft (10.1 m) Maximum
Note: Use SL Series
components only.
NOTE: There MUST be a
25% reduction in total H
when using flex vent except
when using the simple up
and out installation (see
Figure 5.3).

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
18
Figure 5.11
Two Elbows H1 Maximum V1 Minimum H2H1+ H2 Maximum
6 in. 152 mm Back to Back
90º Elbows 1-1/2 ft 457 mm 2 ft 610 mm
1-1/2 ft 457 mm 1 ft 305 mm 1 ft 305 mm 2-1/2 ft 762 mm
2-1/2 ft 762 mm 2 ft 610 mm 4 ft 1.2 m 6-1/2 ft 2.0 m
3-1/2 ft 1.0 m 3 ft 914 mm 5 ft 1.5 m 8-1/2 ft 2.6 m
V1+ H1+ H2= 30 ft (9.1 m) Maximum H1= 8 ft (2.4 m) Maximum
H1+ H2= 8-1/2 ft (2.6 m) Maximum
Note: Use DVP Series
components only.
3. Rear Vent - Horizontal Termination
Figure 5.10
No Elbow H1= 30 in. (762 mm) Maximum
Note: Use DVP Series
components only.

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06 19
3. Rear Vent - Horizontal Termination - (continued)
Figure 5.12
Figure 5.13
Three Elbows
INSTALLED
HORIZONTALLY
H1 Maximum V1 Minimum H2+ H3H1+ H2+ H3 Maximum
Elobw Only 0 0 0 0 0 0
1-1/2 ft 457 mm 1 ft 305 mm 1/2 ft 152 mm 2 ft 610 mm
2-1/2 ft 762 mm 2 ft 610 mm 3-1/2 ft 1.1 m 6 ft 1.8 m
3-1/2 ft 1.1 m 3 ft 914 mm 4-1/2 ft 1.4 m 8 ft 2.4 m
V1+ H1+ H2+ H3= 30 ft (9.1 m) Maximum H1= 3-1/2 ft (1.2 m) Maximum
Note: Use DVP Series
components only.
V1
H1
One Elbow V1 Minimum H1 Maximum
1 ft 305 mm 3 ft 914 mm
2 ft 610 mm 6 ft 1.8 m
3 ft 914 mm 9 ft 2.7 m
4 ft 1.2 m 12 ft 3.7 m
V1+ H1= 35 ft (10.7 m) Maximum
H1= 11 ft (3.4 m) Maximum
Note: Use DVP Series
components only.
4. Rear Vent - Vertical Termination

Hearth & Home Technologies • BE-32 • InD • 2099-985 Rev. C • 9/06
20
V1
H2
H1
INSTALLED
HORIZONTALLY
Figure 5.14
Two Elbows H1+ H2 Maximum V1 Minimum
Back to Back 90° Elbows 1 ft 305 mm
1-1/2 ft 457 mm 1 ft 305 mm
3 1/2 ft 1.1 m 2 ft 610 mm
6-1/2 ft 2.0m 3 ft 914 mm
8-1/2 ft 2.6 m 4 ft 1.2 m
V1+ H1 + H2= 33 ft (10.1 m) Maximum
Note: Use DVP Series
components only.
4. Rear Vent - Vertical Termination - (continued)
