Superior VCM3026ZMP User manual

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not
prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation
section on page 6 of this manual.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
—WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
—Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Installation and Operation Instructions
Superior™ Unvented (Vent-Free) Gas
Compact Classic Hearth Fireplace
P/N 126872-01 Rev.A 02/2014 Models
VCM3026ZMP VCM3026ZMN
P126872-01

www.SuperiorFireplaces.US.com 126872-01A2
SAFETY
TABLE OF CONTENTS
Safety .................................................................. 2
Product Identication........................................... 4
Optional Remote Control Accessories................. 4
Local Codes......................................................... 4
Product Features................................................. 5
Unpacking............................................................ 5
Assembly............................................................. 5
Air For Combustion and Ventilation..................... 6
Installation ........................................................... 9
Operation........................................................... 22
Inspecting Burners............................................. 25
Cleaning and Maintenance................................ 26
Wiring Diagram.................................................. 27
Troubleshooting................................................. 28
Specications .................................................... 32
Replacement Parts............................................ 32
Service Hints ..................................................... 32
Technical Service............................................... 32
Accessories ....................................................... 33
Parts .................................................................. 34
Warranty ............................................................ 36
WARNING: Improper instal-
lation, adjustment, alteration,
service, or maintenance can
cause injury or property damage.
Refer to this manual for correct
installation and operational
procedures. For assistance or
additional information consult
a qualified installer, service
agency, or the gas supplier.
WARNING: This is an un-
vented gas-red heater. It uses
air (oxygen) from the room in
which it is installed. Provisions
for adequate combustion and
ventilation air must be provided.
Refer to Air for Combustion and
Ventilation section on page 6 of
this manual.
This appliance may be installed
in an aftermarket,* permanently
located, manufactured (mobile)
home, where not prohibited by
local codes.
This appliance is only for use
with the type of gas indicated on
the rating plate. This appliance
is not convertible for use with
other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
WARNING: This product
contains and/or generates
chemicals known to the State
of California to cause cancer or
birth defects, or other reproduc-
tive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate, or service this replace.
Improper use of this replace
can cause serious injury or death
from burns, fire, explosion,
electrical shock, and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs
of carbon monoxide poisoning resemble the
u, with headaches, dizziness, or nausea. If
you have these signs, the replace may not
be working properly. Get fresh air at once!
Have replace serviced. Some people are
more affected by carbon monoxide than oth-
ers. These include pregnant women, people
with heart or lung disease or anemia, those
under the inuence of alcohol, and those at
high altitudes.
Natural and Propane/LP Gas: Natural and
propane/LP gases are odorless. An odor-
making agent is added to the gas. The odor
helps you detect a gas leak. However, the
odor added to the gas can fade. Gas may be
present even though no odor exists.

www.SuperiorFireplaces.US.com
126872-01A 3
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this replace.
WARNING: Any change to
this replace or its controls can
be dangerous.
WARNING: Do not use a
blower insert, heat exchanger
insert, or other accessory not ap-
proved for use with this replace.
WARNING: Do not allow fans
to blow directly into the replace.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner
ame patterns. Altered burner
patterns can cause sooting.
Due to high temperatures, the
appliance should be located out
of trafc and away from furniture
and draperies.
Do not place clothing or other
ammable material on or near
the appliance. Never place any
objects on the heater.
Fireplace front and screen be-
come very hot when running
heater. Keep children and adults
away from hot surfaces to avoid
burns or clothing ignition. Fire-
place will remain hot for a time
after shutdown. Allow surfaces
to cool before touching.
SAFETY
Continued
Carefully supervise young chil-
dren when they are in the room
with replace. When using the
hand-held remote accessory
keep selector switch in the OFF
position to prevent children from
turning on burners with remote.
You must operate this replace
with the replace screen in place.
Make sure replace screen is
closed before running replace.
Keep the appliance area clear
and free from combustible
materials, gasoline, and other
ammable vapors and liquids.
1. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s)
inside any structure. Locate propane/LP
supply tank(s) outdoors.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions
• if you cannot reach your gas supplier,
call the re department
4. This replace shall not be installed in a
bathroom or bedroom.
5. Do not use this replace as a wood-burn-
ing replace. Use only the logs provided
with the replace.
6. Do not add extra logs or ornaments such
as pine cones, vermiculite, or rock wool.
Using these added items can cause soot-
ing. Do not add lava rock around base.
Rock and debris could fall into the control
area of replace.
7. This replace is designed to be smokeless.
If logs ever appear to smoke, turn off re-
place and call a qualied service person.

www.SuperiorFireplaces.US.com 126872-01A4
Note: During initial operation, slight smoking
could occur due to log curing and replace
burning manufacturing residues.
8. To prevent the creation of soot, follow
the instructions in Cleaning and Mainte-
nance, page 26.
9. Before using furniture polish, wax, carpet
cleaner, or similar products, turn replace
off. If heated, the vapors from these prod-
ucts may create a white powder residue
within burner box or on adjacent walls or
furniture.
10. This replace needs fresh air ventilation to
run properly. This replace has an Oxygen
Depletion Sensing (ODS) safety shutoff
system. The ODS shuts down the re-
place if not enough fresh air is available.
See Air for Combustion and Ventilation,
page 6. If replace keeps shutting off, see
Troubleshooting, page 28.
11. Do not run replace
• where ammable liquids or vapors are
used or stored.
• under dusty conditions.
12. Do not use this replace to cook food or
burn paper or other objects.
SAFETY
Continued
OPTIONAL REMOTE
CONTROL ACCESSORIES
There are ve optional remote controls that
can be purchased separately:
• wall switch
• hand-held ON/OFF remote
• wall thermostat
• hand-held thermostat remote
• hand-held touch-screen thermostat remote
See Accessories, page 33.
LOCAL CODES
Install and use replace with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
13. Do not use replace if any part has been
under water. Immediately call a qualied
service technician to inspect the room
replace and to replace any part of the
control system and any gas control which
has been under water.
14. Turn off and unplug fireplace and let
cool before servicing. Only a qualied
service person should service and repair
replace.
15. Operating replace above elevations of
4,500 feet could cause pilot outage.
16. Do not operate fireplace if any log is
broken. Do not operate replace if a log
is chipped (dime-sized or larger).
17. To prevent performance problems, do not
use propane/LP fuel tank of less than 100
lbs. capacity.
18. Provide adequate clearances around air
openings.
19. The screen or any other part removed
for servicing must be replaced prior to
operating this heater.
PRODUCT
IDENTIFICATION

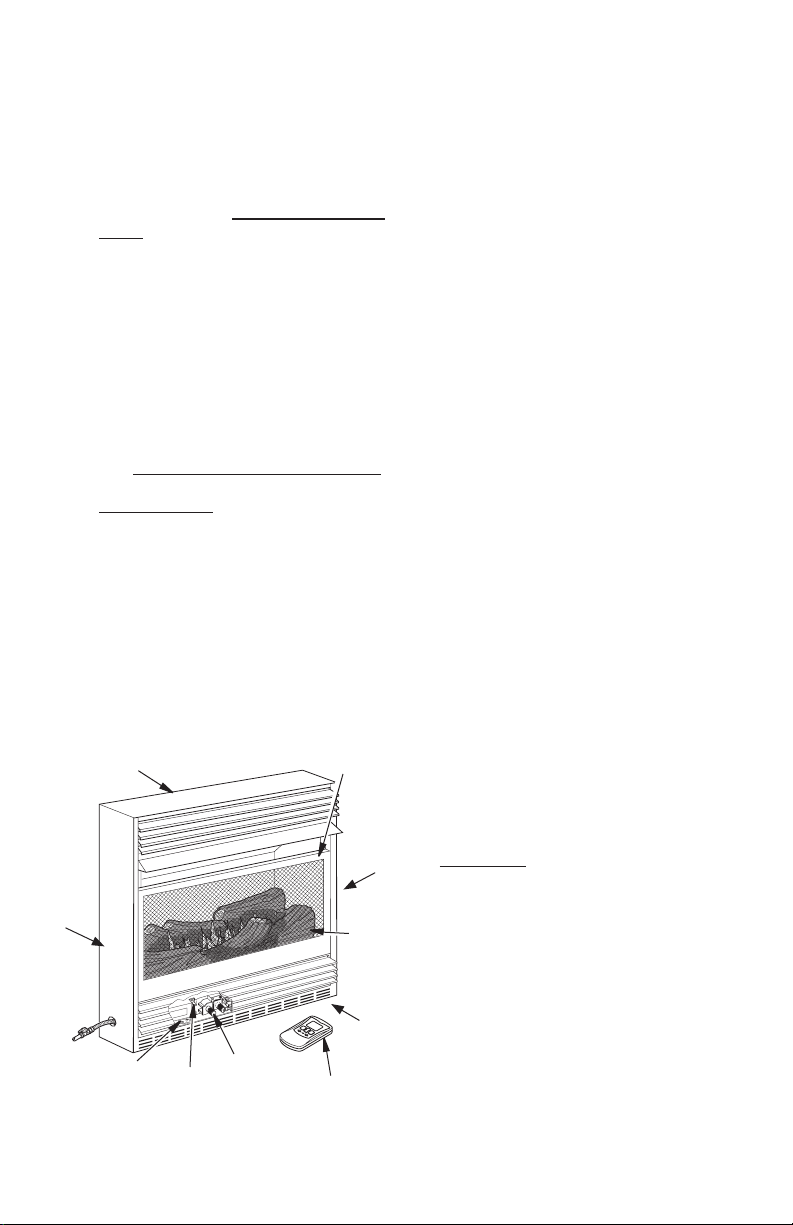

Figure 1 - Vent-Free Compact Classic
Hearth® Fireplace
ON
OFF
REMOTE
Screen
Fireplace
Cabinet
Logs
Ignitor
Button Remote Control
(Optional)
Selector
Switch
(Optional)
Control
Knob
Left
Side
Right
Side
Front

www.SuperiorFireplaces.US.com
126872-01A 5
State of Massachusetts: The installation
must be made by a licensed plumber or gas
tter in the Commonwealth of Massachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
Figure 2 - Removing Screen
Screen
Burner Support
With Log
Locator Tabs
Branch
Support
Shoulder
Screw
PRODUCT FEATURES
SAFETY PILOT
This replace has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free
room replaces. The ODS/pilot shuts off the
replace if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This replace has a piezo ignitor. This sys-
tem requires no matches, batteries, or other
sources to light replace.
UNPACKING
1. Remove replace and hood from carton.
Log is wrapped and inside replace. Do
not remove at this time.
2. Remove all protective packaging applied
to replace for shipment.
3. Make sure your replace includes one
hardware packet.
ASSEMBLY
LOCAL CODES
Continued
4. Check replace for any shipping dam-
age. If heater is damaged call INNOVA-
TIVE HEARTH PRODUCTS at 1-800-
655-2008 for replacement parts before
returning to dealer.
WARNING: Always have
branch support and screen in
place before operating replace.
This prevents excessive tem-
peratures on replace surfaces.
WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specically
approved with this replace
may result in property damage
or personal injury.
ASSEMBLING FIREPLACE
Tools Required:
• Phillips screwdriver
• 5/16" hex wrench
• slotted screwdriver
• scissors
1. Remove two screws that hold replace
screen in place for shipping. These screws
are located near top of screen. Discard
screws. Lift replace screen up and pull out
to remove. Set screen aside until installation
has been completed.
2. Cut two plastic straps to remove the log
from the rebox cavity.
3. An optional blower is available. See Ac-
cessories, page 33. Install optional blower
now. Follow installation instructions pro-
vided with blower or (see page 14).
4. Locate four black phillips sheet metal
screws from the hardware packet.
5. Rotate hood as shown in Figure 3. Make
sure hood tabs point toward replace.
6. Insert hood tabs between bafe and lou-
vers (see Figure 3, page 6).

www.SuperiorFireplaces.US.com 126872-01A6
ASSEMBLY
Continued

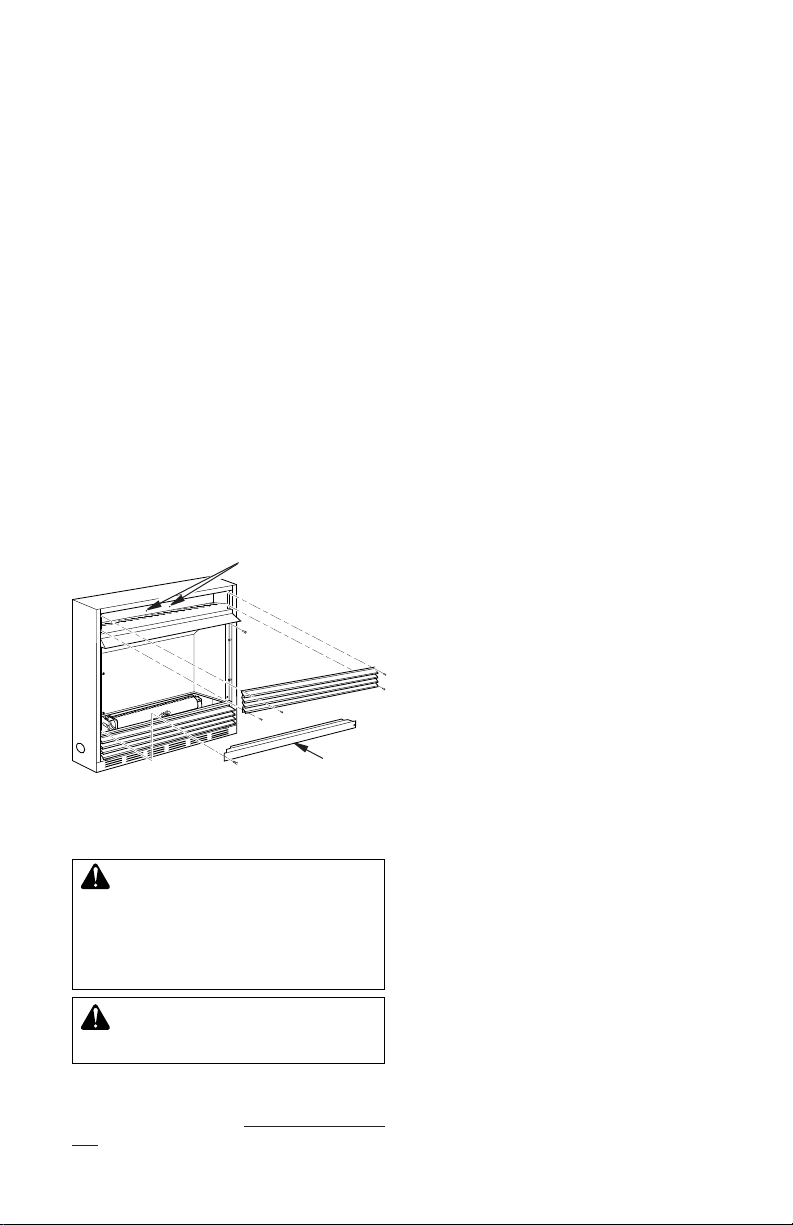

Figure 3 - Assembling Hood
Hood Tab
Sheet Metal
Screws
Louver
Bafe
Firebox Top
Hood
Hood Tabs
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater shall
not be installed in a room or
space unless the required vol-
ume of indoor combustion air
is provided by the method de-
scribed in the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code, or
applicable local codes. Read the
following instructions to insure
proper fresh air for this and
other fuel-burning appliances
in your home.
Today’s homes are built more energy efcient
than ever. New materials, increased insula-
tion, and new construction methods help
reduce heat loss in homes. Home owners
weather strip and caulk around windows and
doors to keep the cold air out and the warm air
in. During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy
efcient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, replaces, clothes dryers, and
fuel burning appliances draw air from the house
to operate. You must provide adequate fresh
air for these appliances. This will insure proper
venting of vented fuel-burning appliances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 6 through 8 will help
you classify your space and provide adequate
ventilation.
Unusually Tight Construction
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
Unusually tight construction is dened as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of one
perm (6 x 10-11 kg per pa-sec-m2) or less
with openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
7. Gently rotate hood to upright position.
Make sure hood tabs are behind louvers
and hood is resting on rebox top (see
Figure 3,).
8. Align screw holes on hood with screw
holes on rebox top.
9. Insert screws as shown in Figure 3.
Tighten screws rmly.

www.SuperiorFireplaces.US.com
126872-01A 7
c. caulking or sealants are applied to
areas such as joints around window
and door frames, between sole plates
and oors, between wall-ceiling joints,
between wall panels, at penetrations
for plumbing, electrical, and gas lines,
and at other openings.
If your home meets all of these three crite-
ria, you must provide additional fresh air.
See Ventilation Air From Outdoors, page 8.
If your home does not meet all of the three
criteria above, proceed to Determining
Fresh-Air Flow For Fireplace Location,
below.
Conned and Unconned Space
The National Fuel Gas Code, ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the ag-
gregate input rating of all appliances installed
in that space and an unconned space as a
space whose volume is not less than 50 cubic
feet per 1,000 Btu per hour (4.8 m3 per kw)
of the aggregate input rating of all appliances
installed in that space. Rooms communicating
directly with the space in which the appliances
are installed*, through openings not furnished
with doors, are considered a part of the un-
conned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW
FOR FIREPLACE LOCATION
Determining if You Have a Conned or
Unconned Space
Use this work sheet to determine if you have
a conned or unconned space.
Space: Includes the room in which you will
install replace plus any adjoining rooms with
doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 16 ft. (length) x 14 ft.
(width) x 8 ft. (ceiling height) = 1792 cu. ft.
(volume of space)
If additional ventilation to adjoining room
AIR FOR COMBUSTION AND VENTILATION
Continued
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to deter-
mine the maximum Btu/Hr the space can
support.
________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 1792 cu. ft. (volume of space) x 20
= 35,840 (maximum Btu/Hr the space can
support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free replace ___________ Btu/Hr
Gas water heater* ___________ Btu/Hr
Gas furnace ___________ Btu/Hr
Vented gas heater ___________ Btu/Hr
Gas replace logs ___________ Btu/Hr
Other gas
appliances* + __________ Btu/Hr
Total = __________ Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater ___________ Btu/Hr
Vent-free replace + __________ Btu/Hr
Total = __________ Btu/Hr
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/
Hr used.
_______ Btu/Hr (maximum the space can
support)
_______ Btu/Hr (actual amount of Btu/Hr
us ed)
Example: 35,840 Btu/Hr (maximum the
space can support)
40,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the example on the previous
page is a conned space because the actual
Btu/Hr used is more than the maximum Btu/Hr
the space can support. You must provide ad-
ditional fresh air. Your options are as follows:
A. Rework worksheet, adding the space
of an adjoining room. If the extra space
provides an unconned space, remove
door to adjoining room or add ventilation
grills between rooms. See Ventilation Air
From Inside Building, page 8
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors.
30,000
10,000
40,000

www.SuperiorFireplaces.US.com 126872-01A8
C. Install a lower Btu/Hr replace, if lower
Btu/Hr size makes room unconned.
If the actual Btu/Hr used is less than the
maximum Btu/Hr the space can support, the
space is an unconned space. You will need
no additional fresh air ventilation.
WARNING: If the area in which
the heater may be operated does
not meet the required volume for
indoor combustion air, combus-
tion and ventilation air shall be
provided by one of the methods
described in the National Fuel
Gas Code, ANSI Z223.1/NFPA
54, the International Fuel Gas
Code, or applicable local codes.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconned space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options
1 and 2, Figure 4). You can also remove door
into adjoining room (see option 3, Figure 4).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
AIR FOR COMBUSTION AND VENTILATION
Continued
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.

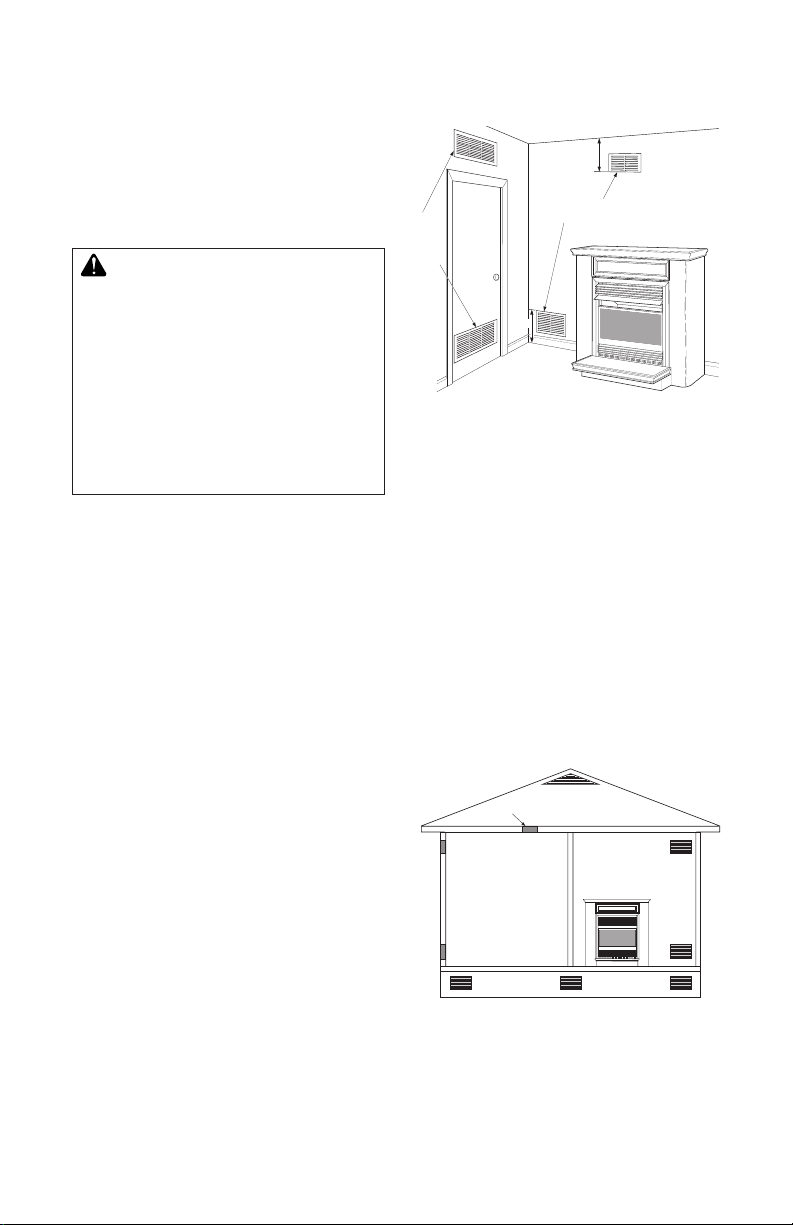

Figure 4 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into
Adjoining
Room,
Option 1
Figure 5 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic

www.SuperiorFireplaces.US.com
126872-01A 9
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your pri-
mary heat source. If you have a
central heating system, you may
run system’s circulating blower
while using heater. This will help
circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
WARNING: A qualied ser-
vice person must install re-
place. Follow all local codes.
WARNING: Never install the
replace
• in a bathroom or bedroom
• in a recreational vehicle
• where curtains, furniture,
clothing, or other ammable
objects are less than 36" from
the front, top, or sides of the
replace
• as a replace insert
• in high trafc areas
• in windy or drafty areas
CAUTION: This fireplace
creates warm air currents.
These currents move heat to
wall surfaces next to replace.
Installing replace next to vinyl
or cloth wall coverings or oper-
ating replace where impurities
(such as, but not limited to, to-
bacco smoke, aromatic candles,
cleaning uids, oil or kerosene
lamps, etc.) in the air exist, may
discolor walls or cause odors.
IMPORTANT: Vent-free replaces add mois-
ture to the air. Although this is benecial,
installing replace in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion
and Ventilation, page 6.
Note: Your replace is designed to be used in
zero clearance installations. Wall or framing ma-
terial can be placed directly against any exterior
surface on the rear, sides, or top of your replace,
except where standoff spacers are integrally at-
tached. If standoff spacers are attached to your
replace, these spacers can be placed directly
against wall or framing materials.
Note: When installing replace directly on
carpeting, tile or other combustible material,
other than wood ooring, the replace shall be
installed on a metal or wood panel extending
the full width and depth of the replace.
Use the dimensions shown for rough openings
to create the easiest installation (see Built-In
Fireplace Installation, page 10).
CHECK GAS TYPE
Use the correct gas type (natural or propane/
LP) for your unit. If your gas supply is not cor-
rect, do not install replace. Call dealer where
you bought replace for proper type replace.
WARNING: This appliance is
equipped for either natural gas or
propane/LP gas but not both. Gas
typeis indicatedontheratingplate.
Field conversion is not permitted.
INSTALLATION ITEMS
Before installing replace, make sure you
have the items listed below.
• external regulator (supplied by installer, for
propane/LP units only)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection*
• ground joint union
• sediment trap
• tee joint
• pipe wrench
* An equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge
connection. Purchase the optional equipment
shutoff valve from your dealer.
Note: If desired, purchase a three-sided trim
kit for built-in installations. See Accessories,
page 33.

www.SuperiorFireplaces.US.com 126872-01A10
FIREPLACE CLEARANCES
WARNING: Maintain the
minimum clearances shown
in Figure 6. If you can, provide
greater clearances from oor,
ceiling, and joining wall.
If your replace is to be used with an optional
mantel, the installation instructions included
with your mantel shows an approved method
of attaching the replace/mantel system to a
wall. IMPORTANT: Only use optional cabinet
or corner mantels specied in this manual.
Purchase the optional mantel from your dealer
(see Accessories, page 33).
If your replace is to be recessed into the wall,
see Built-In Fireplace Installation to secure
your replace into the wall.
CAUTION: If you install the
replace in a home garage
• replace pilot and burner must
be at least 18" above oor.
• locate replace where moving
vehicle will not hit it.
For convenience and efficiency, install
replace
• where there is easy access for operation,
inspection, and service
• in coldest part of room
An optional blower kit is available from your
dealer. See Accessories, page 33. If planning
to use blower, follow instructions provided with
blower for power source.
INSTALLATION
Continued
Minimum Clearances For Side
Combustible Material, Side Wall, and
Ceiling
A. Clearances from the side of the replace
cabinet to any combustible material and
wall should follow diagram in Figure 6.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace opening (see Figure 6).
B. Clearances from the top of the replace
opening to the ceiling should not be less
than 36".
C. For mantel clearances, see Figure 10
on page 12.

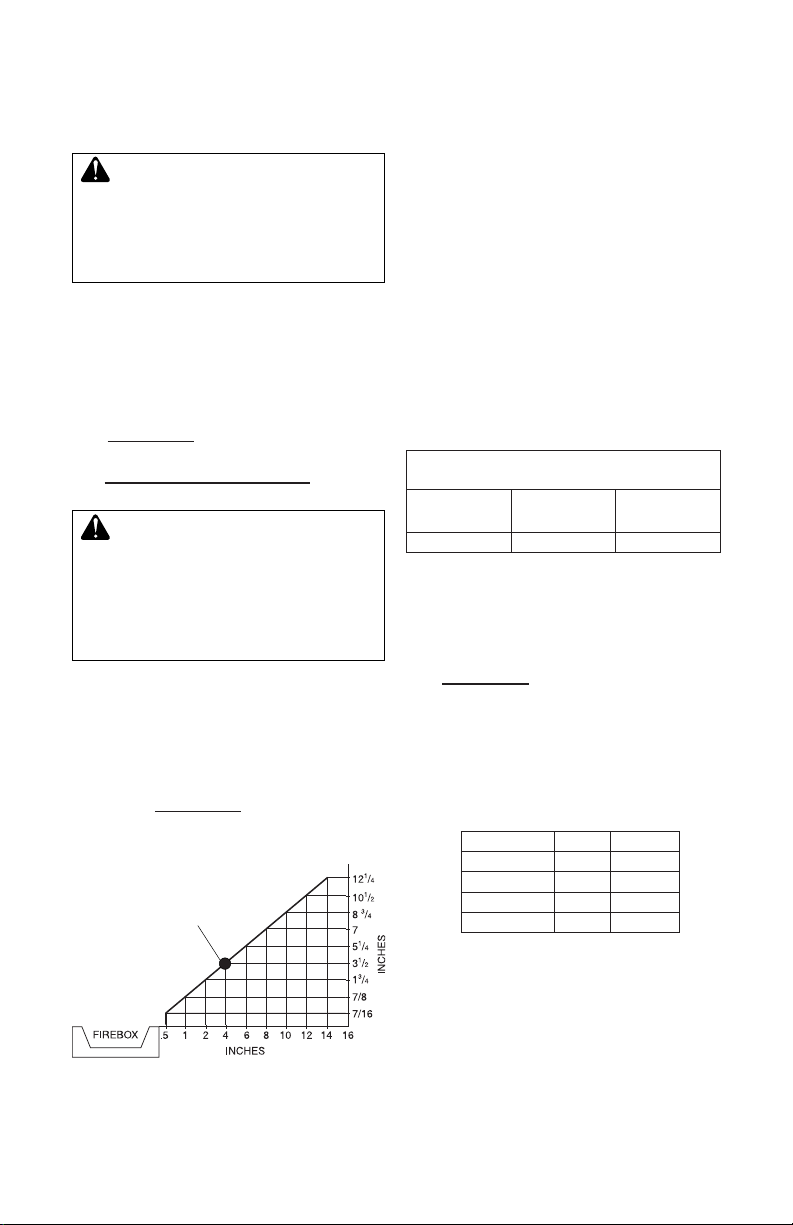

Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
Example
*
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this replace involves
installing replace into a framed-in enclosure.
This makes the front of replace ush with
wall. An optional trim kit accessory is available
(see Accessories, page 33). Trim will extend
past sides of replace approximately 1/2".
This will cover the rough edges of the wall
opening. If installing a built-in mantel above
the replace, you must follow the clearances
shown in Figure 10, page 12. Follow the
instructions below to install the replace in
this manner.
1. Frame in rough opening. Use dimensions
shown in Figure 7, page 11 for the rough
opening. If installing in a corner, use di-
mensions shown in Figure 8, page 11 for
the rough opening. The height is 26 7/8"
which is the same as the wall opening
above.
2. If installing GA3450TA blower accessory,
do so at this time. Follow instructions
included with blower accessory.
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top Left and
Right Sides
Bottom and
Rear
36" 6" 0"
Actual Framing
Height 26" 26 7/8"
Front Width 26 3/4"26 7/8"
Depth 9 1/2"10 1/2"
Bottom 3/4" 3/4"

www.SuperiorFireplaces.US.com
126872-01A 11
26
7
/ 8 "
26
7
/ 8 "
3/4" Off
The Floo
r
Minimum
10
1
/ 2
"

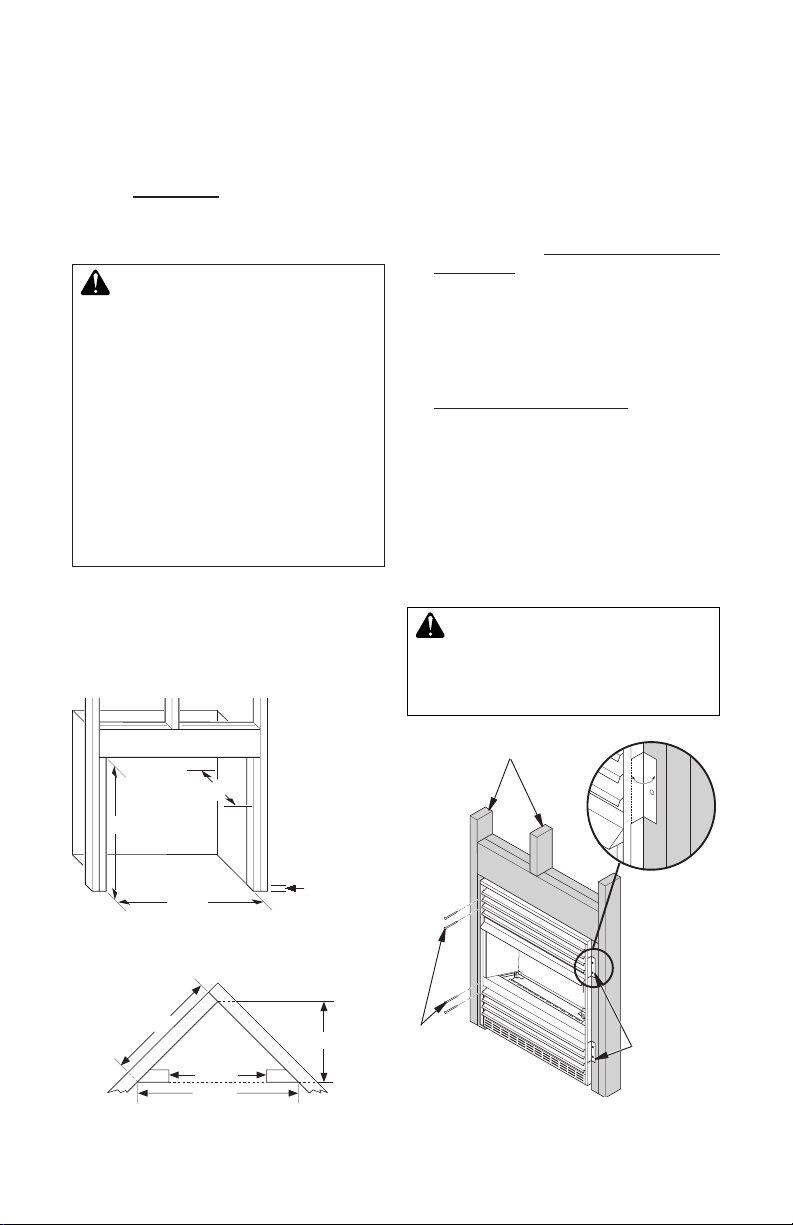

Figure 7 - Rough Opening for Installing
in Wall
36
5
/ 8 "
25
7
/ 8 "
51
3
/ 4 "
26
7
/ 8 "
Figure 8 - Rough Opening for Installing
in Corner
INSTALLATION
Continued
Note: If not installing blower accessory,
you may wish to run electrical wiring to
your replace for future blower installation
(see Accessories, page 33). Use only ap-
proved three-wire electrical wiring.
Note: A qualied installer should make all
electrical connections.
WARNING: If pre-wiring, do
not connect wiring to any electri-
cal source at this time.
Install replace electrical outlet
and connect wiring to outlet
before connecting to electrical
source. The replace electri-
cal outlet is included with the
GA3450TA blower accessory.
Only use the replace electri-
cal outlet supplied with the
GA3450TA blower accessory.
3. Install gas piping to replace location. This
installation includes an approved exible
gas line (if allowed by local codes) after
the equipment shutoff valve. The exible
gas line must be the last item installed on
the gas piping.
Figure 9 - Attaching Fireplace to Wall Studs
4. If you have not assembled rebox, follow
instructions beginning on page 5.
5. Carefully set replace in front of rough
opening with back of replace inside wall
opening.
6. Attach exible gas line to replace gas
regulator. See Connecting Fireplace to
Gas Supply, page 17.
7. Bend four nailing anges on outer casing
with pliers (see Figure 9).
8. Attach replace to wall studs using nails
or wood screws through holes in nailing
ange.
9. Check all gas connections for leaks. See
Checking Gas Connections, page 19.
10. If using optional trim kit, install the trim
after nal nishing and/or painting of wall.
See instructions included with trim acces-
sory for attaching trim.
IMPORTANT: When nishing your rebox,
combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc. may be butted up next to the sides and
top edge of the rebox. Combustible materials
should never overlap the rebox front facing.
WARNING: Do not allow any
combustible or noncombustible
materials to overlap the rebox
front facing.
Nails or
Wood
Screws
Nailing
Flanges
Wall Studs

www.SuperiorFireplaces.US.com 126872-01A12
13" 16"
19"
21"
2
1
/
2
"
6"
8"
10"
Note:
A
ll vertical
measurements
are from top of
fireplace
opening to
bottom of
mantel shelf. All
measurements
are in inches.
Mantel Shelf
Side of
Firebox
INSTALLATION
Continued
WARNING: Do not allow
noncombustible materials to
cover any necessary openings
like louvered slots.
WARNING: Never modify or
cover the louvered slots on the
front of the rebox.
Mantel Clearances for Built-In
Installation
If placing mantel above built-in replace, you
must meet minimum clearance between man-
tel shelf and top of replace opening.
NOTICE: Surface temperatures
of adjacent walls and mantels be-
come hot during operation. Walls
and mantels above the rebox
may become hot to the touch.
If installed properly, these tem-
peratures meet the requirement
of the national product standard.
Follow all minimum clearances
shown in this manual.
NOTICE: If your installation does
not meet the minimum clear-
ances shown in Figure 10, you
must do one of the following:
• raise the mantel to an accept-
able height
• remove the mantel
Figure 10 - Minimum Mantel Clearances
for Built-In Installation
OPTIONAL MANTEL INSTALLATION
Refer to instructions provided with the mantel
for assembly instructions. Refer to the follow-
ing instructions for system installation. Refer
to instructions on page 6 for hood assembly.
Blower accessory should be installed prior to
mantel if it is being used (see Installing Optional
Blower Accessory GA3450TA,page 14).
1. Assemble cabinet mantel as shown in
accessory instruction sheet.
2. If blower is installed, install a properly
grounded, 120 volt three-prong electrical
outlet at replace location if an outlet is not
there. If possible, locate outlet so cabinet
mantel will cover it when installed (see
Figure 11).
3. Place hearth base against wall at installation
location. Cut an access hole in hearth base
to run gas line to replace (see Figure 11).
Make sure to locate access hole so cabinet
mantel will cover it when installed.
Note: You can secure base to oor using
wood screws. Countersink screw heads
and putty over.
Figure 11 - Placing Hearth Base Against Wall
Hearth
Base
Electrical Outlet
Pipe and Gas
Shutoff Valve

www.SuperiorFireplaces.US.com
126872-01A 13
INSTALLATION
Continued
4. Route exible gas line through access
hole in hearth base.
5. Center cabinet mantel on hearth base
(see Figure 12). Make sure mantel is
ush against wall and centered left to
right on base.
6. Use screws provided with mantel acces-
sory to attach mantel assembly to base
(see mantel instruction sheet).
7. Attach exible gas line to replace gas
regulator. See Connecting to Gas Supply,
page 17.
8. Route electrical cord(s) through access
holes in either side of replace with bushing.
Plug electrical cord(s) into electrical outlet.
9. Check all gas connections for leaks. See
Checking Gas Connections, page 19.
10. Carefully insert replace into cabinet mantel
(see Figure 13). Be careful not to scratch or
damage hearth base or cabinet mantel.
11. Place metal trim on shoulder screws lo-
cated on the side and top of the replace
(see Assembling Perimeter Trim). Firmly
snap trim over shoulder screws. Align
replace in mantel assembly so the trim
overlaps mantel evenly on all three sides.
12. Lower bottom louver door. Use 3" wood
screws provided with mantel accessory
to attach replace to base (see mantel
instruction sheet).
Figure 12 - Installing Cabinet Mantel onto
Hearth Base
Cabinet
Mantel
Hearth
Base
O
F
F
P
I
L
O
T
O
N
H
I
L
O
Figure 13 - Installing Fireplace into
Mantel Assembly
Cabinet
Mantel
Assembled
Trim
Hearth Base
Assembling Perimeter Trim
1. Remove packaging from three remaining
pieces of trim.
2. Locate two adjusting plates with set screws,
and two shims in the hardware packet.
3. Align shim under adjusting plate as shown
in Figure 14.
4. Slide one end of adjusting plate/shim
in slot on mitered edge of top trim (see
Figure 14).
5. Slide other end of adjusting plate/shim
in slot on mitered edge of side trim (see
Figure 14).
6. While rmly holding edges of trim together,
tighten both set screws on the adjusting
plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other corner.
8. Set assembly aside for later installation.
Side
Trim
Top Trim
Mitered Edge
Figure 14 - Assembling Perimeter Trim
Shim
Set Screws
Adjusting
Plate
Slot
Slot

www.SuperiorFireplaces.US.com 126872-01A14
Installing Blower Accessory
CAUTION: Label all wires
prior to disconnection when
servicing controls. Wiring errors
can cause improper and danger-
ous operation.
CAUTION: Verify proper op-
eration after servicing.
Note: If you are using a mantel with your re-
place, use the following instructions. If your
replace is built-in, see For Built-In Installa-
tion, page 16.
1. Install snap bushings found in hardware
kit into both holes in rear of valve cover
shield.
2. Make sure the wire harness is firmly
connected to the terminals on the blower
bracket assembly.
3. Note the wire locations on back of AUTO/
OFF/ON switch. The terminals on back of
switch are numbered 1, 2, and 3. Care-
fully remove red wire from terminal 3 and
blue wire from terminal 1. Black wire can
remain on middle terminal 2 (see Figure
16, page 15).
4. Carefully disconnect green and white
wires at their insulated connectors (see
Figure 17, page 15).
5. In top of the replace cabinet, locate the
four mounting holes on the outer casing.
Align these four holes with those on the
blower bracket assembly. Attach blower
bracket assembly to the outer casing with
4 #10 screws provided (see Figure 16,
page 15).
6. Route the wire harness through the hole in
left side of bafe. Pull wire harness through
lower opening on the side of the valve
cover shield (see Figure 16, page 15).
7. Insert the 4 wire harnesses into one of the
round holes in the rear of the valve cover
shield and through the rectangular hole in
the front of shield (see Figure 16, page 15).
8. Reconnect red wire to switch position 3.
Reconnect blue wire to switch position 1.
Reconnect green and white wires.
9. Install the switch plate on the valve cover
shield with 2 #10 screws provided (see
Figure 18, page 15). Route power cord out
of the cabinet by inserting it through the
bushing on the outer casing (see Figure
16, page 15). Plug fan kit into 120-Volt
grounded power supply and test operation.
Note: When switch is in the AUTO posi-
tion, the fan will start after the replace
has run for a few moments. The fan will
continue to run for several moments after
the replace has been turned off. When
switch is in the ON position, the fan will
run until turned to OFF. Reinstall upper
louver assembly (see Figure 15) and
branch support. Close lower louver door.
INSTALLING OPTIONAL BLOWER
ACCESSORY GA3450TA
Removing Upper Louver Assembly and
Branch Support
To install the blower accessory, you must rst
remove the upper louver assembly.
1. Lift screen off replace and remove log
set if installed.
2. Remove 2 screws from each side of
branch support and pull branch support
out (see Figure 15).
3. Remove 4 screws from upper louver
assembly (see Figure 15). Save these
screws.
4. Pull upper louver assembly straight out
from the cabinet. Be careful not to scratch
the paint. Set louver assembly and screws
aside.
5. Open lower louver door by swinging door
down (see Figure 15).
Blower Bracket
Mounting Holes
Branch
Support
Figure 15 - Removing Top Louver and
Branch Support
INSTALLATION
Continued

www.SuperiorFireplaces.US.com
126872-01A 15
INSTALLATION
Continued
Figure 16 - Installing Blower Bracket Assembly
Figure 17 - Wiring Diagram For Blower Accessory Standard Installation
Red
Red
Fan Switch
(Auto/Off/On)
Blue
Blue
Thermostat
Switch
(N.O.)
Green
White
Green
White
On
110/115
V.A.C. Blower
Motor
Black
Off
1
2
3
Auto
Figure 18 - Installing Switch Plate to Valve Cover Shield
Valve Cover Shield
Switch
Plate
Screw
3
2
1
Wire
Harness
Blower Bracket
Assembly
Screw
Wire Harness
Switch
Wiring Routing
Switch
Plate Blue
Red
Valve Cover Shield
Snap
Bushing
Black
Blower
Mounting
Holes
Lower Louver Door
Power Cord

www.SuperiorFireplaces.US.com 126872-01A16

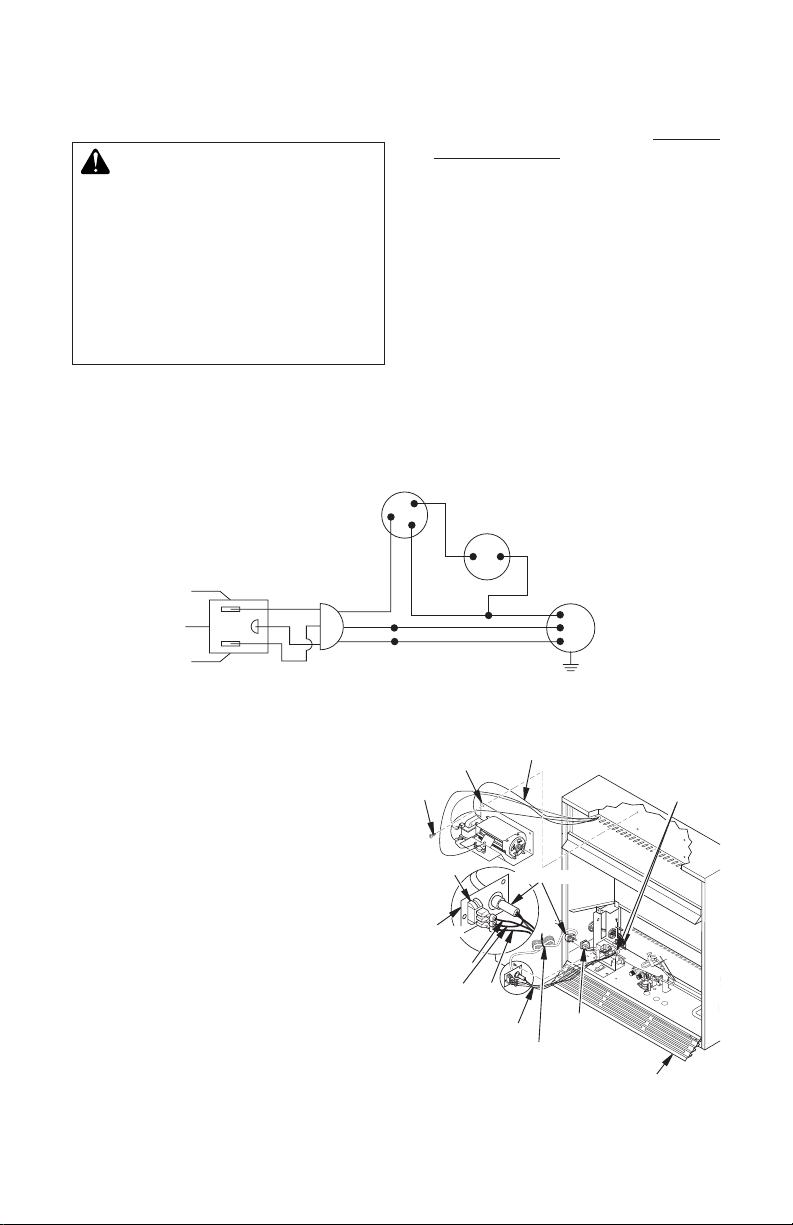

INSTALLATION
Continued
Extension Cord
Use extension cord if needed. The cord must
have a three-prong, grounding plug and a
three-hole receptacle. Make sure cord is in
good shape. It must be heavy enough to carry
the current needed. An undersized cord will
cause a drop in line voltage. This will result in
loss of power and overheating. Use a No. 16
AWG cord for lengths less than 50 feet.
Red
Red
Fan Switch
(Auto/Off/On)
Blue
Blue
Thermostat
Switch
(N.O.)
Green
White
Green
White
On
110/115
V.A.C. Blower
Motor
Black
Off
1
2
3
Auto
Figure 20 - Installing Blower Bracket
Assembly
Figure 19 - Wiring Diagram For Blower Accessory Built-In Installation
For Built-In Installation
WARNING: A licensed elec-
trician must connect the wiring
harness to electrical supply
following all local codes. Electri-
cian must provide a clamp on the
box cover to secure the wiring.
Wiring should be routed through
the bushing in the hole on the
outer casing of replace.
1. Install a snap bushing found in hardware
kit into one of the holes on rear of valve
cover shield. The other hole is for a strain
relief clamp (not supplied) to secure in-
coming electrical supply.
2. Follow steps 2 through 6 in Installing
Blower Accessory, page 14.
3. A licensed electrician must follow the wir-
ing diagram to connect incoming electri-
cal supply to fan kit wiring harness (see
Figure 19).
4. Plug power cord to the outlet receptacle
(not provided) as shown in Figure 20.
Wind the extra power cord and tie with
plastic wire strap (see Figure 20). Set the
power cord bundle between the burner
bracket and outer casing, away from the
burner.
5. Test to make sure the blower is working
properly.
6. Reinstall upper louver assembly (see Fig-
ure 15, page 14) and close lower louver.
Plastic Wire Strap
Wire Harness
Lower Louver Door
Blower
Bracket
Assembly
Screw
Wire
Harness
Switch
Blue
Red
Outlet
Receptacle
(not included)
Power Cord
Black
Clamp
Connector
(not
included)
Switch
Plate

www.SuperiorFireplaces.US.com
126872-01A 17
INSTALLATION
Continued
Propane/LP
Supply Tank
CONNECTING TO GAS SUPPLY
WARNING: This appliance
requires a 45° male are tting
5/8"-18 UNF (Unied National
Fine Thread) inlet connection
and the exible gas line provided.
WARNING: A qualified
service person must connect
replace to gas supply. Follow
all local codes.
WARNING: Never connect
natural gas replace to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
IMPORTANT: For natural gas, check gas line
pressure before connecting replace to gas
line. Gas line pressure must be no greater
than 14" of water. If gas line pressure is higher,
heater regulator damage could occur.
CAUTION: Never connect
propane/LP replace directly
to the propane/LP supply. This
replace requires an external
regulator (not supplied). Install
the external regulator between
the replace and propane/LP
supply.
For propane/LP units, the installer must
supply an external regulator. The external
regulator will reduce incoming gas pressure.
You must reduce incoming gas pressure to
between 11" and 14" of water. If you do not
reduce incoming gas pressure, fireplace
regulator damage could occur. Install exter-
nal regulator with the vent pointing down as
shown in Figure 21. Pointing the vent down
protects it from freezing rain or sleet.
Figure 21 - External Regulator With Vent
Pointing Down
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" or greater diameter to allow
proper gas volume to replace.
If pipe is too small, undue loss
of volume will occur.
Installation must include an equipment shutoff
valve, union, and plugged 1/8" NPT tap. Lo-
cate NPT tap within reach for test gauge hook
up. NPT tap must be upstream from heater
(see Figure 22, page 18).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment
shutoff valve is for turning on or shutting off
the gas to the appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged replace valves.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.
External
Regulator
with Vent
Pointing
Down

www.SuperiorFireplaces.US.com 126872-01A18
INSTALLATION
Continued
* Purchase the optional equipment shutoff
valve from your dealer.
Figure 22 - Gas Connection
Equipment Shutoff Valve
With 1/8" NPT Tap*
3" Minimum
Approved
Flexible Gas
Line
Pipe Nipple Cap Tee Joint
Propane/LP
From External
Regulator (11"
W.C.** to 14" W.C.
Pressure)
NATURAL
From Gas Meter
(5" W.C.** to 10.5"
W.C. Pressure)
Sediment Trap
CONNECTING FIREPLACE TO GAS
SUPPLY
Installation Items Needed
• Phillips screwdriver
• sealant (resistant to propane/LP gas, not
provided)
1. Remove screws that attach branch sup-
port to replace (see Figure 23). Carefully
lift up branch support and remove from
replace (see Figure 23).
NOTICE: Most building codes
do not permit concealed gas
connections. A exible gas line
is provided to allow accessibility
from the replace (see Figure 23).
The exible gas supply line con-
nection to the equipment shutoff
valve should be accessible.
Figure 23 - Removing Branch Support
From Fireplace
Flexible
Gas Line
Branch Support
We recommend that you install a sediment
trap in supply line as shown in Figure 22. Lo-
cate sediment trap where it is within reach for
cleaning. Install in piping system between fuel
supply and heater. Locate sediment trap where
trapped matter is not likely to freeze. A sediment
trap traps moisture and contaminants. This
keeps them from going into replace controls.
If sediment trap is not installed or is installed
wrong, replace may not run properly.
2. Route exible gas line, included, from
fireplace control to equipment shutoff
valve through side or rear access holes
in outer casing.
3. Apply pipe joint sealant lightly to male
threads of gas connector attached to
exible gas line/equipment shutoff valve
(see Figure 24).
CAUTION: Avoid damage to
gas control. Hold gas control
with wrench when connecting
it to gas piping and/or ttings.
4. Check all gas connections for leaks. See
Checking Gas Connections, page 19.
5. Replace branch support back into replace.
Feed exible gas line into replace base area
while replacing branch support. Make sure
the entire exible gas line is in replace base
area. Reattach branch support to replace
with screws removed in step 1.
Figure 24 - Attaching Flexible Gas Line
to Equipment Shutoff Valve
Flexible Gas Line
from Fireplace Gas
Regulator Provided
With Fireplace
To Control
Valve
Equipment
Shutoff Valve PROPANE/LP
To External
Regulator
NATURAL
To Gas Supply

www.SuperiorFireplaces.US.com
126872-01A 19
Figure 26 - Checking Gas Joints
(Propane/LP Only)
INSTALLATION
Continued
2. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas, or using compressed air.
3. Check all joints from gas meter to equip-
ment shutoff valve for natural gas or
propane/LP supply to equipment shutoff
valve for propane/LP (see Figures 26 or
27). Apply noncorrosive leak detection uid
to all joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 25 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff
Valve
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an open
ame to check for a leak. Apply a
noncorrosive leak detection uid
toalljoints. Bubblesforming show
a leak. Correct all leaks at once.
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply and
replace. See guidelines under
Connecting to Gas Supply,
page 17.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect appliance with its appliance
main gas valve (control valve) and equip-
ment shutoff valve from gas supply piping
system. Pressures in excess of 1/2 psig
(3.5 kPA) will damage heater regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas, or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to
all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect fireplace and equipment
shutoff valve to gas supply. Check recon-
nected ttings for leaks.
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see
Figure 25).
Equipment
Shutoff Valve
Propane/LP
Supply Tank
Figure 27 - Checking Gas Joints for
Natural Gas (Shown with Optional Mantel)
Equipment
Shutoff Valve
Gas Meter
Gas Control Valve
Gas Control Valve

www.SuperiorFireplaces.US.com 126872-01A20

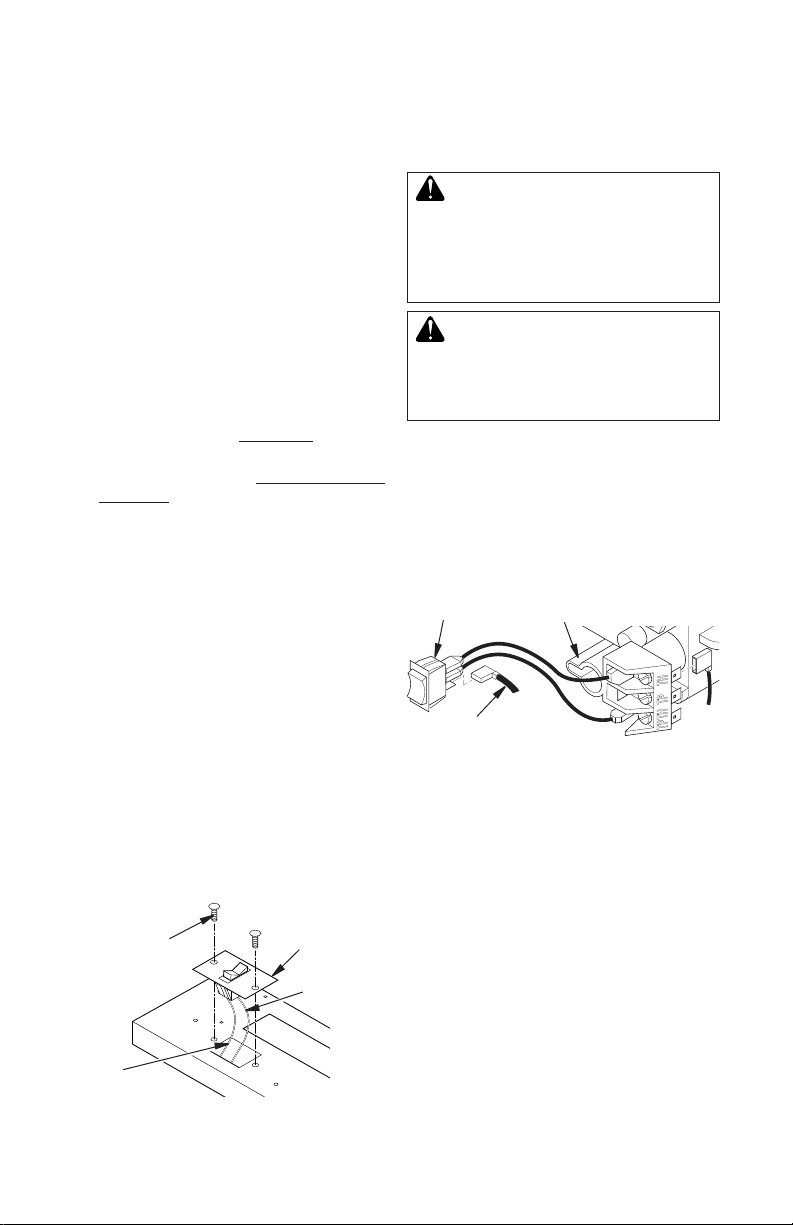

PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Figure
25, page 19).
2. Open main gas valve located on or near
gas meter for natural gas or open pro-
pane/LP supply tank valve.
3. Make sure control knob of replace is in
the OFF position.
4. Check all joints from equipment shutoff
valve to gas control valve (see Figures
26 or 27, page 19). Apply noncorrosive
leak detection uid to all joints. Bubbles
forming show a leak.
5. Correct all leaks at once.
6. Light replace (see Operation,page 22).
Check all other internal joints for leaks.
7. Turn off replace (see To Turn Off Gas to
Appliance, page 23).
OPTIONAL WIRELESS HAND-HELD
REMOTE CONTROL ACCESSORIES
(MRC AND TRC)
Installing Receiver
1. Remove screws.
2. Disconnect switch wires from control valve.
3. Remove switch plate (see Figure 28).
Discard switch plate after removing. Save
the screws.
4. Place remote receiver unit onto replace
base.
5. Connect the wire harness from the re-
ceiver to the TH and TH/TP terminals on
the valve.
6. For further information see installation
instructions provided with remote control
kit.
INSTALLATION
Continued
Figure 28 - Switch Plate and Wiring
Harness
Screw
Switch
Plate
Black
Wire
Red Wire
3. Route 25 ft. wire to a convenient location
to mount your thermostat (no outside
wall). IMPORTANT: Wire may be short-
ened but must not be lengthened.
Thermostat should be mounted 54" above
the oor in a location where there is good
air circulation. Avoid heat sources such as
lamps, direct sunlight, replace, or heat
and air conditioning ducts.
4. Gently remove thermostat cover from
base. Grasp sides of cover rmly and pull
to separate from base.
5. Feed electrical wires through rectangular
slots on each side of base (see Figure 30).
OPTIONAL WALL MOUNTED
THERMOSTAT - GWMT1
WARNING: Read and fol-
low installation instructions.
Installation should be done by
a qualied installer familiar with
low-voltage wiring procedures.
WARNING: Do not connect
this thermostat to any electrical
source! Electrical shock and/or
re hazard will occur.
1. Connect one terminal of 25 ft. wire to bot-
tom contact of switch (see Figure 29).
2. Connect remaining wire terminal to “TH”
terminal on control valve. Make sure that
wire terminals are in the positions on your
unit as pictured in Figure 29. If wires are
not “crossed” thermostat will not work.
Figure 29 - Connecting Wire Terminals
AUTO
OFF
ON
One Terminal
of 25 ft. Wire
Switch on Gas
Fireplace
To Wall Thermostat
or Switch
Control
Valve
