The Handy THPCS16 User manual

OPERATOR’S MANUAL AND PARTS LIST
PETROL CHAINSAW - THPCS16
Spares & Support: 01793 333212
www.thehandy.co.uk
Before use please read & understand this manual, paying particular
attention to the safety instructions.
25/09/2014

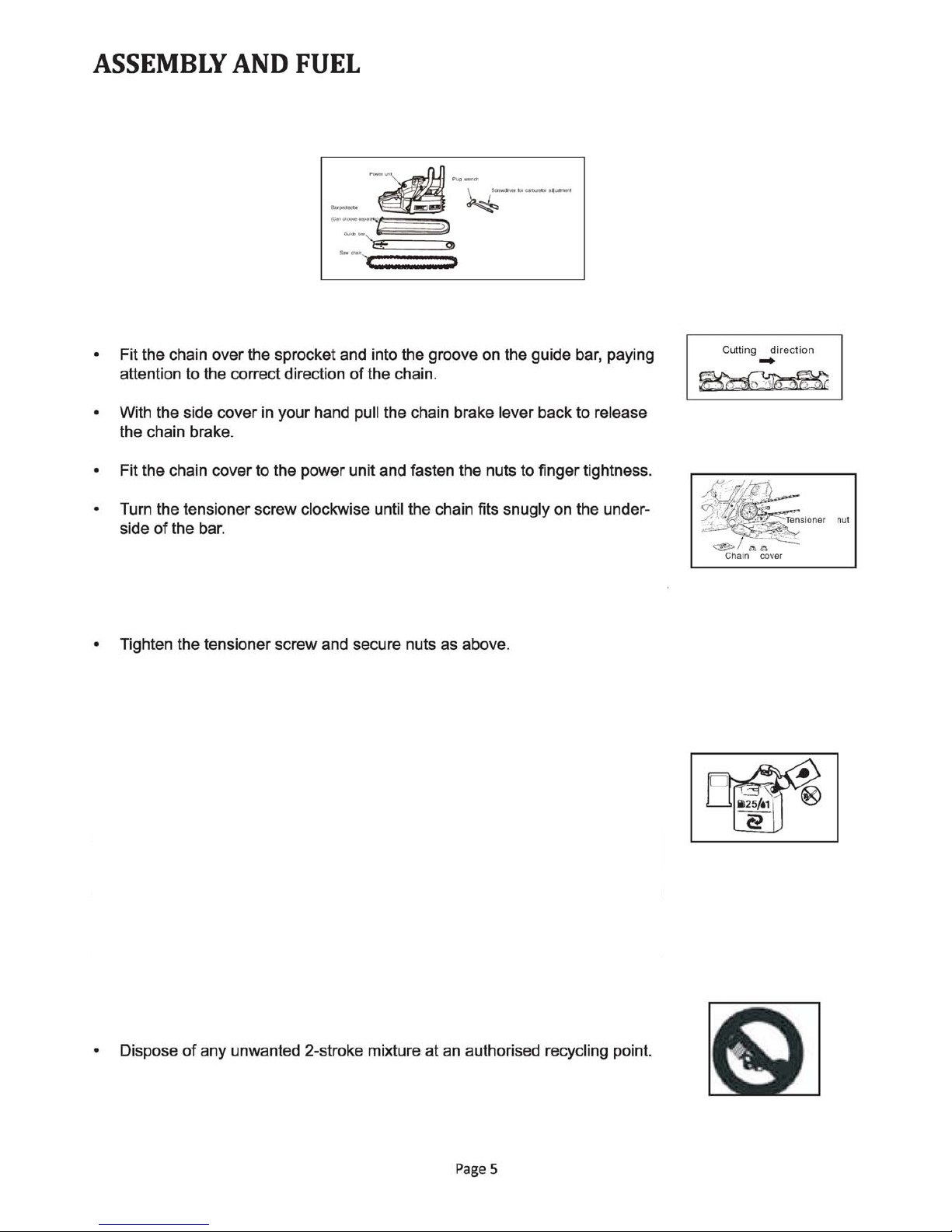

• Wearing gloves locate the guide bar onto the chainsaw making sure that the
hole on either side of the slot locates over the adjuster pin.
A new chain will stretch during its first use. Turn off the engine then check
and readjust the chain frequently. Maintaining chain tension is important,
incorrect tension can cause the bar to wear and the chain to come off.
FUEL
Petrol is very flammable. Do not smoke while using the chainsaw or refuel
near a flame or spark. Allow the engine the cool before refuelling. Refuel
the engine at least 3m away from your work area.
• Use a ratio of 25:1 unleaded petrol to 2-stroke mineral oil. For semi-synthetic
or synthetic use the manufacturer’s ratio. Mix in an appropriate mixing
bottle.
• Unscrew the fuel cap, and fuel the machine to 80% capacity (248ml). Fasten
the fuel cap tightly and wipe up any spillage.
• Ensure that any stored petrol/oil mixture (2-stroke) is clearly marked in a
separate can and only stored for 4-6 weeks. If the chainsaw is not going to
be used for a long period, drain the mixture from the fuel tank, then start the
engine to use up any remaining fuel.
CHAIN OIL
Use Handy chain oil HP-177.
Your chainsaw package contains: a Power Unit and separate Side Cover,
Guide Bar, Saw Chain, Scabbard, Plug Wrench and Screwdriver for
carburettor adjustment.
• Tighten the nuts securely with the bar tip held up. Using gloves, check the
chain for smooth rotation and correct tension while moving by hand. You
should be able to pull the chain 5-6mm off the guide bar. If necessary
re-adjust by loosening the side cover nuts.

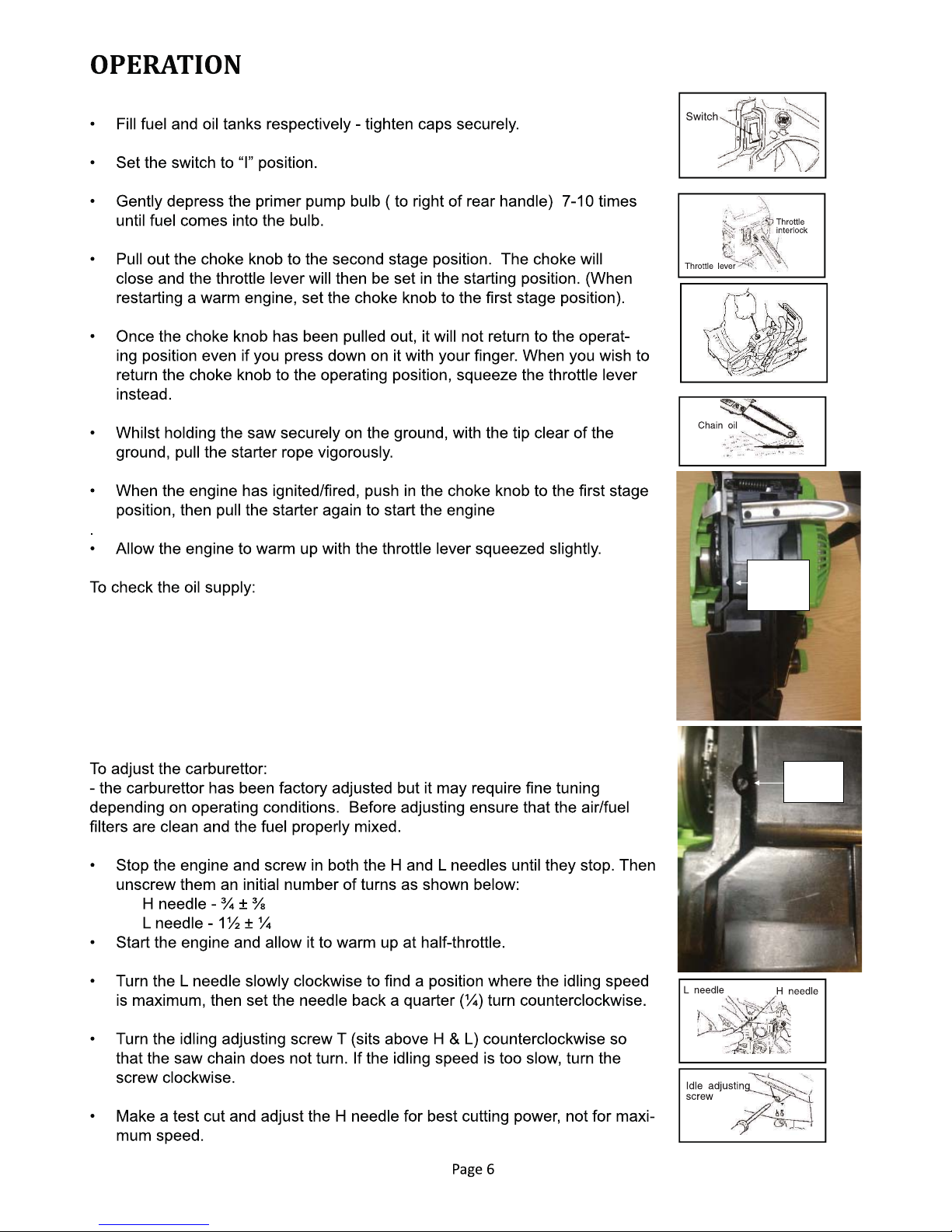

Switch on the saw and hold it with the guide bar and chain above some light
coloured paper as shown in the image. A steadily increasing stain caused by oil
spray indicates that the lubricating system is working correctly. Running the saw
without chain lubrication will quickly damage the chain and guide bar.
You can alter the rate at which the oil flows by adjusting the lubrication screw,
located on the underside of the machine. It is only necessary to make small
adjustments to change the amount of the oil that is applied to lubricate the chain.
Lubrication
adjustment
access
hole
Lubrication
adjustment
screw.

to pull it out by

Before cleaning, inspecting or repairing the chainsaw, ensure that the
engine has stopped and is cool. Disconnect the spark plug to prevent
accidental starting.
.

type
size 5/32in (4mm) for the 3/8” chain.
• Chain files can be purchased from Handy Garden Machinery on
01793 333203, under the product code HP-106.

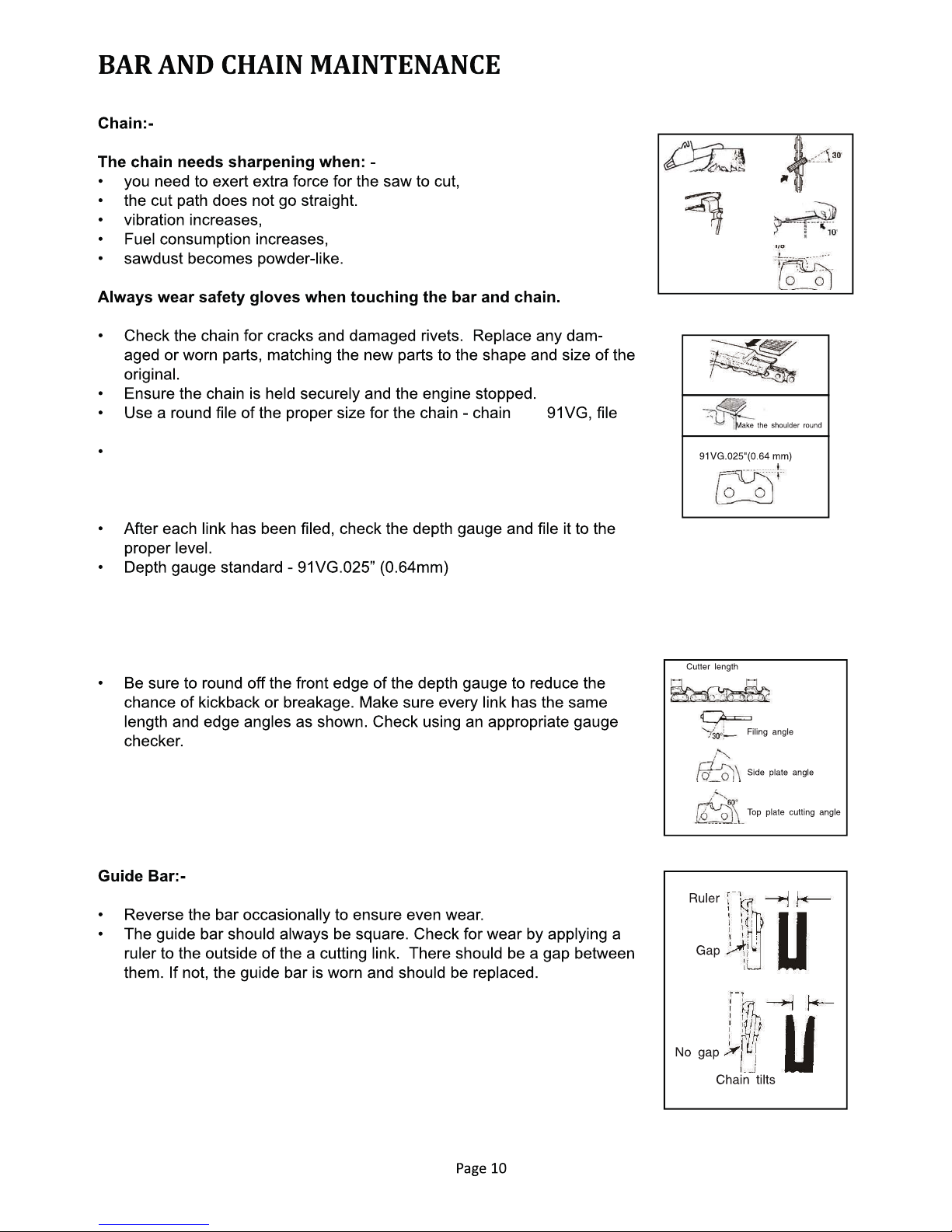

Place the file on the cutter at a 30 degree angle as illustrated and push
forward. The file only sharpens on the forward stroke - lift the file off of
the cutter on the back stroke. Keep the file position as illustrated and
avoid touching the tie straps and links with the file.

GJ HANDY & CO LTD USER WARRANTY POLICY
GJ Handy & Co Ltd reserve the right to change specifications and/or price without notice
Version 2 08-2014
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and
repairing those parts, which are of original manufacture.
2. Period of Warranty
All Webb, Handy Pro (Brushcutter & Long Handle Hedgecutter only) and Sanli domestic products
(a) 2 years from the original date of sale to the first domestic user.
(b) 90 days from the original date of sale to the professional/commercial user.
(c) 90 days from the original date of sale when used for hire.
(d) Engines as per the manufacturer’s warranty statement which will be supplied with the machine.
(e) 90 days from the original date of purchase for Replacement Spare Parts.
(f) All machines must be serviced within the first 12 months from the original date of purchase to comply
with the warranty, failure to do so will invalidate the second year of the warranty.
(g) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. wheels, tyres, cutter bars, cylinders, bottom blades, belts, cables, grass bags, spark plugs).
All Handy, Handy Pro (All others), Mowerland and Q-Garden domestic products
(a) 1 year from the original date of sale to the first domestic user.
(b) 90 days from the original date of sale to the professional/commercial user.
(c) 90 days from the original date of sale when used for hire.
(d) Engines as per the manufacturer’s warranty statement which will be supplied with the machine.
(e) 90 days from the original date of purchase for Replacement Spare Parts.
(f) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. wheels, tyres, cutter bars, cylinders, bottom blades, belts, cables, grass bags, spark plugs).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have been accredited
by GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair procedures.

GJ HANDY & CO LTD USER WARRANTY POLICY
GJ Handy & Co Ltd reserve the right to change specifications and/or price without notice
Version 2 08-2014
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or
corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operators manual, or service parts replacement which would include oil, filters, tyres,
belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has
evidence of faulty manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being
modified without the written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fitted and as a result the unit
has been damaged.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for product defects. GJ Handy & Co Ltd will never issue a warranty for the
merchantability of a product or its fitness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on
behalf of GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any
way.
(c) Neither GJ Handy & Co Ltd nor any company affiliated with GJ Handy & Co Ltd shall be liable in any
event or manner whatsoever for incidental or consequential damages or injuries, including, but not
limited to, loss of crops, loss of profit, out of pocket expenses or profits, rental of substitute equipment or
other commercial losses.
5. General
(a) Most warrantable failures show up within the first few weeks of use. These failures are usually
straightforward and warranty assessment is relatively easy.
(b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss
have snapped or cracked as this could be due to impact damage.
(c) Customers should always refer to the operator’s instruction manual when any disputed problem arises,
you will find most areas covered within the manual.
