The Loudspeaker Kit M4S User manual

Designed and manufactured in Australia by The Loudspeaker Kit
www.theloudspeakerkit.com
Email: [e-mail]
M4S Assembly
Instructions

Assembly manual M4S Kit
2
You will need:
•Phillips head screwdriver
•Woodworking glue
•Damp cloth
•Good quality masking tape
•Ratchet tie down strap (optional)
•Brick or other weight (optional)
Preparation
Lay the contents of the box out and check you have everything you need to complete the kit
(see parts list on back page). Find a suitable work surface and make sure it won’t be ruined if
you spill some glue. If covering the work surface, avoid using newspaper as newsprint may rub
off onto your kit. Baking paper is a good choice.
Easier assembly with mitres
LSK kits now employ mitre construction, which offers greater ease of assembly with much less
sanding. Butt joints are eliminated, avoiding visible hairline cracks that often appear after
painting. Mitre construction puts the join right on the edge where it is less visible. Most
constructors avoid using mitres due to the difficulty in getting the angles correct. Our
manufacturing process provides a level of accuracy that is very difficult to achieve in a home
workshop.

Assembly manual M4S Kit
3
Masking tape
We recommend avoiding cheap masking tape, which tends to break when applied under
tension. If you aren’t using the weight and ratchet strap, you are relying on the masking tape
along to apply pressure to the join as the glue sets.

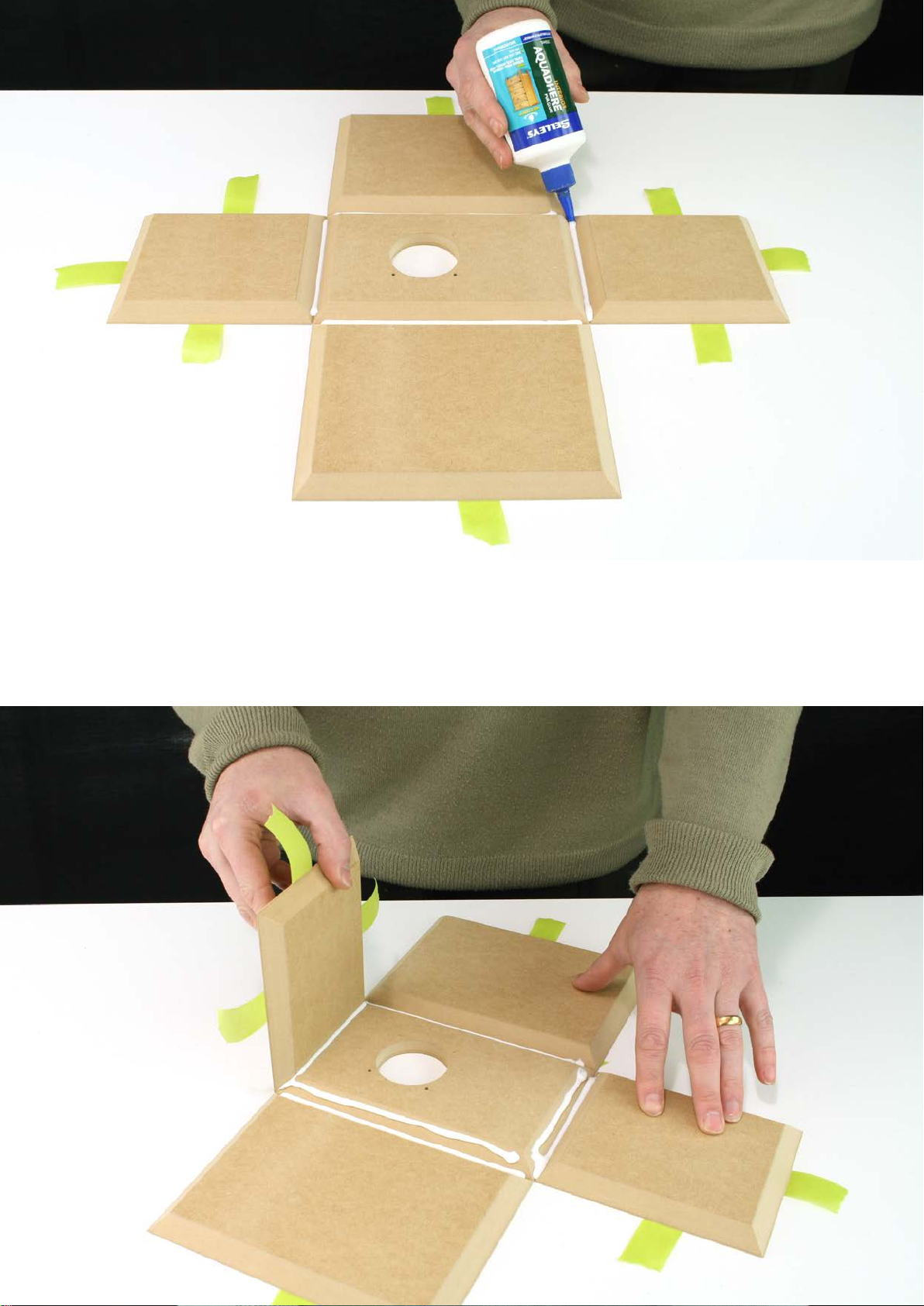

Lay out the rear, side, top and bottom panels as shown with mitres facing the work surface.
Align carefully and arrange so that all panels are touching at the edges, with no gaps.
Tape all four joints where the rear panel meets the side and top panels. It’s a good idea to
avoid covering the corners so that you can ensure all panels remain aligned during taping.
Lift the panels using the hole for the terminals, turning them over to the other.

Assembly manual M4S Kit
4
Tip: placing masking tape as shown assists with folding up the panels.
Apply a bead of wood working glue to the bottom of the mitre join. Then apply a second bead.
Since the glue will tend to run down towards the bottom, it’s a good idea to apply the glue
above half way up to ensure even coverage.

Assembly manual M4S Kit
5
Confirm the amount of glue applied by folding up the first panel. The glue should cover the
entire surface in contact. It’s preferable to see the glue ooze beyond the join slightly. This
provides visual feedback on whether the glue has set. Once set, PVA glue becomes
transparent.

Assembly manual M4S Kit
6
Apply a single thick bead for the top and side panels. Test the first pair of mitres to confirm
glue coverage, then glue and fold up all the other panels. It is best to fold up and then tape one
join at a time. Ensure the glue covers the join before moving on to the next step.

Assembly manual M4S Kit
7
Ensure the front baffle has the correct orientation. The port on the front and terminals on the
back should be oriented so they are both on the bottom. In the picture above they are both on
the right as the speaker is placed on its side.
Apply a thick glue bead around the internal surfaces of the mitres. You may prefer a zig zag
pattern with a thinner bead. It’s a good idea to remove the panel and confirm even coverage.

Assembly manual M4S Kit
8
Once you have confirmed adequate glue coverage, press the baffle into place and wipe off all
excess glue with a damp cloth. Secure panels firmly with masking tape. Apply pressure when
pressing the tape into position. The tape holds the panels together as the glue sets.

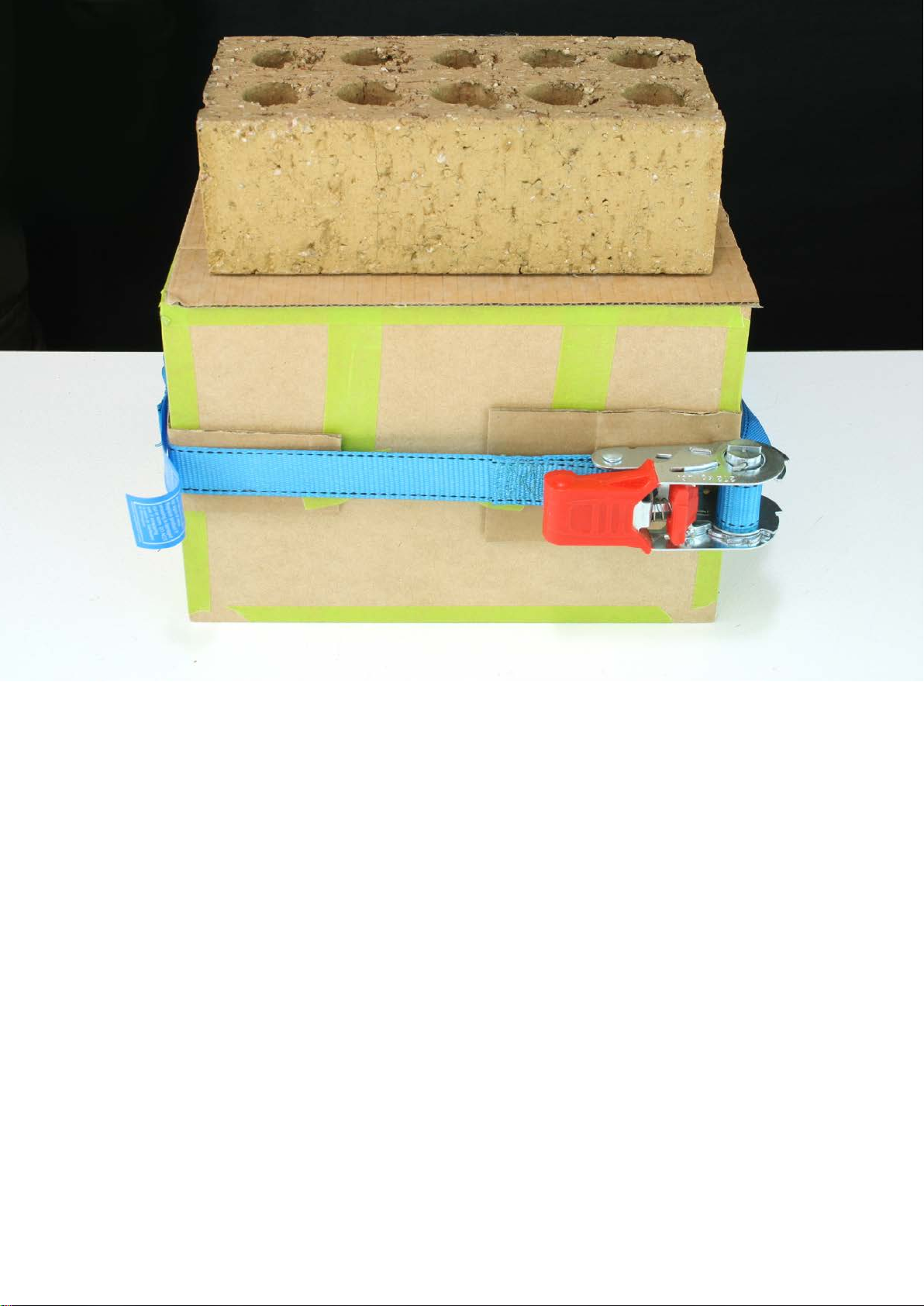

Cover all joins with tape, as shown below. An optional step for improved clamping pressure is
securing top, bottom and side panels together with a tie down ratchet strap. Avoid damage to
the surface of the MDF by placing cardboard strips under the straps at all four corners. Be
careful to avoid applying too much force, which can damage the corners of the MDF.

Assembly manual M4S Kit
9
Place a cardboard protector on top of the baffle then a brick on top to apply pressure.
We don’t recommend using F clamps due to the risk of forcing panels apart. The advantage of
using a brick is that this avoids the temptation to use excessive force.
Drying time
Typical wood glues can achieve moderate strength in as little as 30 minutes. If you are using
PVA glue then a good indicator that it has set is the transparency. PVA becomes transparent
once set. Ideally it’s best to leave the enclosure clamped over night before moving on to
assembly or finishing.
Grille assembly
This kit uses a clever neo magnet attachment system that avoids the use of traditional grille
clips. Flat packs contain neo magnets which have been concealed in the front baffle and grille.
Sequence tip
Final assembly should be done after you have applied your chosen finish. Otherwise, drivers
and terminals will get damaged and the internal lining will be covered in MDF dust.

Assembly manual M4S Kit
10
Installing the crossover board
There are three sets of cables:
•Input terminals: located near the larger inductor on the end of the board.
•Tweeter output: easily identified by the white cable
•Woofer output: black cable next to the tweeter outputs
The board is fixed in place with 5 short button head self tapping screws. It’s best to screw them
in place with a screwdriver by hand. Driver cutouts allow access as shown below.
Sequence tip: Normally this step would follow finishing the speaker. Otherwise sanding will
get MDF dust over the crossover.

Assembly manual M4S Kit
11

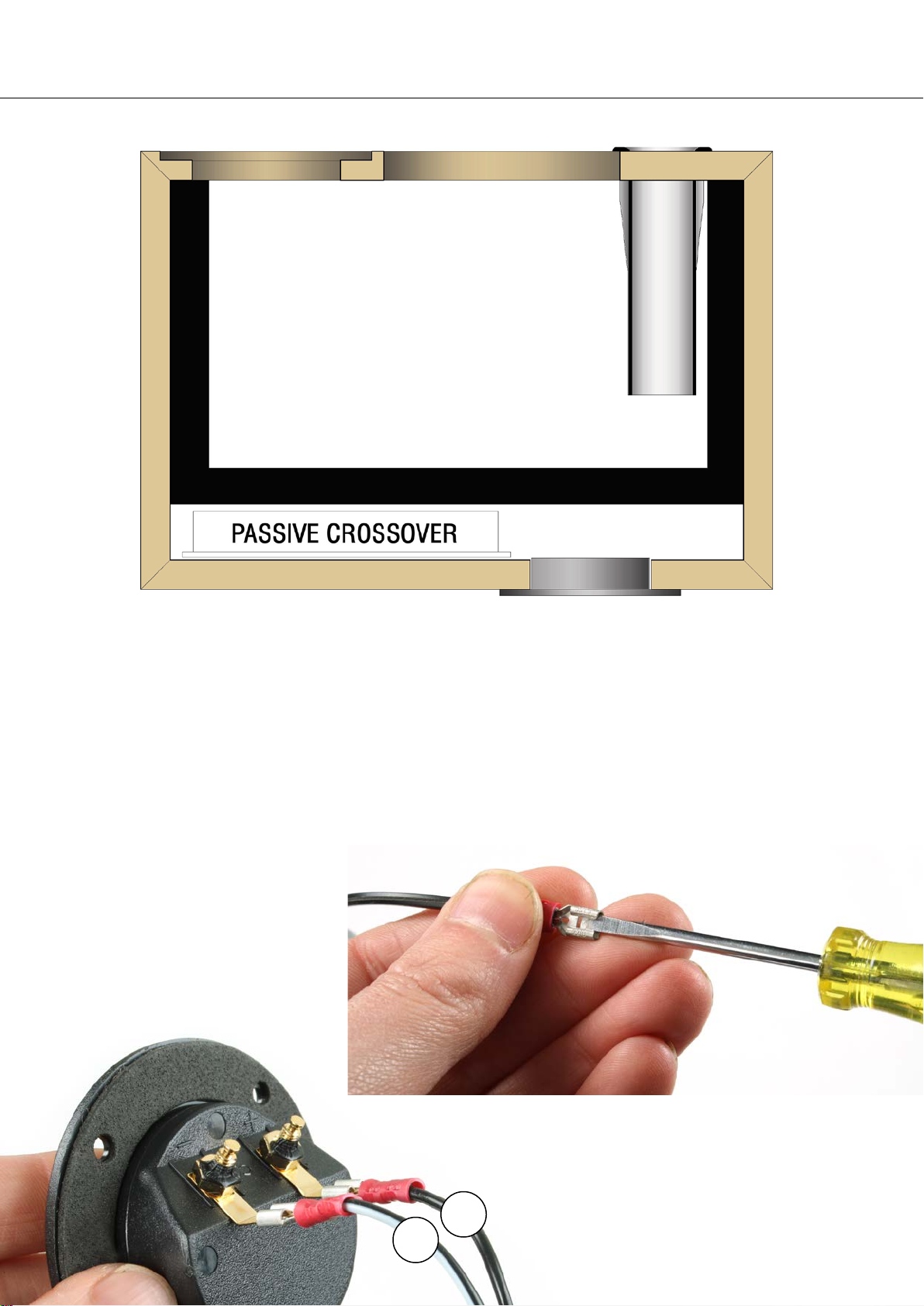

With the passive crossover in place, find the input terminals and feed them out through the rear
opening. insert the black acoustic lining, which covers the rear, top and bottom internal faces of
the enclosure. Check that it does not block the internal opening of the port. Glue is not
necessary.
Installing terminals
Tip: It’s often necessary to open out the connector slightly with a flat head screwdriver, since
the fit is quite tight.
Note: The cable with the white strip
goes to the negative terminal
-
+

Assembly manual M4S Kit
12
We recommend using a Phillips head screwdriver, as some powered drivers are more likely to
cause damage if the head slips off the screw head. Impact drivers should be avoided. If using
a powered driver, it’s best to use one which has a clutch, so that once the screws are
adequately tightened, the driver will not over-tighten. This avoids stripping the MDF pre drilled
holes or damage to the screw heads. If using a screwdriver, your left hand can hold the shaft to
avoid slipping.
Installing drivers
Find the white wire loom for the tweeter and push the connectors onto the driver tabs.
The connectors are designed to prevent mixing up positive and negative terminals. Avoid
excessive force, which can damage terminals. Lower the tweeter into its recess, aligning the
terminals with the cutout slots. Then secure in place with the provided screws.
The remaining black wire loom is for the woofer. Press the connectors into place and screw the
woofer in place.

Assembly manual M4S Kit
13
Grille assembly
Masking

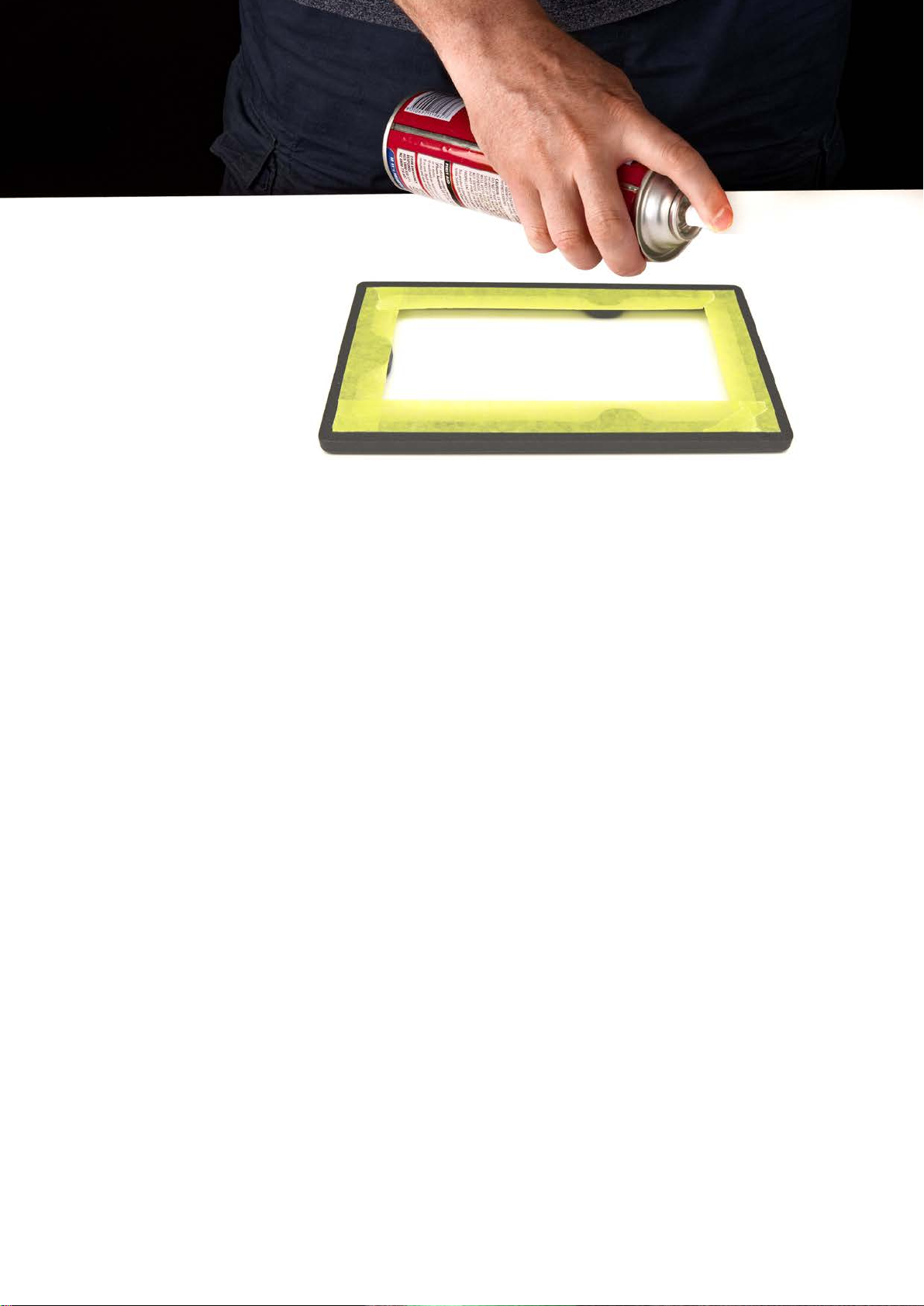

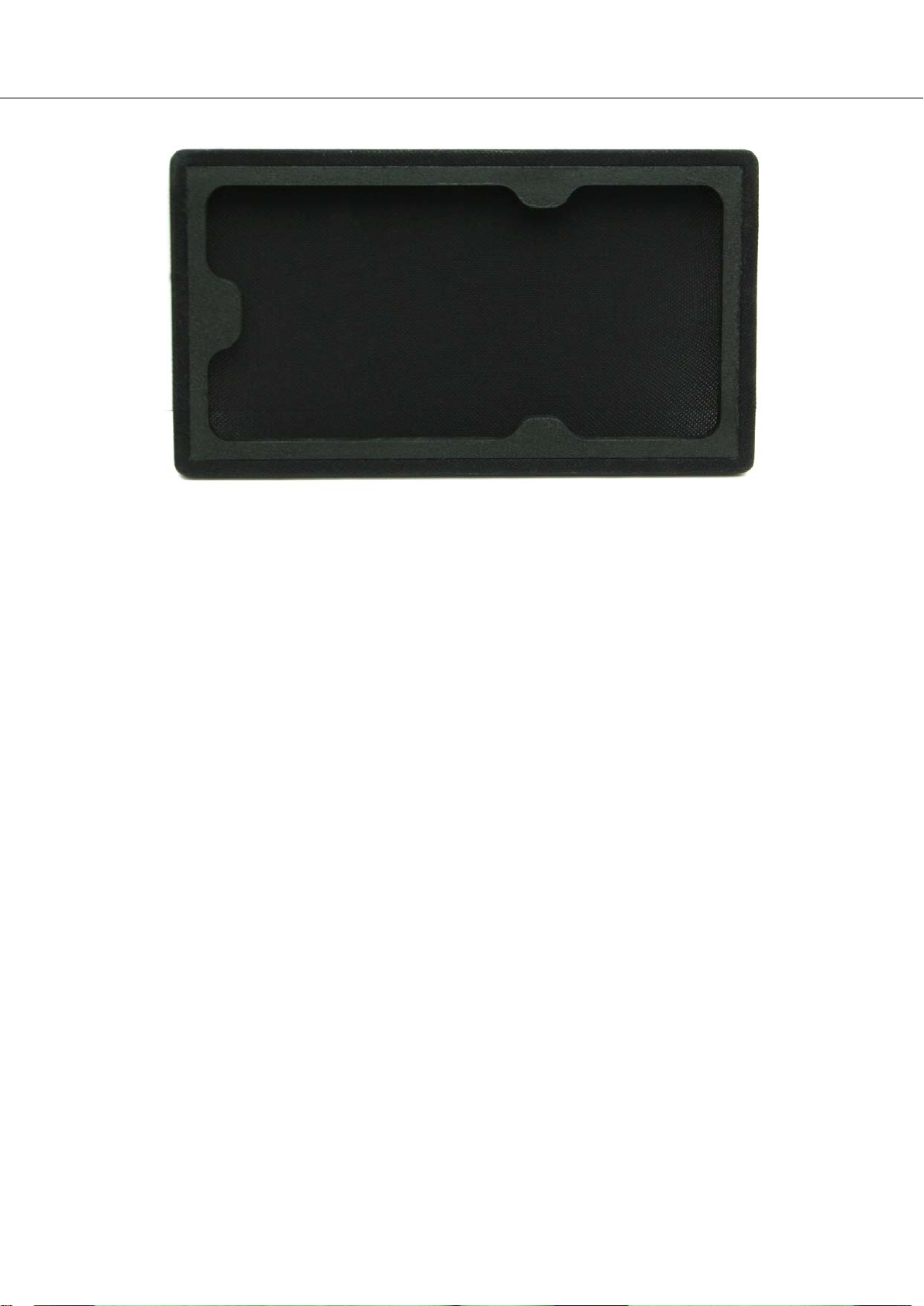

On the backside of the grille, you will notice a cut line inset from the edges. This cut line
defines the area where the cloth will be glued to the frame. The area inside this line needs to
be masked, so the spray adhesive is applied only to the strip around the edge. This allows you
to use spray contact adhesive, which provides flat and even coverage in addition to a fast
application. To protect from overspray, cover your work surface.
Adhesive
Spray contact adhesive is the simplest and quickest to use and it goes on evenly. Be sure to
carefully read the instructions on the can as each one is slightly different. Shake the can for at
least one minute or longer if specified on the can. Spray contact adhesive onto the small strip
(approx 8mm wide) between the cut line and edge. Hold the can at a distance indicated on the
can and move fairly quickly, applying two or three passes until you get good coverage.
When you’ve finished spraying, turn the can upside down and spray briefly until you notice the
amount of spray reduces. Usually after about one second, the paint stops but the solvent
continues. This cleans out the nozzle and avoids blocking next time you want to continue using
it. Check the nozzle to ensure that it looks clear. If you see any glue there, wipe with a clean
cloth with mineral turpentine to clean.
Glue is only required on the back surface as shown here – no glue is required to the sides or
the front.
You can start applying the grille cloth right away but we recommend waiting 2 minutes. Peel off
the mask with care. A small flat head screwdriver is helpful here to prevent the frame from
lifting up or flipping over as you remove the masking tape. Hold the frame down with the
screwdriver in one hand, gently pulling back the tape with the other. Then lay the frame over
the grille cloth as shown below.

Assembly manual M4S Kit
14
Now press the cloth onto the glue on the back of the frame. Start with one side but avoid the
corners, which should be pressed on last. It’s critical that the corners are done as the final step
to avoid wrinkles bunching up. Next press the cloth onto the opposite edge. You may notice
wrinkles appearing. This is an indication that sufficient tension has been applied.
Repeat with the other two sides, still avoiding the corners, as shown below.

Assembly manual M4S Kit
15
Wrinkle free corners

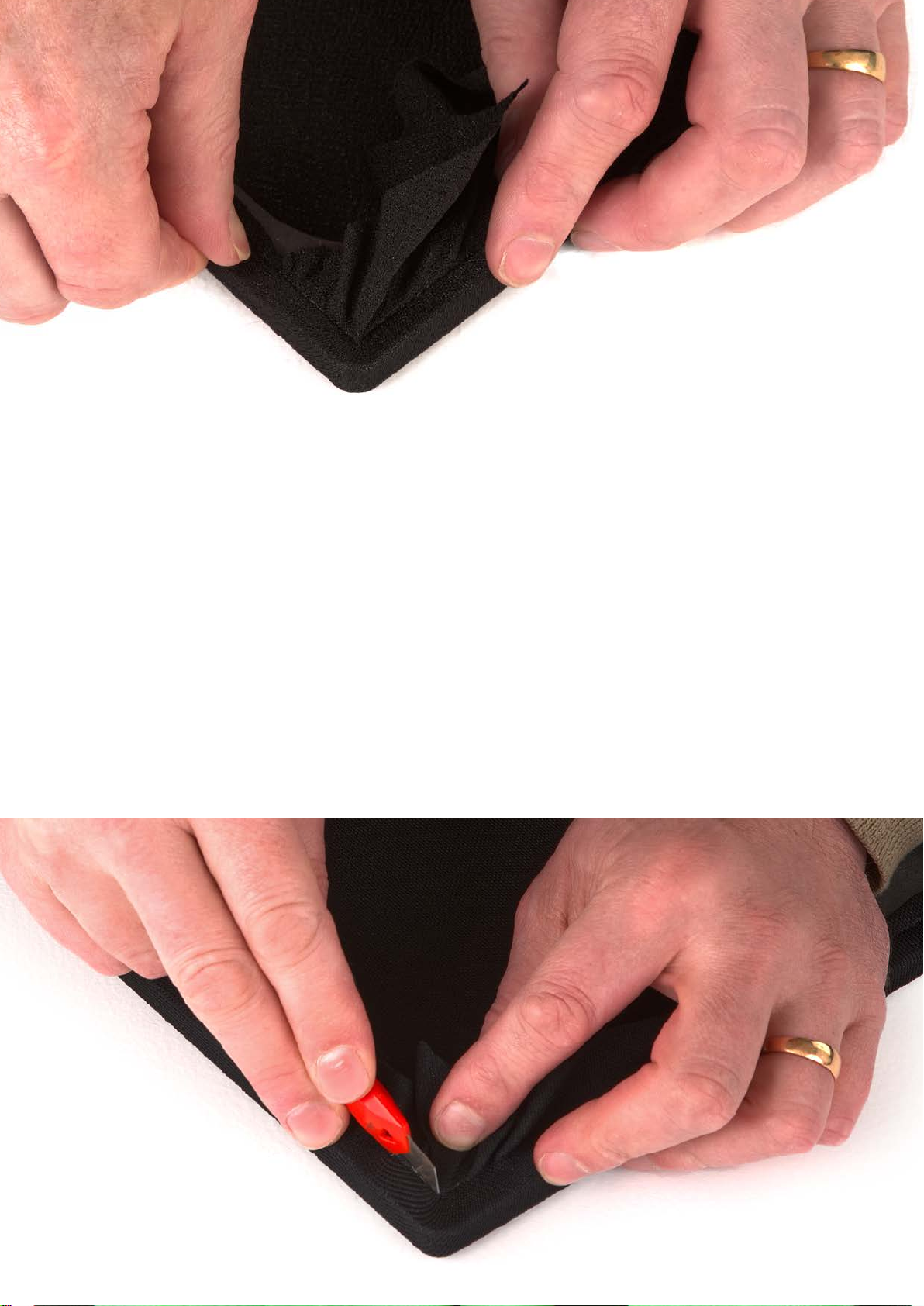

The biggest challenge in assembling a grille is the corners. If not done correctly, these will
bunch up. With a little care, you can avoid this problem and get a professional looking grille.
Gather the fabric at the corners with both hands, as shown above. Pull the cloth at a 45 degree
angle to each edge, stretching the fabric to eliminate as many wrinkles as possible. You can
see in the photo above that there are some potential wrinkles here, which we can remove in
the next step.
Keeping the tension on the cloth, transfer the fabric to one hand, so that your other hand is
free. Press out any wrinkles with your finger as shown below.
If there are some wrinkles you can’t press out this way, the adhesive provides some work time
during which you can lift up the cloth and press it down again. When lifting up the cloth from
the frame, stretch the cloth more tightly then before. Then press it down again. Avoid lifting any
more of the cloth than necessary.
You may have several wrinkles around each corner. Work through each one until you have
Now at this point, you should have removed all wrinkles between the edge of the frame and the
cut line.

Assembly manual M4S Kit
16
Trim the cloth
Now you can use your thumbnail to find the cut line. Pressing your nail into the trench, score all
the way around. This helps to confirm that you’ve effectively avoided wrinkles. Then with a
sharp blade, slowly and carefully cut away the grille cloth, using the trench as a guide. You
may like to use a straight edge, but it’s not essential.
Tips for a better cut:
•Choose a knife with snap off blades like the one below – Stanley knifes are usually too
blunt for the job
•Start with a new blade – snap off the previously used part of the blade
•Cut with multiple passes – avoid the temptation to try to cut all the way through in one
pass
•Cut slowly and carefully, ensuring that the blade stays on track
•Cut with a shallow angle as shown below – this avoids any tearing away at the fabric
This step now completes the build.

Assembly manual M4S Kit
17
Parts List:
•2 x SB Acoustics 4½” Woofer SB12PFC25-8
•2 x SB Acoustics Tweeters SB19ST-C000-4
•2 x Pre-built Crossover Networks
•2 x Round input Terminals
•12 x Panels of CNC machined MDF featuring mitre joints
•2 x CNC machined black MDF grille frame with grille cloth
•34 x Self tapping Screws
•2 x 25mm Tuning Ports
•2 x Pieces of Acoustic Lining
SPECIFICATIONS:
Woofer: 4½” SB Acoustics woofers SB12PFC25-8
Tweeter: ¾” SB Acoustics SB19ST-C000-4
Frequency Response: 60 Hz - 20 kHz
Impedance: Nominal 8 ohm
Sensitivity: 84 dB
Power handling (AES) 30W
Power handling (program) 60W
Recommended Amplifier: 15 - 60W
Dimensions (mm) 260mm high x 145mm wide x 180mm deep
Weight: 3 kg
