Thermasol Steam Shower AF Series Operating manual
3OHDVH &RPSOHWH DQG 5HWXUQ WR 7KHUPD6RO
CONSUMER WARNING
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED WITH YOUR DOCTOR AND RECEIVED
WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE HAZARDOUS TO YOUR HEALTH.
PLEASE CONSULT YOUR PHYSICIAN BEFORE USING. IF YOU ARE PREGNANT, ELDERLY,
HAVE HIGH BLOOD PRESSURE, DIABETES, SUFFERING FROM HEART DISEASE, INTOXICATED,
OR NOT IN GOOD HEALTH, DO NOT USE THIS STEAM BATH.
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAMHEAD FROM THE TIME THE UNIT IS “ON”,
UP TO ONE HOUR AFTER IT HAS SHUT OFF. SEVERE BURN WILL OCCUR IF YOU COME IN CONTACT
WITH THE STEAMHEAD OR STEAM EMITTING FROM THE STEAMHEAD.
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT
IS IN THE ON POSITION. SEVERE BURNS WILL OCCUR.
DO NOT USE THERMASOL AROMATHERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT
ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR
DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
DO NOT USE STEAM ROOM WHILE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS,
AS THIS CAN BE HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP-AND-FALL HAZARD. CHECK WITH YOUR CONTRACTOR OR FLOORING
MANUFACTURER REGARDING THE SAFE USE OF YOUR FLOORING IN A STEAM APPLICATION.
SLIPPING AND FALLING INTO THE STEAMHEAD ITSELF OR INTO THE STREAM OF STEAM
EMITTING FROM THE STEAMHEAD WILL CAUSE SERIOUS BURNS, OR PHYSICAL INJURY.
IF YOU ARE FEELING UNCOMFORTABLE, DIZZY, FAINT, OR STARTING TO FALL ASLEEP
IMMEDIATELY EXIT THE STEAM ROOM.
DO NOT USE STEAM ROOM IF YOU ARE UNDER THE AGE OF 16 UNLESS SUPERVISED BY AN ADULT.
THERMASOL STEAM BATH GENERATORS ARE NOT DESIGNED TO BE USED FOR
SPACE HEATING PURPOSES.
THERMASOL STEAM BATH GENERATORS ARE FOR INDOOR USE ONLY.
THEY SHOULD NEVER BE LOCATED OUTSIDE THE HOME.
Page 1
Page 2

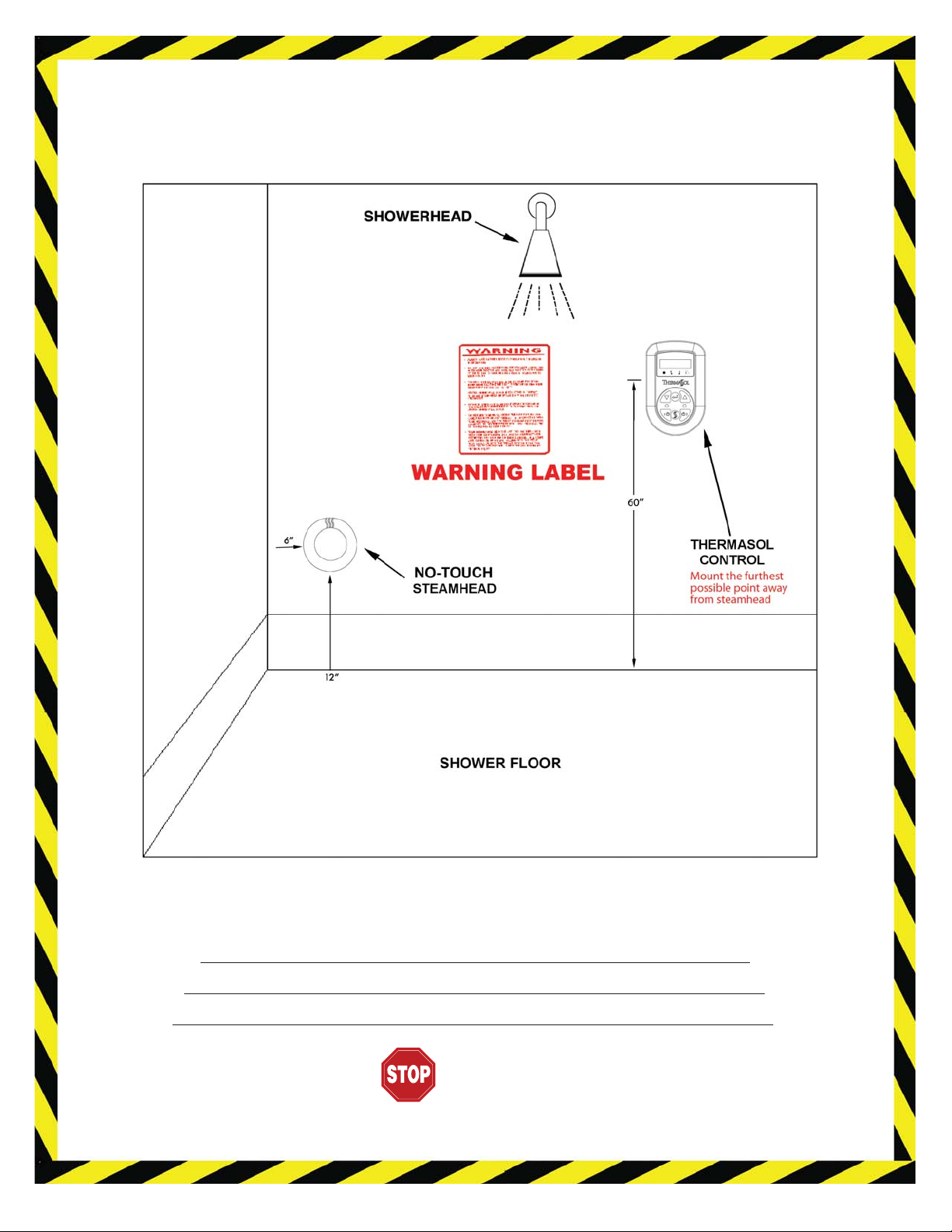

** NOTICE **
YOU MUST ATTACH THIS STATIC CLING USER
WARNING LABEL IN THE SHOWER NEXT TO THE
CONTROL UPON COMPLETION OF INSTALLATION
READ WARNINGS ON PAGE 1
No Touch Steamhead Installation
Page 3
READ WARNINGS ON PAGE 1
WARNING
Avoid contact with Steamhead! It will burn you! Avoid direct contact with the steam
coming out of the Steamhead! It is extreamly hot and will burn you! Never put Aroma oil
in the Steamhead when the unit is in the ON position, or when steam is emitting from
the Steamhead.
Parts Enclosed with Generator
• NoTouch Steamhead housing
Parts Enclosed
with Steamhead Kit
• Clear Silicone
• No Touch Steamhead
• Aroma Therapy Sample
• Quick Reference Guide
Material Needed
• 1/2” drop elbow
• Other materials as required:
- Solder
- Flux
- 1/2” Copper or Brass Pipe Nipple
(in appropriate length)
- 1/2” Copper Tubing
Tools Needed
• 1” deep socket and ratchet
• 2-1/2” hole cutting tool
• Other plumbing as required
Page 4
READ WARNINGS ON PAGE 1

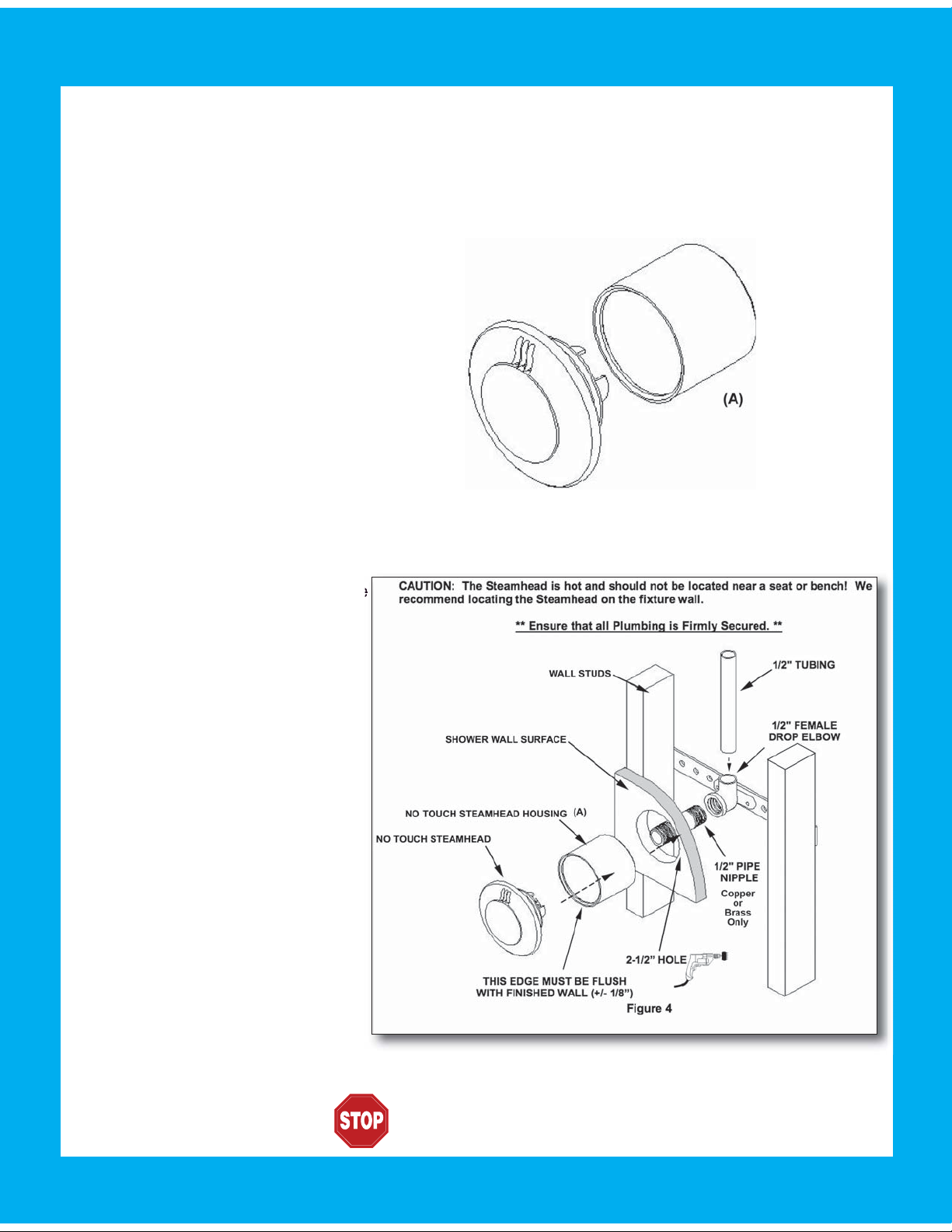

1. Drill a 2-1/2” diameter hole in the shower wall or wall above the bathtub rim for the steam outlet
line. (see Figure 6).
2. Connect a 1/2" NPT brass pipe or tubing to the steam outlet on the generator running the pipe to
the 2-1/2” diameter hole in wall to connect with the Steamhead housing. Use Figure 4 as a
guide. It is very important that the pipe is firmly secured to the wall, so that when the Steamhead
is installed it doesn’t push the housing back into the wall. The steam line can run up, down, or
horizontal; but cannot run down and then up. If it does, a steam trap may be produced at the low
point blocking the flow of steam. Install a 1/2” drop elbow on the end of the 1/2” pipe or tubing for
the Steamhead housing. For all the connections, use Teflon tape/solder and do not over tighten
fittings. DO NOT USE PVC CEMENT.
3. When finalizing installation, install the Steamhead into the housing, making sure that the
aromatherapy fill channels are facing upwards; see Figure 5. To ensure that no moisture gets
behind the Steamhead and into the wall, place a generous bead of waterproof silicone around the
Steamhead, using the machined groove (located on the back of the Steamhead) as a guide. Be
sure there isn’t any debris within the housing, and that the two O-rings are in place on the
Steamhead. Slide the Steamhead into the housing until the Steamhead is tight against the
finished wall. You may need to wipe away any excess silicone. Use Figure 5 as a reference to
these steps.
No Touch Steamhead Installation
Figure 5
Figure 6
Shower Wall
Basement
Closet/Vanity
5($' :$51,1*6 21 3$*(
0DNH VXUH WKDW SRZHU WR WKH JHQHUDWRU LV
,GHQWL \ FRQWURO ORFDWLRQ LQVLGHVKRZHUXVH 7HPSODWH RQ 3DJH % WR GULOO µ KROH LQ
VKRZHU ZDOO µ URP ORRU
:HVXJJHVWUXQQLQJFRQWUROFDEOHWKURXJKFRQGXLW%ULQJ WKH FRQWURO FDEOH URP WKH JHQHUDWRU
RU /LJKW 6RXQG 6\VWHP WKURXJK µGLDPHWHU KROH 6FUHZ WKH FRQWURO FDEOH LQWR FRQWURO
FDUH XOO\ OLQLQJ XS FRQWDFW SLQV
'2 127 SLQFK QDLO VWDSOH ZHGJH HWF WKH FDEOH '2 127 ZUDS WKH FDEOH DURXQG VWHDP
OLQH RU RWKHUZLVH URXWH LW LQ VXFK D PDQQHU WKDW WKH KRW VWHDP OLQH FRXOG PHOW WKH FDEOH
$Q\ GDPDJH WR WKH FRQWURO FDEOH ZLOO UHVXOW LQ WKH FRQWURO QRW ZRUNLQJ SURSHUO\
&DUH XOO\ FRQQHFW WKH RWKHU HQG R WKH FRQWURO FDEOH WR WKH JHQHUDWRU %()25( WXUQLQJ
SRZHU RQ WR WKH JHQHUDWRU 6HH 3J
&RDW WKH HQWLUH JURRYH
RQ FRQWURO EDFN ZLWK VXSSOLHG ZDWHUSURR VLOLFRQH &RPSOHWHO\ VHDO WKH FRQWURO WR WKH ZDOO
VR PRLVWXUH GRHV QRW JHW EHKLQG LW 3ODFH WKH FRQWURO RQ WKH ZDOO SUHVVLQJ LUPO\ <RX PD\
QHHG WR WDSH WKH FRQWURO LQWR SODFH XQWLO WKH VLOLFRQH GULHV %H FDUH XO QRW WR KDUP WKH
ZDOOFRQWURO ZLWK WKH WDSH /HW GU\ RU KRXUV EH RUH XVLQJ VWHDP EDWK7KHUPD6RO
UHFRPPHQGV RQH SRZHU OXVK F\FOH D WHU HYHU\ XVHV RU DW OHDVW WZLFH D \HDU
6\VWHP ZLOO DOVR SURPSW XVH ZKHQ 3RZHU OXVK LV UHTXLUHG
5H HU WR SDJHV RU FRQWURO XQFWLRQV
5($' :$51,1*6 21 3$*(
WITH LIGHT & MUSIC SYSTEM
STEAM SYSTEM ONLY
WITHOUT LIGHT & MUSIC SYSTEM
START UP
TO TURN ENTIRE SYSTEM OFF
SELECT/ENTER
SELECT/ENTER
SELECT/ENTER
TO TURN STEAM ON
SETTING THE TEMPERATURE
SELECT/ENTER
UPDOWN
)
SELECT/ENTER
TO TURN STEAM OFF
UPDOWN
STEAM CYCLE HAS A DEFAULT TIME OF 45 MINUTES,
AND 100°, OR 45 MINUTES AND YOUR LAST USED SETTING.
UPDOWN

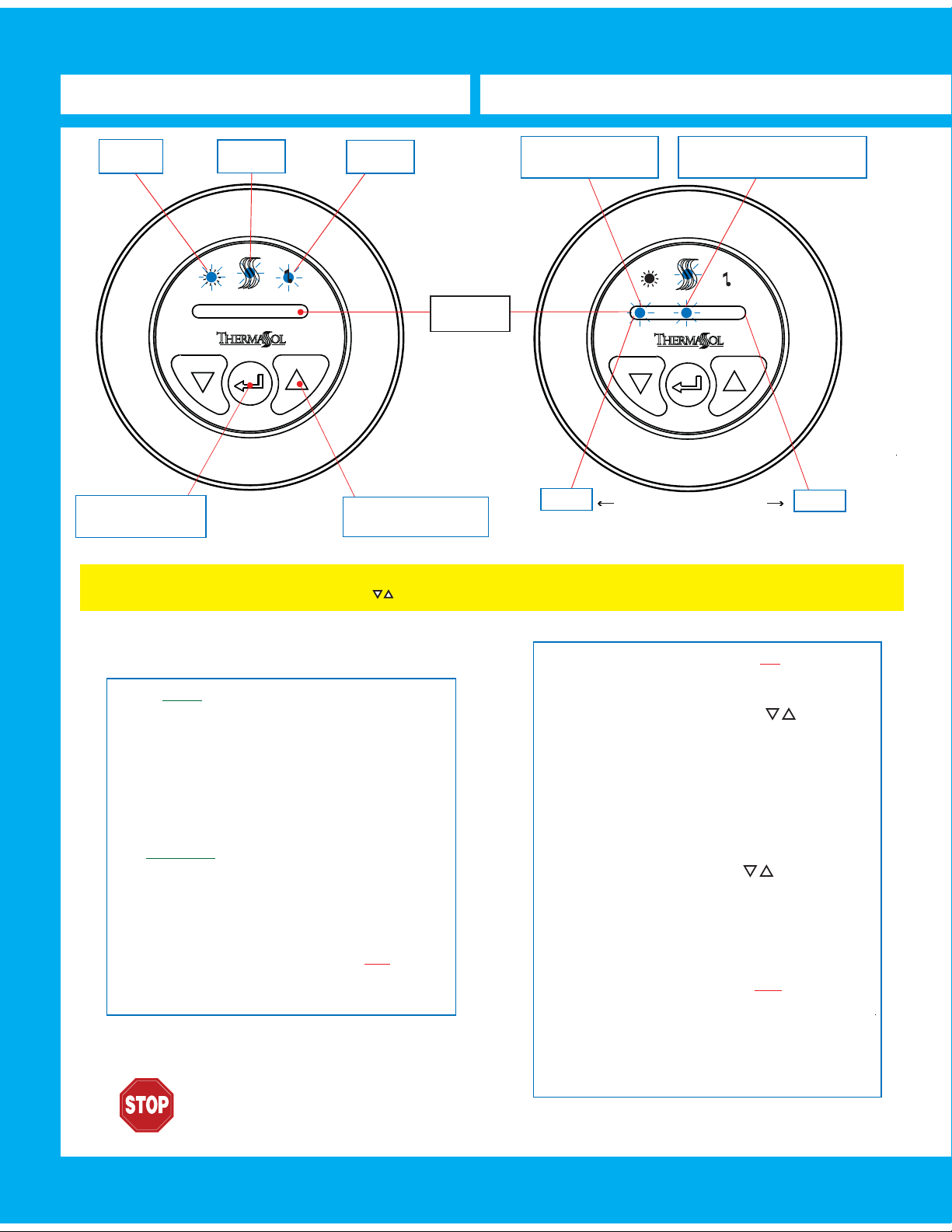

LIGHT
MODE
STATUS
BAR
CHOOSE/CHANGE
BUTTONS
SELECT/ENTER
BUTTON
100° F 120° F
CURRENT ROOM
TEMPERATURE
STEAM TEMPERATURE
SETTING
TEMPERATURE RANGE
EACH LIGHT IS 2°
MUSIC
MODE
STEAM
MODE
FUNCTIONS STEAM
DOUBLE-CLICK SELECT/ENTER BUTTON FOR MAIN MENU - CHOOSE FUNCTION
WITH - THEN SELECT FUNCTION WITH SELECT/ENTER BUTTON
QUICK REFERENCE:
Page 8
USING THE MUSIC MODE
(LIGHT & MUSIC SYSTEM REQUIRED)
TO ADJUST VOLUME
TO CHANGE SOURCE SETTINGS
- INPUT 1, 2 OR FM -
• PRESS SELECT/ENTER TWICE.
• USING THE UP OR DOWN ARROWS SCROLL TO
THE MUSIC FEATURE (MUSIC ICON WILL GLOW BLUE)
• PRESS SELECT/ENTER BUTTON
• MUSIC WILL BEGIN TO RAMP-UP TO PRESET VOLUME
• USE THE UP OR DOWN ARROWS UNTIL YOU
REACH YOUR DESIRED VOLUME
•TOMUTE MUSIC FEATURE PRESS UP AND DOWN
ARROWS AT SAME TIME
(VOLUME BAR WILL FLASH)
•TOUNMUTE MUSIC FEATURE PRESS UP AND DOWN
ARROWS AT SAME TIME
• MUSIC WILL BEGIN TO RAMP-UP TO SET VOLUME
• PRESS SELECT/ENTER BUTTON ONCE
(CURRENT INPUT WILL BE SHOWN)
• USE UP OR DOWN ARROWS TO SELECT
INPUT SOURCE
•INPUT CHANNEL 1
STATUS BAR SHOWS THE CENTER LED LIGHT ON
•INPUT CHANNEL 2
STATUS BAR SHOWS TWO OUTER LED LIGHTS ON
•FM RADIO
STATUS BAR PULSES FROM OUTER LEDS INWARD
• TO CHANGE FM RADIO CHANNEL - WHILE IN FM
MODE - PRESS SELECT/ENTER AGAIN
• USING THE UP OR DOWN ARROWS FIND AND
SELECT YOUR FAVORITE STATION
• PRESS SELECT/ENTER BUTTON TO SAVE STATION
AND RETURN TO VOLUME

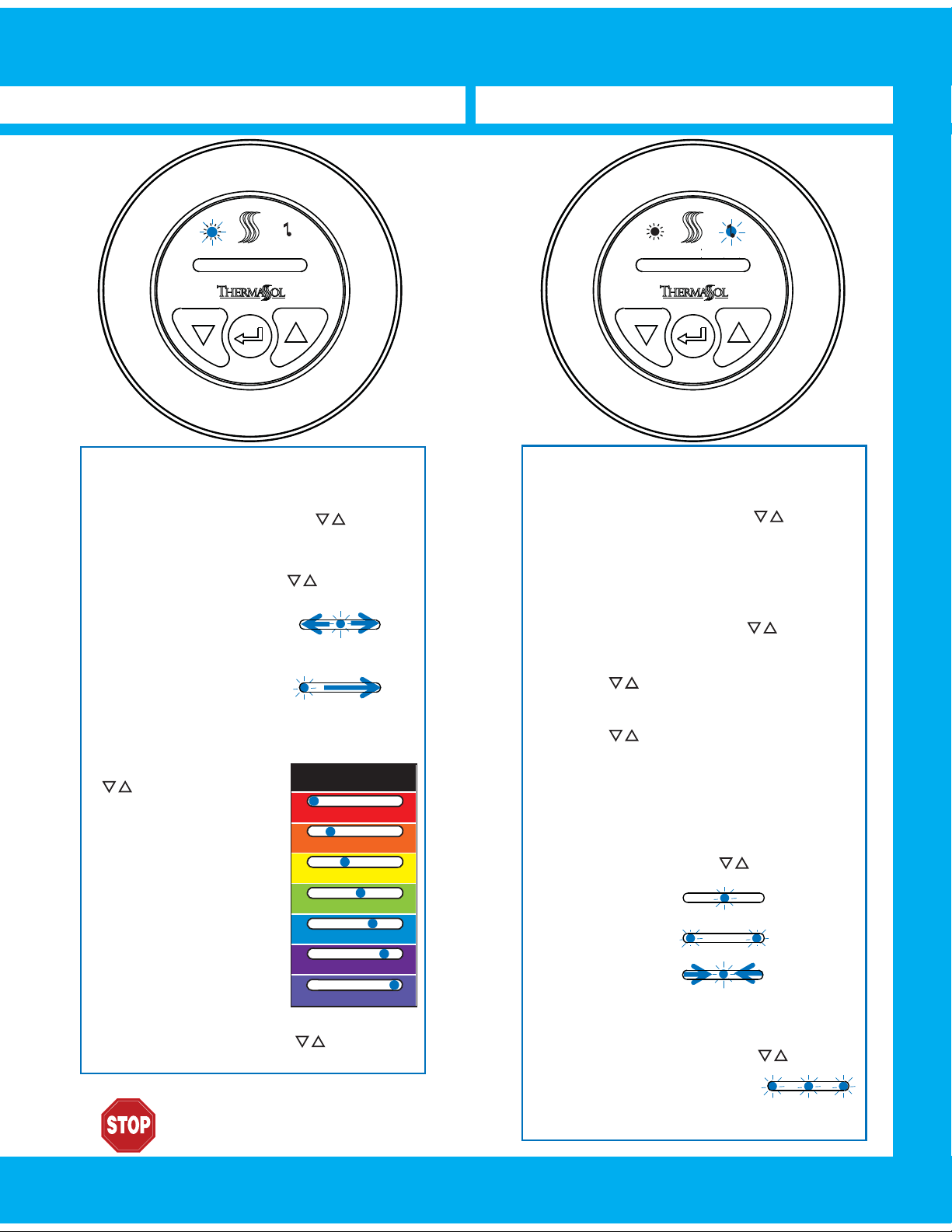

USING LIGHT MODE
(LIGHT & MUSIC SYSTEM REQUIRED)
LIGHT MUSIC
SHOWER LIGHT
MOOD LIGHT
CHROMOTHERAPY
TO TURN OFF LIGHT
• PRESS SELECT/ENTER TWICE
• USING THE UP OR DOWN ARROWS SCROLL TO
THE LIGHT FEATURE (LIGHT ICON WILL GLOW BLUE)
• PRESS SELECT/ENTER BUTTON
• PRESS UP OR DOWN ARROWS TO SELECT
LIGHT TYPE
• THE STATUS BAR PULSES FROM CENTER OUT
• PRESS SELECT/ENTER BUTTON
• THE STATUS BAR IS FLOWING FROM LEFT TO RIGHT
• PRESS SELECT/ENTER BUTTON
• PRESS UP OR DOWN ARROW
TO SELECT THE COLOR
• PRESS SELECT/ENTER
BUTTON
• PRESS UP AND DOWN ARROWS
AT SAME TIME WHILE IN LIGHT MODE
CHROMOTHERAPY
CHART
Red - Lower Body
Orange - Pelvis
Yellow - Belly Button
Green - Heart
Blue - Throat
Indigo - Forehead
Violet - Top of Head
87.5 98.1 107.5
Temp Touch Series Functionality
READ WARNINGS ON PAGE 1
Page 9
POWERFLUSH STEAMSHOWER CLASSIC
WARNING! WARNING!
IT IS IMPORTANT THAT NO ONE BE INSIDE THE SHOWER
ENCLOSURE DURING THE POWERFLUSH CLEANING CYCLE. IT IS
ALSO IMPORTANT THAT THE ENCLOSURE DOOR BE CLOSED
DURING THIS 50 MINUTE CYCLE.
STEAMSHOWER CLASSIC
POWERFLUSH INSTRUCTIONS:
• TURN SYSTEM OFF
• GO TO GENERATOR
• OPEN POWERFLUSH VALVE FOR 5
MINUTES
• CLOSE POWERFLUSH VALVE
• PRESS AND HOLD UP AND
DOWN ARROWS TOGETHER FOR
10 SECONDS.THE POWERFLUSH
CYCLE WILL BEGIN
ON
OFF
MANUAL
POWER FLUSH VALVE
TO TURN OFF VOICE RESPONSE
WHILE IN MUSIC MODE
TO TURN ON VOICE RESPONSE
WHILE IN MUSIC MODE
• PRESS UP OR DOWN ARROW
AT SAME TIME FOR 5 SECONDS
• ALL LIGHTS WILL FLASH - THEN RELEASE
• VOICE RESPONSE WILL STATE
“VOICE RESPONSE IS OFF”
• PRESS UP OR DOWN ARROW
AT SAME TIME FOR 5 SECONDS
• ALL LIGHTS WILL FLASH - THEN RELEASE
• VOICE RESPONSE WILL STATE
“VOICE RESPONSE IS ON”
DIAGNOSTICS
•ALL LIGHTS ON - YOUR ROOM EXCEEDS 130°F
•ALL LIGHTS FLASHING - LOW WATER
•FUNCTION LIGHTS FLASHING LEFT TO RIGHT
YOU HAVE A STUCK BUTTON
(BUTTON HELD ON FOR MORE THAN 20 SECONDS)
• ALL FUNCTION LIGHTS FLASH, THEN STATUS
BAR FLASHES - MAINTENANCE LOCK
(SEE POWERFLUSH INSTRUCTIONS BELOW )
CALL CUSTOMER SERVICE
PLEASE HAVE SERIAL NUMBER AND DATE CODE
AVAILABLE FROM YOUR GENERATOR WHEN CALLING
YOUR SYSTEM WILL LOCKOUT
FOR MAINTENANCE EVERY
1000 MINUTES OF STEAM USE.
THE STEAM FUNCTION LIGHT
WILL FLASH, THEN STATUS BAR
WILL FLASH
• TURN OFF YOUR SYSTEM
• PRESS AND HOLD UP AND
DOWN ARROWS TOGETHER FOR
10 SECONDS. THE POWERFLUSH
CYCLE WILL BEGIN
• AFTER YOUR POWERFLUSH
CYCLE IS COMPLETE; YOUR
SYSTEM WILL RESET THE
MAINTENANCE TIMER
AUTO POWERFLUSH
(AF & PRO SERIES ONLY)
Temp Touch Series Functionality
READ WARNINGS ON PAGE 1
Page 11

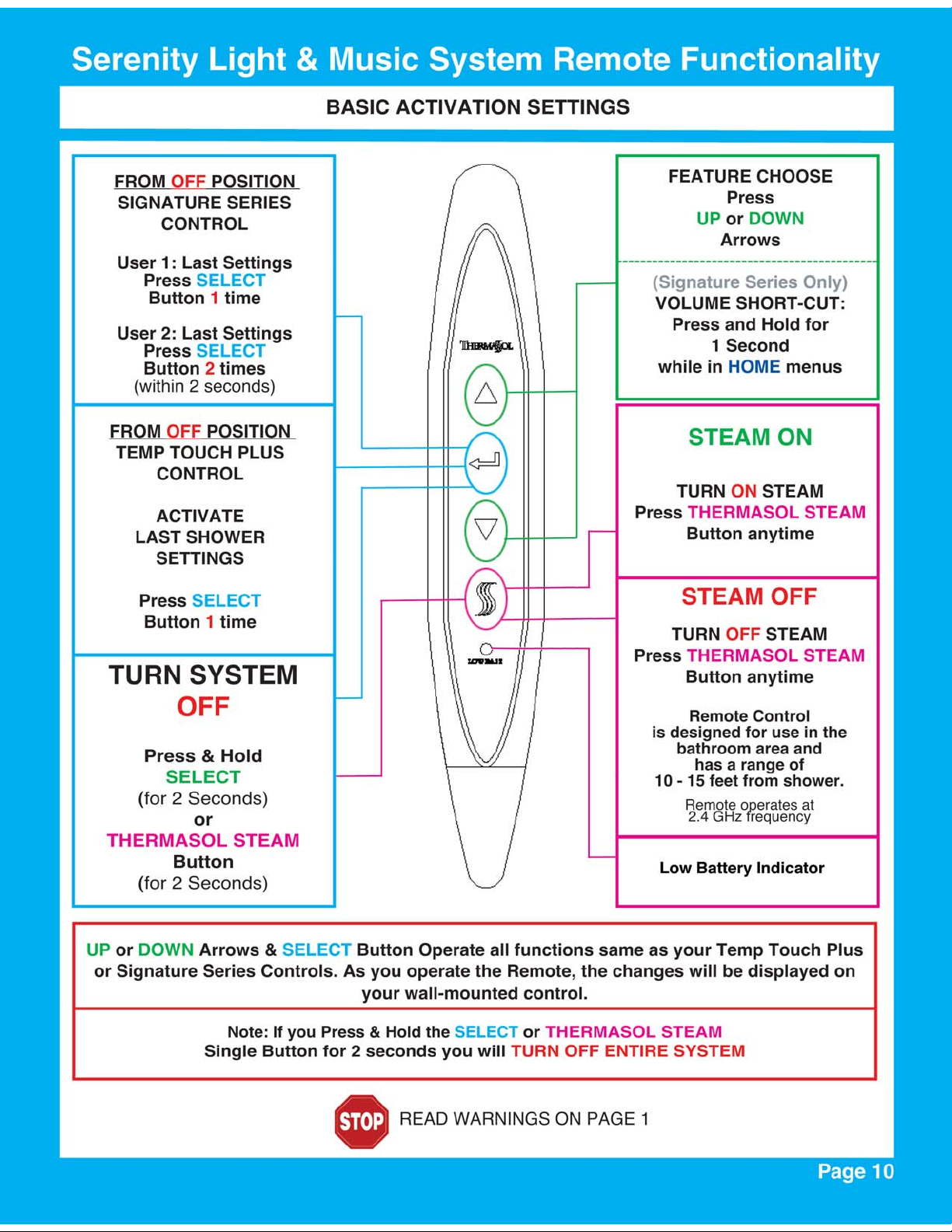

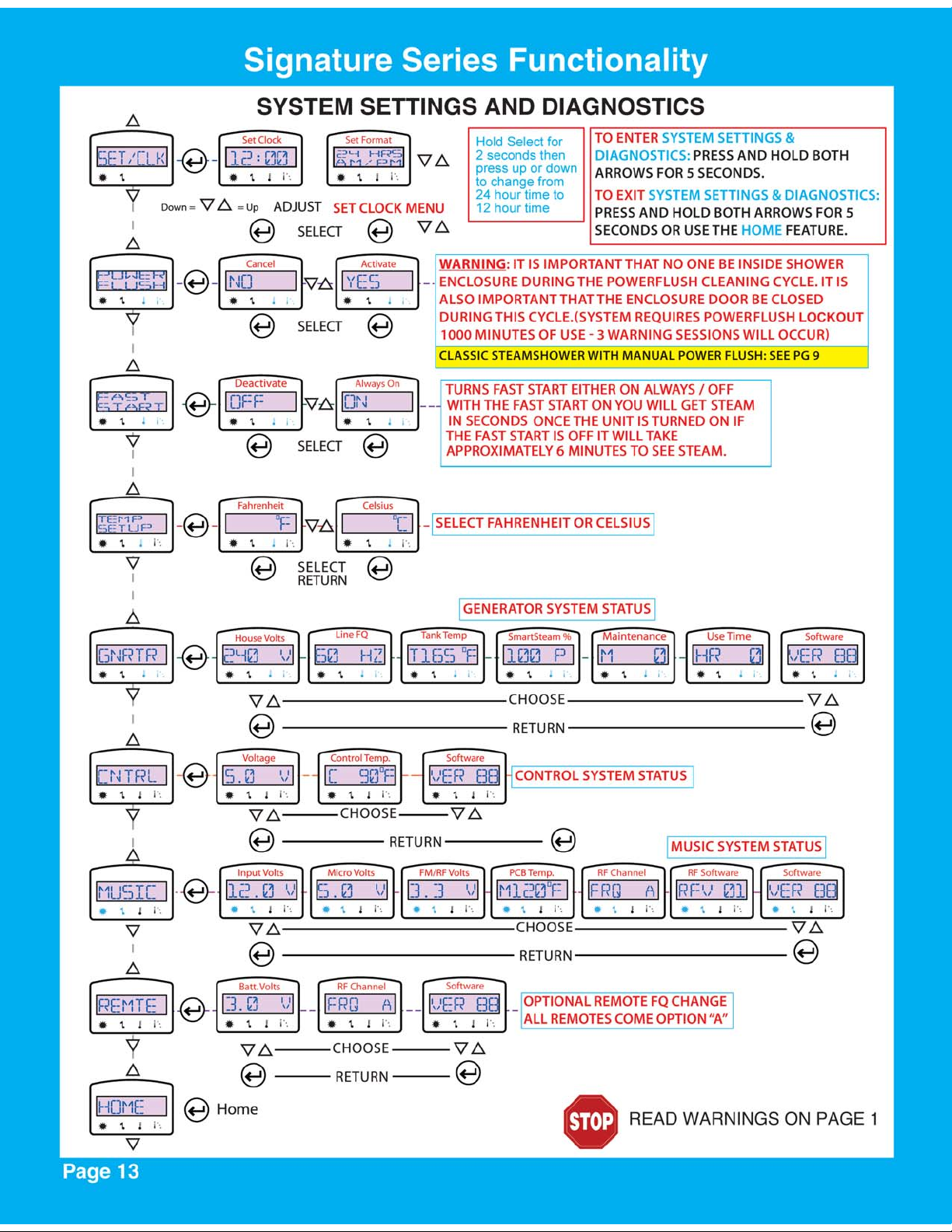

Signature Series Functionality
READ WARNINGS ON PAGE 1
Page 12
If FM is selected as input
Signature Series Functionality
READ WARNINGS ON PAGE 1
Page 14

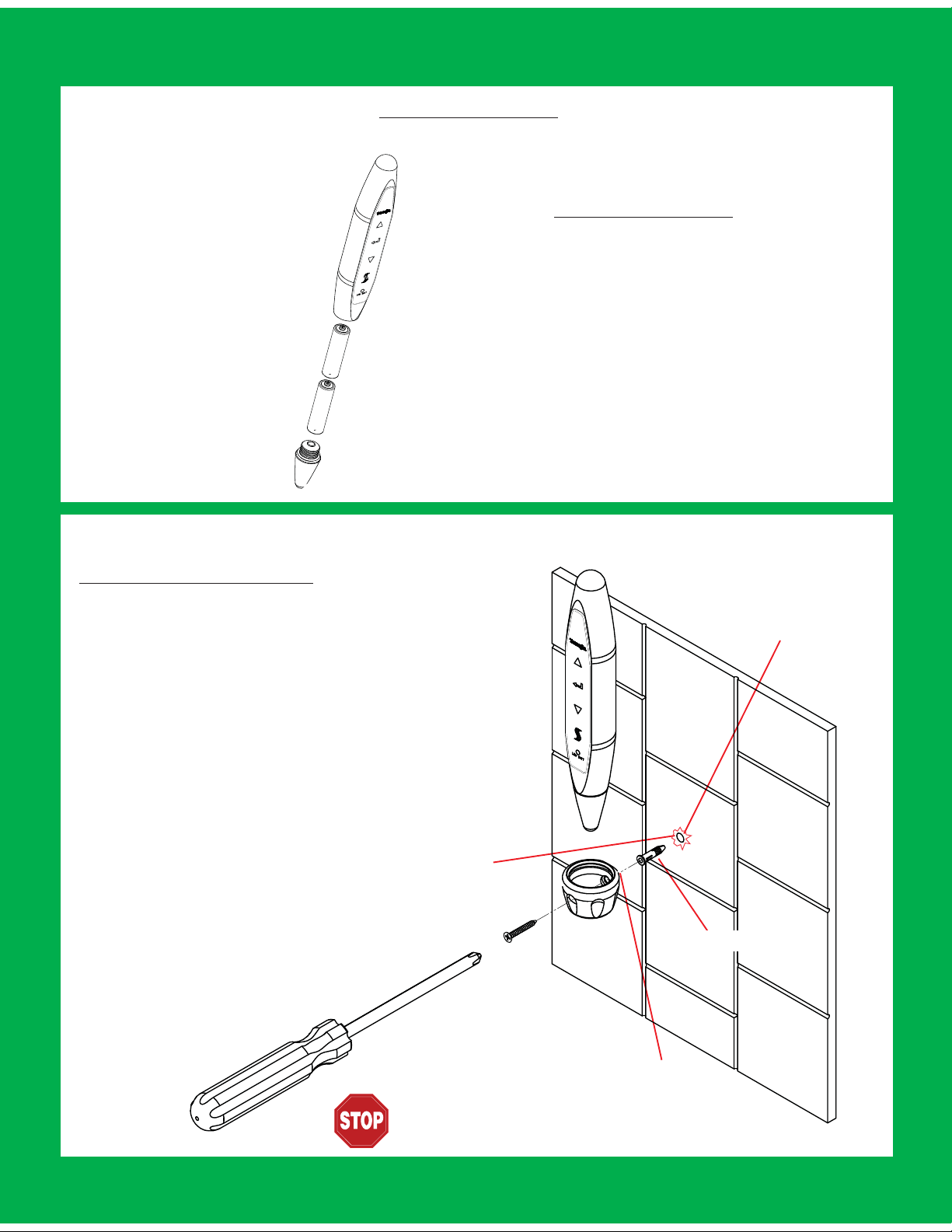

INSTALL BATTERIES
1/4” hole
Apply Silicone
Apply Silicone
+
+
-
-
INSTALL REMOTE HOLDER
• Drill 1/4” hole in desired location.
• Insert Anchor into hole.
• Apply Silicone to flat wall side of holder.
• Use a Screwdriver to mount Remote holder
to tile or wall with the larger opening to the top.
• Cure 24 hours before using Remote Holder
Serenity Light & Music Remote Installation Instructions
INSTALL BATTERIES
Remove Bottom cap of remote
(cap unscrews)
Insert 2 “AA” Batteries
Close Bottom cap of remote by screwing firmly
back into place. Make sure it is fully seated into
place and sealed.
READ WARNINGS ON PAGE 1
Anchor
Page 15
READ WARNINGS ON PAGE 1

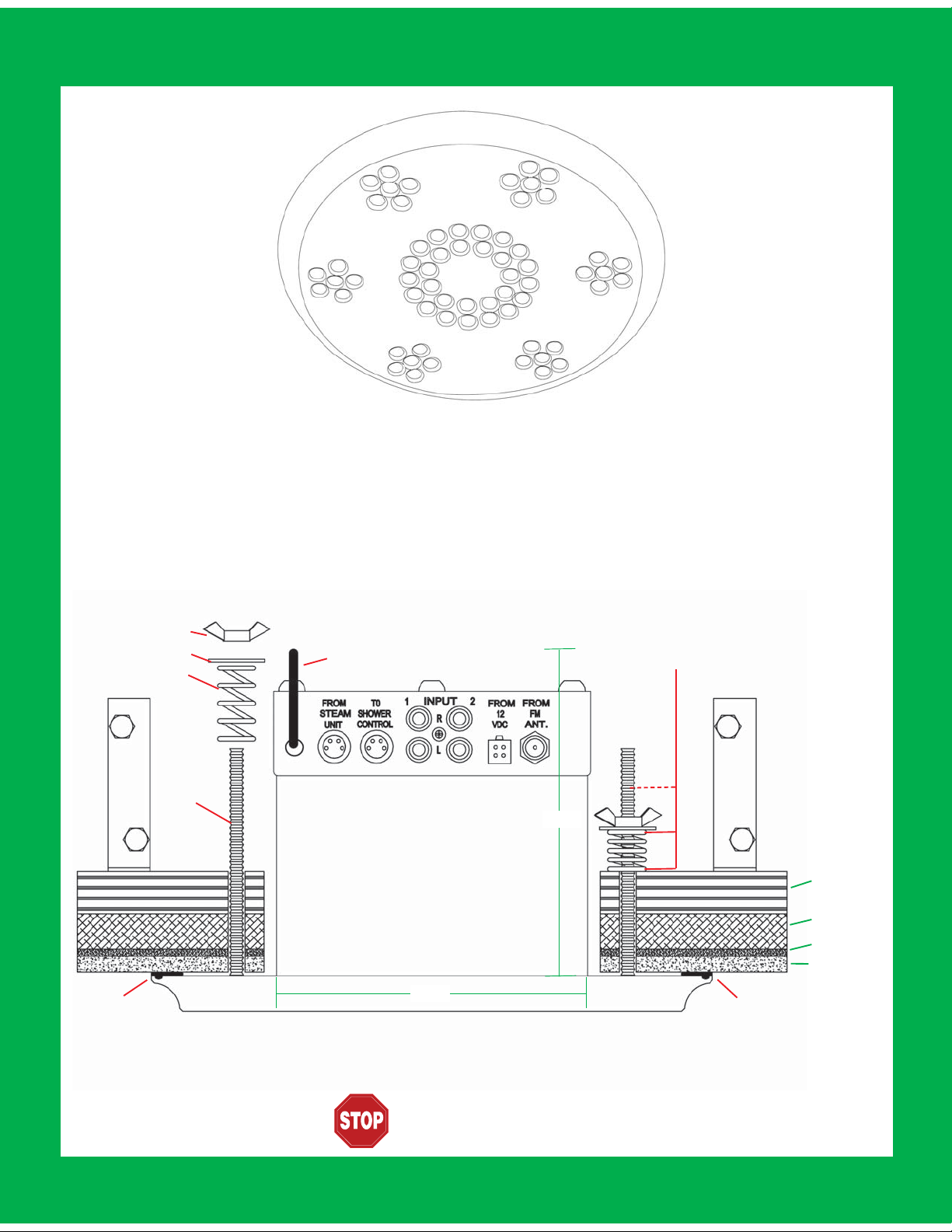

Parts Enclosed:
• Light fixture
• Transformer: 120V Input, 12V Output
• Hardware (3 ea: wingnuts, springs, washers)
• 20 ft. Data Cable
• Clear Silicone
• Installation Guide
Silicone Bead
all around perimeter
of groove
3 1/2” x 1/4”
Stud
Retaining Nut
Remote Control Antenna
Retaining Washer
Retaining Spring
Silicone Bead
all around perimeter
of groove
Tighten retaining Spring to half
its normal height
Figure 1
Serenity Light & Music System Installation Instructions
Shower
Surface
Mortar
Water Proof
Backing
Plywood
Materials Needed:
• Drill
• 7/16” drill bit
• Tile cutter or grinder
• Other materials as required
• Ply Wood Backing Board
• Material/Hardware as Required
• Amplified FM antenna with coax cable
(for best results contact antenna supplier for best antenna location)
• Two sets of RCA audio cables
5 1/2”
5 3/4”
5($' :$51,1*6 21 3$*(
&XW D KROH LQ GHVLUHG ORFDWLRQ SHU WHPSODWH ORFDWHG LQ FHQWHU R JXLGH RQ SDJH % ,QVWDOO
VXLWDEOH ZRRG VXSSRUW EHWZHHQ MRLVWV 'ULOO WKUHH µ GLDPHWHU WKURXJK KROHV RU PRXQWLQJ
R OLJKW DVVHPEO\
$FFHVV WR XQLW URP DERYH LV UHTXLUHG WR PDNH DOO FRQQHFWLRQV , PDQ\ GL HUHQW DXGLR GHYLFHV
ZLOO EH XVHG UXQ DXGLR 5&$ W\SH FDEOHV WR D UHPRWH ORFDWLRQ ZLWK HDV\ DFFHVV VXFK DV D
FORVHW RU YDQLW\
0RXQW WKH WUDQV RUPHU LQ D ORFDWLRQ WKDW LV HDVLO\ DFFHVVLEOH RU ZLULQJ DQG LQVSHFWLRQ 0RXQW LQ
DUHD ZKHUH LW LV RXW R FRPPRQ FRQWDFW
+LJK YROWDJH ZLUHV URP WUDQV RUPHU PXVW EH FRQQHFWHG WR D DPS PLQLPXP
9$& UHFHSWLFDO,QVWDOODWLRQPXVW ROORZQDWLRQDODQGORFDOEXLOGLQJFRGH
6HH
&XW 2XW 7HPSODWH 3DJH %
Page 17
READ WARNINGS ON PAGE 1
4. Apply silicone around center of groove on back of Light. Push fixture tight against ceiling
as shown in Figures 1 & 2, having a helper overhead to install and tighten springs,
washers and wing nuts. Tighten nuts until springs are compressed half way. Allow silicone
to dry for 24 hours.
5. Connections (Figure 3):
A. Remote Control - Connect supplied Remote 2.4 GHz Antenna
B. From Steam Unit - Connect 50’ Data Cable from Steam Generator
C. To Control - Connect 20’ Data Cable from in shower control
D. Input 1 - (R & L) Connect Right & Left outputs from Audio Device 1
E. Input 2 - (R & L) Connect Right & Left outputs from Audio Device 2
F. From 12 VDC - Connect supplied 5.5 mm Transformer Cord
G. From FM Antenna - Connect Coaxial amplified or Non-amplified 75 Ohm FM Antenna
Note: Portable audio players such as mp3 players, may require docking type station for adaption to composite (RCA) output
6. Connect Shower Light Transformer to an 110V power source.
7. Turn Power ON to Generator
Figure 3
Serenity Light & Music System Installation Instructions
