Thermasol PRO SERIES User manual

Installation Instructions
PRO SERIES
DOC NO. 81060 1 OF 18 RevA 06/01/03
If you are a plumber installing this unit, please leave this owners manual &
warrantycard with the owner when you finish the installation.
Thank You!
Note: Before contacting Customer Service for Technical Support, please have the model number and
serial number (including all numbers and letters) located on the unit.
Headquarters & Technical Support
2255 Union Place, Simi Valley, CA 93065 – [phone]
Eastern Sales Office
26 Industrial Avenue, Fairview NJ 07022 – [phone]
www.thermasol.com
WARNING
• DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS
PRODUCT MAY BE HAZARDOUS TO YOUR HEALTH.
• STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE UNIT IS “ON”, UP TO ONE HOUR FROM THE TIME THE
UNIT IS OFF. SEVERE BURN WILL OCCUR IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE STEAM HEAD.
• NEVER ATTEMPT TO FILL AROMA THERAPY RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN THE “ON” POSITION. SEVERE BURNS WILL
OCCUR.
• DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL
UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
• YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR OR TILE MANUFACTURER REGARDING THE SAFE USE
OF YOUR FLOORING IN A STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR INTO THE STREAM OF STEAM
EMITTING FROM THE STEAM HEAD WILL CAUSE SERIOUS BURNS, OR PHYSICAL INJURY.

Sizing Your Steam room
Sizing: 1. Calculate the total volume of the enclosure. (Length x Width x Height = Total Volume).
2. Using the Volume total, multiply by the number to the right of your shower wall material shown
below.
Example: 7 ft. long x 4 ft. wide 7 ft. high = 196 cubic feet
196 cubic ft. x 1.65 (marble) = 323.4 cubic ft. = Model PRO-300 generator.
NOTE: Add 10% for every foot exceeding 7 ft. in ceiling height.
Add 10% for every exterior outside wall.
 Fiberglass, Cultured Marble .65
 Corian No Change
 Ceramic tile on waterproof sheetrock, cement bed or mortar bed No Change
 All glass tile, glass block walls 1.35
 Natural stone tiles 3/8” to ½” (marble, travertine, slate, granite, etc.) 1.65
 Natural stone tiles on cement bed or mortal bed 1.65
 Natural stone slab ¾” to 1” 1.85
For further assistance call toll-free 800-776-0711
DOC NO. 81060 2 OF 18 RevA 06/01/03

Generator Installation Instructions
Parts Enclosed
DOC NO. 81060 3 OF 18 RevA 06/01/03
• No Touch steam head housing
• Steam generator
• 50 Foot control cord
• Installation instructions
All ThermaSol steam generators are designed to build NO PRESSURE during operation.
This is for your safety.
NOTE: Failure to follow installation instructions specifically will cause the
warranty to be void.
Steam Outlet
Power Cord Water Inlet
Control Input
Smitty pan drain
connection
Figure 1

Generator Installation Instructions (continued)
Materials Needed
• Brass ball valve
• Pipe compound
• In-line filter (recommended)
• Wire (PRO-700 only)
• Copper tubing or pipe
• Wire cap nuts (PRO-700 only)
• Flex conduit (PRO-700 only)
• Brass or copper tee connection & plug
• Silicone
Tools Needed
• Pipe wrench
• Tubing cutter
• Wire cutters or wire strippers
• Adjustable wrench
• Screwdrivers (phillips & regular)
• Solder & Flux
• 1” & 1 1/16” masonry drill bits
• 2.5” hole saw for No Touch steam head
• Drill motor
• Propane Torch
• Other tools as required
NOTE:
WARNING: Please consult your physician before using. If you are pregnant,
elderly, have high blood pressure, diabetes, suffering from heart
disease, intoxicated, or not in good health, do not use this steam bath.
DOC NO. 81060 4 OF 18 RevA 06/01/03
•
•
Thermasol steam bath generators are for indoor use only. They
should never be located outside the home.
Thermasol steam bath generators are NOT designed to be used
for space heating purposes.

CONSUMER WARNING
WARNING
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED WITH YOUR DOCTOR AND
RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE
HAZARDOUS TO YOUR HEALTH.
WARNING
DOC NO. 81060 5 OF 18 RevA 06/01/03
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN
THE ON POSITION. SEVERE BURNS WILL OCCUR.
WARNING
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY
PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING
WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE
HAZARDOUS TO YOUR HEALTH.
WARNING
WARNING
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE
UNIT IS “ON”, UP TO ONE HOUR AFTER IT HAS SHUT OFF. SEVERE BURN WILL OCCUR
IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE
STEAM HEAD.
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR
OR FLOORING MANUFACTURER REGARDING THE SAFE USE OF YOUR FLOORING IN A
STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR
INTO THE STREAM OF STEAM EMITTING FROM THE STEAM HEAD WILL CAUSE
SERIOUS BURNS, OR PHYSICAL INJURY.

Requirements for proper installation
1. Ensure the enclosure to be used is vapor proof. It should have a vapor proof door that seals
well so the steam does not escape. Make sure the wall, ceiling and the floor materials are ok
to use with steam and hot condensation, the steam produces.
2. Use copper or brass fittings only. (NEVER USE GALVANIZED FITTINGS)
3. The water inlet uses flex hose and steam outlet uses a brass union for easy
installation. Install the drain/spill pan under the unit.
4. The generator must be upright, accessible and on a level surface with all connections on
top. Access panel must be unobstructed and allow for easy access. See figure 1.
5. Unit may be installed up to 50 feet away from shower area. In a dry well ventilated area.
6. Do not plumb a trap in the steam line or plumb the pressure relief valve into the steam line.
Plumbing the pressure relief valve into the steam line can be hazardous, should the
steam outlet be capped off or obstructed.
7. Pitch steam line back towards generator and avoid perfectly level plumbed lines.
8. Before connecting water line to the generator, flush water line into a five-gallon pail to remove
any silt or other materials that may be in the line. An in-line water filter is also recommended.
9. Make sure water is turned on to the unit before operating the unit.
NOTE: Failure to follow specific installation instructions will cause the
warranty to be void.
DOC NO. 81060 6 OF 18 RevA 06/01/03
Various options for the ThermaSol steam bath generator location.
Figure 2

Water Inlet Installation
Refer to figure 3 for the following:
1. Install the smitty pan under the unit. Plumb the connection on it to an approved drain.
2. Connect a tee to the cold water line. Install copper pipe to the tee. An in-line filter is
recommended.
3. Install a brass shut-off valve on the water inlet line in an accessible area prior to the
recommended in-line water filter.
4. Before making the last connection to the 3/8” flex line going to the unit, flush the water line
into a five-gallon pail to remove any silt or other materials that may be in the line.
5. Make the final connection and turn on water. All ThermaSol generators are equipped with an
automatic water fill system. The water will stop after unit is filled.
6. The steam line can run up, down, or horizontal; but cannot run down and then up. If it
does, a steam trap may be produced at the low point blocking the flow of steam. Insulate the
steam outlet piping if the piping run exceeds 10 feet or is exposed to cold areas.
NOTE: Use steam rated insulation.
IMPORTANT: MAXIMUM INLET WATER PRESSURE NOT TO EXCEED 50 P.S.I.
WARNING: The steam head is HOT! Do not locate near a seat or bench,
hot steam will burn you. Keep at least 12-14 inches away from
hot steam exiting the steam head.
12”
12”
6”
6”
2½ hole
RJ-11 Couple
A
One Touch Control
r
Control Cable
Shut-off Valve
Flex Line
Elite Control
Steam Head
RJ-11 Jack
ccess Panel
NOTE: The generator must be mounted level with all connections on top.
DOC NO. 81060 7 OF 18 RevA 06/01/03
Filter

CONSUMER WARNING
WARNING
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND
RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE
HAZARDOUS TO YOUR HEALTH.
WARNING
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE
UNIT IS “ON”, UP TO ONE HOUR AFTER IT HAS SHUT OFF. SEVERE BURN WILL OCCUR
IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE
STEAM.
WARNING
DOC NO. 81060 8 OF 18 RevA 06/01/03
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN
THE ON POSITION. SEVERE BURNS WILL OCCUR.
WARNING
WARNING
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY
PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING
WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE
HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR
OR FLOORING MANUFACTURER REGARDING THE SAFE USE OF YOUR FLOORING IN A
STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR INTO
THE STREAM OF STEAM EMITTING FROM THE STEAM HEAD WILL CAUSE SERIOUS
BURNS, OR PHYSICAL INJURY.

Instruction for No Touch steam head
DOC NO. 81060 9 OF 18 RevA 06/01/03
Parts Enclosed Steam head housing
• No Touch Steam head
Material Needed
• Clear Silicone
• ½” Drop Elbow
• Other materials as required
Tools Needed
• 1” deep Socket and ratchet
• 2.5” hole cutting tool
• Silicone gun
• Other tools as required
1. Drill a 2.5” diameter hole in the shower wall or wall above the bathtub rim for the steam outlet
line. (Figure 3A) CAUTION: The steam head is hot and should not be located near a seat or
bench! We recommend locating steam head on the fixture wall.
Steam head
Figure 4
** Ensure that all Plumbing is Firmly Secured**

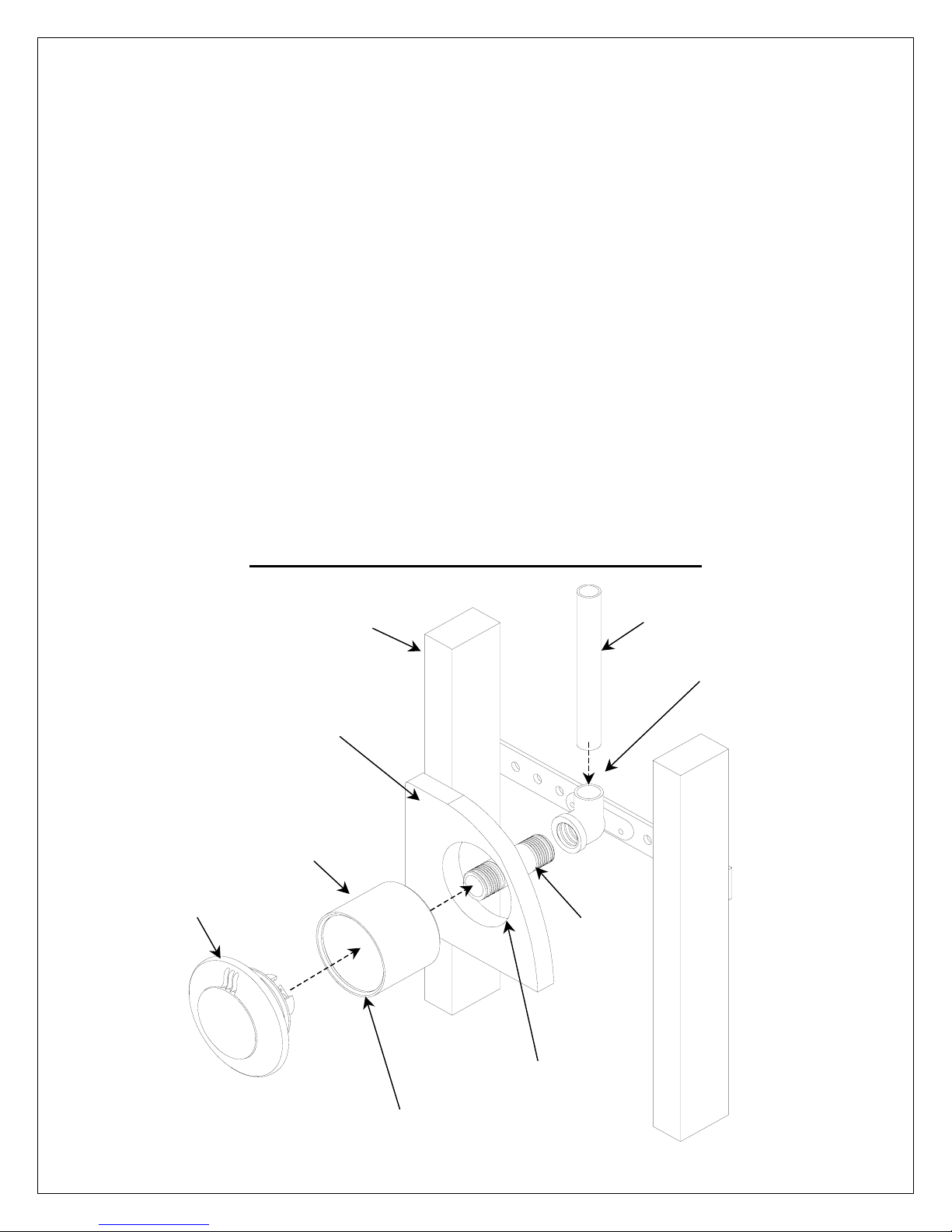

½” Tubing
2x4 Wall
½” Female
Drop Elbow
Shower Wall
Steam Head
Housing
Steam head
½” Pipe
2.5” Hole
This edge must be flush with
finished wall (+/-1/8”)
Figure 5

2. Connect a ½” NPT brass pipe or tubing to the steam outlet on the generator run the pipe to
the 2.5” hole in wall to connect with the steam head housing, use figure 5 as a guide. It is
very important that the pipe is firmly secured to the wall, so that when the steam head
is installed it doesn’t push the housing back into the wall. The steam line can run up,
down, or horizontal; but cannot run down and then up. If it does, a steam trap may be
produced at the low point blocking the flow of steam. Install a ½” drop elbow on the end of the
½” pipe or tubing for the steam head housing. For all the connections, use Teflon tape/solder
and do not over tighten fittings. DO NOT USE PVC CEMENT.
3. Final Installation (steam head): When installing the steam head in to the housing be sure that
the aromatherapy fill channels are facing upwards see figure 6. To ensure that no moisture
gets behind the steam head and into the wall, place a generous bead of waterproof silicone
around the steam head, use the machined grove as a guide. Be sure that within the housing
there isn’t any debris, and the two O-rings are in place on the steam head. Slide the steam
head into the housing until the steam head is tight against the finished wall. You may need to
wipe away any excess silicone. Use figure 6 as a reference to these steps.
DOC NO. 81060 10 OF 18 RevA 06/01/03
`
WARNING: Avoid contact with steam head! It will burn you! Avoid direct contact with
the steam coming out of the steam head! It is extreamly hot and will burn you! Never put
Aroma oil in the steam head when the unit is in the on position, or when steam is emitting
from the steam head.
This edge must be flush
with finished wall (+/- 1/8”)
Place silicone
around this
groove
Aromatherapy
Fill Channels
Figure 6
O-Rings

CONSUMER WARNING
WARNING
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND
RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE
HAZARDOUS TO YOUR HEALTH.
WARNING
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE
UNIT IS “ON”, UP TO ONE HOUR AFTER IT HAS SHUT OFF. SEVERE BURN WILL OCCUR
IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE
STEAM.
WARNING
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN
THE ON POSITION. SEVERE BURNS WILL OCCUR.
WARNING
DOC NO. 81060 11 OF 18 RevA 06/01/03
WARNING
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY
PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING
WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE
HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR
OR FLOORING MANUFACTURER REGARDING THE SAFE USE OF YOUR FLOORING IN A
STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR INTO
THE STREAM OF STEAM EMITTING FROM THE STEAM HEAD WILL CAUSE SERIOUS
BURNS, OR PHYSICAL INJURY.

Electrical Installation
NOTE: All electrical wiring must be done per National/Local Electrical Codes.
ThermaSol requires that a licensed electrician perform all electrical work.
NOTE: USE COPPER WIRE ONLY.
Wire sizes recommended by National Electric Code. Minimum wire temperature rating 90C.
Generator
Model
Wire Gauge Breaker
Size
Cubic Feet kW NEMA AC
Receptacle
PRO-150 10 30 150 6 10-30R
PRO-300 8 40 300 8 10-50R
PRO-450 8 50 450 10 10-50R
PRO-575 6 50 575 12 10-50R
PRO-700 4 90 700 15 N/A
1. Turn off all electricity to the working area at the main breaker panel!
2. Plug the attached power cord into the AC receptacle (PRO-150 - PRO-575).
On the PRO-700, connect 230-volt AC electrical lines to wires labeled 1 & 2 in junction box
on the generator and an approved ground to the green safety grounding wire.

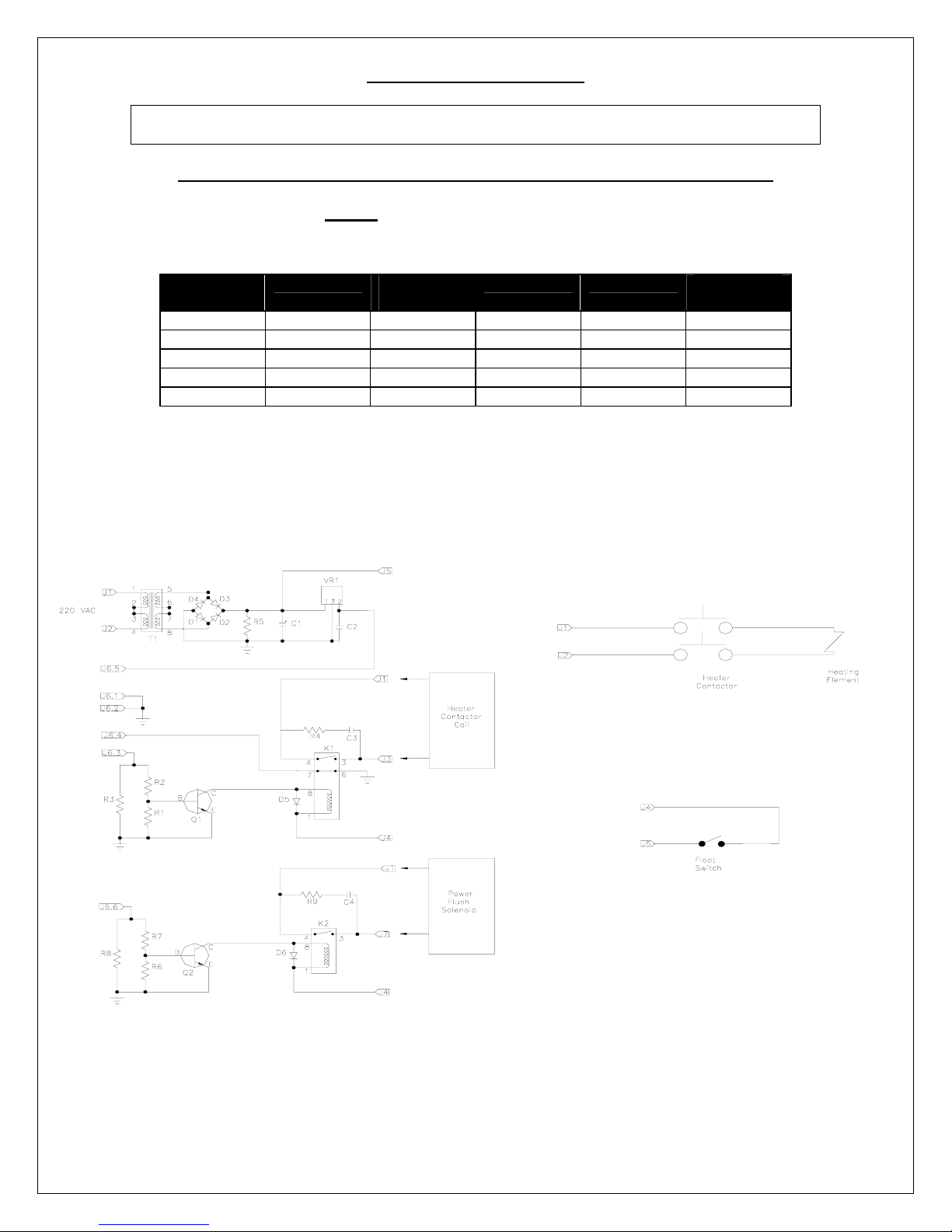

Figure 9
Steam Generator Schematic Diagra
DOC NO. 81060 12 OF 18 RevA 06/01/03
m

CONSUMER WARNING
WARNING
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND
RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE
HAZARDOUS TO YOUR HEALTH.
WARNING
DOC NO. 81060 13 OF 18 RevA 06/01/03
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE
UNIT IS “ON”, UP TO ONE HOUR AFTER IT HAS SHUT OFF. SEVERE BURN WILL OCCUR
IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE
STEAM.
WARNING
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN
THE ON POSITION. SEVERE BURNS WILL OCCUR.
WARNING
WARNING
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY
PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING
WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE
HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR
OR FLOORING MANUFACTURER REGARDING THE SAFE USE OF YOUR FLOORING IN A
STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR INTO
THE STREAM OF STEAM EMITTING FROM THE STEAM HEAD WILL CAUSE SERIOUS
BURNS,OR PHYSICAL INJURY.

One Touch Installation Instructions
1. The One Touch digital control can be located inside or outside the shower area. If using the
Elite and One Touch combination, refer to their installation instructions now.
2. Position the touch pad 4 to 6 feet from the floor inside or outside the steam room.
Drill one 1-1/16” hole in the wall.
3. Bring the modular cable from the generator through the 1-1/16” hole. Plug the modular
connector of the control in to one side of the coupler. Plug the modular connector of the
generator in to the other side of the coupler.
Route the cable so that the coupler is located ABOVE the hole in the wall.
DO NOT pinch, nail, staple, wedge etc. the cable.
DO NOT wrap the cable around steam line or otherwise route it in such a manner that
the hot steam line could melt the cable.
Any damage to the control cable will result in the control not working properly.
4. Carefully connect the other end of the lead wire to the generator BEFORE turning
power on to the generator.
5. Turn on both water and power to the generator.
6. Test the control to ensure it is properly connected.
If any technical problems arise, call toll-free 800-776-0711.
7. THESE STEPS MUST BE TAKEN OR YOUR WARRANTY WILL BE VOID.
Coat the entire control back with supplied waterproof silicon. Completely seal the control to
the wall so moisture does not get behind it. Place the control on the wall pressing firmly. You
may need to tape the control into place until the silicone dries. Be careful not to harm the
wall/control with the tape. Refer to figure 10.
Let dry for 24 hours before using steam bath.
8. Refer to operation instructions for control functions.
Failure to follow installation instructions specifically may cause the warranty to be void!
DOC NO. 81060 14 OF 18 RevA 06/01/03
Hole in wall.
Coupler
50 ft. control wire
from steam generator
Cover the entire back with silicone.
Coupler

Installation instructions for the Elite Control
1. The Elite control MUST be located inside the shower area.
2. Position the control 4 to 6 feet from the floor inside the steam room.
Drill one 1-1/16” hole in the wall.
9. Bring the modular cable from the generator through the 1-1/16” hole. Plug the modular
connector of the control in to one side of the coupler. Plug the modular connector of the
generator in to the other side of the coupler.
Route the cable so that the coupler is located ABOVE the hole in the wall.
DO NOT pinch, nail, staple, wedge etc. the cable.
DO NOT wrap the cable around steam line or otherwise route it in such a manner that
the hot steam line could melt the cable.
Any damage to the control cable will result in the control not working properly.
3. Carefully connect the other end of the modular cable to the generator before turning power
on to the generator.
4. Turn on both water and power to the generator.
5. Test the control to ensure it is properly connected. If any technical problems arise, call toll
free 800-776-0711.
6. THESE STEPS MUST BE TAKEN OR YOUR WARRANTY WILL BE VOID. Coat the entire
control back with supplied waterproof silicon. Completely seal the control to the wall so
moisture does not get behind it. Place the control on the wall pressing firmly. You may need
to tape the control into place until the silicone dries. Be careful not to harm the wall/control
with the tape. Refer to figure 10. Let dry for 24 hours before using steam bath.
7. Refer to operation instructions for control functions.
Failure to follow installation instructions specifically may cause the warranty to be void!
Cable from generator
Coupler Hole in wall
Figure 10
DOC NO. 81060 15 OF 18 RevA 06/01/03
Applysilicon over entire back surface

Installation instructions for Elite/One Touch Combination
WARNING: Power to the generator MUST be off prior to connecting any control.
1. Locate a desired location for the Elite control INSIDE of the shower area Refer to “installation
instructions for the Elite control” for how to mount control in shower area.
2. Locate a desired location for the One Touch control OUTSIDE of the shower area. Refer to
the “installation instructions for the One Touch control” for how to mount control.
3. Connect supplied phone jack splitter to the steam generator. Refer to the graphic on page 2
“Control cable wire plug-in”.
4. Run cables from the controls to the steam generator and carefully connect to the phone jack
splitter just installed to the generator. Either control cable can connect to either of the two
plugs, see figure 12.
5. Route the cable so that the coupler is located ABOVE the hole in the wall.
DO NOT pinch, nail, staple, wedge etc. the cable.
DO NOT wrap the cable around steam line or otherwise route it in such a manner that
the hot steam line could melt the cable.
Any damage to the control cable will result in the control not working properly.
To Generator see
figure 1 on page 2
DOC NO. 81060 16 OF 18 RevA 06/01/03
Figure 12

CONSUMER WARNING
WARNING
DOC NO. 81060 17 OF 18 RevA 06/01/03
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND
RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE
HAZARDOUS TO YOUR HEALTH.
WARNING
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE
UNIT IS “ON”, UP TO ONE HOUR AFTER IT HAS SHUT OFF. SEVERE BURN WILL OCCUR
IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE
STEAM.
WARNING
WARNING
NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN
THE ON POSITION. SEVERE BURNS WILL OCCUR.
WARNING
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY
PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING
WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE
HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR
OR FLOORING MANUFACTURER REGARDING THE SAFE USE OF YOUR FLOORING IN A
STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR INTO
THE STREAM OF STEAM EMITTING FROM THE STEAM HEAD WILL CAUSE SERIOUS
BURNS, OR PHYSICAL INJURY.

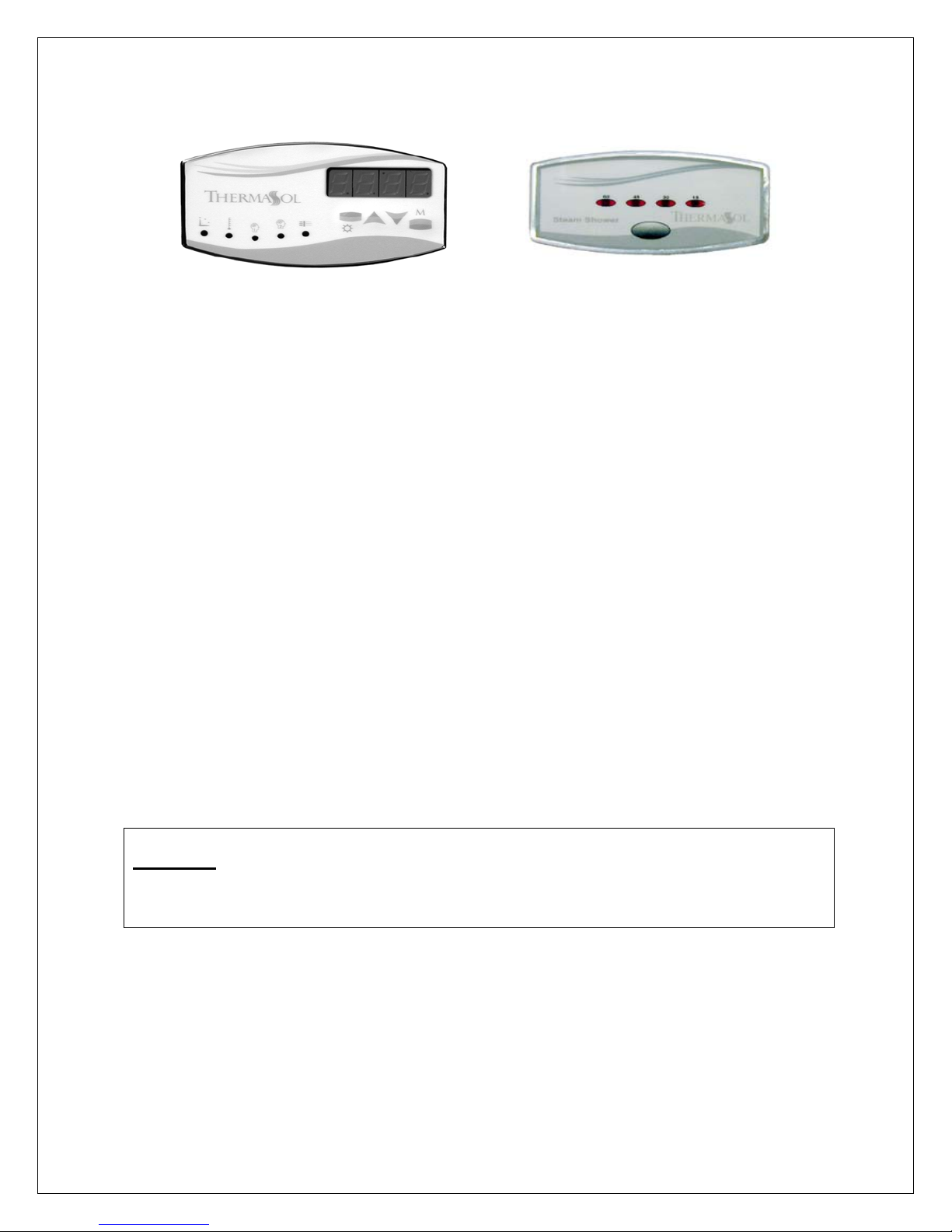

Elite/One Touch combination Operation Instructions
WARNING: Please consult your physician before using. If you are pregnant, elderly,
have high blood pressure, diabetes, suffering from heart disease,
intoxicated, or not in good health, do not use this steam bath.
1. The Elite control functions will remain the same but the One Touch acts ONLY as an on/off
switch. Refer to the Elite operation instructions, which are included with the control.
2. When the One Touch is turned on, it sends a signal to the Elite turning it on and loading the last
time and temperature settings. The One Touch will display the corresponding time.
3. When the Elite is turned on, it will operate like normal but will send a signal to the One Touch
turning it on and display the current time setting.
NOTE: When Auto Power Flushing the steam generator this operation can only be done from
the Elite Control.
WARNING: IT IS IMPORTANT THAT NO ONE BE INSIDE THE SHOWER ENCLOSURE DURING
THE POWERFLUSH CLEANING CYCLE. IT IS ALSO IMPORTANT THAT THE
ENCLOSURE DOOR BE CLOSED DURING THIS CYCLE.
WARNING Exit shower area once the powerflush is started, hot water from
steam head can burn you. Keep the steam door on the enclosure
closed during this cycle.
Headquarters & Technical Support
2255 Union Place, Simi Valley, CA 93065 – [phone]
Eastern Sales Office
26 Industrial Avenue, Fairview, NJ 07022 – [phone]
DOC NO. 81060 18 OF 18 RevA 06/01/03
