Thinkrace TR40 User manual

TR40
Ankle Tracker
User Manual
Please read the instructions before
installing and using the product

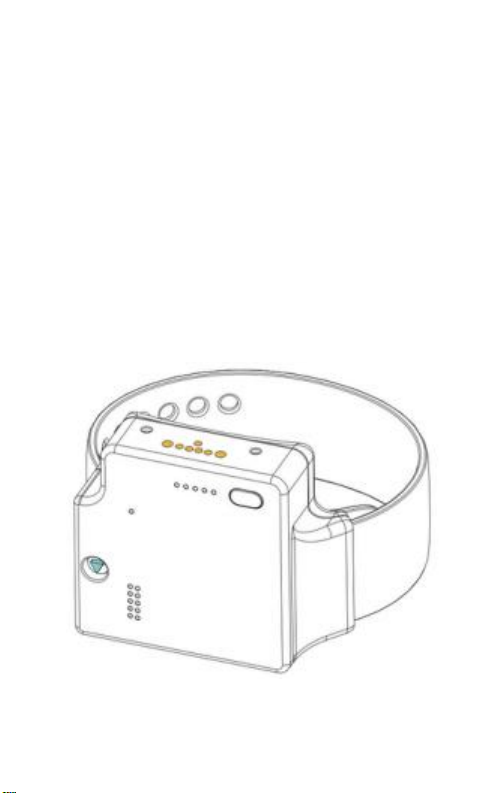

1.Appearance of the Product

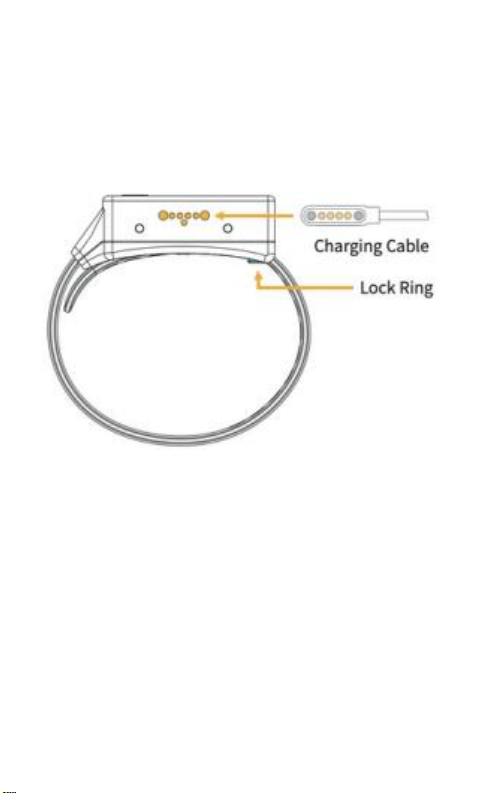

2. Charging
The tracker will be charged by connecting the
cable to the magnetic port. It could take 6 to 7
hours to fully charge the tracker.
3. Device Button
Short press the button for 1 second to power ON
the tracker.
The tracker can't be powered OFF by pressing
button when there is SIM card installed.
With SOS enabled, the wearer could short press
the button for 3 seconds to trigger an SOS alert.
Long press the button for 15 secondstorestart
the tracker. The tracker vibrates 1 time to tell it
will be restarted.

Short press the button for 1 second to power ON
the tracker. The tracker can't be powered OFF by
pressing button when there is SIM card installed.
With SOS enabled, the wearer could short press
the button for 3 seconds to trigger an SOS alert.
Long press the button for 15 secondstorestart the
tracker. The tracker vibrates 1 time to tell it will be
restarted.
4. LED Lights
Short press the button one time, 4 blue LEDs will be
on for 15 seconds to show battery level.
The left LED is on to show the GPRS connection
status while charging.
The blue LED twinkles while charging. All 4 blue
LEDs will be on when it is fully charged.

5. Wearing & Key Functions
·Open the back cover with Hex screwdriver.
Install SIM and fasten the back cover with
screws.
·Wear the tracker on the ankle. Make the strap go
around the ankle, and make the strap end go
through the metal strap lock ring. Fasten the
strap and the ring with special screw.
·Long press the button to power ON the tracker.
·Do not try to open the strap or damage the
tracker without permission.
·The tracker will send tamperproof alert to the
Shadowtrack platform.

6. Device Tracking
The tracker supports GPS location for outdoor
tracking, and Wi-Fi or LBS location for indoor and
outdoor tracking.
The tracking priority is GPS>Wi-Fi>LBS.
The tracking process is to search GPS for maximum
90 seconds to get and report GPS location, or
report Wi-Fi or LBS location only if GPS tracking
fails.
The tracker supports realtime tracking. It will report
location immediately after receive a GPRS
command from the Shadowtrack platform.
7. SOS Alert
The tracker supports switch ON/OFF SOS alert by
GPRS command.
By short pressing 3 seconds, the tracker will vibrate
for one second, and send GPRS SOS alert data with
latest location to the platform if the SOS alert was
enabled.
After sending the SOS alert, the tracker will start
SOS call process. It will make phone call to the first
SOS number for three times until the call is
answered. If no answer, or SOS button was pressed
again to cancel the outgoing call, it should call all
the other SOS numbers by turns.

8. Low Battery &
Tamperproof Alert
The tracker will send GPRS low battery alert to the
Shadowtrack platform when the battery level is 5%.
The tracker's LEDs will be on for 3 seconds with
vibration and play sound when it detects strap
opened or broken. It will send GPRS tamperproof
alert data with last location to the tracking platform.
Waterproof
The tracker is splash, water, and dust resistant and
were tested under controlled laboratory conditions
with a rating of IP68.
Please avoid the items listed to prevent liquid
damage:
·Charging or pressing the button while the watch
is wet.
·Swimming or bathing in warm water with the
watch.
·Exposing the watch to pressurized or high-
velocity water, such as when showering, surfing,
or jet skiing.

·Using the watch in a sauna or steam room.
·Operating the watch outside the suggested
temperature ranges or in extremely humid
conditions.
·Dropping the watch or subjecting it to other
impacts.
·Disassembling the watch, including removing
screws.
·Users should also minimize the watch's exposure
to soap, detergent acids, or acidic food. As well
as any liquids like perfume, lotions, sunscreen,
and solvents.
Frequency
Band(s):
Bluetooth：2402~ 2480MHz(TX/RX)
GSM 850：824.2～848.8 MHz(TX),
869.2 ~ 894.2MHz(RX)
PCS 1900: 1850.2～1909.8 MHz(TX),
1930.2~1989.8MHz(RX)
LTE Band 2: 1850 ~ 1910 MHz(TX),
1930 ~ 1990 MHz(RX)
LTE Band 4: 1710 ~ 1755 MHz(TX),
2110 ~ 2155 MHz(RX)
LTE Band 5: 824 ~ 849 MHz(TX),
869 ~ 894 MHz(RX)
LTE Band 7: 2500 ~ 2570 MHz(TX),
2620~2690MHz(RX)
LTE Band 12: 699MHz ~ 716MHz(TX),
729 ~ 746 MHz(RX)
LTE Band 17: 704 MHz ~ 716 MHz(TX),

734 ~ 746 MHz(RX)
Maximum
output
power:
Bluetooth：0.0018W
GSM 850：0.8551W
PCS 1900: 0.5861W
LTE Band 2: 0.1552W
LTE Band 4: 0.1156W
LTE Band 5: 0.0973W
LTE Band 7: 0.0587W
LTE Band 12: 0.0889W
LTE Band 17: 0.0871W
Note1:
This device complies with Part 1 5 of the FCC
Rules . Operation is subject to the following two
conditions: ( 1 ) this device may not cause
harmful interference, and ( 2 ) this device must
accept any interference received, including
interference that may cause undesired operation .
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user' s authority to operate the equipment .
Note2:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.This equipment should be installed
and operated with minimum distance 0 cm
between the radiator & your body.
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.

Note3:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radi-ate radio frequency energy and,
if not in-stalled and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV
technician for help.
