LED Music Stand Light Pro
Quick start guide
This document contains important information on the safe use of the product.
Read and follow the safety instructions and all other instructions. Keep the docu-
ment for future reference. If you pass the product on to others, please include this
document. Contents are subject to change. Please refer to the latest version of the
documentation, which is available for download at www.thomann.de.
EN
Features
• Professional music stand light with 50cm wide lamp head
• Even and non-ickering illumination
• Manual dimmer function and adjustable colour temperature of 2700 K to 5200 K
• Automatic dimmer function that adapts to the ambient brightness
• DMX control possible
• Built-in battery with a running time of up to 9.5 hours
• Shock-proof
• USB-A port for charging smartphones or other devices.

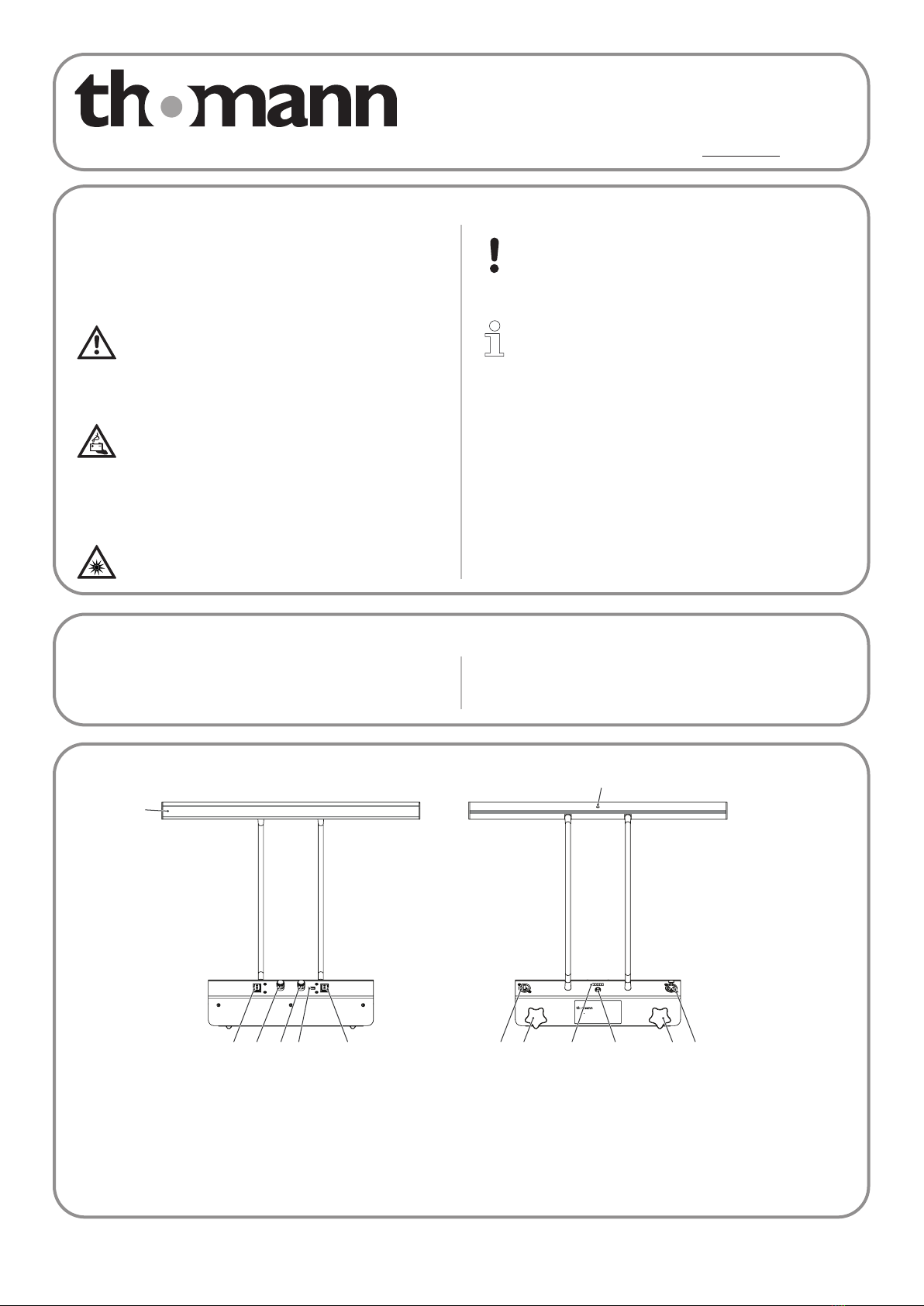

Operating elements
Front
1. Lamp head
2. Sensor for the automatic dimmer function
3. [BRIGHTNESS] | Switch for selecting the manual or automatic brightness mode
4. [CW] | Rotary control for adjusting the cold white light
5. [WW] | Rotary control for adjusting the warm white light
6. USB-A port for charging smartphones or other devices.
7. [BATTERY SWITCH] | Main switch. Turns the device on and o.
MANUAL
AUTO
BRIGHTNESS
CW WW
USB
OFF
ON
BATTERYSWITCH
LED Music Stand Light Pro
Voltage:15V= 3A
Watt: 20W
Itemno:330169
10080604020
DC INPUT 15V=/3A
DMX IN DMX OUT
ö
$ & '(% ) ,- *++
#
Back
8. [DMX IN] | DMX input (XLR chassis plug, 3-pin)
9. [DMX OUT] | DMX out | DMX output (XLR chassis socket, 3-pin)
10. Knurled screws for attaching the lamp to the music stand
11. Battery charge indicator
12. [DC INPUT] | Input socket for connecting the power adapter
Safety instructions
Intended use
This device is intended to illuminate music stands. Any other use or use under other operating
conditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damage resulting from improper use.
This device may be used only by persons with sucient physical, sensory, and intellectual abilities
and having corresponding knowledge and experience. Other persons may use this device only if
they are supervised or instructed by a person who is responsible for their safety.
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure
themselves when handling the device. Never allow children to play with the packag-
ing material and the device. Always store packaging material out of the reach of ba-
bies and small children. Always dispose of packaging material properly when it is not
in use. Never allow children to use the device without supervision. Keep small parts
away from children and make sure that the device does not shed any small parts (such
as knobs) that children could play with.
Incorrect handling of lithium batteries can result in injury!
In the event of a short circuit, overheating or mechanical damage, lithium batteries
can cause severe injuries. Handle lithium batteries in a correct and professional man-
ner. Store lithium batteries in a cool and dry place in their original packaging. Keep
lithium batteries away from sources of heat. Never open lithium batteries. Only charge
rechargeable lithium batteries with a suitable charger. Remove the lithium batteries
before disposing of the device. Cover the poles of used lithium batteries with adhe-
sive tape to prevent short circuits. Electrolyte can escape from damaged lithium bat-
teries. Put the damaged lithium battery in air-tight packaging. Collect the electrolyte
with absorbent paper. Wear rubber gloves while doing so.
Risk of eye damage caused by high light intensity!
The device generates high-intensity light radiation. Looking directly into the light
source can damage the eyes. Never look directly into the light source.
Possible damage to lithium-ion batteries through incorrect storage!
Deep discharge can permanently damage lithium-ion batteries or cause them to lose
some of their capacity. Charge the lithium-ion batteries before longer breaks in use
and before storage. Ensure that the device is switched o for storage. Store the device
at room temperature or cooler in an environment as dry as possible. Recharge the
lithium-ion batteries about every three months if they are stored for a longer period
of time to avoid permanent damage due to too deep self-discharge. Fully charge the
lithium-ion batteries only shortly before use at room temperature.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
For technological reasons the light output of LEDs decreases over their lifetime. This eect increas-
es with higher operating temperatures. You can extend the service life of the light sources by pro-
viding adequate ventilation and operating the LEDs with the lowest possible brightness.
Operating location
Do not ever use this product:
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty places
• in locations where the device may get wet
General handling
• To prevent damage, never exert force while operating the device.
• Never immerse the device in water. Wipe only with a clean and dry cloth. Do not use liquid
cleaners such as benzene, thinners or ammable cleaning agents
Keep the device away from impurities!
Keep the device away containers with liquid. Should liquid enter the device, this could lead to its
destruction or re. Ensure that no metallic parts enter the device.

Thomann GmbH • Hans-Thomann-Straße 1 • 96138 Burgebrach • www.thomann.de • [email protected] DocID: 330169_19.09.2023
LED Music Stand Light Pro
Using the product
First, the internal battery needs to be charged. To do so, connect the device to a
suitable power source via the input socket for connecting the power adapter on
the back. If this voltage source provides 3A, the max. current draw of the device,
charging takes up to 3.5 hours. The battery charge indicator remains green during
charging. Once charging is complete, the green LED of the battery charge indicator
lights up.
Set the main switch to the [ON] position to switch on the device.
Manual mode
Turn the [WW] rotary control to adjust the brightness of the warm white light. Turn
the [CW] rotary control to adjust the brightness of the cold white light.
Automatic mode
Set the [BRIGHTNESS] switch to the [AUTO] position to adjust the brightness of the
LEDs automatically.
The brighter the ambient light, the darker the LEDs.
The darker the ambient light, the brighter the LEDs.
DMX mode
If a DMX controller is used, manual and automatic mode are not available.
In DMX mode, channel 1 is the setting channel for warm white light, channel 2 is
the setting channel for cold white light, and channel 3 is the setting channel for
colour temperature.
Technical specications
Light source 36 × SMD-LEDs (18 × warm white, 18 × cold white)
Light source properties Beam angle 45 °
Light output 280 lux
Colour temperature 2700K–5200K
Control directly on the device, DMX
Number of DMX channels 3
Input connections Input socket for connecting the power adapter
XLR chassis plug, 3-pin
Output connections XLR chassis socket, 3-pin
USB-A
Supply voltage External power adapter, 100–240 V ~ 50/60Hz
Operating voltage 15V / 3A
Power consumption 20W
Battery Type Lithium-ion
Voltage 8.4V
Capacity 6,000mAh
Operating time 9.5 h
Charging time 3.5 h
International Protection Rating IP20
Dimensions (W×H×D) 500mm×439mm×146mm
Weight 2.3 kg
Ambient conditions Temperature range 0°C ... 40°C
Relative humidity 20% ... 80%
(non-condensing)
Environmentally friendly materials have been chosen for the packaging. These
materials can be sent for normal recycling. Ensure that plastic bags, packaging,
etc. are disposed of in the proper manner. Do not just dispose of these materi-
als with your normal household waste, but make sure that they are collected
for recycling. Please follow the instructions and markings on the packaging.
Batteries must not be thrown away or burnt, but must instead be disposed of in
line with the local regulations on the disposal of hazardous waste. Use the avail-
able collection points to do so.
Only dispose of lithium batteries when they are empty. Remove lithium batter-
ies from the device before disposal. Protect used lithium batteries against short
circuit, for example by taping the poles. Dispose the solid state lithium batteries
together with the device. Please check for an appropriate reception facility.
This product is subject to the European Waste Electrical and Electronic Equip-
ment Directive (WEEE) as amended. Do not dispose of your old device with your
normal household waste. Dispose of the product through an approved waste
disposal rm or through your local waste management facility. When disposing
of the device, comply with the rules and regulations that apply in your country.
If in doubt, consult your local waste management facility.
