Light Sky MAMBA User manual

M A M BA
E-mail:
n
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China

-1-
CONTENTS
Congratulations on choosing our company product! We thank you for your custom.
◆ Please keep in mind that this product, like other products of the company, adheres to the concept of
people-oriented design and manufacture, and takes product quality as the foundation.
◆ We put the interests of customers first, and do our best to meet customer requirements.
◆ Please read this instruction manual carefully and keep it for future reference. In the case of fully
understanding the product information, strictly abide by theUse the instruction manual to ensure that
the product is installed, used and serviced correctly and safely.
◆ Our company is not responsible for any damage to lamps or other performance due to personal failure
to follow the instructions during installation, use and maintenance.responsibility.
◆ Our company reserves the right to modify the manual at any time and without prior notice.
1、Safety Instructions..................................................................................................2
2、Technical Specifications .........................................................................................5
2.1、Attachment And Size ......................................................................................7
3、Control Panel ..........................................................................................................8
4、How To Set The Unit................................................................................................9
4.1、Main Function.................................................................................................9
5、Connection and control ........................................................................................20
5.1、Power supply connection.............................................................................20
5.2、DMX 512 Connection....................................................................................21
5.3、Channel Setting............................................................................................22
5.4、Address Setting............................................................................................22
5.5、DMX 512 Configuration ................................................................................23
6、 Electrical Connection Diagram .............................................................................26
7、 Troubleshooting....................................................................................................27
8、Fixture Cleaning....................................................................................................28
9、 Duty exonerative and copyright protectio ............................................................28

-2-

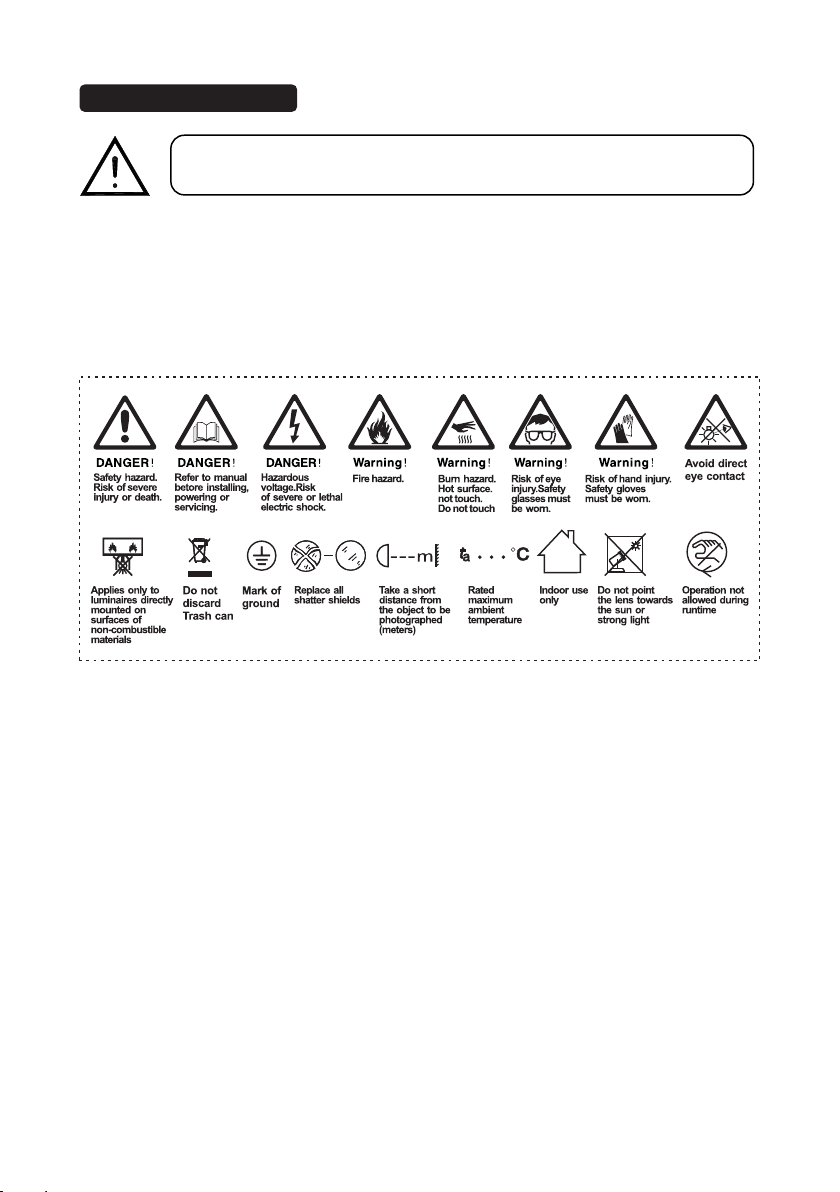

The following symbols are used to identify important safety information on the product
and in this manual:
WARNING
1.Safety Instructions
Important:
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
 The equipment is only suitable for indoor dry place use.
 Unpack and check carefully to ensure that there is no transportation damage before
using the unit.
 Do install and operate by qualified operator.
 The light source in this luminaire should be replaced by the manufacturer or its service
agent or a similarly qualified person, always cut off the power supply before replacing
he light source.
 Do not allow children to operate the fixture.
 Use safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
Please keep this User Manual for future consultation. If you sell the unit to another user,
be sure that they also receive this manual.

-3-
 The unit must be installed in a location with adequate ventilation, at least 20cm from
adjacent surfaces.
 Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
 Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
 It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
 Minimum ambient temperature Ta: -10℃. Maximum ambient temperature Ta: 45℃.
Do not operate this product at a lower or higher temperature.
 Do not connect the device to any dimmer pack.
 When the lamp is running, do not place combustible objects next to it. The shortest
distance between the device and inflammable and explosive objects or materials is 0.5m.
 Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
 Unit’s surface temperature may reach up to 80℃. do not touch the housing
bare-handedduring its operation.
 Avoid any flammable liquids, water or metal from entering the unit. Once it happens,
cut off the mains power immediately.
 Do not operate in a dirty or dusty environment. do clean the fixture regularly.
 Do not touch any wire during operation as there might be a hazard of electric shock.
 Avoid entanglement of the power cord with other wires.
 The minimum distance to objects/surface must be more than 3 meters.
 In the event of serious operating problem, stop using the unit immediately.
 Never turn on and off the unit time after time.
 The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
 Do not open the housing as there are no user serviceable parts inside.
 Do not attempt to operate this unit if it becomes damaged. do not attempt any
repairs yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center if needed.
 Disconnect this product from its power source before servicing.
 Do use the original packaging if the device is to be transported.
 Avoid direct eye exposure to the light source while the product is on.

-4-
 Do not operate this product if you see damage on the housing, shields, or cables.
Have the damaged parts replaced by an authorized technician at once.
Installation:
The fixture should be fixed on the clamp. always ensure that the unit is firmly fixed to
avoid vibration and slipping off during operation. ensure that the trussing or area of
installation must be able to hold 10 times the weight without any deformation. Always
install a safety cable that can hold at least 12 times the weight of the fixture when
installing.do install and operate by qualified operator. It must be installed in a place where
there is out of the reach of people.

-5-
2.Technical Specifications
OPTICS
- Light source: 12*40W LED chip RGBW 4 in 1
- Beam angle: 3.6°-38°
- Zoom angle: 4.2°-53°
- Color Temperature: 2200K-8000K
- Light Luminous Flux: 18460 lux@5 meters
EFFECT
- Color Mixing System: uniform RGBW color mixing and rainbow effect
- Zoom system: Linear electronic zoom
- Individual Controlled: support individual controlled, varied in color and effect
- effect macro: static and dynamic
- Dimmer: Linear electronic dimmer, provides four dimming options
- Strobe: 1-30Hz electronic strobe and random strobe
CONTROL AND PROGRAMMING
- Controlled Channel:19CH(Standard),64CH(Extended),see channel table for details
- Control Mode: DMX512, RDM, ART-NET
- Data connection: RJ45 input and output, 3-pin and 5-pin input and output
- Display: LCD Lattice screen
SOFTWARE
- Upgrade:Upgrade software through DMX signal interface and USB interface
- Intelligent temperature control to ensure long lifespan of LED
PAN/TILT MOVEMENT
- Tilt movement:185°16 bit precision
POWER AND VOLTAGE
- Input voltage: AC 100-240V 50/60Hz
- Power: 425W PF:＞0.98
SIZE AND WEIGHT
- Light Size: 1003mm×126mm×308mm
- N.W: 20.3 kg
- Carton size: 1110mm×410mm×215mm
- G.W: 24.0 kg
- Flycase (option-3 sets) :1075mm×680mm×495mm
- N.W: 60.9 Kg G.W: 100.4 Kg

-6-
OTHERS
- IP rate: IP20
- Working environment: -10℃ ~ 45℃
- Maximum temperature of fixture body surface: 80℃
- Maximum on-line quantity: 2pcs/110V 4pcs/220V
- Maximum current: 1.9A/220V；4.3A/110V
- Optional material: light hook
APPROVALS
- The product implementation standard: GB 7000.1-2015 GB7000. 217-2008
- 、Approved certifications: CE RoHs
- The product complies with the following EU directives:
Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU-
illuminationdiagram
37 10 15
38°
Diameter(m)
Distance(m)
0.19 0.44 0.63 0.95
3.6° Lux R 7020 1290 630 280
0.32
2530
5
G 19500 3580 1750 780
7020
B 6100 1120 550 240
2200
RGBW 51278 9418 4615 2050
18460
Diameter(m)2.06 4.81 6.87 10.30
38° Lux R 300 55 27 12
3.43
108
G 769 140 70 31
277
B 244 45 22 10
88
RGBW 2000 360 180 80
720
3.6°

-7-
2.1.Attachment And Size
Attachment contents-Fig.1
Size-Fig.2
FAST LOCK
x2
FAST LOCK
x2
Certificate of conformityCertificate of conformity POWER CORDPOWER CORD
123 4 5 6 8 9 10 11 127
LED Chips Sequence

-8-
OK confirmation key
UP
DOWN
To the left
To the right
2.Button:
1.Display: To show the various menus and the selected function.

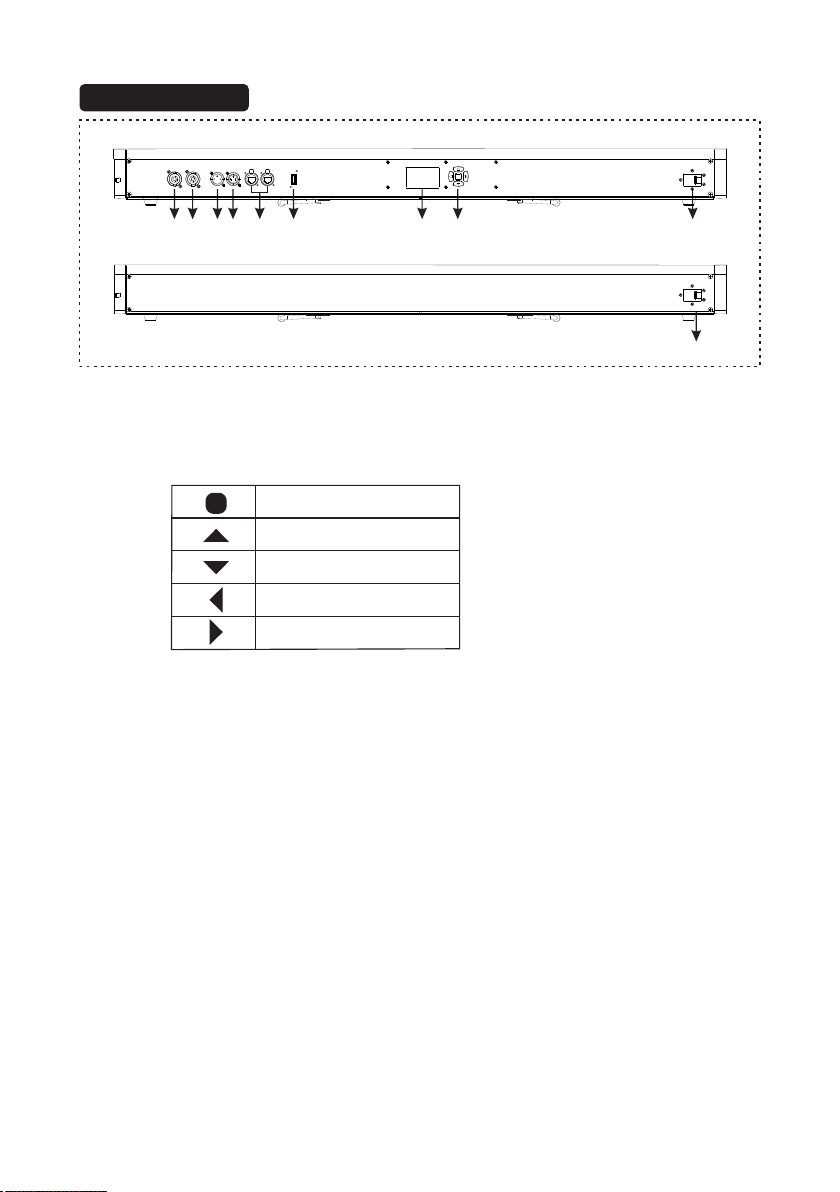

3.Control Panel
3. Power input: connect to the power supply.
4. Power output: connect to the lamp power output adapter.
5. DMX input: for DMX512 connection, use 3 or 5-core XLR signal cable to connect
console and lamps,and input DMX signal.
6. DMX output: used for DMX512 connection, use 3 or 5-core XLR signal cable to
connect console and lamps,And output DMX signal.
7. ART-NET input/output: The information of the luminaire can be transmitted to the
main controller through the network cable, and the luminaire can be controlled
through Rj45.
8. USB socket: for updating software version.
9. Lamp connection lock position (front)
10. Lamp connection lock position (back)
345 6 7 9
10
1 2
8

-9-
4.How To Set The Unit
4.1.Main Function
After starting up, press any key to enter the preset menu interface, use the up/down/left/right keys to
select: DMX settings, basic information, personality settings, manual control, service options, test
lamps, language, screen rotation, press OK Confirm and enter the lower menu.
① - DMX settings
Enter the Preset menu interface, select Function, press the OK key to enter the lower menu, use
the Up/Down key to select the ② level menu: DMX address, signal priority, AreNet setting, exit.
② DMX address:
Select the DMX address function, press the OK key to enter the lower-level menu, press the
up/down key, you can choose to set the address code (001~512) of the lamp according to the current
channel mode, and press the left/right key to fine-tune the address code. Press OK to confirm the
settings and return to the previous menu.
② DMX/Artnet:
Select the DMX/Artnet function, press the OK button to enter the lower menu, press the up/down
button, you can choose: DMX priority (default), ARTNET priority, press the OK button to confirm the
setting and return to the upper menu, or press the left/right button to Returns to the previous menu
without changing the current selection.
②ArtNet Set:
Select the ArtNet Set function, press the OK key to enter the lower-level menu, press the Up/Down
key to select: IP address, Mask address, Net address, Sub Net address, Universe address, and exit.
Press the OK key to enter the lower level menu, or press the left/right key to return to the upper level
menu.
③ IP address:
Select the IP address function, press the OK key to enter the sub-menu, press the left/right key to
select the address code number segment to be set, and press the up/down key to adjust the number
of the number segment. Press OK to confirm the settings and return to the previous menu.

-10-
③ Mask address:
Select the Mask address function, press the OK key to enter the lower-level menu, press the left/right
key to select the address code number segment to be set, and press the up/down key to adjust the
number of the number segment. Press OK to confirm the settings and return to the previous menu.
③ Net address:
Select the Net address function, press the OK key to enter the submenu, and press the Up/Down
key to adjust the Net address code (001~128). Press OK to confirm the settings and return to the
previous menu.
③Sub Net address:
Select the Sub Net address function, press the OK key to enter the sub-menu, and press the
Up/Down key to adjust the Sub Net address code (001~015). Press OK to confirm the settings and
return to the previous menu.
③Universe address:
Select the Universe address function, press the OK key to enter the submenu, and press the
Up/Down key to adjust the universe address code (001~015). Press OK to confirm the settings and
return to the previous menu.
① - Information
Enter the preset menu interface, select function, press the OK key to enter the lower menu, use
the up/down keys to select the ② level menu: total running time, equipment time, equipment
temperature, RDM address, fan voltage, equipment channel, version information, quit.
② Total Time
Select the Total Time function of total running time, press the OK key to enter the sub-menu, and you
can view the equipment: always powered on (H), always on (H). Press OK or Left/Right to return to
the previous menu.

-11-
② Led hours
Select the Led hours function, press the OK key to enter the sub-menu, you can view the device:
power-on time (H), lighting time (H). Press OK or Left/Right to return to the previous menu.
② Temperature
Select the Temperature function, press the OK key to enter the lower-level menu, and you can view
the temperature of the device: driver board 1, light source 1, driver board 2, and light source 2 (unit:
°C). Press OK or Left/Right to return to the previous menu.
② RDM UID
Select the RDM UID function, press the OK key to enter the submenu, and you can view the device:
RDM address information. Press OK or Left/Right to return to the previous menu.
② Fan voltage
Select the Fan voltage function, press the OK key to enter the sub-menu, you can view the
equipment: cooling fan 1, cooling fan 2 voltage. Press OK or Left/Right to return to the previous menu.
② DMX live
Select the DMX live function, press the OK key to enter the submenu, and you can view the device:
channel information in the current channel mode. Press OK or Left/Right to return to the previous
menu.
② System version
Select the System version function, press the OK key to enter the lower-level menu, and you can
view the version information of the device: display board, Y-axis board, zoom 1, zoom 2, light board 1,
and light board 2. Press OK or Left/Right to return to the previous menu.
① - Personal
Enter the preset menu interface, select function, press the OK button to enter the lower menu,
use the up/down button to select the ② level menu: channel mode, interface display password,
dimming curve, LED sequence reverse,display setting, Led frequency setting,Fan mode, exit, press
OK key to enter the lower menu, or press the left/right key to return to the upper menu.

-12-
② Channel mode
Select the Channel mode function, press the OK key to enter the lower menu, you can use the up /
down keys to select: standard mode (19CH) (default), extended mode (64CH), press the OK key to
confirm the selection and return to the upper menu.
② Display lock
Select the Display lock function, press the OK key to enter the submenu, press the up/down key to
select: on, off (default), press the OK key to confirm Select and return to the previous menu. (Note:
The interface password function only works for the DMX setting function, password: 2222)
② Dimmer Curve
Select the Dimmer Curve function, press the OK key to enter the lower menu, you can use the
Up/Down keys to select: linear (default), square curve, inverse square curve, S curve, press the OK
key to confirm the selection and return to the upper menu.
② LED sequence reverse
Select the LED sequence reverse function of setting the sequence of light beads in reverse, press
the OK key to enter the lower menu. You can use the up/down keys to select: close/open, press the
OK key to confirm the selection and return to the upper menu.
② Display
Select the Display setting function, press the OK key to enter the submenu, you can use the up/down
key to select the ③ level menu: language (Language), backlight, screen rotation, backlight flashing,
exit, press the OK key to enter the submenu, or press the left button Return to previous menu.
③ Language
Select the Language function, press OK key to enter the lower menu, you can use the up / down
keys to select: English , Chinese (default), press OK key to confirm the selection and return to the
upper menu.
DMX Value（0-255）100%
100%
Brightness output
100%
100%
Brightness output
DMX Value（0-255）100%
100%
Brightness output
DMX Value（0-255）100%
100%
Brightness output
DMX Value（0-255）

-13-
③ Backlight
Select the Backlight function, press the OK key to enter the lower menu, you can use the up/down
keys to select: constant light, automatic off (30S) (default), press the OK key to confirm and return to
the upper menu.
③ Reversal
Select the Reversal function, press the OK key to enter the lower menu, you can use the up / down
keys to select: normal (default), rotate 180 degrees, press the OK key to confirm and return to the
upper menu.
③ Backlight blink
Select the Backlight blink function, press the OK key to enter the submenu, you can use the up /
down keys to select: open (default), close, press the OK key to confirm and return to the previous
menu.
② Led Preq Set
Select the Led Preq Set function, press the OK button to enter the lower menu, you can use the
up/down button to select the ③ level menu: 1000 Hz, 3600 Hz, 7200 Hz, 25000 Hz (default), press
the OK button to confirm the selection and return to the upper menu, Pressing Left/Right only returns
to the previous menu without changing the current selection.
② Fan mode
Select the fan mode function, press the OK key to enter the lower-level menu, you can use the
up/down keys to select the③ menu: high speed, silent, press the OK key to confirm the selection and
return to the upper-level menu, press the left/right key to only return to the upper-level menu, not
Change the current selection.
② Dimming mode
Select the dimming mode function, press the OK key to enter the lower menu, and use the up/down
keys to select the ③ level menu: fast and smooth, press the OK key to confirm the selection and
return to the upper menu, press the left/right keys to only return to the upper menu, without changing
the current selection.
① - Manual control
Enter the preset menu interface, select function, press the OK key to enter the submenu, you
can use the up/down key to select the ② level menu: channel control, reset, exit, press the OK key to
enter the submenu, or press the left/right key to Return to previous menu.

-14-
② Channel control
Select the Channel control function, press the OK key to enter the sub-menu, press the up / down
key to select each channel of the current channel mode, press the left / right key to manually adjust
the DMX value of each channel from 0 to 255, press the OK key Return to the previous menu, and at
the same time, the lamp is reset to the state just turned on.
② Reset
Select the Reset function, press the OK key to enter the lower menu, you can use the up / down keys
to select: system reset (that is, the whole machine reset), vertical reset, zoom reset, exit, press the OK
key to confirm and execute the selected reset command, and return Previous menu, or press
Left/Right to return to previous menu only.
① - Service
Enter the preset menu interface, select function, press the OK key to enter the submenu, you
can use the up/down key to select: current fault information, clear fault information, calibration, factory
settings, exit, press the OK key to enter the submenu, or press the Left/Arrow only returns to previous
menu.
② Error list
Select the Error list function, press the OK key to enter the lower-level menu, you can view the fault
records of the whole machine, press the OK key or the left/right key to return to the upper-level menu.
② Clean error
Select the Clean error function, press the OK key to enter the lower menu, use the up/down keys to
select: no clear (default), clear, you can clear or keep the fault records of the lamp, press the OK key
to confirm clearing the fault information and return to the upper menu , or press Left/Right to return to
the previous menu without changing the current selection.
② Calibration
Select the Calibration function, press the OK key to enter the lower menu, press the up/down key to
select each channel of the current channel mode, press the left/right key to manually fine-tune the
DMX value of each channel from 0 to 255 (default 128), press OK key to confirm and return to the
previous menu.

-15-
② Factory
Select the Factory function, press the OK key to enter the submenu, you can use the up / down keys
to select: factory default, time clear, developer, software upgrade, exit, press the OK key to enter the
submenu. Note that the functions under this menu require a password to proceed to the next step.
① - Test
Enter the preset menu interface, select function, press the OK key to enter the submenu, you
can use the up/down key to select: test vertical, test the head effect, overall test, exit, press the OK
key to enter the submenu, and the lamp starts to execute Test instructions. Or press Left/Right to
return to previous menu only.
① - Language
Enter the Preset Menu interface, select Function, and press OK to switch between Chinese
(default) and English.
① - Reversal
Enter the Preset Menu interface, select Function, and press OK to switch the screen between:
normal and rotated 180 degrees.
St an db y in te rf ace Preset menu interface

-16-
Main menu I menu II menu III menu Ⅳ menu
DMX Address →
Address:001-512
DMX/ARTNET → DMX Priority
ARTNET Priority
ArtNet Set →
IP Address → xxx.xxx.xxx.xxx
Mask Address → xxx.xxx.xxx.xxx
Net Address → 1-128
Sub Net Address → 0-15
Universe Address → 0-15
Return(ESC)
Information →
Total
Time → Power:****(h)
Led
ON:****(h)
Led
hours → Total:****(h)
Led
open:****(h)
Temperature →
Borad
1：00.0
LED 1：00.0
Borad
2:00.0
LED 2:00.0
RDM
UID → RDM UID 3888:00000000
FanVoltag → LEDFan1
00.0V
LEDFan2 00.0V
DMX
live →
1.Dimmer
000-255
2.DimmerFine
000-255
3.strobe
000-255
4.Red 000-255
5.Green
000-255
6.Blue 000-255
7.White 000-255
8.CCT 000-255
9.Inter Program 000-255
10.Program Speed 000-255
11.Dimmer of Back Color(for
Program) 000-255
12.
Red of Back Color(for
Program) 000-255
13. Green of Back Color(for
Program) 000-255
14.Blue
of Back Color(for
Program) 000-255
15.White of Back Color(for
Program) 000-255
16.ZOOM
left segment 000-255
17.TILT 000-255
18.TILT
FINE 000-255
19.RESET
000-255
System version →
Display
Y
Board
Zoom1
Zoom2
LED1
LED2
Return(ESC)
Channel mode → Standard(19CH)
Extended(64CH)
Display lock → OFF
ON

-17-
Main menu I menu II menu III menu Ⅳ menu
Personal
Dimmer Curve →
Linear(Default)
Square
I-Square
SCurve
LED invert → OFF
ON
Display →
Language → English
Chinese
BackLight → Open
Auto close(30s)
Reversal → Normal
Rota.180
Backlight
blink → ON
OFF
Return(ESC)
Led
Preq Set →
1000
Hz
3600
Hz
7200
Hz
25000
Hz
Dim
mode fast
smooth
Return(ESC)
Manual
control →
Channel
control →
1.Dimmer
000-255
2.DimmerFine 000-255
3.strobe
000-255
4.Red 000-255
5.Green 000-255
6.Blue
000-255
7.White 000-255
8.CCT
000-255
9.Inter
Program 000-255
10.Program
Speed 000-255
11.Dimmer
of Back Color(for
Program) 000-255
12.
Red of Back Color(for
Program) 000-255
13. Green of Back Color(for
Program) 000-255
14.Blue
of Back Color(for
Program) 000-255
15.White
of Back Color(for
Program) 000-255
16.ZOOM
left segment 000-255
17.TILT
000-255
18.TILT
FINE 000-255
19.RESET 000-255
Return(ESC)
Reset →
system reset
Tilt reset
Zoom reset
Return(ESC)
Return(ESC)
Error list →
ZOOM1
ZOOM2
TILT
Fan mode fast
silence

-18-
Main menu I menu II menu III menu Ⅳ menu
Service →
Clean error → Yes (code：2222)
No
Calibration →
Tilt 000-255
Zoom1 000-255
Zoom2 000-255
Red1 000-255
Green1 000-255
Blue1 000-255
White1 000-255
Red2 000-255
Green2
000-255
Blue2
000-255
White2
000-255
Red3
000-255
Green3
000-255
Blue3
000-255
White3
000-255
Red4
000-255
Green4
000-255
Blue4
000-255
White4
000-255
Red5
000-255
Green5
000-255
Blue5 000-255
White5
000-255
Red6 000-255
Green6 000-255
Blue6
000-255
White6 000-255
Red7
000-255
Green7
000-255
Blue7
000-255
White7
000-255
Red8
000-255
Green8
000-255
Blue8
000-255
White8
000-255
Red9
000-255
Green9
000-255
Blue9
000-255
White9
000-255
Red10
000-255
Green10
000-255
Blue10
000-255
White10
000-255
Red11 000-255
Green11 000-255
Blue11 000-255
White11 000-255
Red12 000-255
Green12 000-255
Blue12 000-255
White12 000-255

-19-
Main menu I menu II menu III menu Ⅳ menu
Return(ESC)
Factory →
Defualt
Time clean →
Total Time
Device Time
Led Time
Developer
→ Manual OR DMX DMX Control
Manual Control
→ Load font
→ LOGO select
LIGHT SKY
Custom LOGO
No LOGO
→ LOGO upgrade
→ Return(ESC)
Firmware update
Return(ESC)
Return(ESC)
test →
Test T → STEP ***
Test effect → STEP ***
Test all → STEP ***
Return(ESC)
Language → English
Chinese
Reversal → Normal
Rota.180
