thomann ignition Wotan 300 User manual

Wotan 300
Moving Head
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
20.04.2023, ID: 562184

Table of contents
1 General information.............................................................................................................. 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 5
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 8
4 Installation................................................................................................................................. 9
5 Starting up............................................................................................................................... 11
6 Connections and operating elements........................................................................ 12
7 Operating................................................................................................................................. 13
7.1 Starting the device....................................................................................................... 13
7.2 Main menu...................................................................................................................... 13
7.3 Menu overview.............................................................................................................. 22
7.4 Settings menu................................................................................................................ 23
7.5 LED pixel eect.............................................................................................................. 24
7.6 Functions in 18-channel DMX mode..................................................................... 25
7.7 Functions in 38-channel DMX mode..................................................................... 31
8 Technical specications.................................................................................................... 33
9 Plug and pin assignments................................................................................................ 35
10 Cleaning.................................................................................................................................... 36
11 Protecting the environment........................................................................................... 37
Table of contents
Wotan 300 3
Moving Head

1 General information
This user manual contains important information on the safe operation of the device.
Read and follow all safety notes and all instructions. Save this manual for future refer‐
ence. Make sure that it is available to all persons using this device. If you sell the
device to another user, be sure that they also receive this manual.
Our products and user manuals are subject to a process of continuous development.
We therefore reserve the right to make changes without notice. Please refer to the
latest version of the user manual which is ready for download under
www.thomann.de.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
The individual steps of an instruction are numbered consecutively. The result of a
step is indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
Letterings
Displays
Instructions
General information
4Wotan 300
Moving Head

References to other locations in this manual are identied by an arrow and the speci‐
ed page number. In the electronic version of the manual, you can click the cross-
reference to jump to the specied location.
Example: See Ä ‘Cross-references’ on page 5.

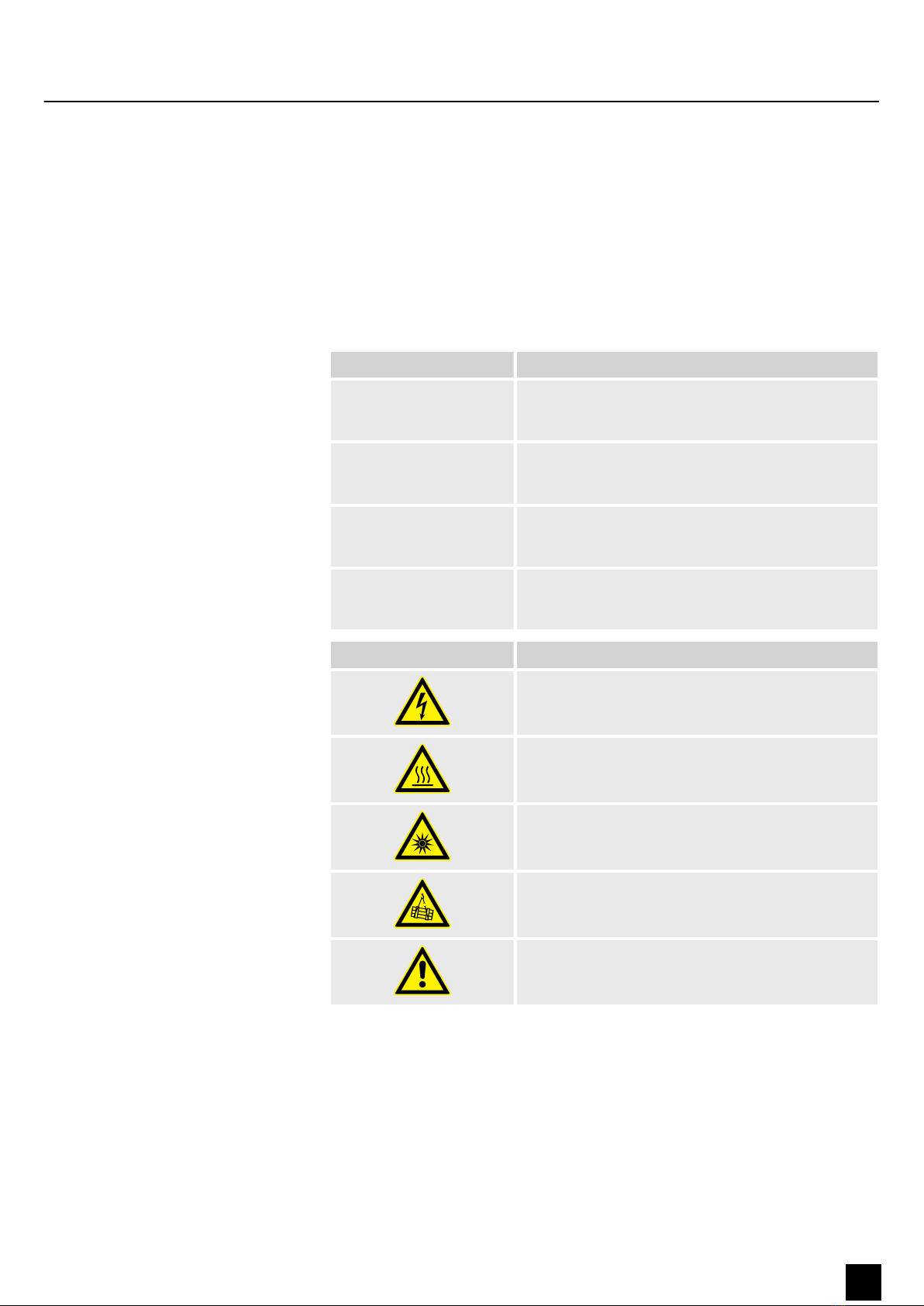

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates
a possible dangerous situation that can result in death
or serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates
a possible dangerous situation that can result in minor
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.

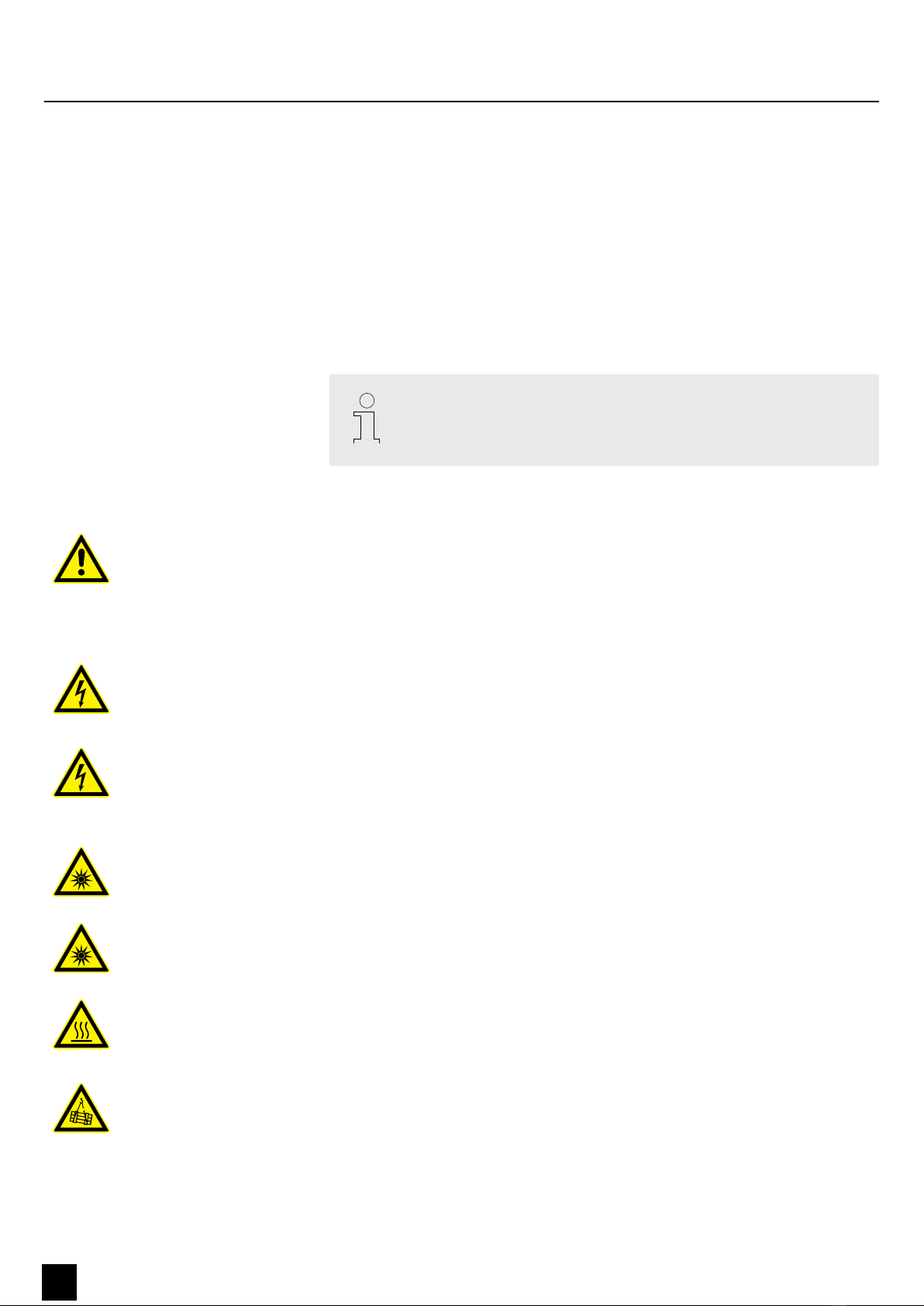

Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
Cross-references
General information
Wotan 300 5
Moving Head

2 Safety instructions
This device is intended for use as a freely moving multifunctional spotlight. The
device is designed for professional use and is not suitable for use in households. Use
the device only as described in this user manual. Any other use or use under other
operating conditions is considered to be improper and may result in personal injury
or property damage. No liability will be assumed for damages resulting from
improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding
frequent switching on and o. The device is not suitable for continuous
operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never
allow children to play with the packaging material and the device. Always store packaging material out of the reach of babies and
small children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without
supervision. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that
children could play with.
DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable
parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
DANGER!
Risk of death from electrical current!
A short circuit can cause res and loss of life. Always use properly insulated, tripe-core mains cable. Do not modify the mains
cable. If the insulation is damaged, immediately switch o the power supply and have it repaired. If in doubt, contact a qualied
electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING!
Risk of burns
The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and
after switching o wait for at least 15 minutes.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a
secondary safety attachment, such as a safety cable or a safety chain. The load capacity of trusses or other xtures must be su‐
cient for the intended number of devices. Not that the movement of the head places additional loads on the load-bearing parts.
Intended use
Safety instructions
6Wotan 300
Moving Head

CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn
on the device, when the device operates in automatic mode or under remote control and when you turn o a DMX controller that
is connected to the device. Persons staying near the device could be injured or frightened. Before you turn on the device and
during the operation, always ensure that nobody stays close to the device. If work has to be performed in the area of movement
or in the near vicinity of the device, it must remain turned o.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside
can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be main‐
tained by qualied service personnel at regular intervals to prevent overheating and other malfunction. The device must not be
moved during use.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure
the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of
electric shock or re.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series
must not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the
device. Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient
dimensioning (wire cross section) of the power cables used for all devices connected in series.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some
time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay
if necessary, i.e. felt pads or similar.
NOTICE!
Risk of overheating
The distance between light source and the illuminated surface must be more than 0.5 m. Provide sucient ventilation. The
ambient temperature must always be below 40 °C.
Safety instructions
Wotan 300 7
Moving Head

3 Features
The moving head is particularly suitable for professional lighting tasks, for example at
events, on rock stages, in theatres and musicals or in night clubs.
The device oers maximum exibility and is a cost-reducing and space-saving choice
for small to medium-sized stages, including those at trade fairs and gala events. It
meets every requirement of a professional event and creates both narrow beams and
wide-area illumination. Outstanding eects can be achieved with the help of pixel
control.
Special features of the device:
n7 × 40 W Wash moving head
nCompact design and a zoom range of 4.5°…36.5°
n7 × 40 W RGBWW LED
nMotorised zoom 4.5°…36.5°
n540° pan and 270° tilt range with automatic position correction
nOLED display, DMX, RDM
n16-bit dimmer
nDMX in/out: 5-pin XLR
nPower supply Power Twist TR1 in/out
nPower consumption: 295 W
nWeight: 6.3 kg
For technological reasons, the light output of LEDs decreases over their lifetime. This
eect increases with higher operating temperature. You can extend the service life of
the illuminants by providing adequate ventilation and operating the LEDs with the
lowest possible brightness.
Features
8Wotan 300
Moving Head

4 Installation
Unpack and check carefully there is no transportation damage before using the unit.
Keep the equipment packaging. To fully protect the product against vibration, dust
and moisture during transportation or storage use the original packaging or your
own packaging material suitable for transport or storage, respectively.
Lift the device only at the base. When lifted at the rotatable mounting, the device
may be damaged.
You can install the device standing or hanging. When in use, the device must be
mounted at a solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you
perform any kind of maintenance. Block access under the work area.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules
that apply in your country. Always secure the device with a secondary
safety attachment, such as a safety cable or a safety chain.
The load capacity of trusses or other xtures must be sucient for the
intended number of devices. Not that the movement of the head places
additional loads on the load-bearing parts.
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce
very bright light. This is also valid immediately after you turn on the
device, when the device operates in automatic mode or under remote
control and when you turn o a DMX controller that is connected to the
device. Persons staying near the device could be injured or frightened.
Before you turn on the device and during the operation, always ensure
that nobody stays close to the device. If work has to be performed in the
area of movement or in the near vicinity of the device, it must remain
turned o.
NOTICE!
Risk of overheating
The distance between light source and the illuminated surface must be
more than 0.5 m.
Provide sucient ventilation.
The ambient temperature must always be below 40 °C.
NOTICE!
Possible damage caused by movements of the device
Always ensure that enough space is free around the device for the
movements of the head (pan, tilt).
Installation
Wotan 300 9
Moving Head

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not
use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers
or ampliers.
Please note that this device must not be connected to a dimmer.
You can install the unit in hanging or standing position. When in use, the device must
always be attached to a solid surface or an approved mount. Use the openings pro‐
vided on the two-piece bracket for attaching.
The installation environment must be able to support 10 times the weight of the
devices to be attached without being deformed.
Always work from a stable platform whenever installing, moving or servicing the
unit. In doing so, the area underneath the device must be cordoned o.
Additionally secure the device with a safety cable that can bear at least 12 times the
weight of the device to be attached.
Mounting options
Installation
10 Wotan 300
Moving Head

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.

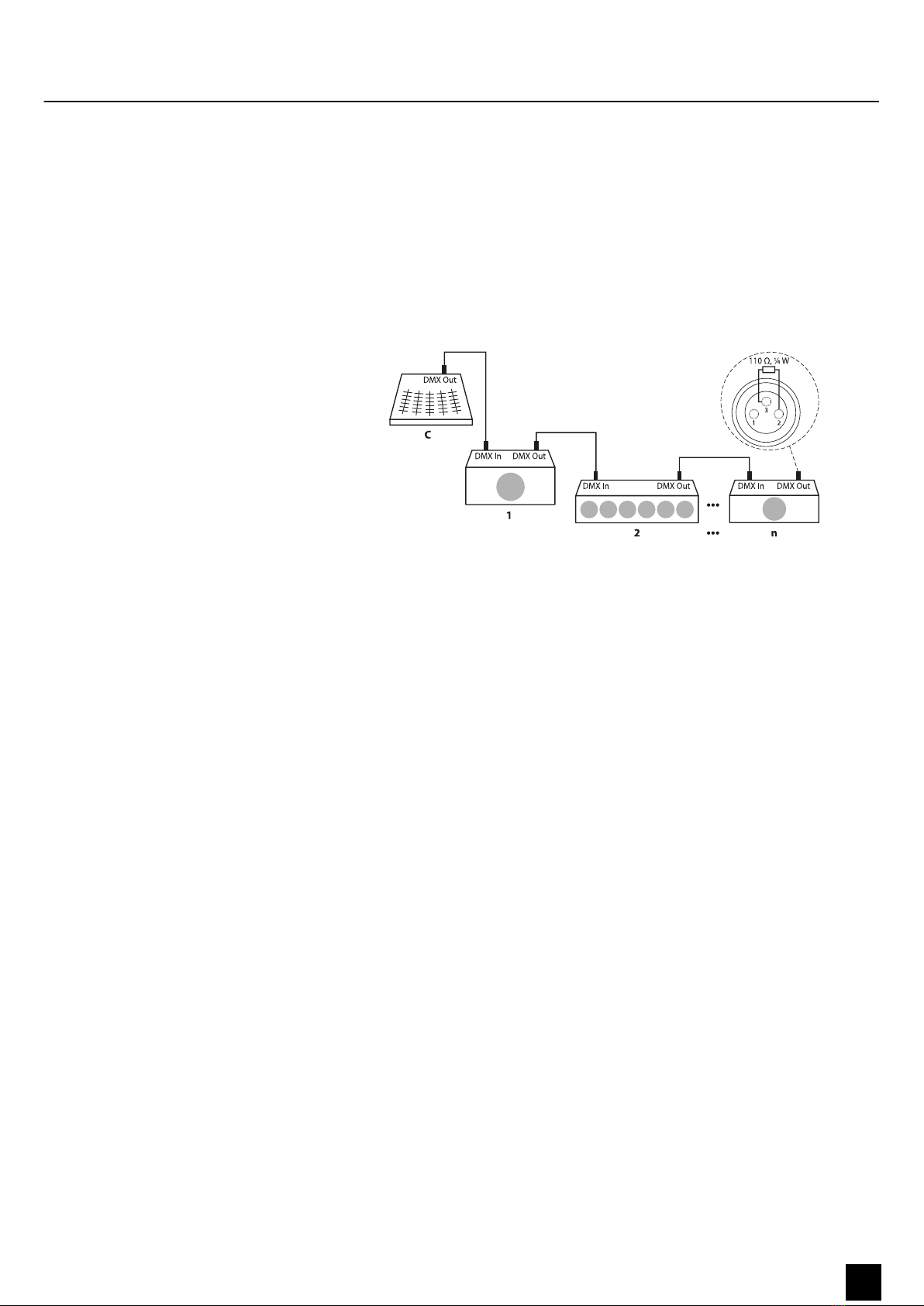

Connect the DMX input of the device to the DMX output of a DMX controller or
another DMX device. Connect the output of the rst DMX device to the input of the
second one, and so on to form a daisy chain. Always ensure that the output of the
last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
Wotan 300 11
Moving Head

6 Connections and operating elements
ö # $ % $ & '
1[DMX OUT] | DMX output, 5-pin
2[DMX IN] | DMX input, 5-pin
3 Operating elements
‘MENU’ | Activates the main menu and toggles between menu items. Closes an opened sub menu.
‘ENTER’ | Selects an option of the respective operating mode, conrms the set value.
| Increases the displayed value by one.
| Decreases the displayed value by one.
4 Display
5[Mains IN] | Lockable Power Twist TR1 input socket for the power supply
6[Mains OUT] | Lockable Power Twist TR1 output socket for the power supply for further devices
Connections and operating elements
12 Wotan 300
Moving Head

7 Operating
7.1 Starting the device
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce
very bright light. This is also valid immediately after you turn on the
device, when the device operates in automatic mode or under remote
control and when you turn o a DMX controller that is connected to the
device. Persons staying near the device could be injured or frightened.
Before you turn on the device and during the operation, always ensure
that nobody stays close to the device. If work has to be performed in the
area of movement or in the near vicinity of the device, it must remain
turned o.
Connect the device to the power supply to start operation. After a few seconds, the
fans start to work, the head moves to the home positions for rotation (pan) and incli‐
nation (tilt). After a few more seconds, the device will perform the last automatic
show. The name of the set show appears on the display, e.g. ‘Show 1’ .
7.2 Main menu
1. To enter the main menu, press [MENU].
2. To scroll between the individual menu items, press [UP] and [DOWN]. To open
the selected menu item, press [ENTER].
3. To exit the menu, press [MENU], or wait 30 seconds.
ðAll previous settings are retained even when the device is switched o and
disconnected from the mains.
4. To restart with default values, use the functions under ‘Reset Functions’ in the
main menu.
1. Open the main menu.
2. Navigate to ‘DMX Settings èDMX Address’.
3. Use [UP] and [DOWN] to select an address between 001 and 495/475.
4. Conrm your selection with [ENTER].
ðThe desired address is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
Make sure that this number matches the conguration of your DMX controller. The
following table shows the relevant address for the 4 units for the various DMX
modes.
How to use the main menu
Setting the DMX address
Operating
Wotan 300 13
Moving Head

Mode Address of unit 1 Address of
unit 2
Address of
unit 3
Address of
unit 4
18 chan‐
nels
1 19 37 55
38 chan‐
nels
1 39 77 115
The device can be controlled in 18 or 38-channel mode. To specify the desired mode,
proceed as follows:
1. Open the main menu.
2. Navigate to ‘DMX Settings èChannel Mode’.
3. Use [UP] and [DOWN] to switch between ‘Mode1(18)’ and ‘Mode2(38)’ .
4. Conrm your selection with [ENTER].
ðThe desired mode is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘DMX Settings èNo DMX Status’.
3. Use [UP] and [DOWN] to select one of the following statuses:
n‘Blackout’ (The lamp turns o)
n‘Hold’ (The device continues to operate in the current mode with the last
active DMX values until the signal returns)
n‘Manual’ (The device accepts the DMX value stored in the ‘Manual Test’
menu)
4. Conrm your selection with [ENTER].
ðThe desired status is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘DMX Settings èView DMX Value’.
3. Use [UP] and [DOWN] to select the desired DMX channel, for which the value is
to be displayed.
4. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èPan Invert’.
3. Use [UP] and [DOWN] to select ‘No’ (Pan Invert deactivated) or ‘Yes’ (Pan Invert
activated).
4. Conrm your selection with [ENTER].
ðPan inversion is activated or deactivated.
Specifying the DMX mode
Behaviour on DMX signal interrupt
DMX value display
Activating or deactivating pan inver‐
sion
Operating
14 Wotan 300
Moving Head

5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èTilt Invert’.
3. Use [UP] and [DOWN] to select ‘No’ (Tilt Invert deactivated) or ‘Yes’ (Tilt Invert
activated).
4. Conrm your selection with [ENTER].
ðTilt inversion is activated or deactivated.
5. To exit the menu, press [MENU], or wait 30 seconds.
This function causes the pan or tilt positions to be automatically adjusted to the cor‐
rect position when they are twisted. To enable or disable this function, proceed as
follows:
1. Open the main menu.
2. Navigate to ‘Fixture Settings èP/T Feedback’.
3. Use [UP] and [DOWN] ‘No’ (Tilt / Pan Feedback deactivated) or ‘Yes’ (Tilt / Pan
Feedback activated).
4. Conrm your selection with [ENTER].
ðThe “Tilt / Pan Feedback” function is activated or deactivated.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èZoom Invert’.
3. Use [UP] and [DOWN] to select ‘No’ (normal zoom) or ‘Yes’ (inverted zoom).
4. Conrm your selection with [ENTER].
ðThe zoom mode is specied.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èFan Mode’.
3. Use [UP] and [DOWN] to select ‘Auto’ (automatic speed) or ‘Silent’ (reduced
speed).
4. Conrm your selection with [ENTER].
ðThe fan mode is specied.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èDimmer Curve’.
Activating or deactivating tilt inver‐
sion
Activating or deactivating “Tilt / Pan
Feedback”
Specifying the zoom mode
Specifying the fan mode
Specify dimming mode
Operating
Wotan 300 15
Moving Head

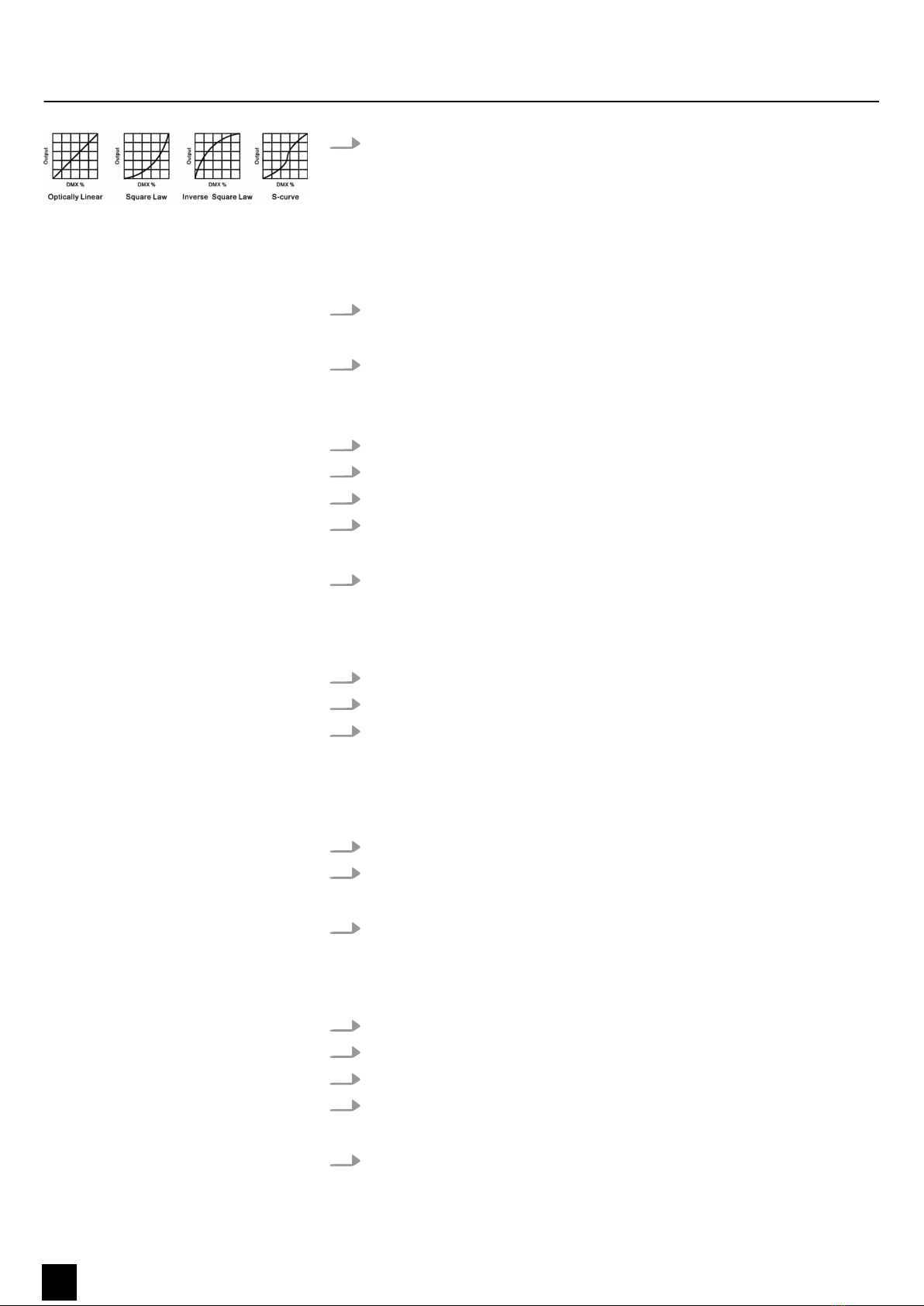

3. Use [UP] and [DOWN] to select one of the following settings:
n‘Linear’ : The light intensity increases linearly with the DMX value.
n‘Square Law’ : The light intensity is ner in the lower range, and can be
adjusted in the upper range.
n‘Inv SQ Law’ : The light intensity is coarser in the lower range, and can be
adjusted in the upper range.
n‘S Curve’ : The light intensity is ne in the upper and lower range, and can
be adjusted in the mid range.
4. Conrm your selection with [ENTER].
ðThe desired setting is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èDimmer Speed’.
3. Use [UP] and [DOWN] to select ‘Fast’ or ‘Smooth’ .
4. Conrm your selection with [ENTER].
ðThe dimmer speed is specied.
5. To exit the menu, press [MENU], or wait 30 seconds.
You can specify the white balance for all LEDs, or make individual settings for each of
the 7 LEDs.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èWhite Balance’.
3. Use [UP] and [DOWN] to select one of the following settings:
n‘Red’ /‘Green’ /‘Blue’ : Overall balance for the respective colour for all LEDs
n‘Red1’ …‘Red7’ : Individual balance for the colour red for each LED
n‘Green1’ …‘Green7’ : Individual balance for the colour green for each LED
n‘Blue1’ …‘Blue7’ : Individual balance for the colour blue for each LED
4. Conrm your selection with [ENTER].
5. Use [UP] and [DOWN] to select a value between ‘125’ and ‘255’ .
ðThe white balance is specied.
6. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Fixture Settings èColor Calibration’.
3. Use [UP] and [DOWN] to select ‘O’(disabled) or ‘On’ (enabled).
4. Conrm your selection with [ENTER].
ðColour calibration is enabled or disabled.
5. To exit the menu, press [MENU], or wait 30 seconds.
Specify the dimmer speed
Specifying the white balance
Activating or deactivating colour cali‐
bration
Operating
16 Wotan 300
Moving Head

1. Open the main menu.
2. Navigate to ‘Fixture Settings èCalibration Mode’.
3. Use [UP] and [DOWN] to select ‘High CRI’ (high colour rendering) or ‘High
Output’ (high output).
4. Conrm your selection with [ENTER].
ðThe colour calibration mode is specied.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Display Settings èDisplay Invert’.
3. Use [UP] and [DOWN] to select ‘No’ (Display normal) or ‘Yes’ (Display inverted).
ðSelecting ‘Yes’ rotates the display by 180°.
4. Conrm your selection with [ENTER].
ðThe desired setting is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Display Settings èTemperature Unit’.
3. Use [UP] and [DOWN] to select the ‘°C’ (degrees Celsius) or ‘°F’ (degrees Fah‐
renheit) submenu.
4. Conrm your selection with [ENTER].
ðThe desired setting is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Display Settings èDisplay Warning’.
3. Use [UP] and [DOWN] to select ‘O’(display warning switched o) or ‘On’ (dis‐
play warning switched on).
4. Conrm your selection with [ENTER].
ðThe desired setting is saved.
5. To exit the menu, press [MENU], or wait 30 seconds.
Specifying the colour calibration
mode
Inverting the display
Selecting the unit for the temperature
display
Setting the display warning
Operating
Wotan 300 17
Moving Head

1. Open the main menu.
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce
very bright light. This is also valid immediately after you turn on the
device, when the device operates in automatic mode or under remote
control and when you turn o a DMX controller that is connected to the
device. Persons staying near the device could be injured or frightened.
Before you turn on the device and during the operation, always ensure
that nobody stays close to the device. If work has to be performed in the
area of movement or in the near vicinity of the device, it must remain
turned o.
2. Navigate to ‘Auto Test’.
ðThe device immediately performs an automatic self test. The following
functions are tested: Pan, tilt, tilt/pan speed, zoom, dimmer, shutter, all col‐
ours and pixel control.
3. To end the automatic self test and exit the menu, press [MENU], or wait 30 sec‐
onds.
1. Open the main menu.
2. Navigate to ‘Manual Test’.
ðThe current channel is displayed.
3. Use [UP] and [DOWN] to select the channel for which the self test is to be per‐
formed.
4. Conrm your selection with [ENTER].
5. Use [UP] and [DOWN] to select the type of self-test (pan, tilt, tilt/pan speed,
zoom, dimmer, shutter, colours or pixel control).
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce
very bright light. This is also valid immediately after you turn on the
device, when the device operates in automatic mode or under remote
control and when you turn o a DMX controller that is connected to the
device. Persons staying near the device could be injured or frightened.
Before you turn on the device and during the operation, always ensure
that nobody stays close to the device. If work has to be performed in the
area of movement or in the near vicinity of the device, it must remain
turned o.
6. Conrm your selection with [ENTER].
ðThe device immediately performs the selected self test. The selected
channel is displayed.
Performing an automatic self test
Performing a manual self test
Operating
18 Wotan 300
Moving Head

7. To end the self test and exit the menu, press [MENU], or wait 30 seconds.
The device returns to its original DMX state after the self test. The test
values are saved automatically when the device is switched o.
1. Open the main menu.
2. Navigate to ‘Information’.
3. Use [UP] and [DOWN] to select the ‘Fixture Use Hour’ , ‘Temperature’ , ‘Fan
State’ , ‘Firmware Version’ or ‘RDM UID’ submenu.
4. Conrm your selection with [ENTER].
ðDepending on your selection, the operating hours, the device tempera‐
ture, the fan status, the rmware version or the RDM UI is displayed.
5. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Information èLED Use Hour’.
3. Use [UP] and [DOWN] to select the ‘Total LED Hour’ (total time) or ‘LED On
Hour’ (current switch-on time) submenu.
4. Conrm your selection with [ENTER].
ðThe desired selection is saved.
5. Use [UP] and [DOWN] to select the ‘LED Hours Reset’ submenu.
6. Conrm your selection with [ENTER].
7. If you wish to reset the relevant LED operating hours, select ‘Yes’ . If you do not
wish to reset anything, select ‘No’ .
8. Conrm your selection with [ENTER].
ðA three-digit PIN is displayed.
9. Use [UP] and [DOWN] to enter the digits ‘050’ .
10. Conrm your input with [ENTER].
ðThe previously selected LED operating hours are reset.
11. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Information èError Logs’.
3. Use [UP] and [DOWN] to select the ‘Fixture Errors’ submenu.
4. Conrm your selection with [ENTER].
ðThe desired selection is saved.
5. Use [UP] and [DOWN] to select the ‘Reset Error Log’ submenu.
6. Conrm your selection with [ENTER].
Displaying device information
Displaying and resetting LED informa‐
tion
Displaying and resetting an error log
Operating
Wotan 300 19
Moving Head

7. If you wish to reset the relevant error logs, select ‘Yes’ . If you do not wish to
reset anything, select ‘No’ .
8. Conrm your selection with [ENTER].
ðIf you selected ‘Yes’ , a three-digit PIN is displayed; otherwise the previous
submenu is displayed again.
9. Use [UP] and [DOWN] to enter the digits ‘050’ .
10. Conrm your input with [ENTER].
ðThe error logs are reset.
11. To exit the menu, press [MENU], or wait 30 seconds.
1. Open the main menu.
2. Navigate to ‘Reset Functions’.
3. Use [UP] and [DOWN] to select the ‘Pan/Tilt Reset’ (resets the axis movements),
‘Eect Reset’ (resets the eects) or ‘All Reset’ (resets all settings) menu.
4. Conrm your selection with [ENTER].
5. If you wish to reset the respective settings, select ‘Yes’ . If you do not wish to
reset anything, select ‘No’ .
6. Conrm your selection with [ENTER].
7. To exit the menu, press [MENU], or wait 30 seconds.
The menu item ‘Factory Restore’ gives you the option of resetting the device to its
factory settings.
1. Open the main menu.
2. Navigate to ‘Factory Restore’.
3. If you wish to reset the device to the factory settings, select ‘Yes’ . If you do not
wish to reset anything, select ‘No’ .
4. Conrm your selection with [ENTER].
5. To exit the menu, press [MENU], or wait 30 seconds.
Certain menus of the device and functions can be called up via the RDM protocol.
RDM-Code RDM Device ID Model ID RDM Personality
ID
0074h Random, based on
the respective
device ID
0x542(1346) 0x0102(18CH)
0x0202(38CH)
The parameter IDs are implemented as follows for dierent commands:
Parameter ID Command
‘Discovery’
Command
‘Set’
Command
‘Get’
DISC_UNIQUE_BRANCH X X X
DISC_MUTE X X X
Resetting individual functions
Reset to factory defaults
RDM functions
Operating
20 Wotan 300
Moving Head
